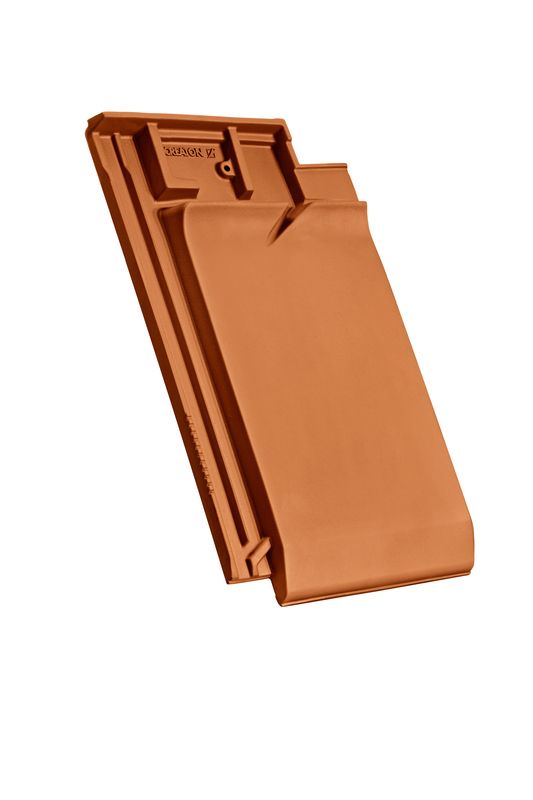

MIKADO NUANCE slate shade engobed

MIKADO

The sophisticated smooth tile.

  • The adjustment range of around 29 mm in the top and bottom interlock areas offers outstanding versatility in all new-build and renovation projects that the tile is used in, making roofing easier.
  • First-class raw materials ensure exceptional homogeneity with low shrinkage, and the high level of iron oxide creates brilliantly intense authentic colours
  • Two robust suspension lugs keep the tile firmly in place and ensure effective ventilation.
  • Can be used in ancillary buildings with bonded coverage for roof pitches of 10°, with a waterproof sub-roof, in accordance with Central Association of the German Roofing Trade (ZVDH) guidelines

Note: For this model, a color change was made to the NUANCE copper red. Further information can be found here: Product range info.

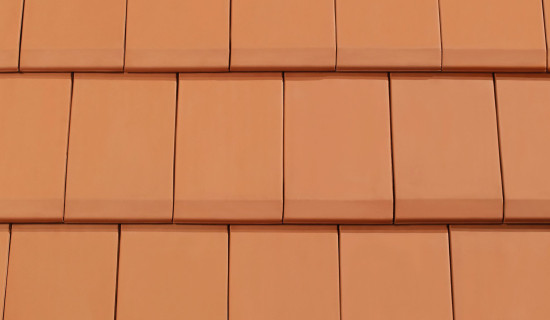

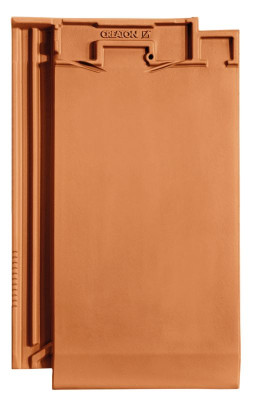

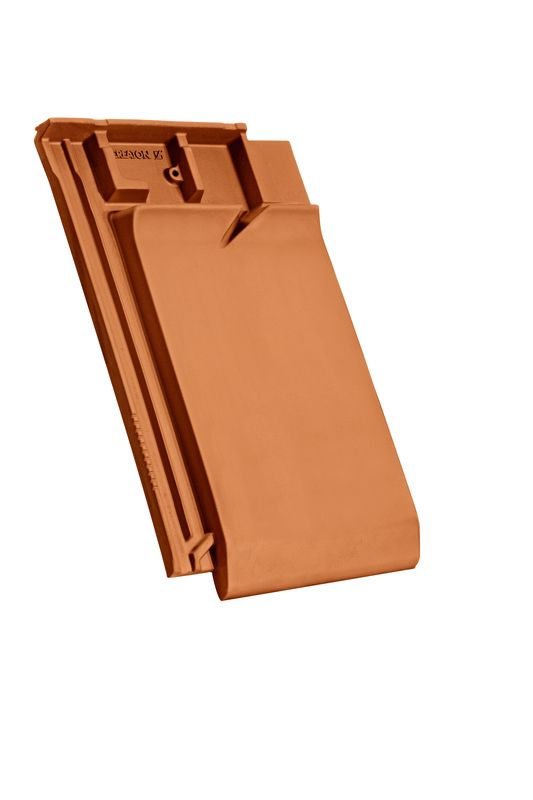

natural red
natural red

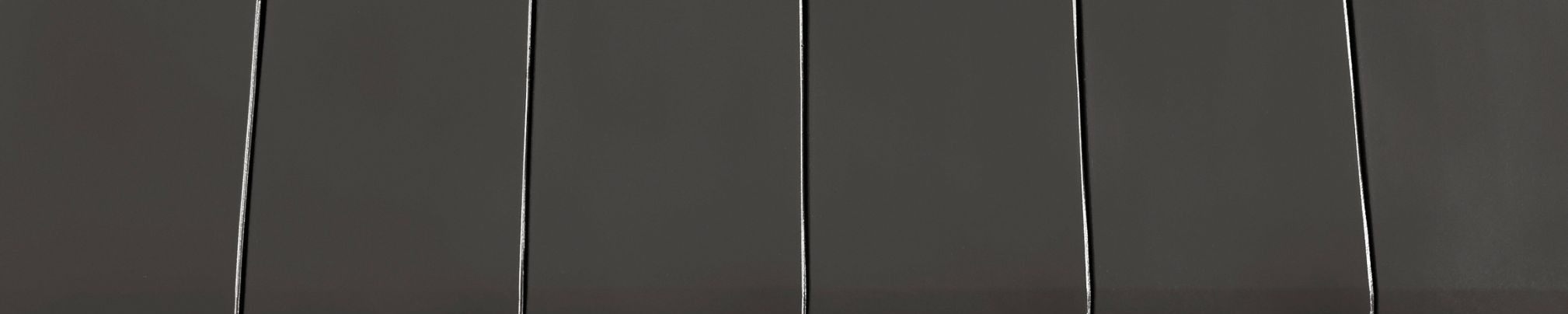

NUANCE slate grey engobed
NUANCE slate grey engobed
NUANCE black matt engobed
NUANCE black matt engobed
NUANCE copper red engobed
NUANCE copper red engobed

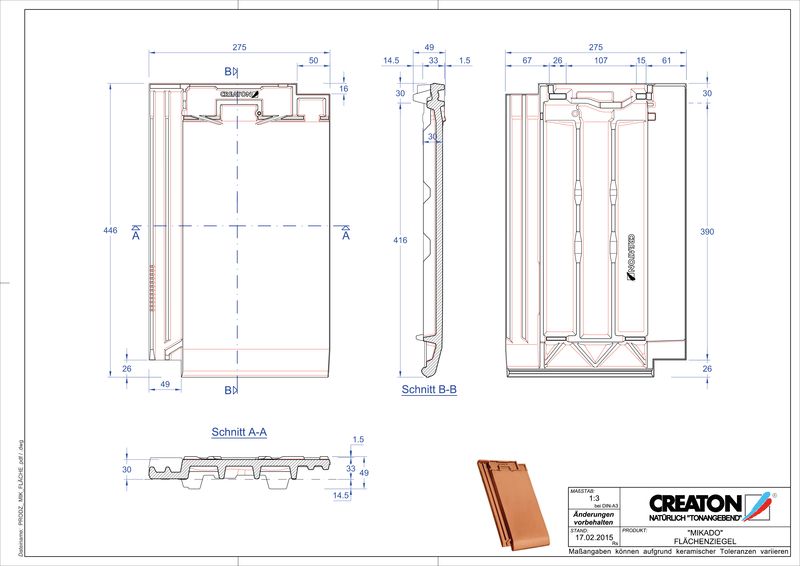

Technical data

Size (appr.)275 x 446 mm
Covering width min. approx.227 mm
Covering width on av. approx.229 mm
Max. coverage width (approx.)231 mm
Min. gauge (approx.)343 mm
Covering length on av. approx.357 mm
Max. gauge (approx.)371 mm
Tile requirement min. (approx.)11.7 pcs/m²
Average tile requirement (approx.)12.2 pcs/m²
Brickware max. approx.12.8 pcs/m²
Unit weight (approx.)3.4 kg/piece
Weight per m² (approx.)39.8 kg/m²
Weight per pallet (approx.)841 kg
Pcs per mini-pack5 piece
Pcs per pallet240 piece

Technical drawings

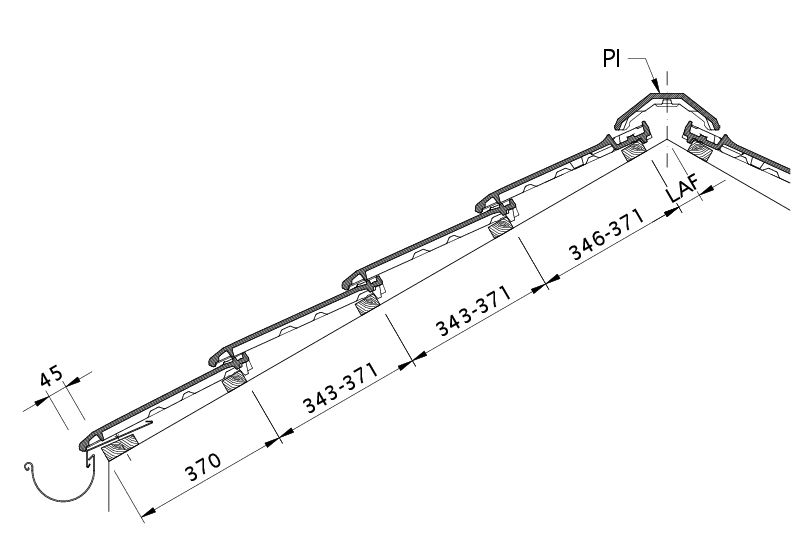

Drawing MIKADO roof cross-section DQF
Drawing MIKADO roof cross-section DQF

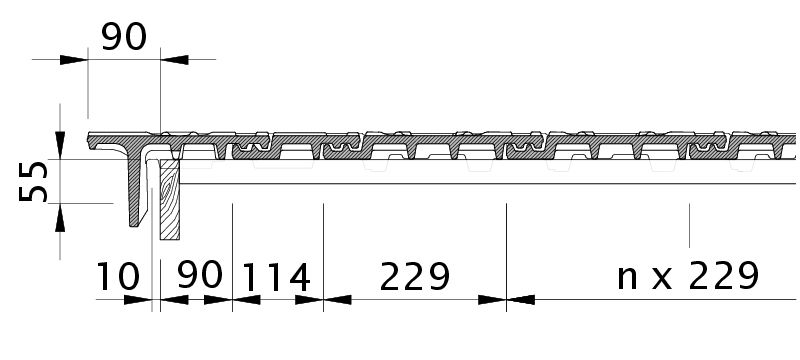

Drawing MIKADO verge tile left with barge board OBL
Drawing MIKADO verge tile left with barge board OBL

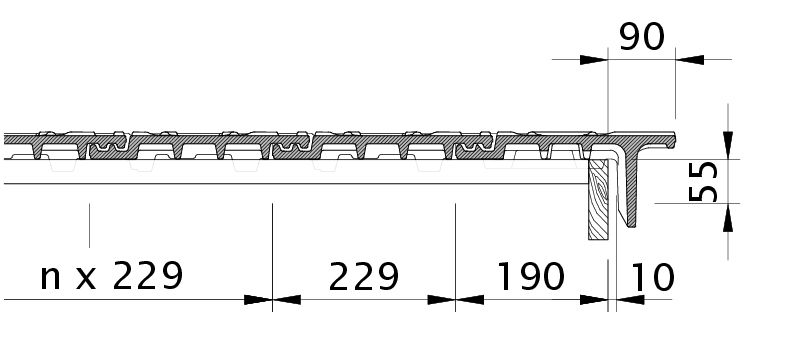

Drawing MIKADO verge tile right with barge board OBR
Drawing MIKADO verge tile right with barge board OBR

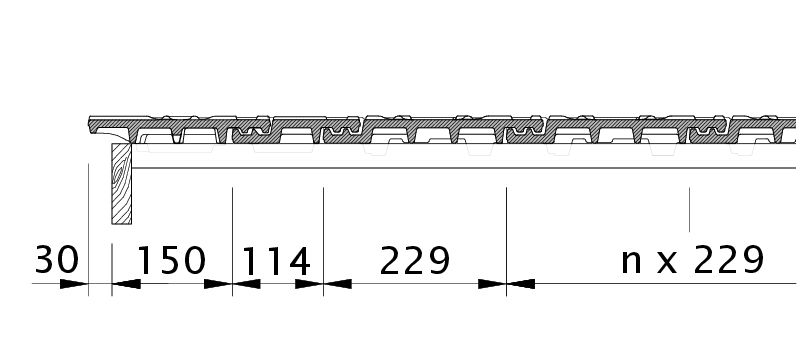

Drawing MIKADO verge left with verge sheet metal and double roll ODL
Drawing MIKADO verge left with verge sheet metal and double roll ODL

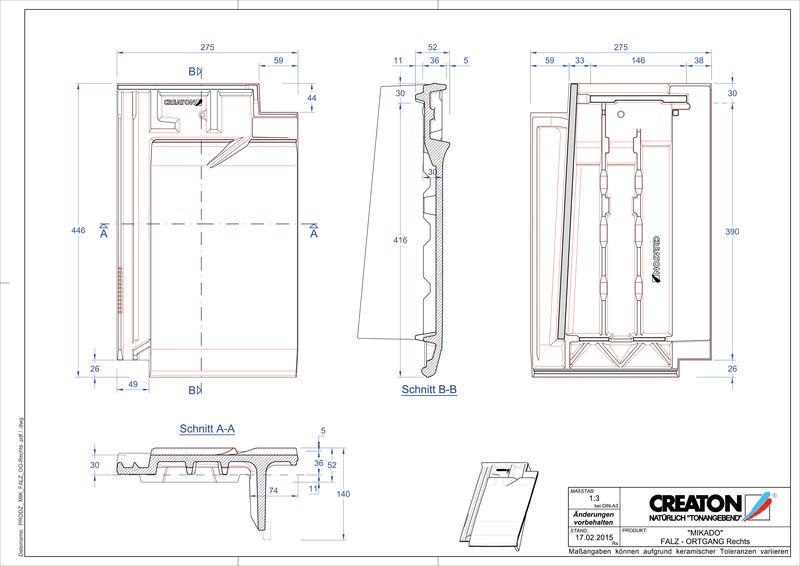

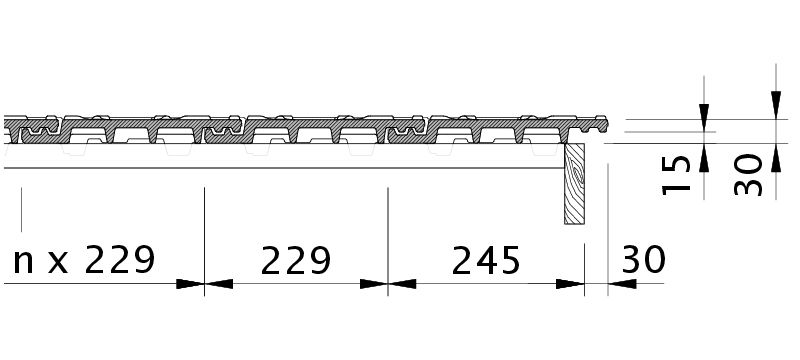

Drawing MIKADO verge right with verge sheet metal and field tile OFR
Drawing MIKADO verge right with verge sheet metal and field tile OFR

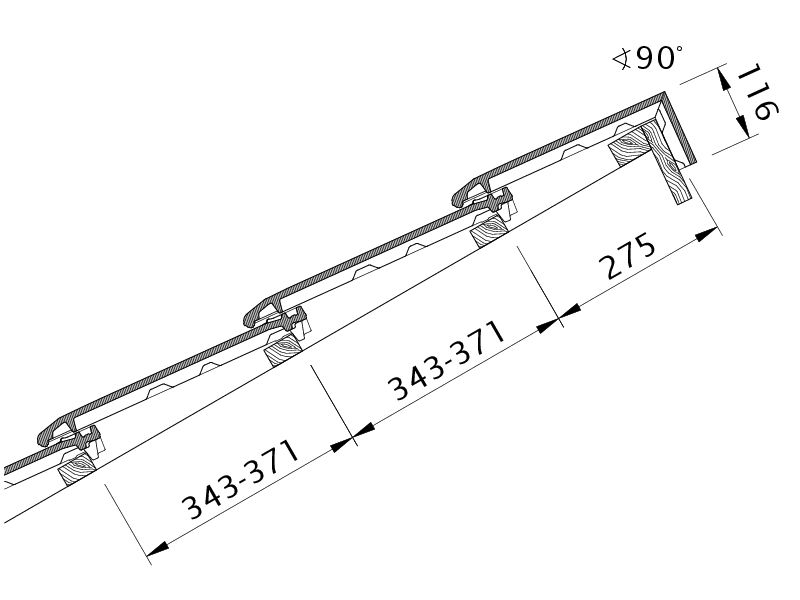

Drawing MIKADO shed roof version PDA
Drawing MIKADO shed roof version PDA

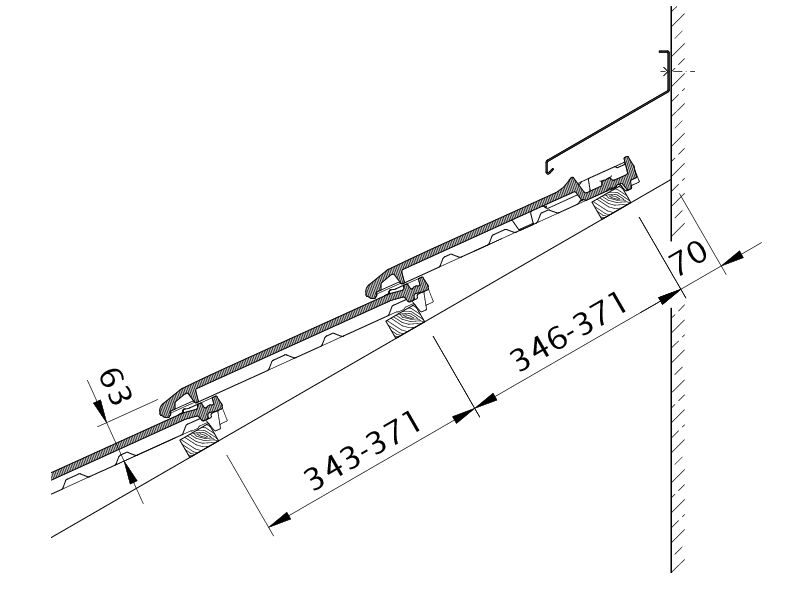

Drawing MIKADO wall connection (above) with FALZ WMF
Drawing MIKADO wall connection (above) with FALZ WMF

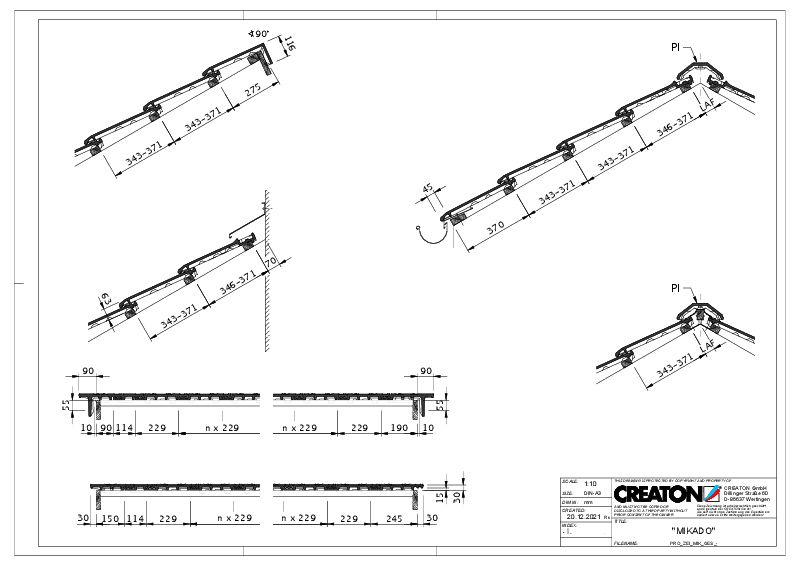

Drawing MIKADO general view GES
Drawing MIKADO general view GES

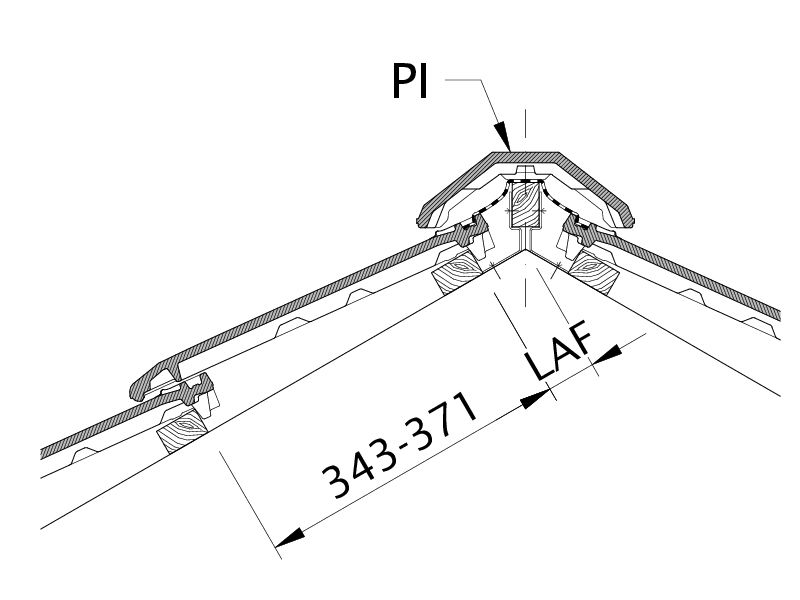

Zeichnung MIKADO Lattenabstand zum Firstschnittpunkt LAF
Zeichnung MIKADO Lattenabstand zum Firstschnittpunkt LAF

Applications

Additional measures according to CREATON manufacturer's specifications
18 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 18 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 16 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°
PI 2.8 pcs/mLAF707065605550454030
PI 2.8 pcs/mFLA959080757060605055
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°
PI 2.8 pcs/mLAF707065555045403015
PI 2.8 pcs/mFLA10510090858070706065
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°
PI 2.8 pcs/mLAF65656050453530205
PI 2.8 pcs/mFLA115110100959085857585

Accessory range

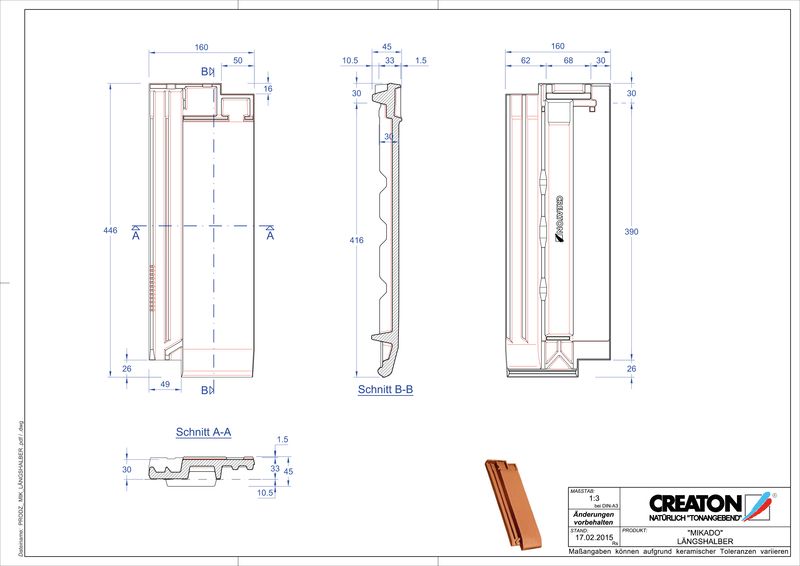

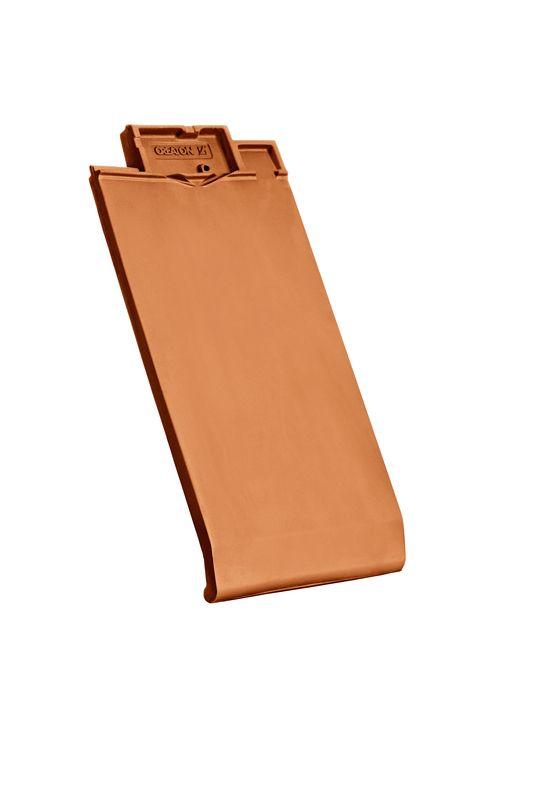

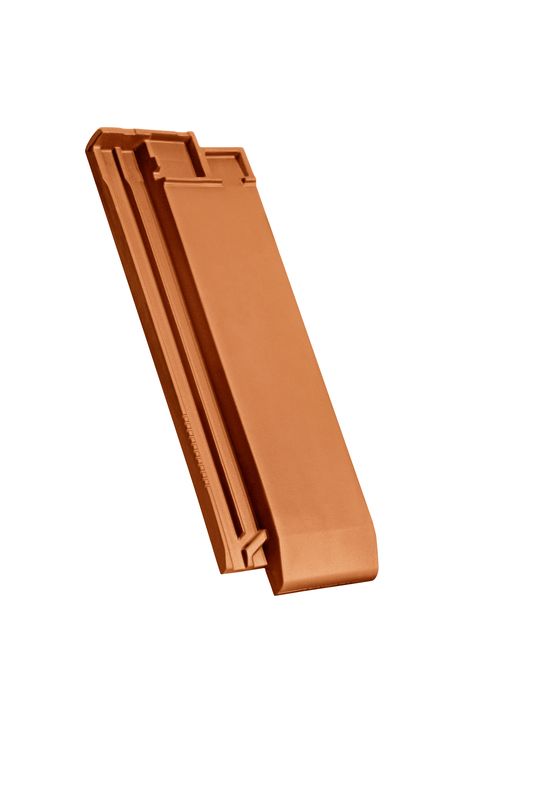

MIK half-width tile

MIK half-width tile

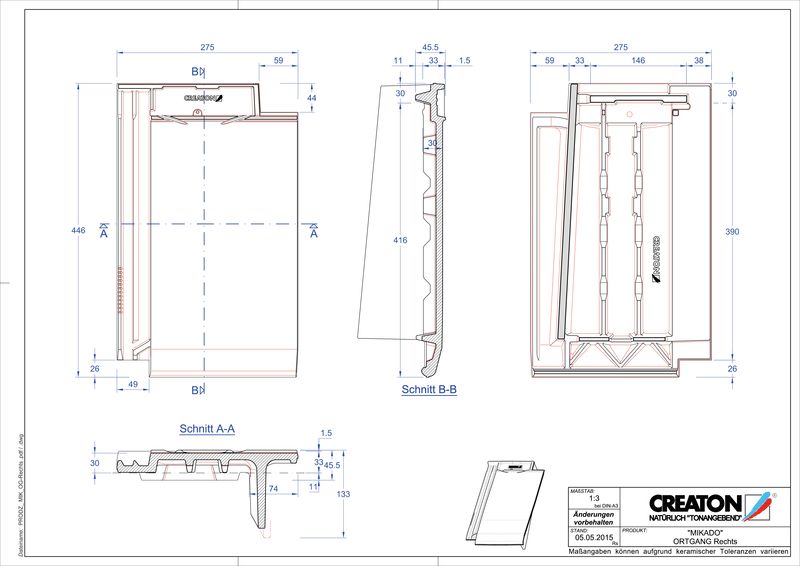

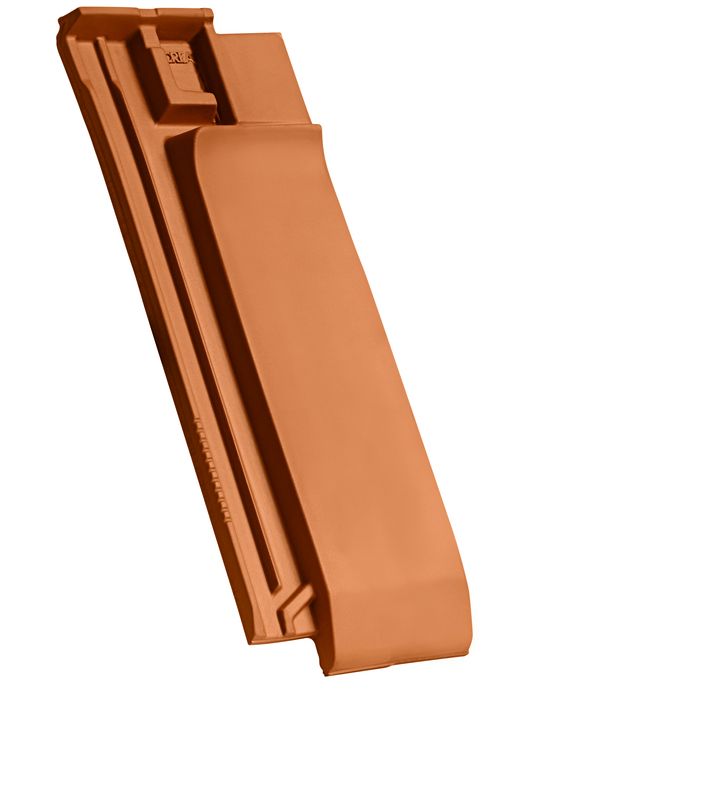

MIK verge tile right

MIK verge tile right

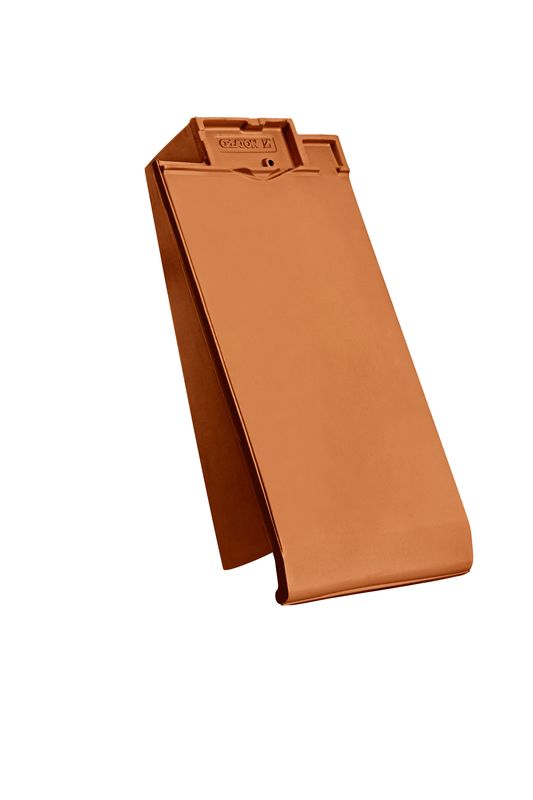

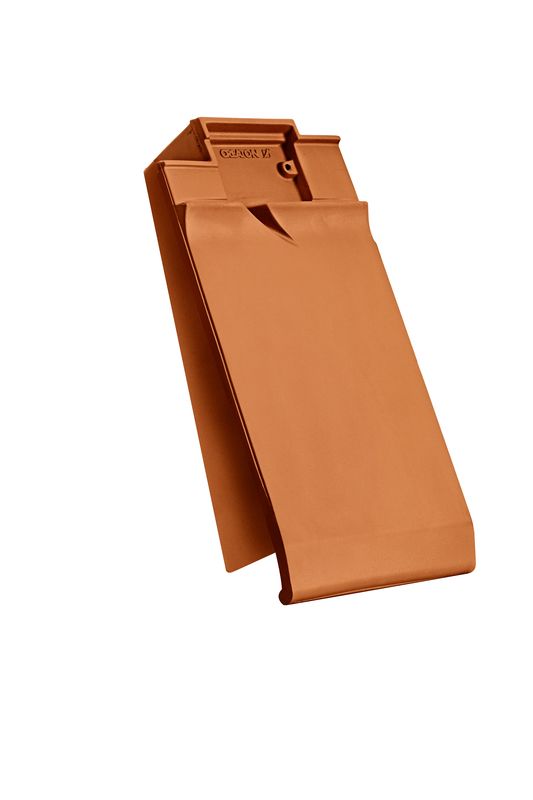

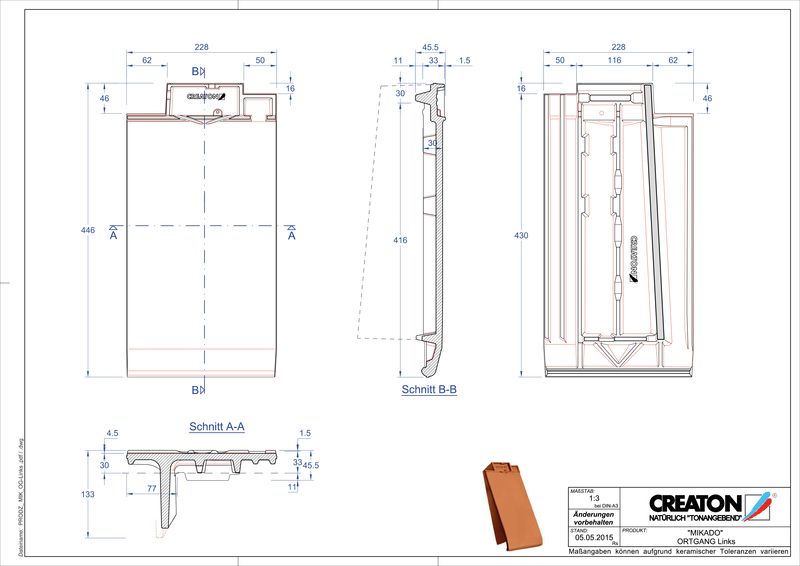

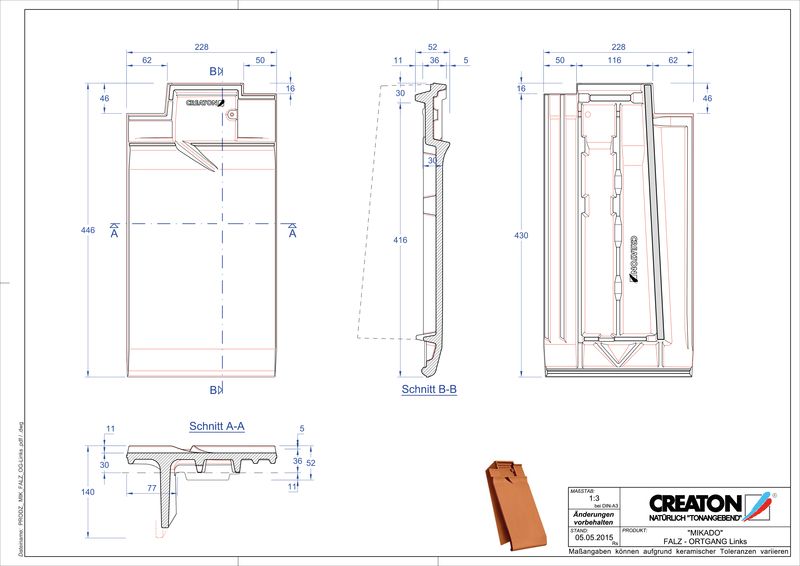

MIK verge tile left

MIK verge tile left

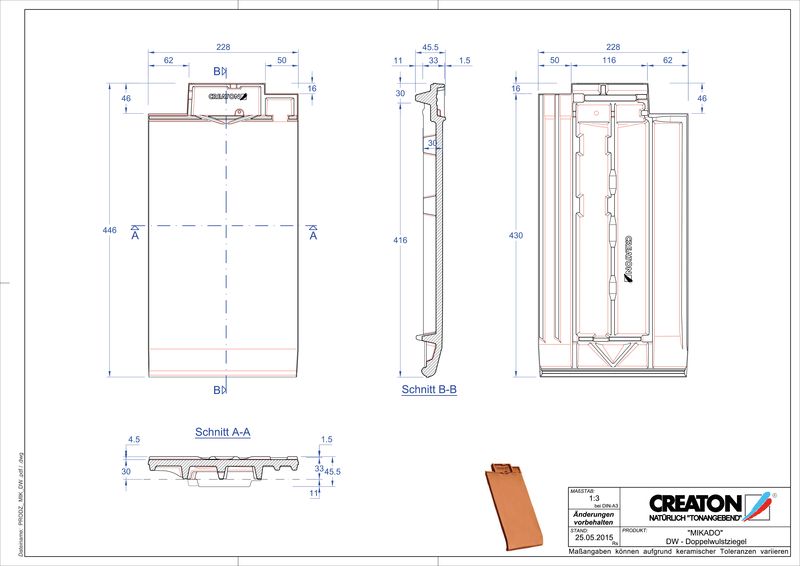

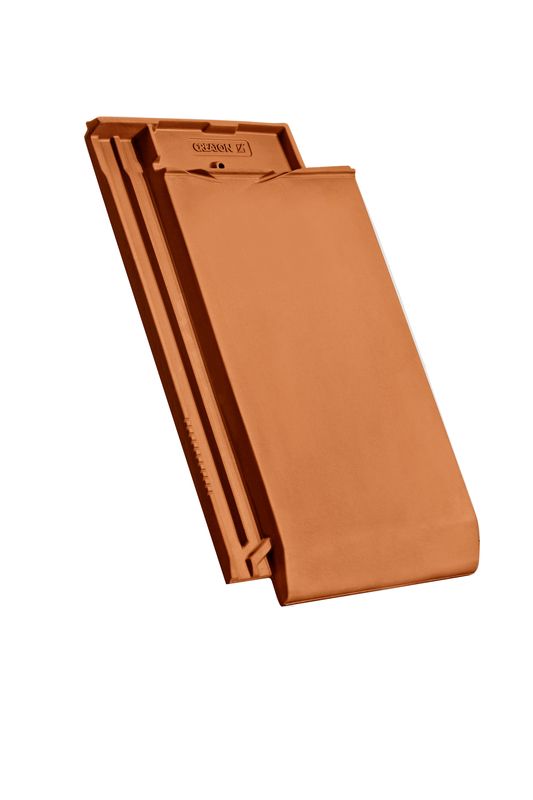

MIK double roll tile

MIK double roll tile

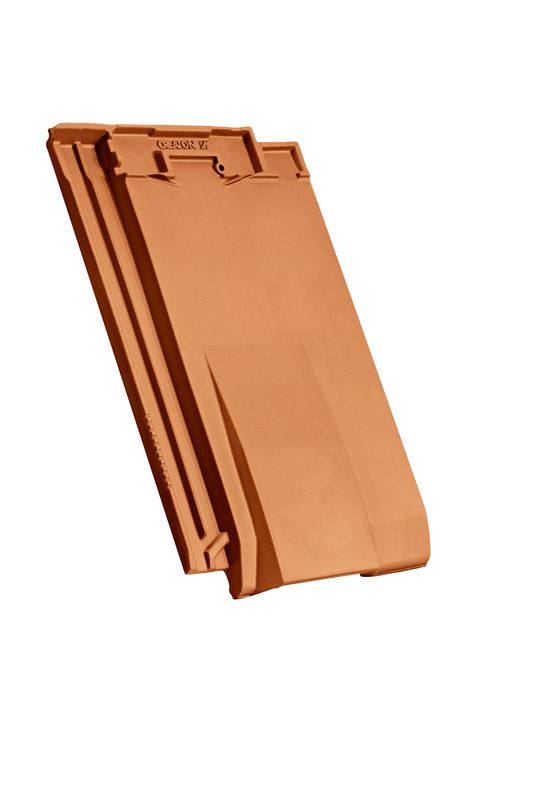

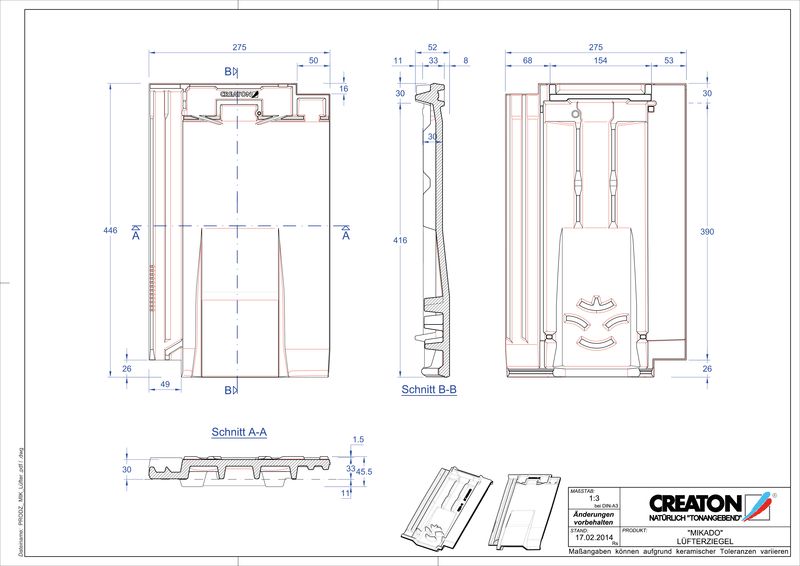

MIK ventilating tile

MIK ventilating tile

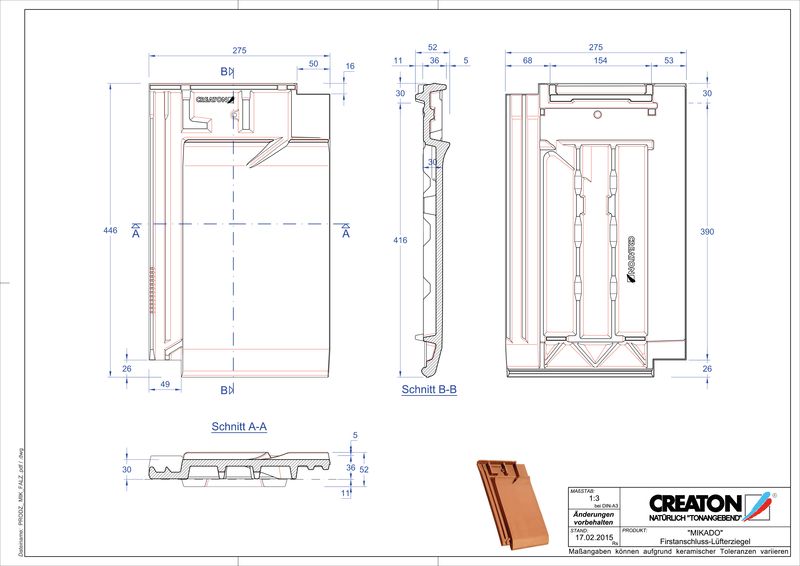

MIK ridge connection ventilating tile

MIK ridge connection ventilating tile

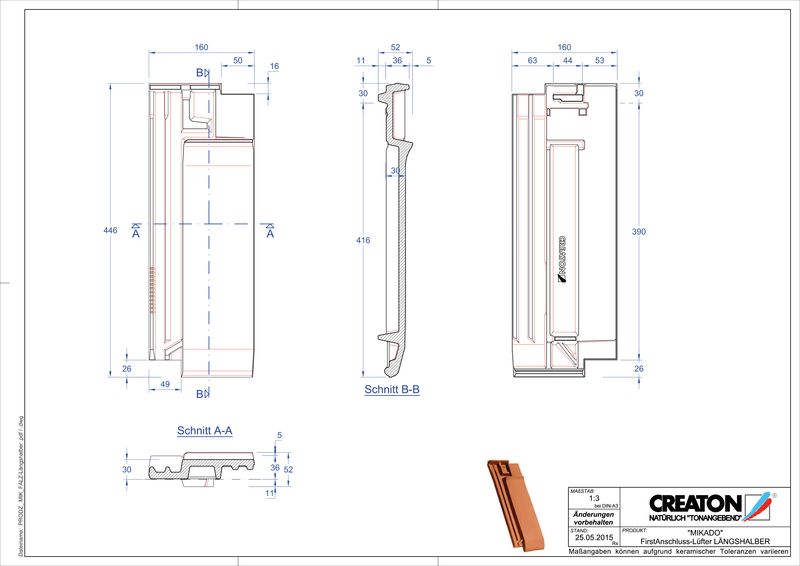

MIK ridge connection ventilating half-width tile

MIK ridge connection ventilating half-width tile

MIK ridge connection ventilating verge tile right

MIK ridge connection ventilating verge tile right

MIK ridge connection ventilating verge tile left

MIK ridge connection ventilating verge tile left

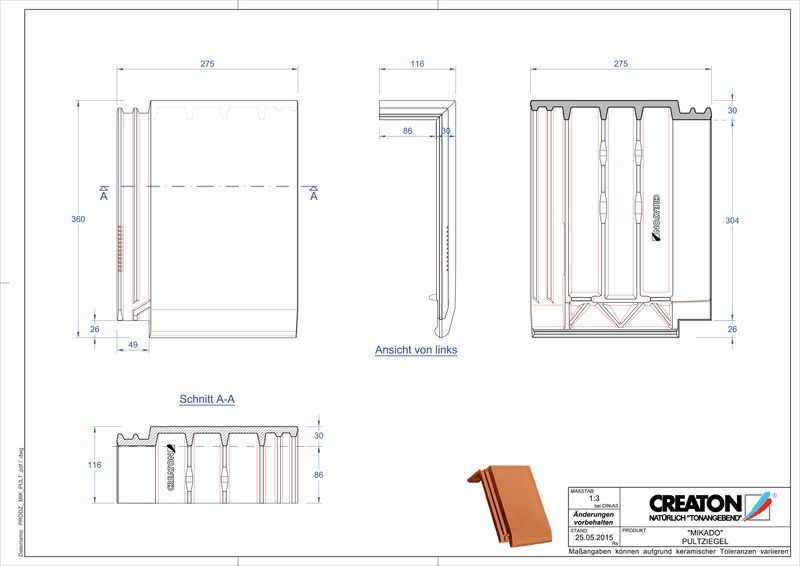

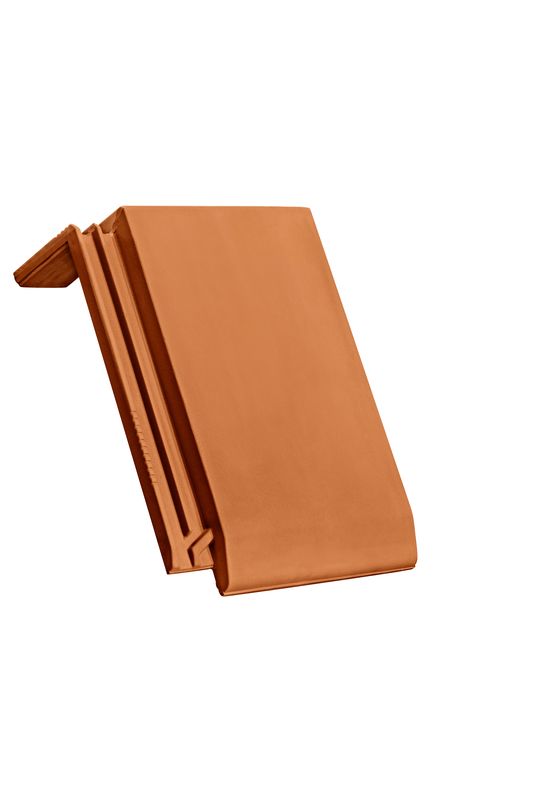

MIK shed roof tile decorated standard

MIK shed roof tile decorated standard

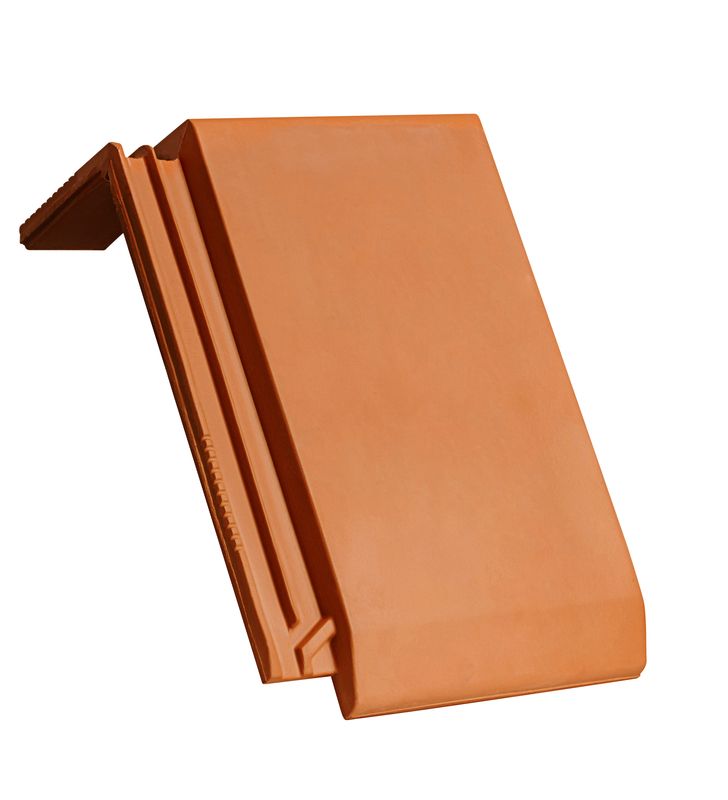

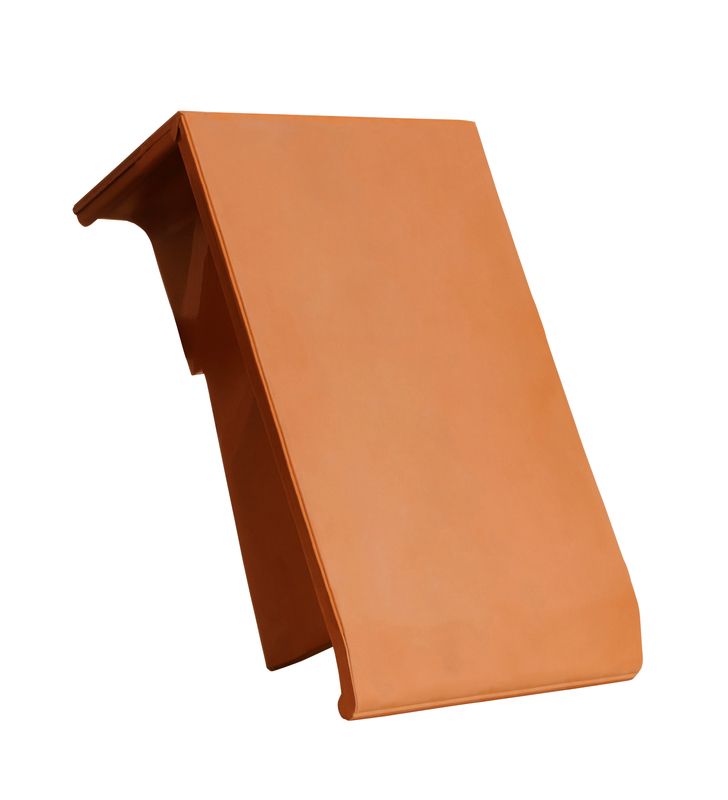

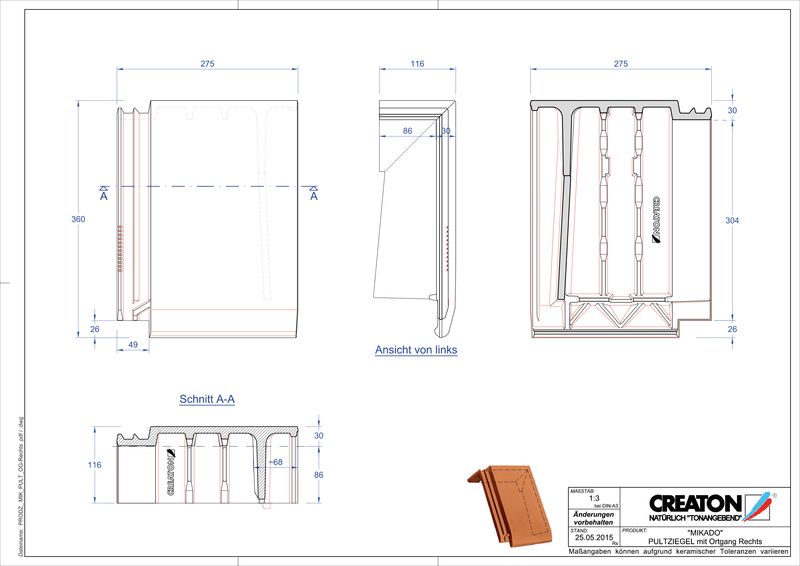

MIK shed roof verge tile decorated standard right

MIK shed roof verge tile decorated standard right

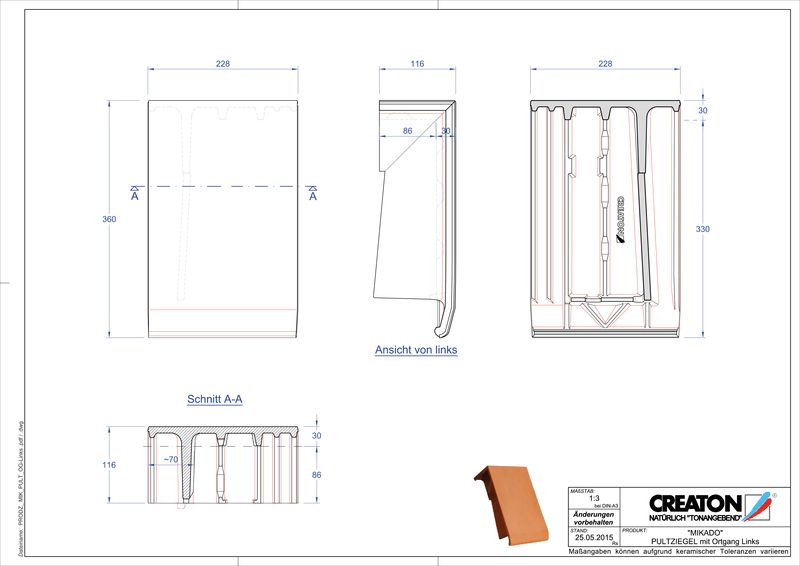

MIK shed roof verge tile decorated standard left

MIK shed roof verge tile decorated standard left

MIK shed roof tile decorated special size

MIK shed roof tile decorated special size

MIK shed roof verge tile decorated special size right

MIK shed roof verge tile decorated special size right

MIK shed roof verge tile decorated special size left

MIK shed roof verge tile decorated special size left

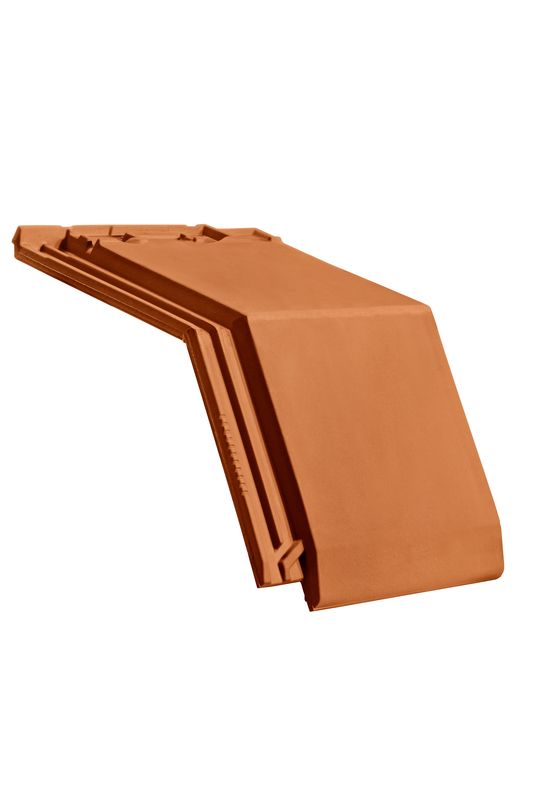

MIK mansard/pitch transition tile decorated special size

MIK mansard/pitch transition tile decorated special size

MIK mansard/pitch transition verge tile decorated special size right

MIK mansard/pitch transition verge tile decorated special size right

MIK mansard/pitch transition verge tile decorated special size left

MIK mansard/pitch transition verge tile decorated special size left

MIK ridge connection ventilating half-width tile

MIK ridge connection ventilating half-width tile

Product range for roof ventilation and penetrations

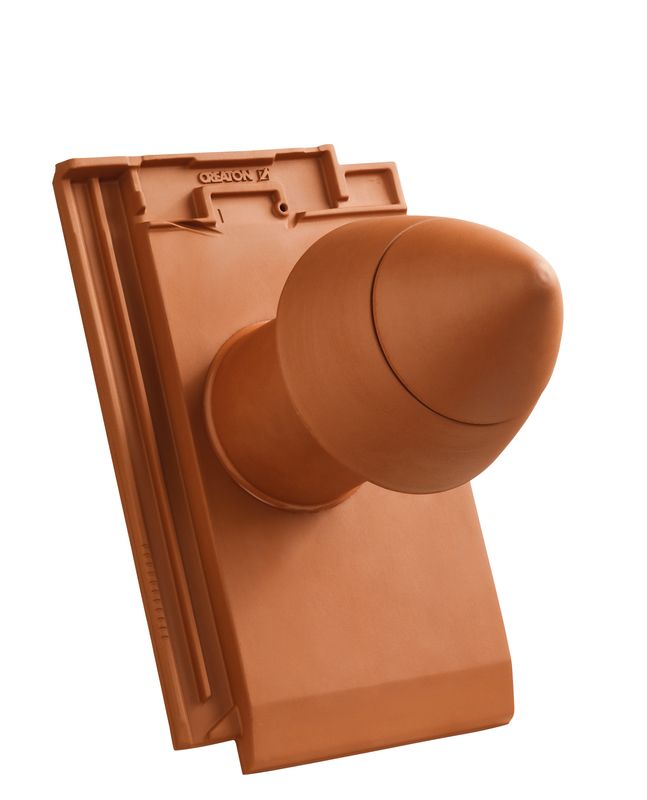

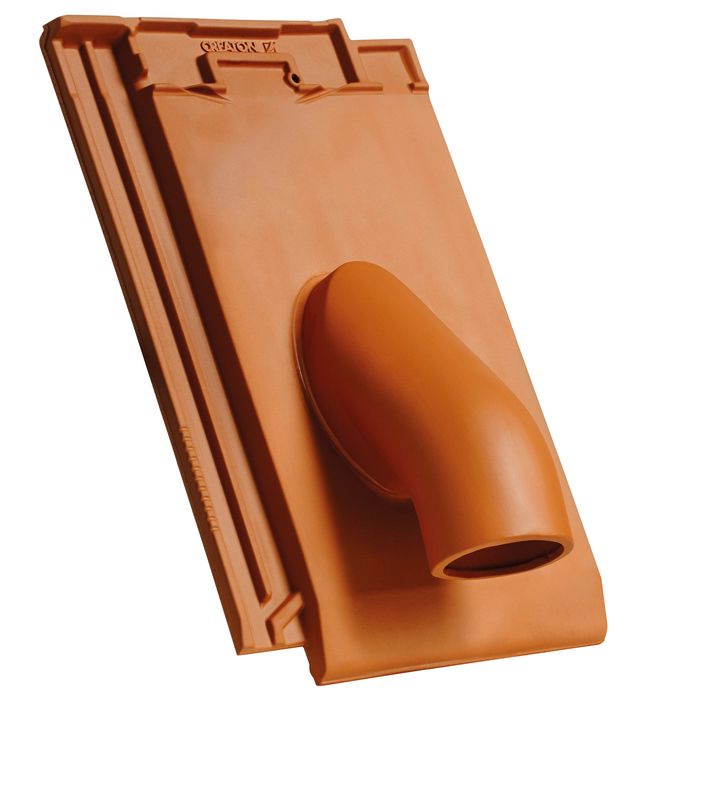

MIK SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

MIK SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

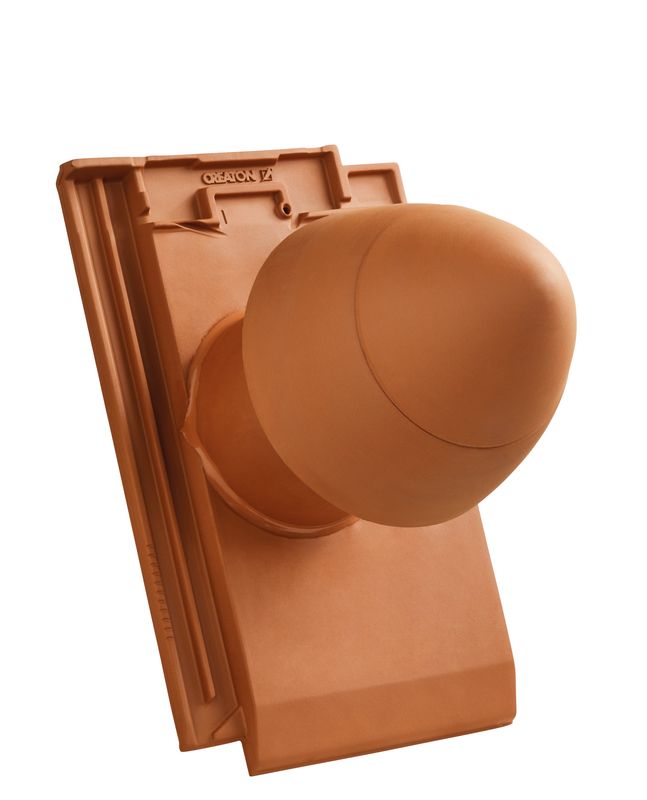

MIK SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

MIK SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

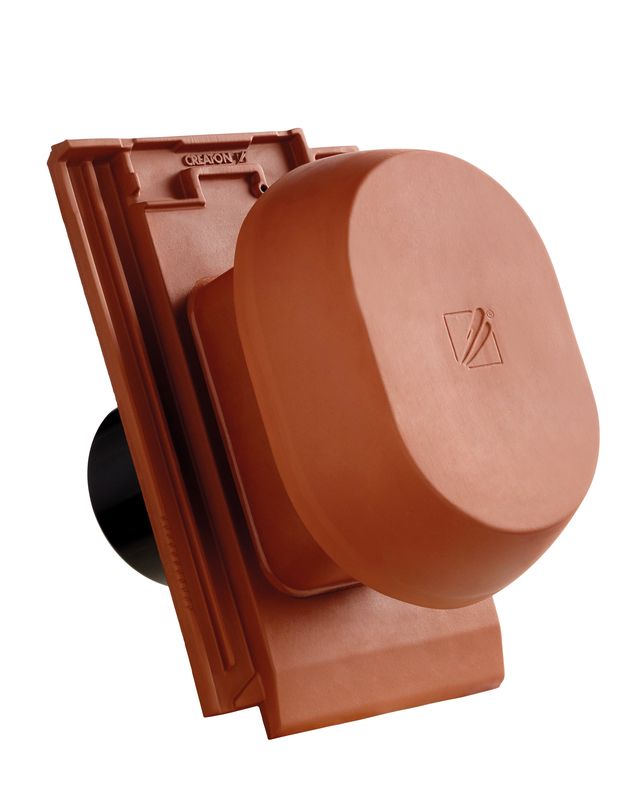

MIK SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

MIK SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

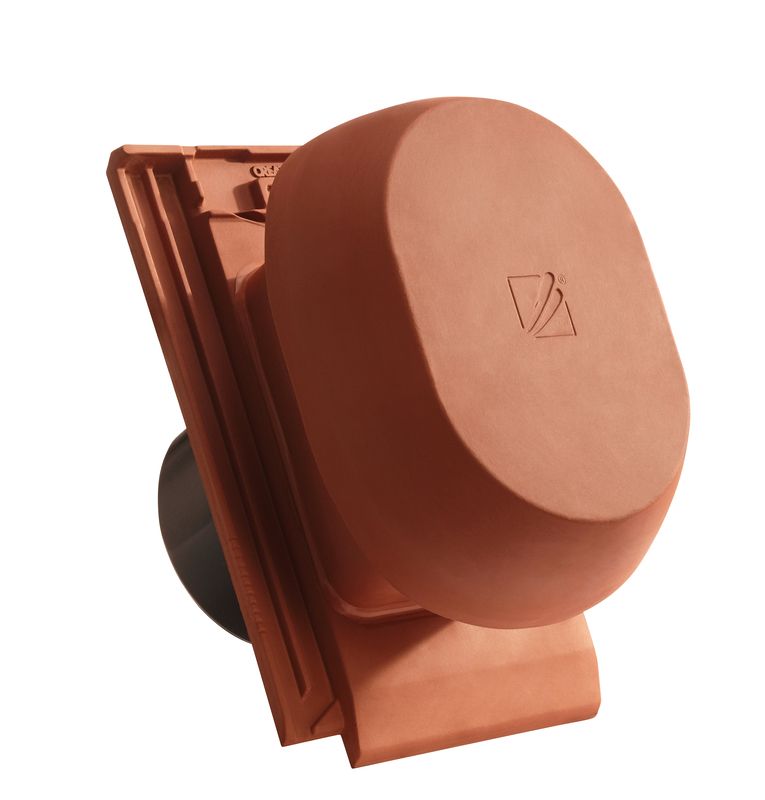

MIK SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

MIK SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

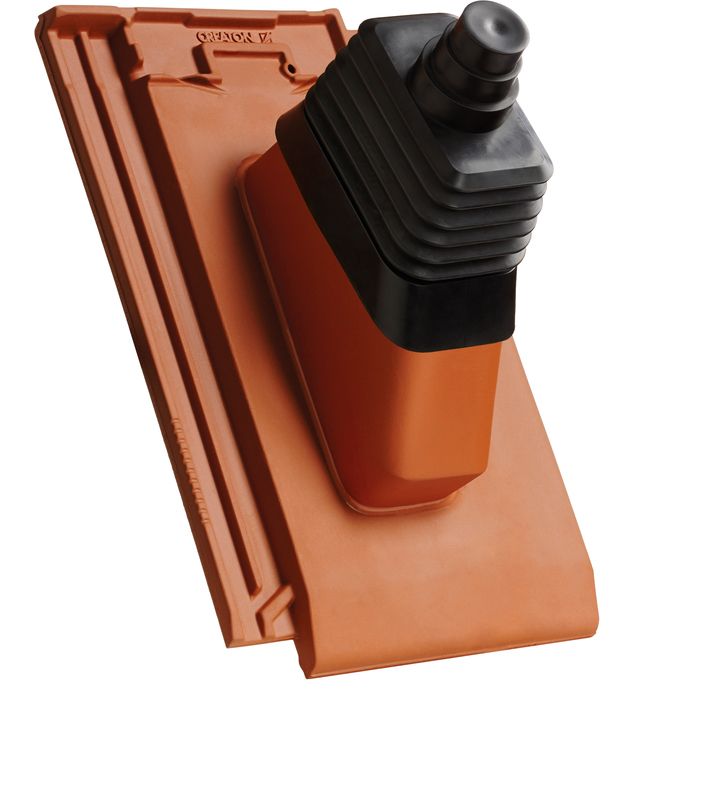

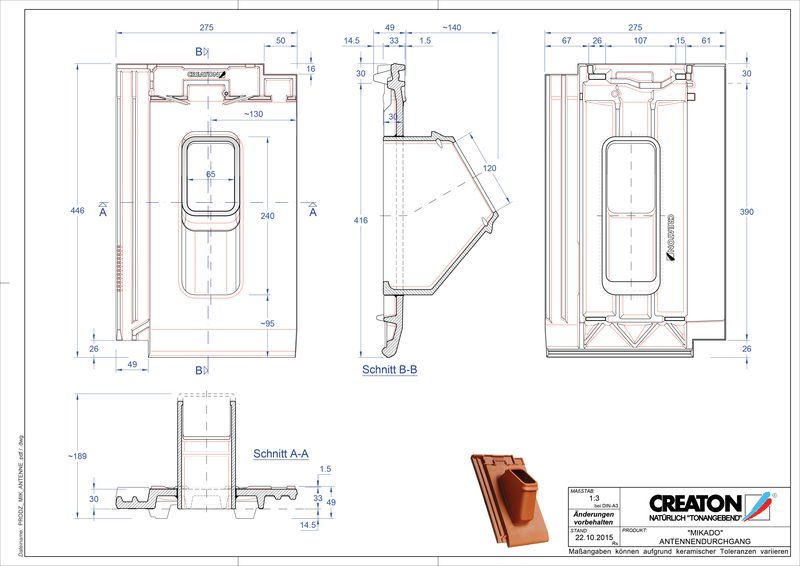

MIK aerial entry

MIK aerial entry

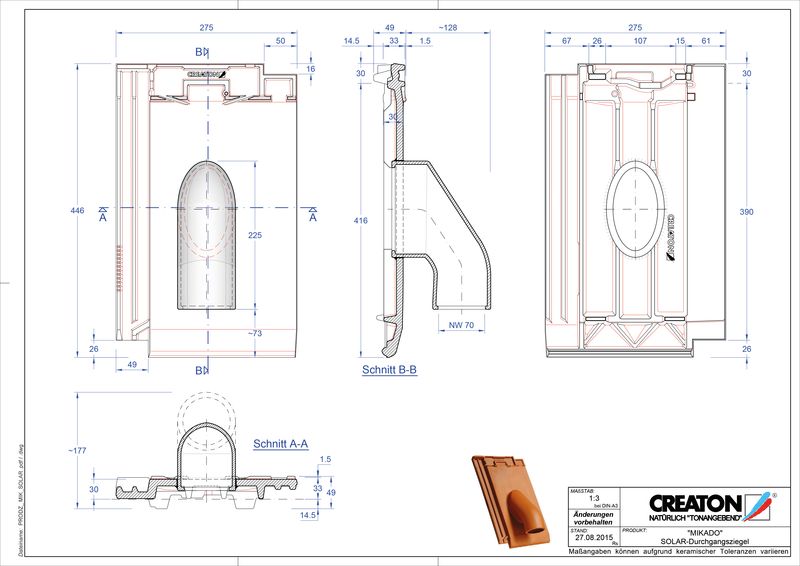

MIK solar entry tile

MIK solar entry tile

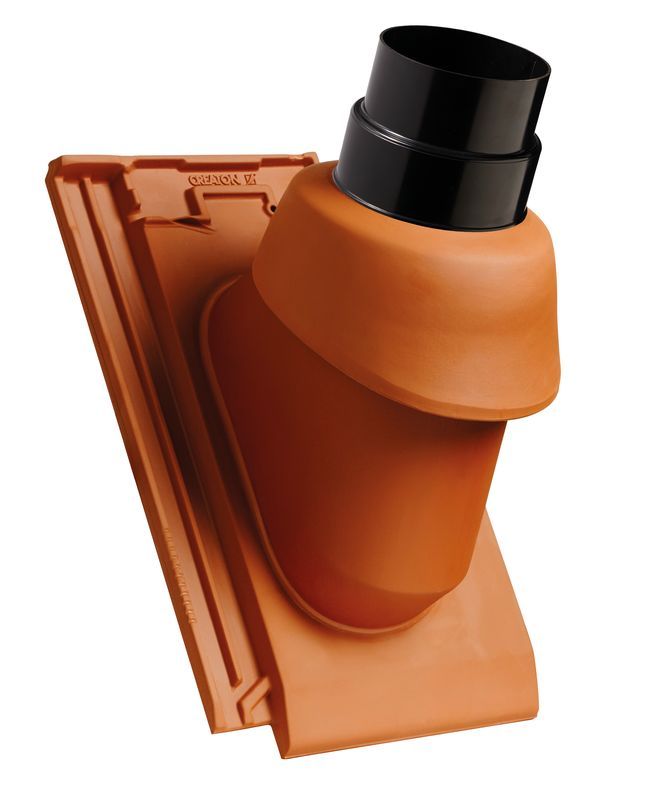

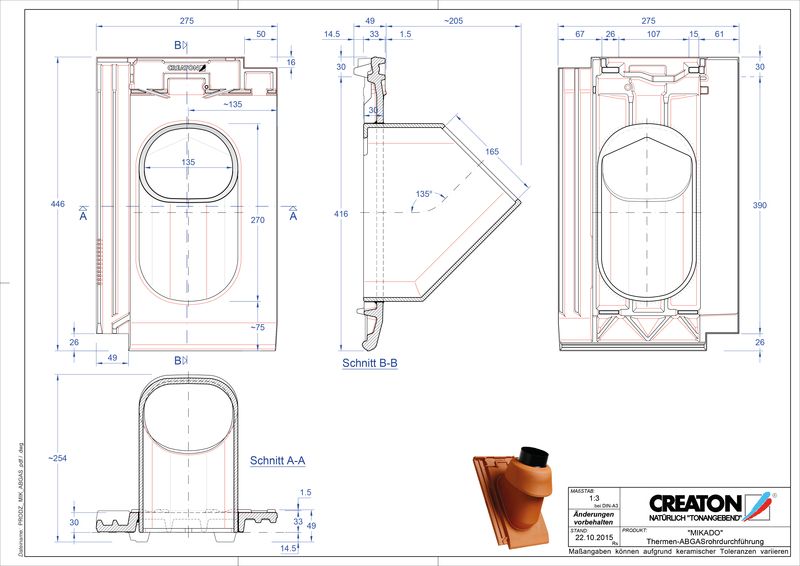

MIK flue pipe penetration NW 110/125

MIK flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Product range for roof details and uplift protection

MIK transparent tile (acrylic)

MIK transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (GRA, MAX, MIK)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (GRA, MAX, MIK)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (GRA, MIK)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (GRA, MIK)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (GRA, MAX, MIK) and 40/50 battens (MAX)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (GRA, MAX, MIK) and 40/50 battens (MAX)

Storm clip in zinc-aluminium, drive-in clip, all battens (MIK)

Storm clip in zinc-aluminium, drive-in clip, all battens (MIK)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Stainless steel screw with seal, length 60 mm

Stainless steel screw with seal, length 60 mm

Hip and valley clip 10-13 mm

Hip and valley clip 10-13 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Ridge and hip tile product range

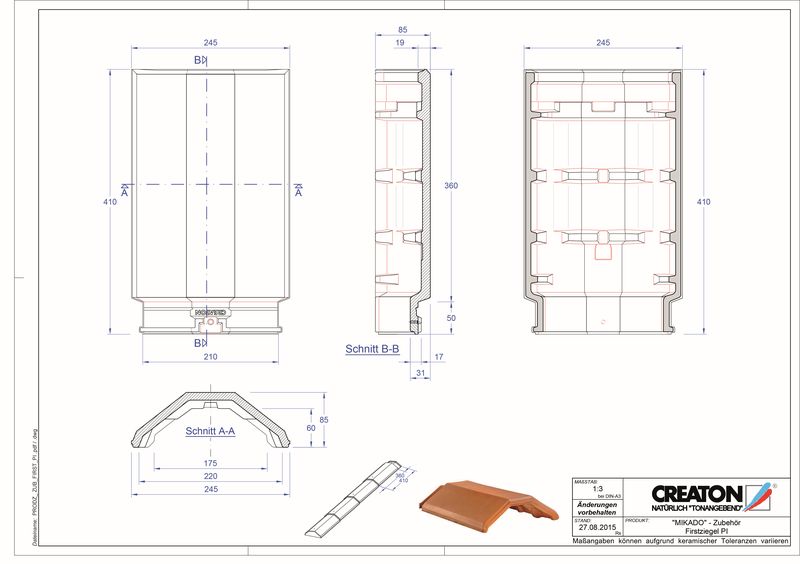

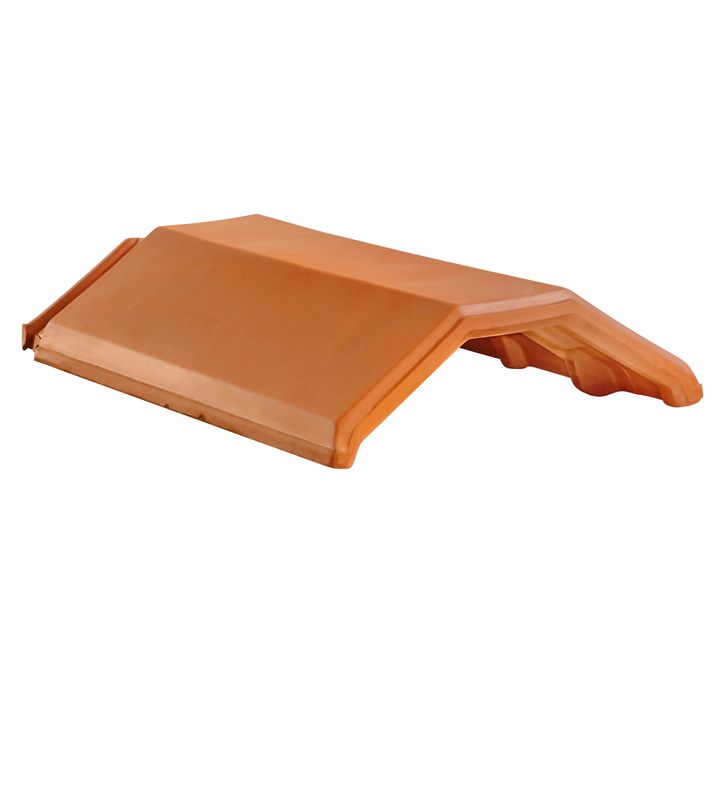

HÖN ridge tile PI

HÖN ridge tile PI

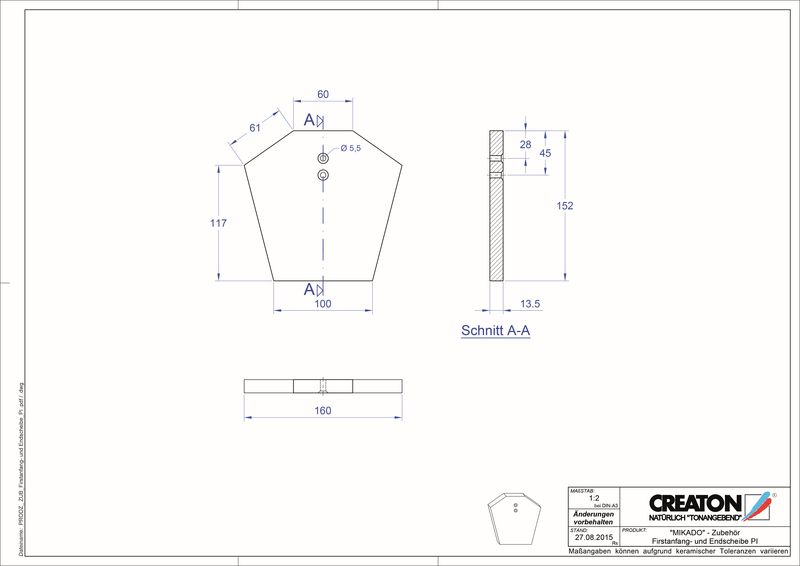

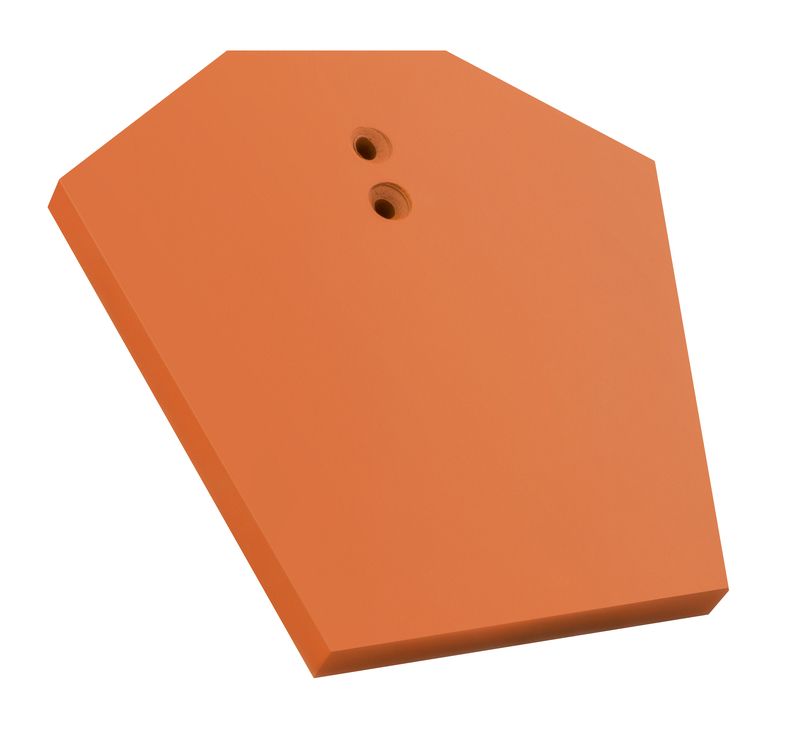

HÖN ridge starter and termination plate ceramic PI

HÖN ridge starter and termination plate ceramic PI

HÖN function starter and termination plate ceramic PI

HÖN function starter and termination plate ceramic PI

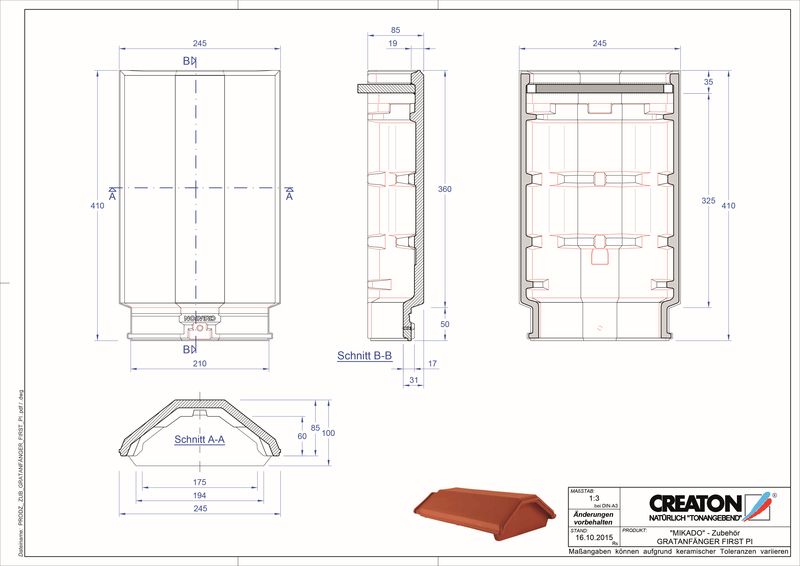

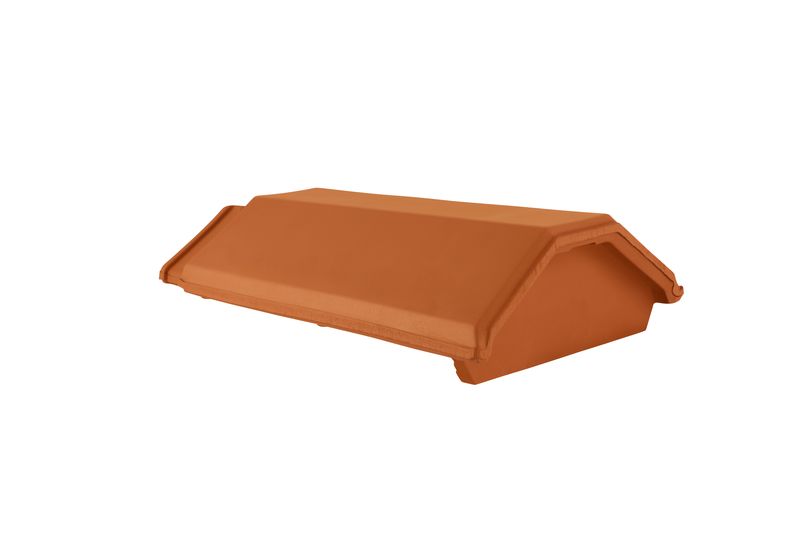

HÖN hip starter ceramic PI

HÖN hip starter ceramic PI

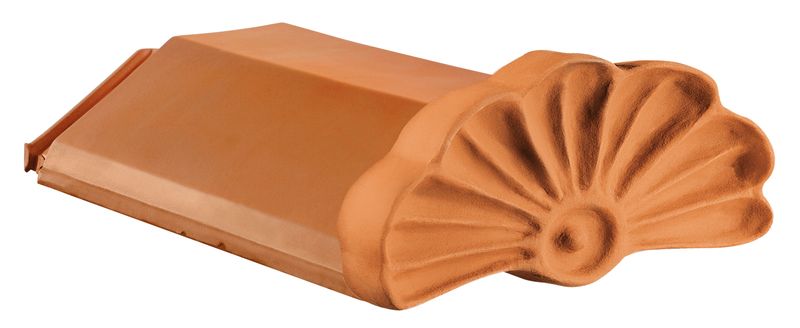

HÖN hip starter ceramic with scallop PI

HÖN hip starter ceramic with scallop PI

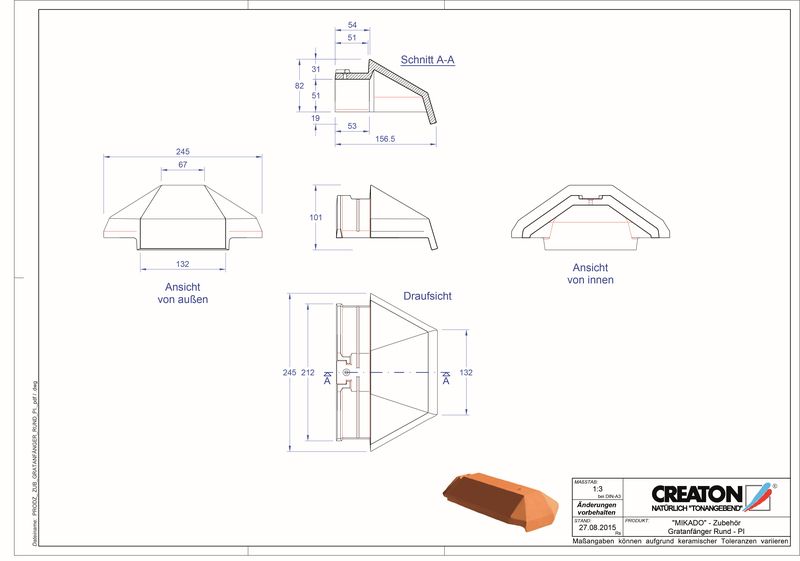

HÖN hip starter ceramic round connection PI

HÖN hip starter ceramic round connection PI

Ridge clip aluminium PI

Ridge clip aluminium PI

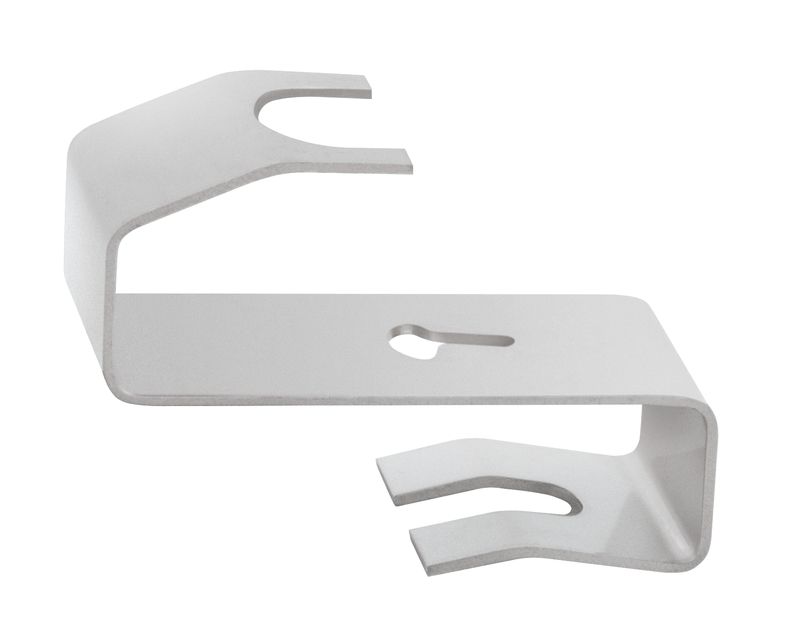

FIRSTFIX ridge clip stainless steel PI

FIRSTFIX ridge clip stainless steel PI

FIRSTFIX ridge clip wire universal

FIRSTFIX ridge clip wire universal

FIRSTFIX clip kit universal

FIRSTFIX clip kit universal

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Hip cap 3-axis type W2 HÖN (clay)

Hip cap 3-axis type W2 HÖN (clay)

Hip cap 4-axis type W2 HÖN (clay)

Hip cap 4-axis type W2 HÖN (clay)

Product range for snow protection, roof access and solar installation in metal

Solar element bracket GRUEL smooth tile

Solar element bracket GRUEL smooth tile

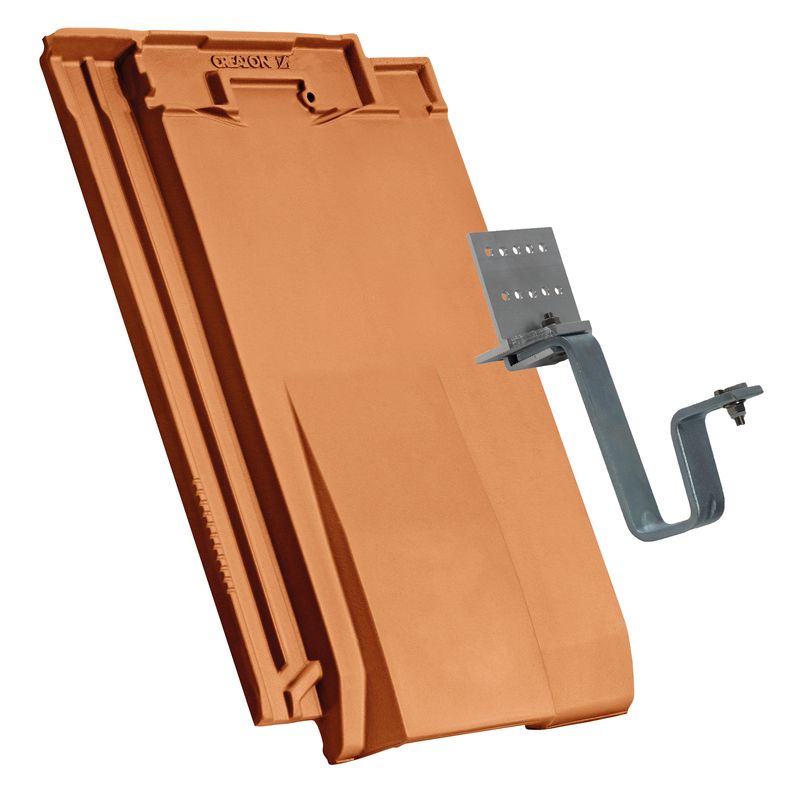

MIK solar system bracket kit for plank installation

MIK solar system bracket kit for plank installation

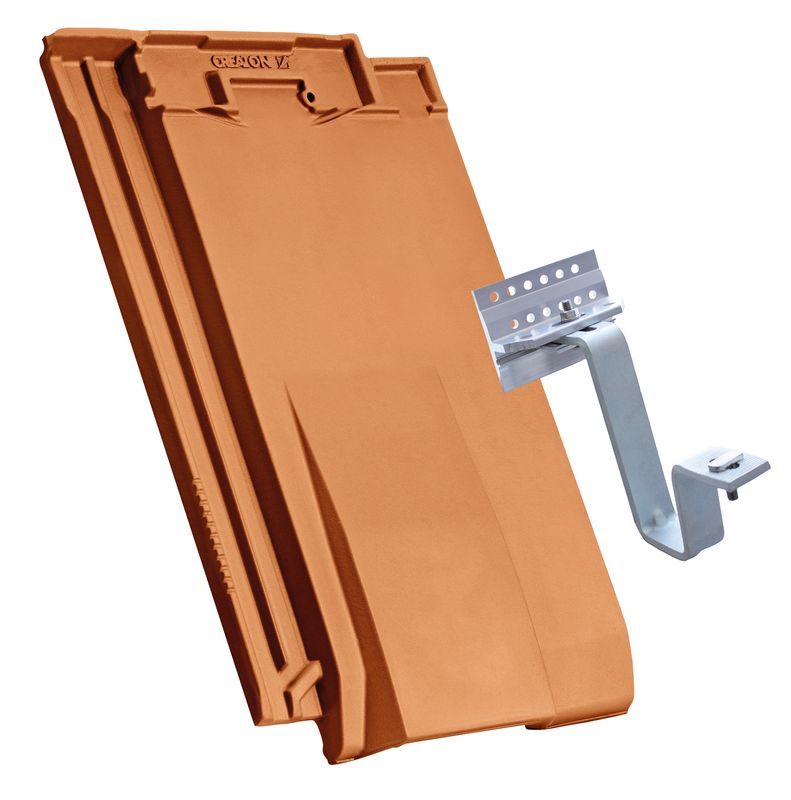

MIK solar system bracket kit for rafter installation

MIK solar system bracket kit for rafter installation

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

MAG snow clip

MAG snow clip

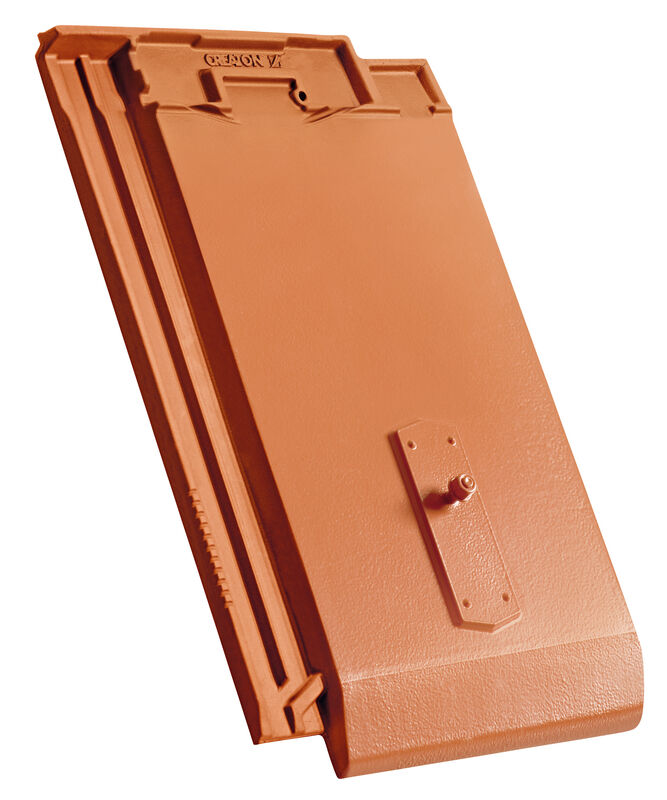

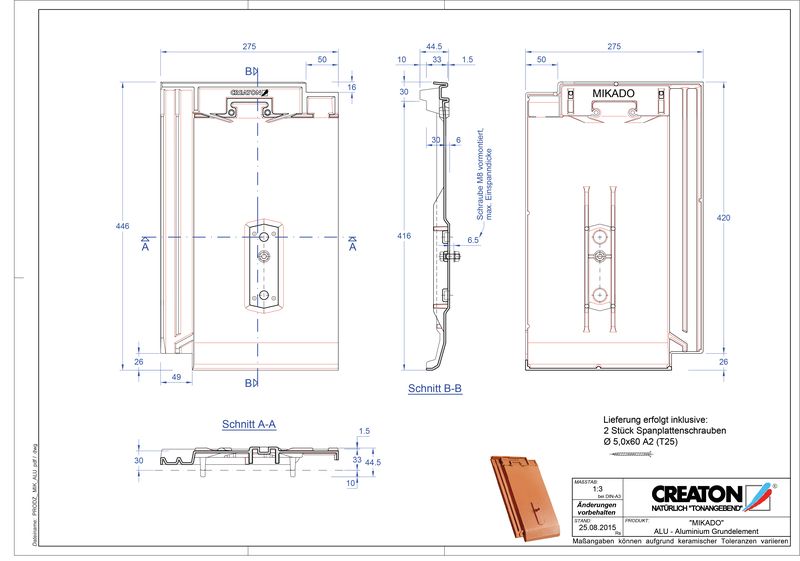

MIK aluminium base element

MIK aluminium base element
