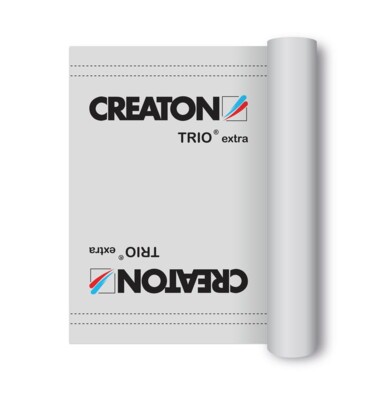

CREATON TRIO extra

ventilated roof superstructures even with very low roof pitches.
non-ventialted/breathable roof superstructures even with very low roof pitches.
high resp. exceptional requirements that could result from geographical location, shape of the building, etc.
roof superstructures with laying on shuttering
execution as rainproof sub-roof
execution as bonded trussing sheet or bonded sub-coverage

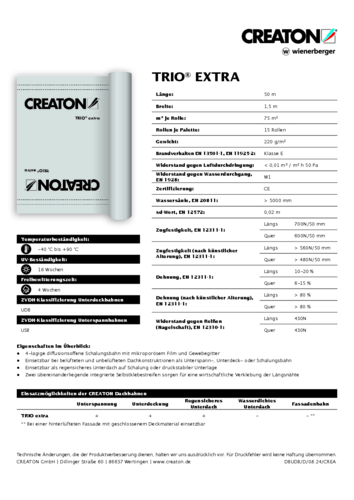

Technical data

Length	50 Metre
Width	1.5 Metre
m² per roll	75 m²
Packaging (quantity)	15
Weight per roll	15.75 kg
Fire performance	Class E
Resistance to air penetration	< 0,038 m³/m² h 50 Pa
Resistance to water penetration	W1
Certification	CE
Water column, EN 20811	> 500 cm
sd value	0.03 Metre
Longitudinal tensile strength, EN 12311-1	490N/50 mm
Transverse tensile strength, EN 12311-1	460N/50 mm
Longitudinal tensile strength (after artificial ageing), EN 12311-1	460N/50 mm
Transverse tensile strength (following artificial ageing), EN 12311-1	430N/50 mm
Longitudinal expansion, EN 12311-1	25 %
Transverse expansion, EN 12311-1	20 %
Longitudinal expansion (after artificial ageing), EN 12311-1	20 %
Transverse expansion (following artificial ageing), EN 12311-1	15 %
Longitudinal tear resistance (nail shank) (after artificial ageing)	500 N
Transverse tear resistance (nail shank) (after artificial ageing)	450 N
Thermal stability	-40°C bis +90°C
UV resistance	At most 16 weeks
Outdoor exposure period	At most 4 weeks

Additional measures according to CREATON manufacturer's specifications
Ja	Trussing sheet/glued sub-roof without nail seals
Ja	Trussing sheet/glued sub-roof with nail seals
Ja	Rain-proof sub-roof
Nein	Watertight sub-roof
Nein	Special solution 7° roof
