SINFONIE NOBLESSE black glazed

SINFONIE

The curved interlocking tile with distinctive look.

  • Also suitable for flat roofs with a pitch up to 7°, with a waterproof sub-roof
  • Exceptional versatility and ease of installation thanks to generous adjustment range of 29 mm
  • Sophisticated interlock technology provides effective storm protection
  • Support ribs add robustness and channel away any condensed water
  • Two robust suspension lugs keep the tile firmly in place and ensure effective ventilation of roof battens.
  • Top and bottom interlocking joints ensure best-possible protection against rain intrusion. Designed specifically to channel water away efficiently and effectively, to guarantee truly exceptional water resistance

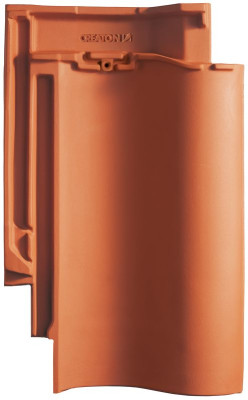

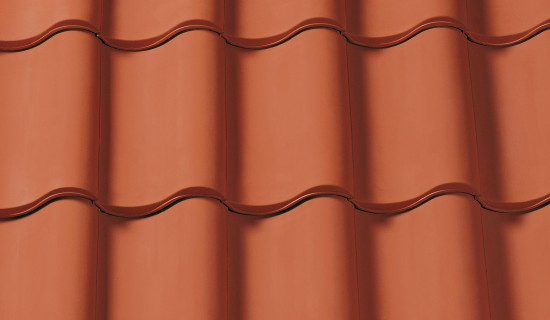

natural red
natural red
NUANCE copper red engobed
NUANCE copper red engobed
NUANCE black matt engobed
NUANCE black matt engobed
FINESSE wine red glazed
FINESSE wine red glazed

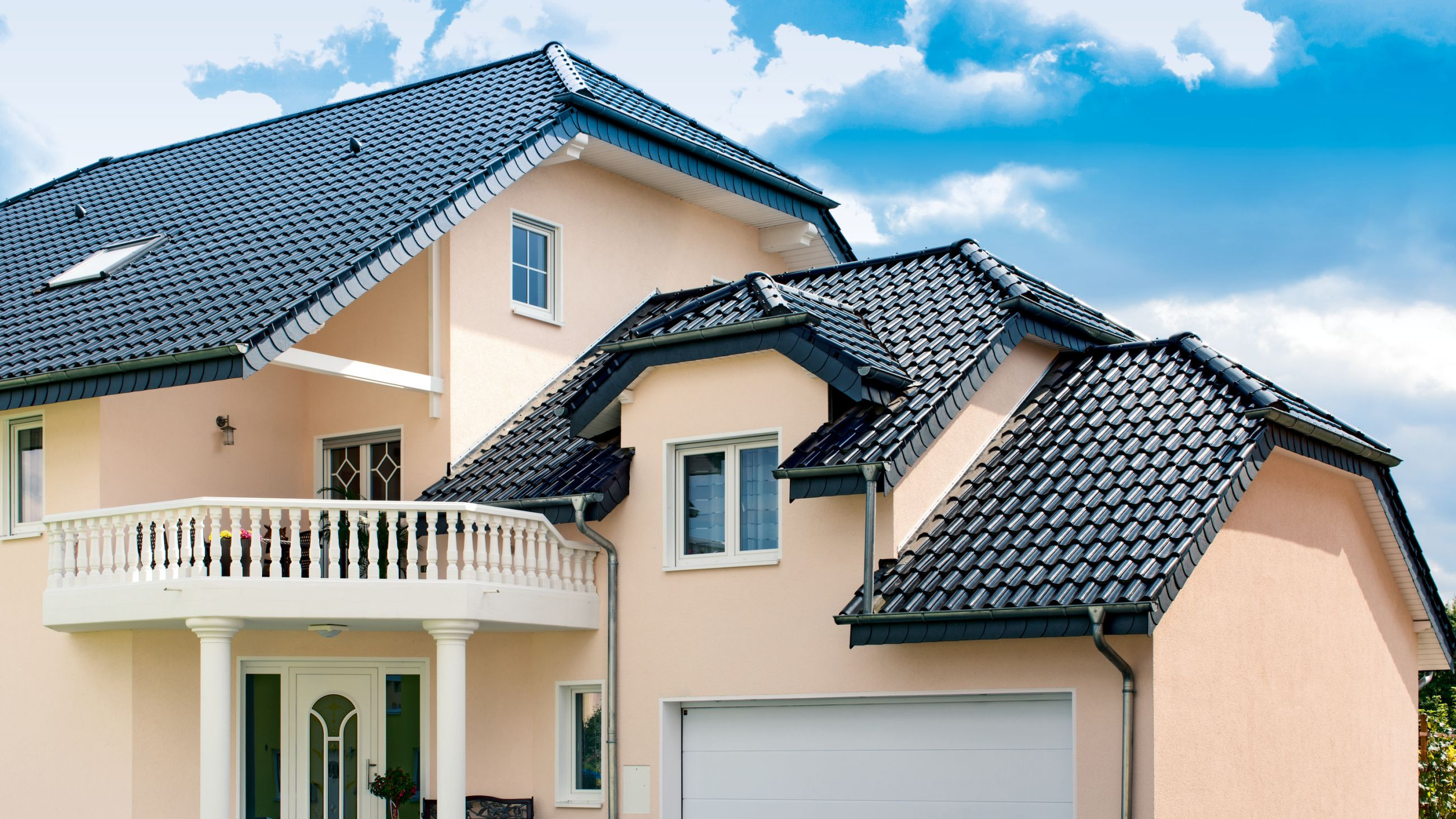

FINESSE black glazed
FINESSE black glazed

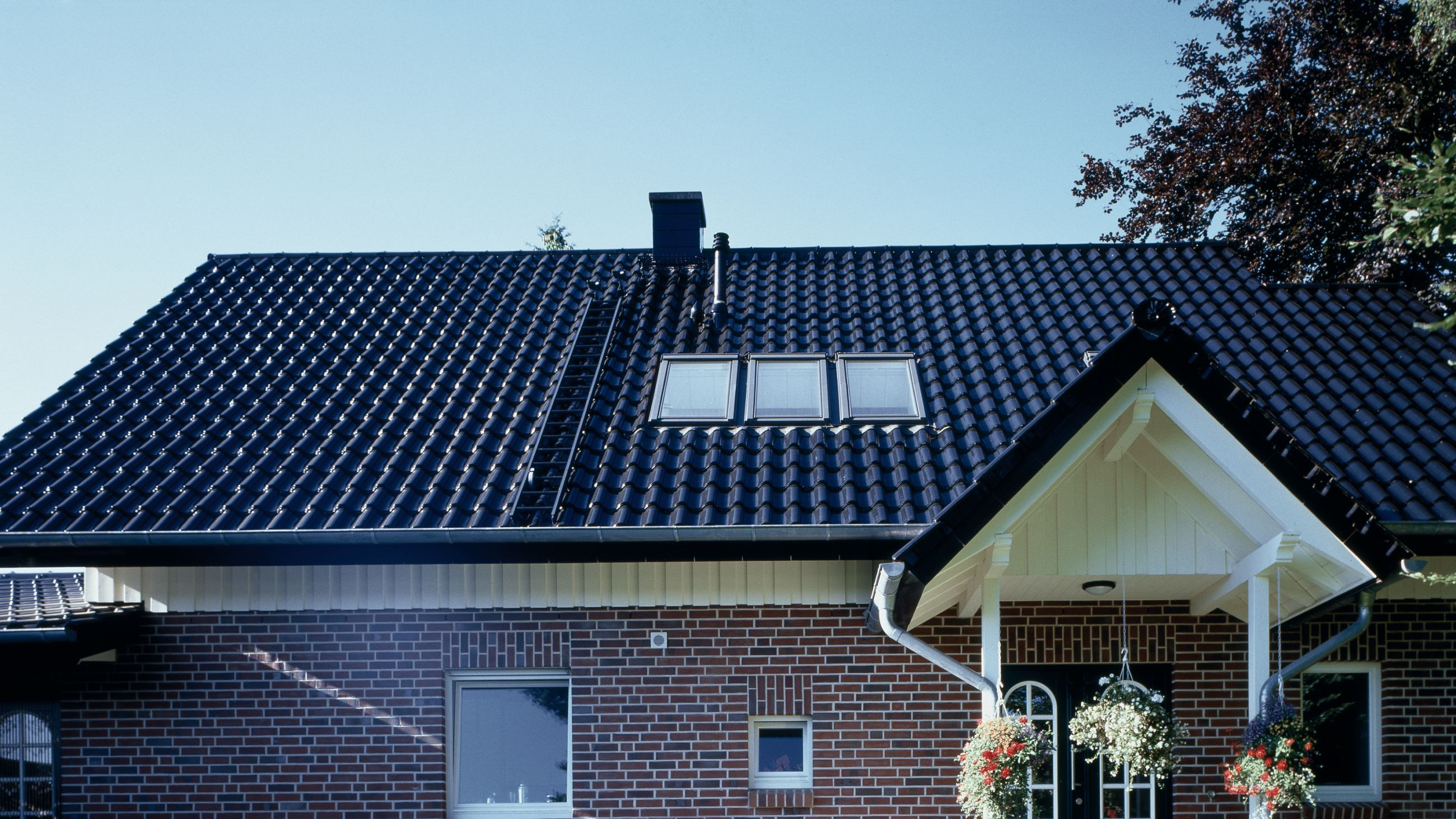

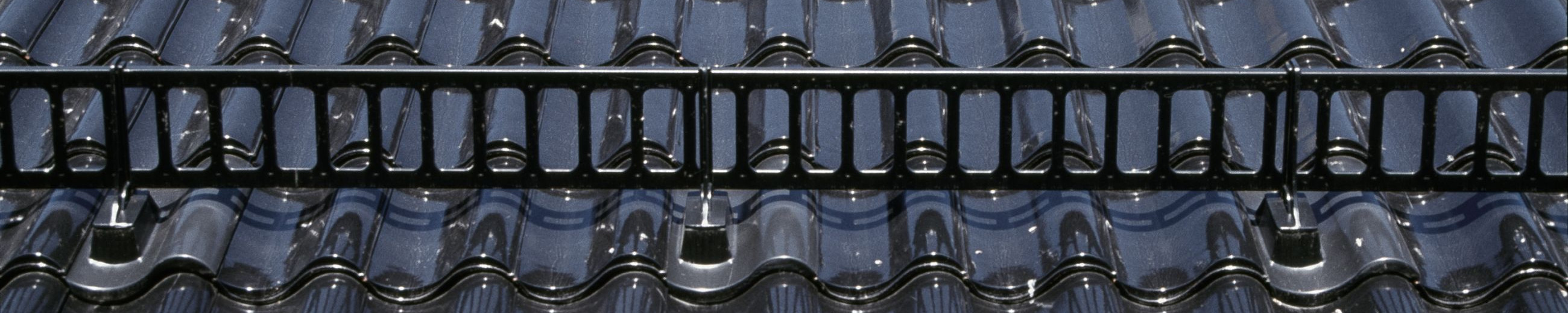

NOBLESSE black glazed
NOBLESSE black glazed

Technical data

Size (appr.)300 x 482 mm
Covering width min. approx.228 mm
Covering width on av. approx.230 mm
Max. coverage width (approx.)232 mm
Min. gauge (approx.)361 mm
Covering length on av. approx.375 mm
Max. gauge (approx.)389 mm
Tile requirement min. (approx.)10.9 pcs/m²
Average tile requirement (approx.)11.5 pcs/m²
Brickware max. approx.12.2 pcs/m²
Unit weight (approx.)4.6 kg/piece
Weight per m² (approx.)52.9 kg/m²
Weight per pallet (approx.)945 kg
Pcs per mini-pack5 piece
Pcs per pallet200 piece

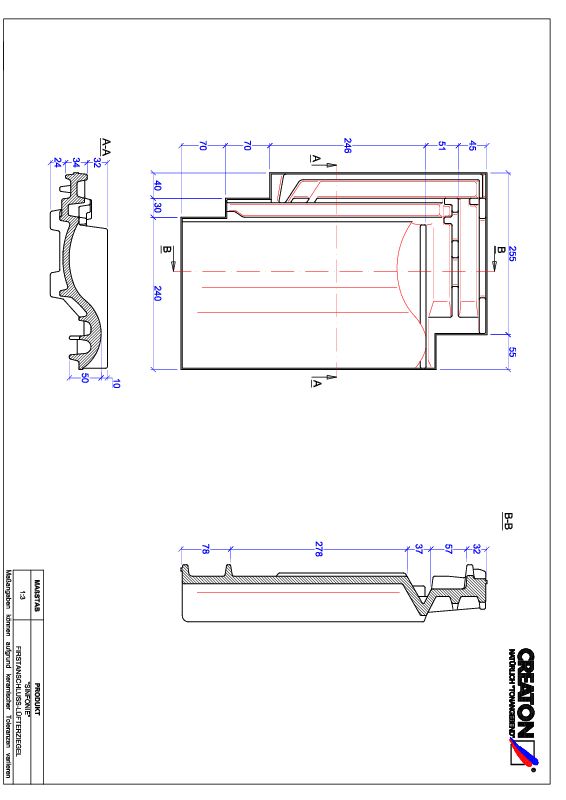

Technical drawings

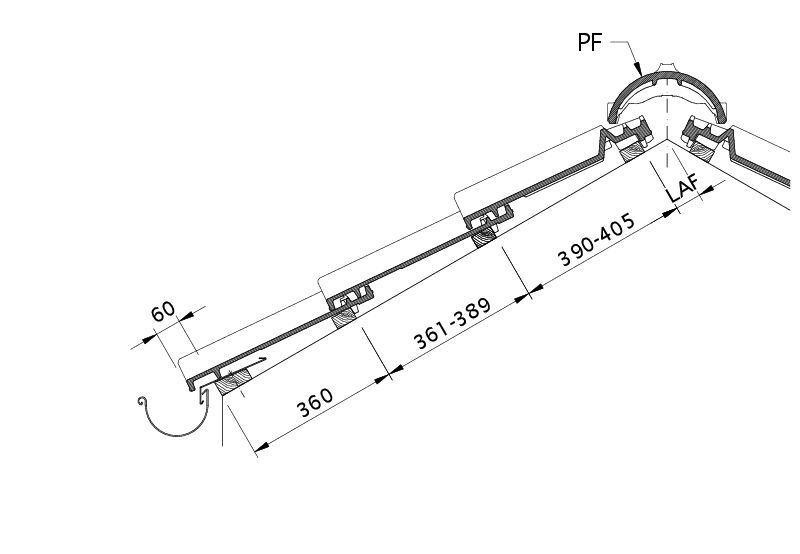

Drawing SINFONIE roof cross-section DQF
Drawing SINFONIE roof cross-section DQF

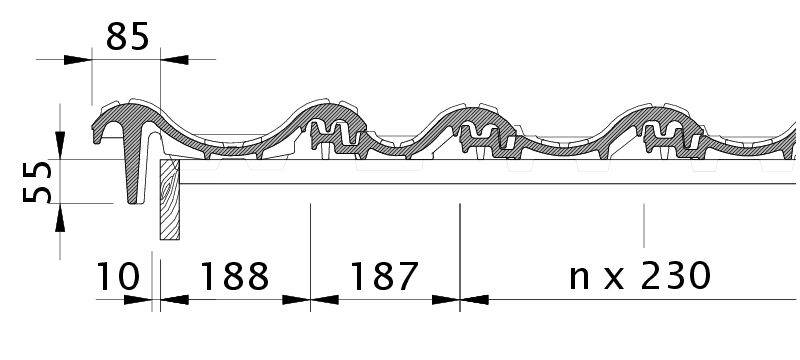

Drawing SINFONIE verge tile left with barge board OBL
Drawing SINFONIE verge tile left with barge board OBL

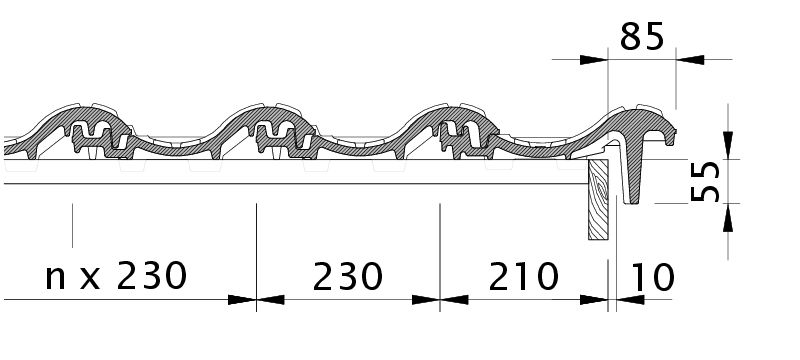

Drawing SINFONIE verge tile right with barge board OBR
Drawing SINFONIE verge tile right with barge board OBR

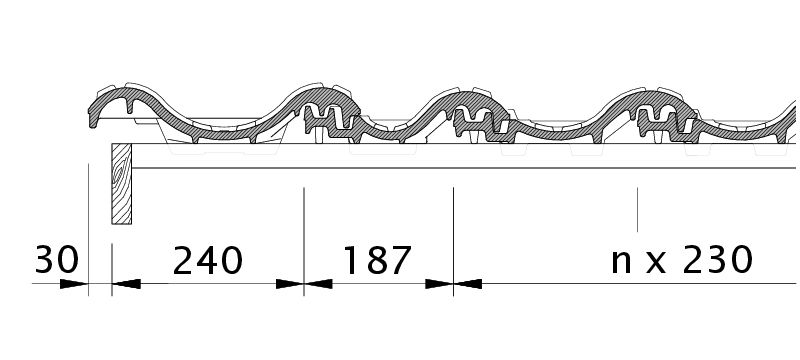

Drawing SINFONIE verge left with verge sheet metal and double roll ODL
Drawing SINFONIE verge left with verge sheet metal and double roll ODL

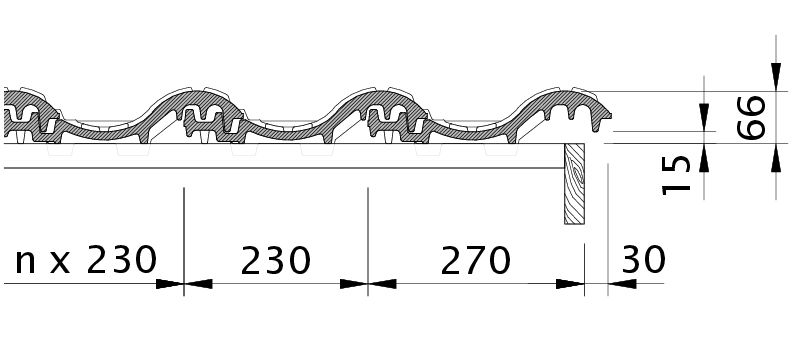

Drawing SINFONIE verge right with verge sheet metal and field tile OFR
Drawing SINFONIE verge right with verge sheet metal and field tile OFR

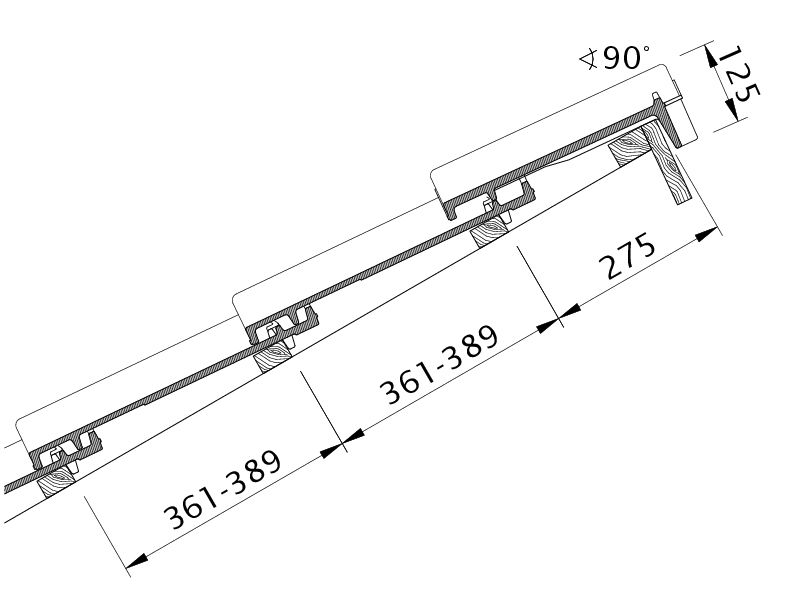

Drawing SINFONIE shed roof version PDA
Drawing SINFONIE shed roof version PDA

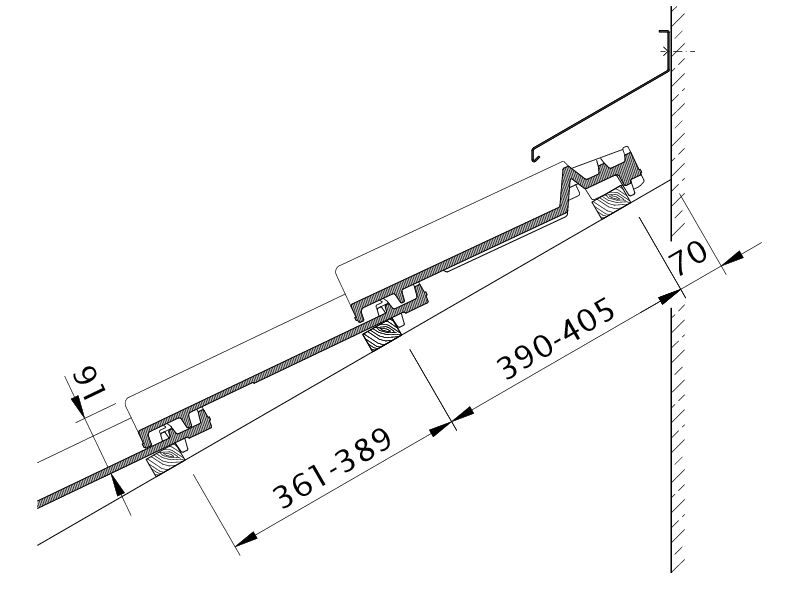

Drawing SINFONIE wall connection (above) with FALZ WMF
Drawing SINFONIE wall connection (above) with FALZ WMF

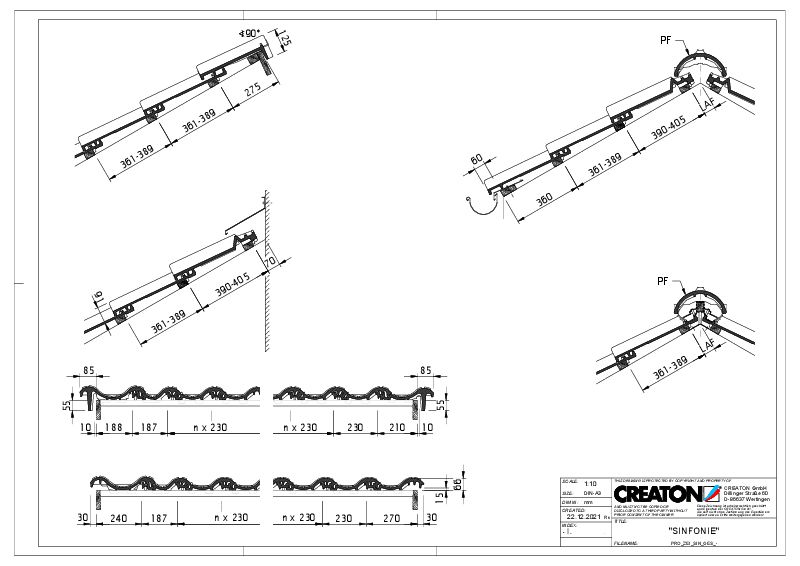

Drawing SINFONIE general view GES
Drawing SINFONIE general view GES
Drawing SINFONIE distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing SINFONIE distance from batten to ridge intersection point, ridge batten spacing LAF

Applications

Additional measures according to CREATON manufacturer's specifications
14 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 14 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 12 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 12 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
≥ 7 ° Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • All roofs with a roof pitch of 7° - 9° require individual approval from CREATON Applications Technology. CREATON manufacturer's regulations must be complied with during installation.
  • Please consider the sample letter for the standard CREATON roof pitches.

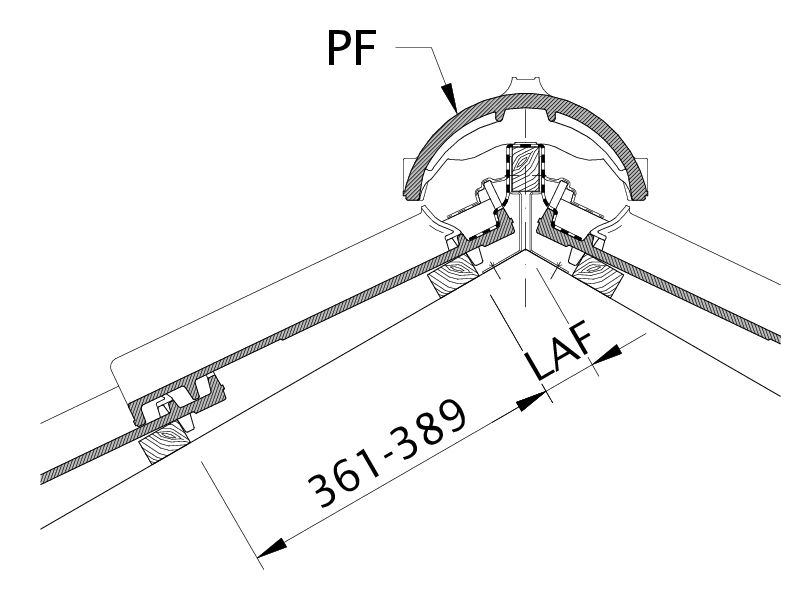

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs/mLAF8080706560606050454545
PF 2.5 pcs/mFLA100100908075656555505040
PR 2.5 pcs/mLAF8080706560606050454545
PR 2.5 pcs/mFLA100100908075656555505040
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs/mLAF8080706055555540303030
PF 2.5 pcs/mFLA1101101009085757565606055
PR 2.5 pcs/mLAF8080706055555540303030
PR 2.5 pcs/mFLA1101101009085757565606055
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs/mLAF7575655550454530202015
PF 2.5 pcs/mFLA12012011010095909080808080
PR 2.5 pcs/mLAF7575655550454530202015
PR 2.5 pcs/mFLA12012011010095909080808080

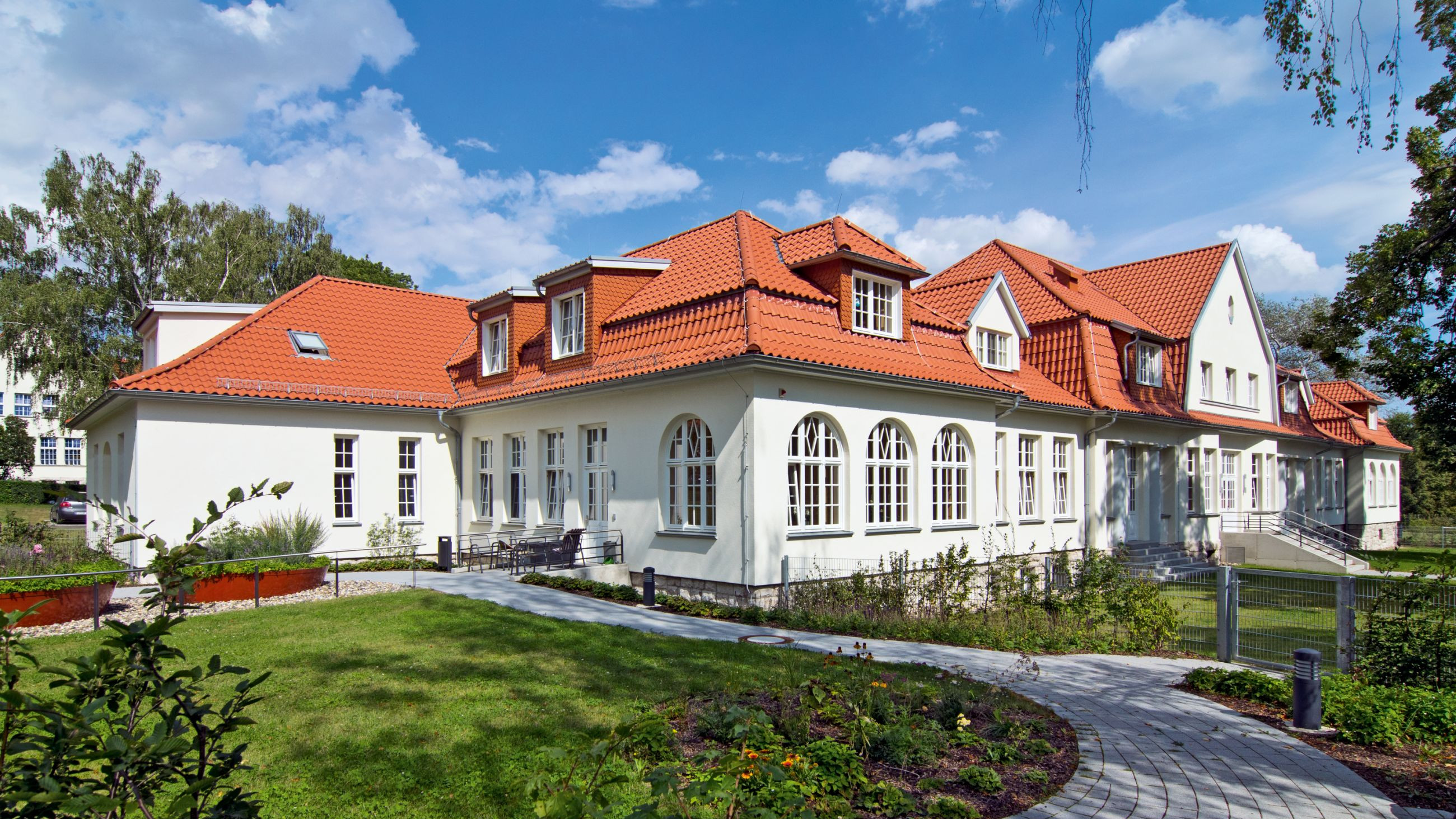

References

more

more

more

Accessory range

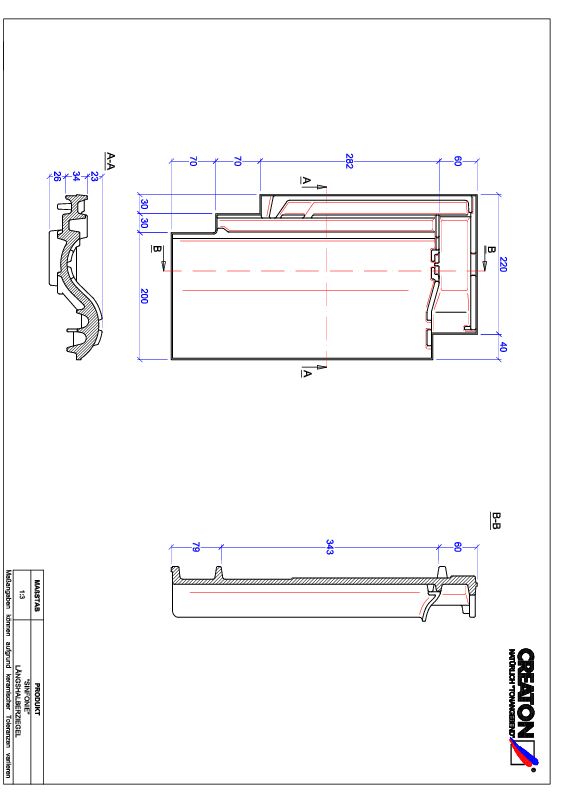

SIN half-width tile

SIN half-width tile

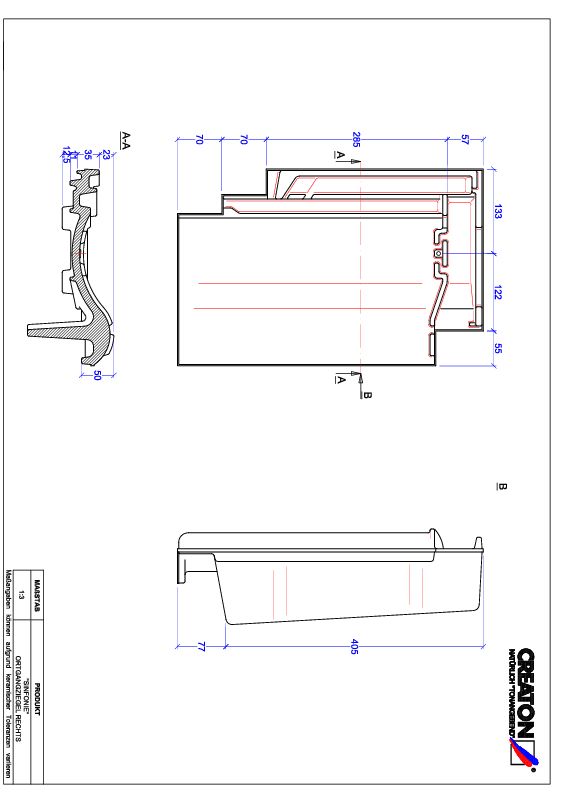

SIN verge tile right

SIN verge tile right

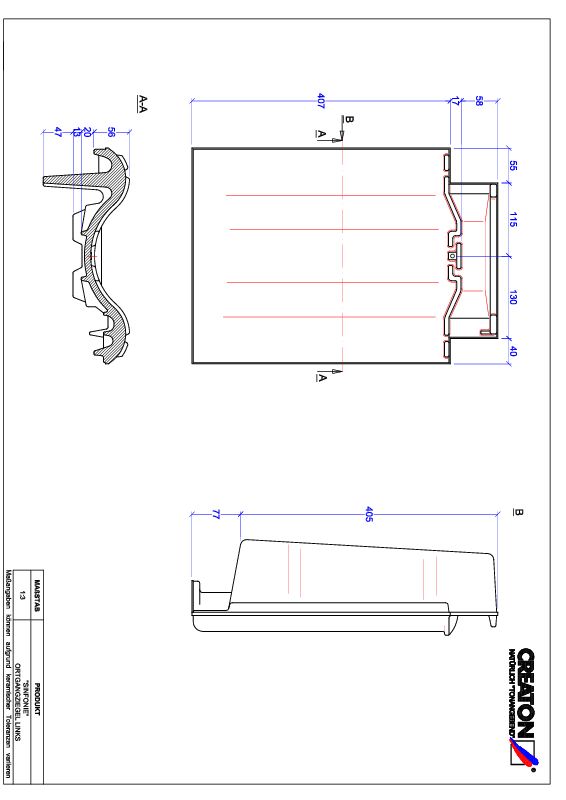

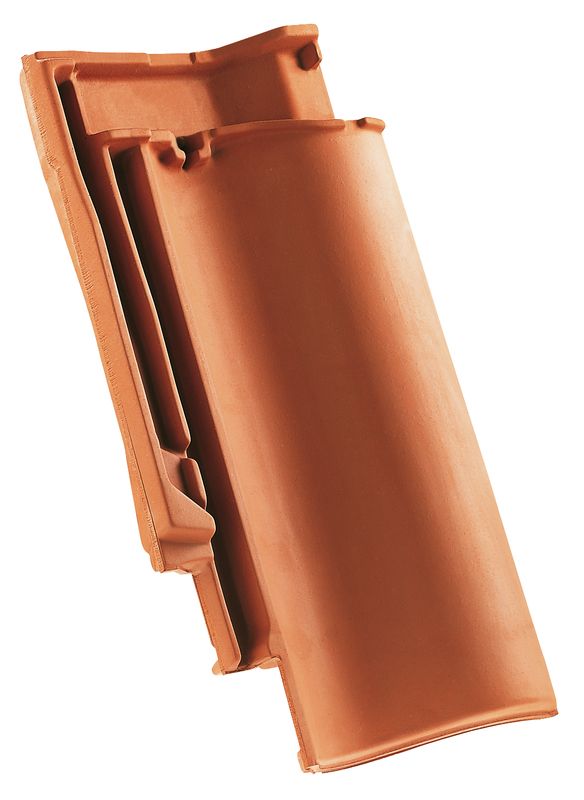

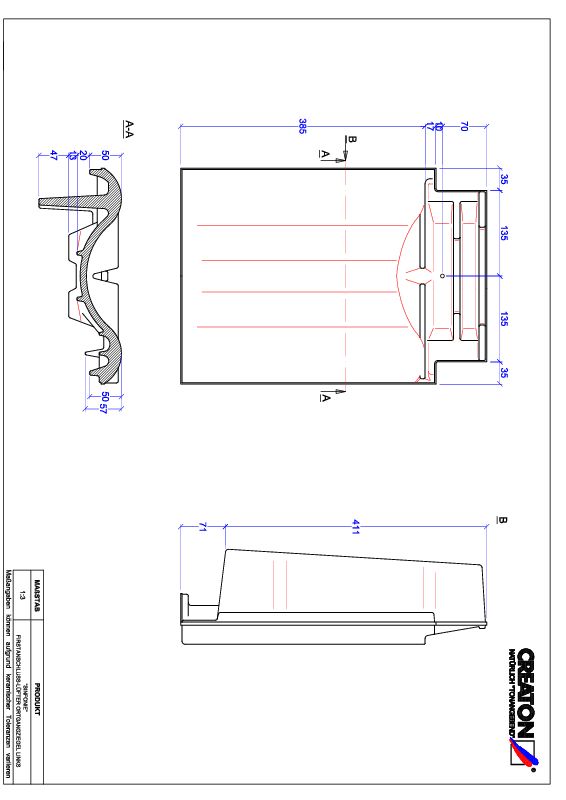

SIN verge tile left

SIN verge tile left

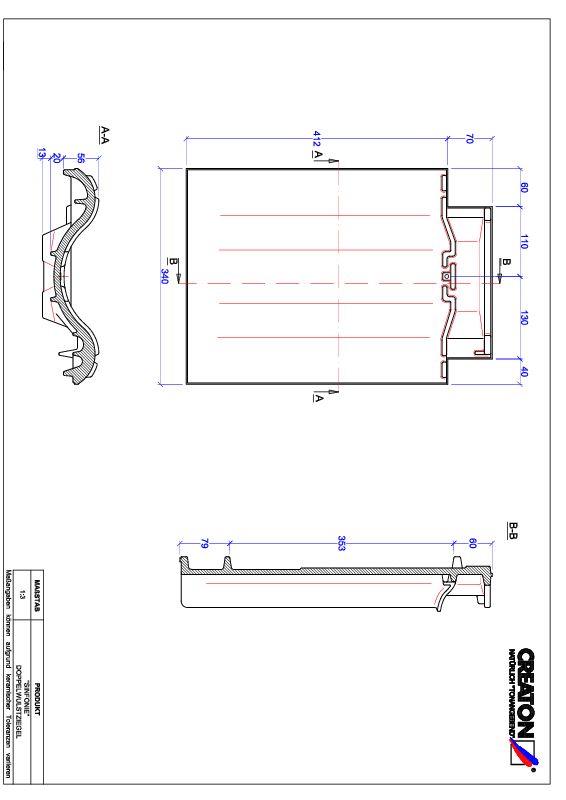

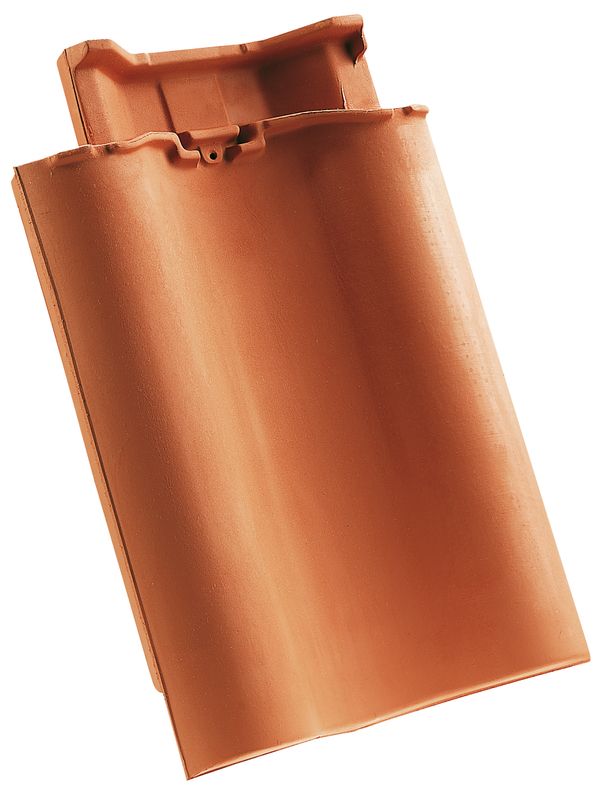

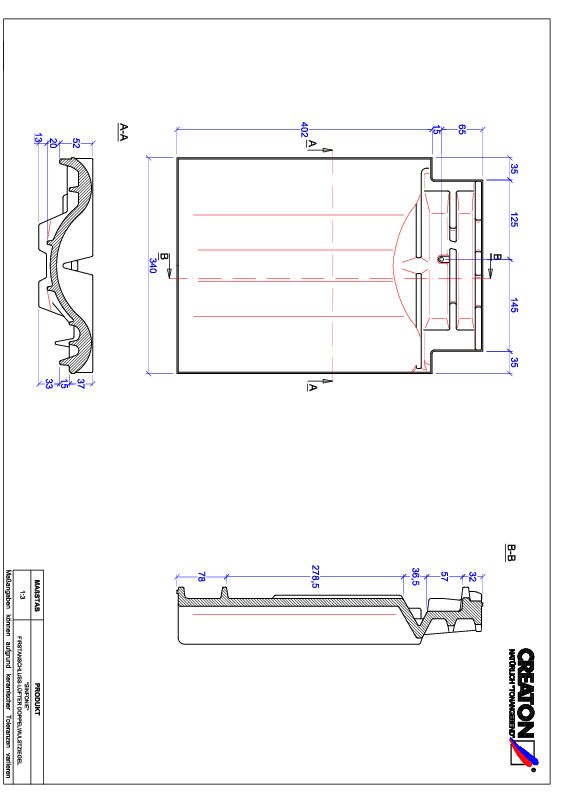

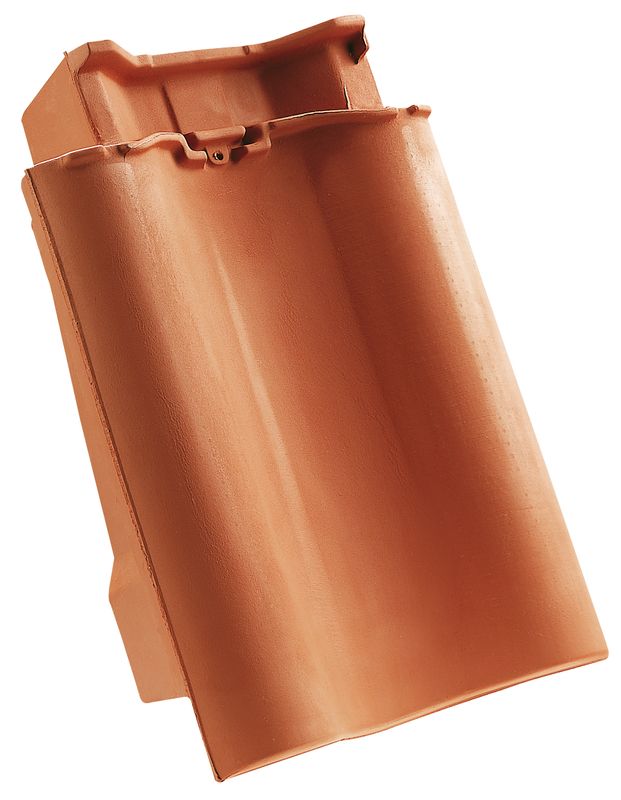

SIN double roll tile

SIN double roll tile

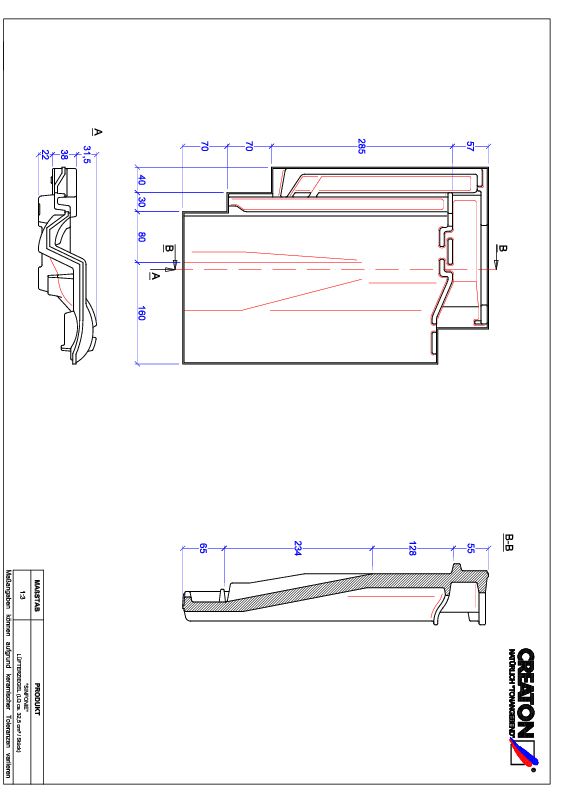

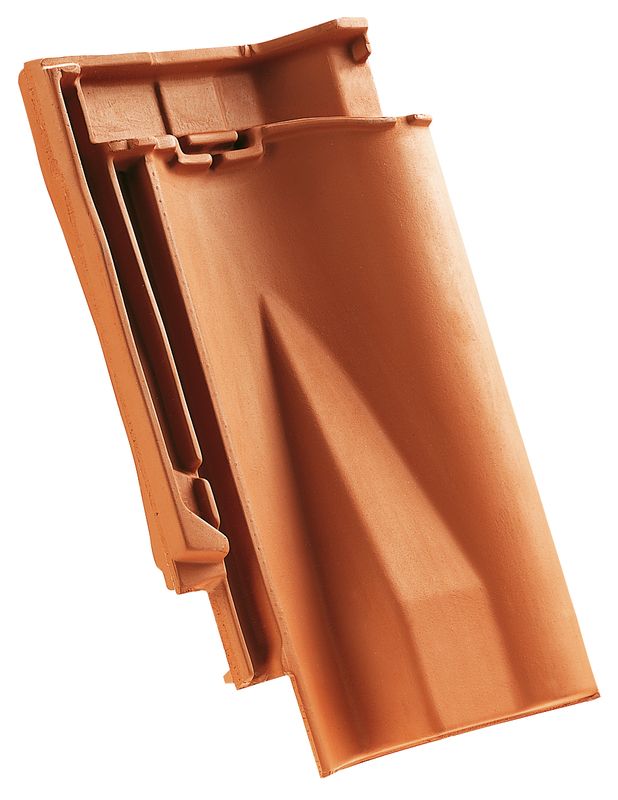

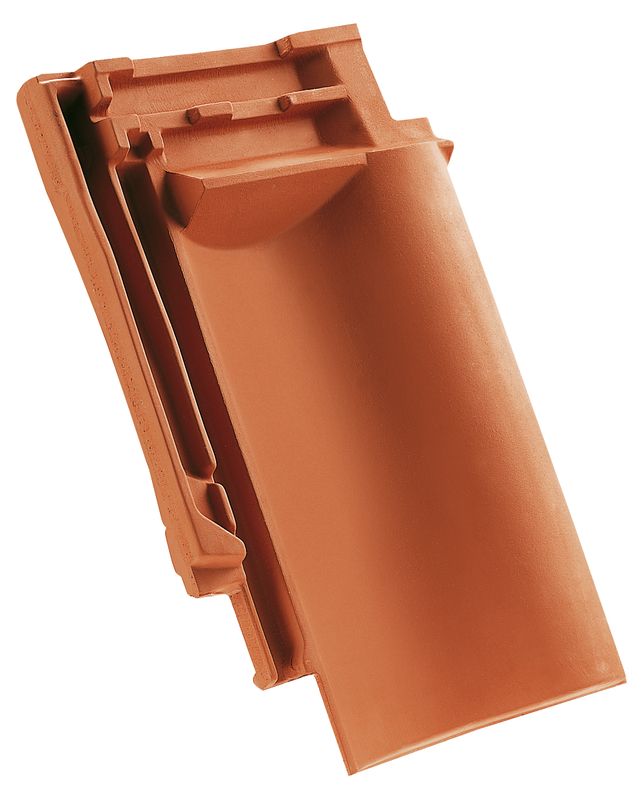

SIN ventilating tile

SIN ventilating tile

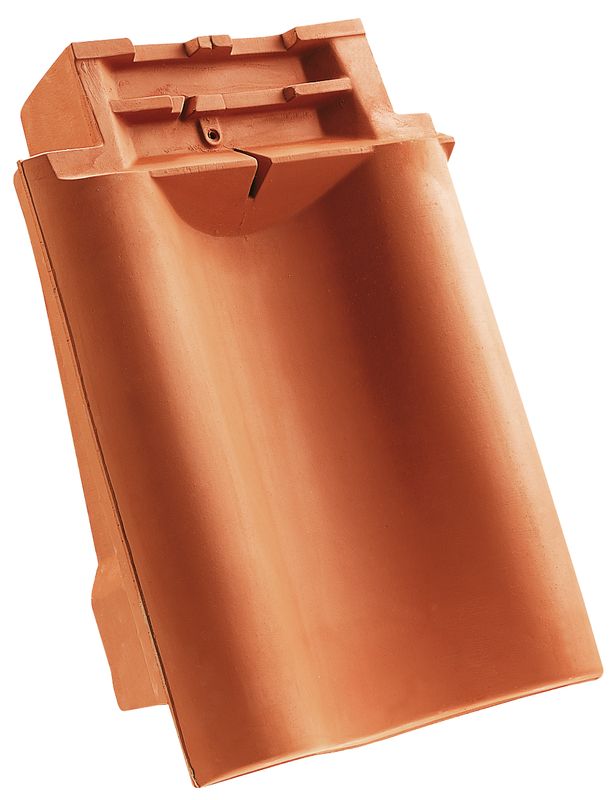

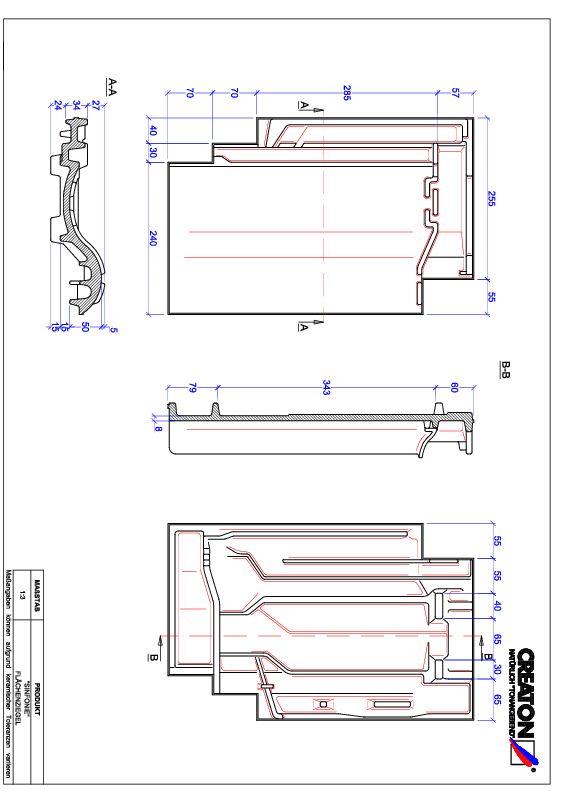

SIN ridge connection ventilating tile

SIN ridge connection ventilating tile

SIN ridge connection ventilating half-width tile

SIN ridge connection ventilating half-width tile

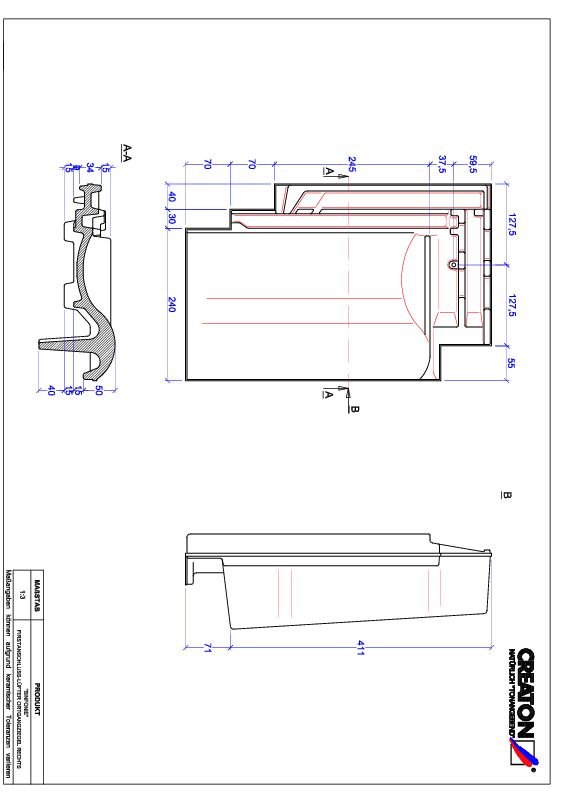

SIN ridge connection ventilating verge tile right

SIN ridge connection ventilating verge tile right

SIN ridge connection ventilating verge tile left

SIN ridge connection ventilating verge tile left

SIN ridge connection ventilating double roll tile

SIN ridge connection ventilating double roll tile

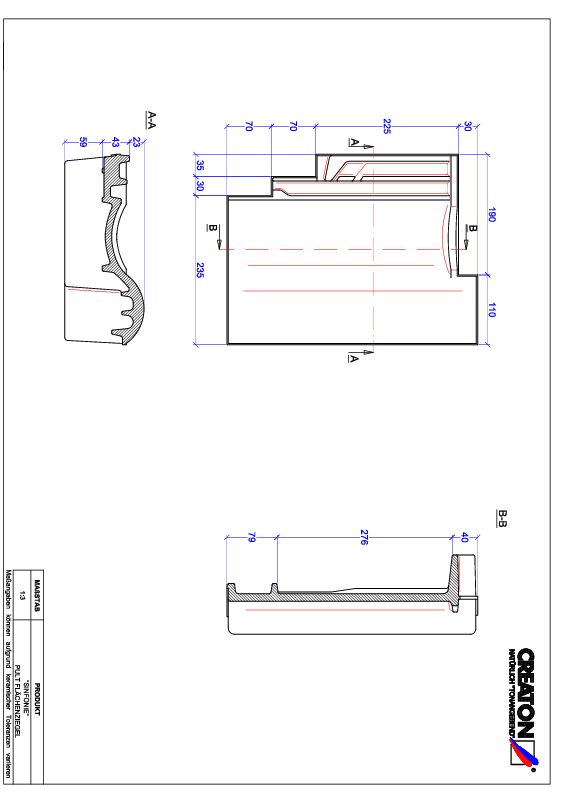

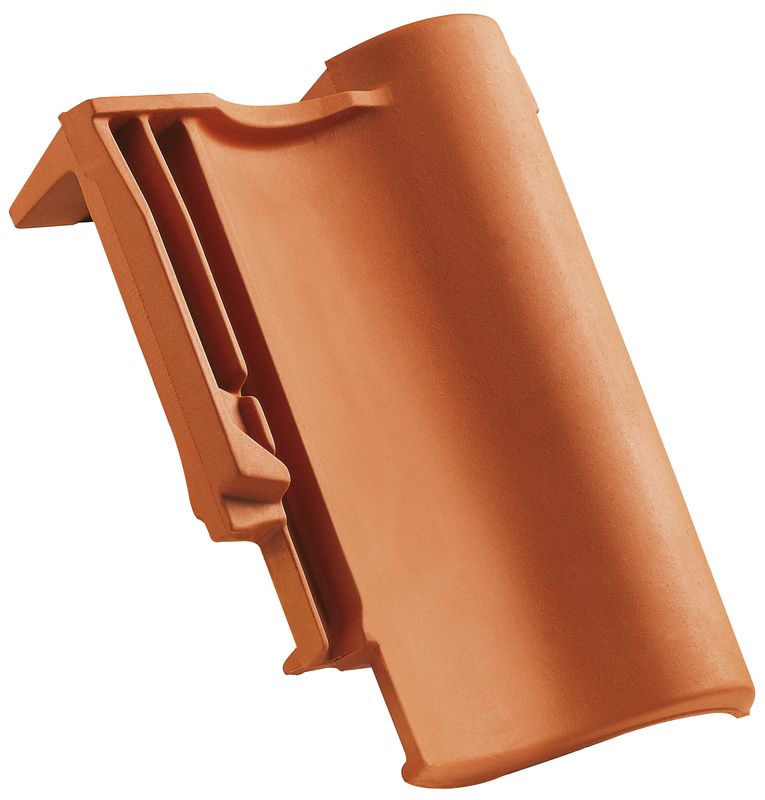

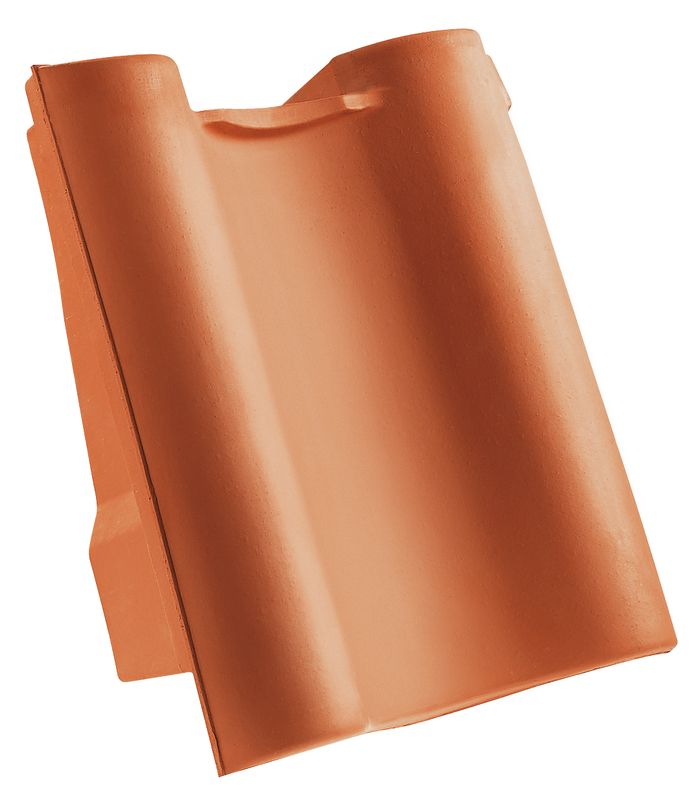

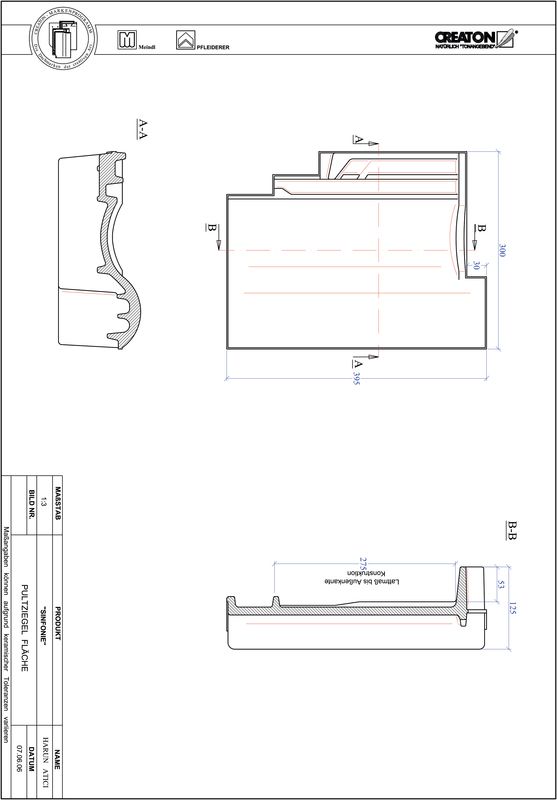

SIN shed roof tile pressed

SIN shed roof tile pressed

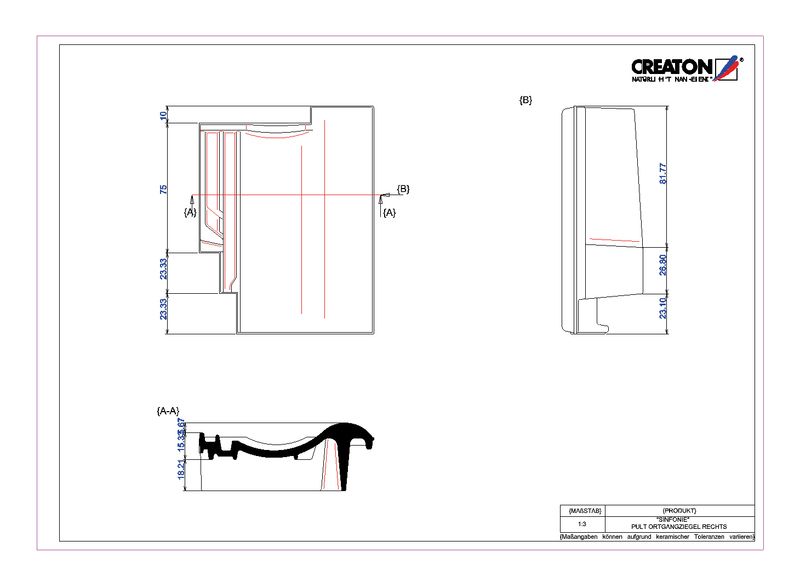

SIN shed roof verge tile pressed right

SIN shed roof verge tile pressed right

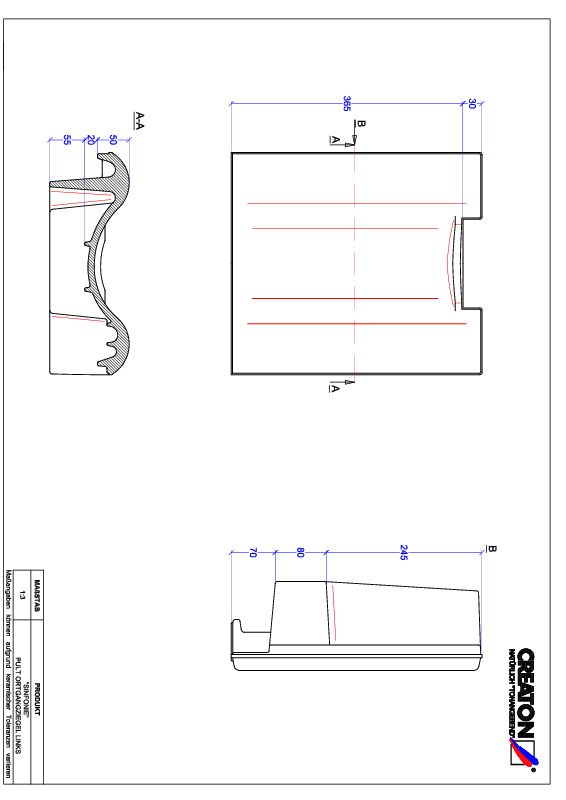

SIN shed roof verge tile pressed left

SIN shed roof verge tile pressed left

SIN shed roof tile decorated special size

SIN shed roof tile decorated special size

SIN shed roof verge tile decorated special size right

SIN shed roof verge tile decorated special size right

SIN shed roof verge tile decorated special size left

SIN shed roof verge tile decorated special size left

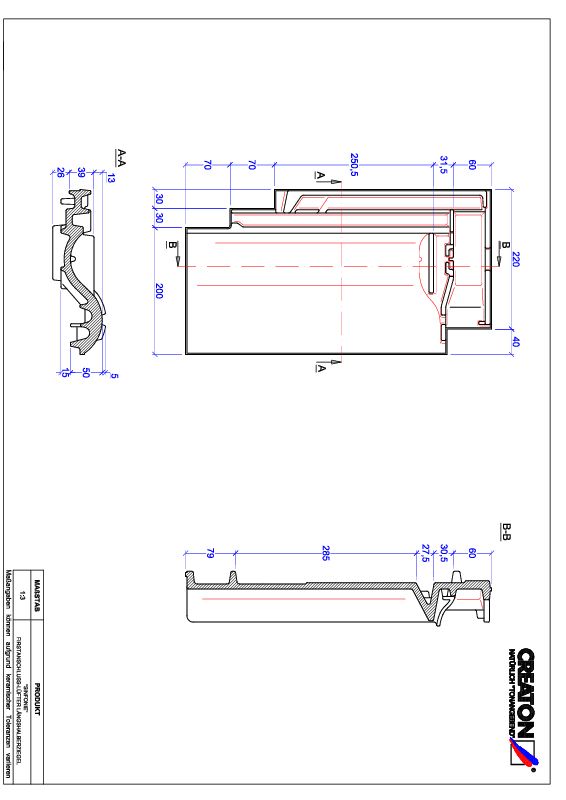

SIN mansard/pitch transition tile decorated special size

SIN mansard/pitch transition tile decorated special size

SIN mansard/pitch transition verge tile decorated special size right

SIN mansard/pitch transition verge tile decorated special size right

SIN mansard/pitch transition verge tile decorated special size left

SIN mansard/pitch transition verge tile decorated special size left

Product range for roof ventilation and penetrations

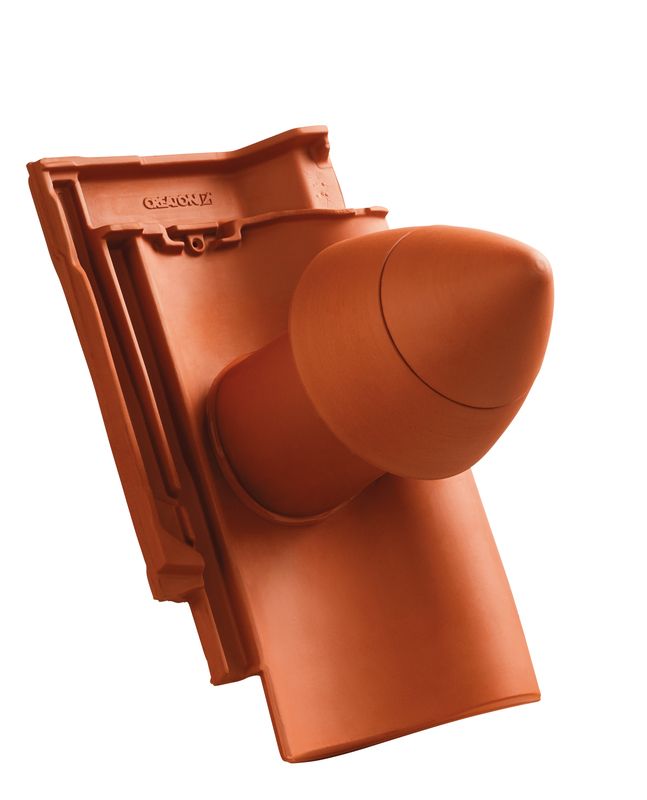

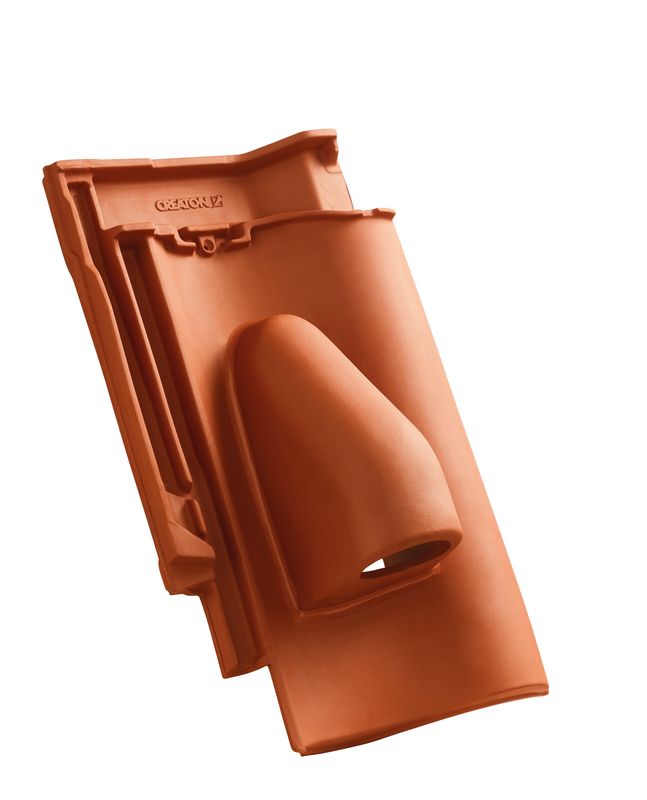

SIN SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

SIN SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

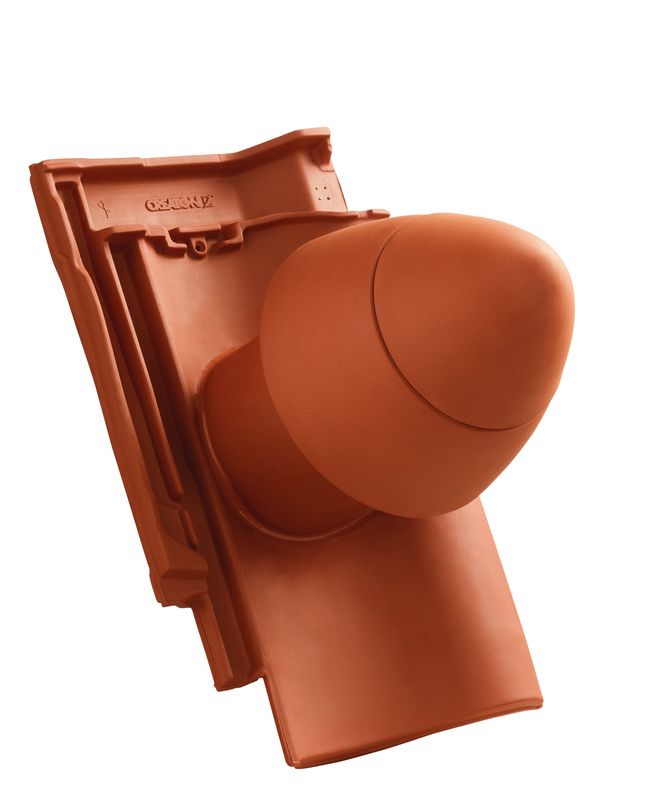

SIN SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

SIN SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

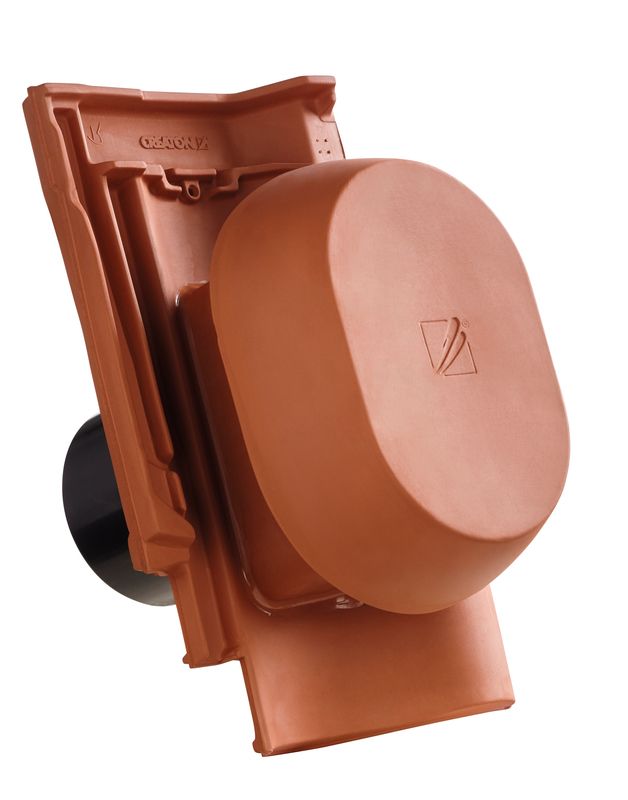

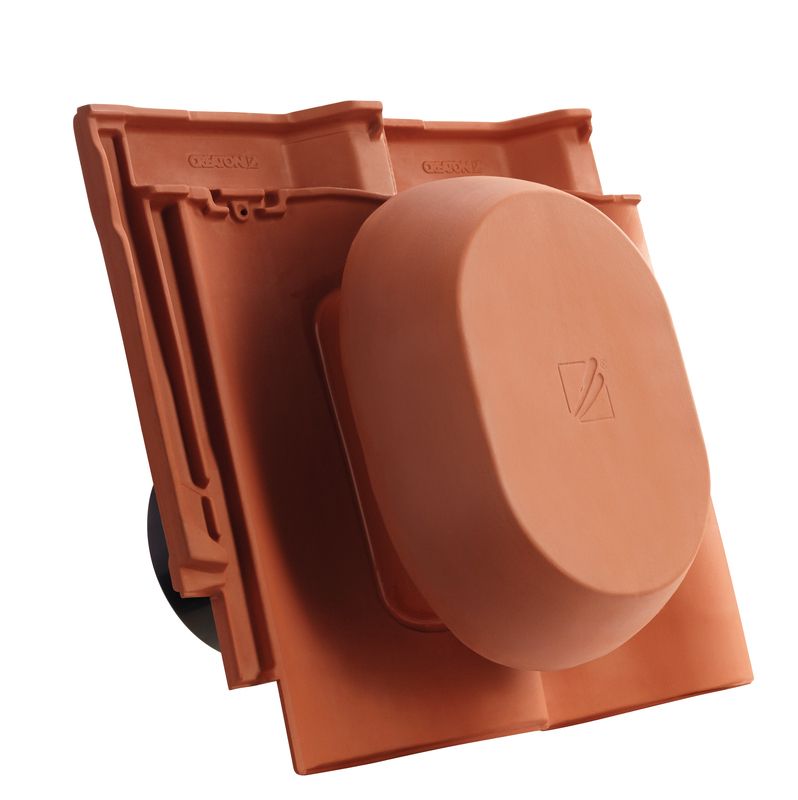

SIN SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

SIN SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

SIN SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

SIN SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

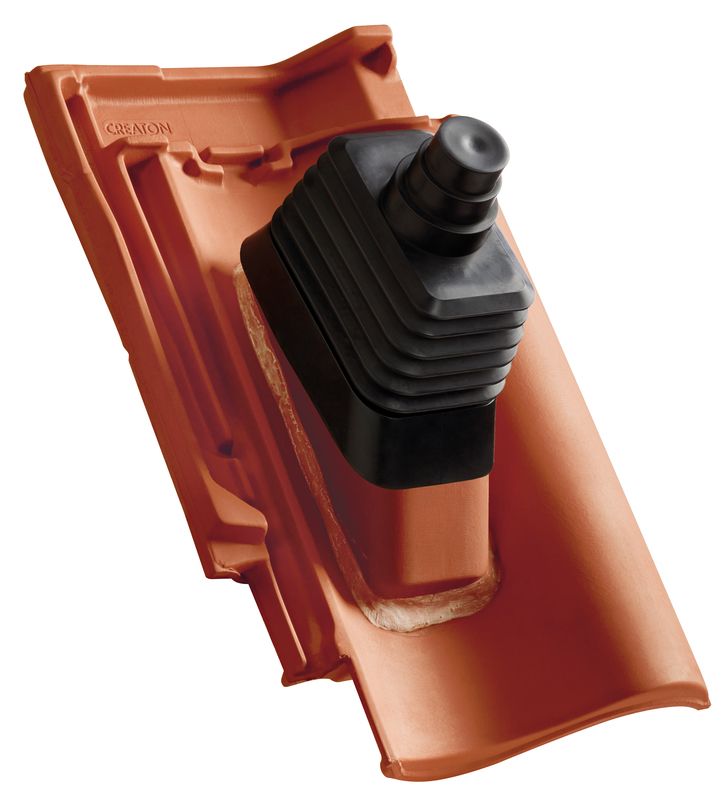

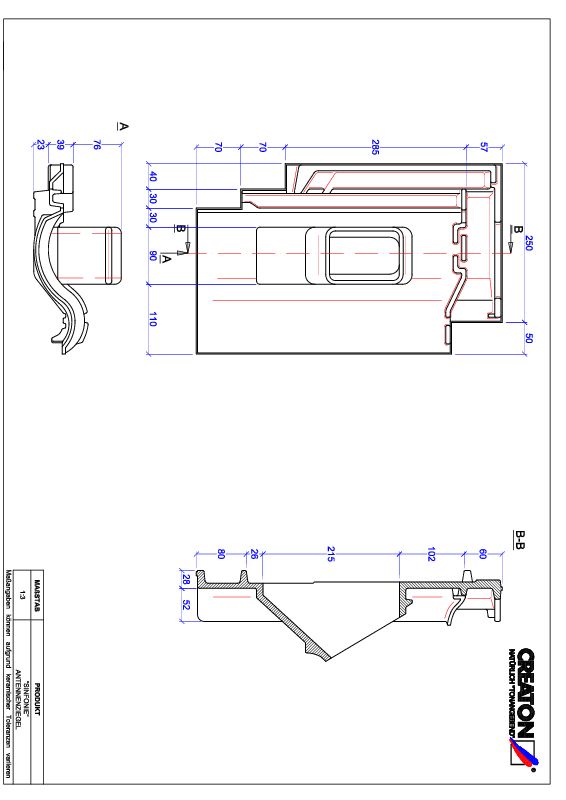

SIN aerial entry

SIN aerial entry

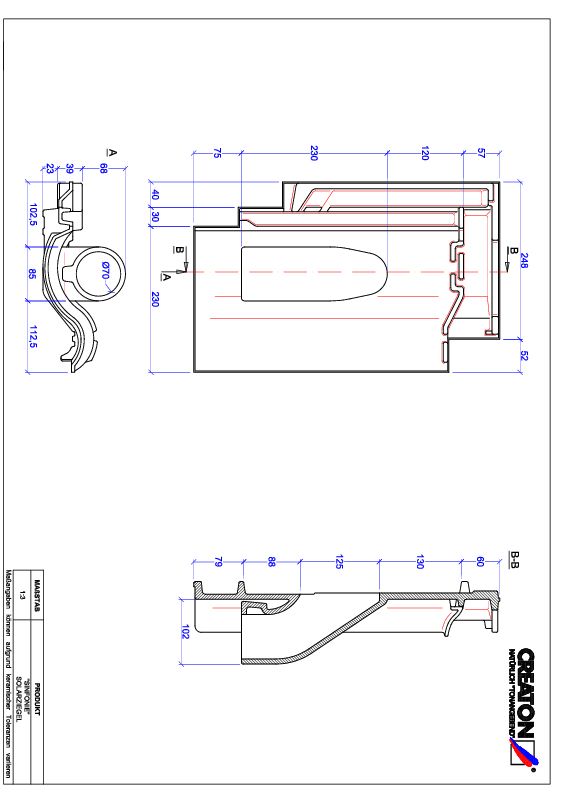

SIN solar entry tile

SIN solar entry tile

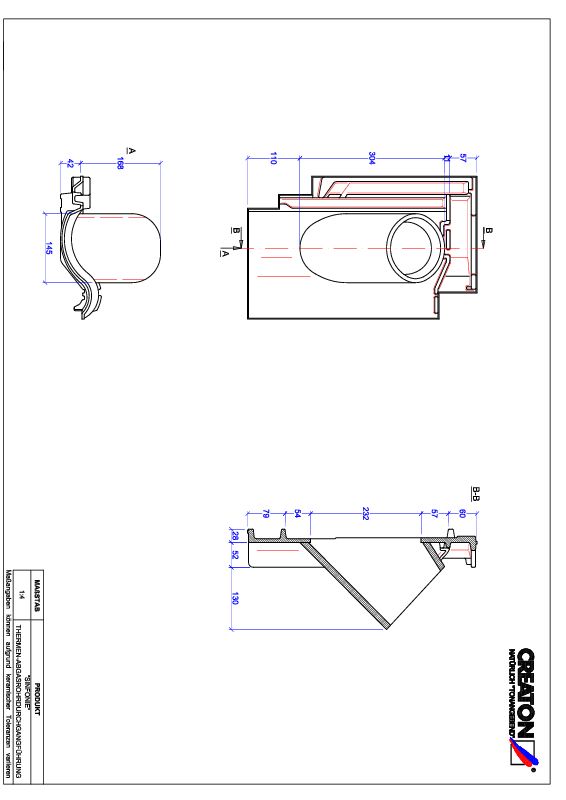

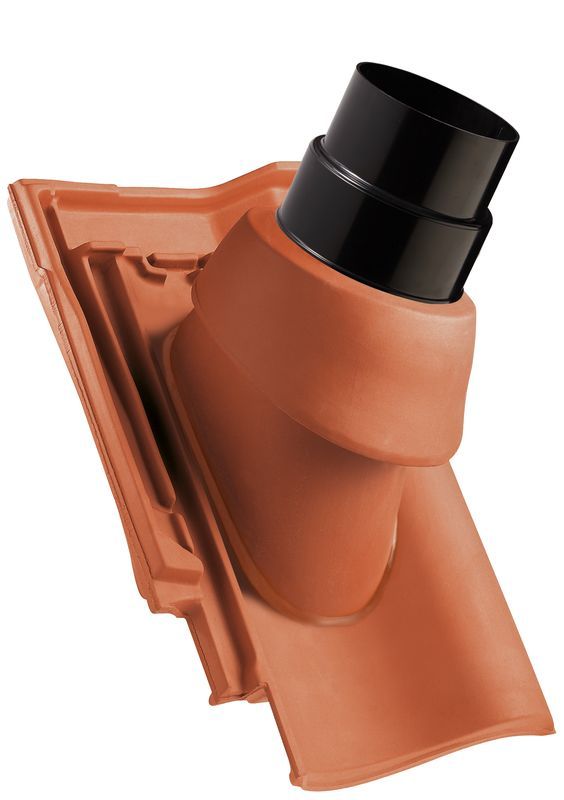

RUS flue pipe penetration NW 110/125

RUS flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Product range for snow protection, roof access and solar installation in metal

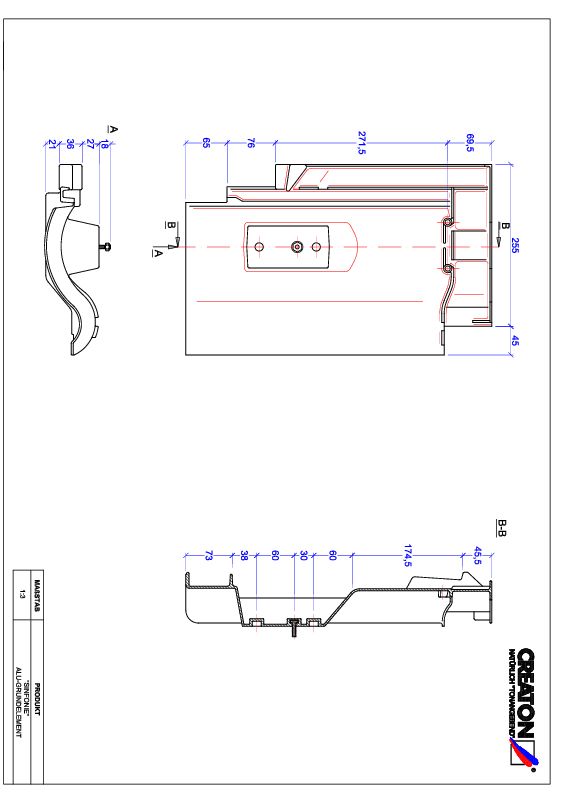

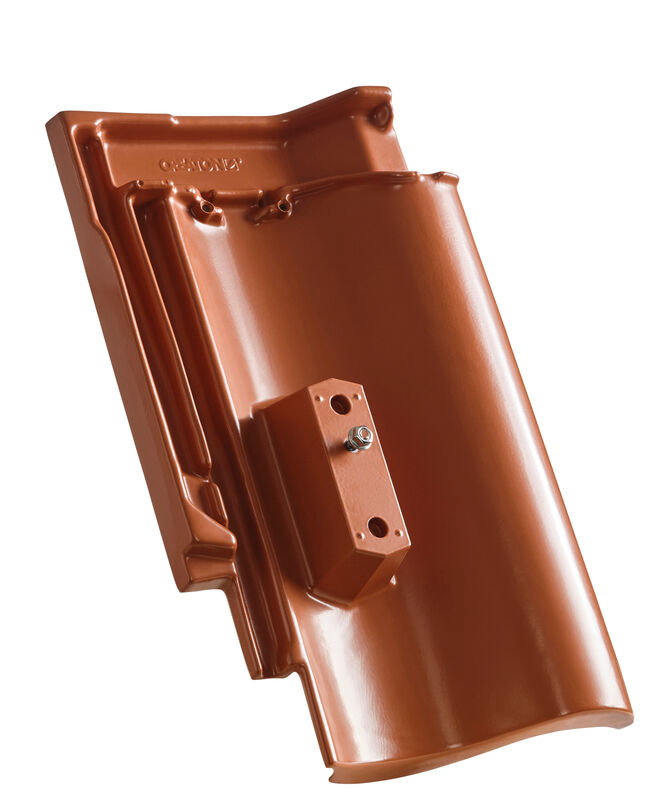

SIN aluminium base element

SIN aluminium base element

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

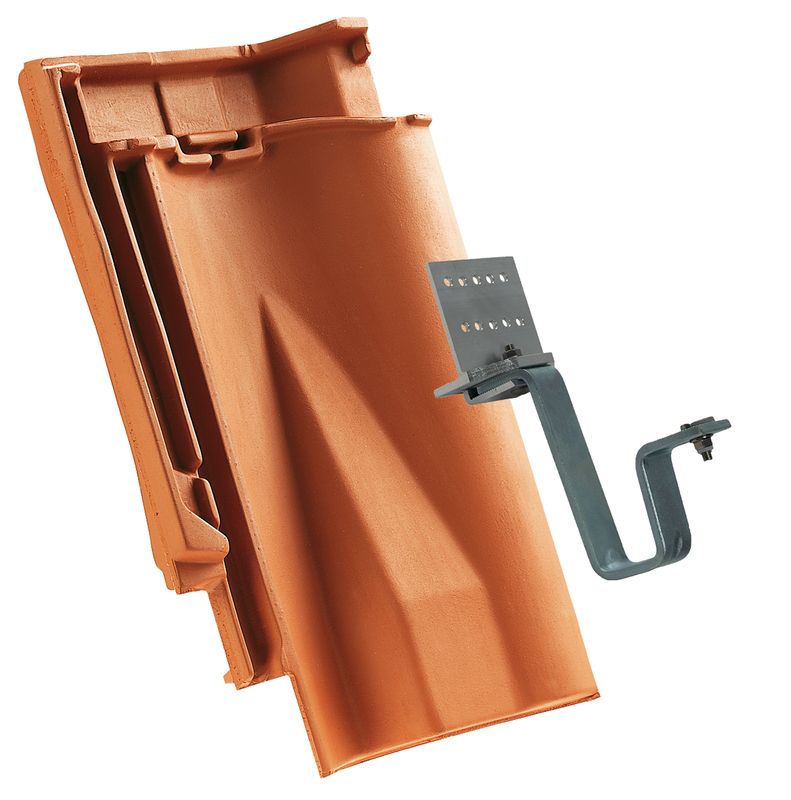

SIN solar system bracket kit for plank installation

SIN solar system bracket kit for plank installation

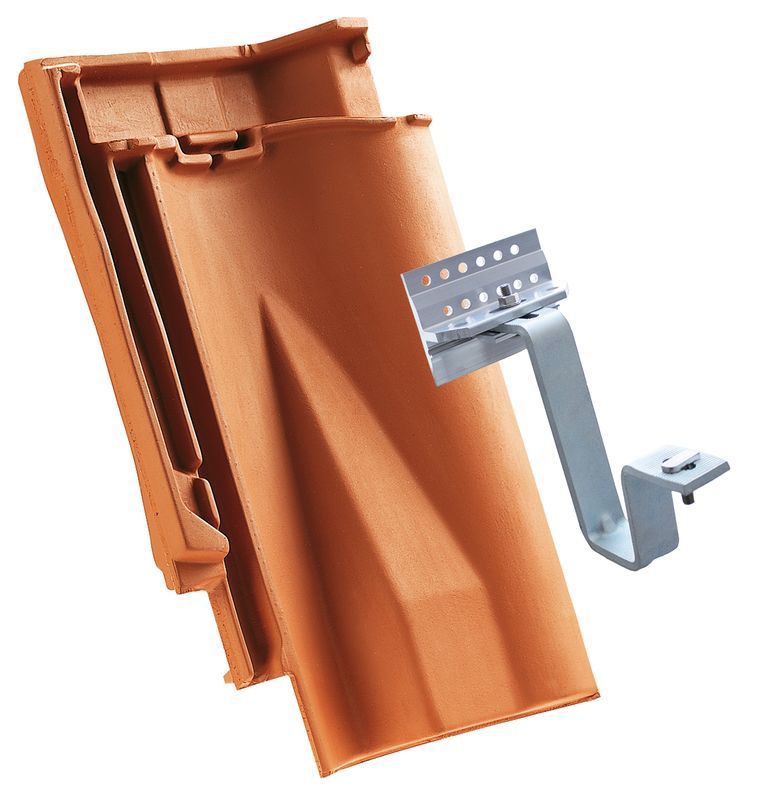

SIN solar system bracket kit for rafter installation

SIN solar system bracket kit for rafter installation

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

Product range for roof details and uplift protection

SIN transparent tile (acrylic)

SIN transparent tile (acrylic)

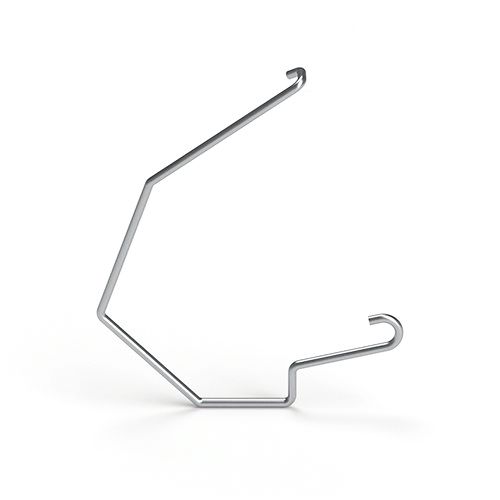

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (SIN)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (SIN)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (SIN)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (SIN)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (SIN)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (SIN)

Storm clip in zinc-aluminium, drive-in clip, all battens (SIN)

Storm clip in zinc-aluminium, drive-in clip, all battens (SIN)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Stainless steel screw with seal, length 50 mm

Stainless steel screw with seal, length 50 mm

Hip and valley clip 10-13 mm

Hip and valley clip 10-13 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Ridge and hip tile product range

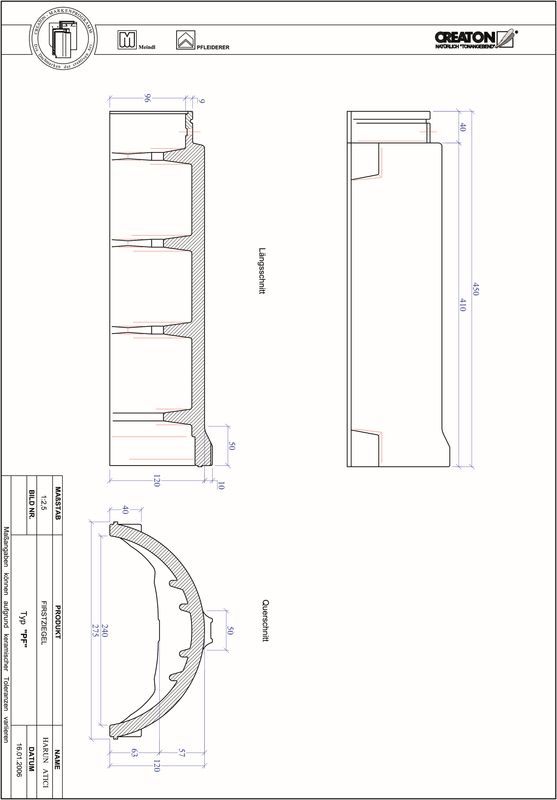

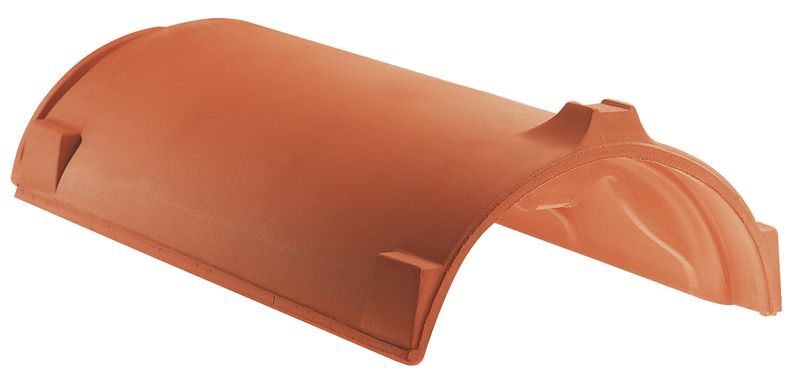

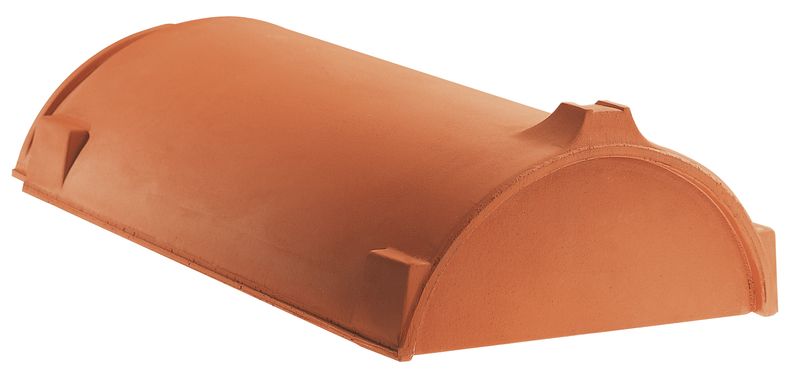

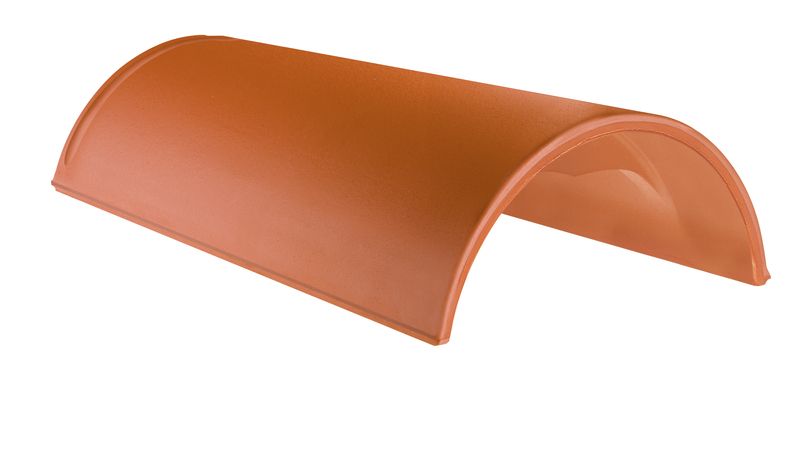

Ridge tile PF GOG (clay)

Ridge tile PF GOG (clay)

GOG ridge tile PR

GOG ridge tile PR

Ridge starter and termination plate ceramic PF GOG (clay)

Ridge starter and termination plate ceramic PF GOG (clay)

GOG ridge starter and termination plate ceramic PR

GOG ridge starter and termination plate ceramic PR

GOG function starter and termination plate ceramic PF

GOG function starter and termination plate ceramic PF

Function starter and termination plate ceramic type 1 PR GOG (clay)

Function starter and termination plate ceramic type 1 PR GOG (clay)

Hip starter ceramic PF GOG (clay)

Hip starter ceramic PF GOG (clay)

GOG hip starter ceramic PR

GOG hip starter ceramic PR

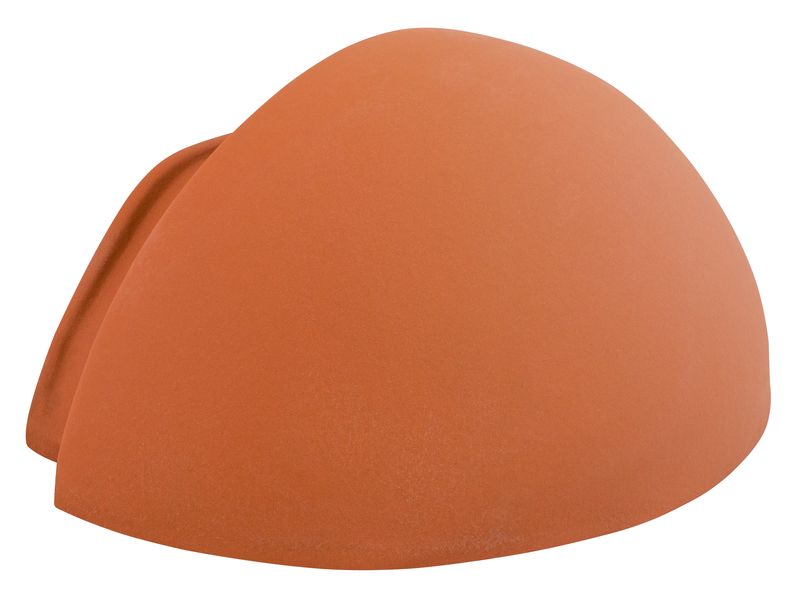

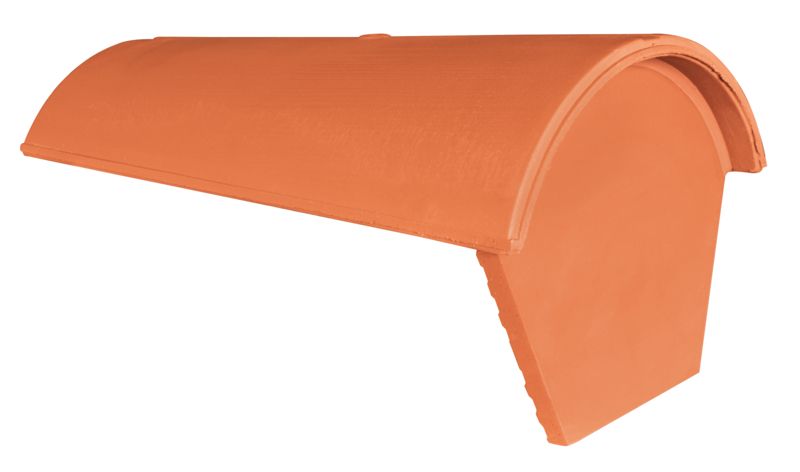

Hip starter ceramic round closure PF GOG (clay)

Hip starter ceramic round closure PF GOG (clay)

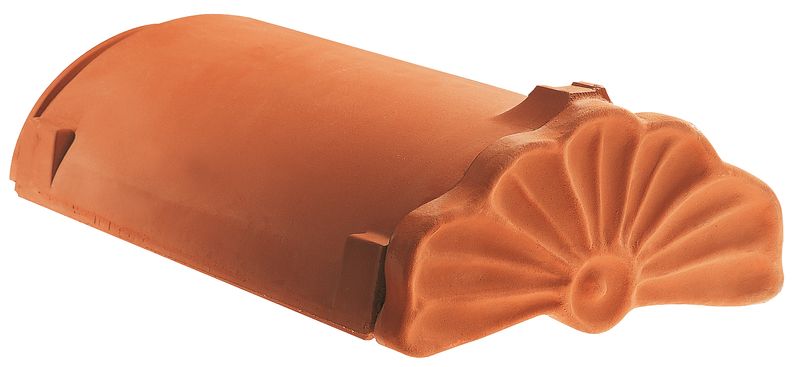

Hip starter ceramic with scallop PF GOG (clay)

Hip starter ceramic with scallop PF GOG (clay)

GOG hip cap 3-axis PF

GOG hip cap 3-axis PF

GOG hip cap 4-axis PF

GOG hip cap 4-axis PF

Ridge clip aluminium PR

Ridge clip aluminium PR

FIRSTFIX ridge clip stainless steel PR

FIRSTFIX ridge clip stainless steel PR

Hip starter ceramic with scallop PR GOG (clay)

Hip starter ceramic with scallop PR GOG (clay)

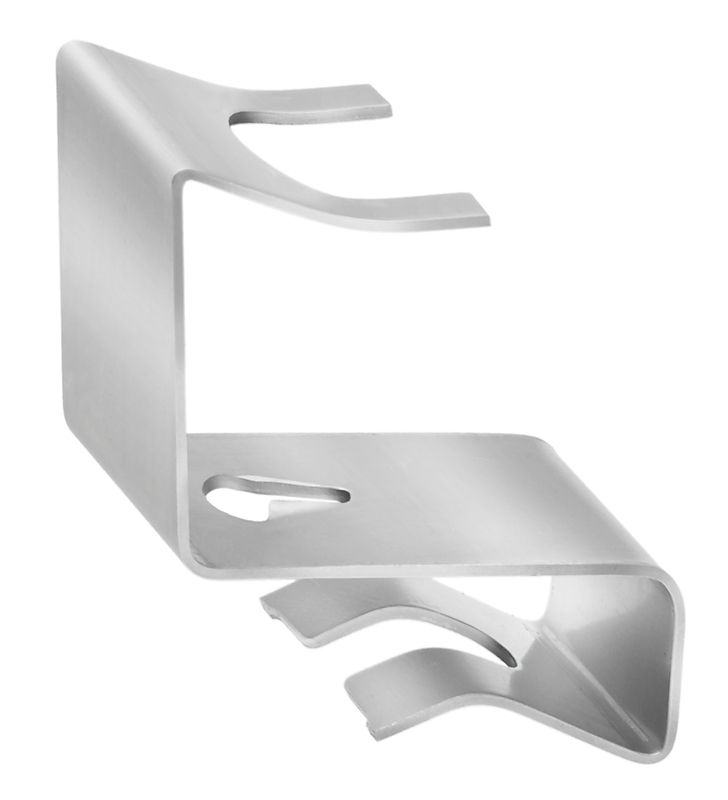

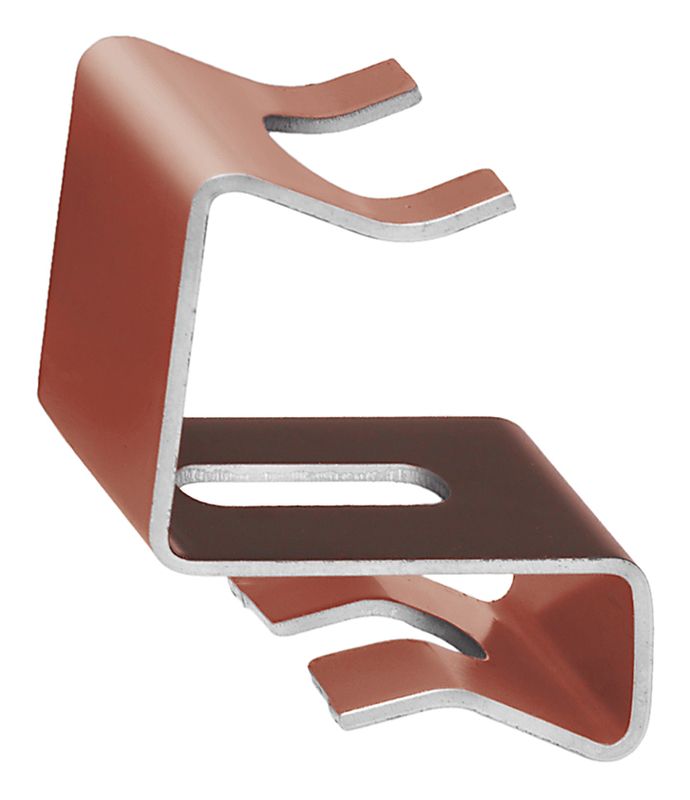

Ridge clip aluminium PF GOG

Ridge clip aluminium PF GOG

FIRSTFIX ridge clip stainless steel PF GOG

FIRSTFIX ridge clip stainless steel PF GOG

Ridge tile PKO GOG (clay)

Ridge tile PKO GOG (clay)

Ridge clip aluminium PKO GOG

Ridge clip aluminium PKO GOG

FIRSTFIX ridge clip stainless steel PKO GOG

FIRSTFIX ridge clip stainless steel PKO GOG

Hip starter ceramic round closure PKO GOG (clay)

Hip starter ceramic round closure PKO GOG (clay)

Ridge starter ceramic with tongue tapered PKO GOG (clay)

Ridge starter ceramic with tongue tapered PKO GOG (clay)

Ridge termination ceramic with tongue tapered PKO GOG (clay)

Ridge termination ceramic with tongue tapered PKO GOG (clay)

FIRSTFIX ridge clip wire universal

FIRSTFIX ridge clip wire universal

FIRSTFIX clip kit universal

FIRSTFIX clip kit universal

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Downloads
