MELODIE NUANCE cooper red engobed

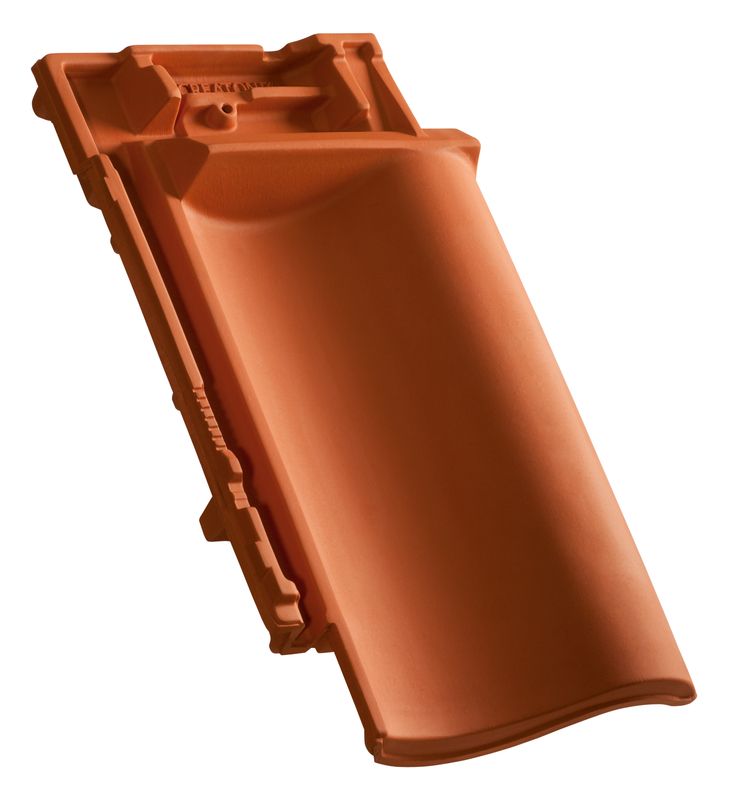

MELODIE

The North roofs this easily.

  • Also suitable for flat roofs with a pitch under 10°, with a waterproof sub-roof
  • Exceptional versatility and ease of installation thanks to generous adjustment range of 35 mm
  • A unit weight of only 3.2 kg makes this tile very easy to work with
  • Sophisticated interlock technology allows water to drain away effectively and protects against rain intrusion

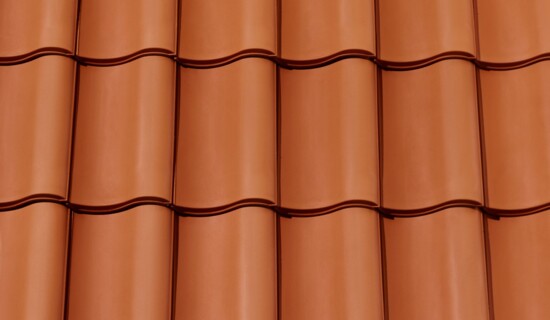

natural red
natural red

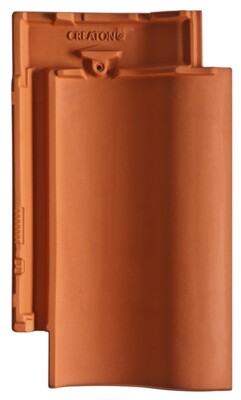

NUANCE copper red engobed
NUANCE copper red engobed
NUANCE slate grey engobed
NUANCE slate grey engobed
NUANCE anthracite engobed
NUANCE anthracite engobed
FINESSE black glazed
FINESSE black glazed

Technical data

Size (appr.)255 x 440 mm
Covering width min. approx.208 mm
Covering width on av. approx.209 mm
Max. coverage width (approx.)210 mm
Min. gauge (approx.)314 mm
Covering length on av. approx.330 mm
Max. gauge (approx.)347 mm
Tile requirement min. (approx.)13.7 pcs/m²
Average tile requirement (approx.)14.5 pcs/m²
Brickware max. approx.15.3 pcs/m²
Unit weight (approx.)3.3 kg/piece
Weight per m² (approx.)47.9 kg/m²
Weight per pallet (approx.)819 kg
Pcs per mini-pack6 piece
Pcs per pallet240 piece

Technical drawings

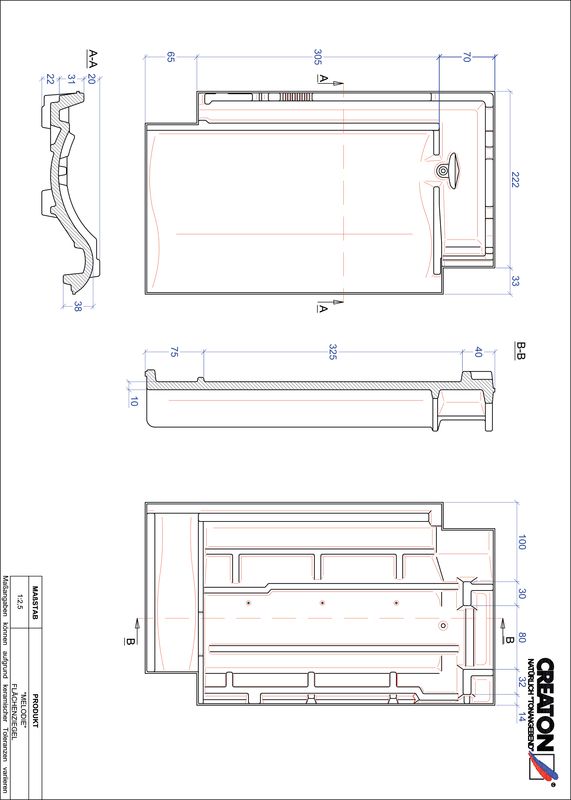

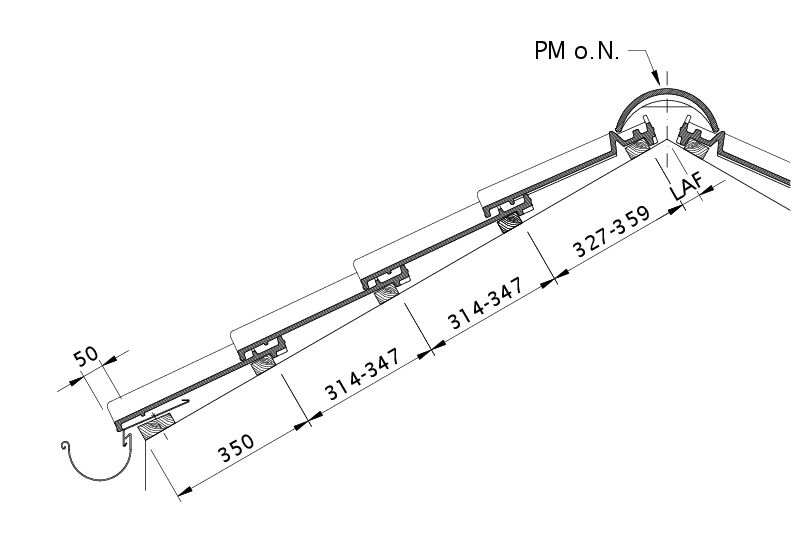

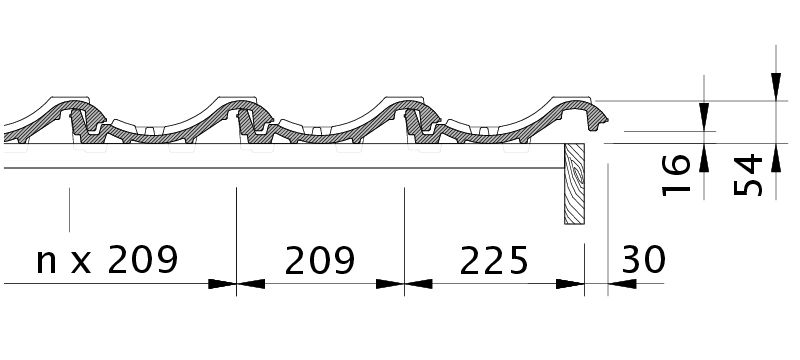

Drawing MELODIE roof cross-section DQF
Drawing MELODIE roof cross-section DQF

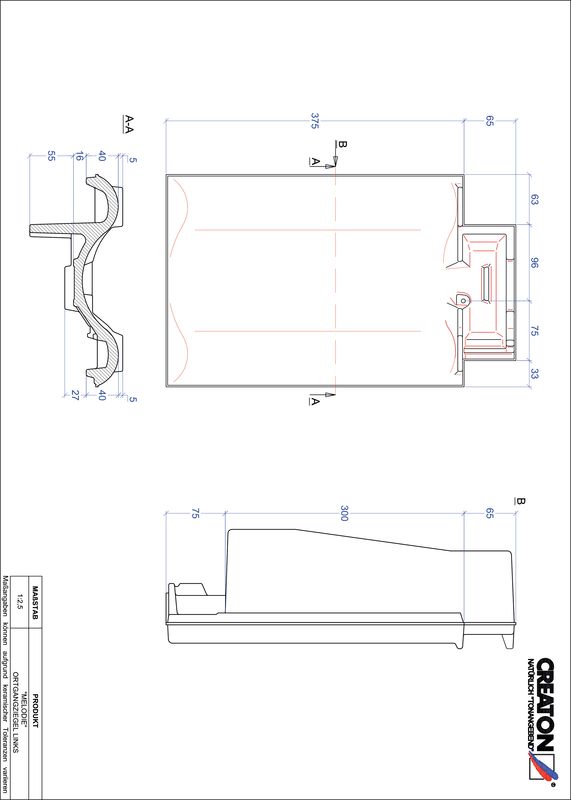

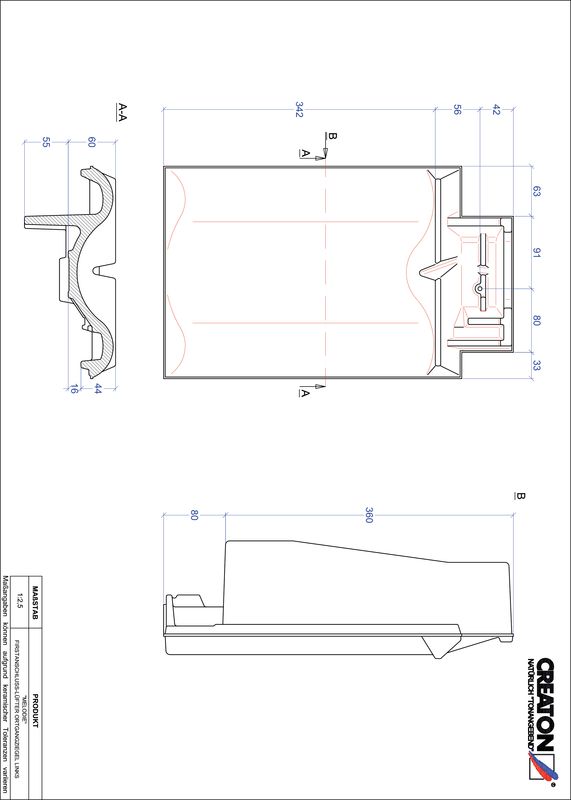

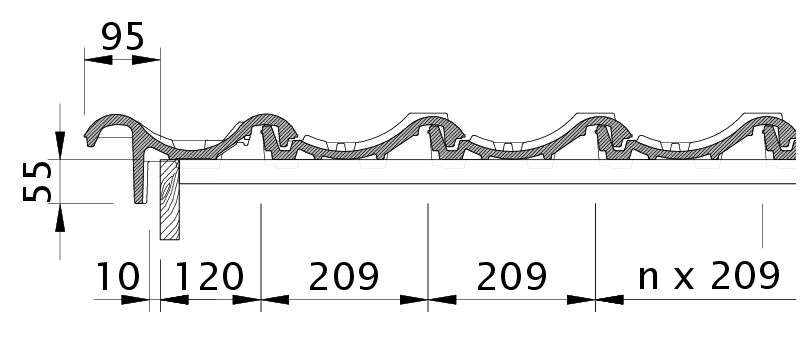

Drawing MELODIE verge tile left with barge board OBL
Drawing MELODIE verge tile left with barge board OBL

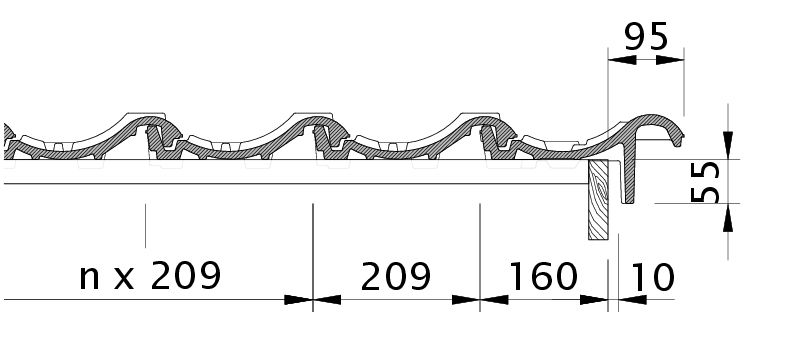

Drawing MELODIE verge tile right with barge board OBR
Drawing MELODIE verge tile right with barge board OBR

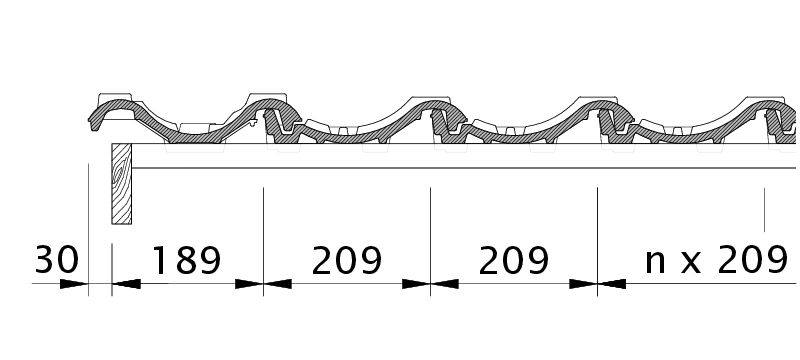

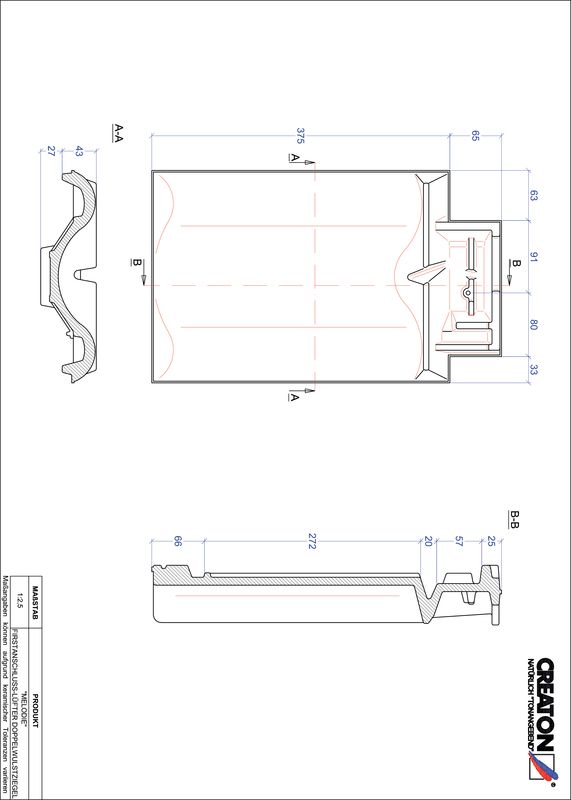

Drawing MELODIE verge left with verge sheet metal and double roll ODL
Drawing MELODIE verge left with verge sheet metal and double roll ODL
Drawing MELODIE verge right with verge sheet metal and field tile OFR
Drawing MELODIE verge right with verge sheet metal and field tile OFR

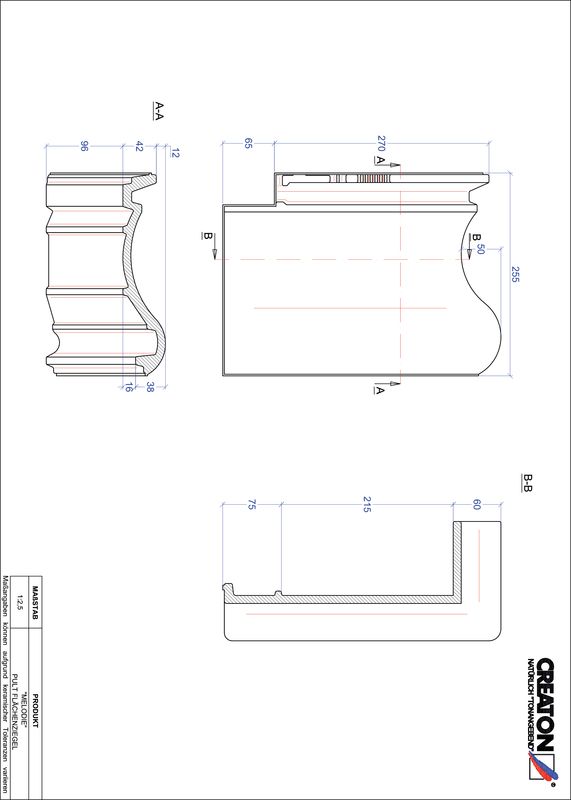

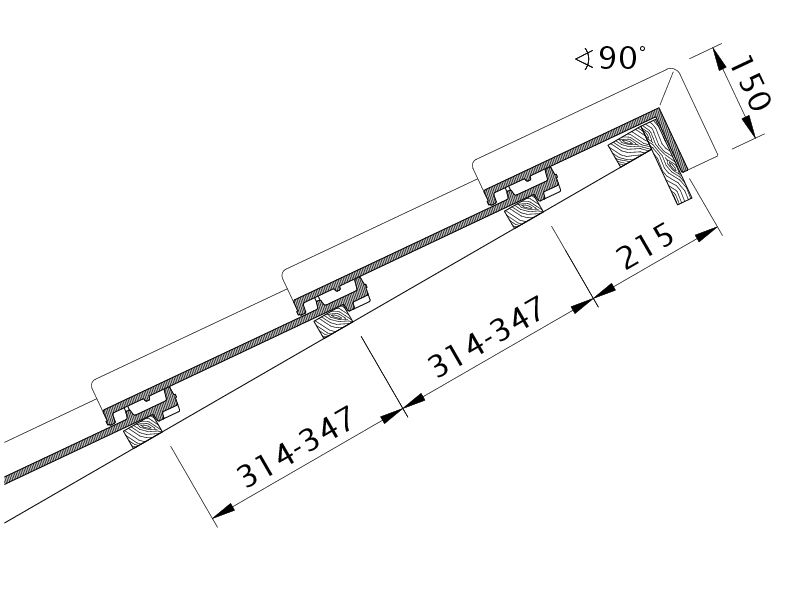

Drawing MELODIE shed roof version PDA
Drawing MELODIE shed roof version PDA

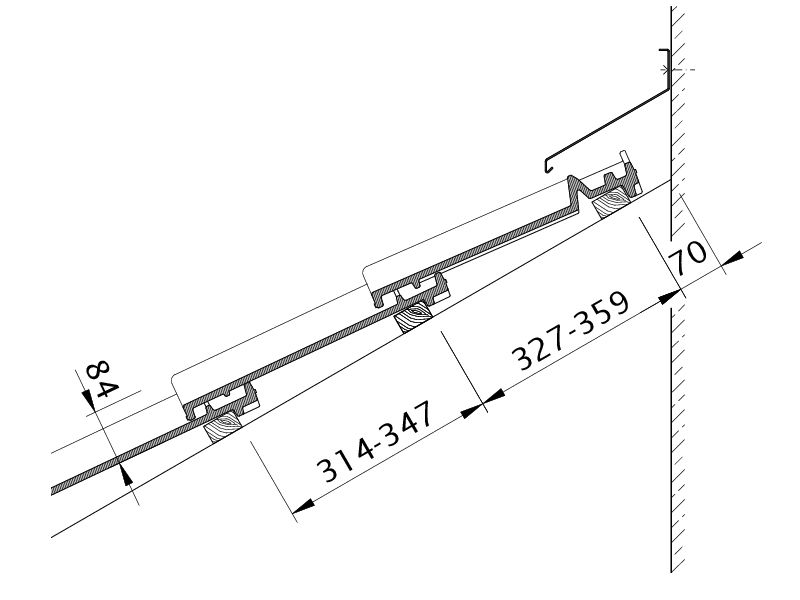

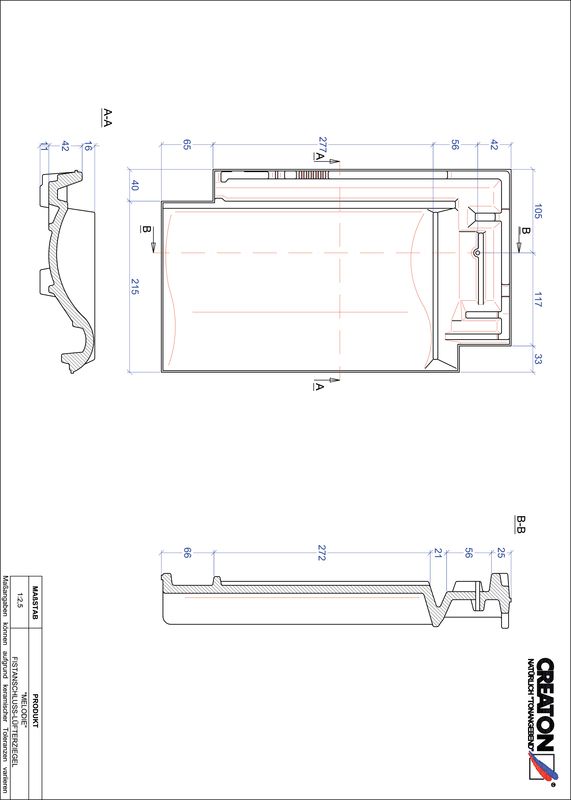

Drawing MELODIE wall connection (above) with FALZ WMF
Drawing MELODIE wall connection (above) with FALZ WMF

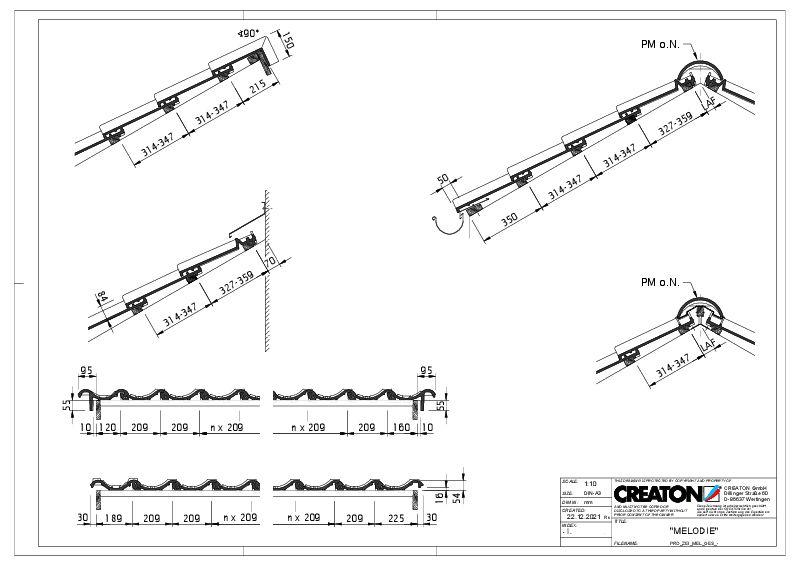

Drawing MELODIE general view GES
Drawing MELODIE general view GES

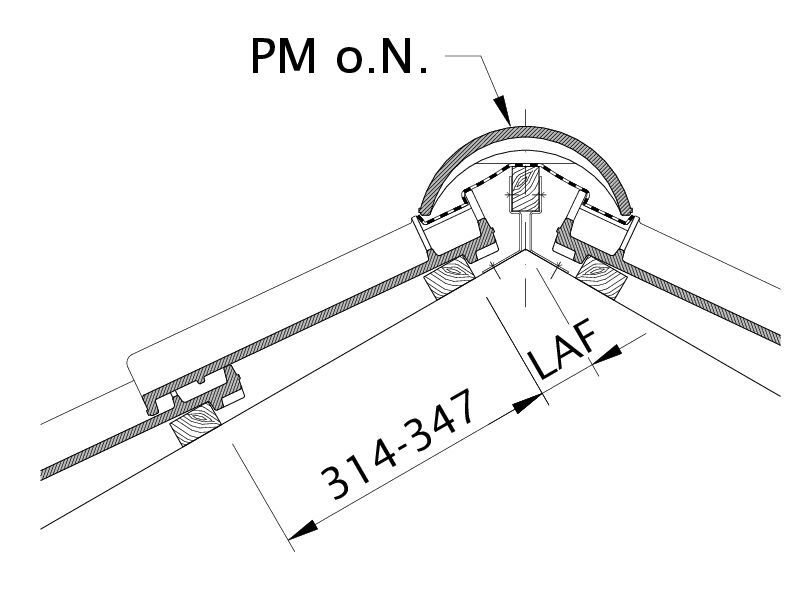

Drawing MELODIE distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing MELODIE distance from batten to ridge intersection point, ridge batten spacing LAF

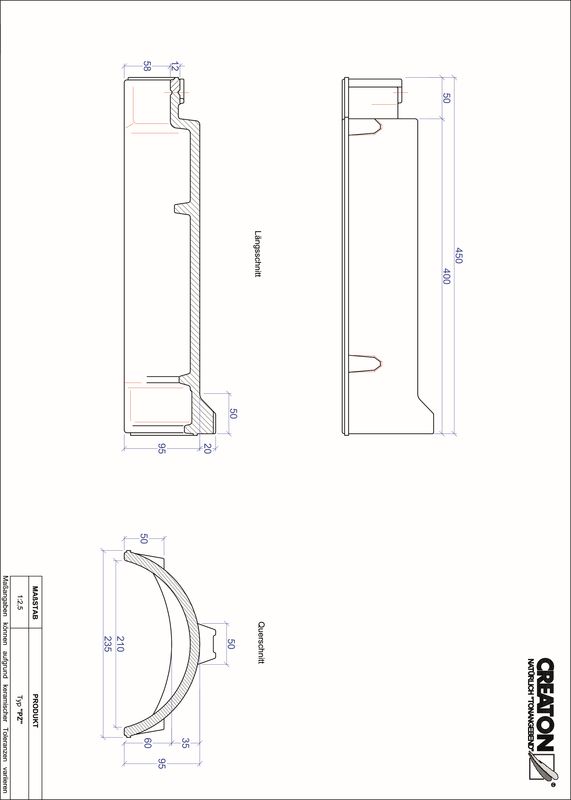

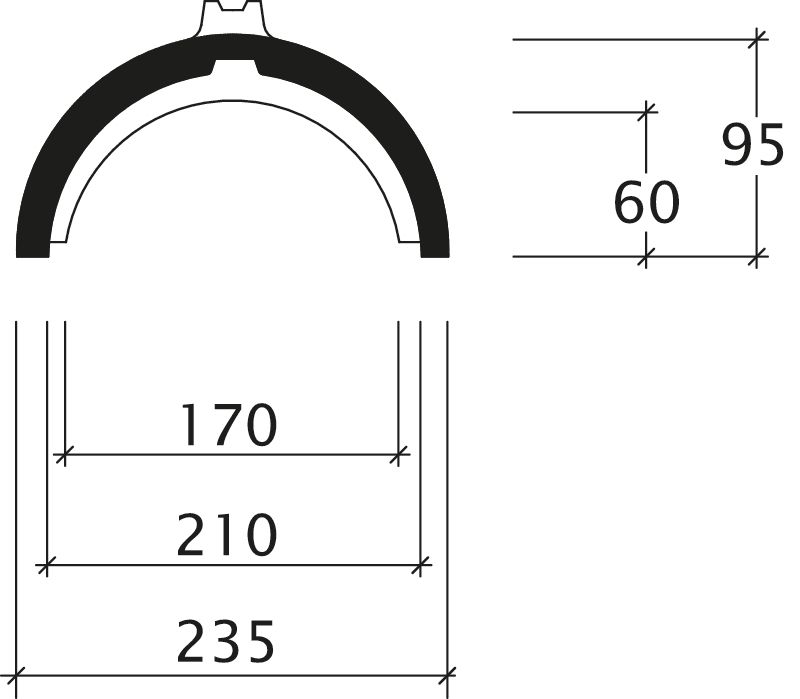

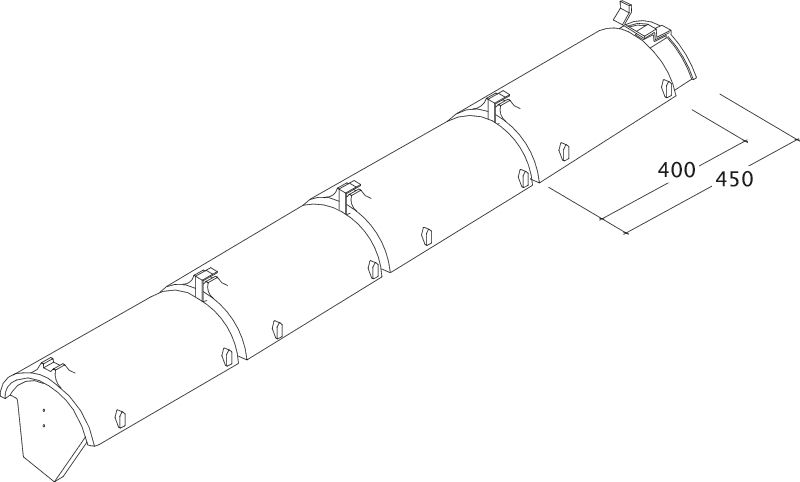

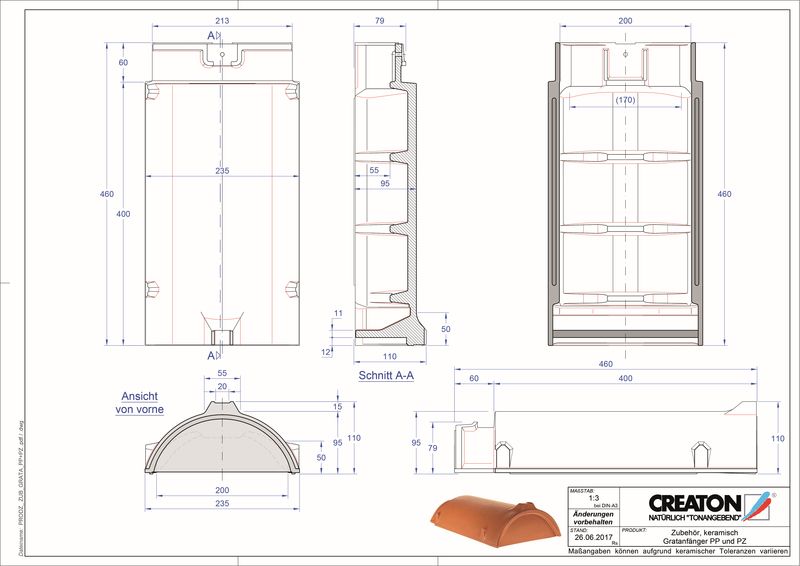

Drawing ridge and hip tile product range PZ-Firstziegel
Drawing ridge and hip tile product range PZ-Firstziegel
Drawing ridge and hip tile product range PZ-Firstziegel-Perspektive
Drawing ridge and hip tile product range PZ-Firstziegel-Perspektive

Applications

Additional measures according to CREATON manufacturer's specifications
16 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 14 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 12 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PMoN 2.8 pcs/mLAF5050454030201515151010
PMoN 2.8 pcs/mFLA11511510510095908075757070
PZ 2.5 pcs/mLAF6565656060605050454040
PZ 2.5 pcs/mFLA11011010510090858070656050
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PMoN 2.8 pcs/mLAF505045352515101010
PMoN 2.8 pcs/mFLA125125115110105100908580
PZ 2.5 pcs/mLAF6565655555554540302525
PZ 2.5 pcs/mFLA120120115110100959080757060
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PMoN 2.8 pcs/mLAF454540302050
PMoN 2.8 pcs/mFLA135135125120115115105
PZ 2.5 pcs/mLAF6060605050453530201510
PZ 2.5 pcs/mFLA13013012512011011010595959090

References

more

more

more

Accessory range

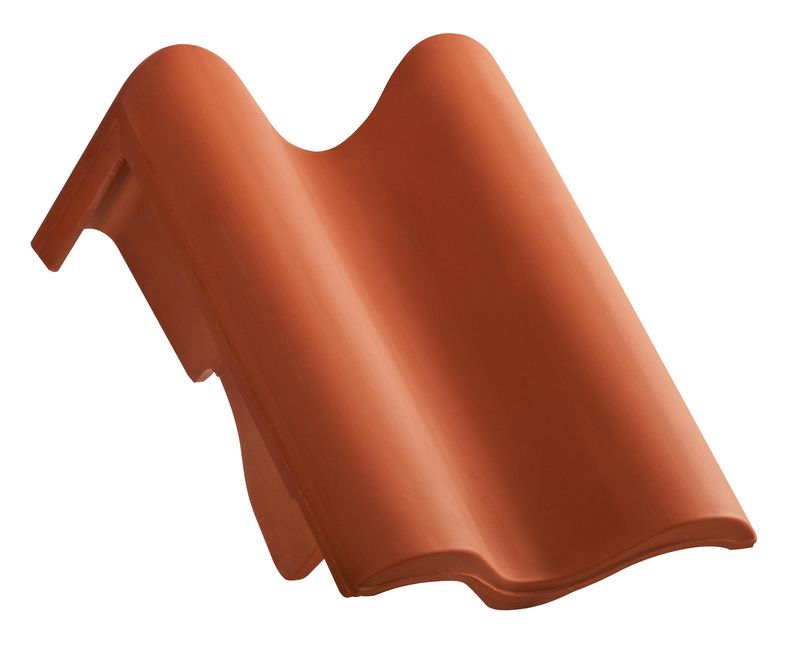

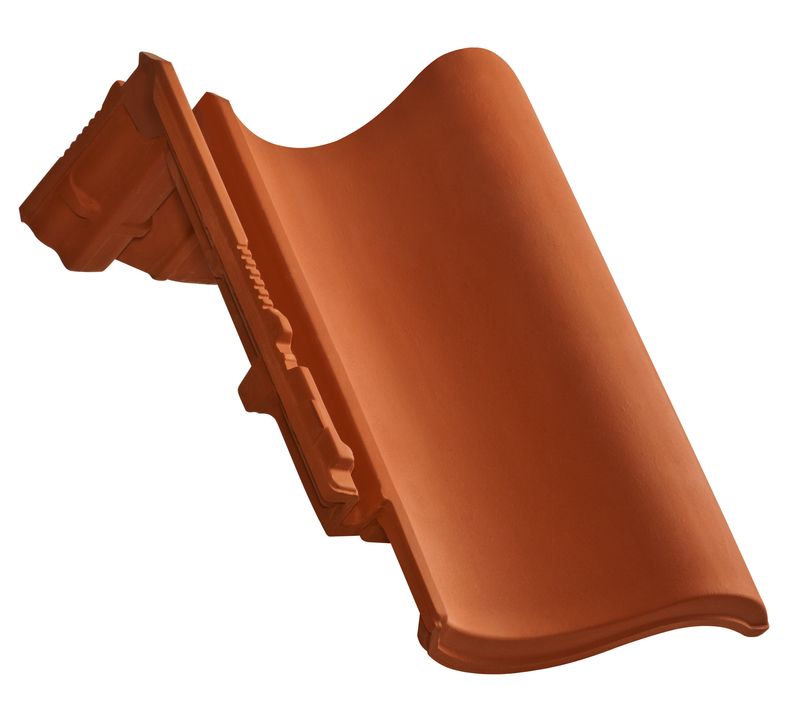

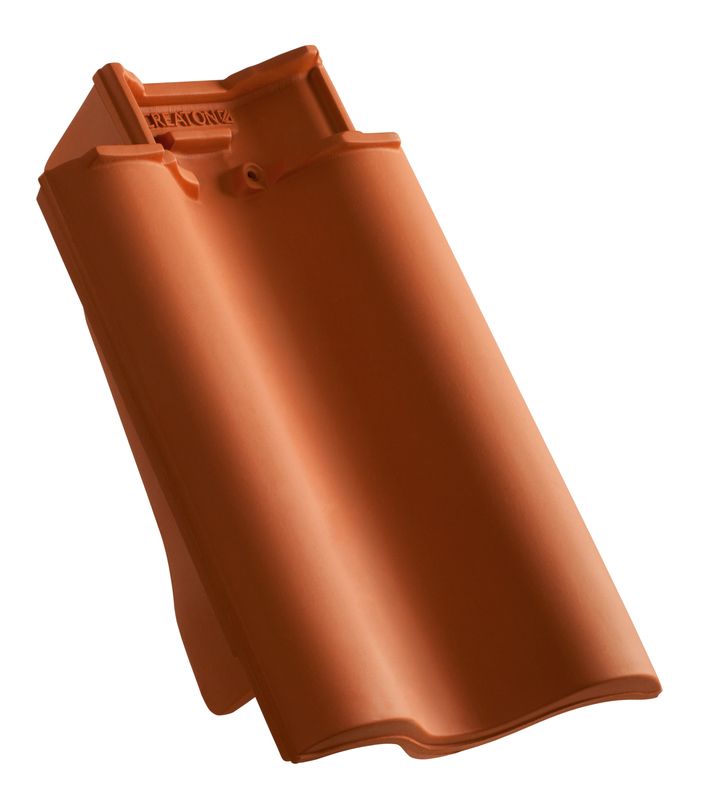

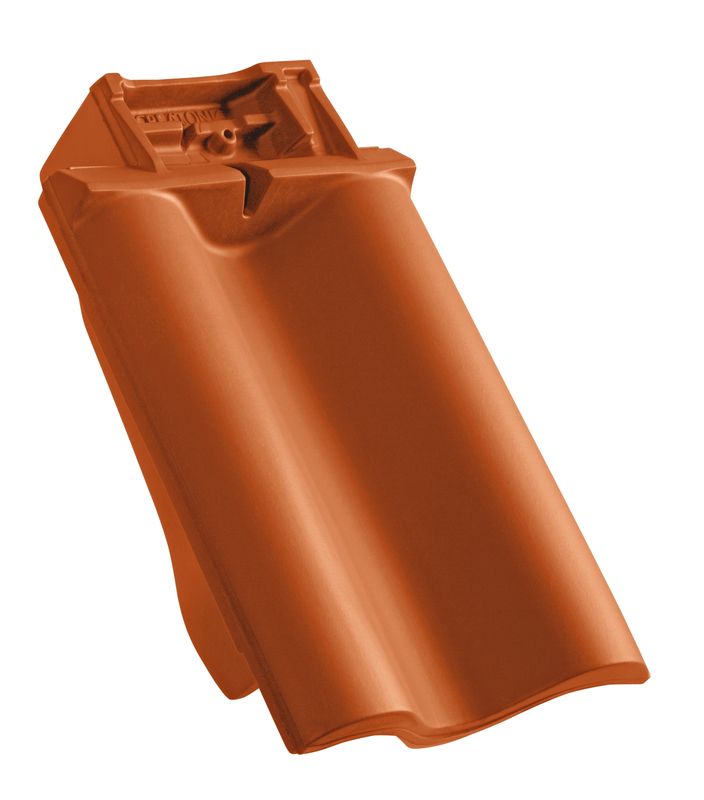

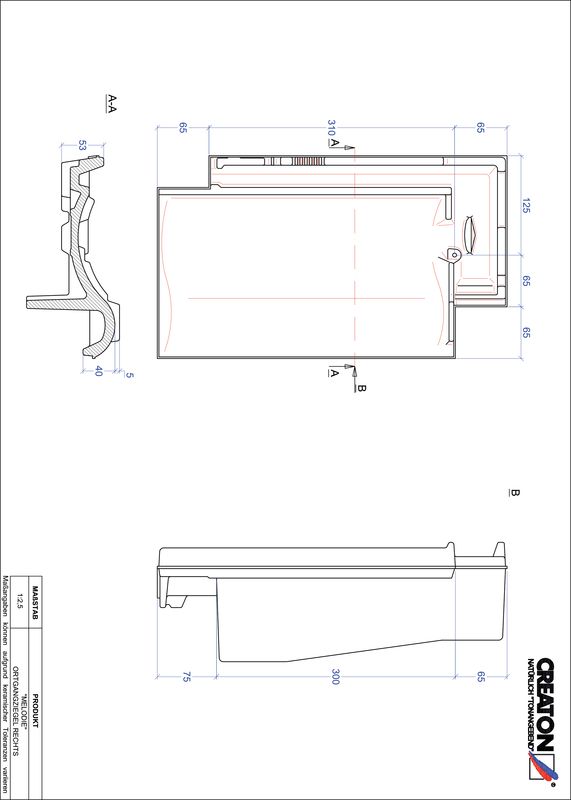

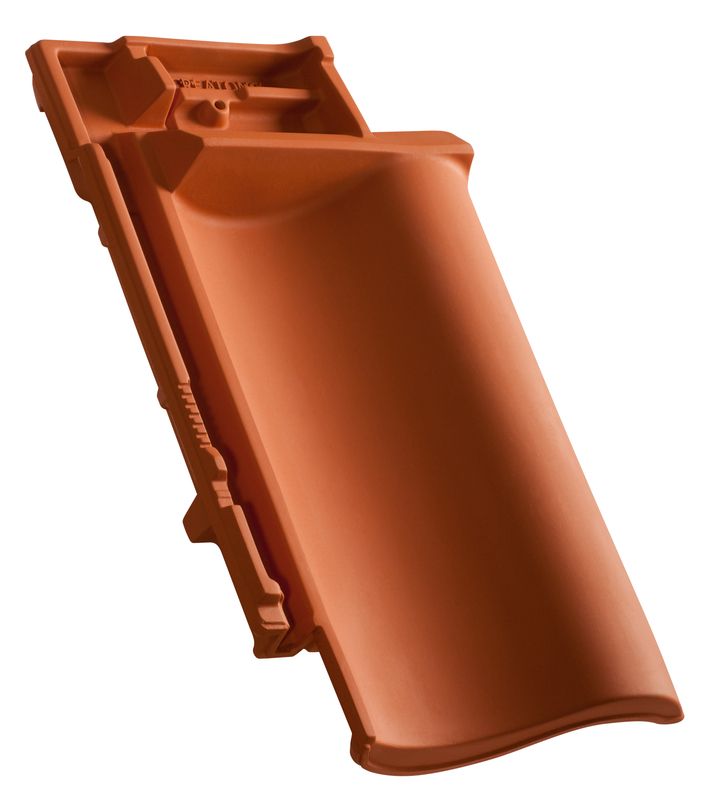

MEL verge tile right

MEL verge tile right

MEL verge tile left

MEL verge tile left

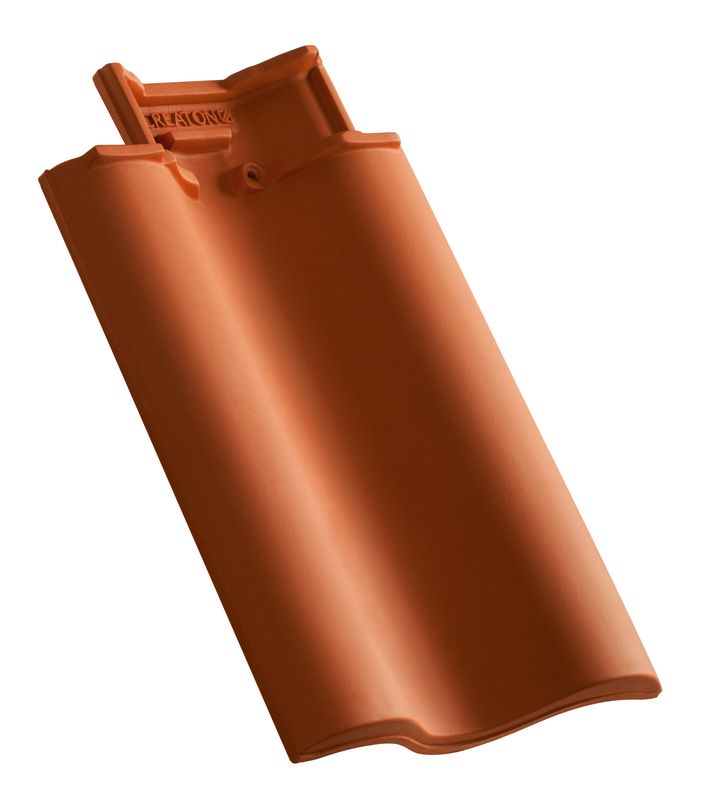

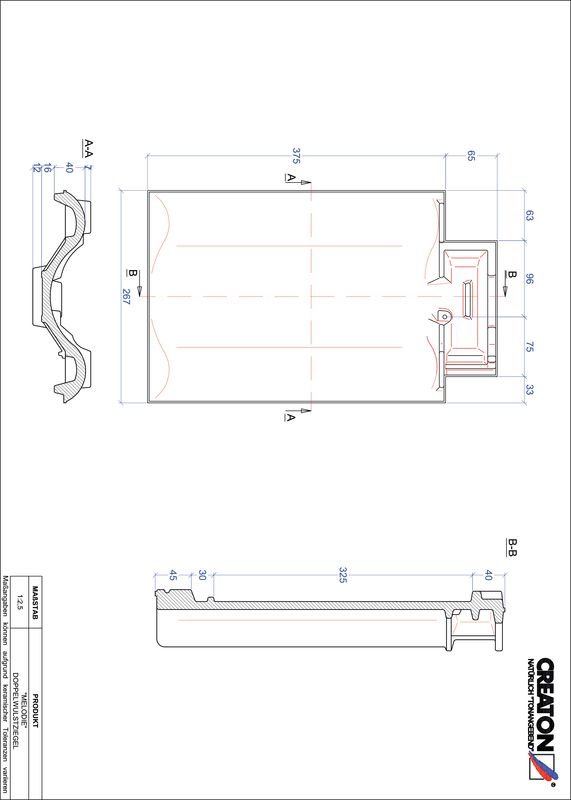

MEL double roll tile

MEL double roll tile

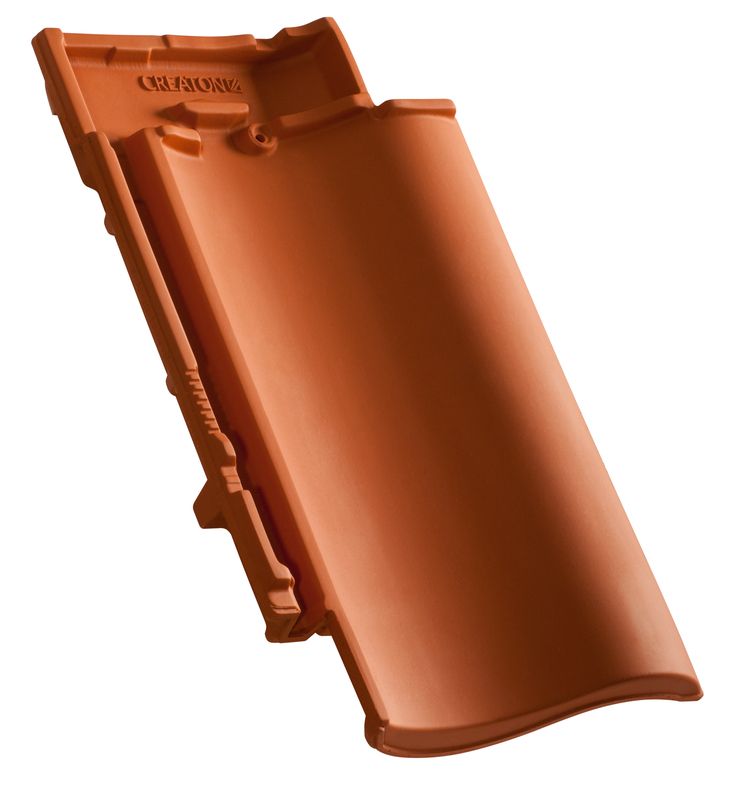

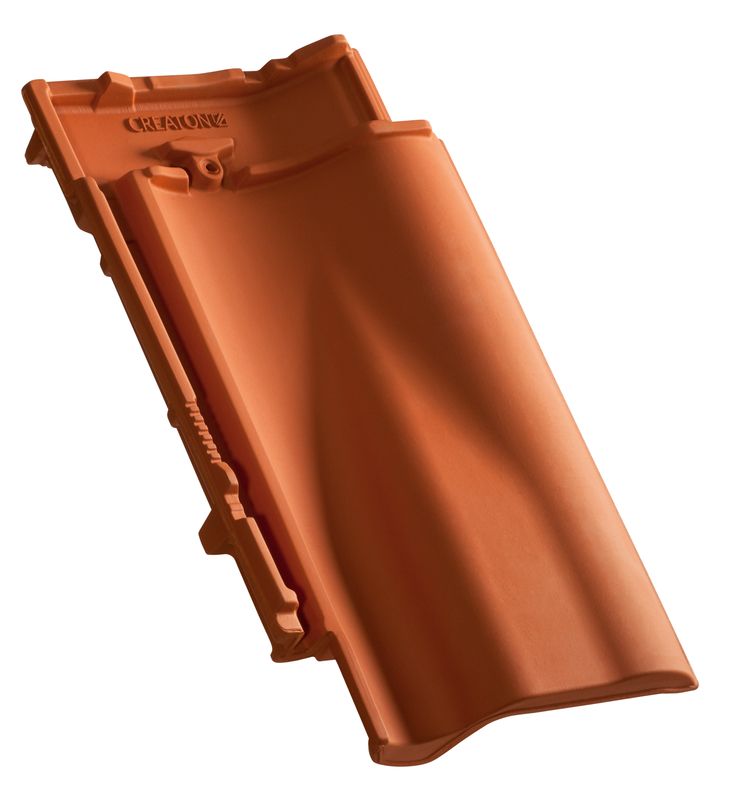

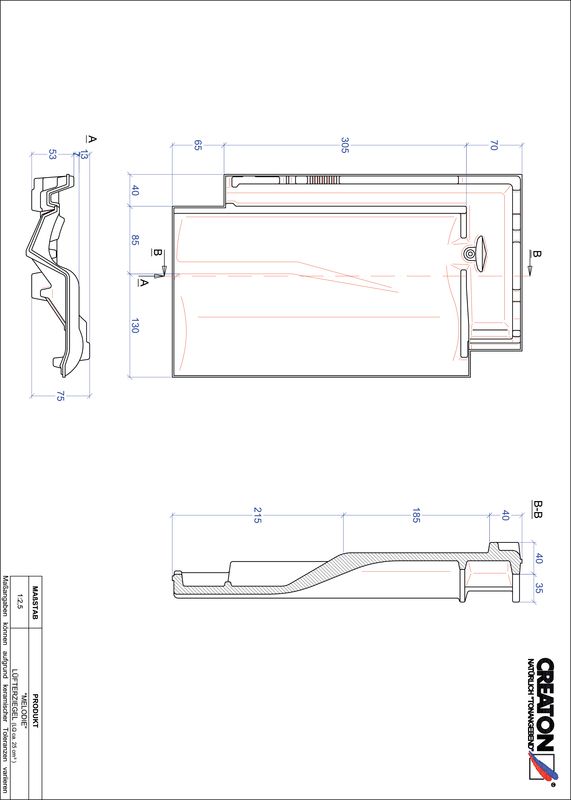

MEL ventilating tile

MEL ventilating tile

MEL ridge connection ventilating tile

MEL ridge connection ventilating tile

MEL ridge connection ventilating verge tile right

MEL ridge connection ventilating verge tile right

MEL ridge connection ventilating verge tile left

MEL ridge connection ventilating verge tile left

MEL ridge connection ventilating double roll tile

MEL ridge connection ventilating double roll tile

MEL shed roof tile decorated standard

MEL shed roof tile decorated standard

MEL shed roof verge tile decorated standard right

MEL shed roof verge tile decorated standard right

MEL shed roof verge tile decorated standard left

MEL shed roof verge tile decorated standard left

MEL shed roof tile decorated special size

MEL shed roof tile decorated special size

MEL shed roof verge tile decorated special size right

MEL shed roof verge tile decorated special size right

MEL shed roof verge tile decorated special size left

MEL shed roof verge tile decorated special size left

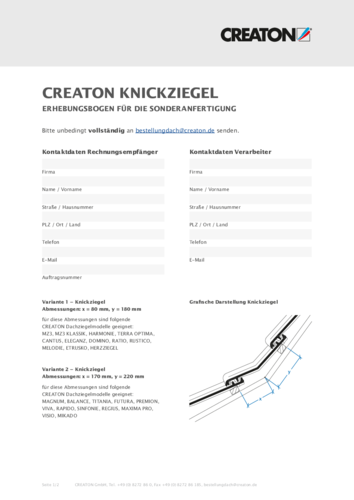

MEL mansard/pitch transition tile decorated special size

MEL mansard/pitch transition tile decorated special size

MEL mansard/pitch transition verge tile decorated special size right

MEL mansard/pitch transition verge tile decorated special size right

MEL mansard/pitch transition verge tile decorated special size left

MEL mansard/pitch transition verge tile decorated special size left

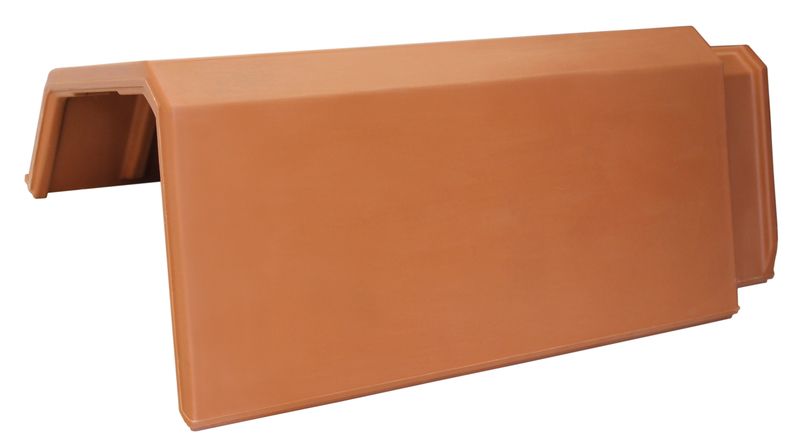

WER universal shed roof tile PDZ

WER universal shed roof tile PDZ

WER universal shed roof starter and termination plate PDZ

WER universal shed roof starter and termination plate PDZ

Ridge clip aluminium universal shed roof tile

Ridge clip aluminium universal shed roof tile

Product range for roof ventilation and penetrations

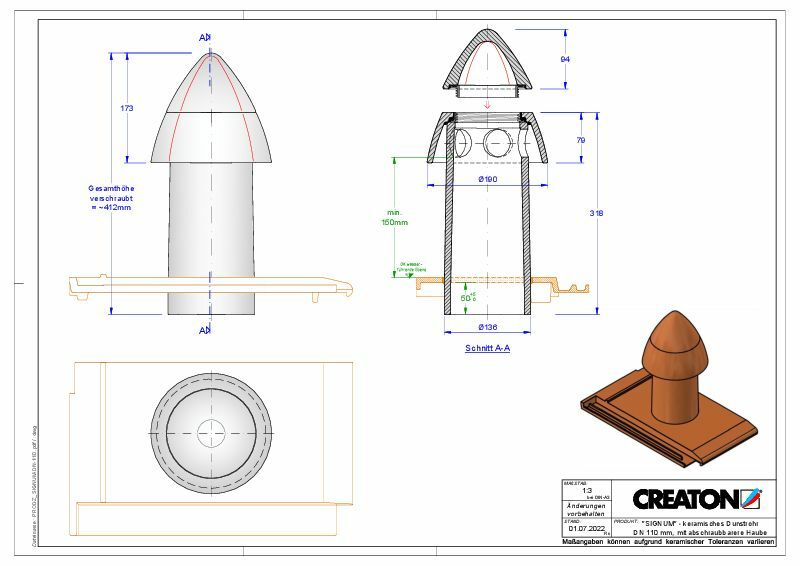

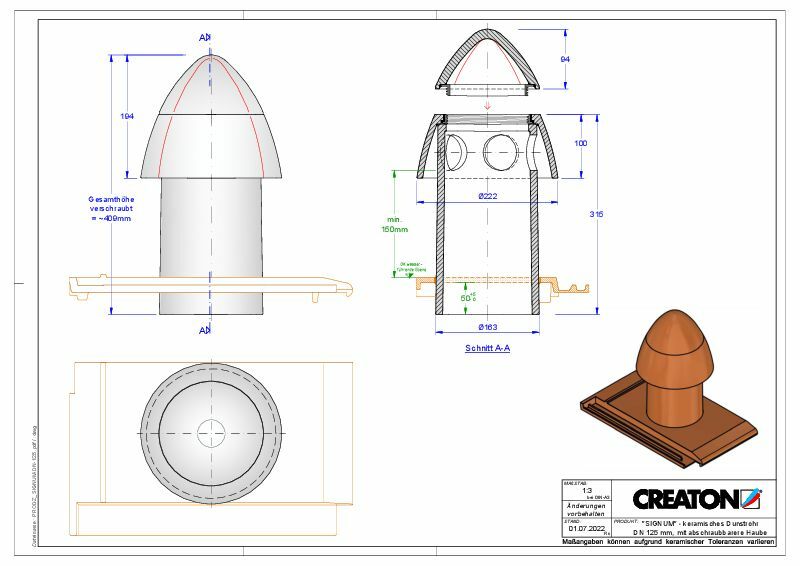

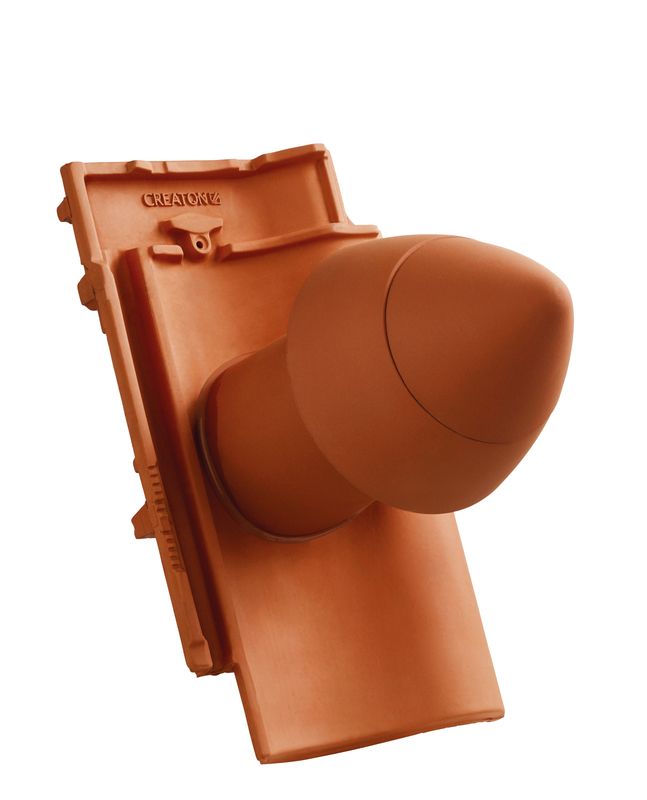

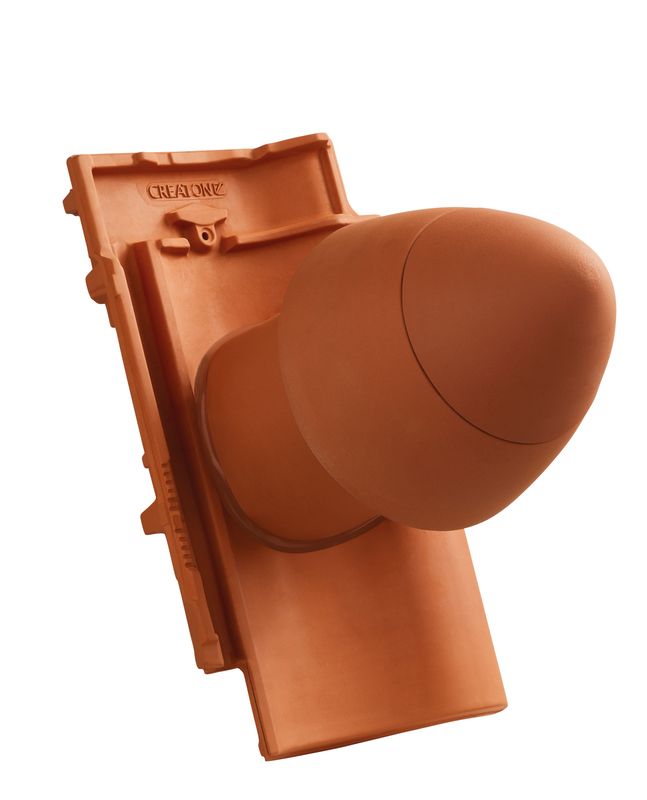

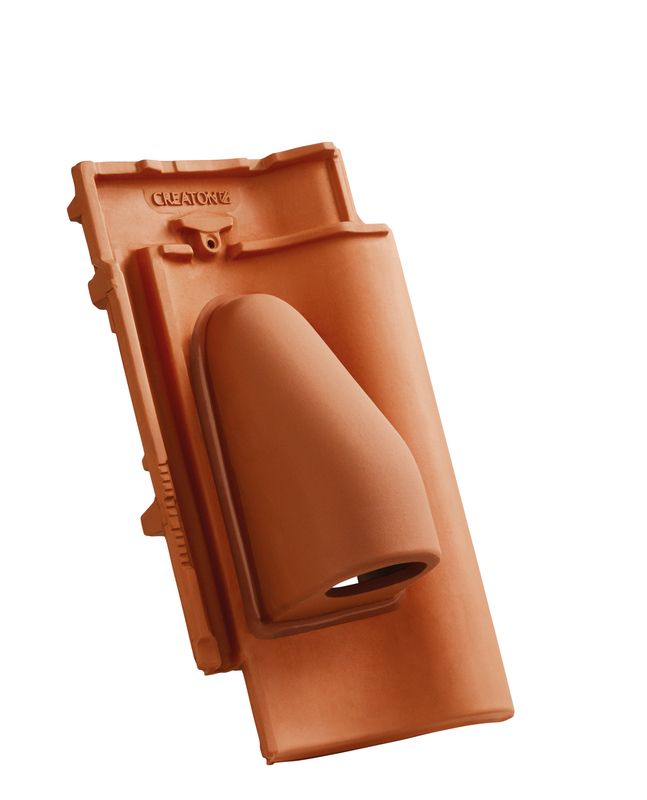

MEL SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

MEL SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

MEL SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

MEL SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

MEL SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

MEL SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

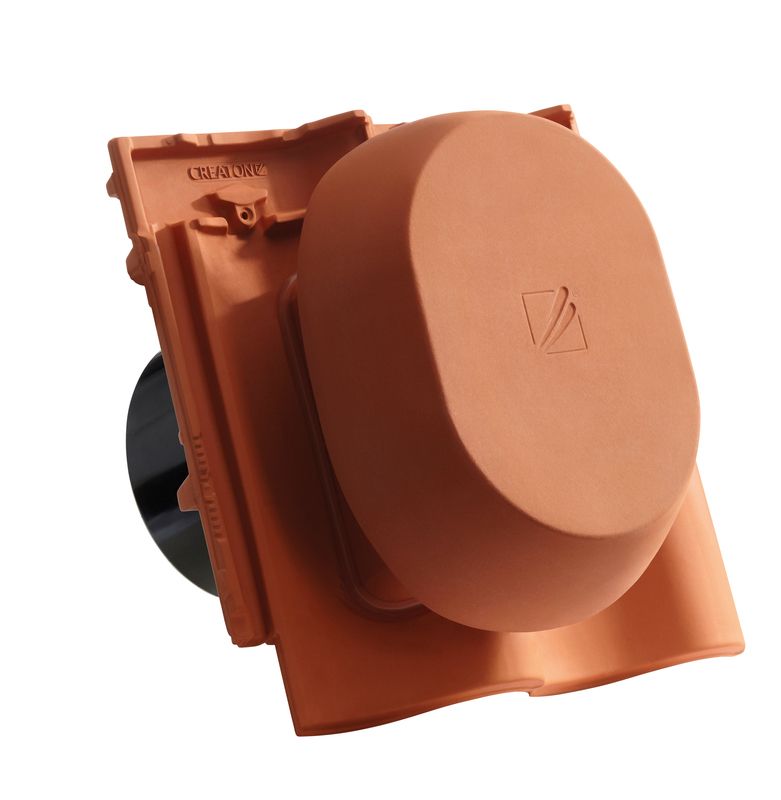

MEL SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

MEL SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

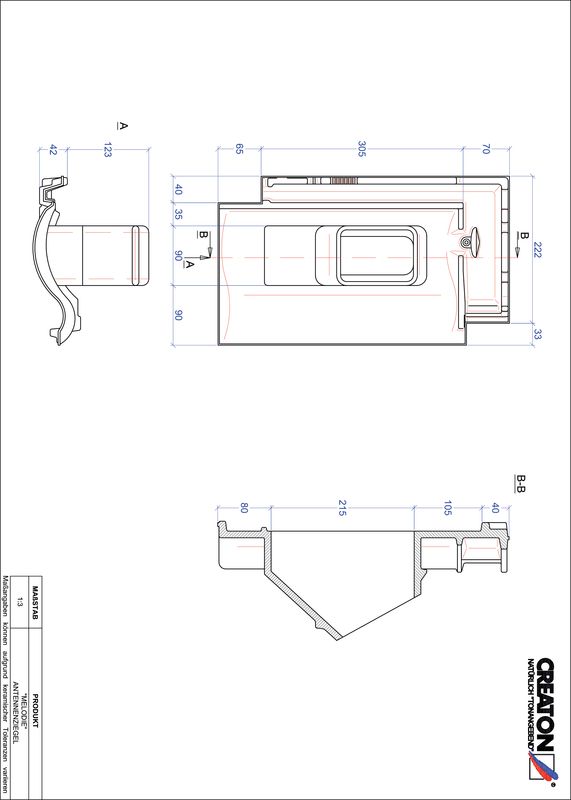

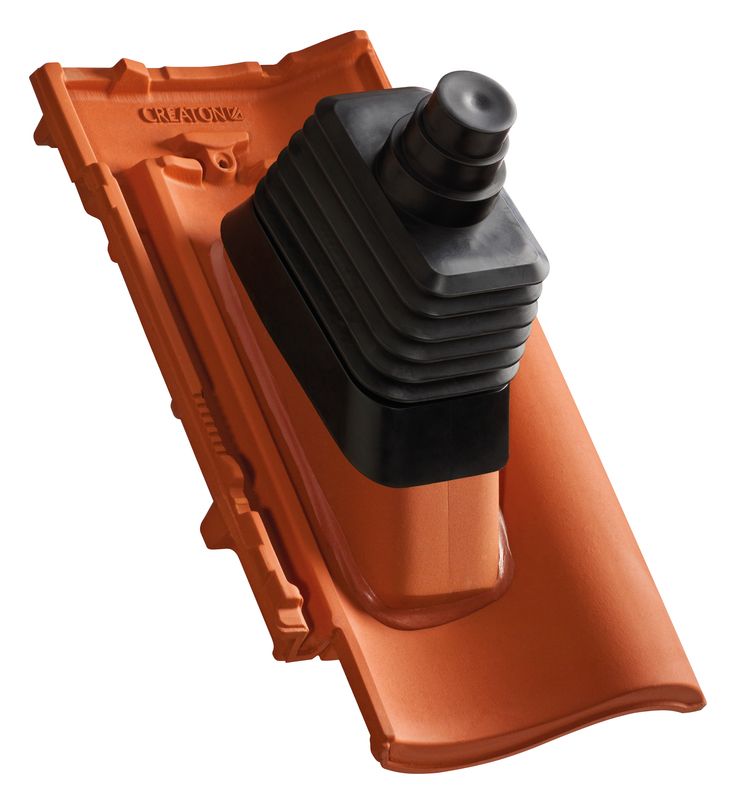

MEL aerial entry

MEL aerial entry

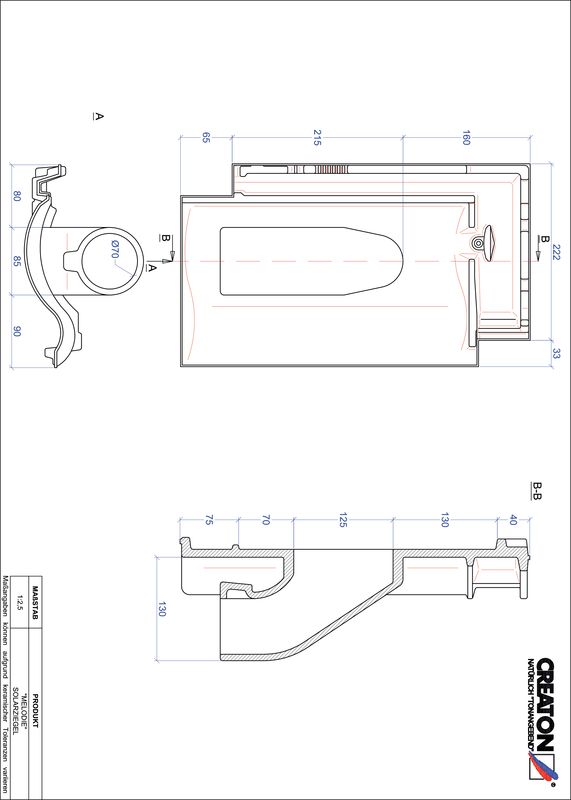

MEL solar entry tile

MEL solar entry tile

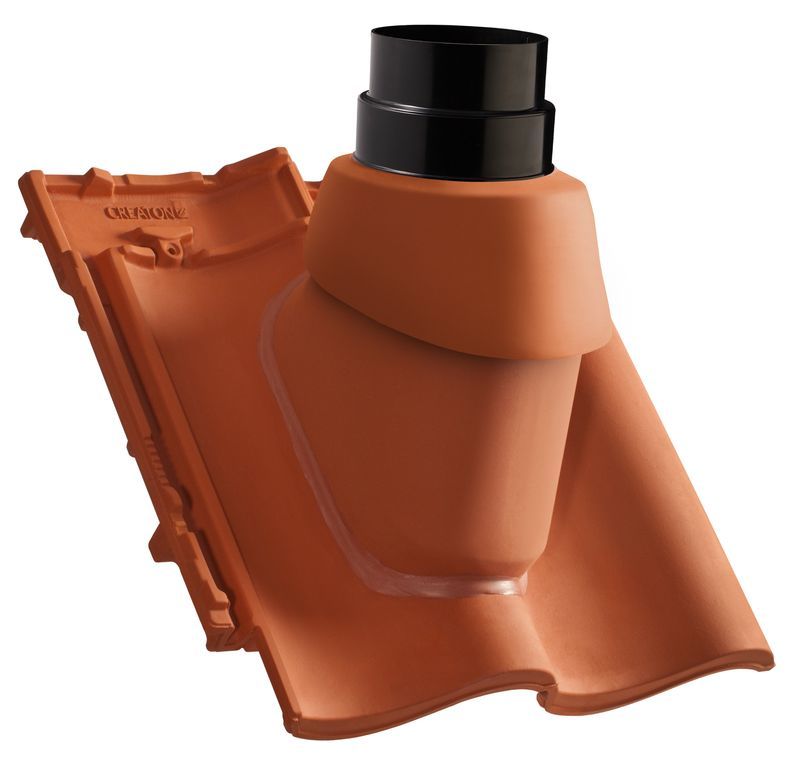

MEL flue pipe penetration NW 110/125

MEL flue pipe penetration NW 110/125

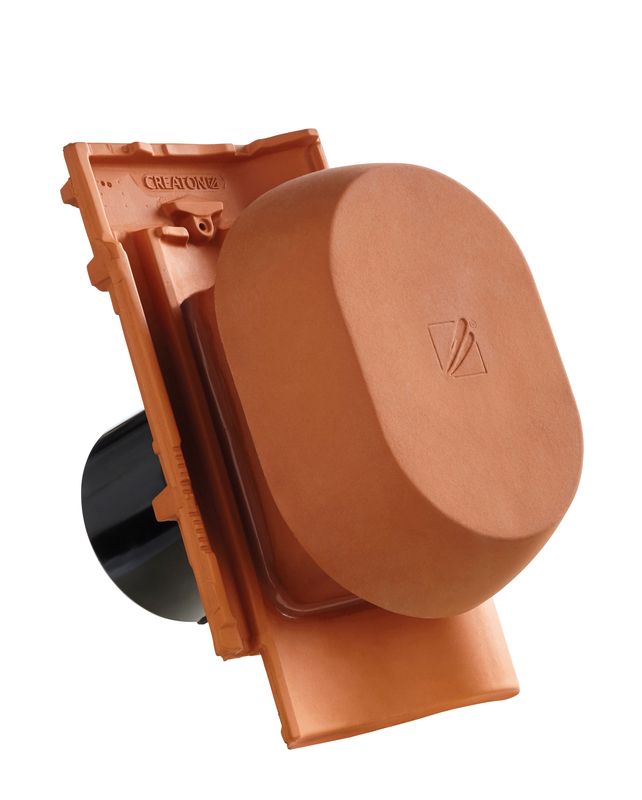

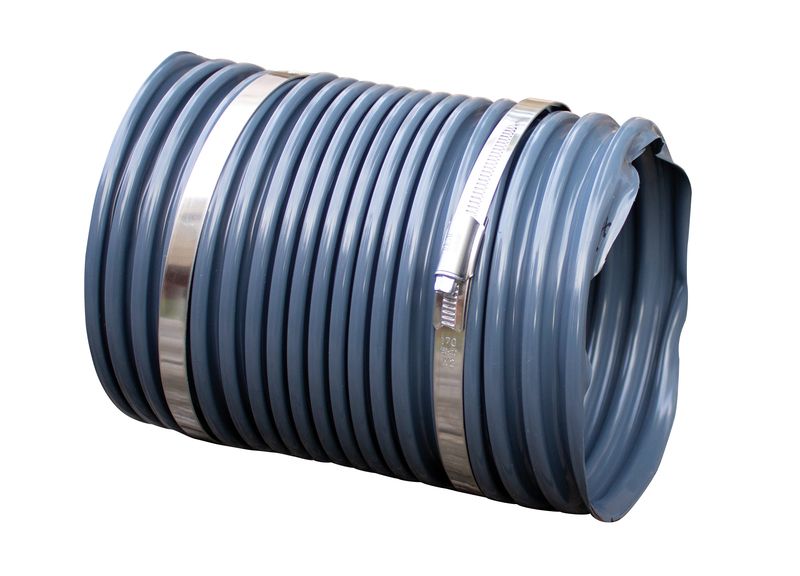

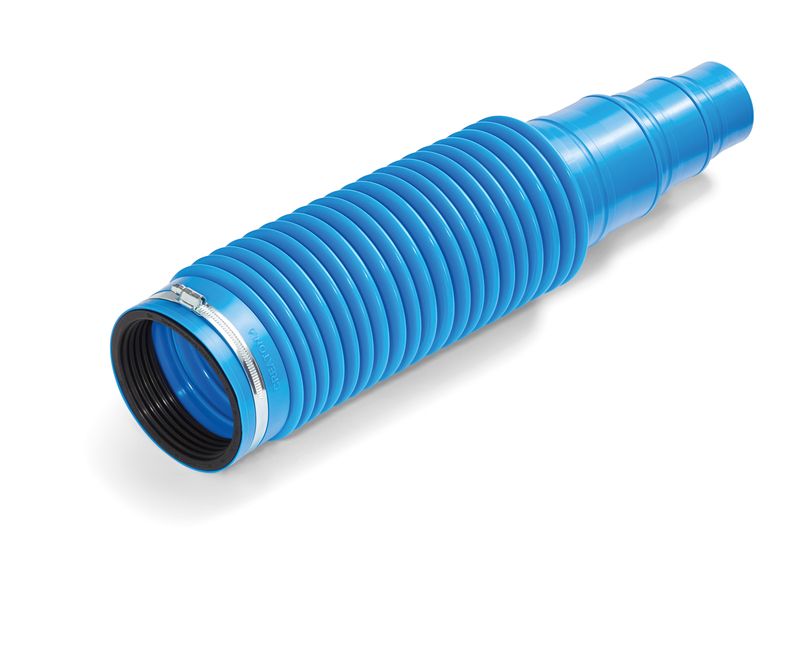

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

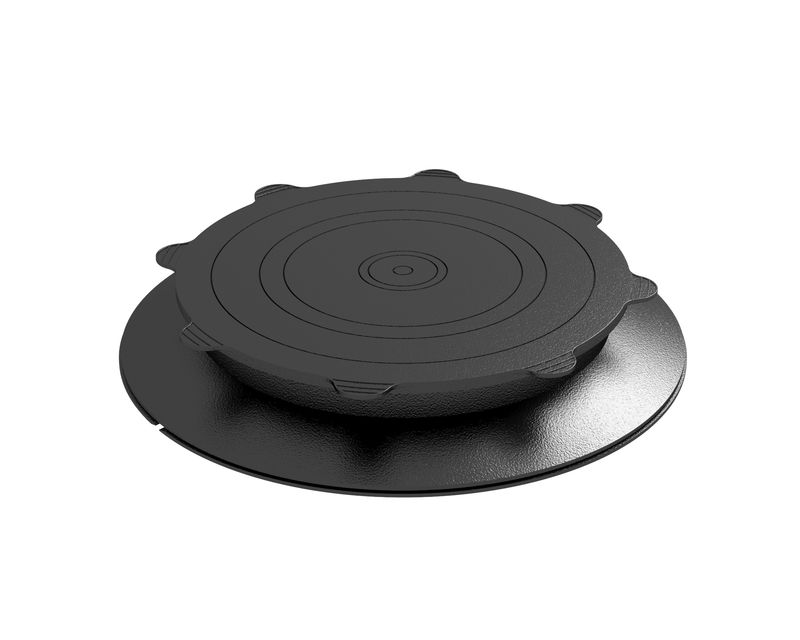

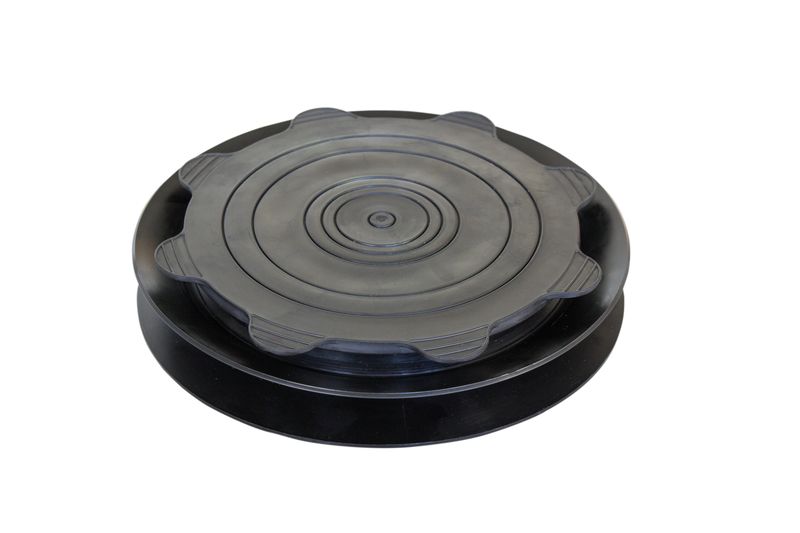

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Product range for snow protection, roof access and solar installation in metal

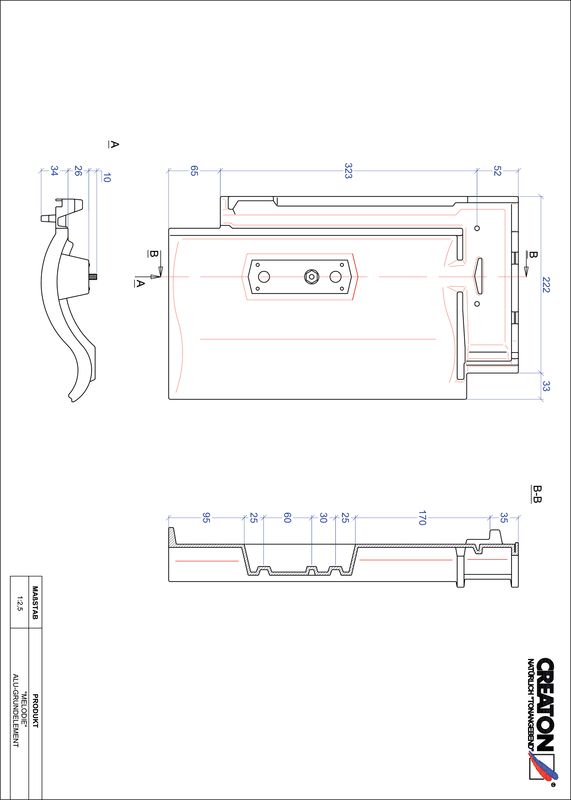

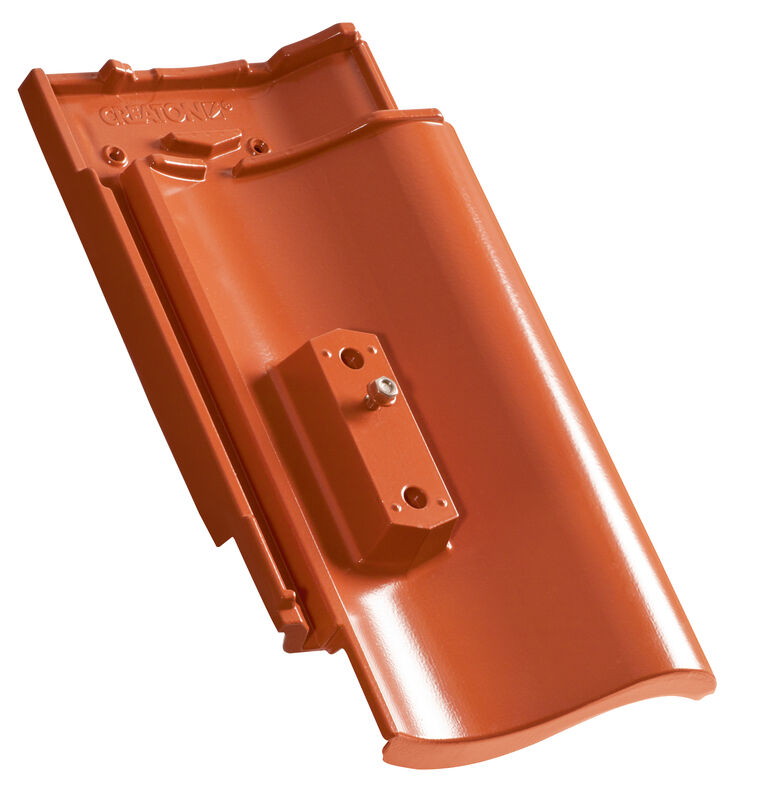

MEL aluminium base element

MEL aluminium base element

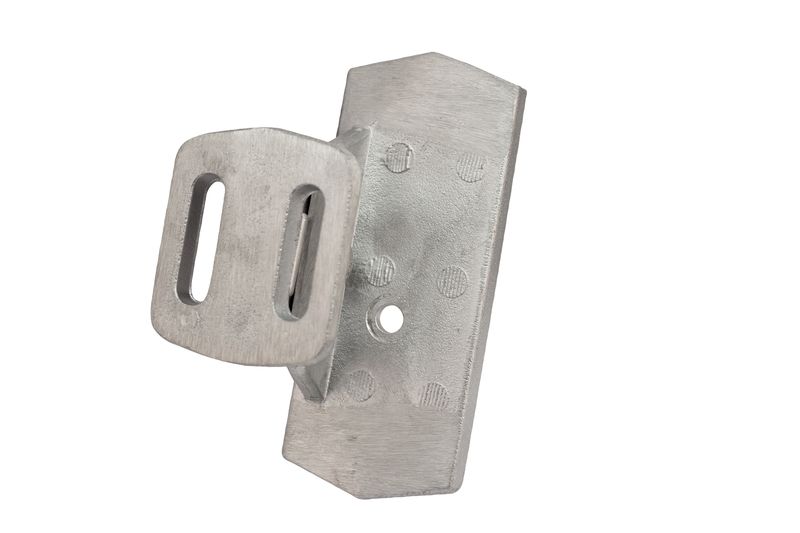

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

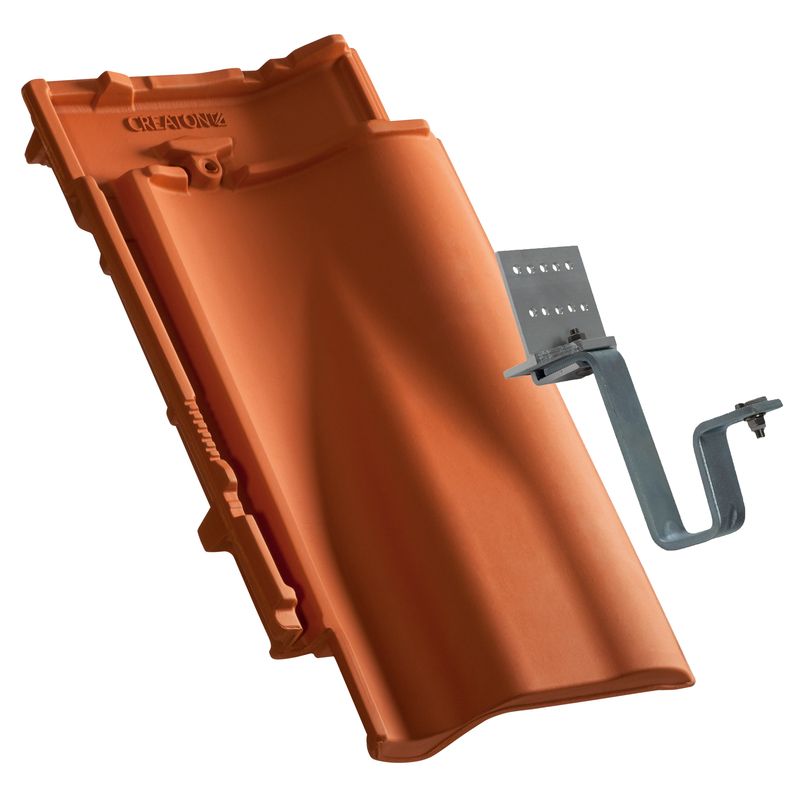

MEL solar system bracket kit for plank installation

MEL solar system bracket kit for plank installation

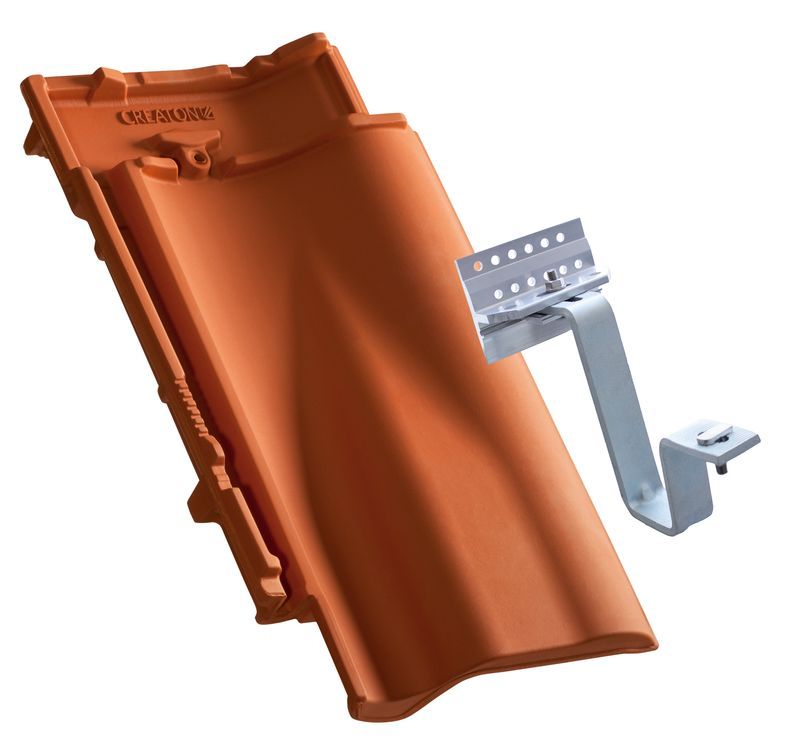

MEL solar system bracket kit for rafter installation

MEL solar system bracket kit for rafter installation

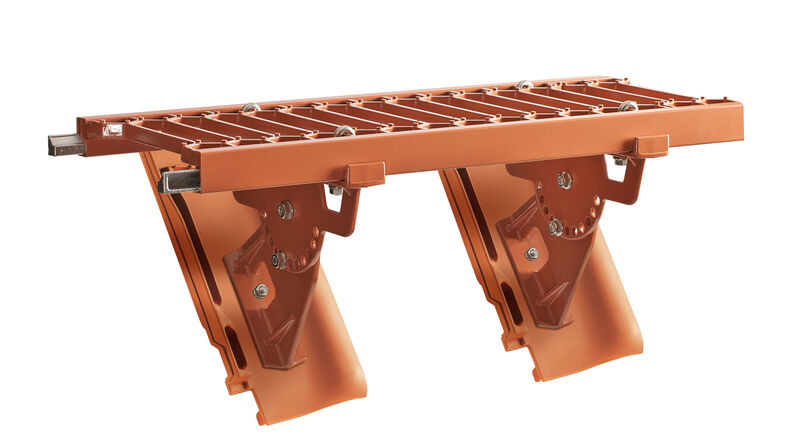

Single tread

Single tread

Short grid

Short grid

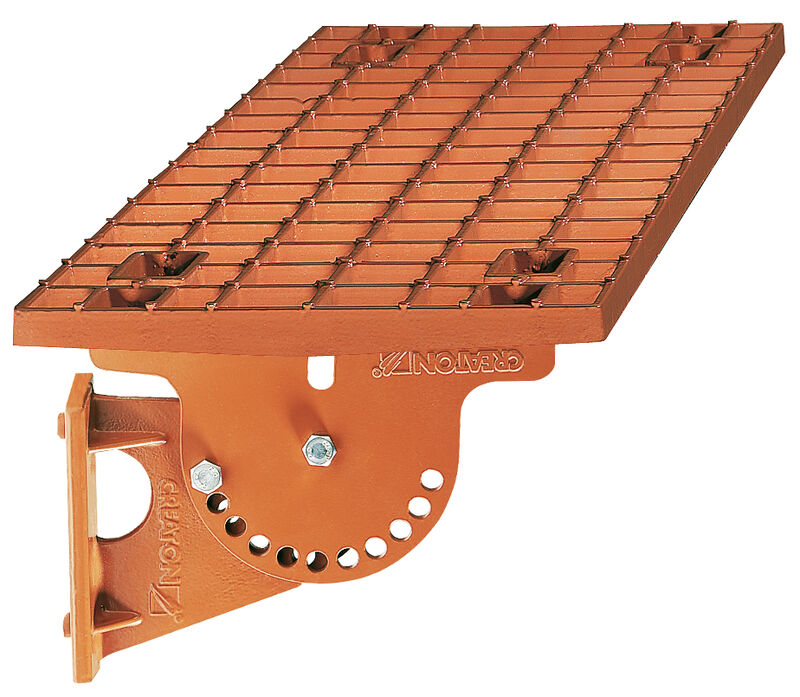

Long grating

Long grating

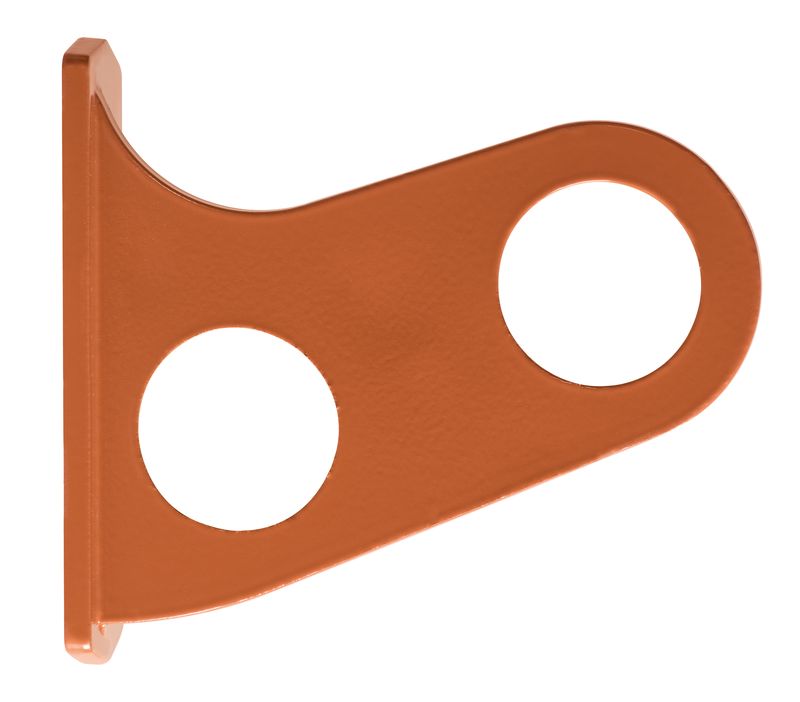

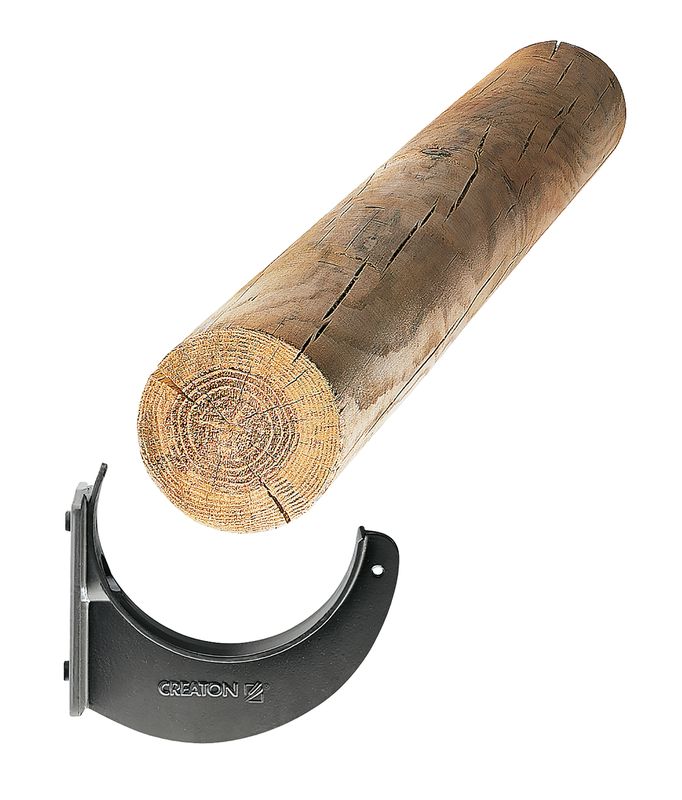

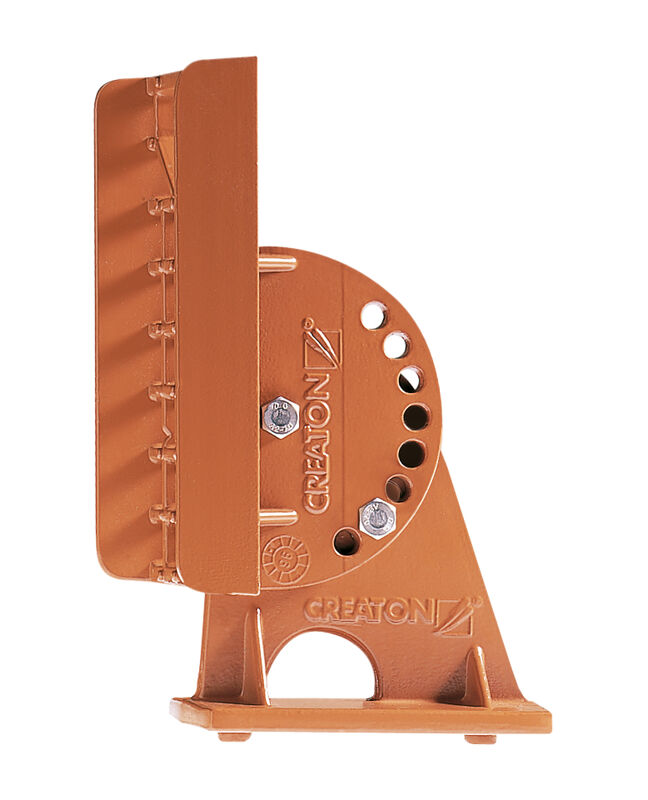

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

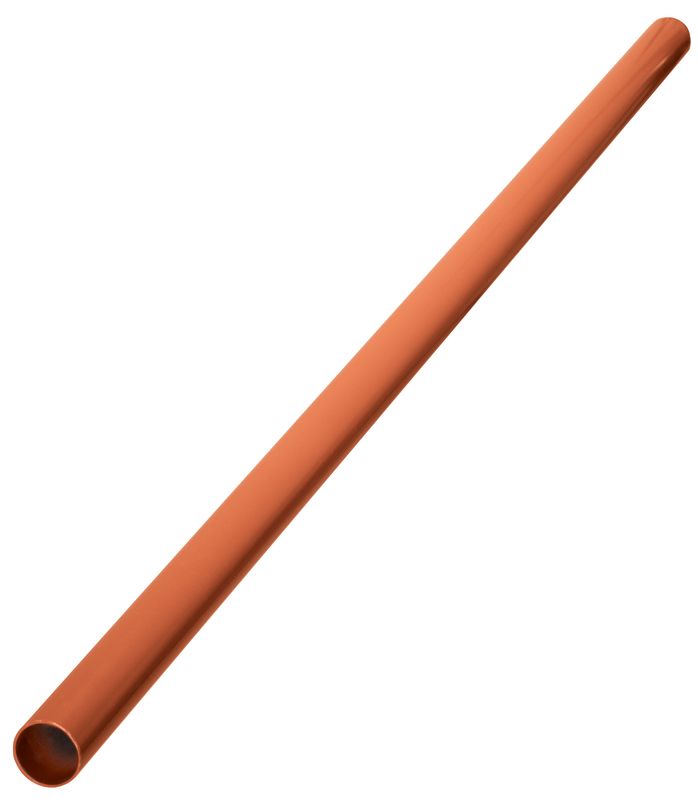

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

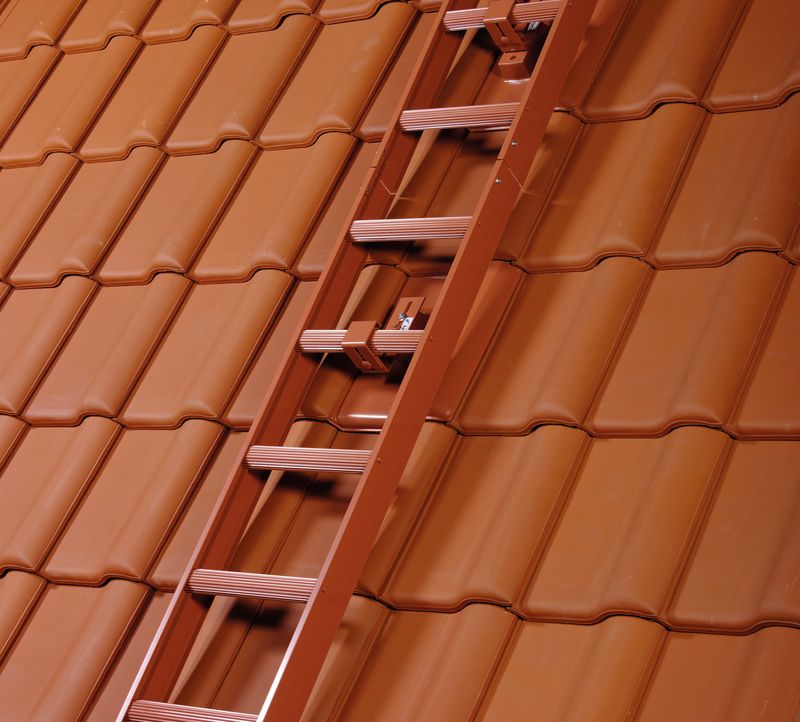

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

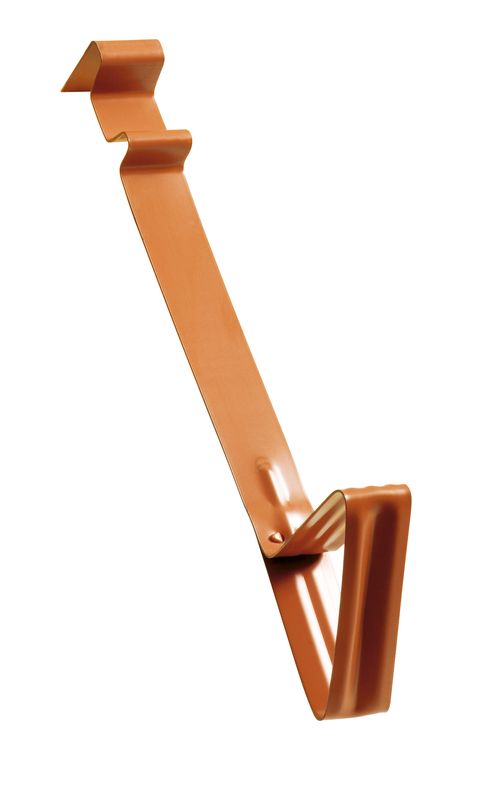

MAG snow clip

MAG snow clip

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

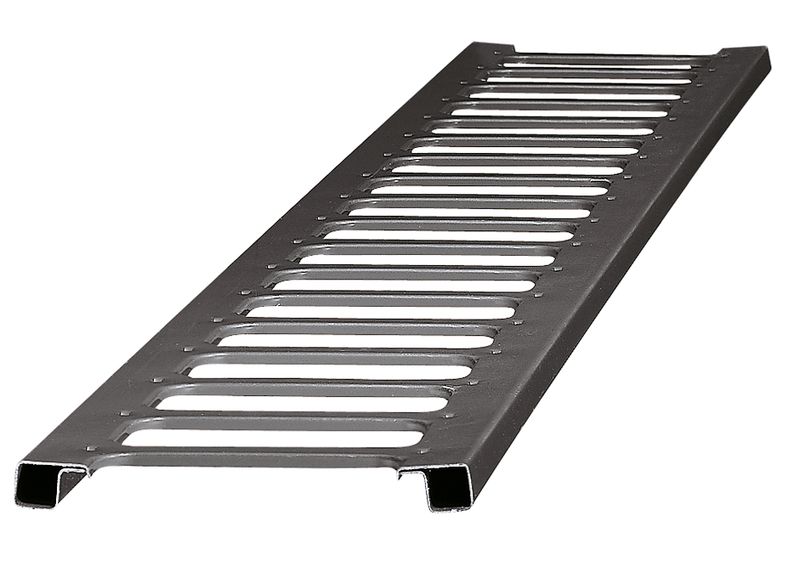

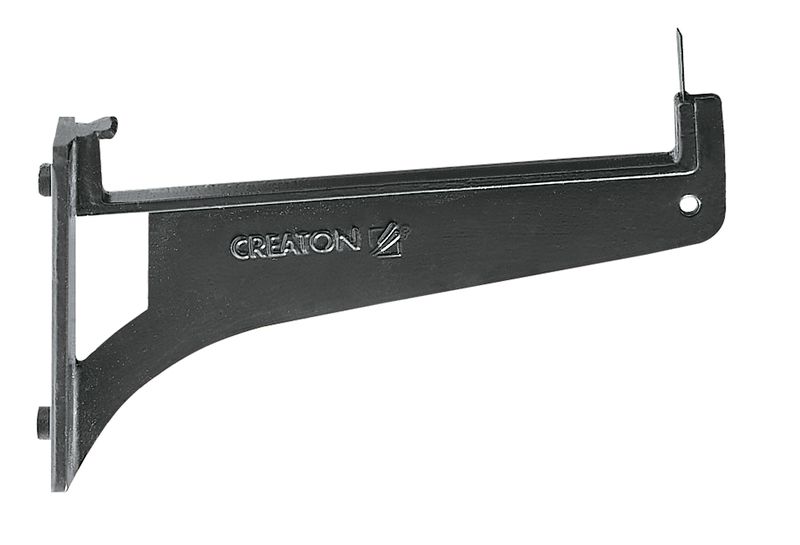

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

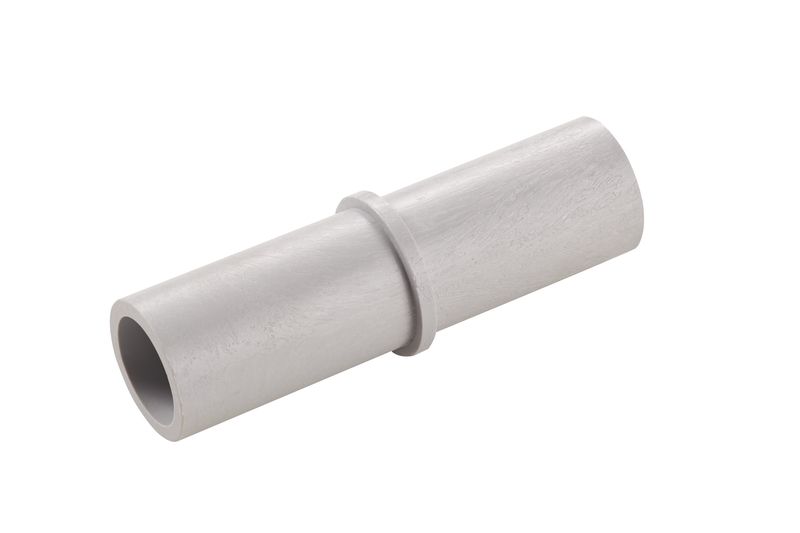

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

Product range for roof details and uplift protection

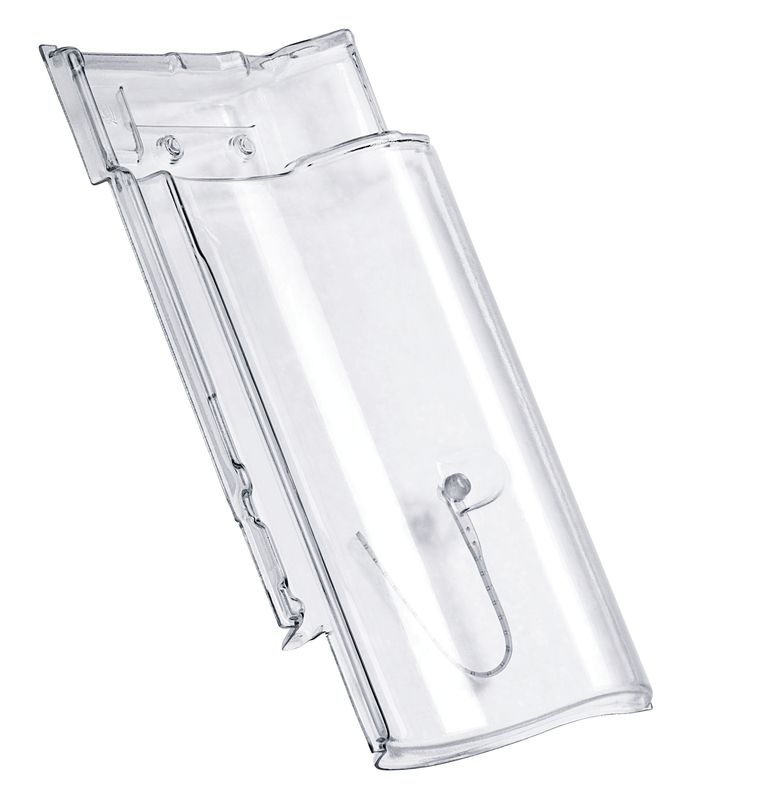

MEL transparent tile (acrylic)

MEL transparent tile (acrylic)

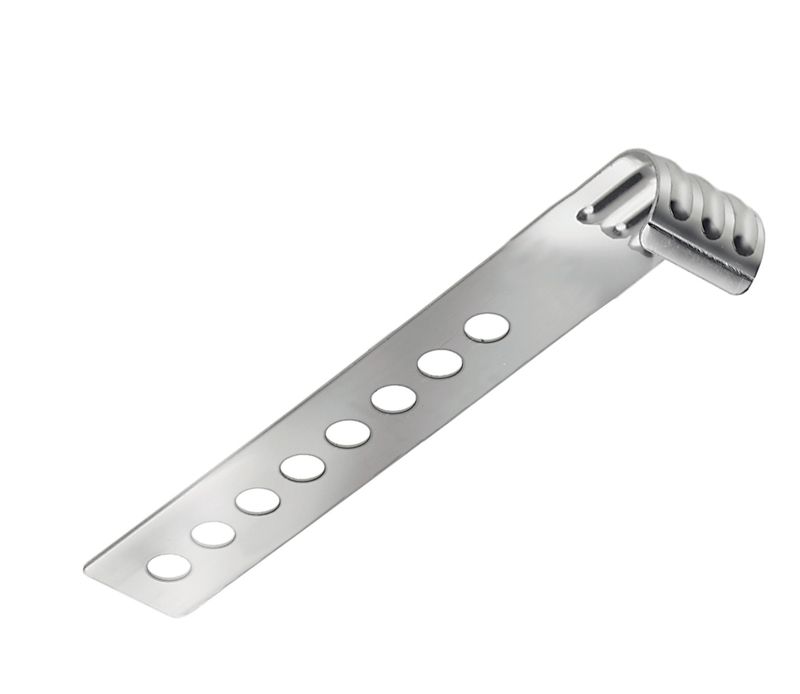

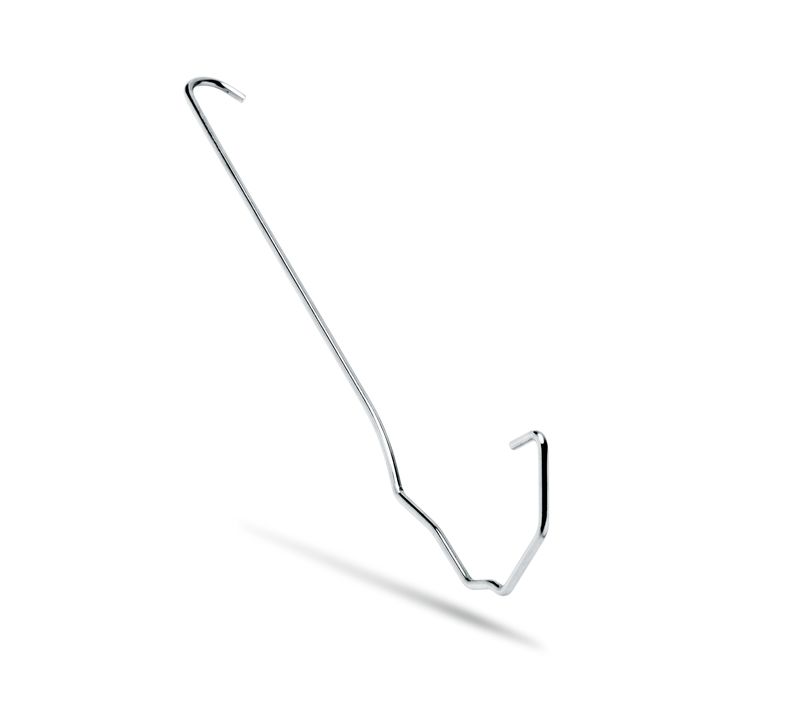

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (MEL, VIS)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (MEL, VIS)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (MEL) and 40/50 battens (BAL, PRE)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (MEL) and 40/50 battens (BAL, PRE)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

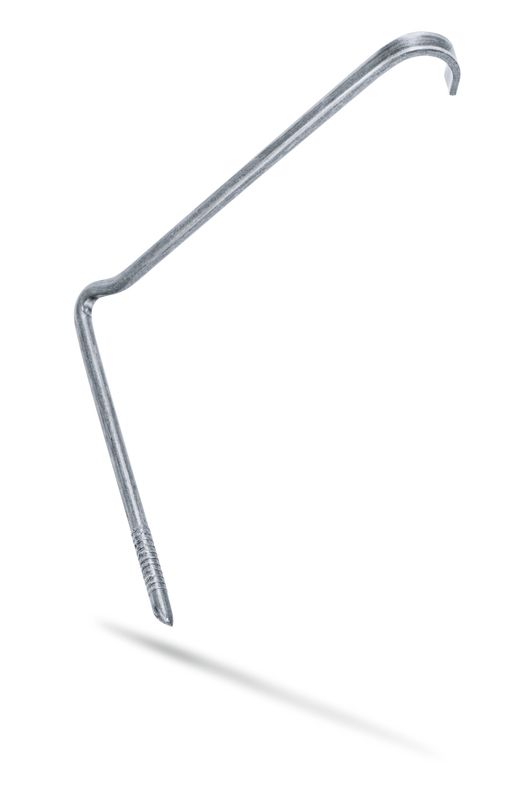

Storm clip in zinc-aluminium, drive-in clip, all battens (RAP, MEL, GAL)

Storm clip in zinc-aluminium, drive-in clip, all battens (RAP, MEL, GAL)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

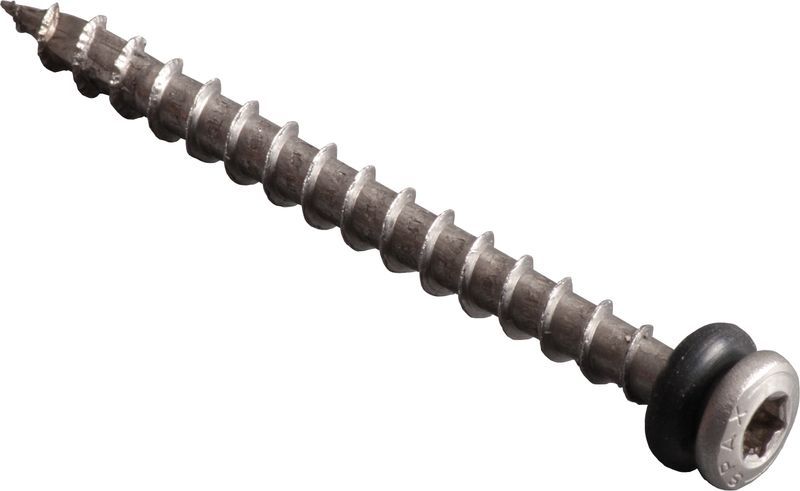

Stainless steel screw with seal, length 50 mm

Stainless steel screw with seal, length 50 mm

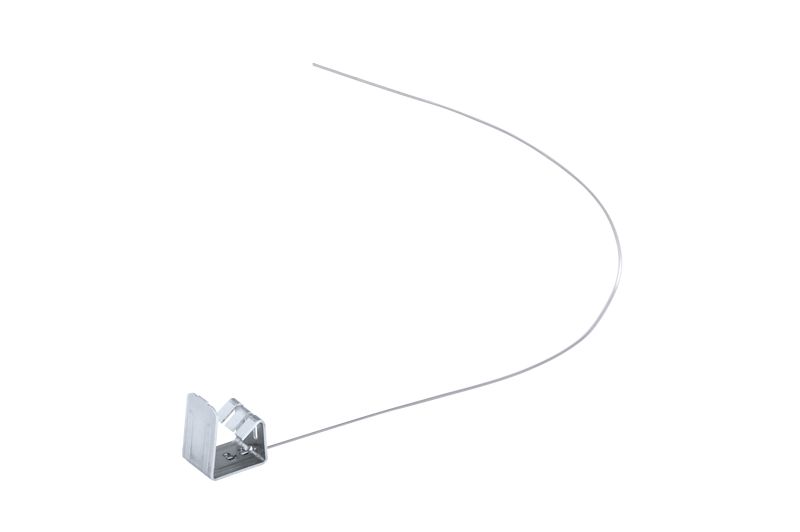

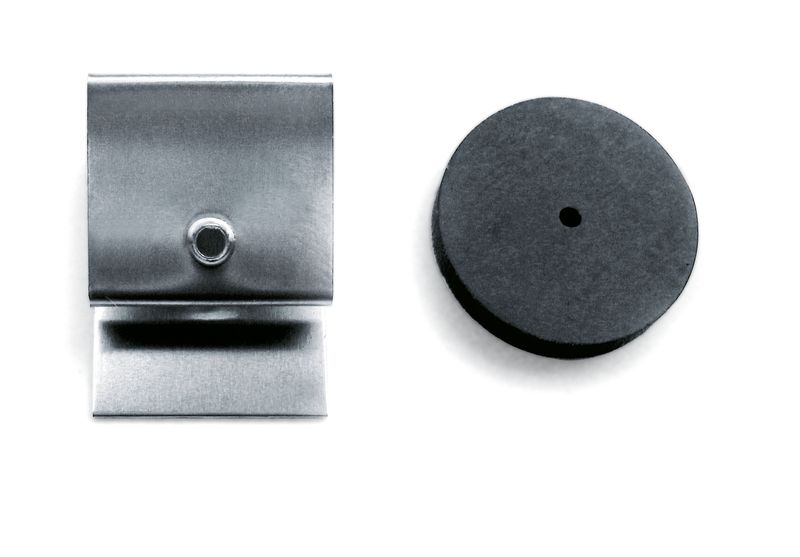

Hip and valley clip 13-17 mm

Hip and valley clip 13-17 mm

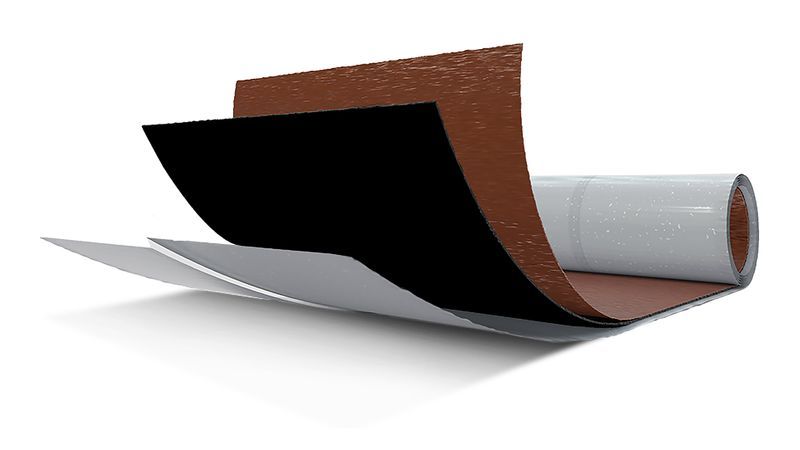

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

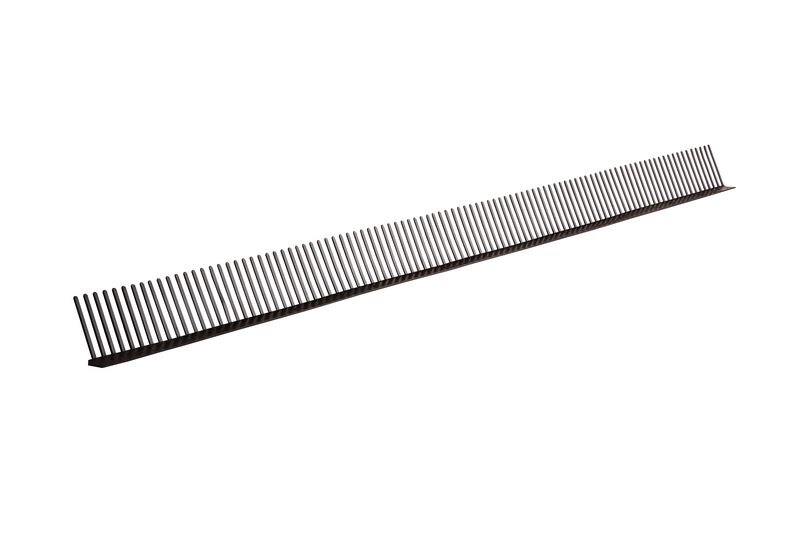

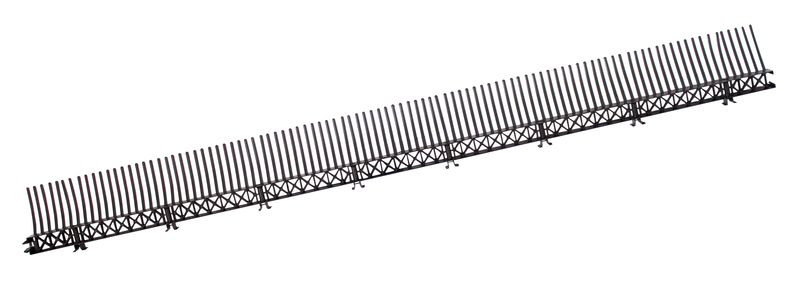

Eaves ventilation comb

Eaves ventilation comb

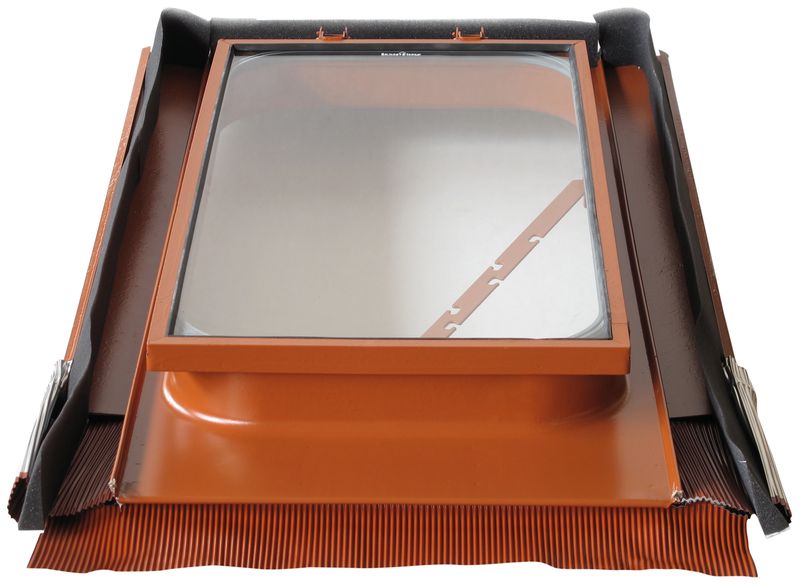

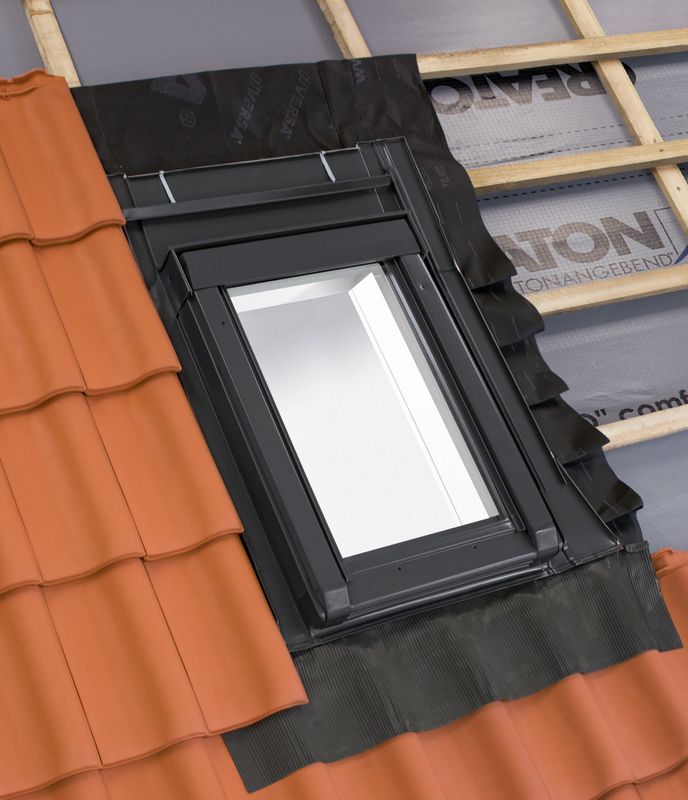

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

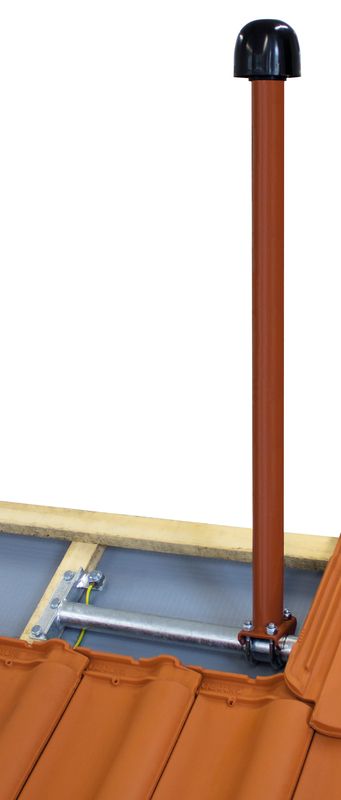

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Ridge and hip tile product range

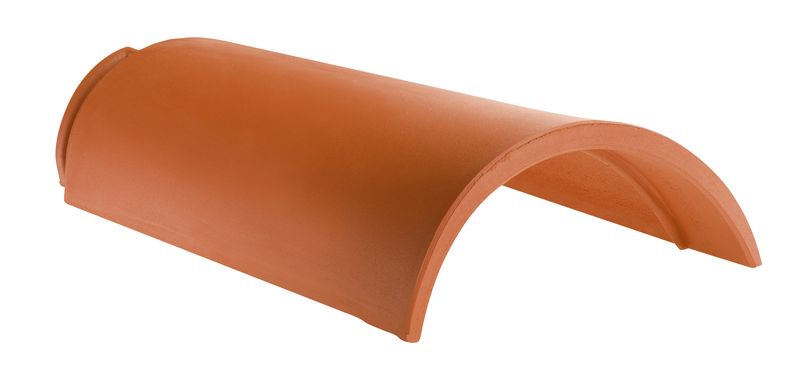

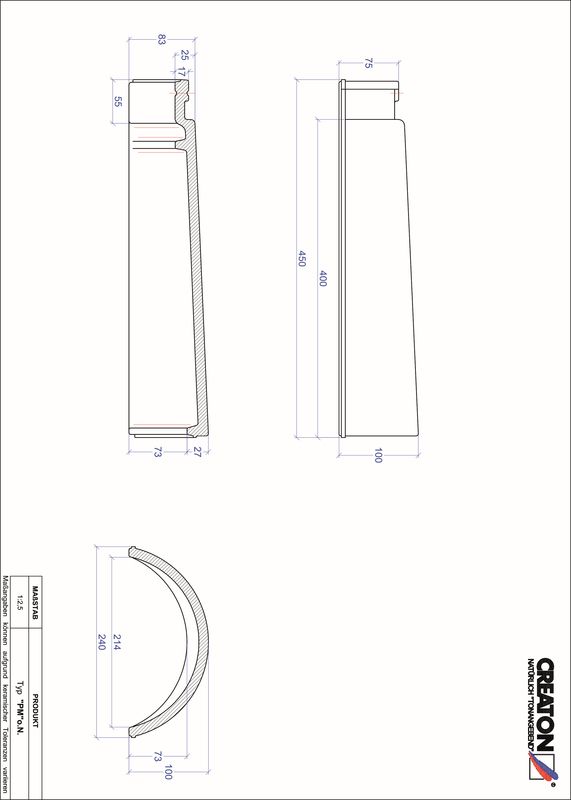

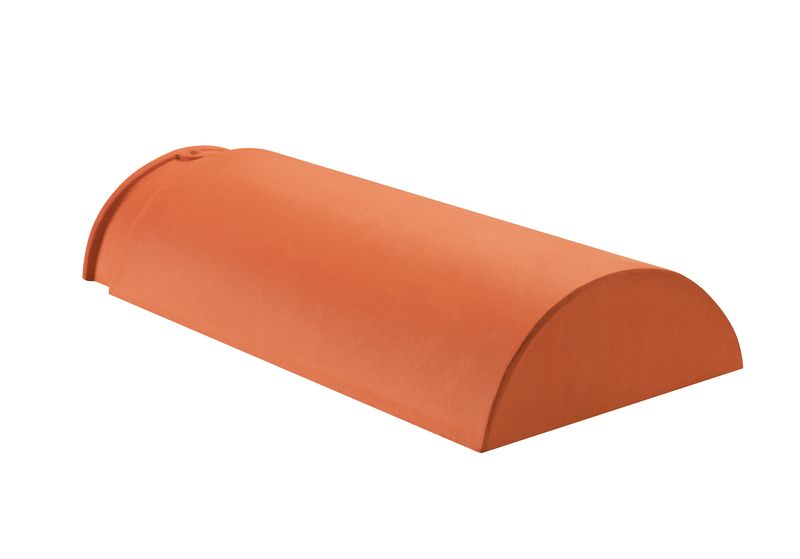

WER ridge tile PMoN

WER ridge tile PMoN

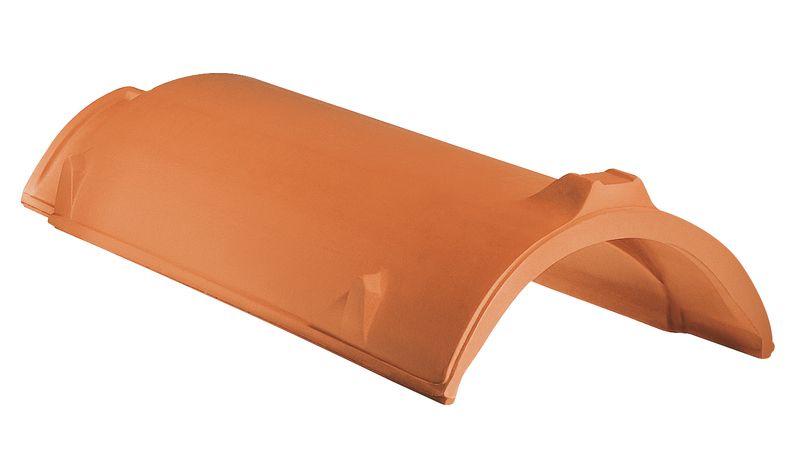

WER ridge tile PZ

WER ridge tile PZ

WER ridge starter and termination plate ceramic PMoN

WER ridge starter and termination plate ceramic PMoN

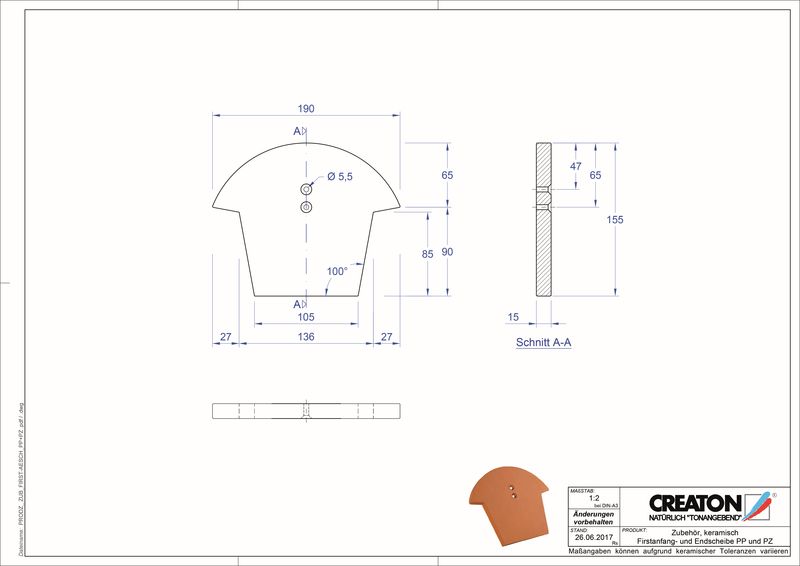

WER ridge starter and termination plate ceramic PZ

WER ridge starter and termination plate ceramic PZ

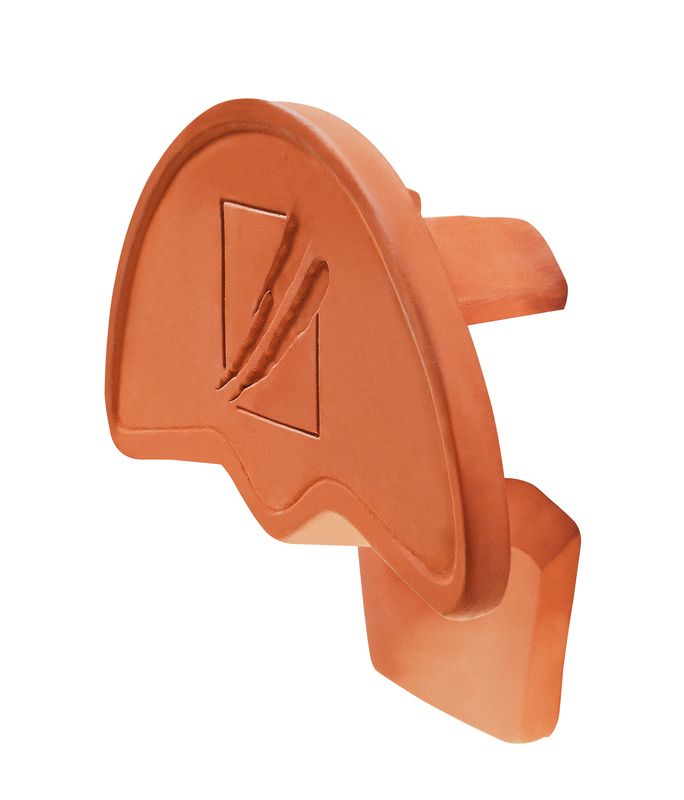

WER function starter and termination plate ceramic PMoN

WER function starter and termination plate ceramic PMoN

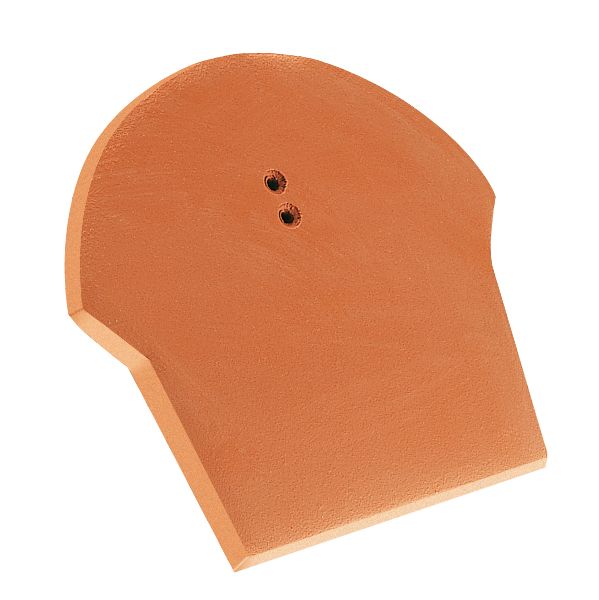

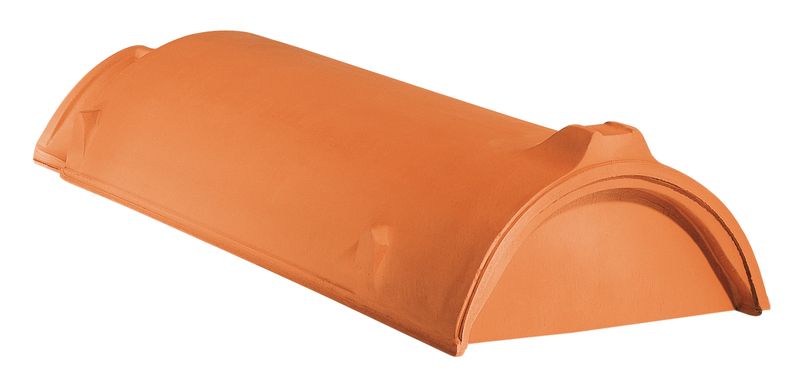

WER hip starter ceramic PMoN

WER hip starter ceramic PMoN

WER hip starter ceramic PZ

WER hip starter ceramic PZ

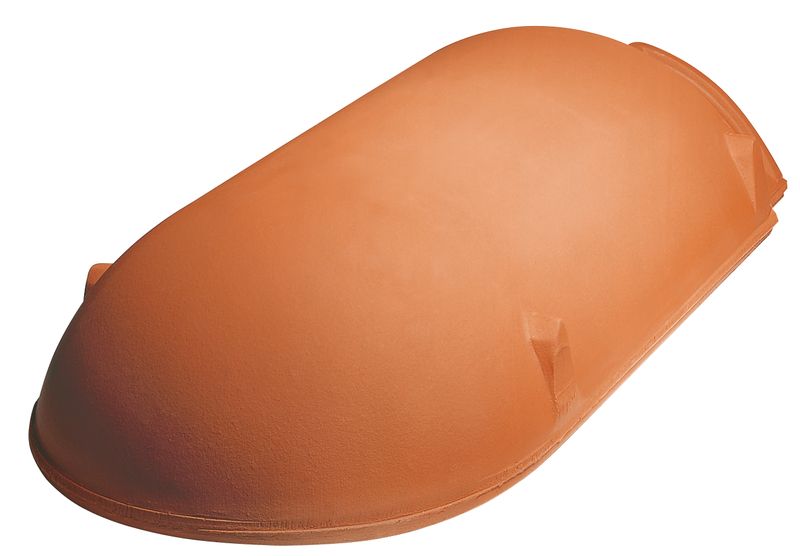

ROG hip starter ceramic round connection PZ

ROG hip starter ceramic round connection PZ

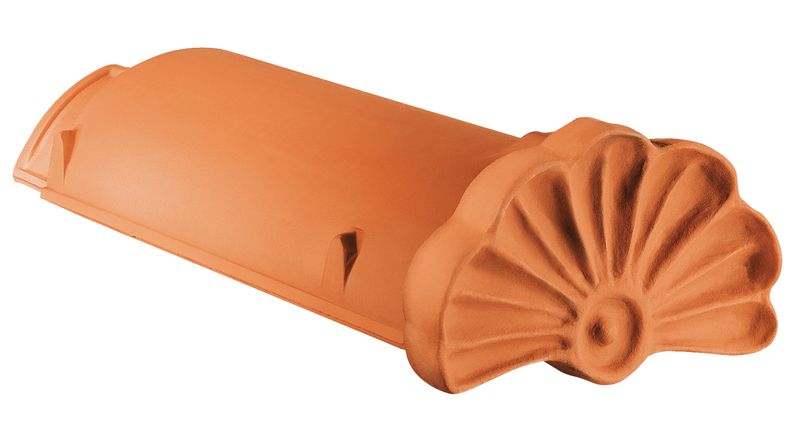

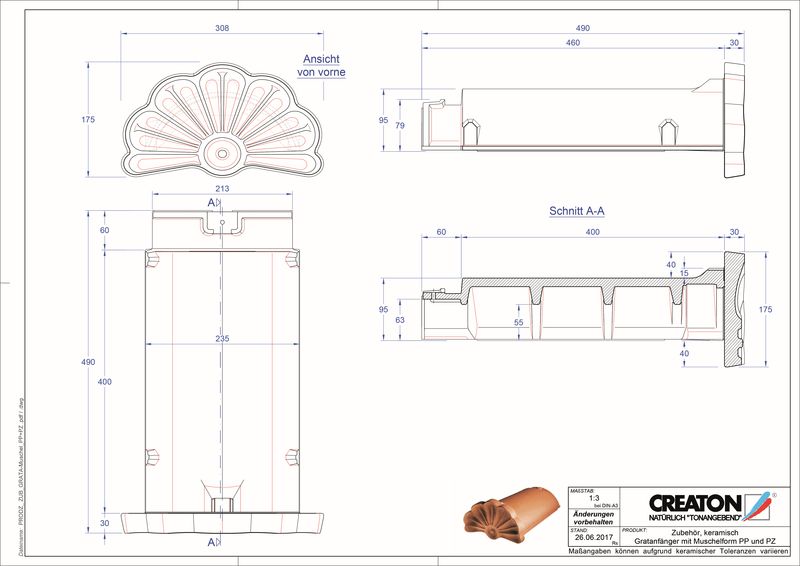

WER hip starter ceramic with scallop PZ

WER hip starter ceramic with scallop PZ

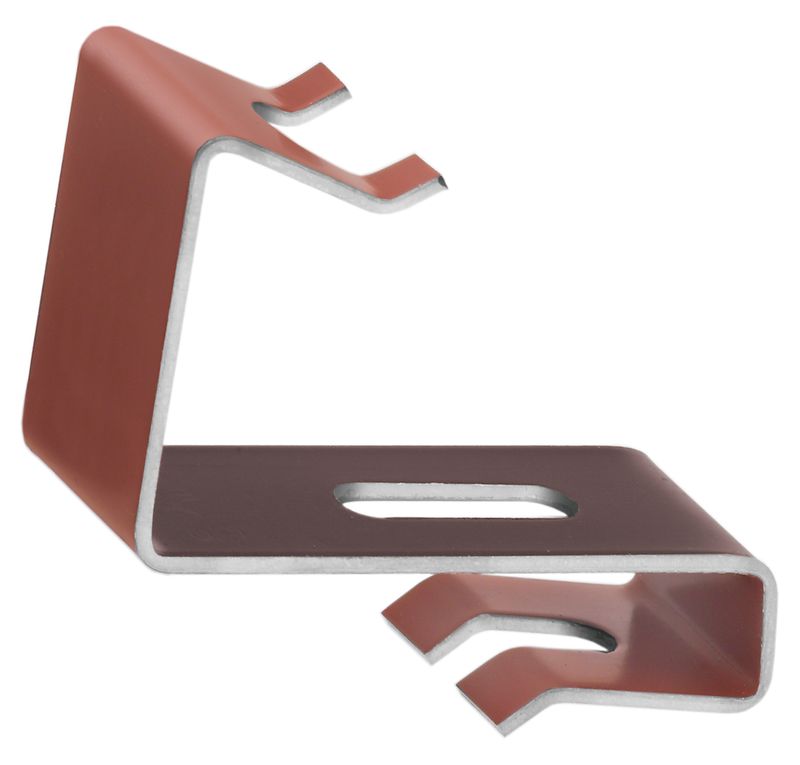

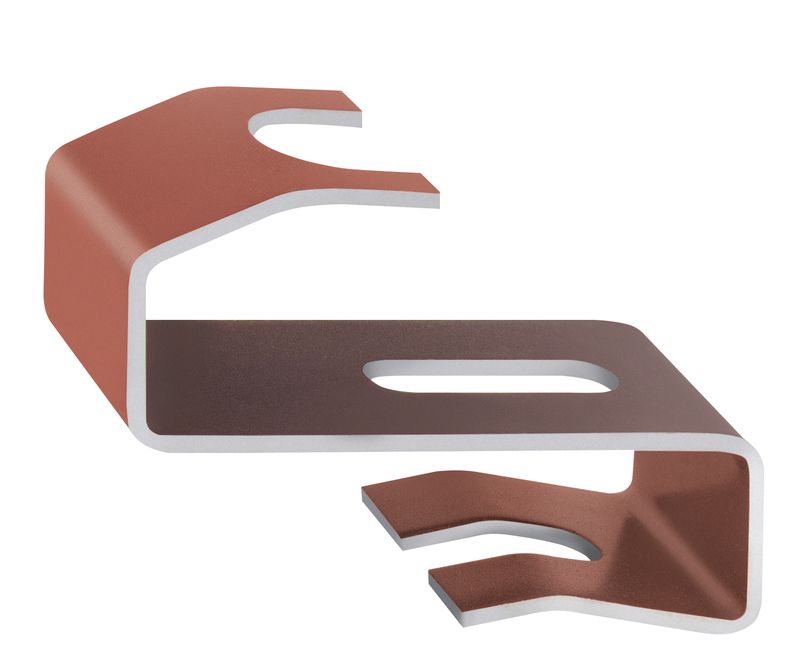

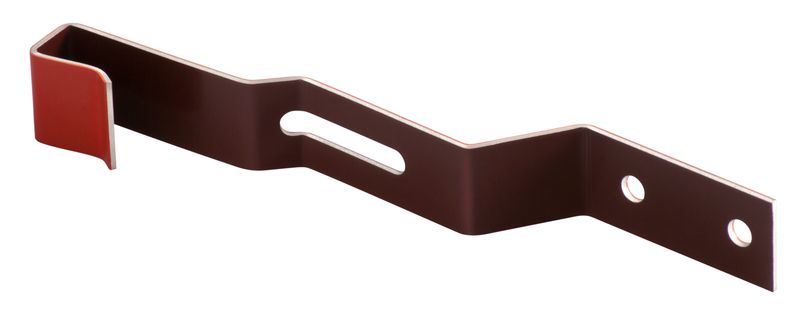

Ridge clip aluminium PZ

Ridge clip aluminium PZ

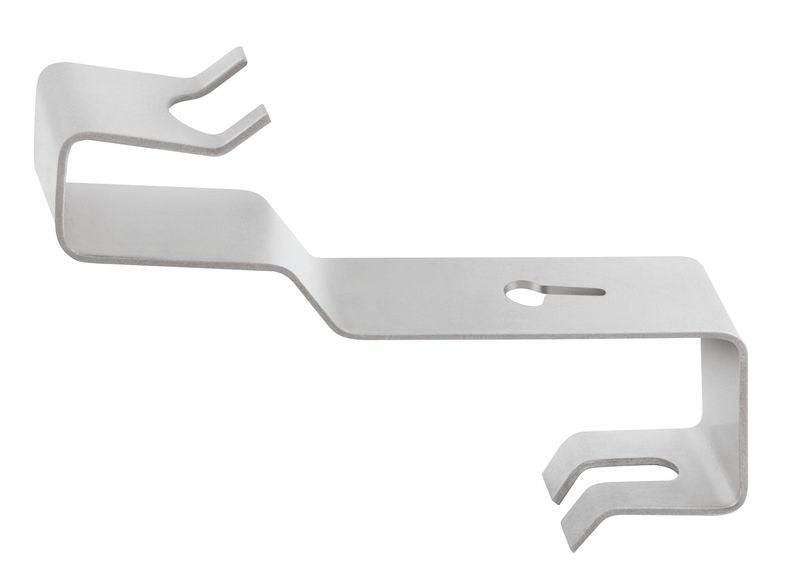

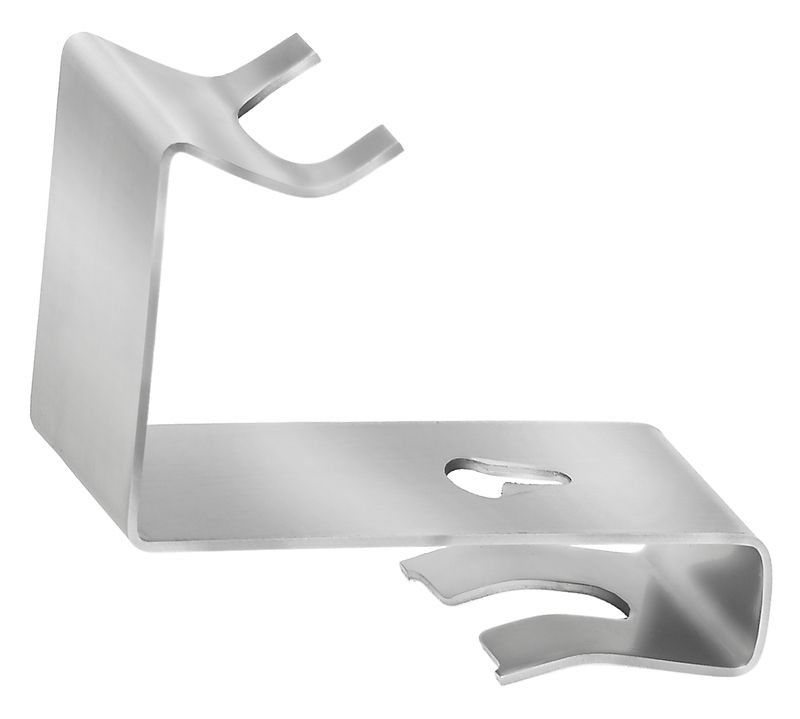

FIRSTFIX ridge clip stainless steel PMoN WER

FIRSTFIX ridge clip stainless steel PMoN WER

FIRSTFIX ridge clip stainless steel PZ

FIRSTFIX ridge clip stainless steel PZ

WER hip starter ceramic PMoN

WER hip starter ceramic PMoN

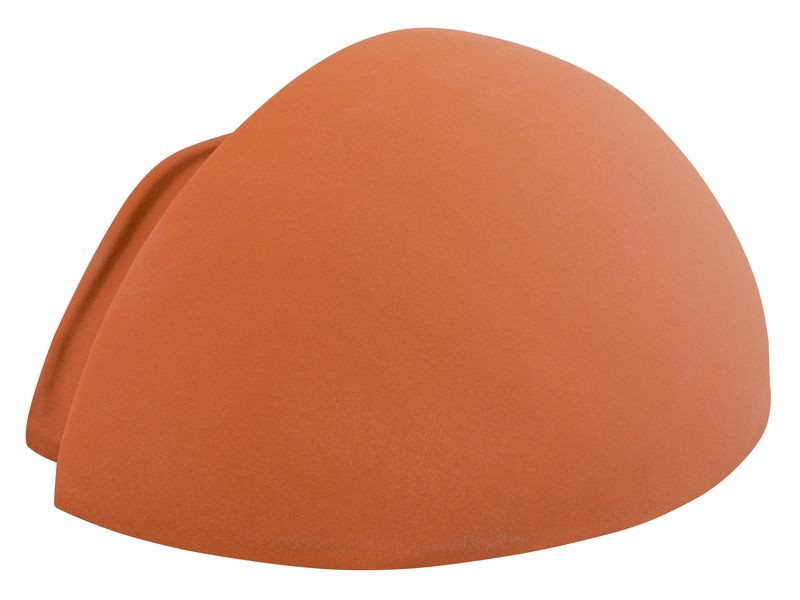

Ridge starter ceramic with tongue tapered PMoN WER (clay)

Ridge starter ceramic with tongue tapered PMoN WER (clay)

Ridge termination ceramic with tongue tapered PMoN WER (clay)

Ridge termination ceramic with tongue tapered PMoN WER (clay)

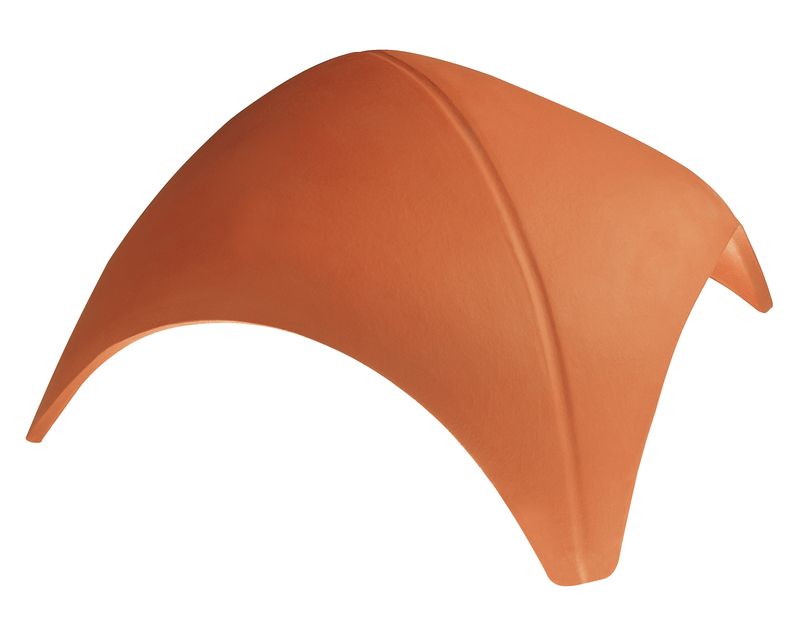

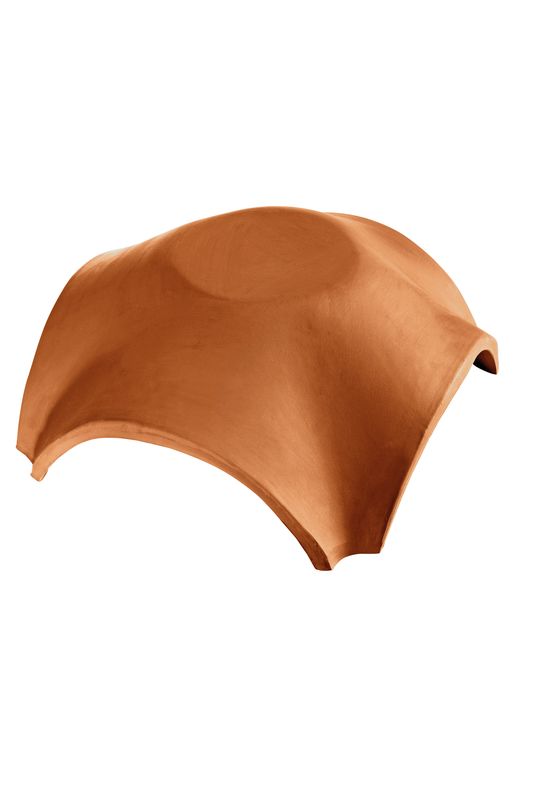

WER hip cap 3-axis PRU

WER hip cap 3-axis PRU

WER hip cap 4-axis PRU

WER hip cap 4-axis PRU

Ridge clip aluminium PMoN

Ridge clip aluminium PMoN

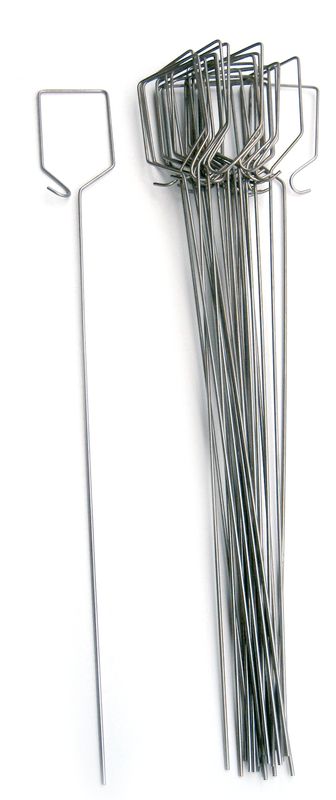

FIRSTFIX ridge clip wire universal

FIRSTFIX ridge clip wire universal

FIRSTFIX clip kit universal

FIRSTFIX clip kit universal

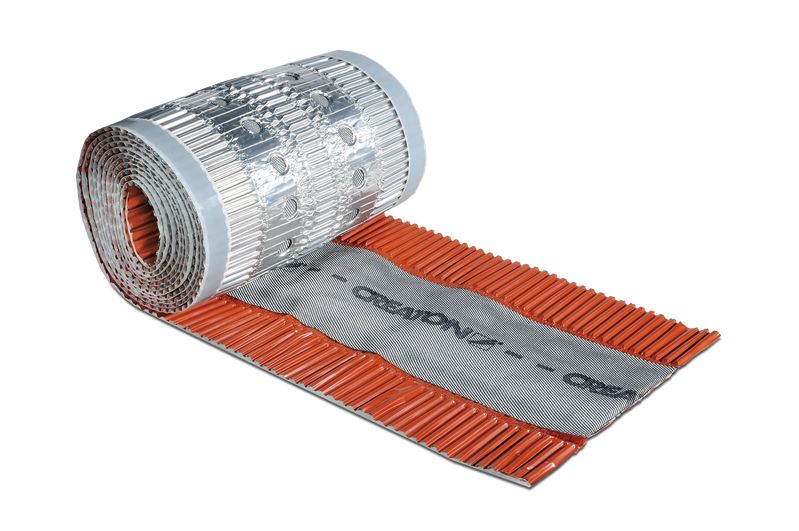

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

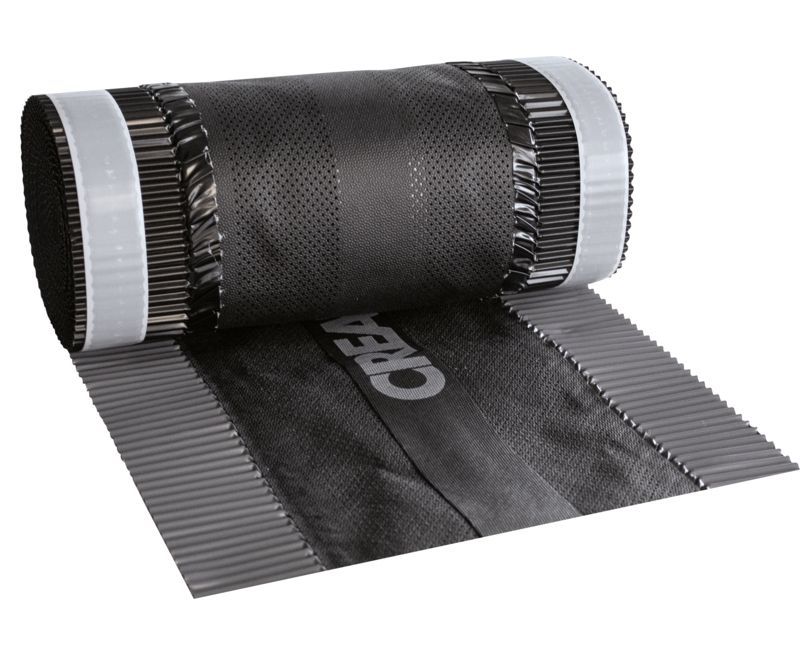

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Downloads
