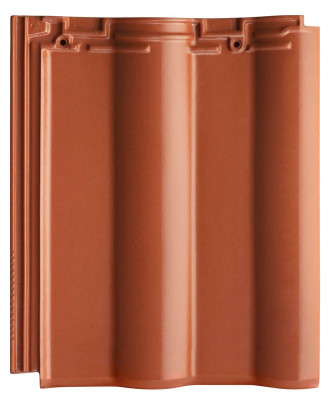

MAXIMA PRO

The multitalent for renovation and old buildings.

  • Ideal tile for replacing old roofing that is in need of renovation. Fits easily alongside 10 format concrete roof tiles. This is the ideal tile for terraced houses
  • Exceptional versatility combined with a generous 41 mm adjustment range makes it quick and easy to install
  • Its outstanding coverage makes it a true all-rounder
  • Flash-free smooth transitions simplify the installation process
  • Seamless transition to the next house roof

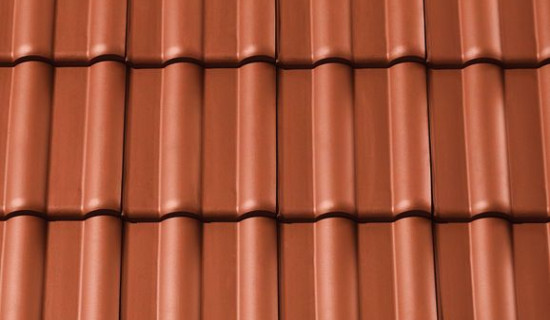

NUANCE copper red engobed
NUANCE copper red engobed
NUANCE slate grey engobed
NUANCE slate grey engobed
NUANCE black matt engobed
NUANCE black matt engobed
FINESSE black glazed
FINESSE black glazed

Technical data

Size (appr.)329 x 397 mm
Covering width min. approx.300 mm
Covering width on av. approx.300 mm
Max. coverage width (approx.)300 mm
Min. gauge (approx.)310 mm
Covering length on av. approx.330 mm
Max. gauge (approx.)350 mm
Tile requirement min. (approx.)9.5 pcs/m²
Average tile requirement (approx.)10.1 pcs/m²
Brickware max. approx.10.8 pcs/m²
Unit weight (approx.)3.7 kg/piece
Weight per m² (approx.)36.9 kg/m²
Weight per pallet (approx.)888 kg
Pcs per mini-pack4 piece
Pcs per pallet240 piece

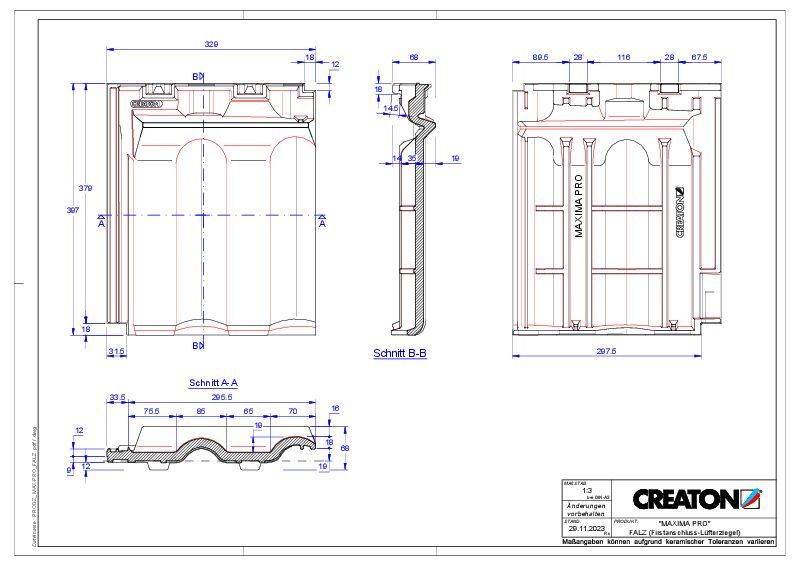

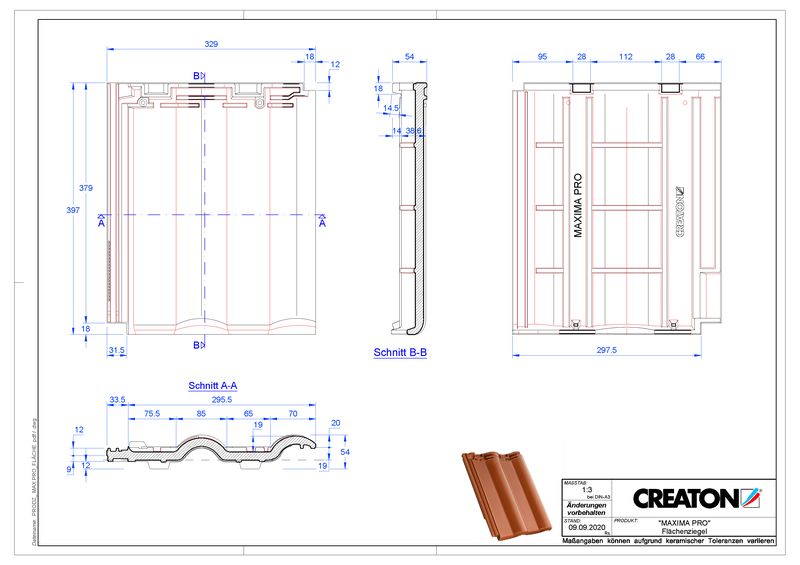

Technical drawings

Drawing MAXIMA PRO verge left with verge sheet metal and double roll ODL
Drawing MAXIMA PRO verge left with verge sheet metal and double roll ODL
Drawing MAXIMA PRO verge right with verge sheet metal and field tile OFR
Drawing MAXIMA PRO verge right with verge sheet metal and field tile OFR

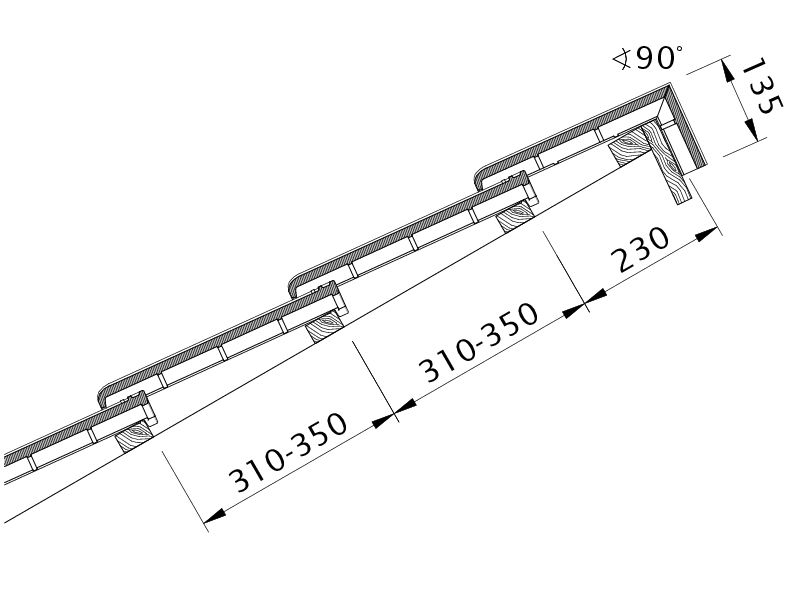

Drawing MAXIMA PRO shed roof version PDA
Drawing MAXIMA PRO shed roof version PDA

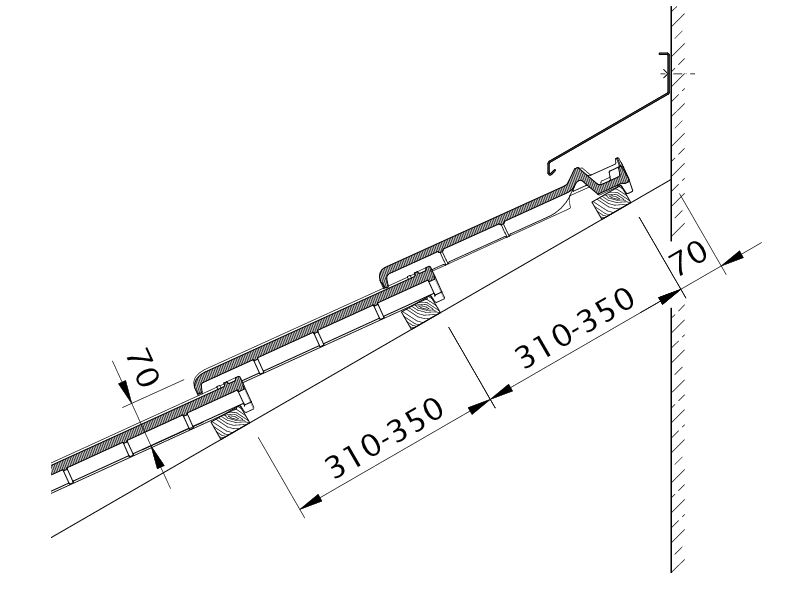

Drawing MAXIMA PRO wall connection (above) with FALZ WMF
Drawing MAXIMA PRO wall connection (above) with FALZ WMF

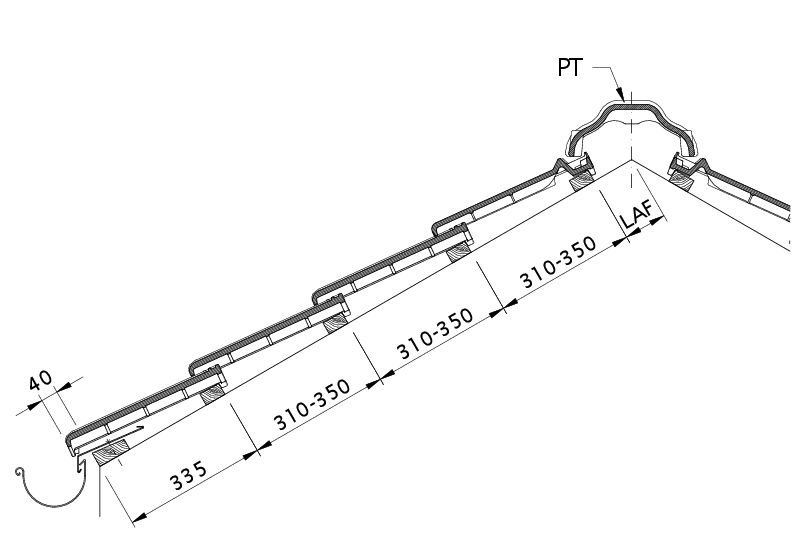

Drawing MAXIMA PRO roof cross-section DQF
Drawing MAXIMA PRO roof cross-section DQF

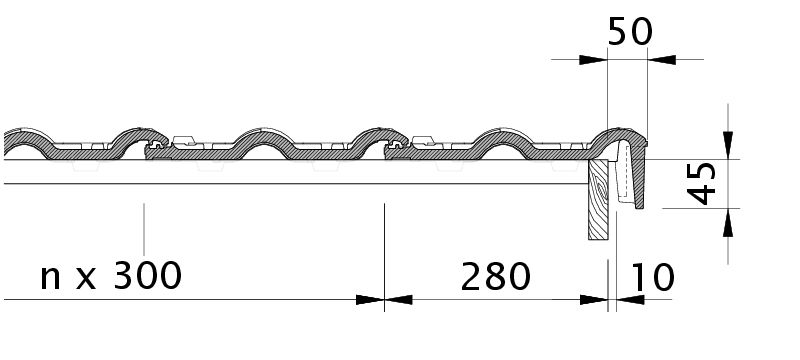

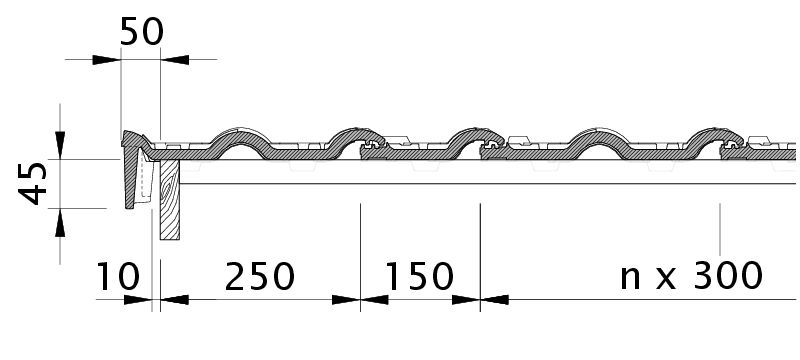

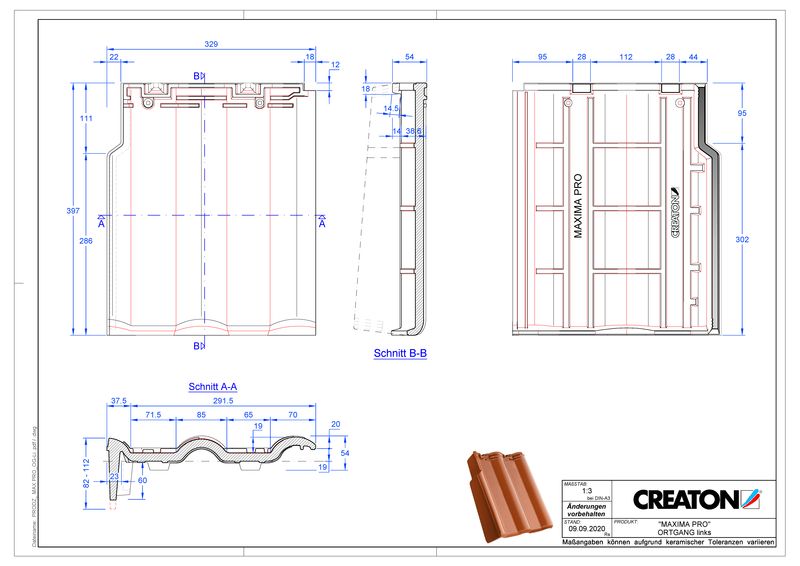

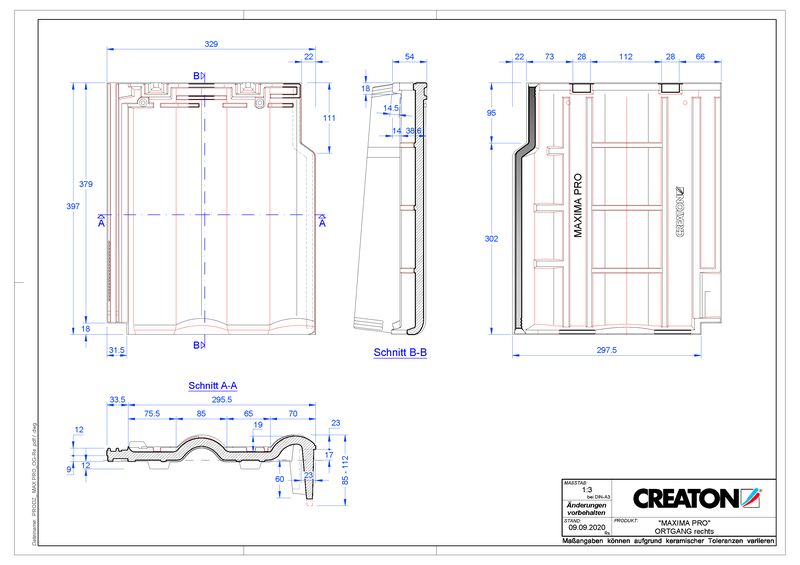

Drawing MAXIMA PRO verge tile left with barge board OBL
Drawing MAXIMA PRO verge tile left with barge board OBL

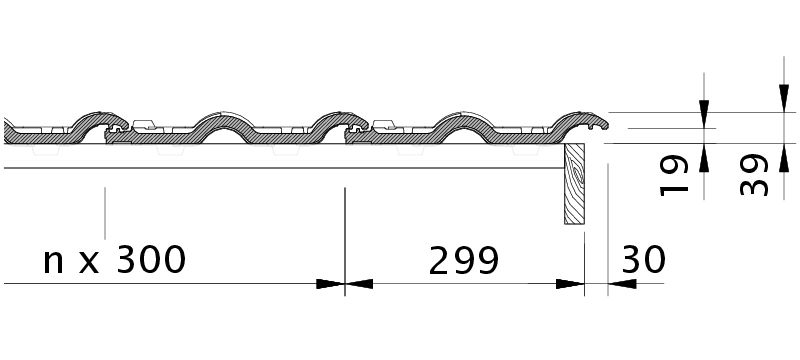

Drawing MAXIMA PRO verge tile right with barge board OBR
Drawing MAXIMA PRO verge tile right with barge board OBR

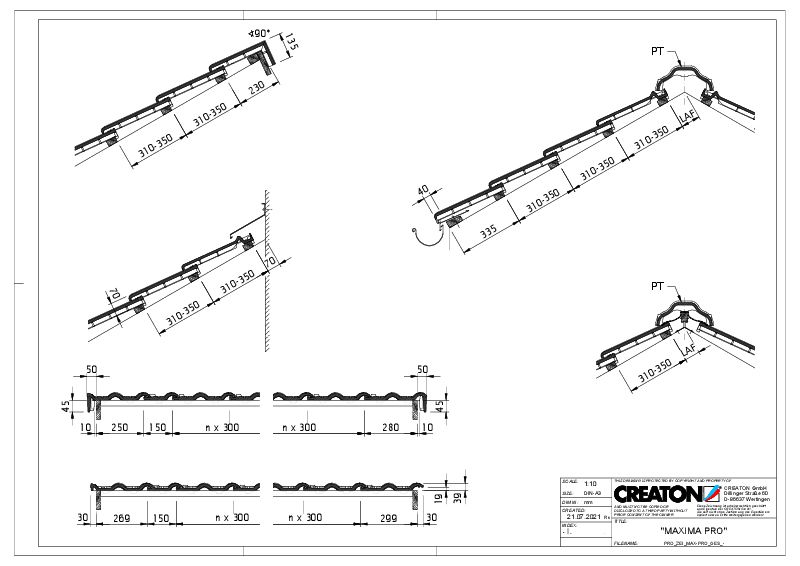

Drawing MAXIMA PRO general view GES
Drawing MAXIMA PRO general view GES

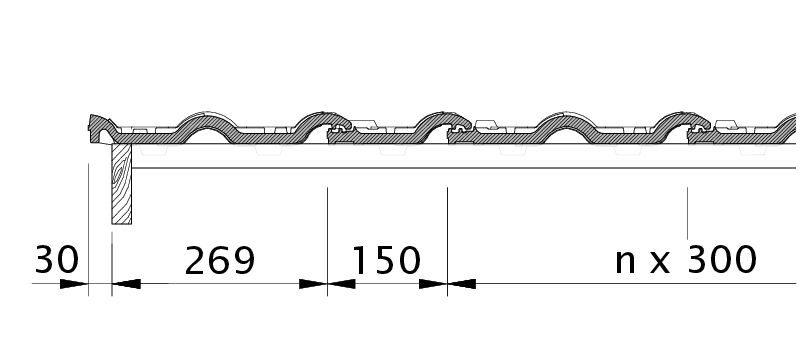

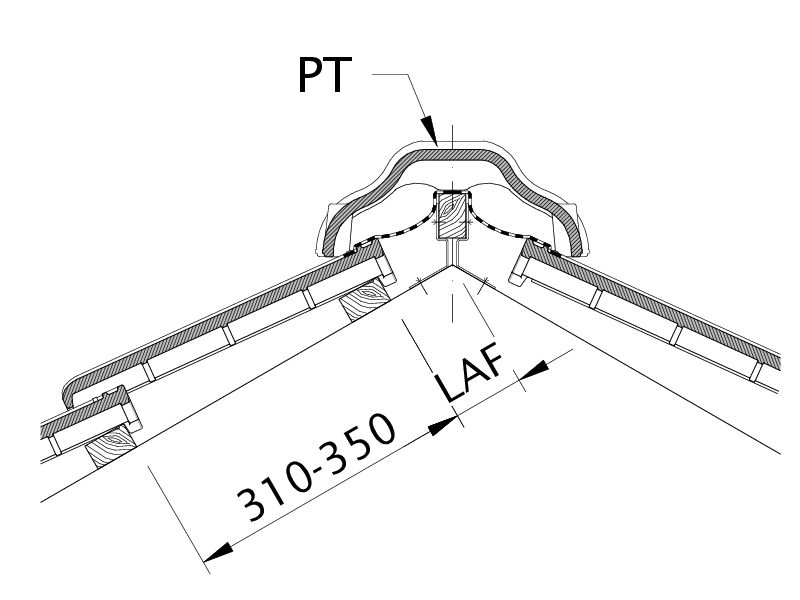

Drawing MAXIMA PRO distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing MAXIMA PRO distance from batten to ridge intersection point, ridge batten spacing LAF

Applications

Additional measures according to CREATON manufacturer's specifications
16 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 14 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 12 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PT 2.5 pcs/mLAF115110100100100100100100105110110
PT 2.5 pcs/mFLA1059585756555453525100
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PT 2.5 pcs/mLAF1151101009595959590909595
PT 2.5 pcs/mFLA110105958575655545352010
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PT 2.5 pcs/mLAF110105959090858580808585
PT 2.5 pcs/mFLA1201151059585807060503525

Accessory range

MAX half-width tile

MAX half-width tile

MAX verge tile right

MAX verge tile right

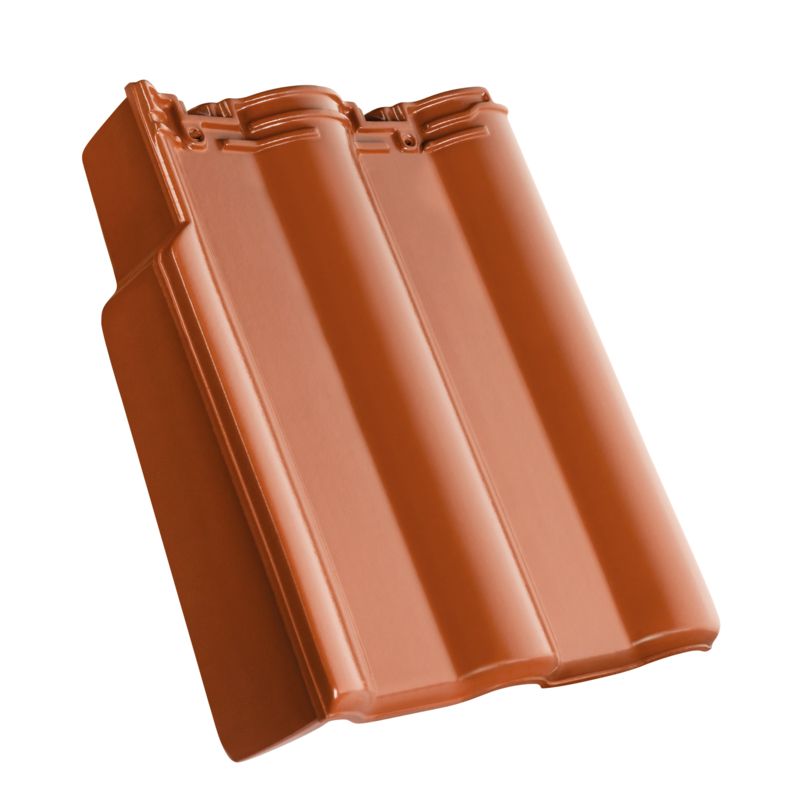

MAX verge tile left

MAX verge tile left

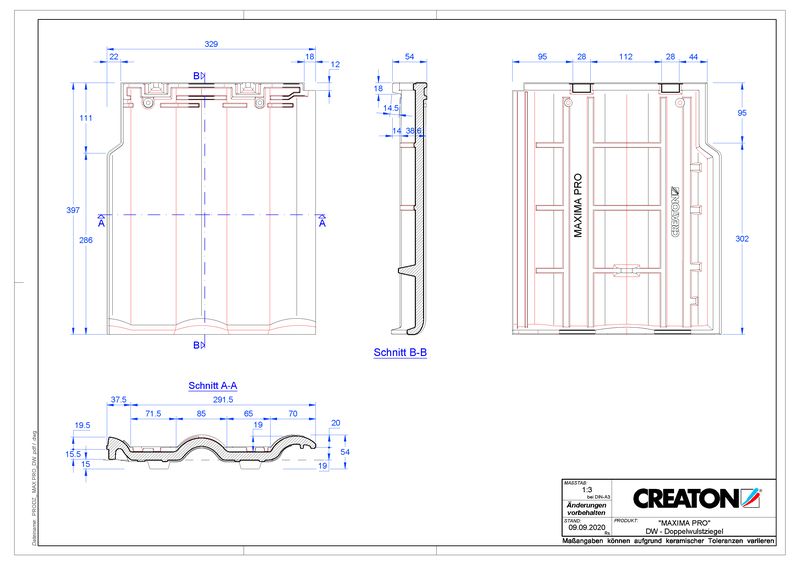

MAX double roll tile

MAX double roll tile

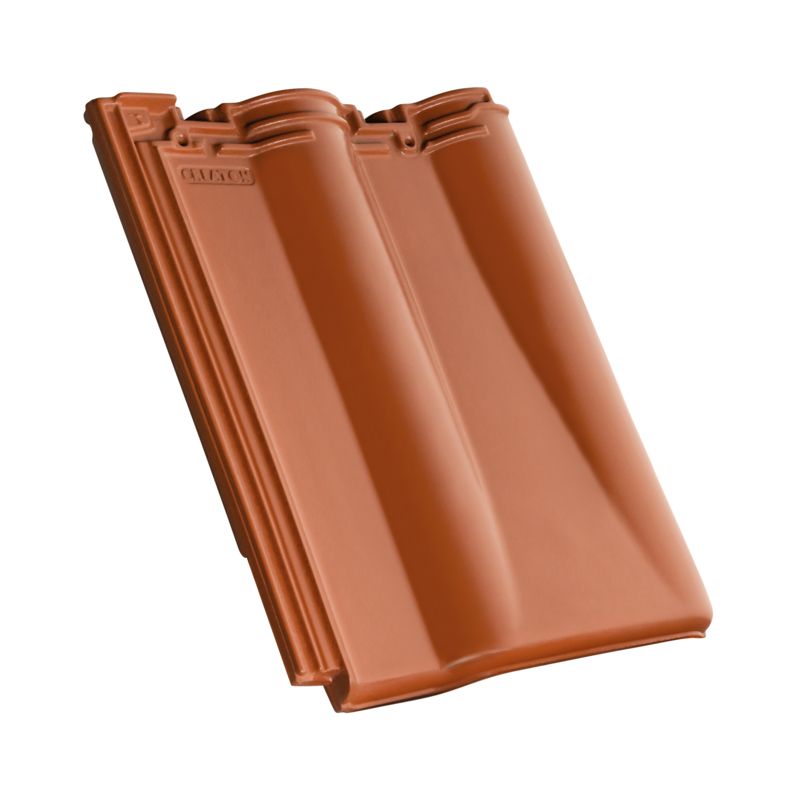

MAX ventilating tile

MAX ventilating tile

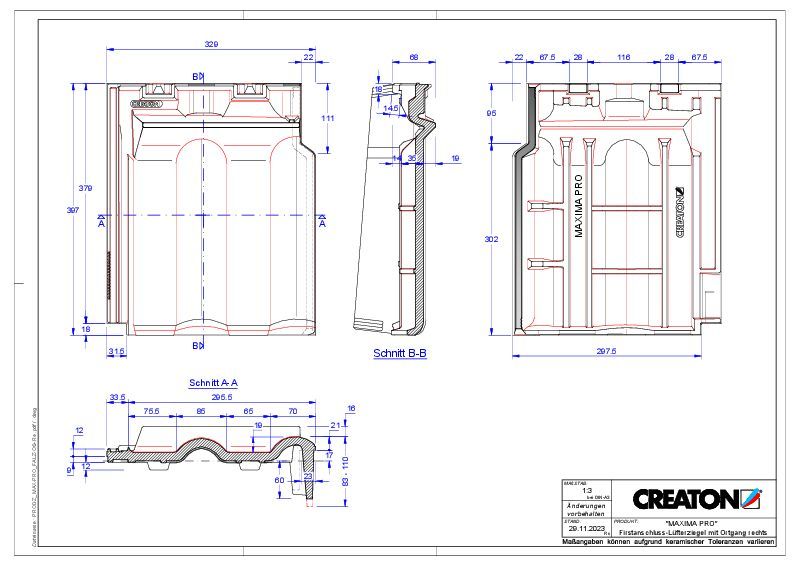

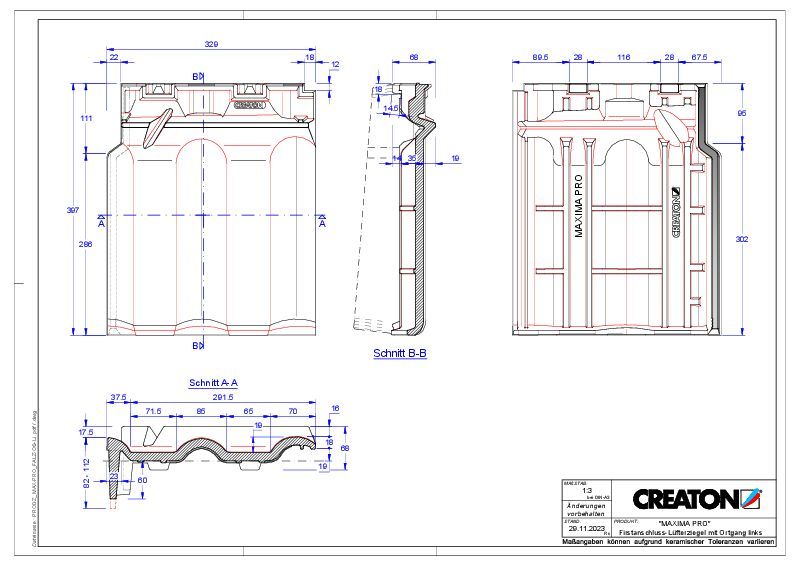

MAX ridge connection ventilating tile

MAX ridge connection ventilating tile

MAX ridge connection ventilating half-width tile

MAX ridge connection ventilating half-width tile

MAX ridge connection ventilating verge tile right

MAX ridge connection ventilating verge tile right

MAX ridge connection ventilating verge tile left

MAX ridge connection ventilating verge tile left

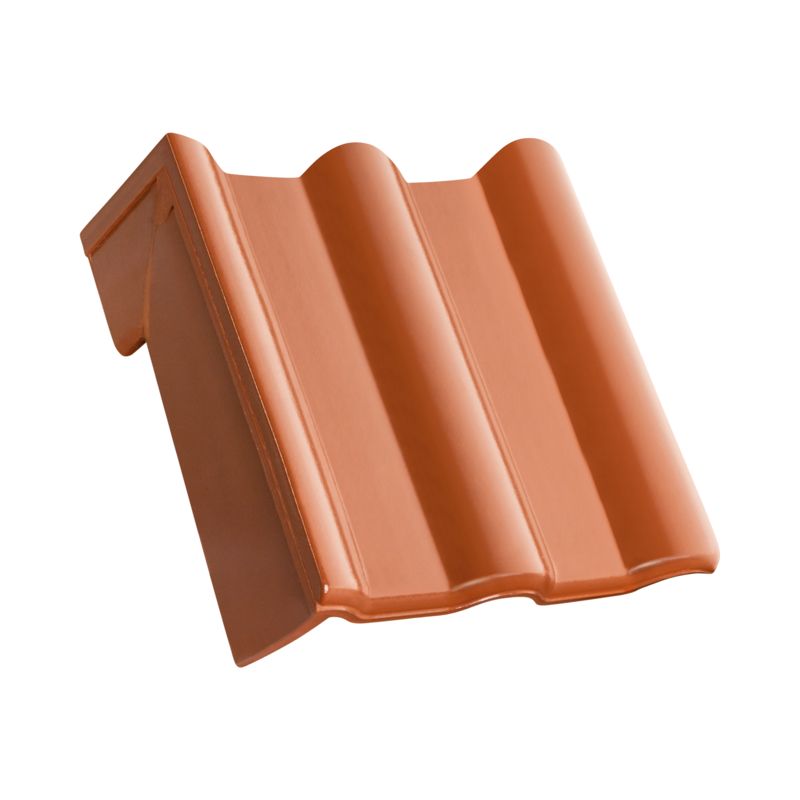

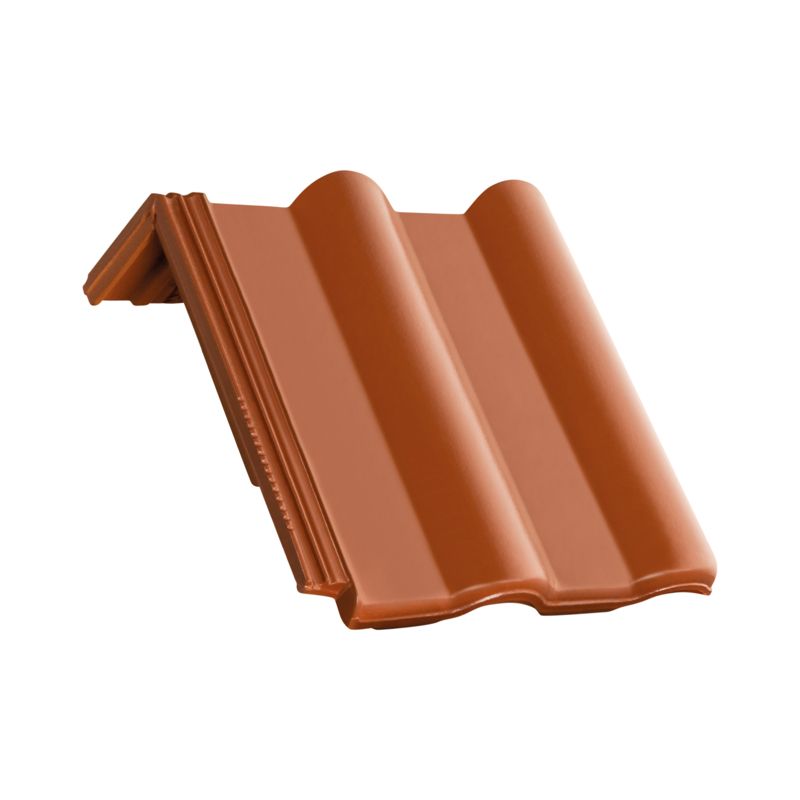

MAX shed roof tile decorated standard

MAX shed roof tile decorated standard

MAX shed roof verge tile decorated standard right

MAX shed roof verge tile decorated standard right

MAX shed roof tile decorated special size

MAX shed roof tile decorated special size

MAX shed roof verge tile decorated special size right

MAX shed roof verge tile decorated special size right

MAX shed roof verge tile decorated special size left

MAX shed roof verge tile decorated special size left

MAX mansard/pitch transition tile decorated special size

MAX mansard/pitch transition tile decorated special size

MAX mansard/pitch transition verge tile decorated special size right

MAX mansard/pitch transition verge tile decorated special size right

MAX mansard/pitch transition verge tile decorated special size left

MAX mansard/pitch transition verge tile decorated special size left

Product range for roof ventilations and penetrations

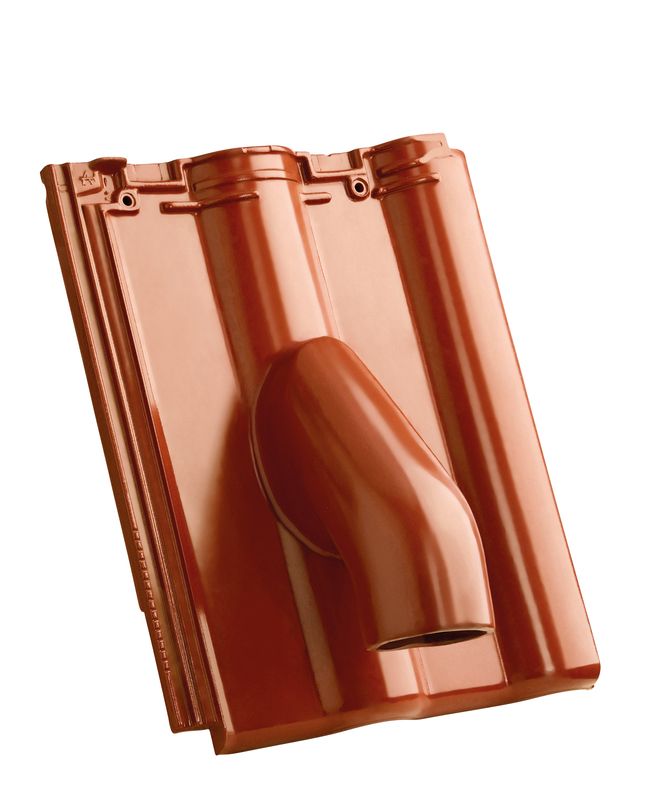

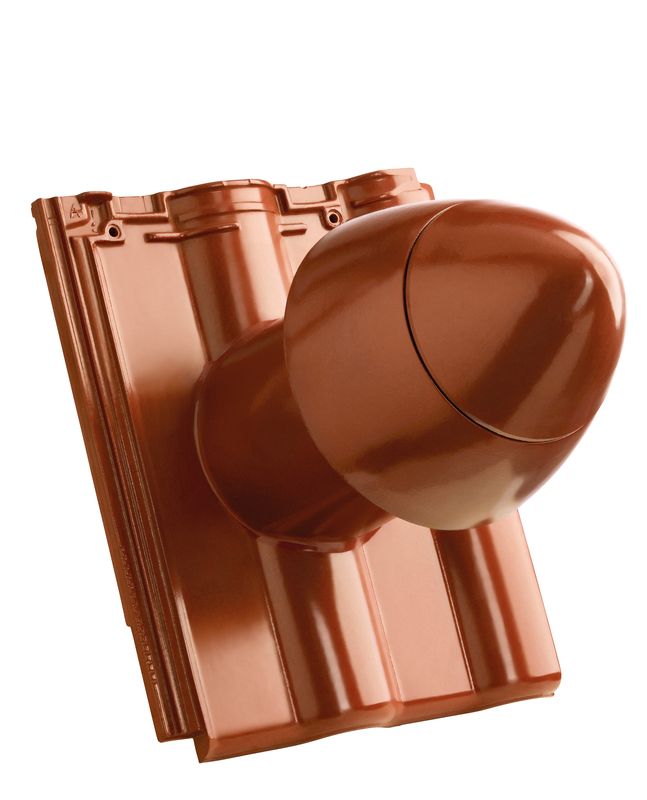

MAX PRO SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

MAX PRO SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

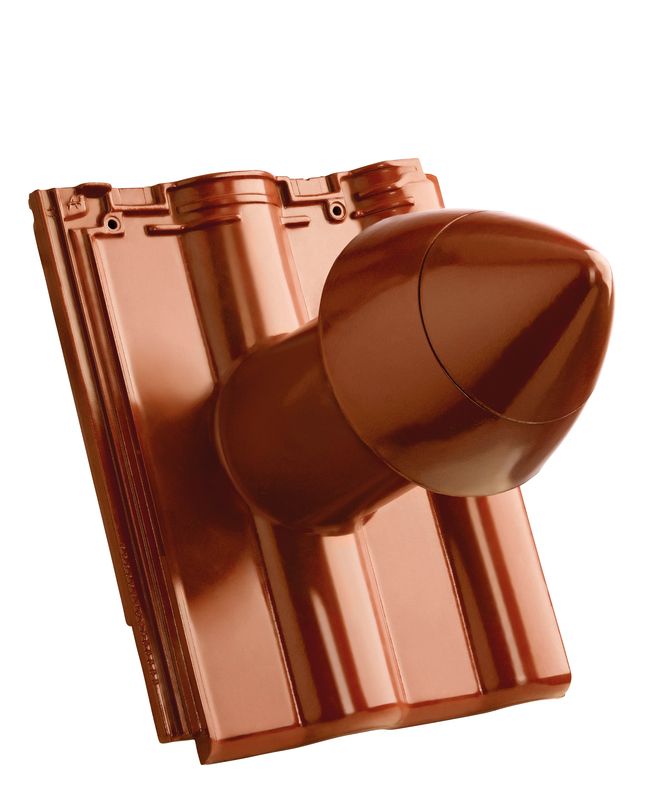

MAX PRO SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

MAX PRO SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

MAX PRO SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

MAX PRO SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

MAX SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

MAX SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

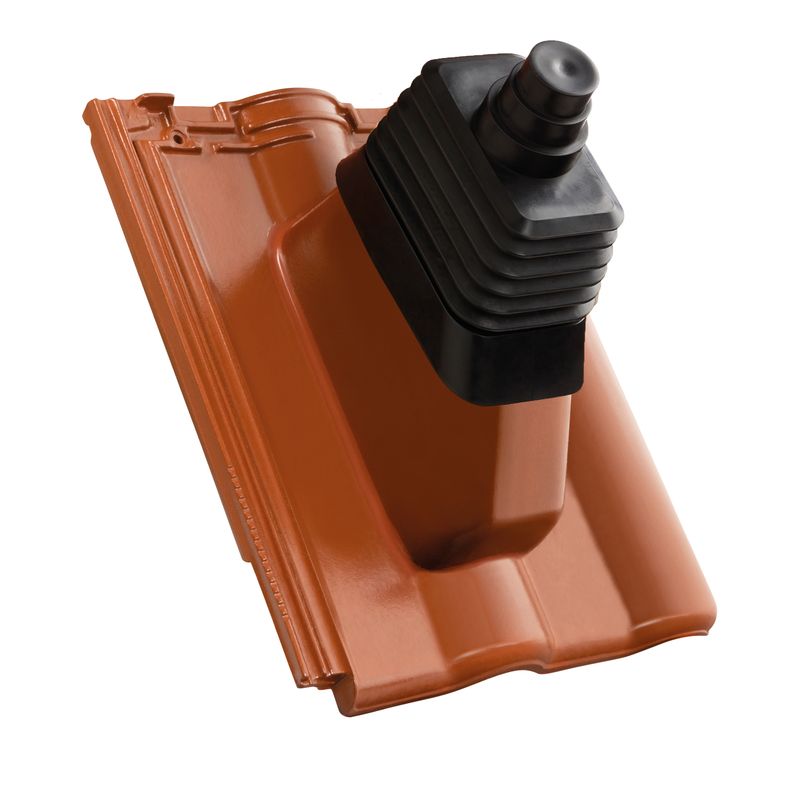

MAX aerial entry

MAX aerial entry

MAX solar entry tile

MAX solar entry tile

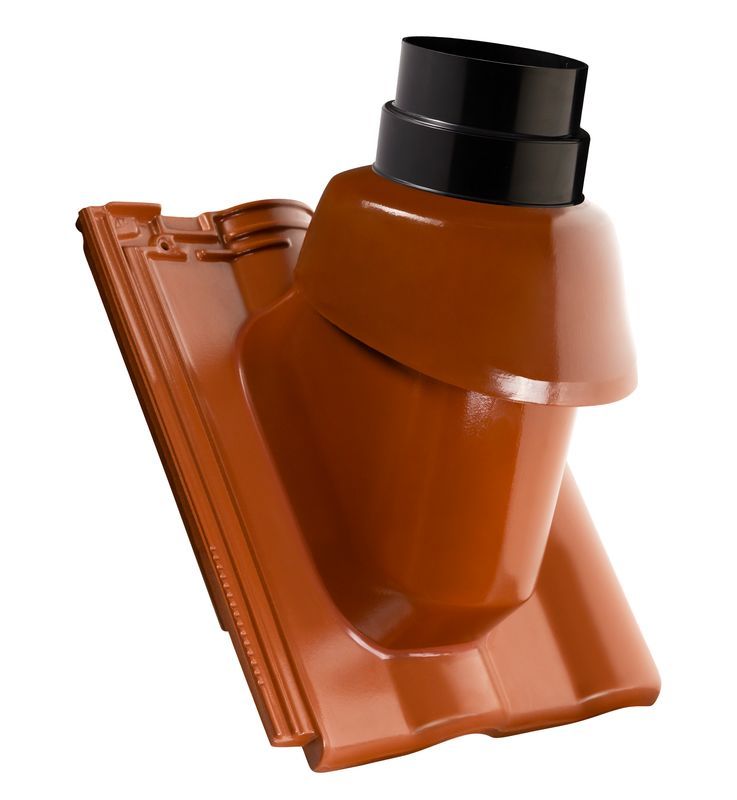

MAX PRO flue pipe penetration NW 110/125

MAX PRO flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Metal product range for snow protection, roof access and solar installation

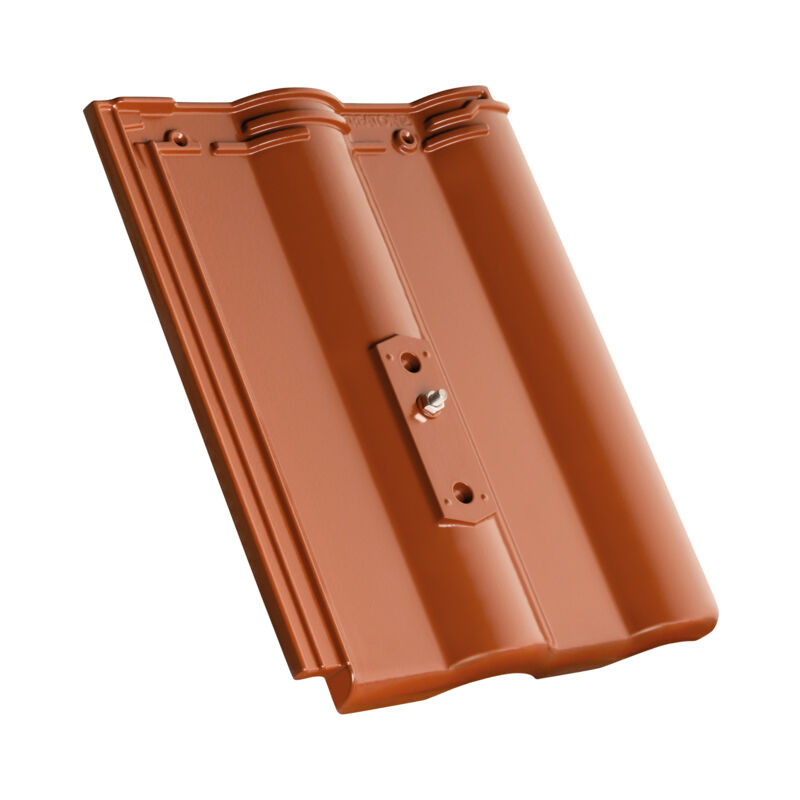

MAX aluminium base element

MAX aluminium base element

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

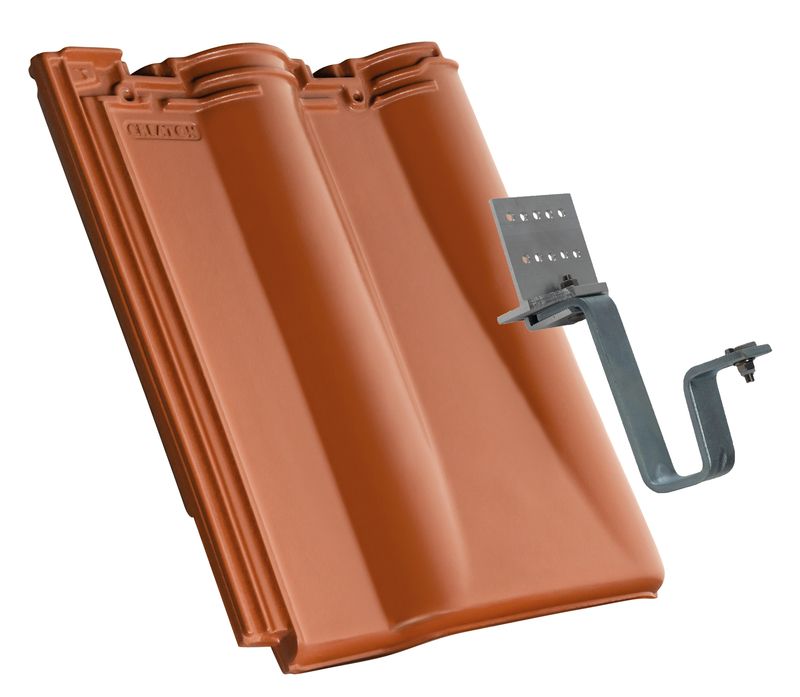

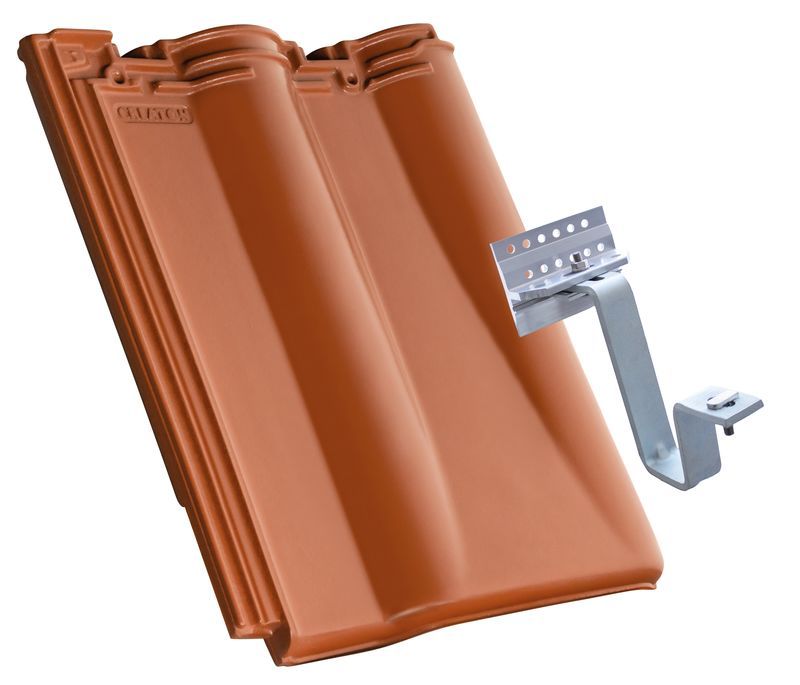

MAX PRO solar system bracket kit for rafter installation

MAX PRO solar system bracket kit for rafter installation

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

MAG snow clip

MAG snow clip

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

MAX PRO solar system bracket kit for plank installation

MAX PRO solar system bracket kit for plank installation

Product range for roof details and uplift protection

MAX transparent tile (acrylic)

MAX transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (GRA, MAX, MIK)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (GRA, MAX, MIK)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (GRA, MIK)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (GRA, MIK)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (GRA, MAX, MIK) and 40/50 battens (MAX)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (GRA, MAX, MIK) and 40/50 battens (MAX)

Storm clip in zinc-aluminium, drive-in clip, all battens (VIV, GRA, MAX)

Storm clip in zinc-aluminium, drive-in clip, all battens (VIV, GRA, MAX)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Stainless steel screw with seal, length 60 mm

Stainless steel screw with seal, length 60 mm

Hip and valley clip 13-17 mm

Hip and valley clip 13-17 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Ridge and hip tile product range

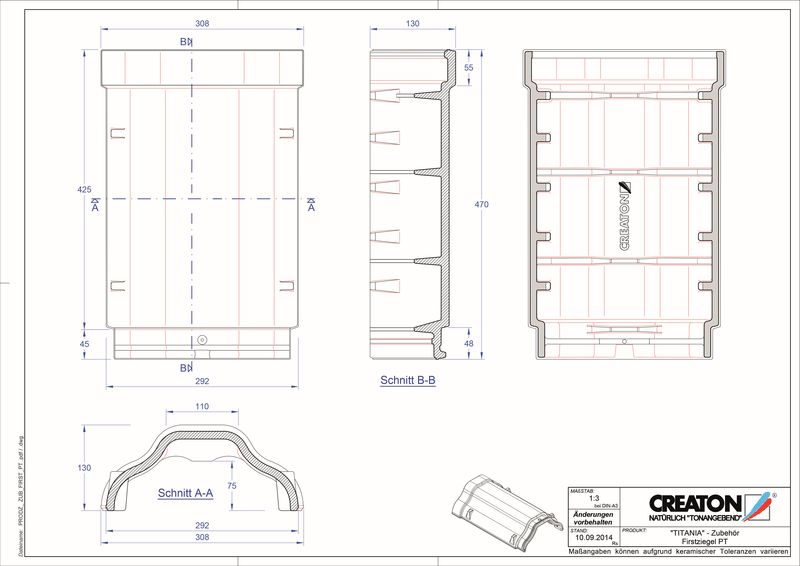

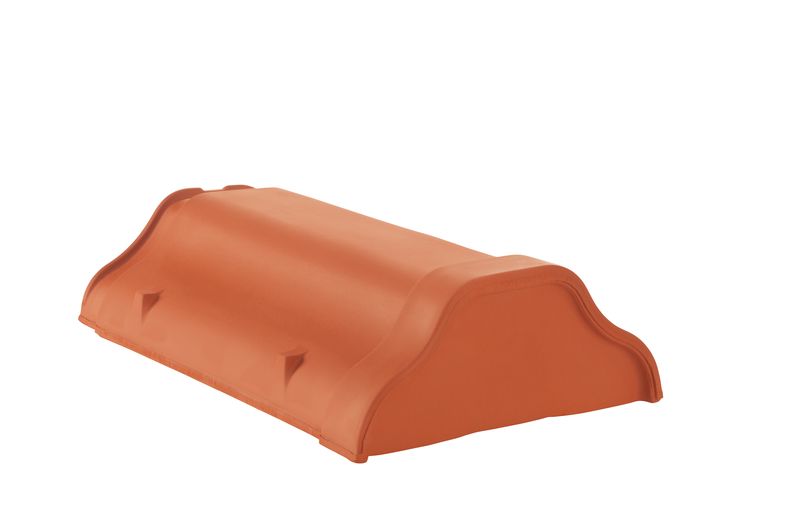

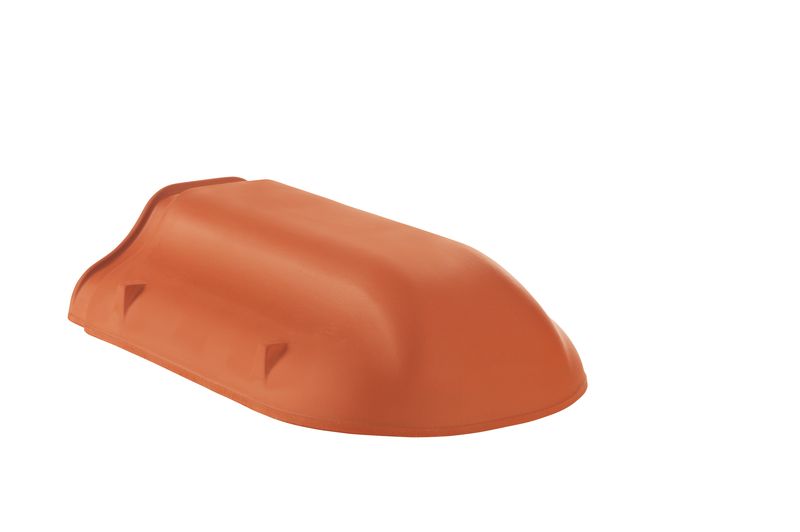

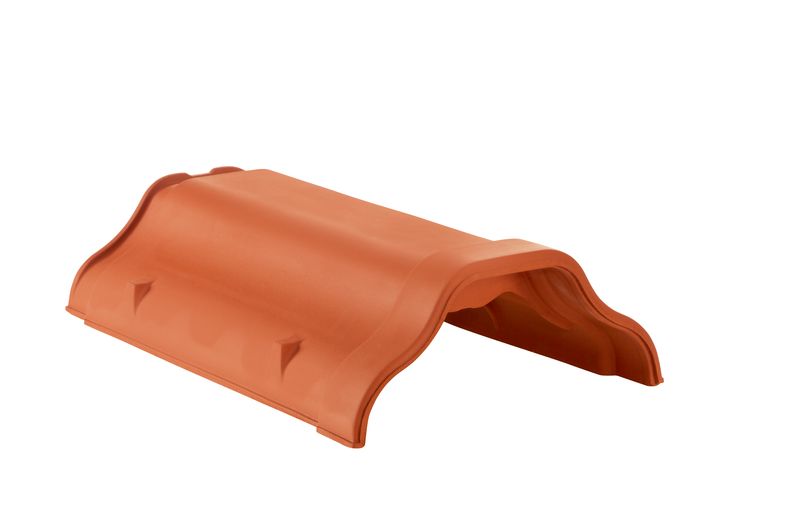

WID ridge tile PT

WID ridge tile PT

WID hip starter ceramic PT

WID hip starter ceramic PT

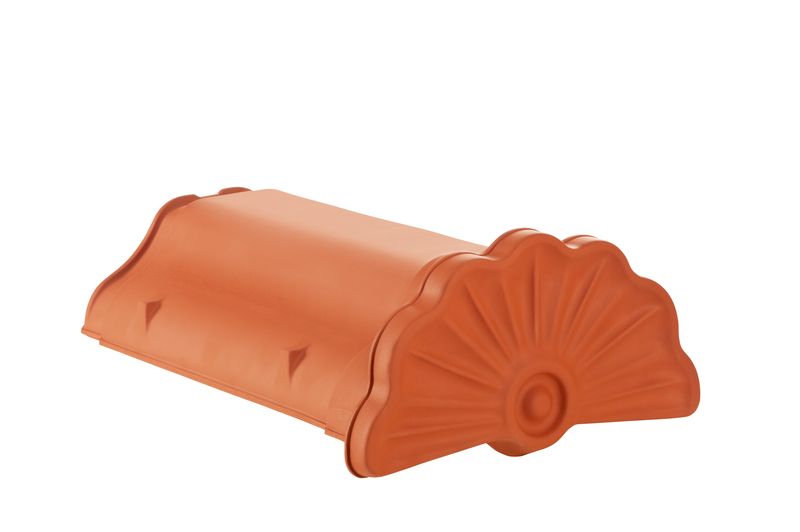

WID hip starter ceramic with scallop PT

WID hip starter ceramic with scallop PT

WID hip starter ceramic round connection PT

WID hip starter ceramic round connection PT

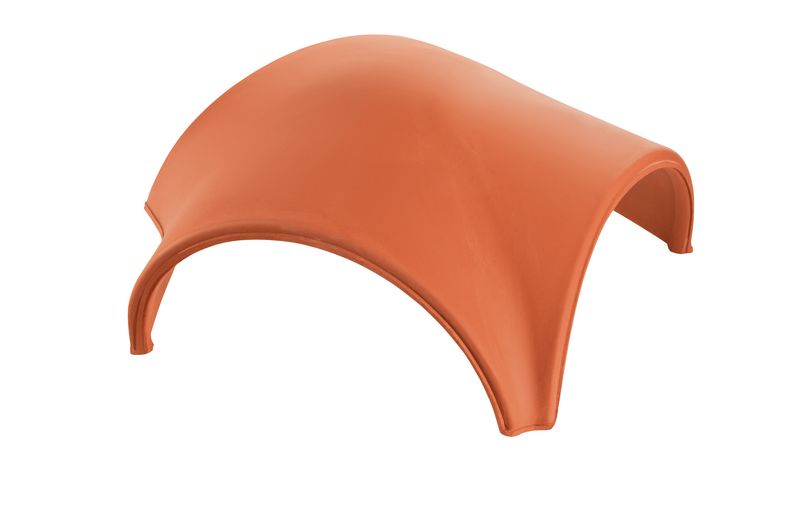

Hip cap 3-axis type W1 WID (clay)

Hip cap 3-axis type W1 WID (clay)

Hip cap 4-axis type W1 WID (clay)

Hip cap 4-axis type W1 WID (clay)

FIRSTFIX ridge clip stainless steel PT

FIRSTFIX ridge clip stainless steel PT

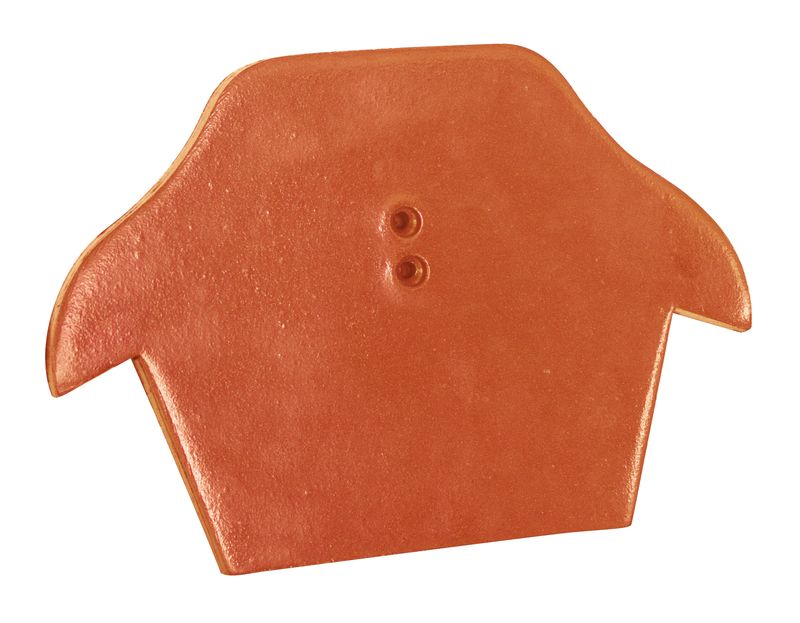

WID ridge starter and termination plate ceramic PT

WID ridge starter and termination plate ceramic PT

Ridge clip aluminium PT

Ridge clip aluminium PT

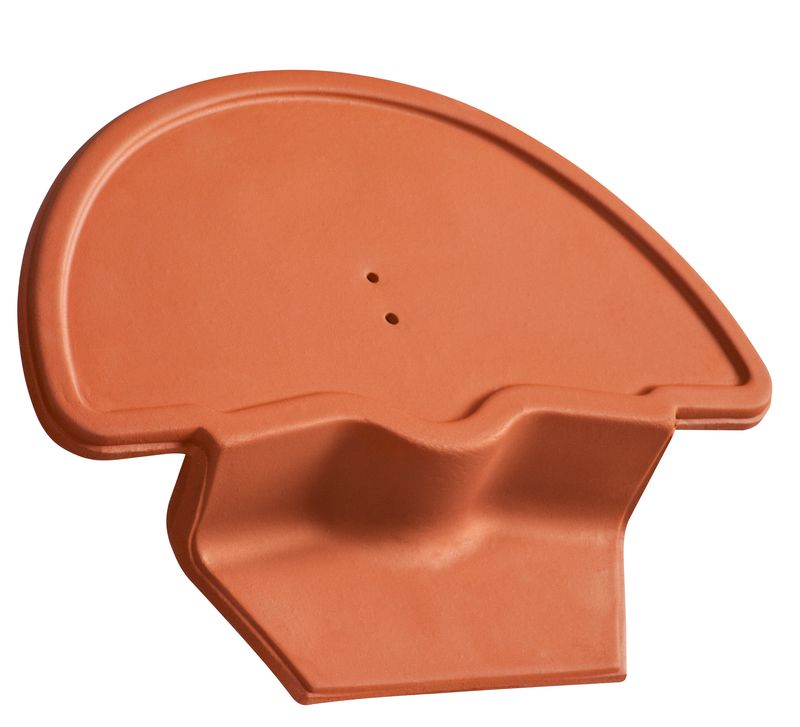

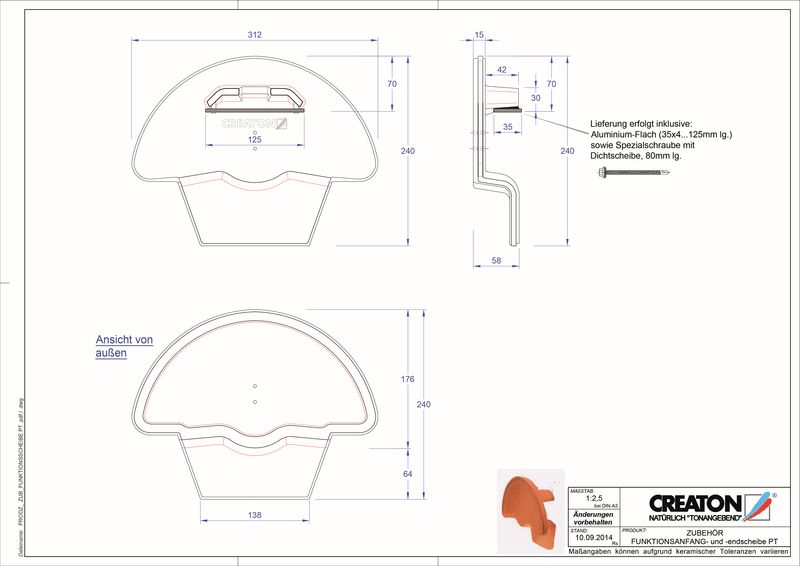

Function starter and termination plate ceramic type 7 PT WID (clay)

Function starter and termination plate ceramic type 7 PT WID (clay)

FIRSTFIX ridge clip wire universal

FIRSTFIX ridge clip wire universal

FIRSTFIX clip kit universal

FIRSTFIX clip kit universal

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)
