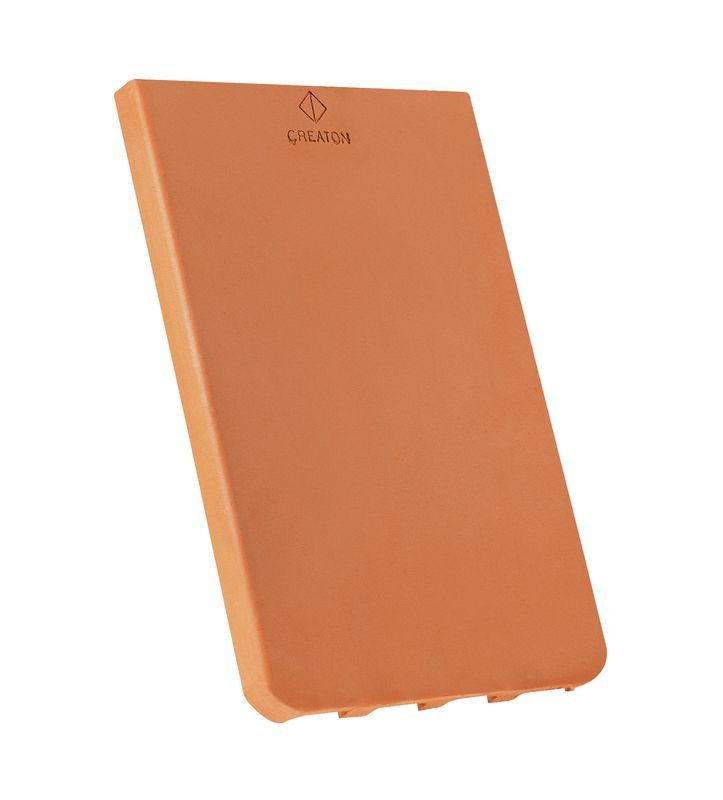

KLASSIK round cut

Use our most extensive range of applications yet to create your own bespoke roofing solutions
Ideal for renovations and new-builds alike
Elegantly understated, our timeless shapes create classically beautiful roofs
Add individuality to roofscapes
Wide range of colours and surface finishes

Technical data

Size (appr.)	180 x 380 x 14 mm
Max. coverage width (approx.)	180 mm
Min. gauge (approx.)	145 mm
Covering length on av. approx.	155 mm
Max. gauge (approx.)	165 mm
Tile requirement min. (approx.)	33.6 pcs/m²
Average tile requirement (approx.)	36 pcs/m²
Unit weight (approx.)	1.8 kg/piece
Weight per m² (approx.)	64.8 kg/m²
Weight per pallet (approx.)	927 kg
Pcs per mini-pack	8 piece
Pcs per pallet	480 piece

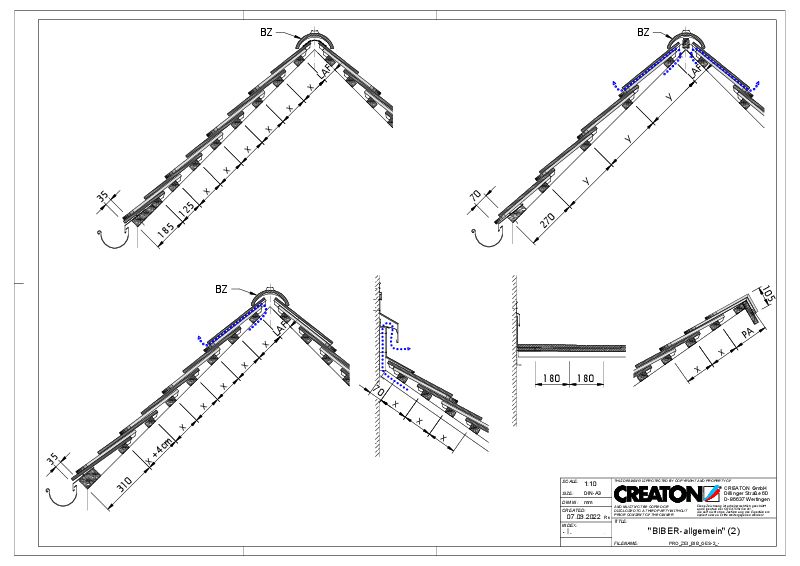

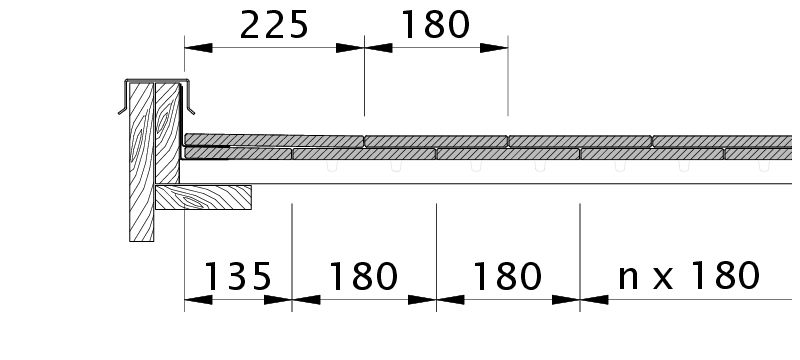

Technical drawings

Applications

Additional measures according to CREATON manufacturer's specifications
24 °	Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 24 °	Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 22 °	Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 22 °	Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 18 °	Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °	Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
-	Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

The technical drawing shown is merely an example.
According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
Batten spacing / tile gauge is dependent on the roofing type and roof pitch.
Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

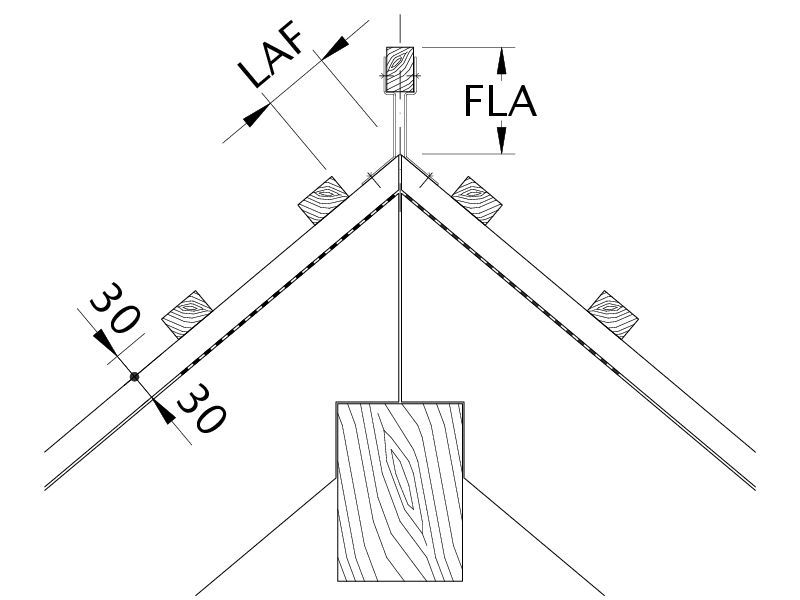

LAF-/FLA values in mm with FALZ for 30x50-battens

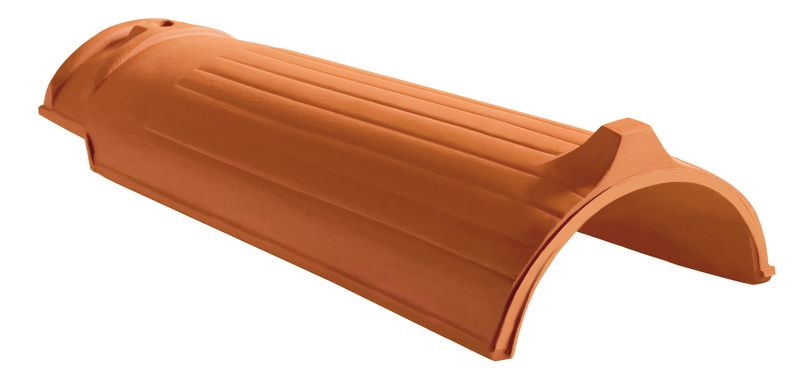

requirement ridgetile (approx.)	DN	20°	25°	30°	35°	40°	45°	50°	55°	60°
BG 3.0 pcs/m	LAF	90	85	80	80	80	75	75	80	85
BMK 3.0 pcs/m	LAF			60	60	55	55	50	50	45
BMZ 2.7 pcs/m	LAF	90	85	80	75	75	75	75	80	80
BM 3.0 pcs/m	LAF	90	85	80	80	80	75	75	85	85
BZ 3.0 pcs/m	LAF	90	85	80	75	75	75	75	80
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)	DN	20°	25°	30°	35°	40°	45°	50°	55°	60°
BG 3.0 pcs/m	LAF	85	80	75	75	75	65	60	65	70
BMK 3.0 pcs/m	LAF			55	55	50	45	35
BMZ 2.7 pcs/m	LAF	85	80	75	70	70	65	60	65	65
BM 3.0 pcs/m	LAF	85	80	75	75	75	65	60	70	70
BZ 3.0 pcs/m	LAF	85	80	75	70	70	65	60	65
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)	DN	20°	25°	30°	35°	40°	45°	50°	55°	60°
BG 3.0 pcs/m	LAF	80	75	70	65	65	55	50	55	55
BMK 3.0 pcs/m	LAF			50	45	40	35	25
BMZ 2.7 pcs/m	LAF	80	75	70	60	60	55	50	55	50
BM 3.0 pcs/m	LAF	80	75	70	65	65	55	50	60	55
BZ 3.0 pcs/m	LAF	80	75	70	60	60	55	50	55

References

KLASSIK round cut half-width tile

KLASSIK round cut 3/4 plain tile

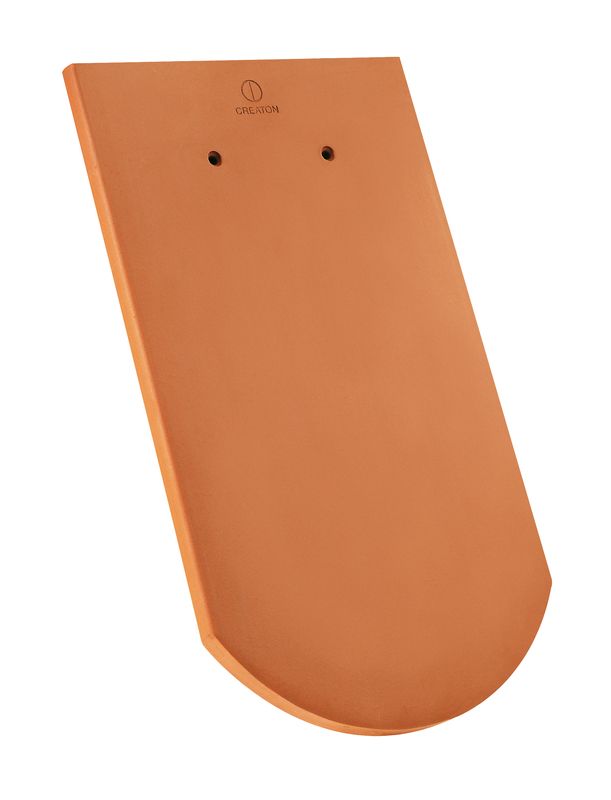

KLASSIK round cut 1 1/4 width plain tile

KLASSIK round cut ridge connection tile

KLASSIK round cut eave tile

KLASSIK round cut ridge connection ventilating tile

KLASSIK round cut eave ventilating tile

KLASSIK round cut field ventilating tile

KLASSIK round cut ventilating tile

Sliding verge with short side lobe approx. 5 cm right

Sliding verge with short side lobe approx. 5 cm left

KLASSIK round cut verge tile 1 1/4 right with long side lobe approx. 11 cm

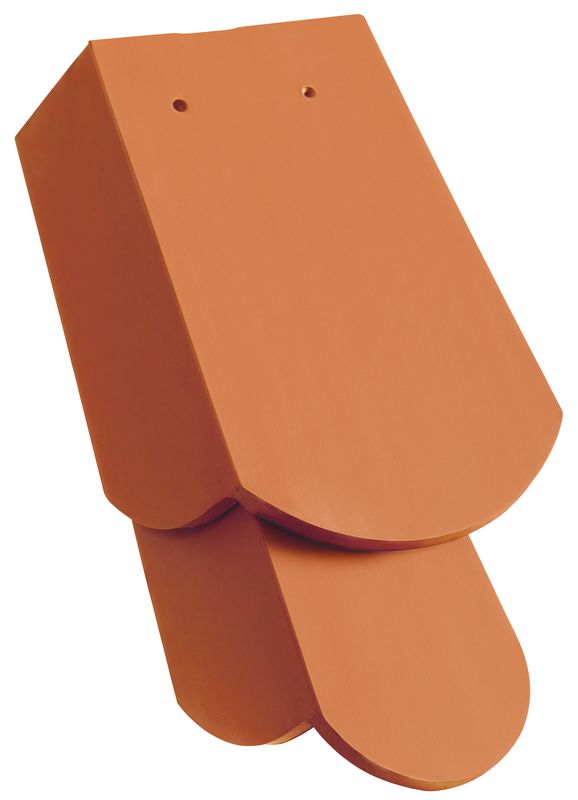

KLASSIK round cut verge tile 1 1/4 left with long side lobes approx. 11 cm

KLASSIK round cut verge tile 3/4 right with long side lobe approx. 11 cm

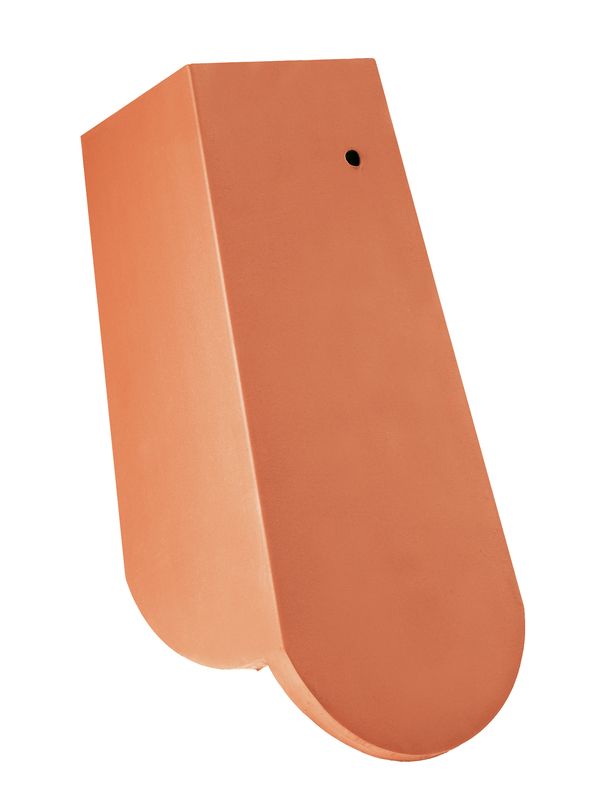

KLASSIK round cut verge tile 3/4 left with long side lobe approx. 11 cm

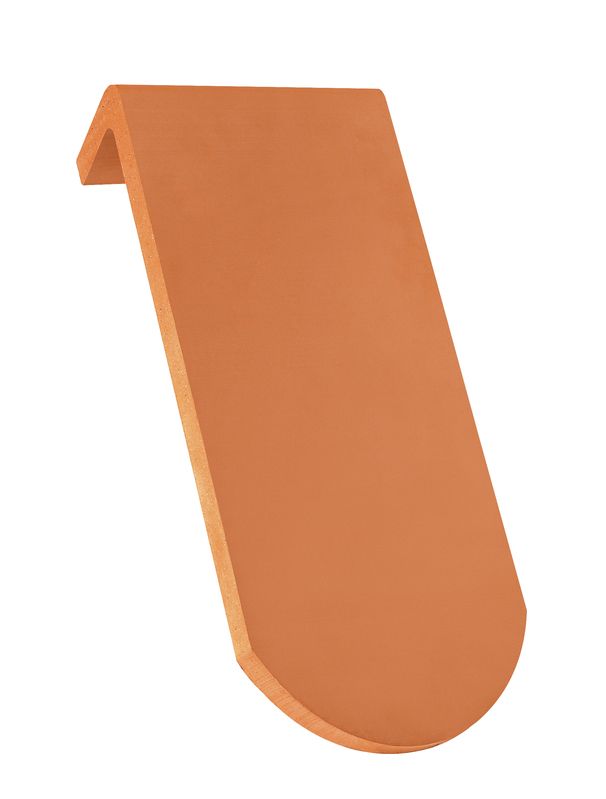

KLASSIK round cut shed roof tile short

KLASSIK round cut flashing tile right

KLASSIK round cut flashing tile left

KLASSIK round cut convex curve (special production in accordance with specification)

KLASSIK round cut concave curve (special production in accordance with specification)

KLASSIK round cut shed roof tile long

Product range for roof details and uplift protection

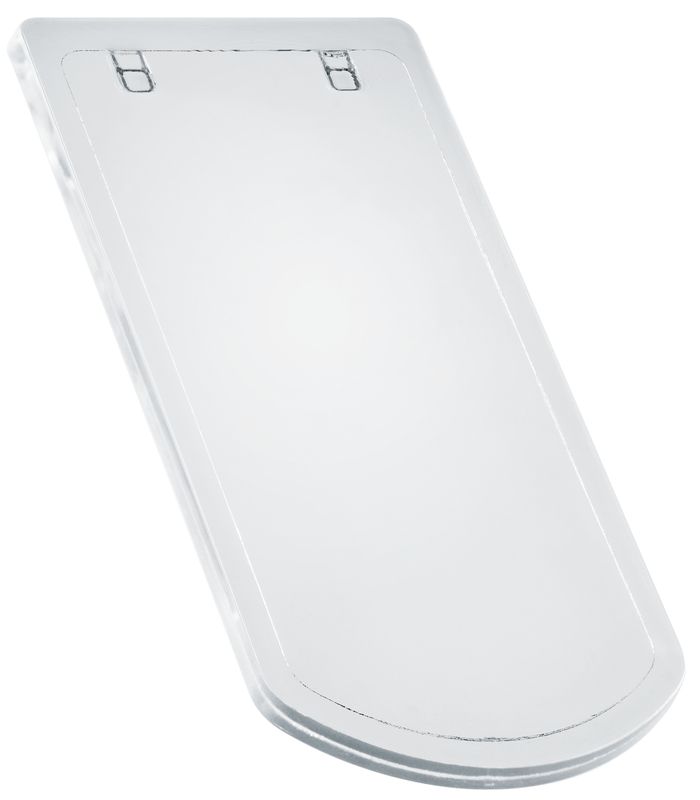

KLASSIK round cut glass plain tile

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (BIBER)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (BIBER)

Storm clip plain tile 12-14 mm crown pattern

Storm clip plain tile 14-16 mm crown pattern

Stainless steel screw with seal, length 50 mm

Hip and valley clip 10-13 mm

Hip and valley clip 13-17 mm

Hip and valley clip 17-21 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Product range for snow protection, roof access and solar installation in metal

Solar element bracket GRUEL plain tile

KLASSIK round cut aluminium base

Single tread

Short grid

Long grating

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Roof ladder

Roof ladder bracket

Log bracket

MAG snow clip

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Product range for roof ventilation and penetrations

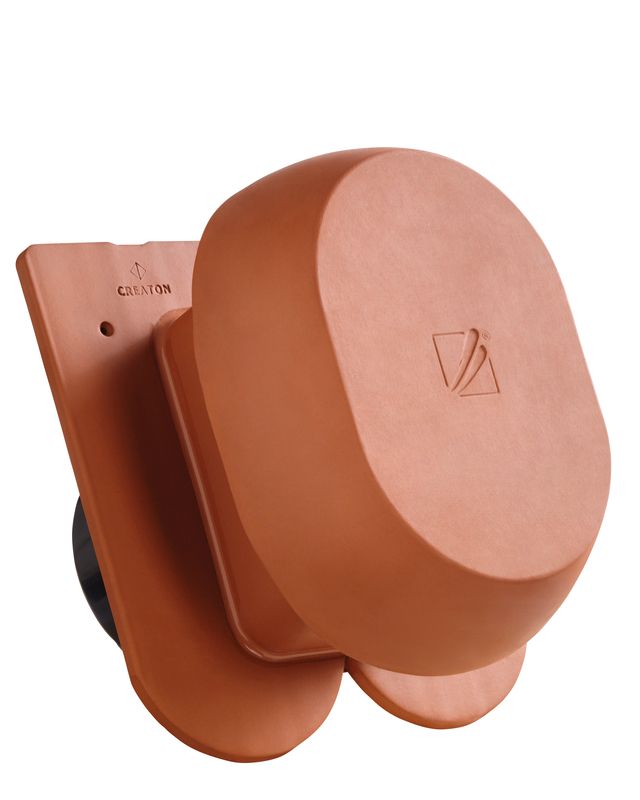

KLASSIK round cut SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

KLASSIK round cut SIGNUM ceramic outlet vent DN 125 mm with removable cap, incl. sub-roof connection adapter with flexible duct

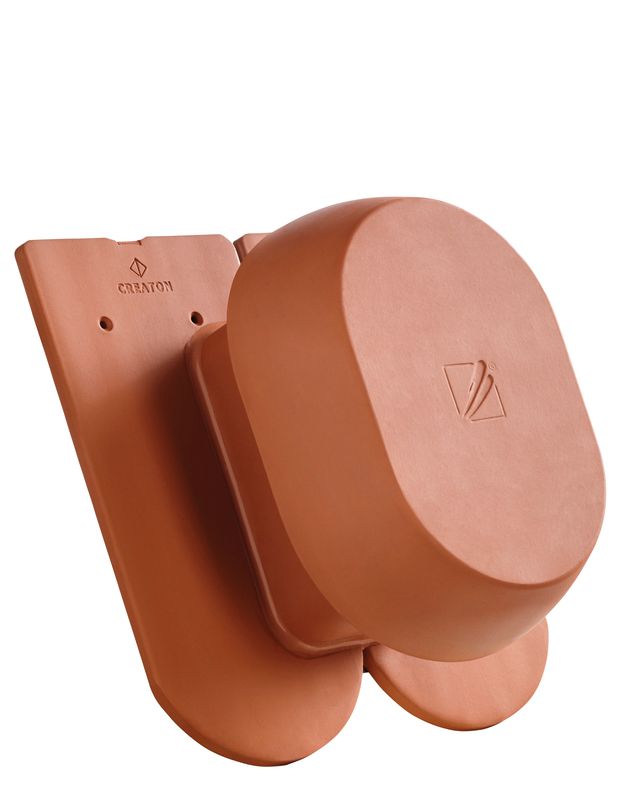

KLASSIK round cut SIGNUM ceramic vapour vent DN 150/160 mm incl. sub-roof connection adapter

KLASSIK round cut SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

KLASSIK round cut aerial entry

KLASSIK round cut solar entry tile

KLASSIK round cut flue pipe penetration NW 110/125

Downloads

Brochures and documents
Product brochure Farbvergleich-RAL
Product brochure CREAFLEX-PIB-2020
Product brochure BIBER-Vielfalt-05-2020
Product brochure Flyer-Universal-Anschlussband-Aluminium-2018-08-DE
Product brochure Flyer-Universal-Anschlussband-Aluminium-2018-08-EN
Product data sheet Musterschreiben-CREATON-UDB-DE
Product brochure Biber-Kera-10-2020
Product brochure Zusatzgarantie-6aus10-02-2021
Product brochure Checkliste-Zusatzgarantie-6aus10-TDZ-02-2021
Product brochure CREAFLEX-ALU-BASIC-02-2021

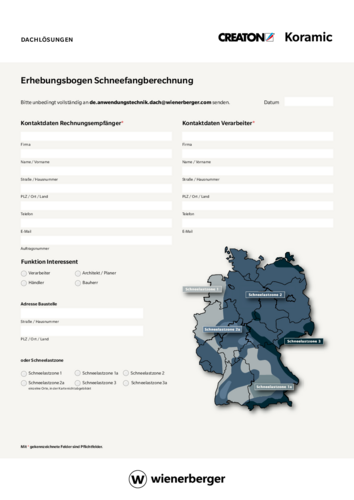

Product order form Erhebungsbogen-Schneefangberechnung-DE

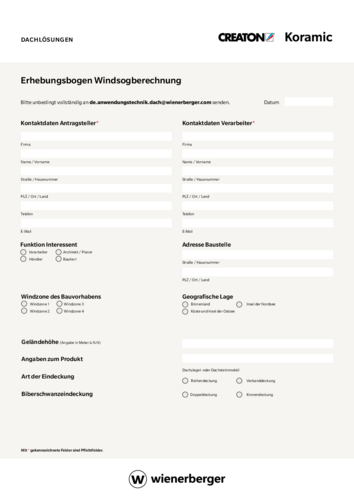

Product order form Erhebungsbogen-Windsogberechnung-DE

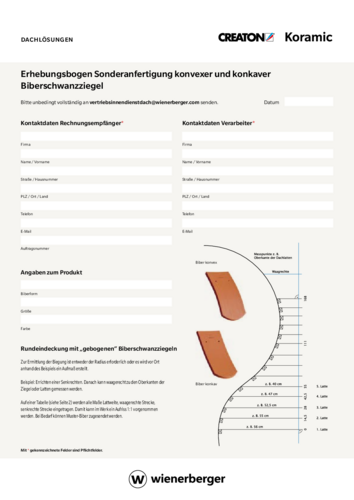

Product order form Erhebungsbogen-konvexer-konkaver-Biber

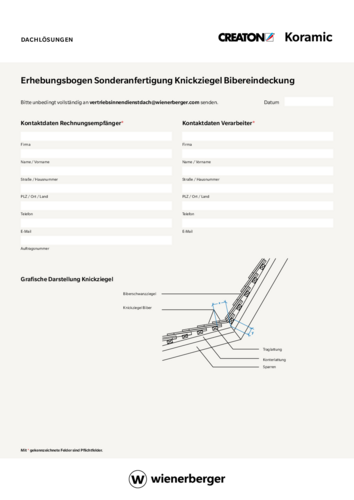

Product order form Erhebungsbogen-Knickziegel-Biber
Product order form Erhebungsbogen-Knickziegel-Biber-EN

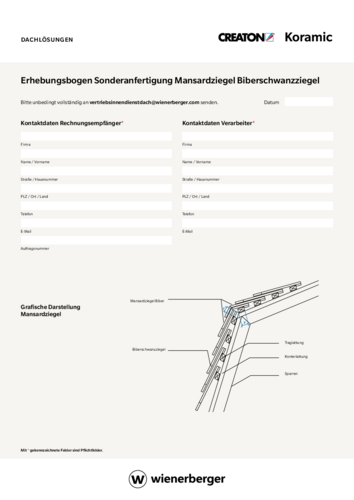

Product order form Erhebungsbogen-Mansardziegel-Biber
Product order form Erhebungsbogen-Mansardziegel-Biber-EN
Product order form Erhebungsbogen-konvexer-konkaver-Biber-EN

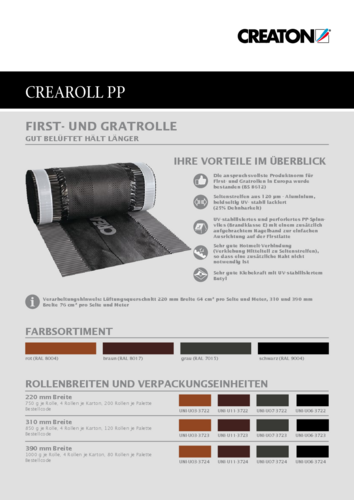

Product brochure CREAROLL-PP-2022
Product brochure Gesamtprospekt-TDZ-03-2022-IT
Product brochure Gesamtprospekt-TDZ-04-2022-EN
Product declaration of performance Standard-Dachziegel-und-Zubehoerziegel
Product brochure Angebotsbeileger-Dachdurchdringungen-09-2022
Product brochure Falz-Firstfix-05-2023
Product brochure Solarhalter-05-2023
Product brochure Ueberlegene-Technik-07-2023
Product brochure Dachplaner-04-2024-DE
Product brochure BIBER-KLASSIK-04-2024
Product brochure Broschuere-Solarwelt-private-Bauherren-und-Planer-08-2024
Product brochure Gesamtprospekt-TDZ-08-2024-DE
Product brochure Broschuere-Solarwelt-Verarbeiter-und-Handel-08-2024
CAD
Product CAD file KLASSIK round cut RUND-1-1
pdf | 102 kB
dwg | 88 kB
jpeg | 34 kB
Product CAD file KLASSIK round cut RUND-1-1-4
pdf | 102 kB
dwg | 85 kB
jpeg | 35 kB
Product CAD file KLASSIK round cut RUND-3-4
pdf | 102 kB
dwg | 87 kB
jpeg | 34 kB
Product CAD file KLASSIK round cut RUND-AUSSCHNITT-LUEFTZ
pdf | 107 kB
dwg | 76 kB
jpeg | 40 kB
Product CAD file KLASSIK round cut RUND-FALZ
pdf | 101 kB
dwg | 88 kB
jpeg | 37 kB
Product CAD file KLASSIK round cut RUND-FAZ
pdf | 98 kB
dwg | 83 kB
jpeg | 34 kB
Product CAD file KLASSIK round cut RUND-FLUEFTZ
pdf | 97 kB
dwg | 92 kB
jpeg | 37 kB
Product CAD file KLASSIK round cut RUND-GRUNDALU
pdf | 148 kB
dwg | 227 kB
jpeg | 51 kB
Product CAD file KLASSIK round cut RUND-LH
pdf | 97 kB
dwg | 76 kB
jpeg | 35 kB
Product CAD file KLASSIK round cut RUND-LUEFTZ
pdf | 102 kB
dwg | 130 kB
jpeg | 37 kB
Product CAD file KLASSIK round cut RUND-OGL
pdf | 97 kB
dwg | 116 kB
jpeg | 40 kB
Product CAD file KLASSIK round cut RUND-OGL-1-1-4
pdf | 99 kB
dwg | 82 kB
jpeg | 33 kB
Product CAD file KLASSIK round cut RUND-OGL-3-4
pdf | 98 kB
dwg | 81 kB
jpeg | 32 kB
Product CAD file KLASSIK round cut RUND-OGR
pdf | 98 kB
dwg | 85 kB
jpeg | 40 kB
Product CAD file KLASSIK round cut RUND-OGR-1-1-4
pdf | 100 kB
dwg | 82 kB
jpeg | 33 kB
Product CAD file KLASSIK round cut RUND-OGR-3-4
pdf | 99 kB
dwg | 81 kB
jpeg | 31 kB
Product CAD file KLASSIK round cut RUND-PULT
pdf | 96 kB
dwg | 113 kB
jpeg | 43 kB
Product CAD file KLASSIK round cut RUND-PULT-kurz
pdf | 189 kB
dwg | 137 kB
jpeg | 37 kB
Product CAD file KLASSIK round cut RUND-PULT-kurz1
pdf | 93 kB
dwg | 79 kB
jpeg | 38 kB
Product CAD file KLASSIK round cut RUND-PULT-lang
pdf | 188 kB
dwg | 147 kB
jpeg | 41 kB
Product CAD file KLASSIK round cut RUND-PULT-lang1
pdf | 92 kB
dwg | 117 kB
jpeg | 37 kB
Product CAD file KLASSIK round cut RUND-TRAUF-LUEFTZ
pdf | 96 kB
dwg | 146 kB
jpeg | 36 kB
Product CAD file KLASSIK round cut RUND-TRAUFZIEGEL
pdf | 94 kB
dwg | 84 kB
jpeg | 33 kB
Product CAD file KLASSIK round cut RUND-UNTERLAEUFER
pdf | 99 kB
dwg | 116 kB
jpeg | 38 kB
Product CAD file RIDGE accessory range FIRST-BG
pdf | 104 kB
dwg | 77 kB
jpeg | 39 kB
Product CAD file RIDGE accessory range FIRST-BMZ
pdf | 101 kB
dwg | 98 kB
jpeg | 39 kB
Product CAD file RIDGE accessory range FIRST-BM
pdf | 102 kB
dwg | 98 kB
jpeg | 39 kB
Product CAD file RIDGE accessory range FIRST-BZ
pdf | 105 kB
dwg | 128 kB
jpeg | 39 kB
# ZUB_SIG100_SIGNUM100
pdf | 521 kB
dwg | 180 kB
jpeg | 53 kB
# ZUB_SIG125_SIGNUM125
pdf | 550 kB
dwg | 188 kB
jpeg | 55 kB

KLASSIK round cut

Technical data

Technical drawings

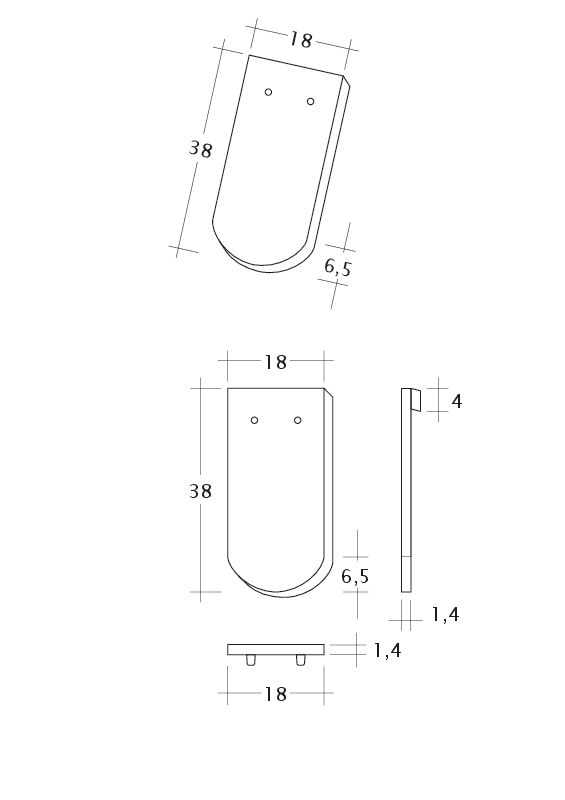

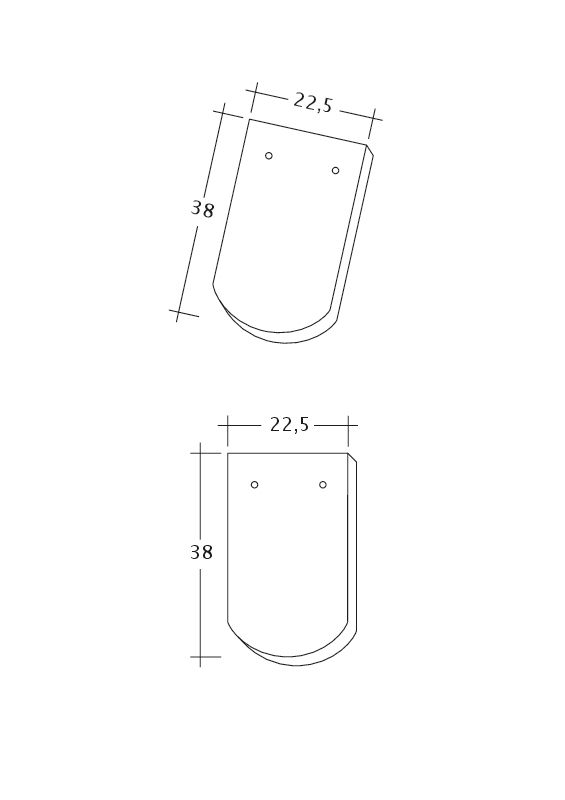

Drawing KLASSIK 1-1

Drawing KLASSIK 1-1-4

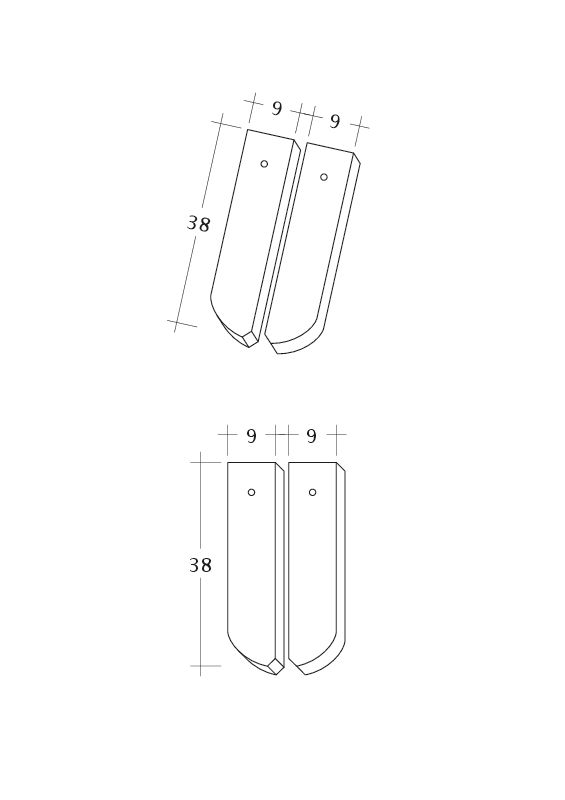

Drawing KLASSIK 1-2

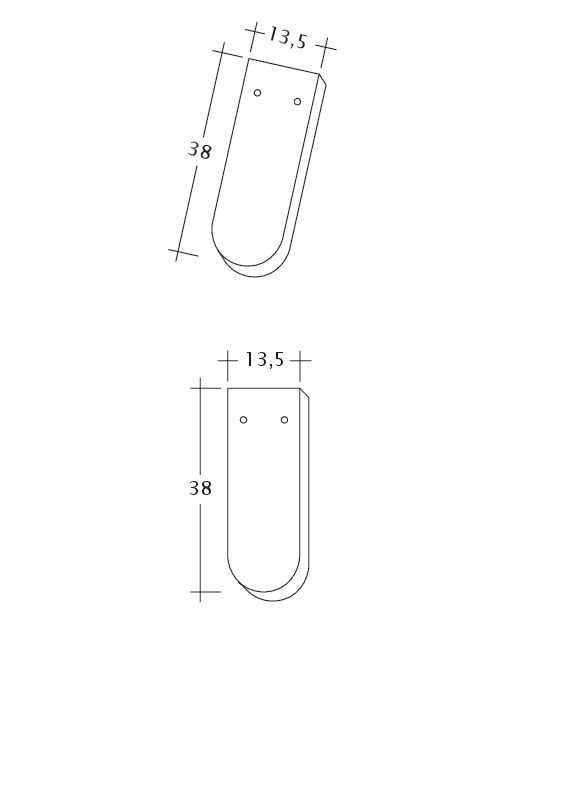

Drawing KLASSIK 3-4

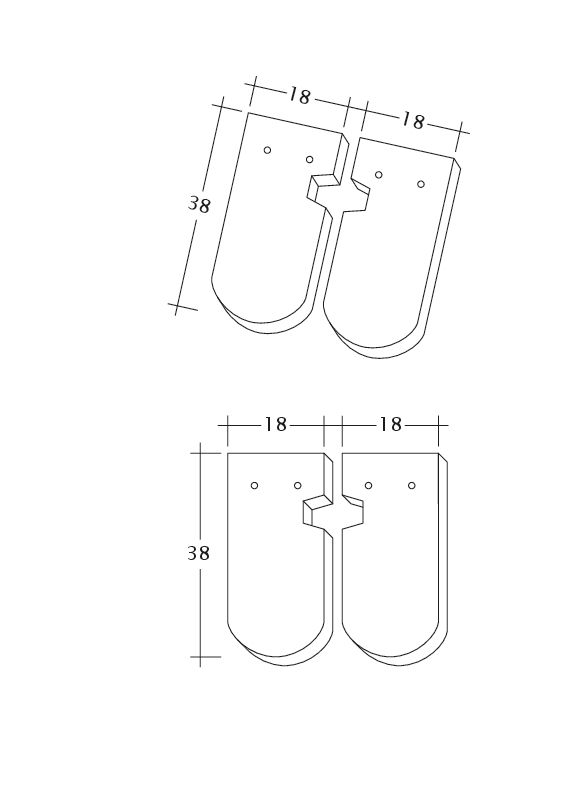

Drawing KLASSIK Ausschnitt-LUEFTZ

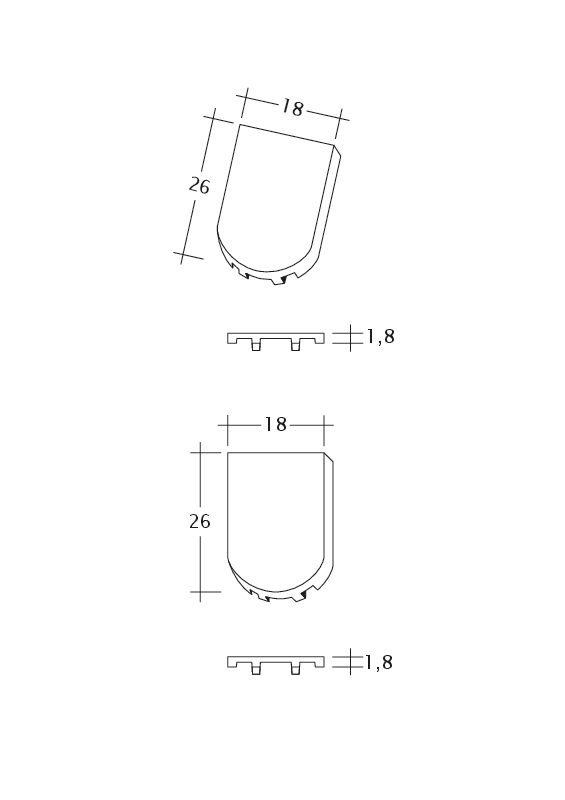

Drawing KLASSIK FALZ

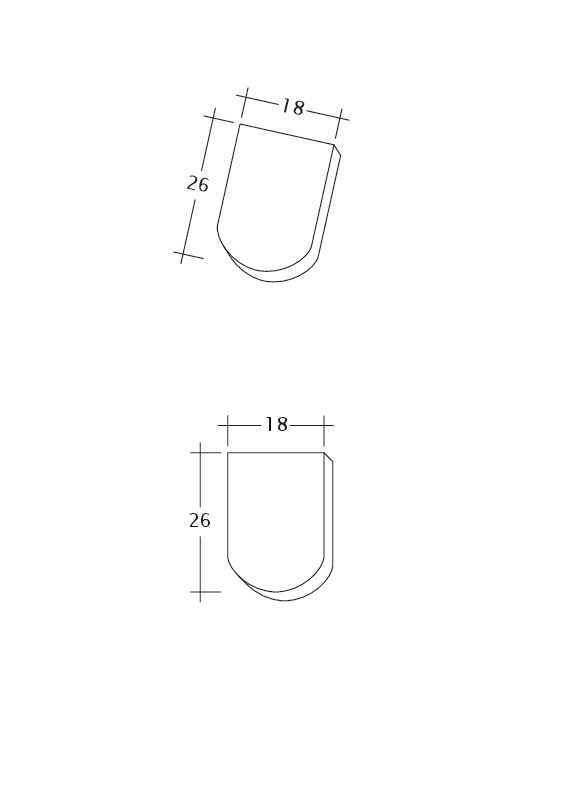

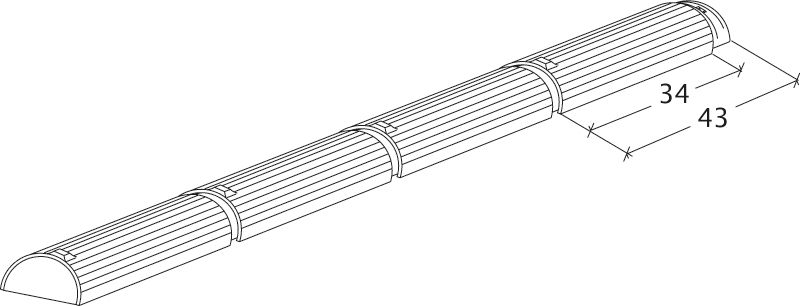

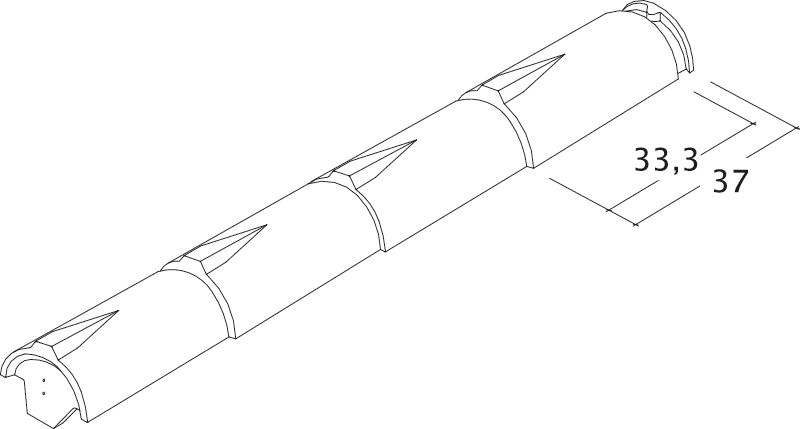

Drawing KLASSIK Firstanschluss

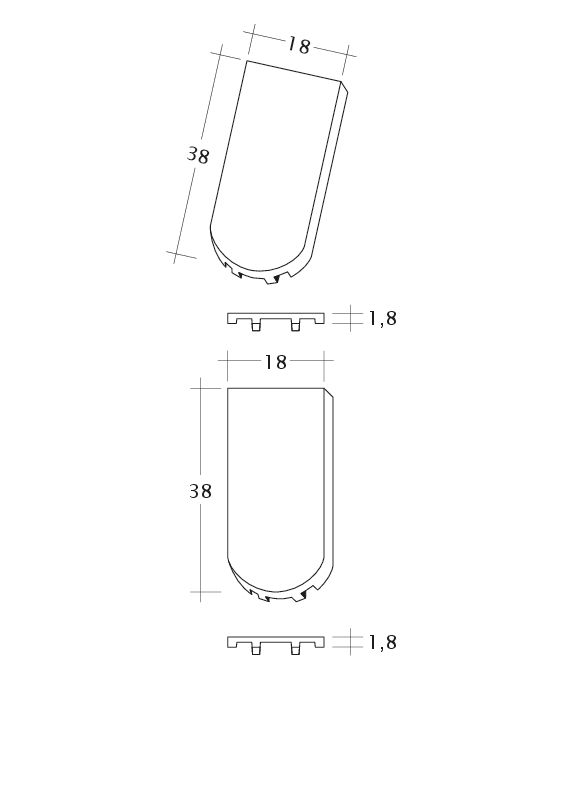

Drawing KLASSIK Flaechenluefter

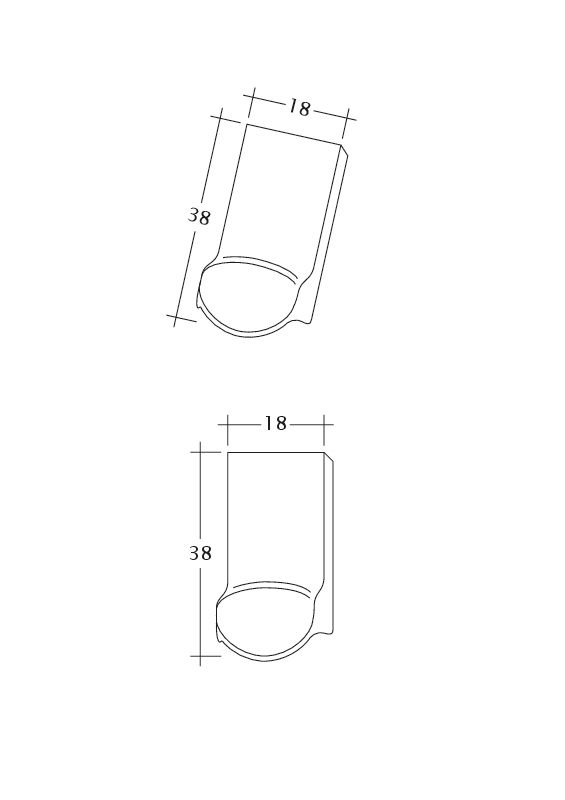

Drawing KLASSIK LUEFTZ

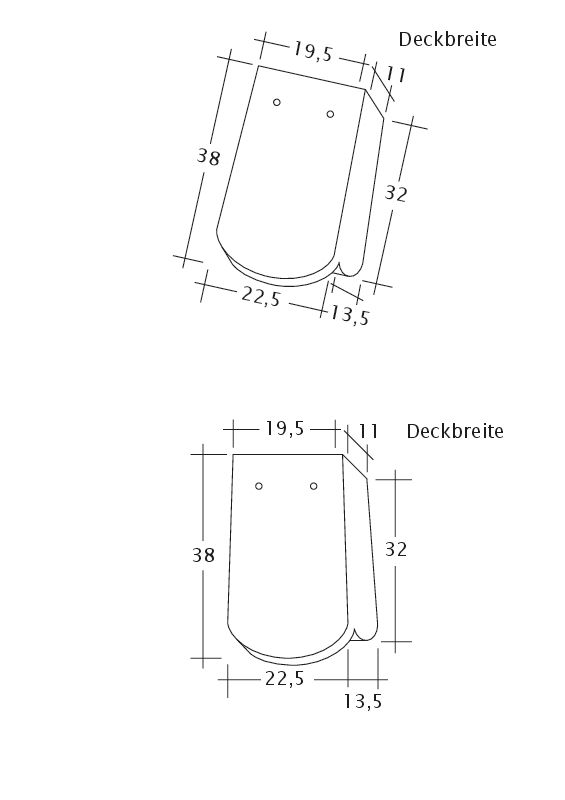

Drawing KLASSIK OG-1-1-4

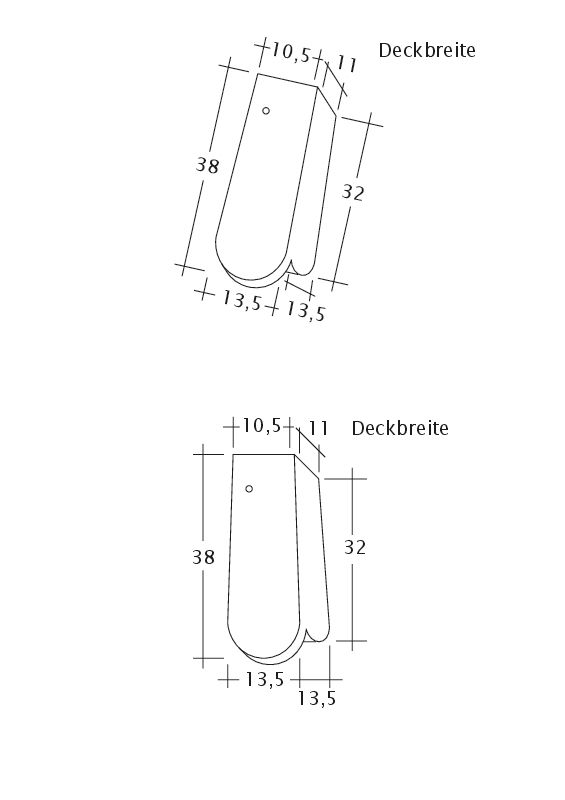

Drawing KLASSIK OG-3-4

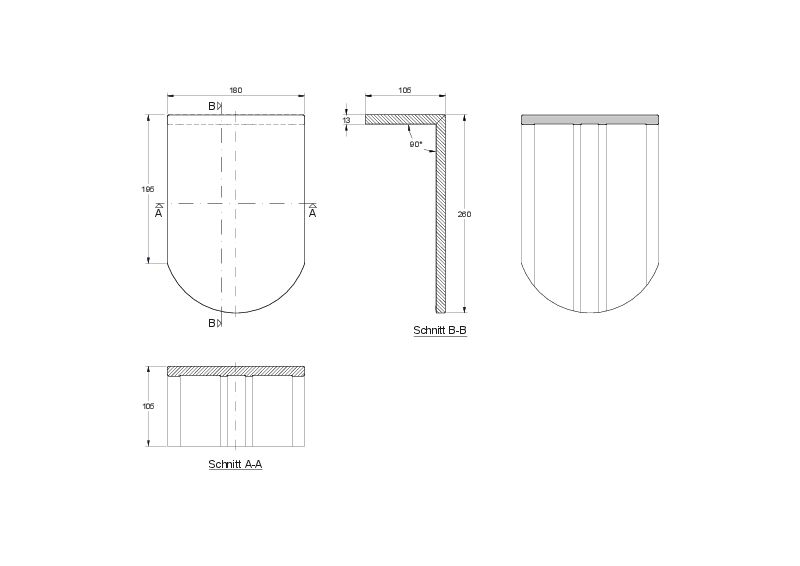

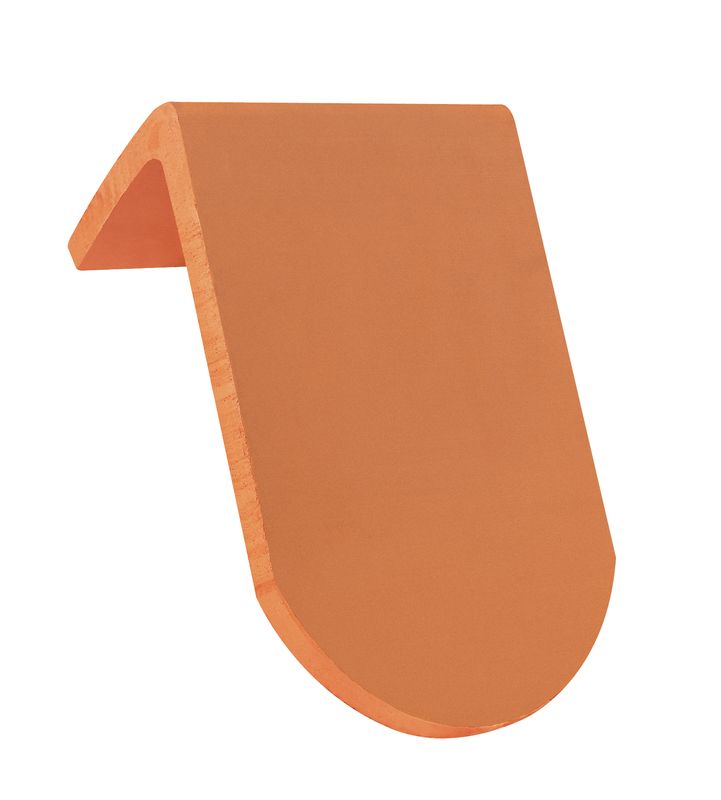

Drawing KLASSIK PULT-kurz

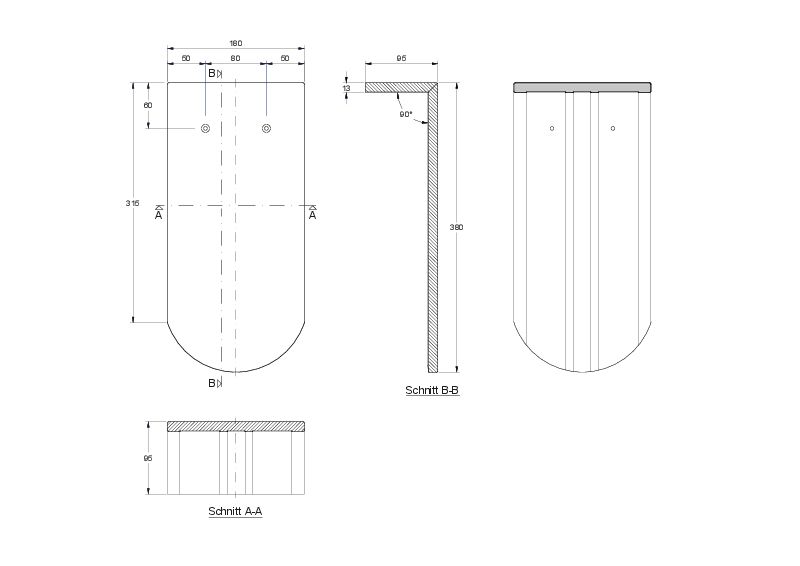

Drawing KLASSIK PULT-lang

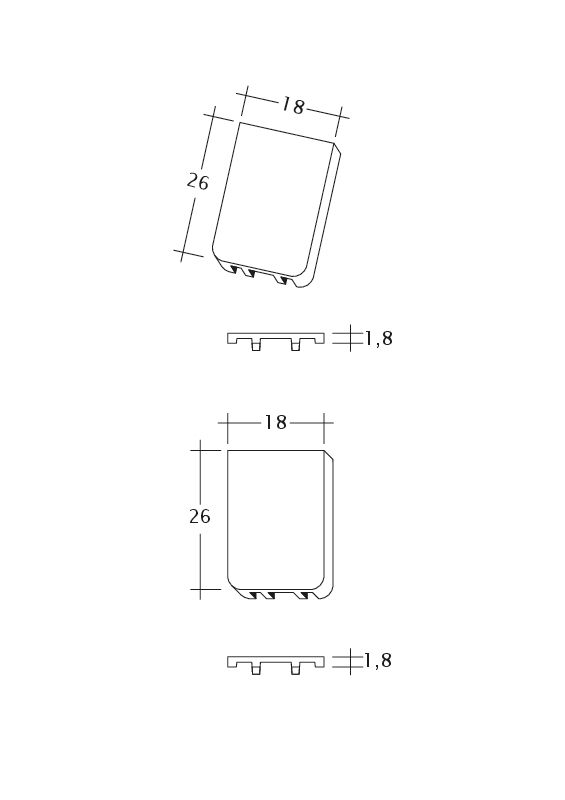

Drawing KLASSIK Traufluefter

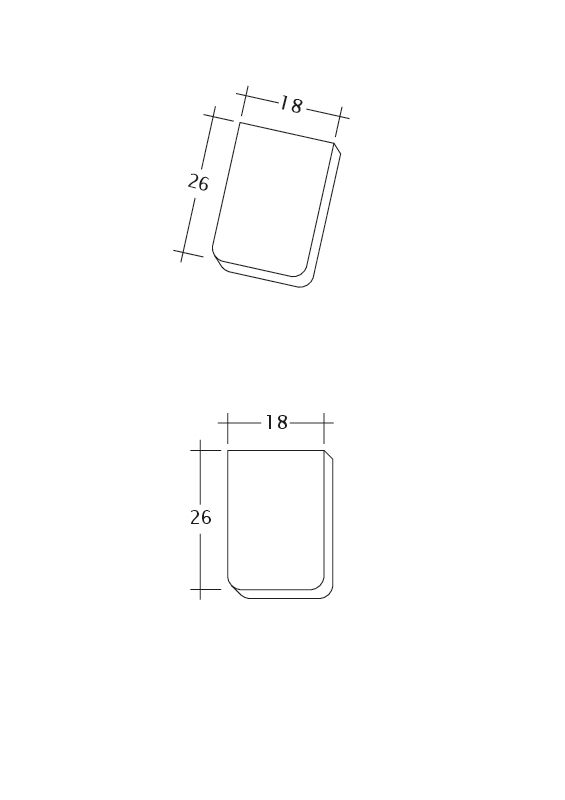

Drawing KLASSIK Traufziegel

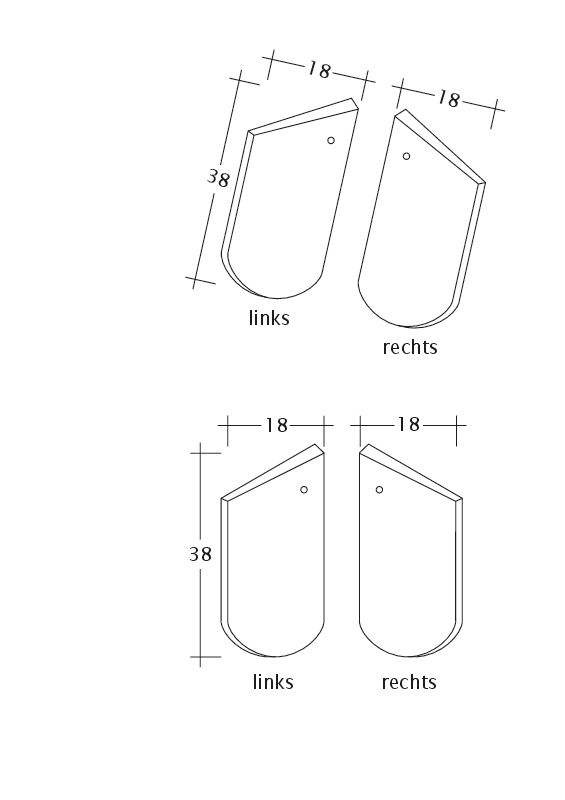

Drawing KLASSIK Unterlaeufer

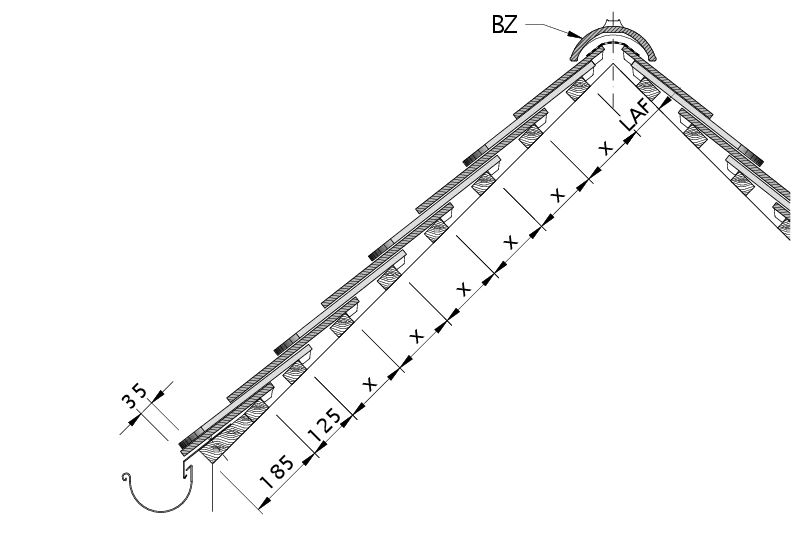

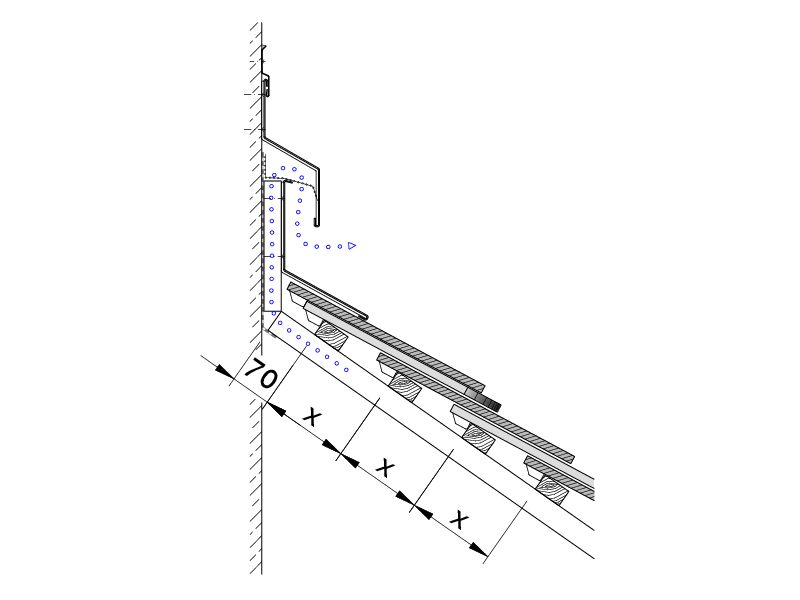

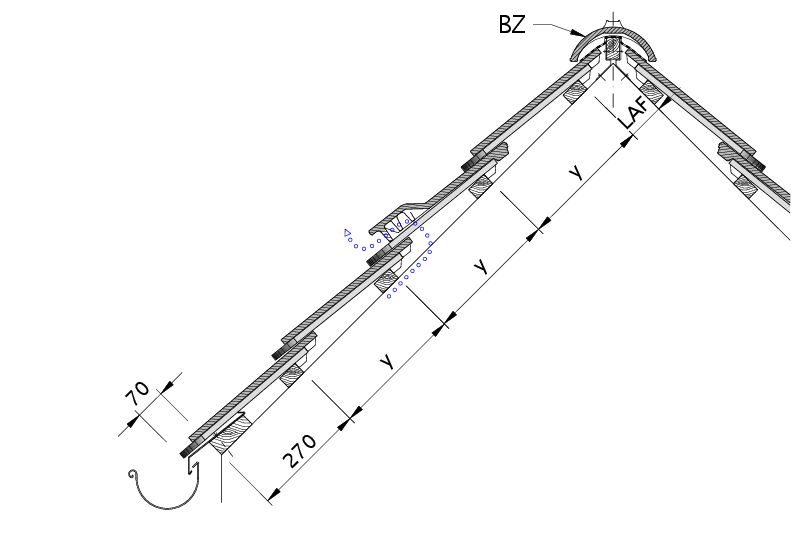

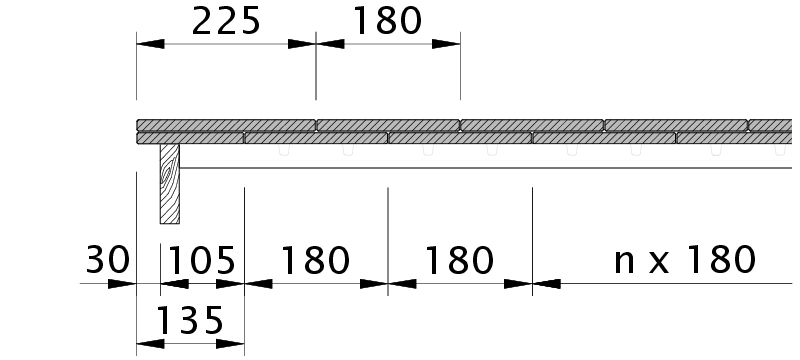

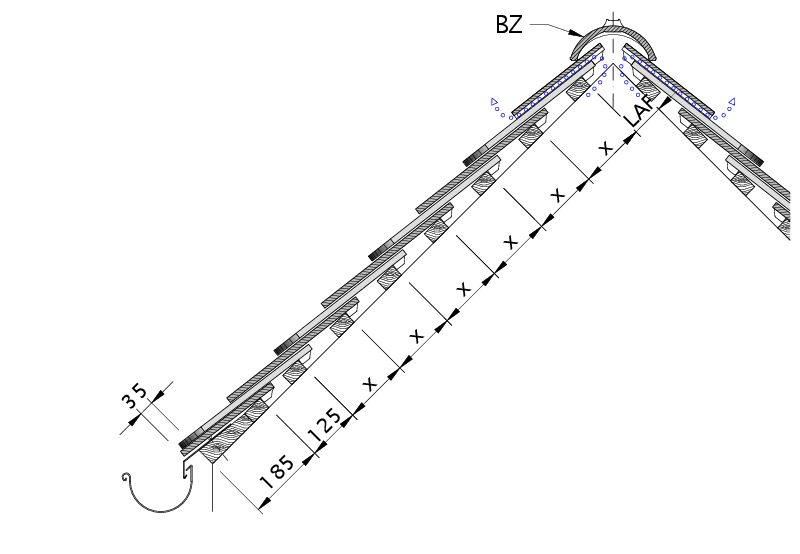

Drawing KLASSIK roof cross-section DQD-1

Drawing KLASSIK roof cross-section DQD-2

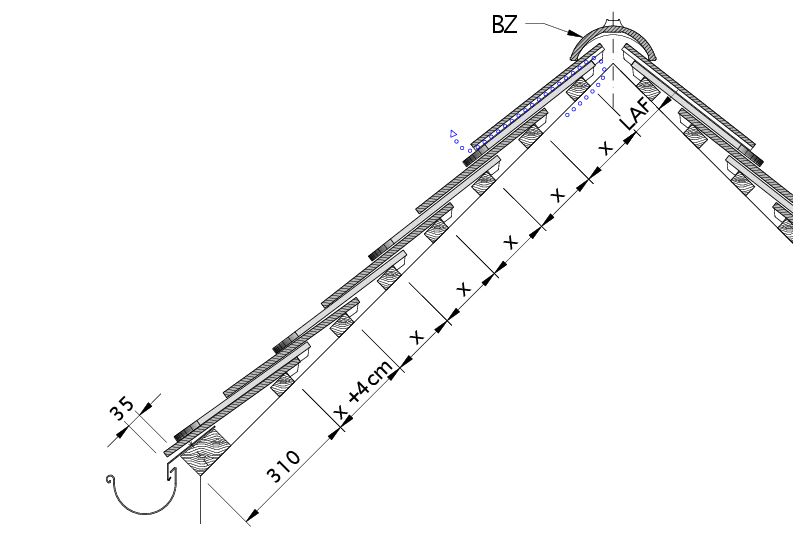

Drawing KLASSIK roof cross-section DQD-3

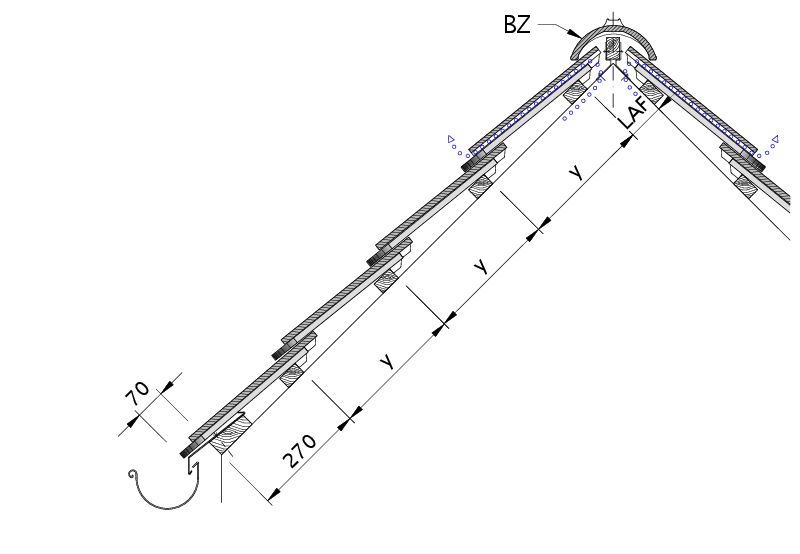

Drawing KLASSIK roof cross-section DQK-1

Drawing KLASSIK roof cross-section DQK-2

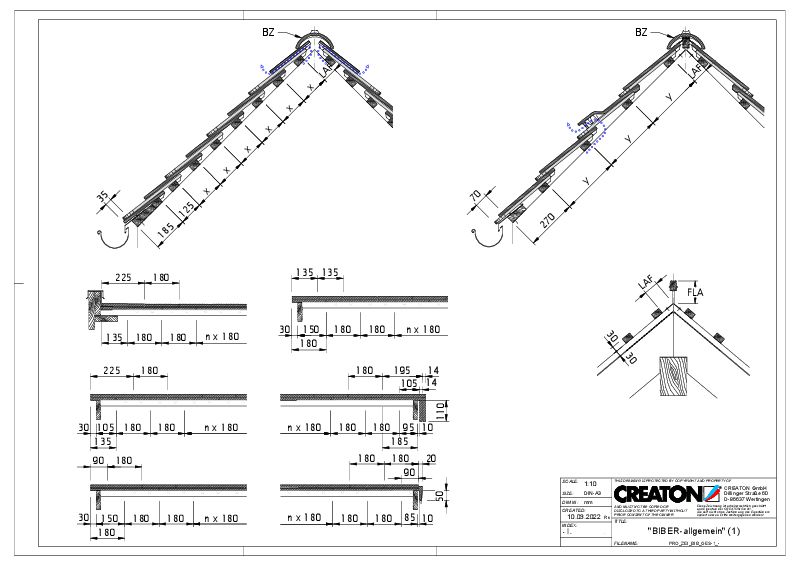

Drawing KLASSIK general view GES-1

Drawing KLASSIK general view GES-2

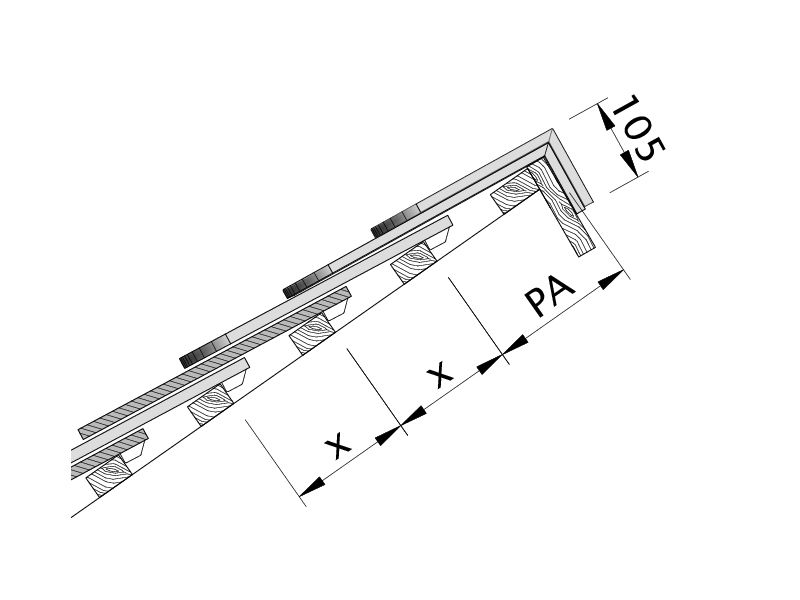

Drawing KLASSIK distance from batten to ridge intersection point, ridge batten spacing LAF

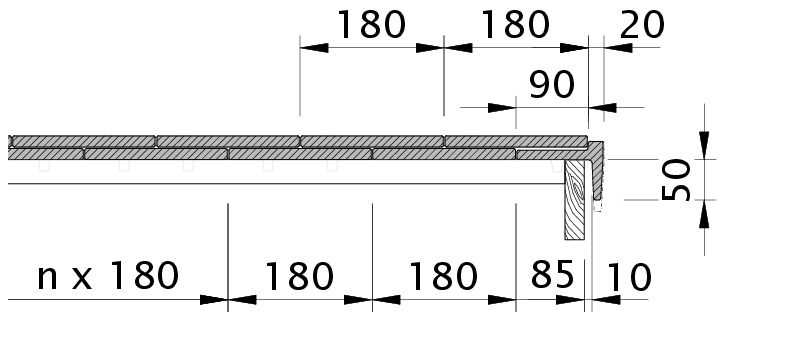

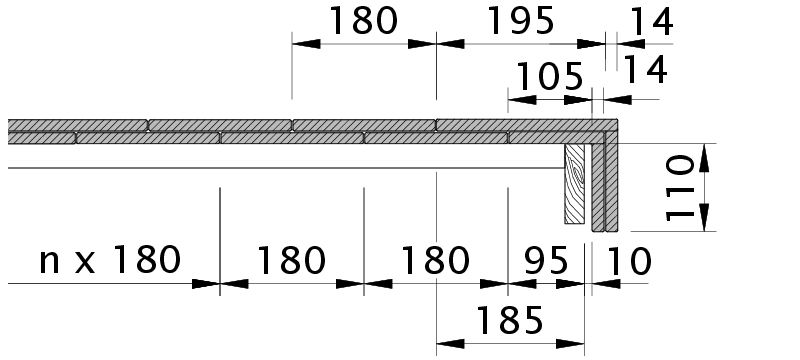

Zeichnung KLASSIK Ortgangziegel links mit Ortgangbrett und 1 1/2 Biber OBL112

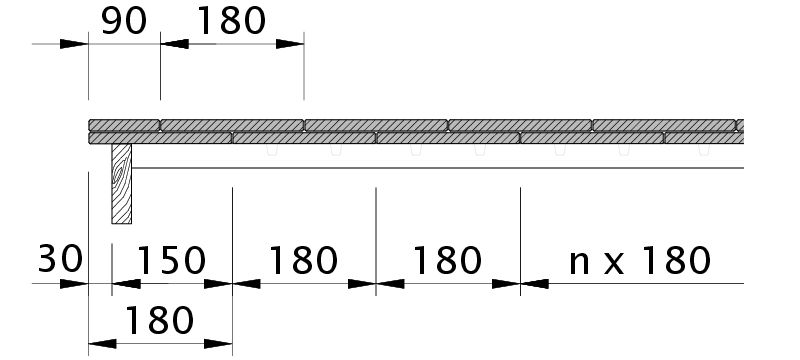

Zeichnung KLASSIK Ortgangziegel links mit Ortgangbrett und 1 1/4 Biber OBL114

Zeichnung KLASSIK Ortgangziegel links mit Ortgangbrett und 2 3/4 Biber OBL234

Drawing KLASSIK verge tile right with barge board OBRSCH

Drawing KLASSIK verge tile right with barge board OBR

Zeichnung KLASSIK Ortgang links mit Wandanschluss OGLWA

Drawing KLASSIK shed roof version PDA

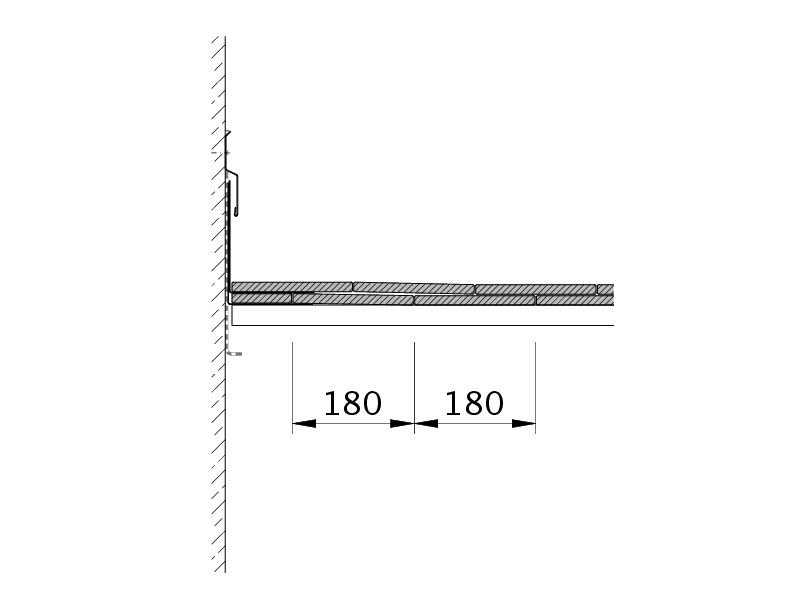

Drawing KLASSIK wall connection (above) with FALZ WMF-1

Drawing KLASSIK wall connection (above) with FALZ WMF-2

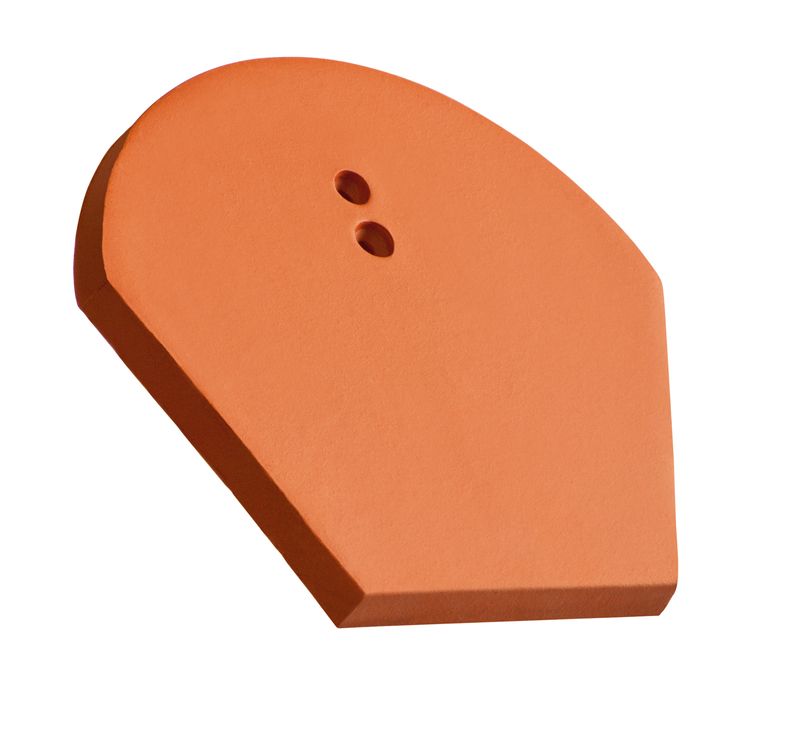

Drawing ridge and hip tile product range BZ-Firstziegel

Drawing ridge and hip tile product range BZ-Firstziegel-Perspektive

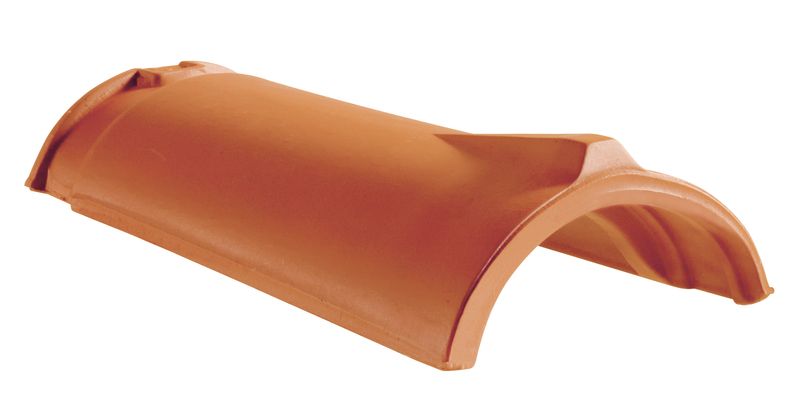

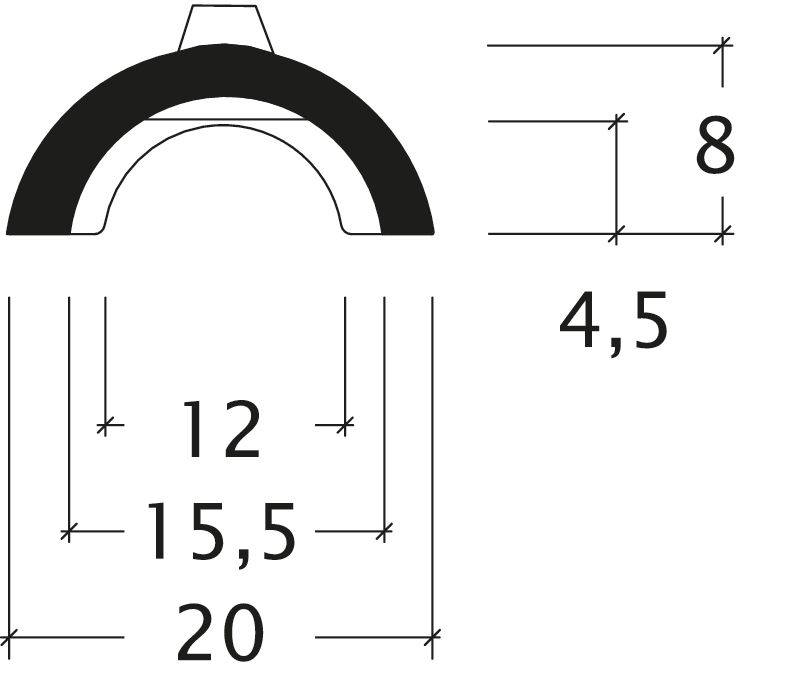

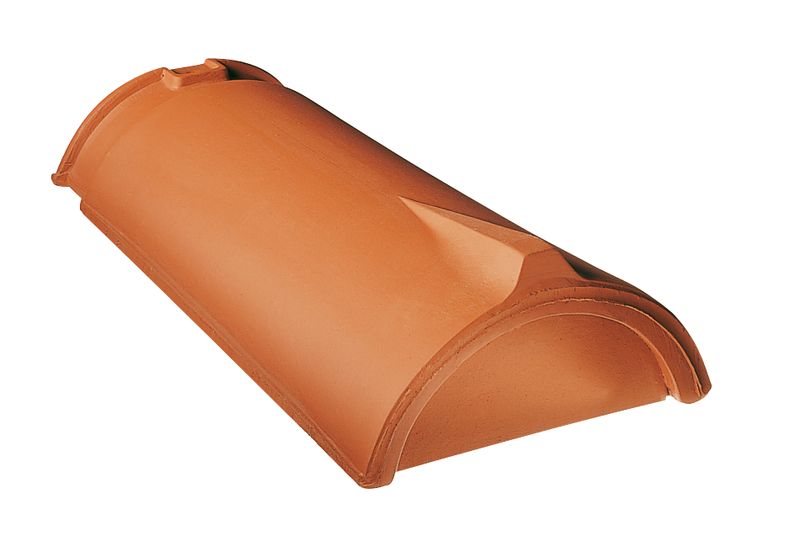

Drawing ridge and hip tile product range BM-Firstziegel

Drawing ridge and hip tile product range BM-Firstziegel-Perspektive

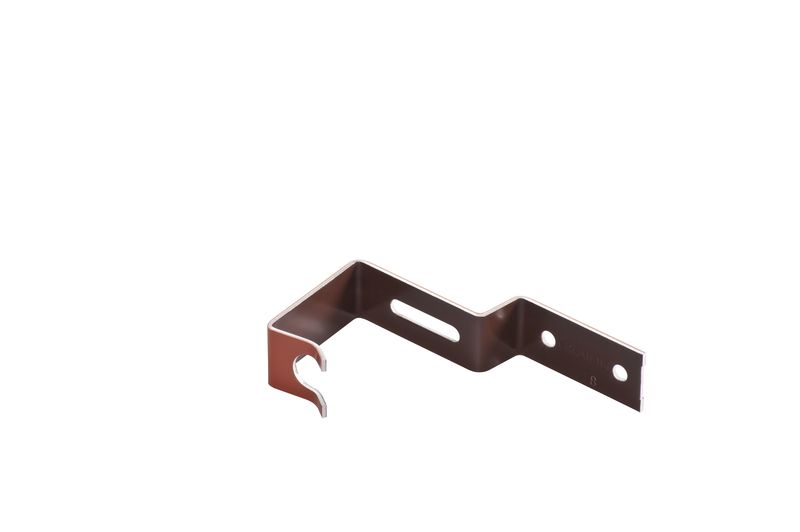

Drawing ridge and hip tile product range BG-Firstziegel

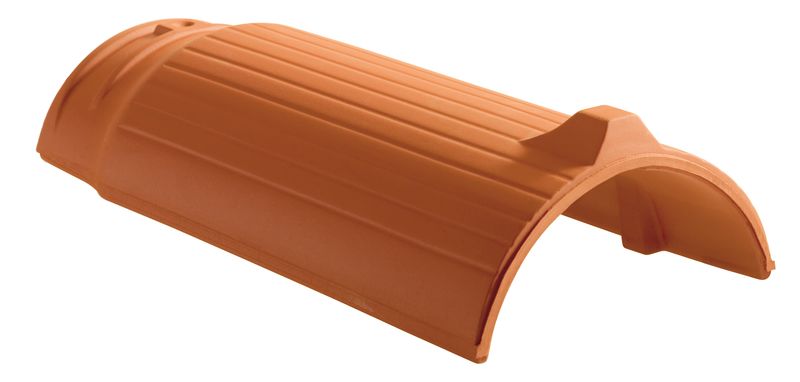

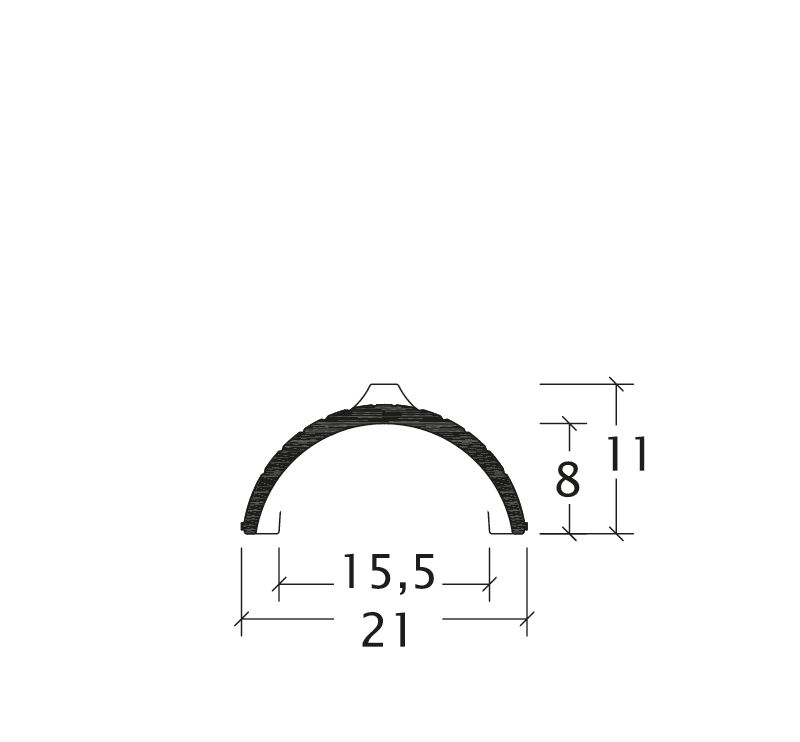

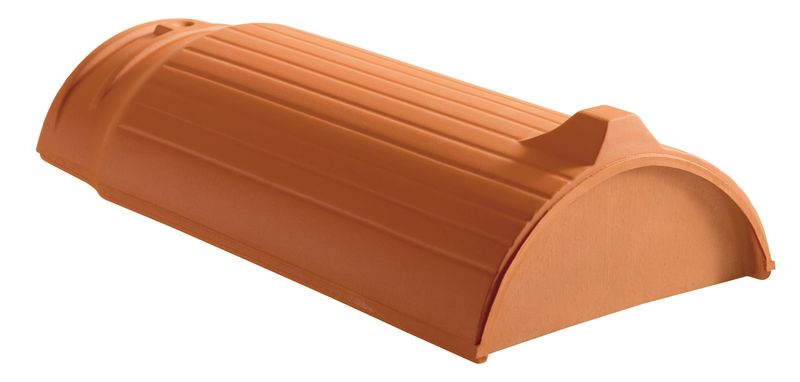

Drawing ridge and hip tile product range BMZ-Firstziegel

Drawing ridge and hip tile product range BMZ-Firstziegel-Perspektive

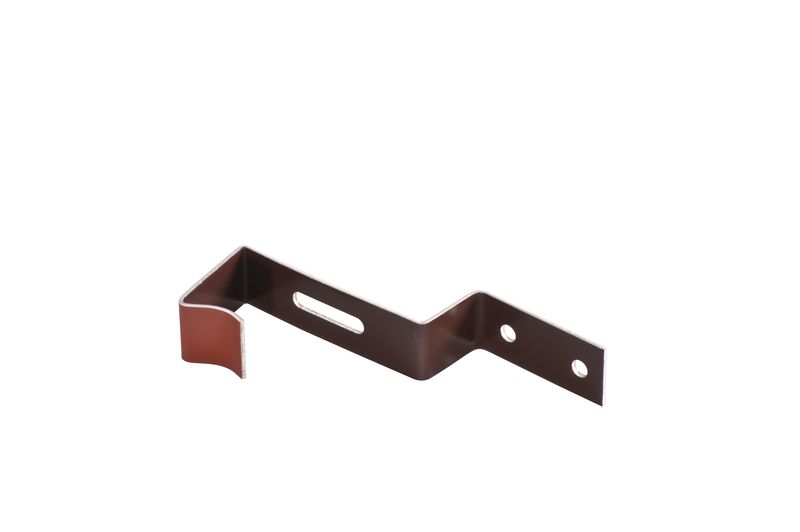

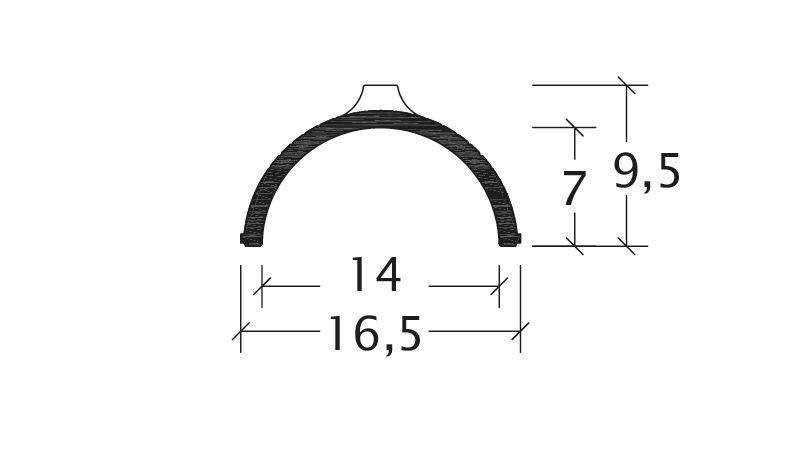

Drawing ridge and hip tile product range BMK-Firstziegel

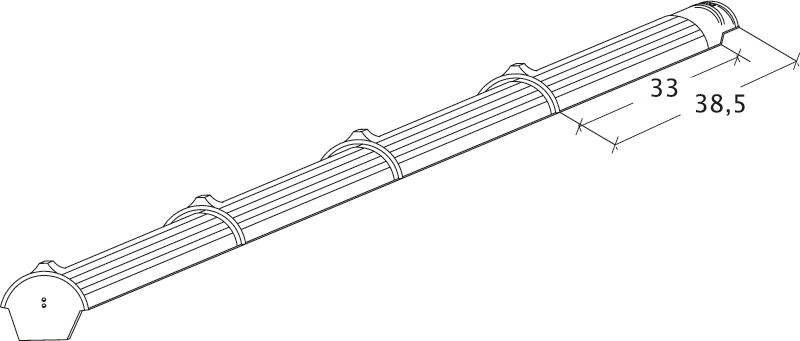

Drawing ridge and hip tile product range BMK-Firstziegel-Perspektive

Applications

Technical informations

LAF-/FLA-VALUES

References

Accessory range

Product range for roof details and uplift protection

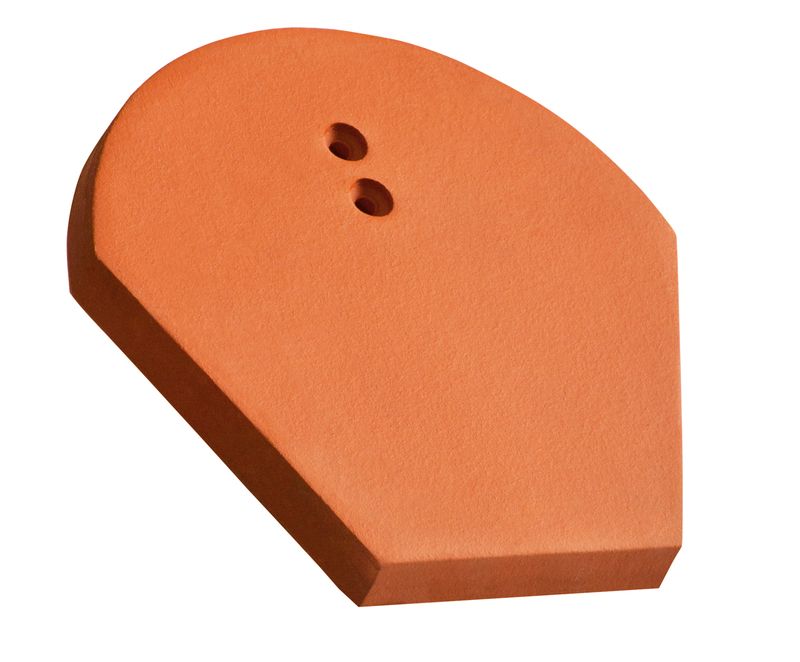

Ridge and hip tile product range

Product range for snow protection, roof access and solar installation in metal

Product range for roof ventilation and penetrations

Downloads

Brochures and documents

CAD

Product CAD file KLASSIK round cut RUND-1-1

Product CAD file KLASSIK round cut RUND-1-1-4

Product CAD file KLASSIK round cut RUND-3-4

Product CAD file KLASSIK round cut RUND-AUSSCHNITT-LUEFTZ

Product CAD file KLASSIK round cut RUND-FALZ

Product CAD file KLASSIK round cut RUND-FAZ

Product CAD file KLASSIK round cut RUND-FLUEFTZ

Product CAD file KLASSIK round cut RUND-GRUNDALU

Product CAD file KLASSIK round cut RUND-LH

Product CAD file KLASSIK round cut RUND-LUEFTZ

Product CAD file KLASSIK round cut RUND-OGL

Product CAD file KLASSIK round cut RUND-OGL-1-1-4

Product CAD file KLASSIK round cut RUND-OGL-3-4

Product CAD file KLASSIK round cut RUND-OGR

Product CAD file KLASSIK round cut RUND-OGR-1-1-4

Product CAD file KLASSIK round cut RUND-OGR-3-4

Product CAD file KLASSIK round cut RUND-PULT

Product CAD file KLASSIK round cut RUND-PULT-kurz

Product CAD file KLASSIK round cut RUND-PULT-kurz1

Product CAD file KLASSIK round cut RUND-PULT-lang

Product CAD file KLASSIK round cut RUND-PULT-lang1

Product CAD file KLASSIK round cut RUND-TRAUF-LUEFTZ

Product CAD file KLASSIK round cut RUND-TRAUFZIEGEL
