KLASSIK KERA NUANCE bright red flamed

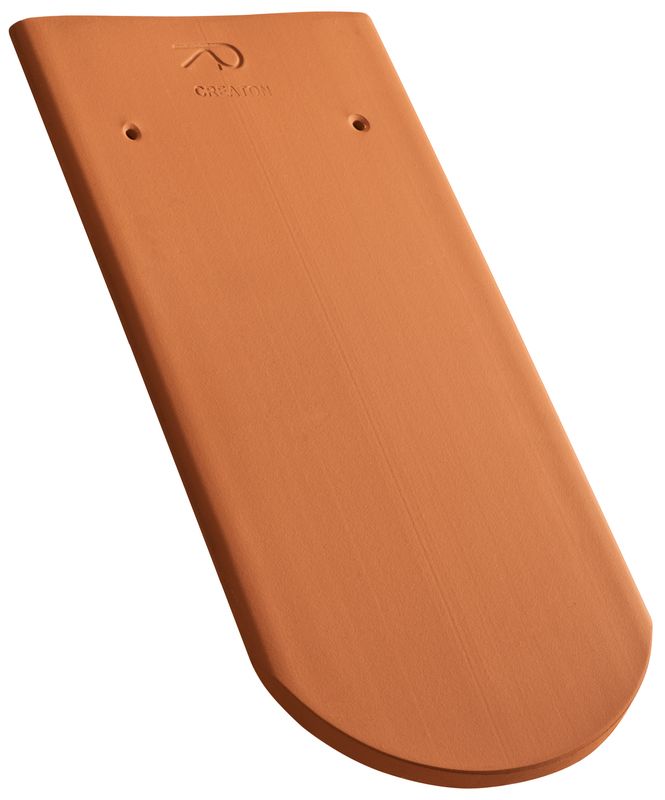

KLASSIK KERA plain tile

The classic round cut plain tile in KERALIS® quality.

  • Sinter-fired for maximum durability
  • Natural through-colour, even in the case of dark colours, thanks to "KERALIS" process technology
  • Use our most extensive range of applications yet to create your own bespoke roofing solutions
  • Ideal for renovations and new-builds alike
  • Elegantly understated, our timeless shapes create classically beautiful roofs
  • Adds individuality to roofscapes
  • Wide range of colours and surface finishes

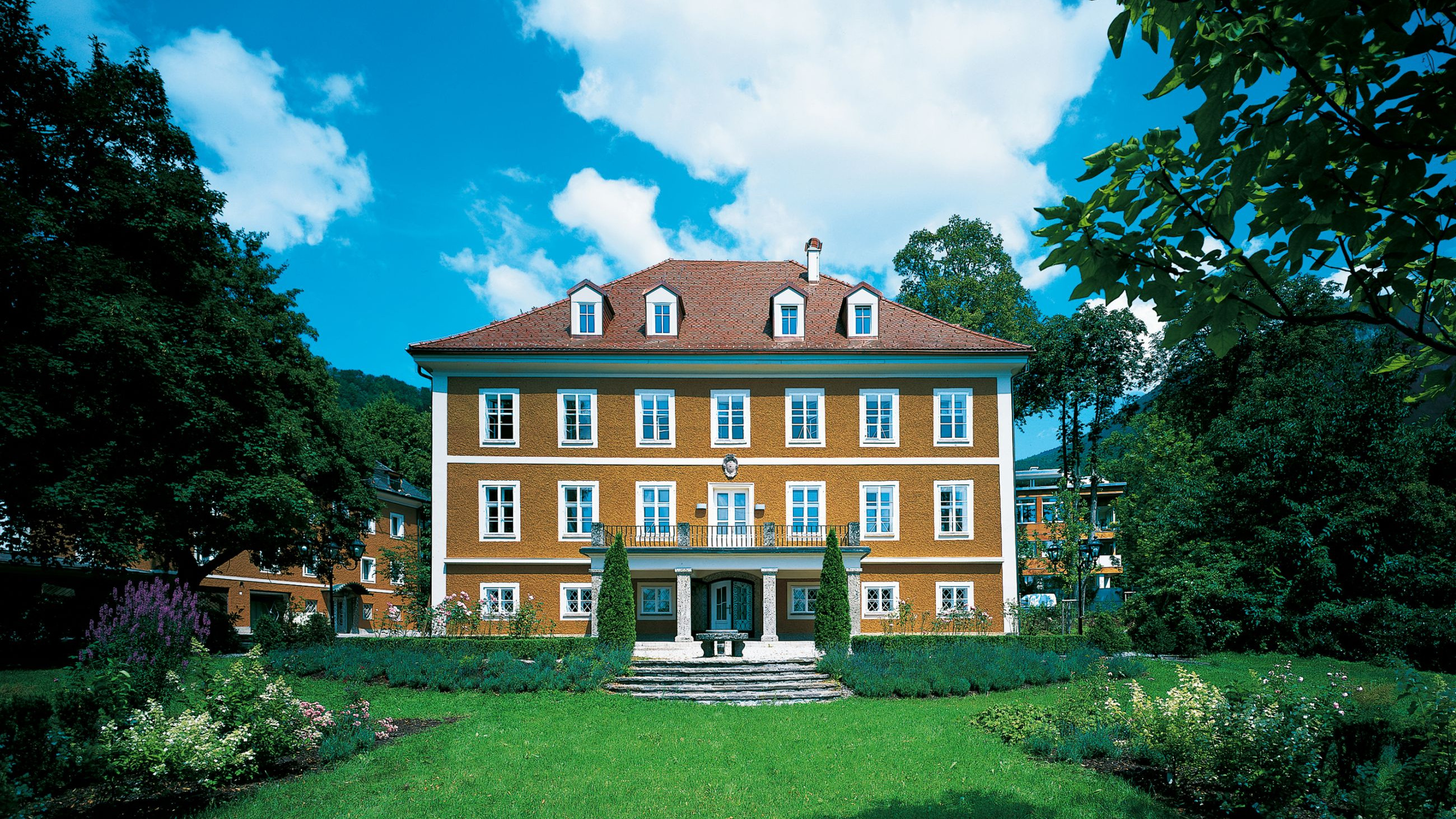

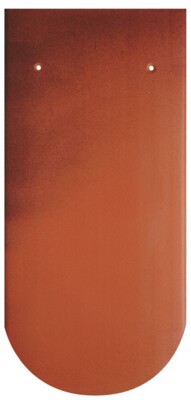

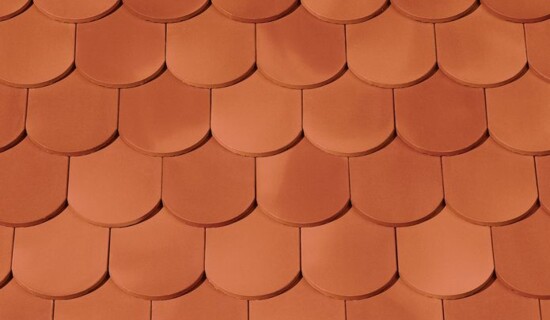

NUANCE bright red flamed
NUANCE bright red flamed
NUANCE bright blue flamed
NUANCE bright blue flamed

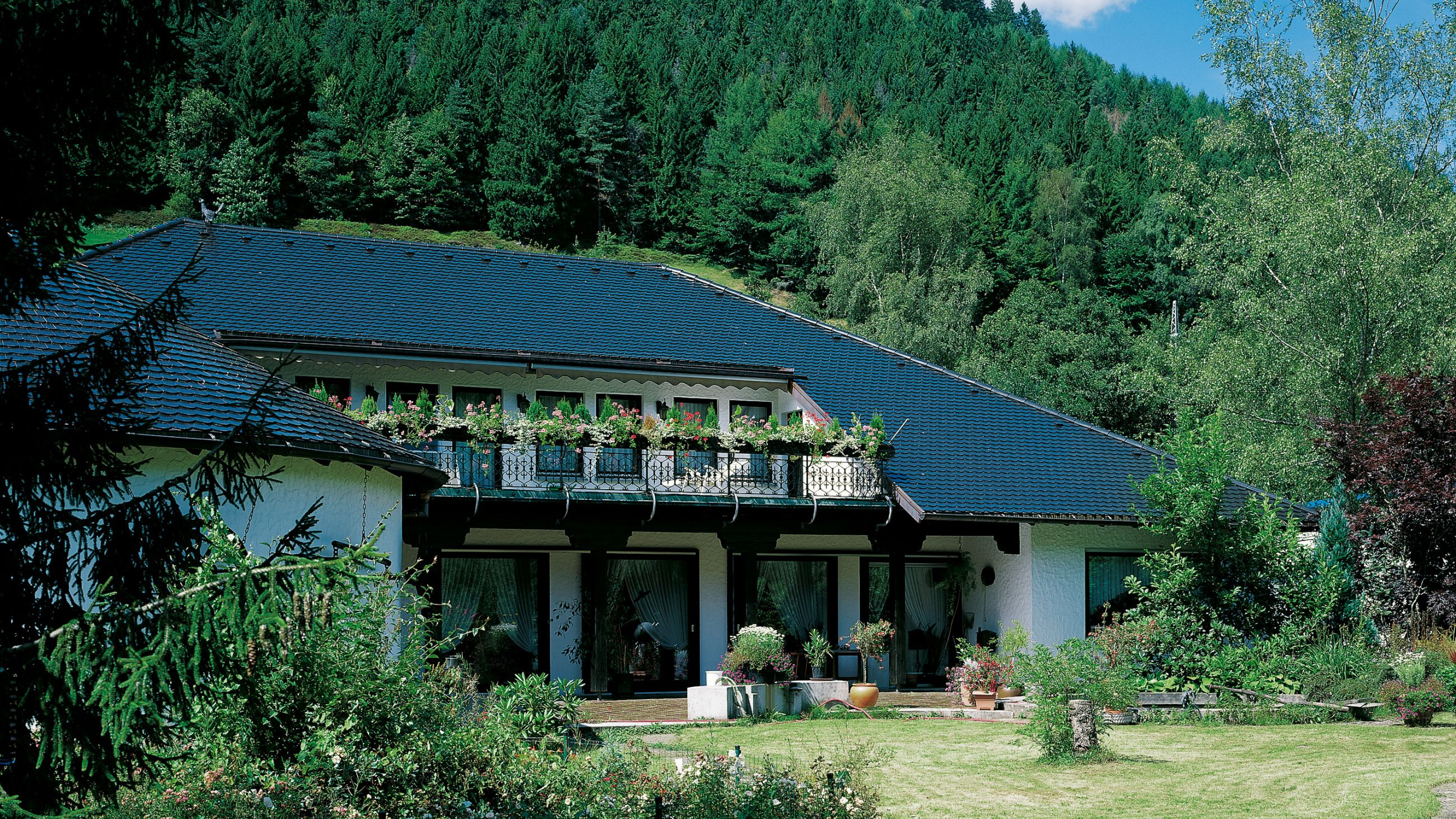

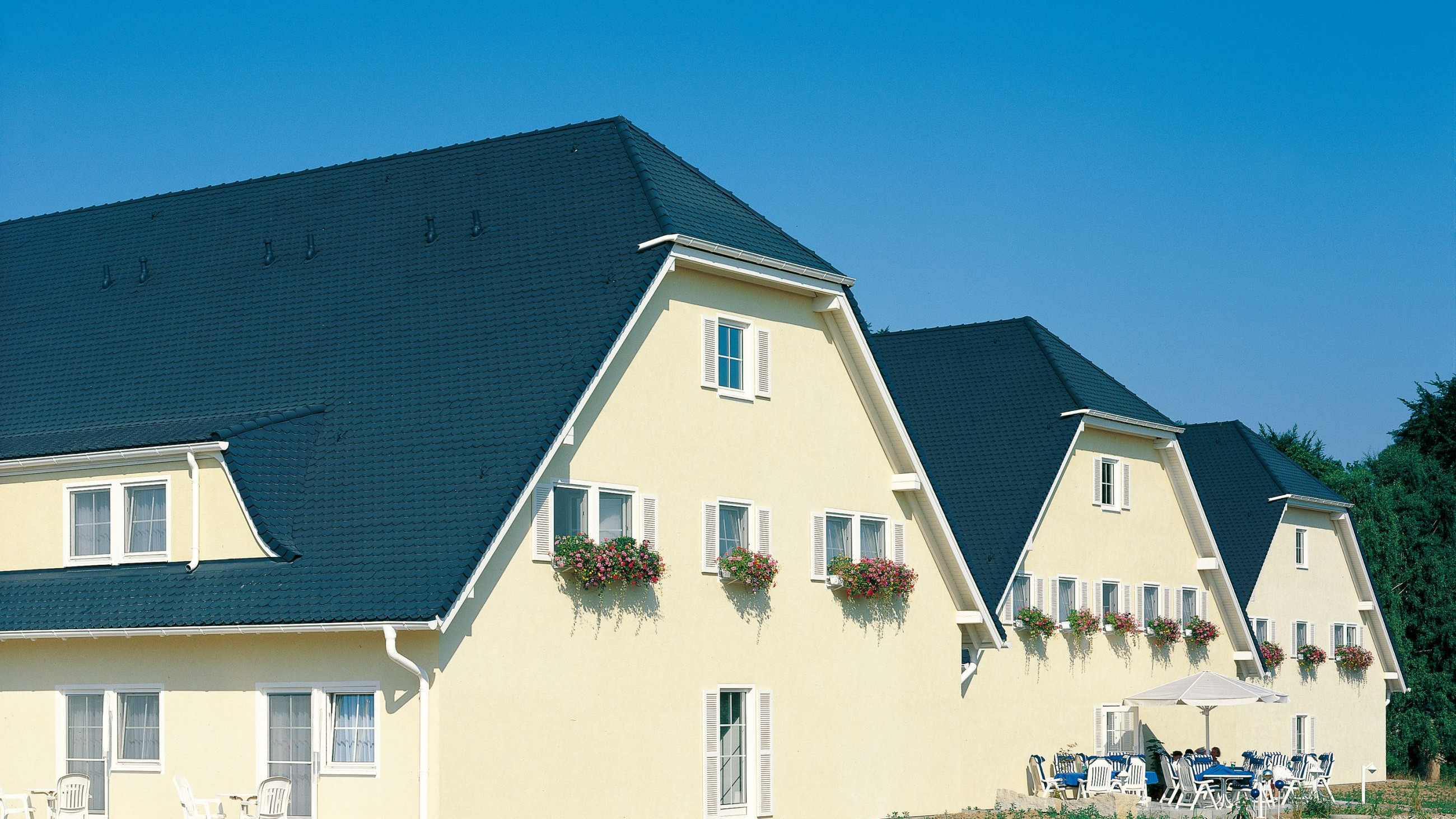

NUANCE anthracite engobed
NUANCE anthracite engobed
NUANCE manganese engobed
NUANCE manganese engobed
natural red
natural red
NUANCE copper red engobed
NUANCE copper red engobed

Technical data

Size (appr.)180 x 380 x 12 mm
Max. coverage width (approx.)180 mm
Min. gauge (approx.)145 mm
Covering length on av. approx.155 mm
Max. gauge (approx.)165 mm
Tile requirement min. (approx.)33.6 pcs/m²
Average tile requirement (approx.)36 pcs/m²
Unit weight (approx.)1.7 kg/piece
Weight per m² (approx.)61.2 kg/m²
Weight per pallet (approx.)923 kg
Pcs per mini-pack8 piece
Pcs per pallet528 piece

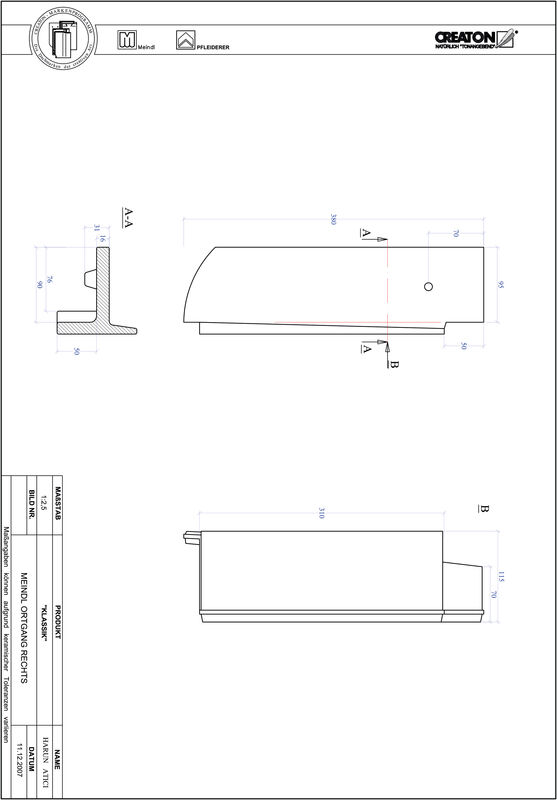

Technical drawings

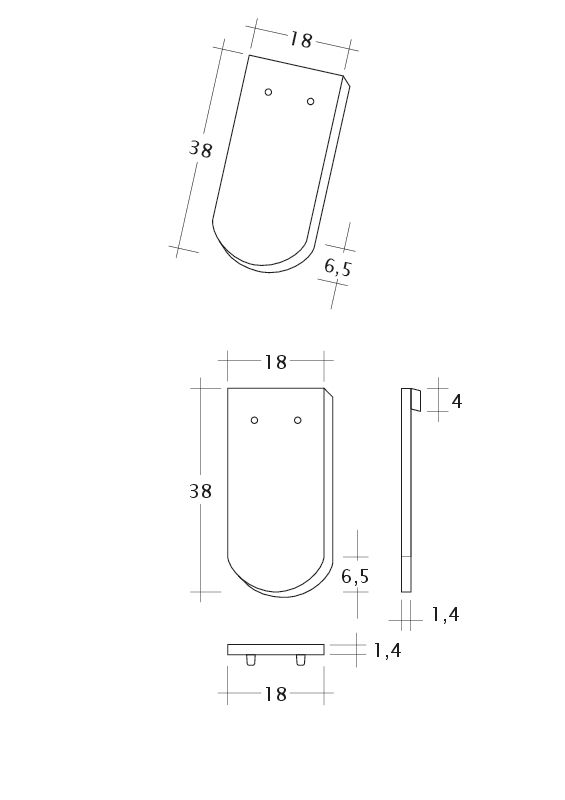

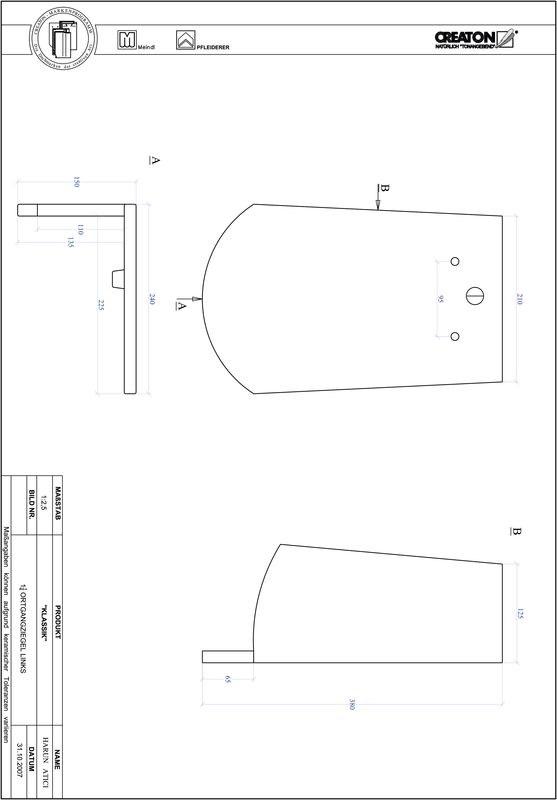

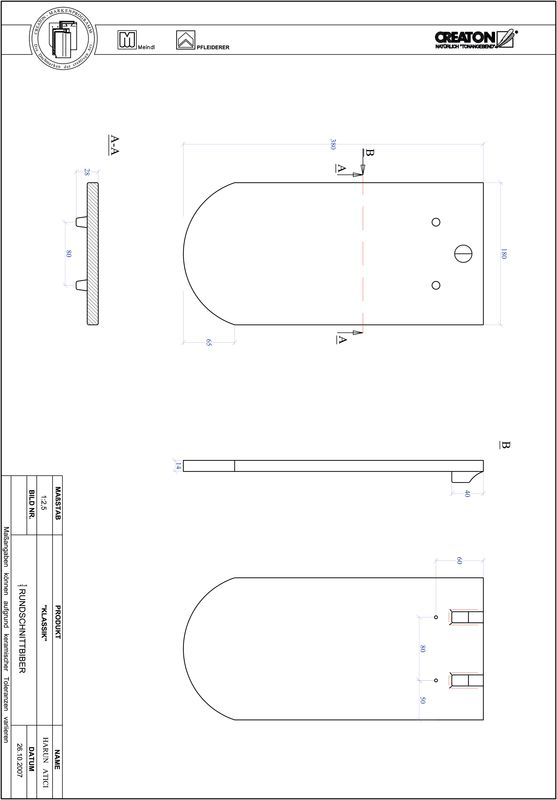

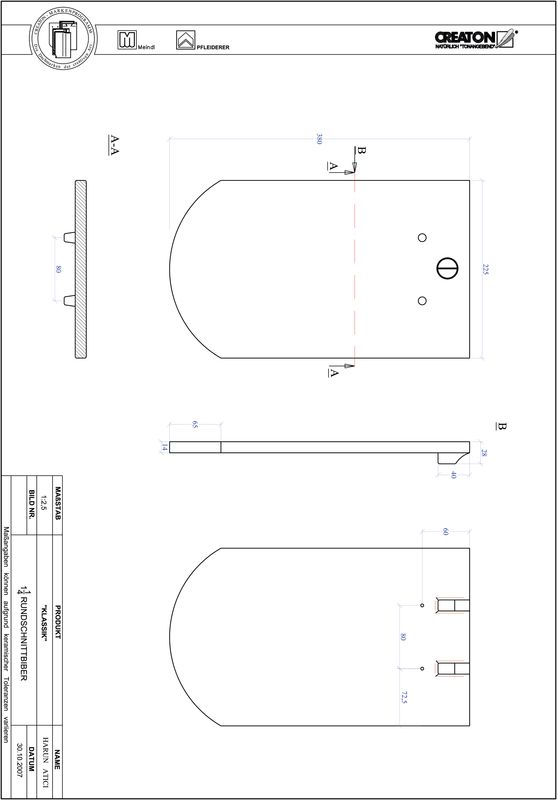

Drawing KLASSIK KERA-1-1
Drawing KLASSIK KERA-1-1

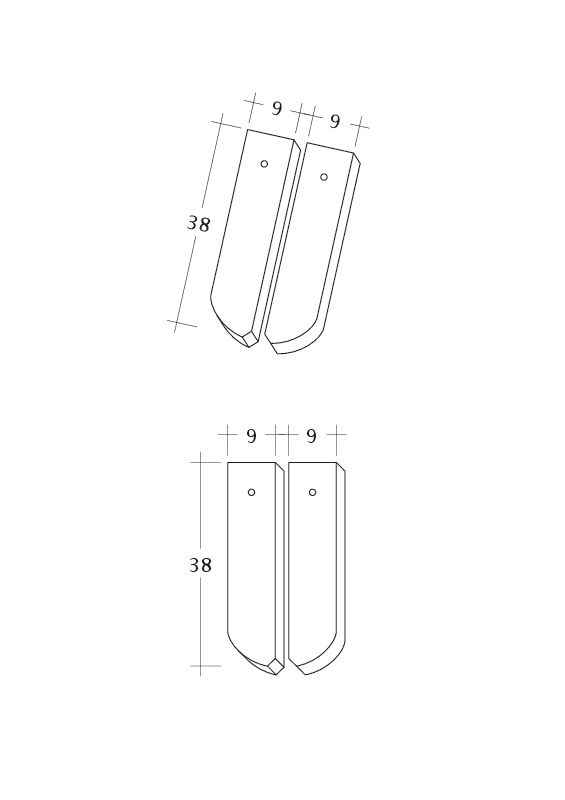

Drawing KLASSIK KERA-1-2
Drawing KLASSIK KERA-1-2

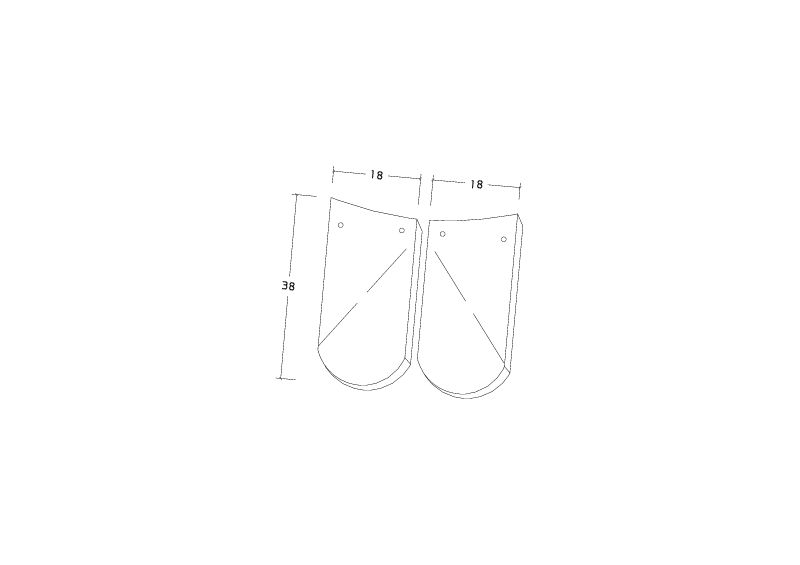

Drawing KLASSIK KERA-Abfuehrer
Drawing KLASSIK KERA-Abfuehrer

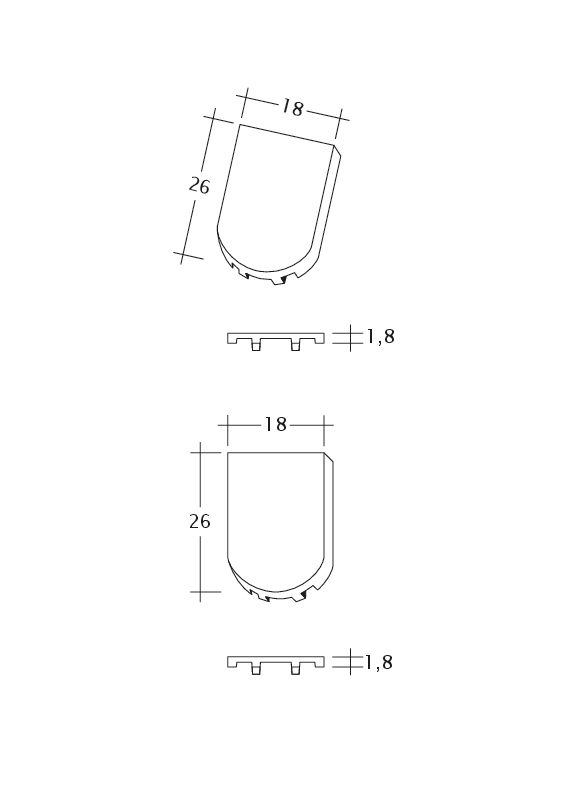

Drawing KLASSIK KERA-FALZ
Drawing KLASSIK KERA-FALZ

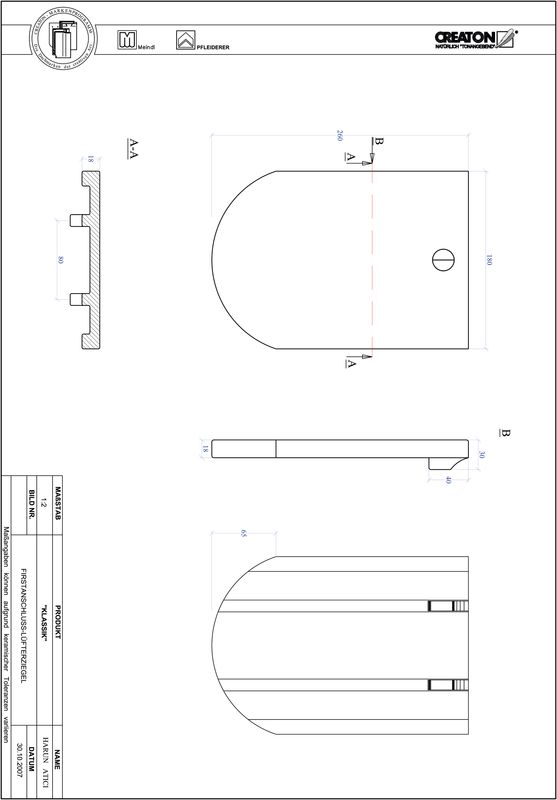

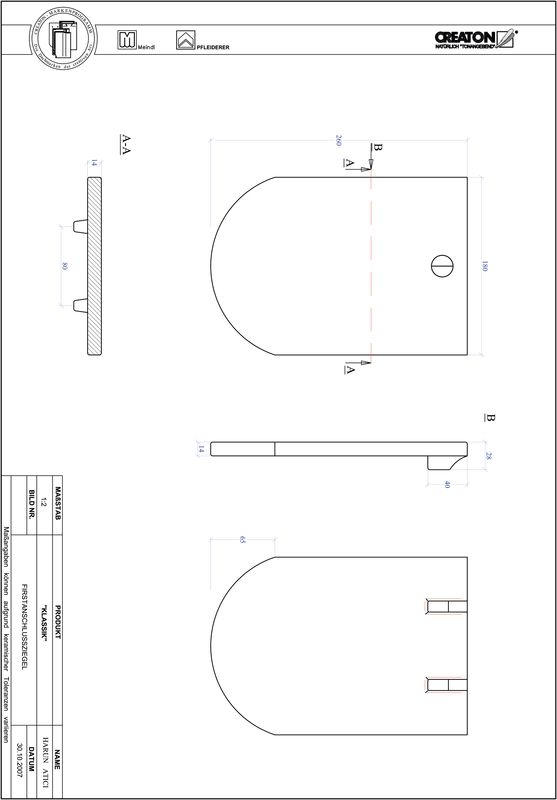

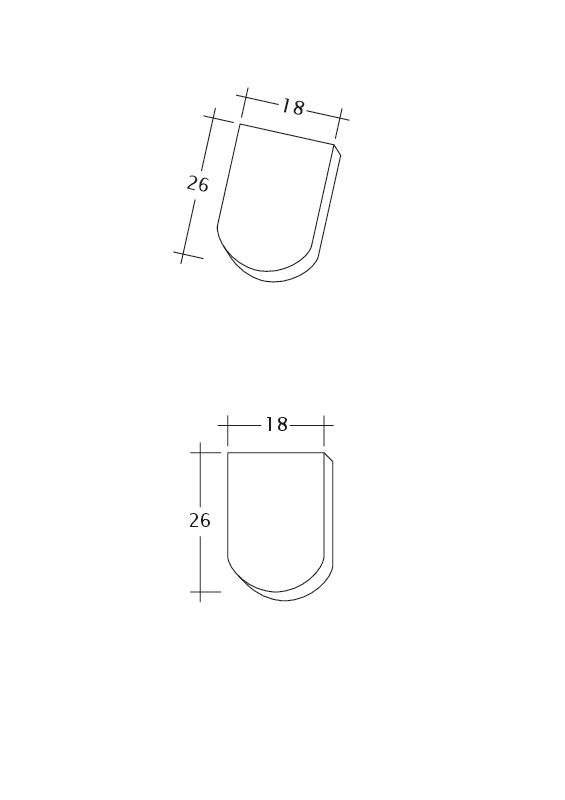

Drawing KLASSIK KERA-Firstanschluss
Drawing KLASSIK KERA-Firstanschluss

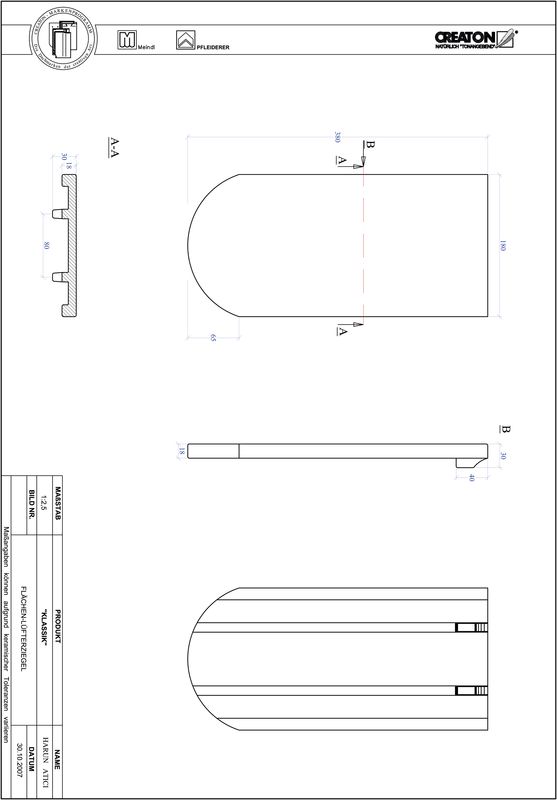

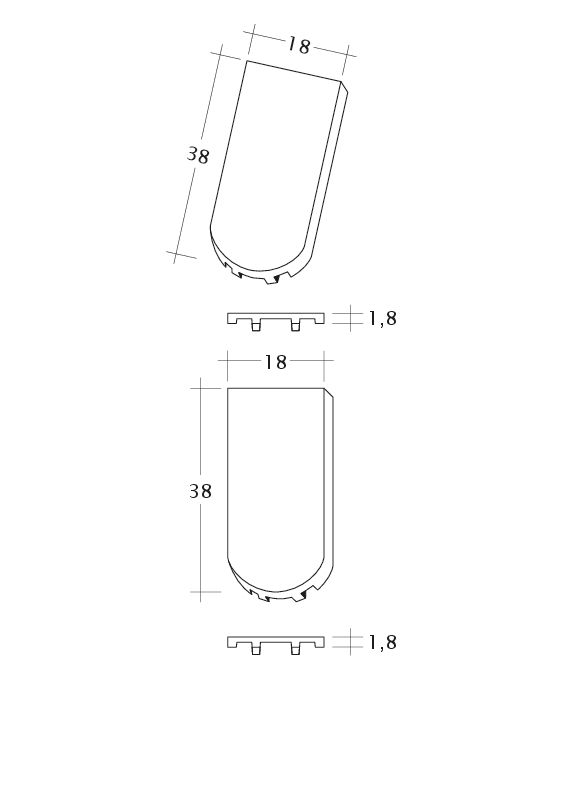

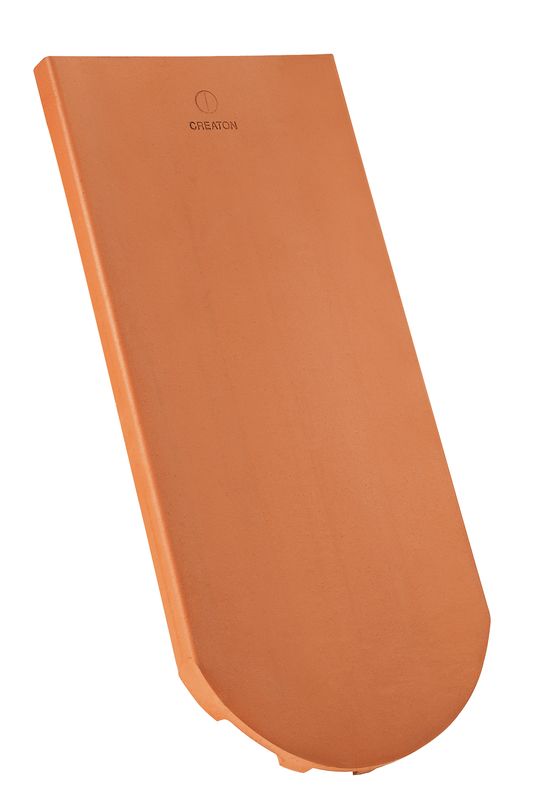

Drawing KLASSIK KERA-Flaechenluefter
Drawing KLASSIK KERA-Flaechenluefter

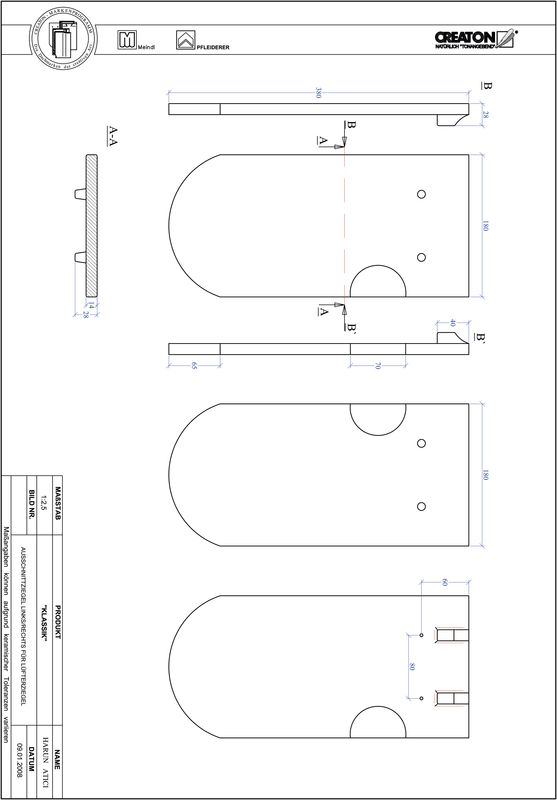

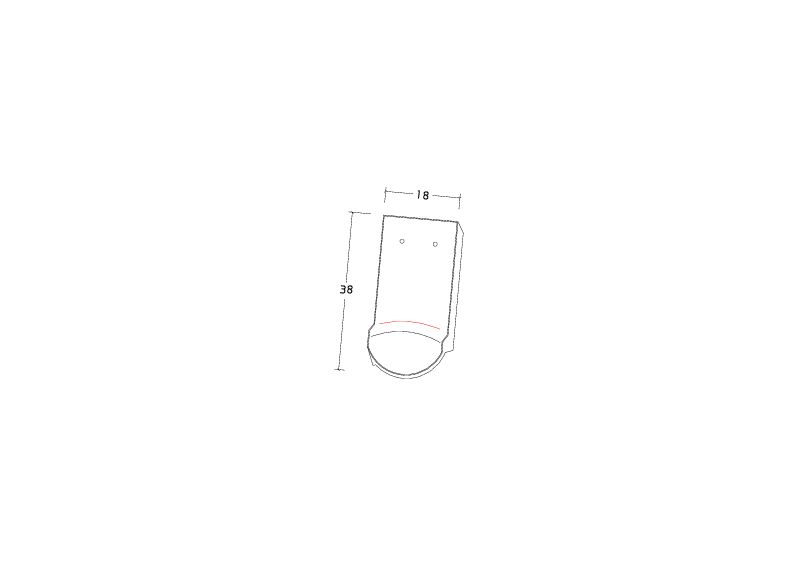

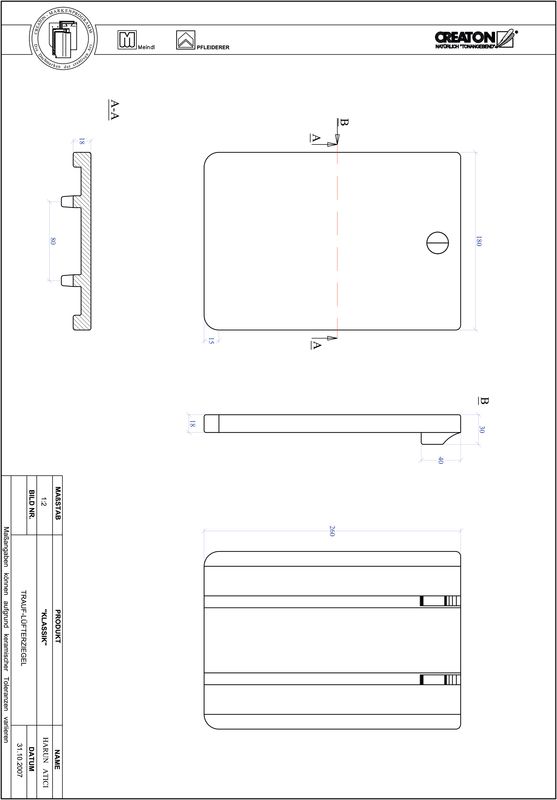

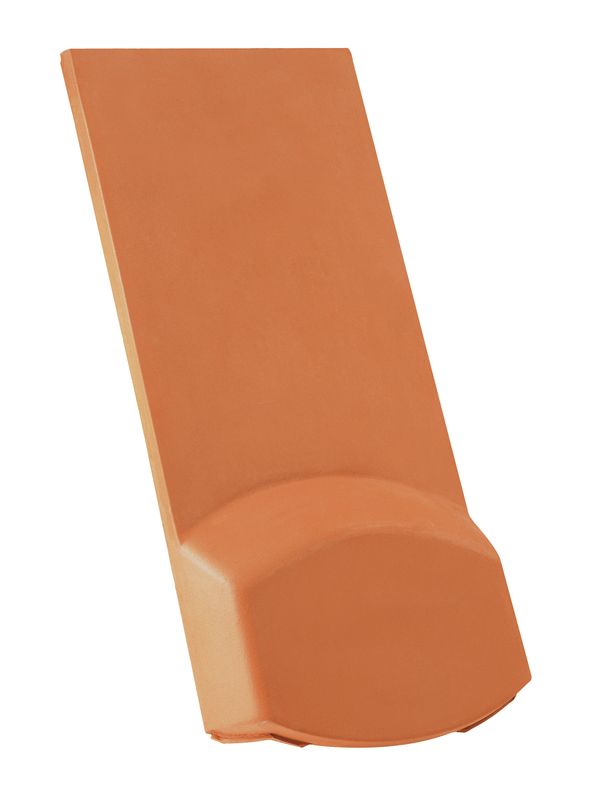

Drawing KLASSIK KERA-LUEFTZ
Drawing KLASSIK KERA-LUEFTZ

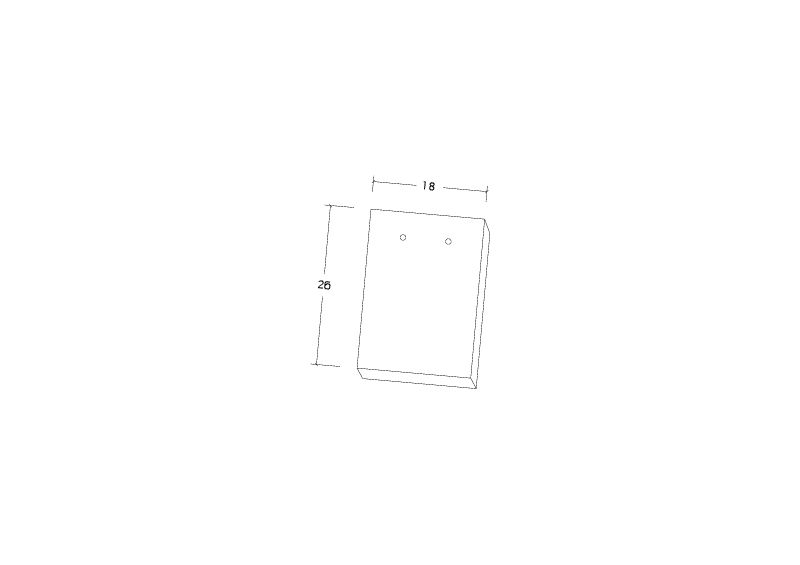

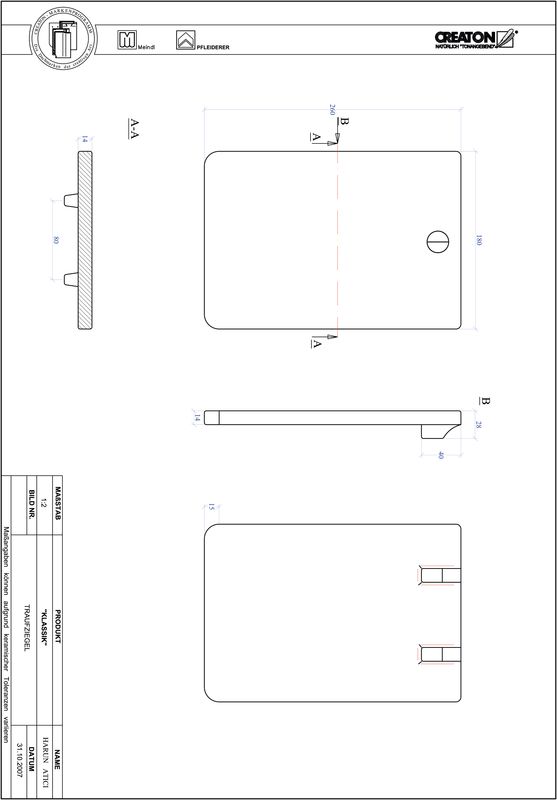

Drawing KLASSIK KERA-Traufziegel
Drawing KLASSIK KERA-Traufziegel

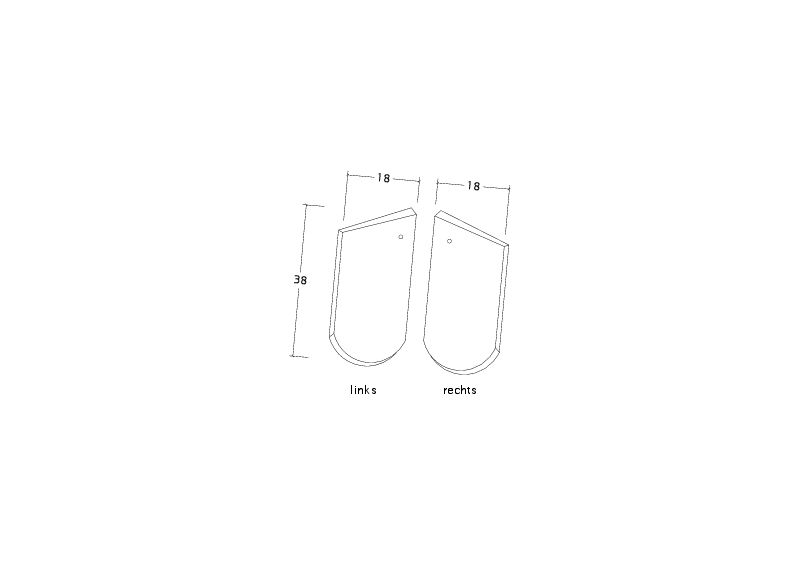

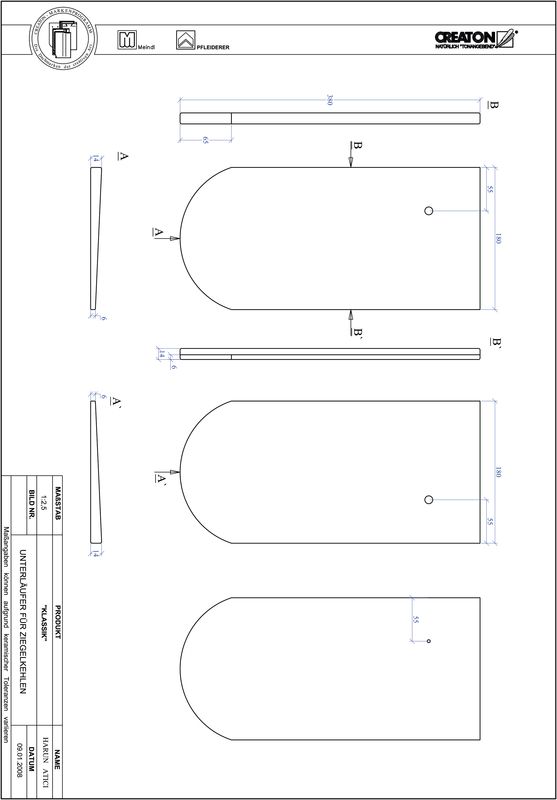

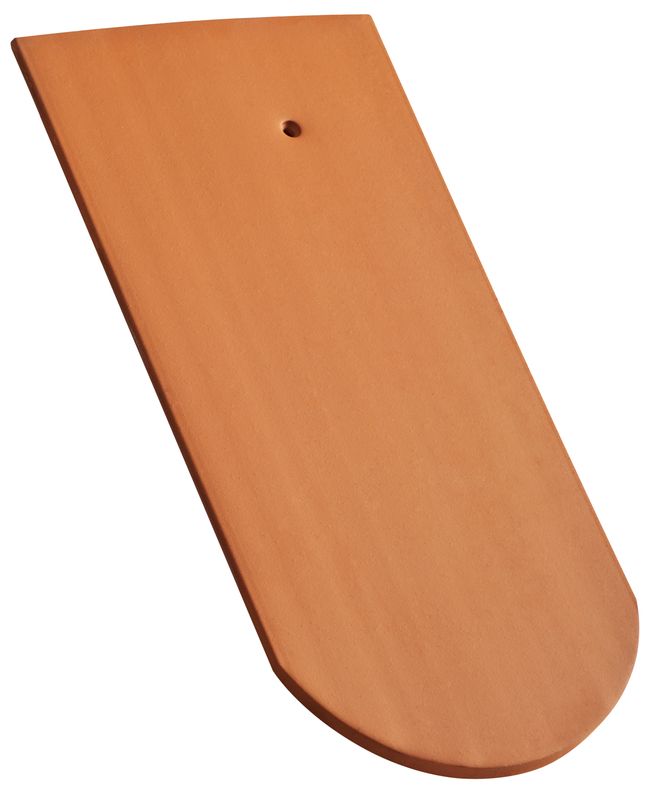

Drawing KLASSIK KERA-Unterlaeufer
Drawing KLASSIK KERA-Unterlaeufer
Drawing all models LAF-FLA
Drawing all models LAF-FLA

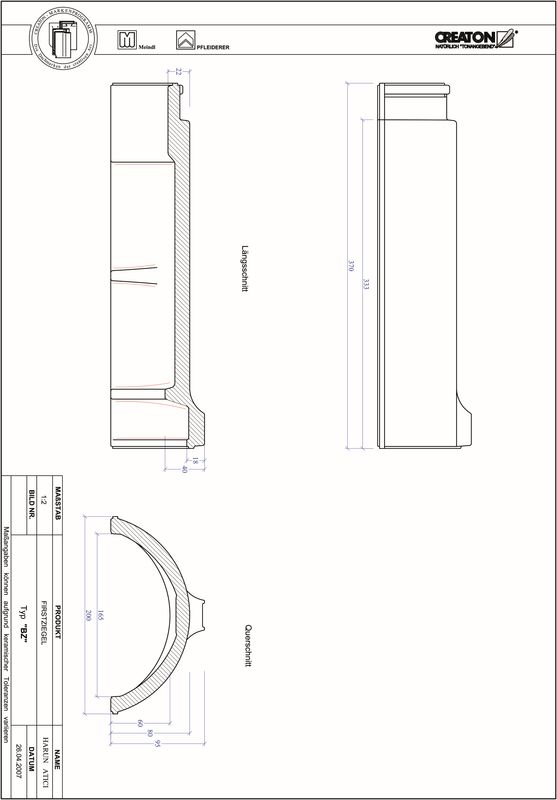

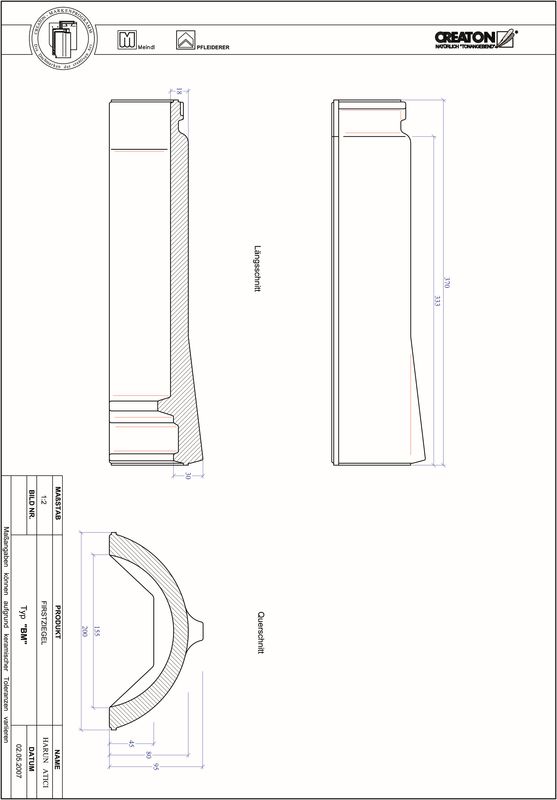

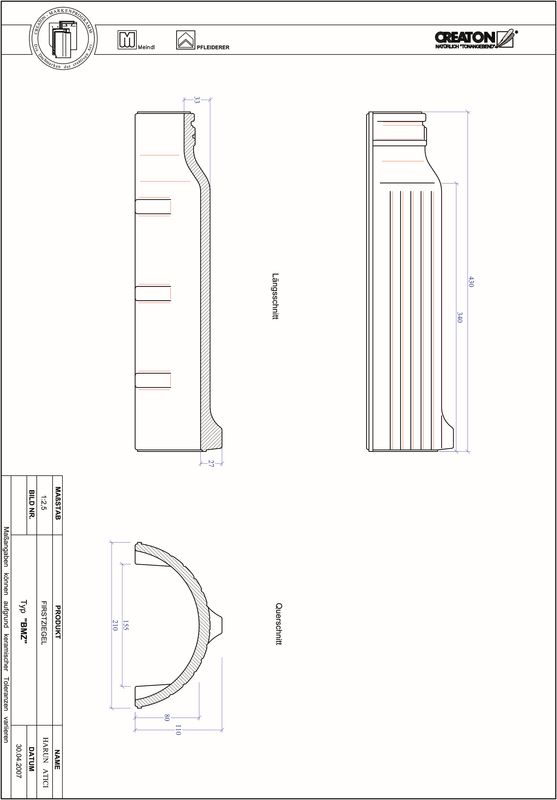

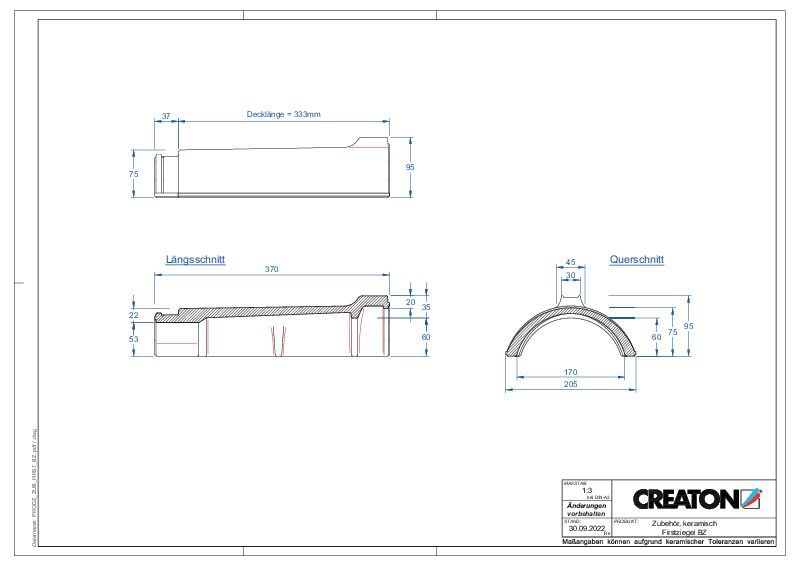

Drawing ridge and hip tile product range BZ-Firstziegel
Drawing ridge and hip tile product range BZ-Firstziegel
Drawing ridge and hip tile product range BZ-Firstziegel-Perspektive
Drawing ridge and hip tile product range BZ-Firstziegel-Perspektive

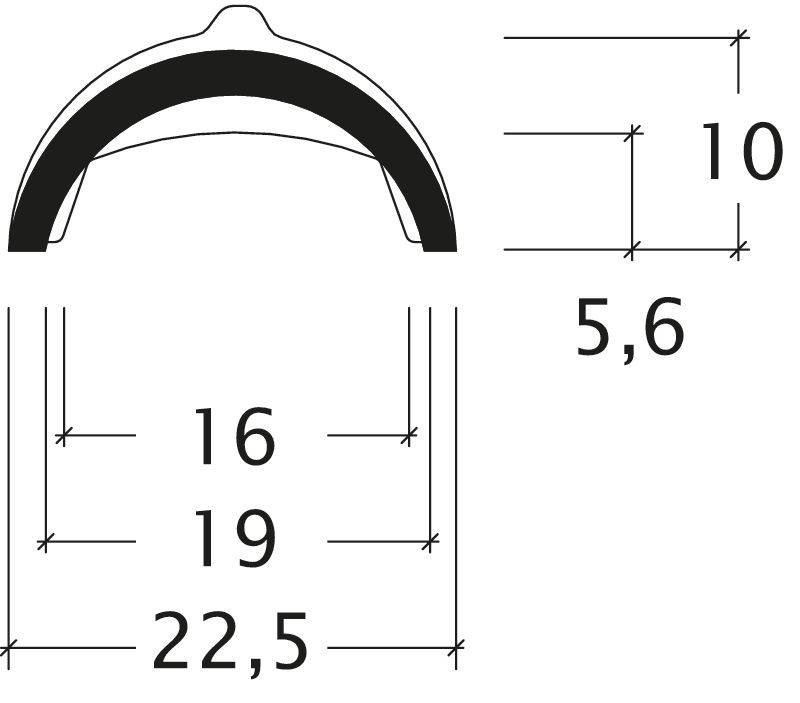

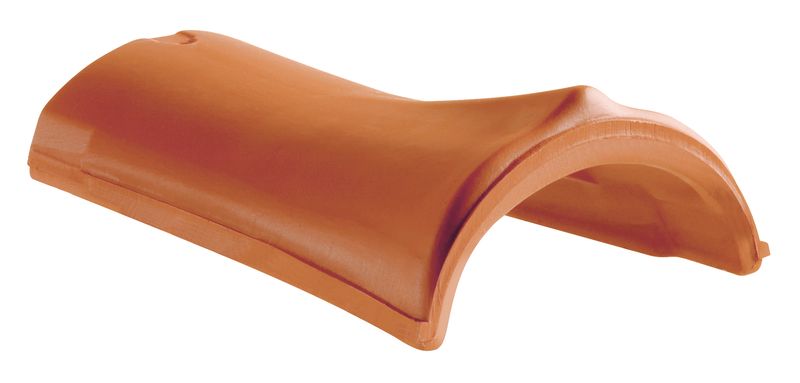

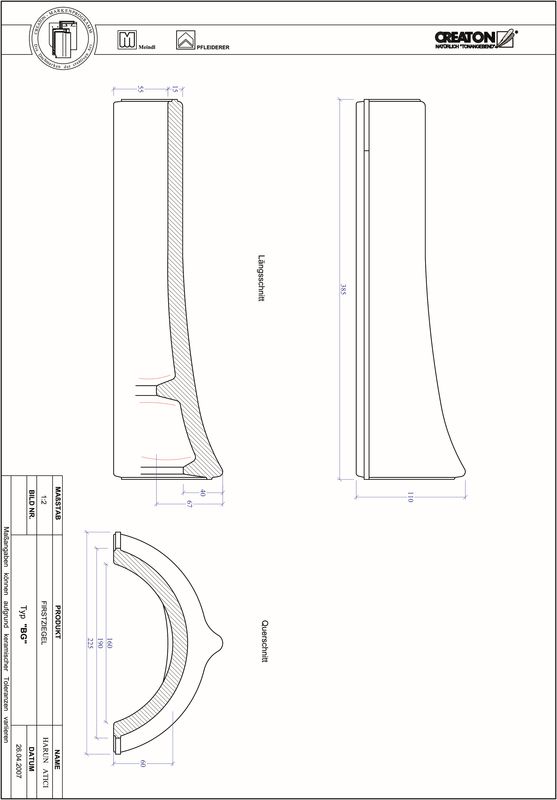

Drawing ridge and hip tile product range BG-Firstziegel
Drawing ridge and hip tile product range BG-Firstziegel

Applications

Additional measures according to CREATON manufacturer's specifications
24 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 24 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 22 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 22 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 18 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Batten spacing / tile gauge is dependent on the roofing type and roof pitch.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
BG 3.0 pcs/mLAF000075757575757570
BZ 3.0 pcs/mLAF000075757575757575
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
BZ 3.0 pcs/mLAF000070707065606060
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
BG 3.0 pcs/mLAF000065606055505040
BZ 3.0 pcs/mLAF000065606055505045

References

more

more

more

Accessory range

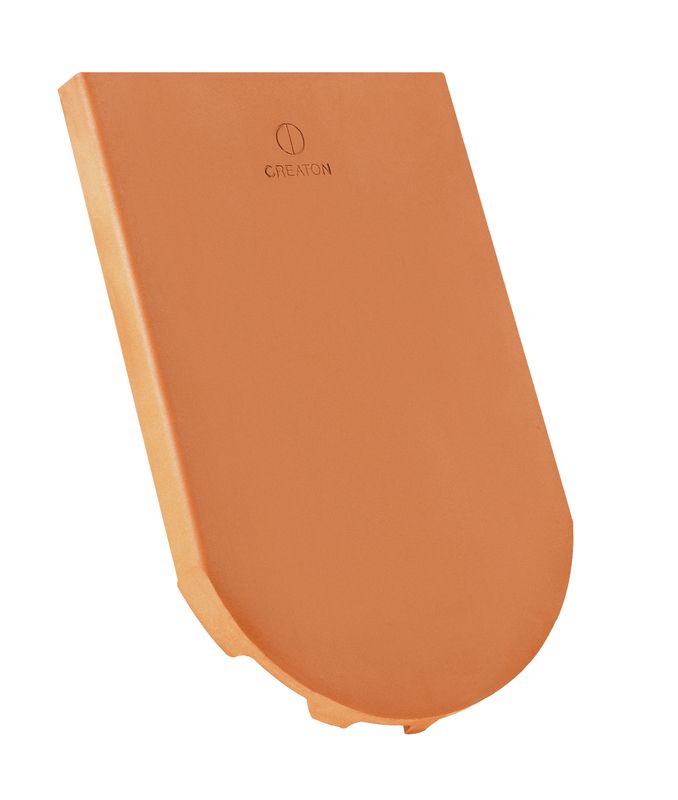

KERA-BIBER half-width tile

KERA-BIBER half-width tile

KERA-BIBER ridge connection tile

KERA-BIBER ridge connection tile

KERA-BIBER eave tile

KERA-BIBER eave tile

KERA-BIBER field ventilating tile

KERA-BIBER field ventilating tile

KERA-BIBER ventilating tile

KERA-BIBER ventilating tile

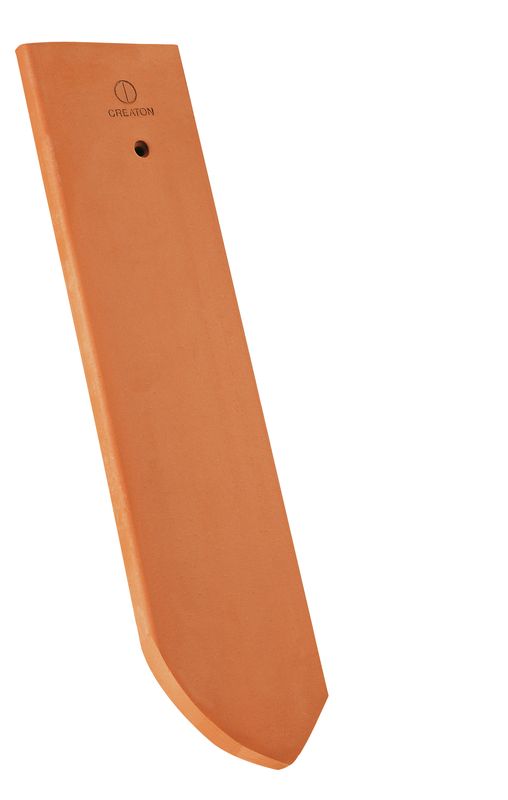

KERA-BIBER flashing tile right

KERA-BIBER flashing tile right

KERA-BIBER flashing tile left

KERA-BIBER flashing tile left

KERA-BIBER starter tile

KERA-BIBER starter tile

KERA-BIBER curved longitudinal axis

KERA-BIBER curved longitudinal axis

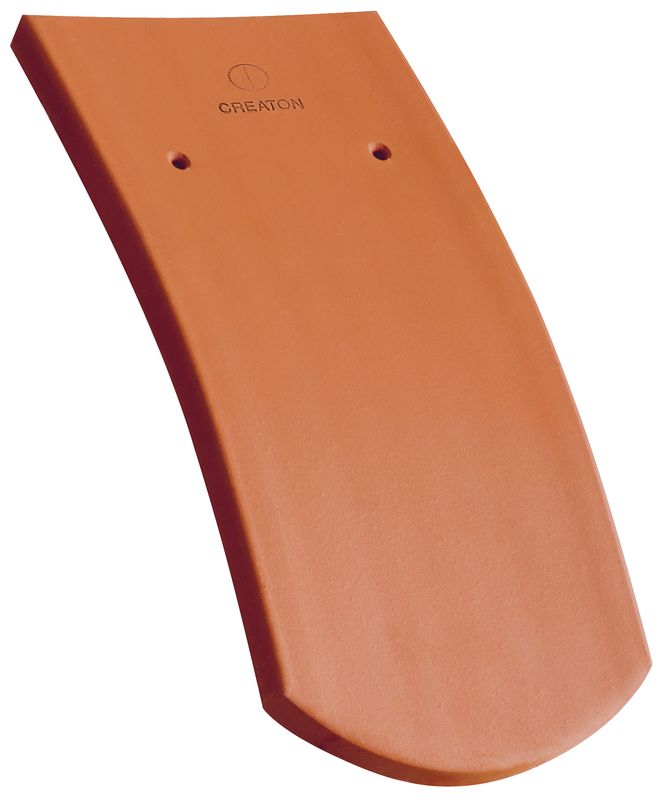

KERA-BIBER convex curve (special production in accordance with specification)

KERA-BIBER convex curve (special production in accordance with specification)

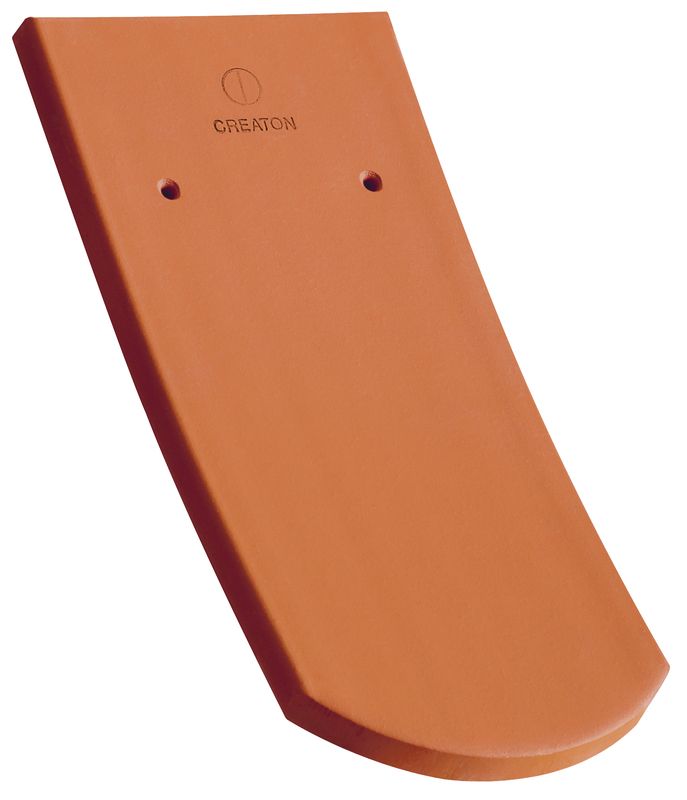

KERA-BIBER concave curve (special production in accordance with specification)

KERA-BIBER concave curve (special production in accordance with specification)

KERA-BIBER ridge connection ventilating tile

KERA-BIBER ridge connection ventilating tile

KERA-BIBER transition tile

KERA-BIBER transition tile

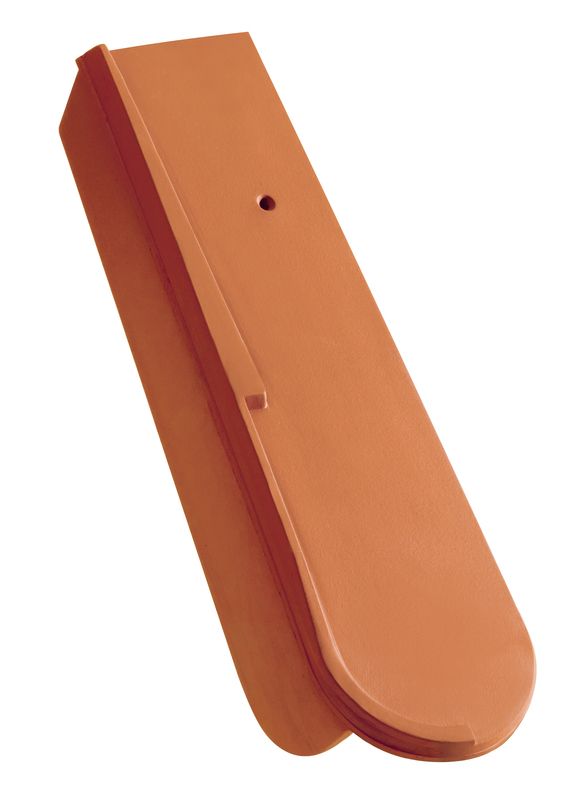

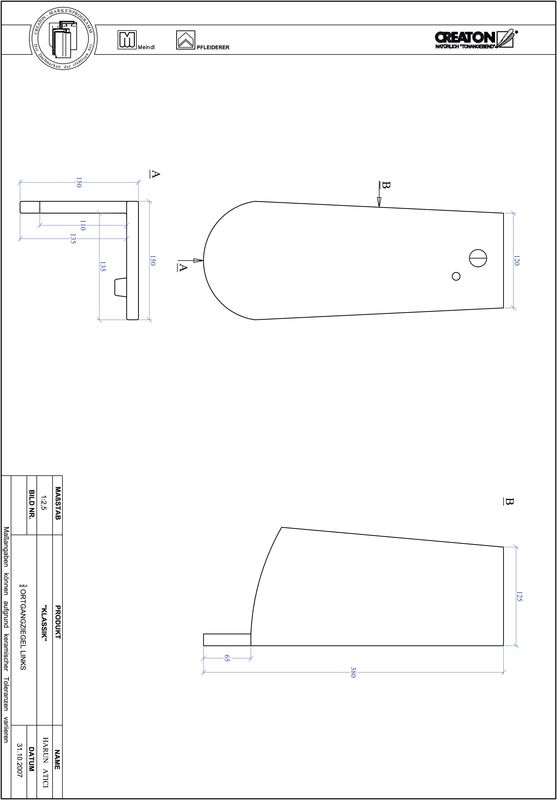

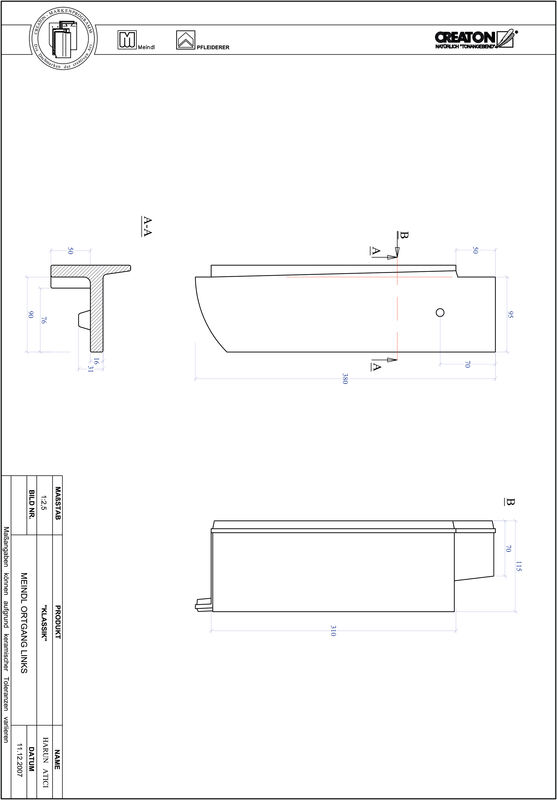

KERA-BIBER sliding verge right, KERA-BIBER with short side lobe

KERA-BIBER sliding verge right, KERA-BIBER with short side lobe

Product range for roof details and uplift protection

KERA-BIBER glass plain tile

KERA-BIBER glass plain tile

Storm clip plain tile 12-14 mm crown pattern

Storm clip plain tile 12-14 mm crown pattern

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (KERA-BIBER)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (KERA-BIBER)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (KERA-BIBER)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (KERA-BIBER)

Stainless steel screw with seal, length 50 mm

Stainless steel screw with seal, length 50 mm

Hip and valley clip 10-13 mm

Hip and valley clip 10-13 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Ridge and hip tile product range

GUT ridge tile BZ

GUT ridge tile BZ

Ridge tile BG GUT (plain clay tile)

Ridge tile BG GUT (plain clay tile)

GUT hip starter ceramic BZ

GUT hip starter ceramic BZ

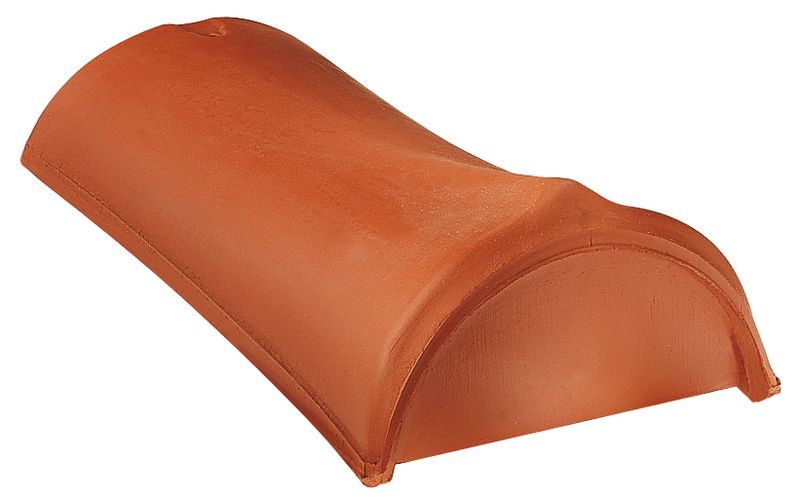

Hip starter ceramic BG GUT (plain clay tile)

Hip starter ceramic BG GUT (plain clay tile)

GUT hip cap 4-axis BZ

GUT hip cap 4-axis BZ

Ridge clip aluminium BG GUT

Ridge clip aluminium BG GUT

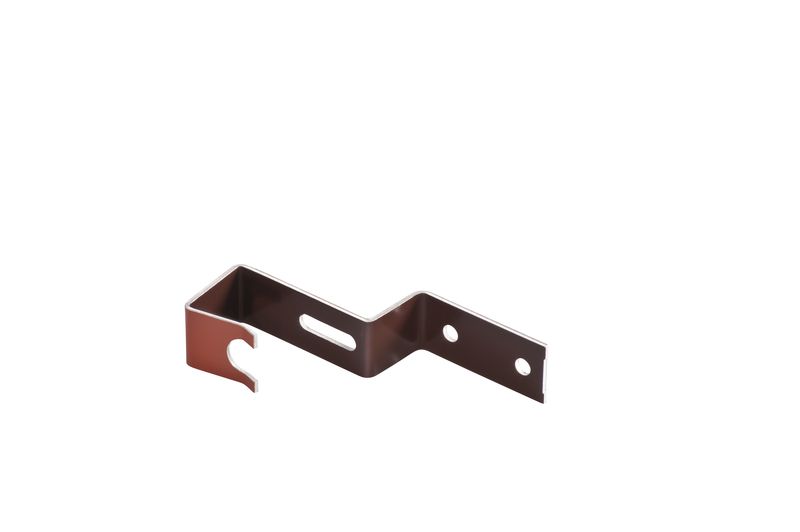

Ridge clip aluminium BZ GUT

Ridge clip aluminium BZ GUT

Hip starter ceramic round closure BZ GUT (plain clay tile)

Hip starter ceramic round closure BZ GUT (plain clay tile)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

GUT hip cap 3-axis BZ

GUT hip cap 3-axis BZ

Product range for snow protection, roof access and solar installation in metal

Solar element bracket GRUEL plain tile

Solar element bracket GRUEL plain tile

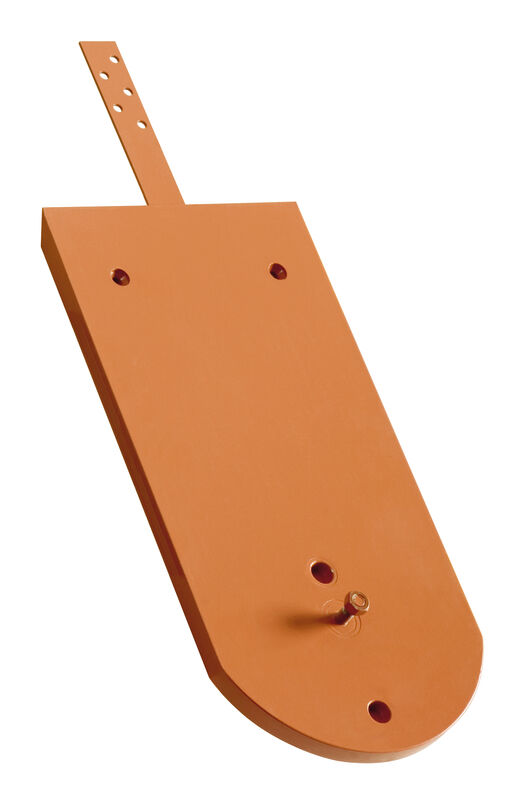

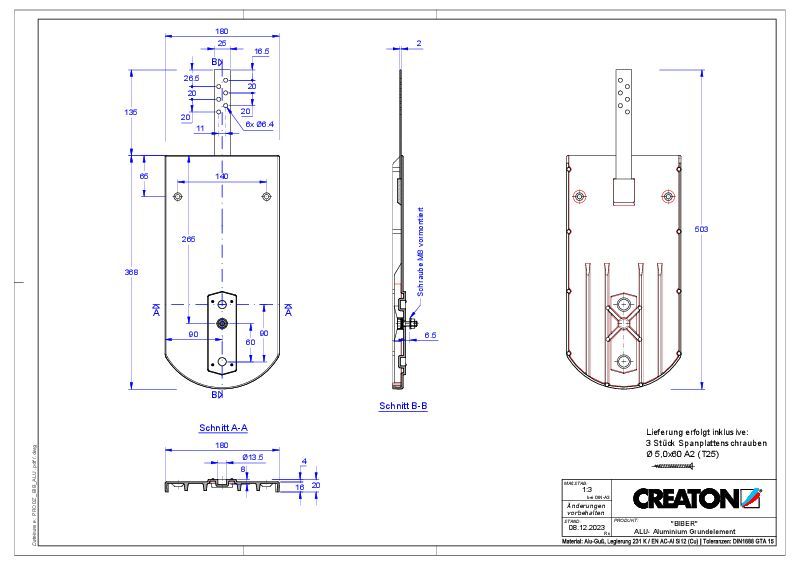

KERA-BIBER aluminium base element

KERA-BIBER aluminium base element

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

MAG snow clip

MAG snow clip

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

Product range for roof ventilation and penetrations

KERA-BIBER SIGNUM ceramic outlet vent DN 100 mm with screw-on hood, incl. sub-roof connection adapter with flexible duct

KERA-BIBER SIGNUM ceramic outlet vent DN 100 mm with screw-on hood, incl. sub-roof connection adapter with flexible duct

KERA-BIBER SIGNUM ceramic outlet vent DN 125 mm with removable cap, incl. sub-roof connection adapter with flexible duct

KERA-BIBER SIGNUM ceramic outlet vent DN 125 mm with removable cap, incl. sub-roof connection adapter with flexible duct

KERA-BIBER SIGNUM ceramic vapour vent DN 150/160 mm incl. sub-roof connection adapter

KERA-BIBER SIGNUM ceramic vapour vent DN 150/160 mm incl. sub-roof connection adapter

KERA-BIBER SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

KERA-BIBER SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

KERA-BIBER aerial entry

KERA-BIBER aerial entry

KERA-BIBER solar entry tile

KERA-BIBER solar entry tile

KERA-BIBER flue pipe penetration NW 110/125

KERA-BIBER flue pipe penetration NW 110/125
