KAPSTADT duratop pro pale grey

KAPSTADT

The Linear One

  • Clear modern lines up to the hidden side interlock
  • Double water traps provide extra protection against rain intrusion
  • Deep side interlocking with joint open at the top (requires half offset installation in accordance with Central Association of the German Roofing Trade (ZVDH) guidelines)
  • Solid support strip at the suspension lug to prevent saturation at the roof batten
  • Distinctive bottom ribbing reduces the penetration of drifting snow or driving rain
  • Completely closed lower edge, even in the side interlock area
  • Awarded the TRENDS architecture prize for construction 2013
duratop pro classic red
duratop pro classic red
duratop pro dark grey
duratop pro dark grey
duratop pro zinc grey
duratop pro zinc grey
duratop pro titanium grey
duratop pro titanium grey
duratop pro perla black perla
duratop pro perla black perla

Technical data

Size (appr.)334 x 420 mm
Covering width min. approx.300 mm
Covering width on av. approx.300 mm
Max. coverage width (approx.)300 mm
Min. gauge (approx.)310 mm
Covering length on av. approx.325 mm
Max. gauge (approx.)340 mm
Tile requirement min. (approx.)9.8 pcs/m²
Average tile requirement (approx.)10.2 pcs/m²
Brickware max. approx.10.7 pcs/m²
Unit weight (approx.)4.9 kg/piece
Weight per m² (approx.)50 kg/m²
pcs per package36 piece

Applications

Additional measures according to CREATON manufacturer's specifications
21 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥21 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥19 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥19 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥17 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

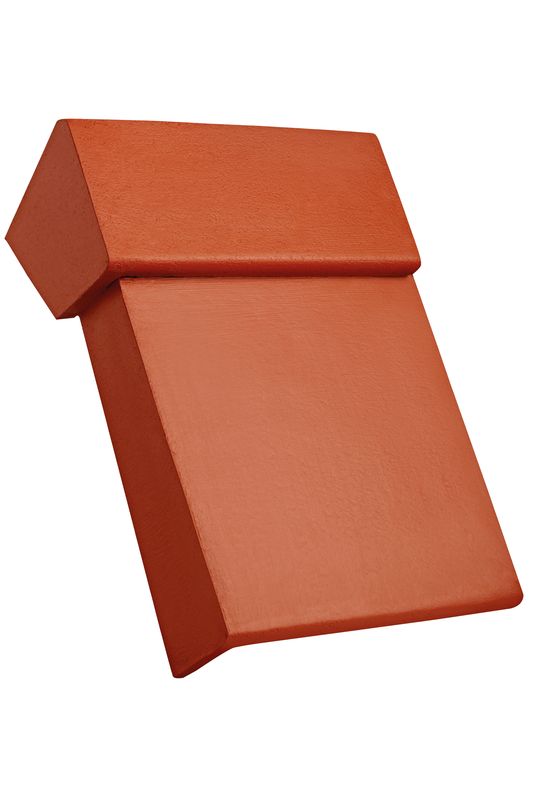

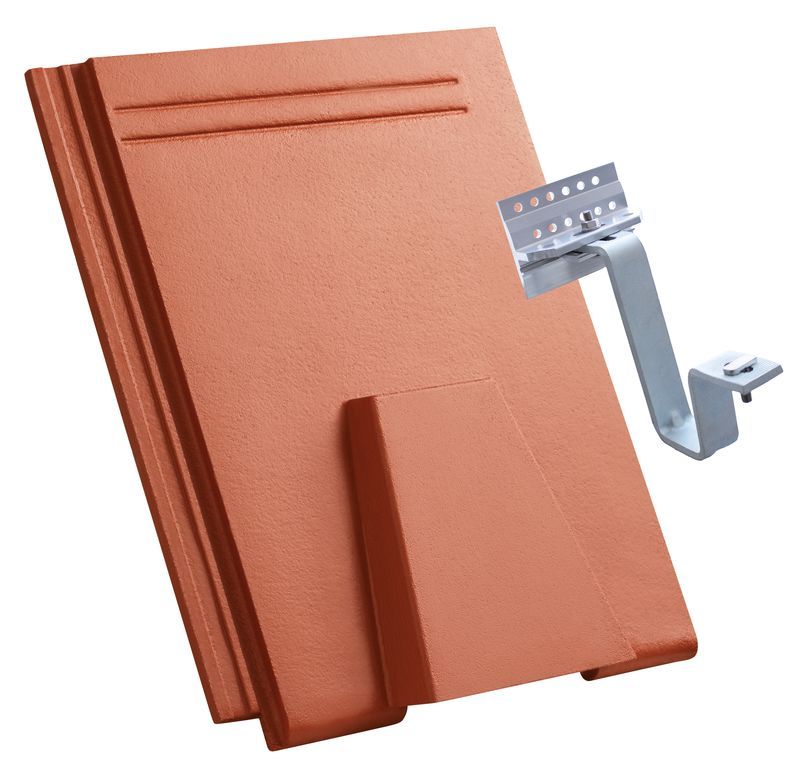

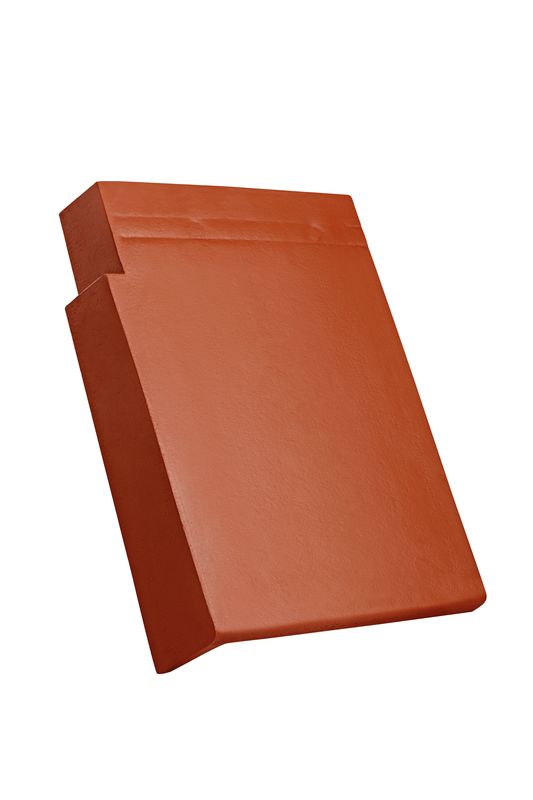

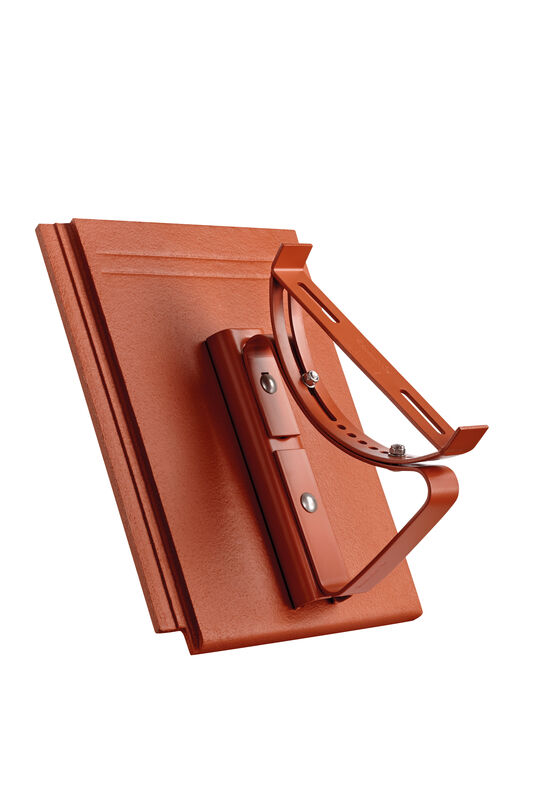

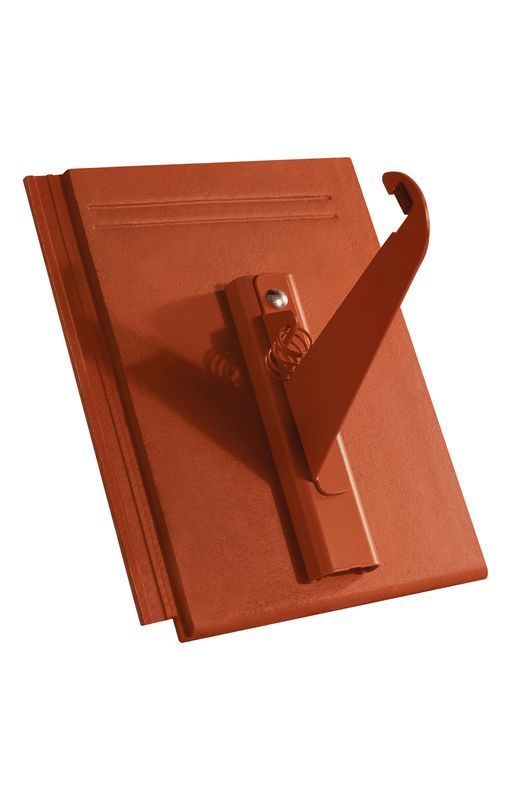

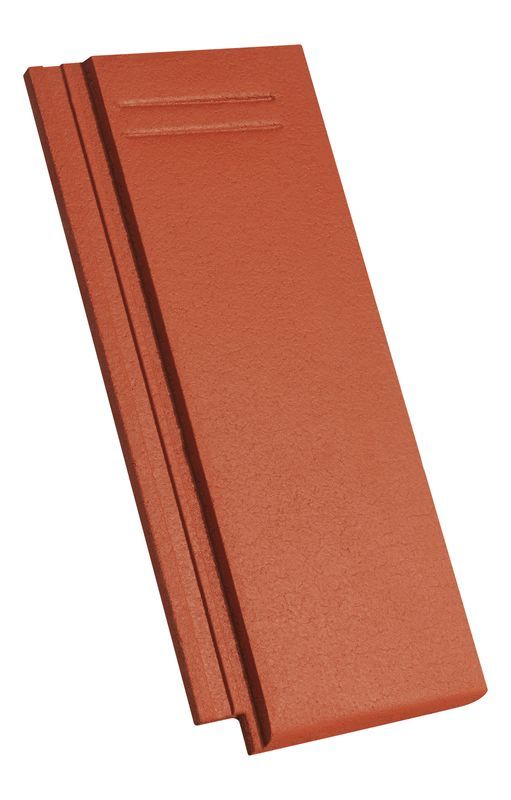

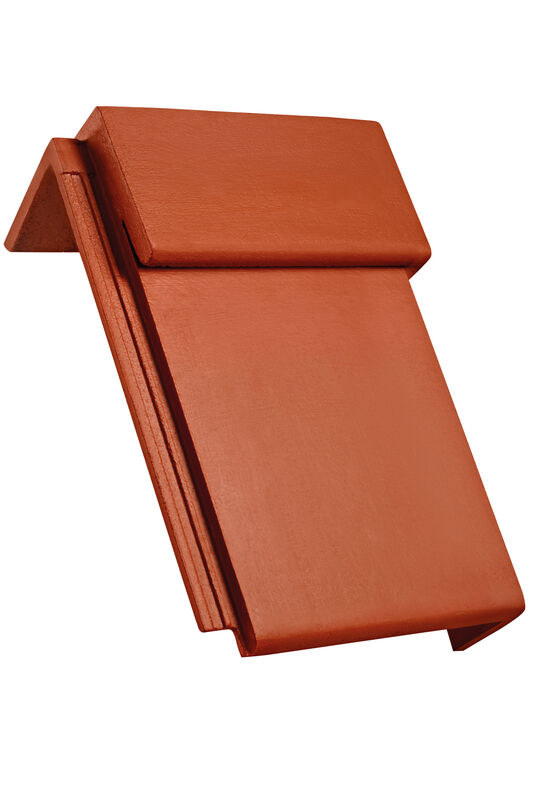

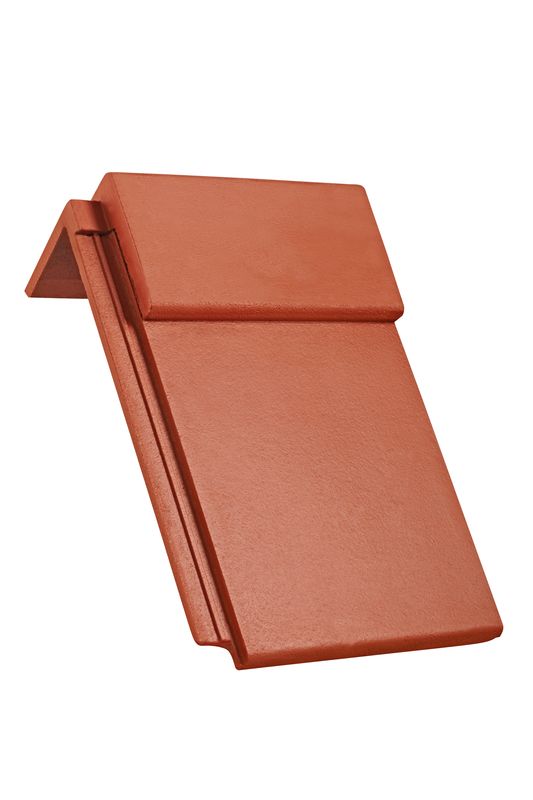

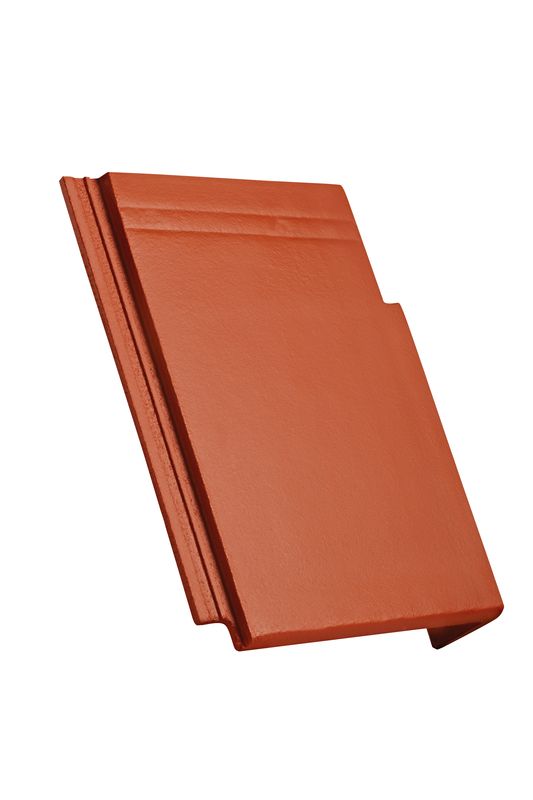

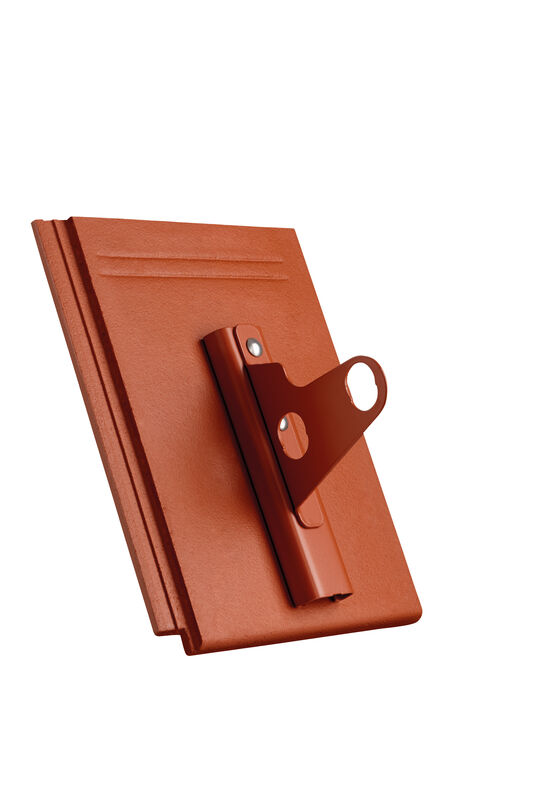

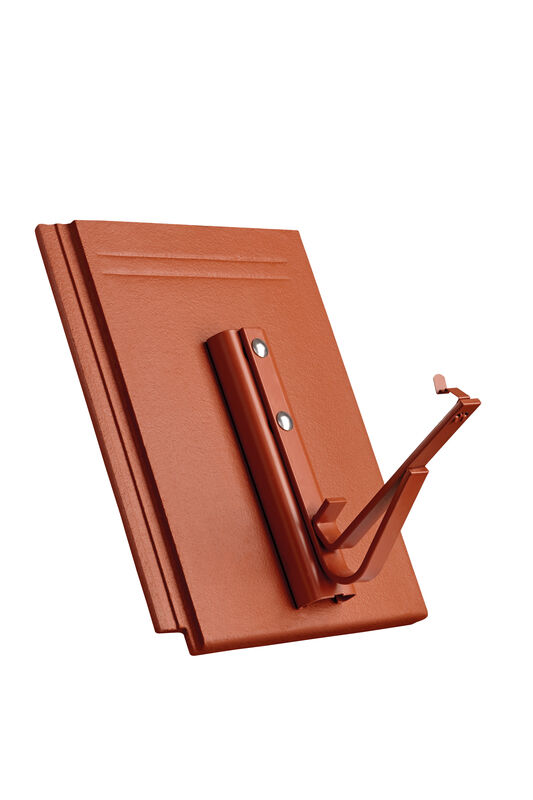

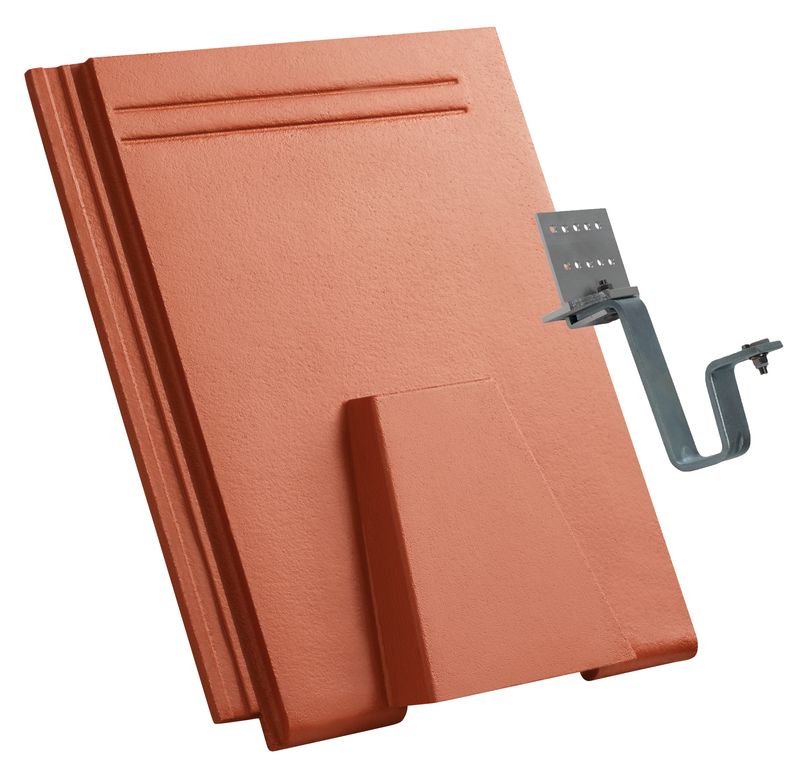

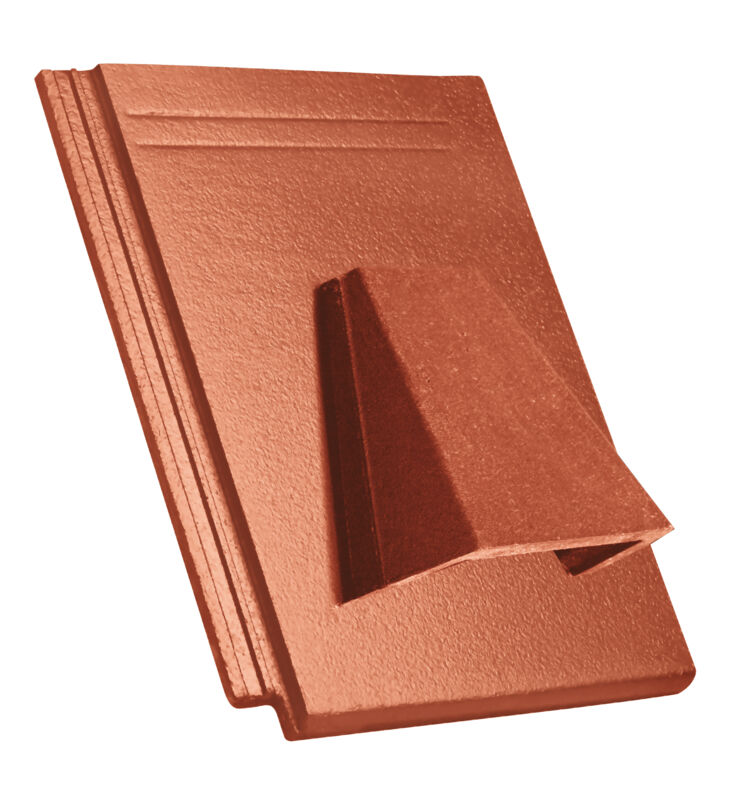

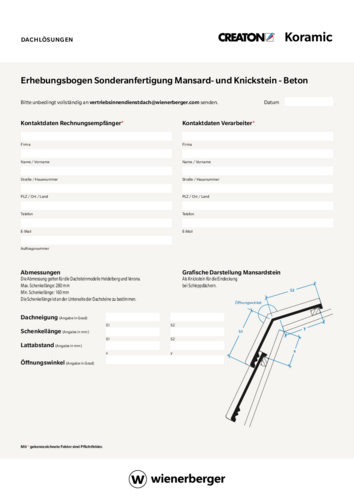

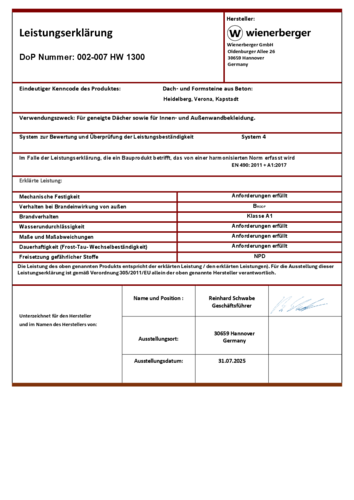

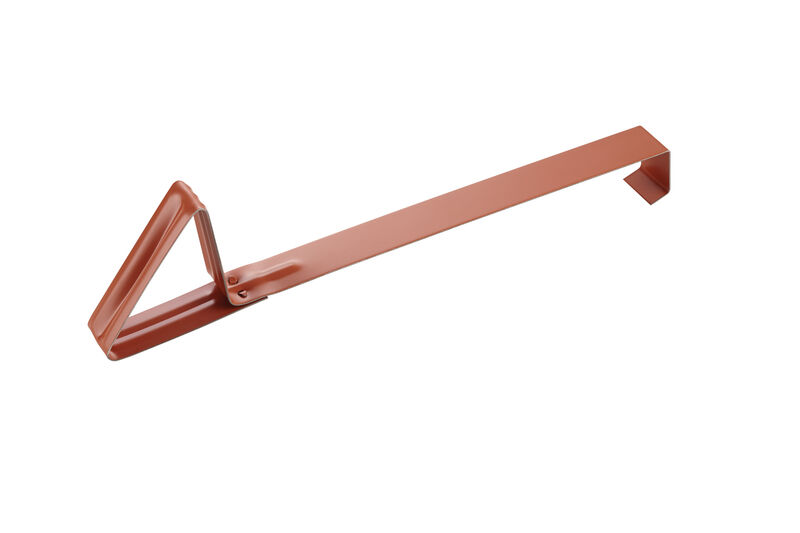

Technical informations

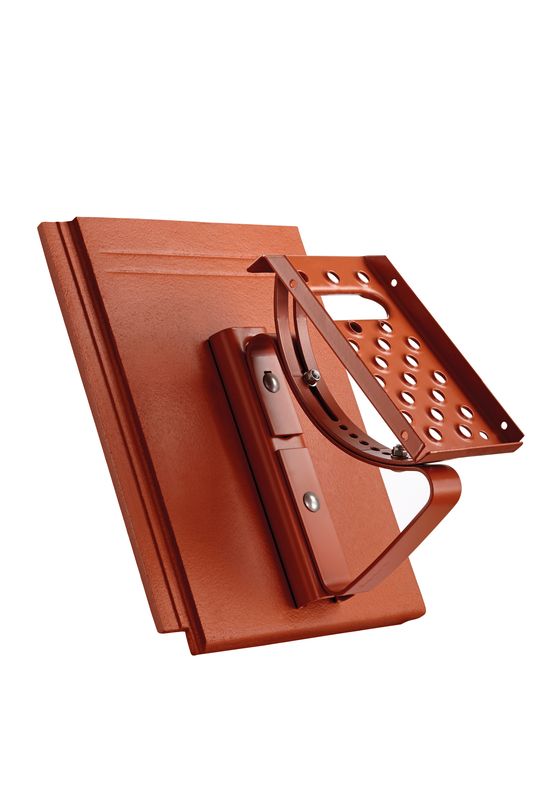

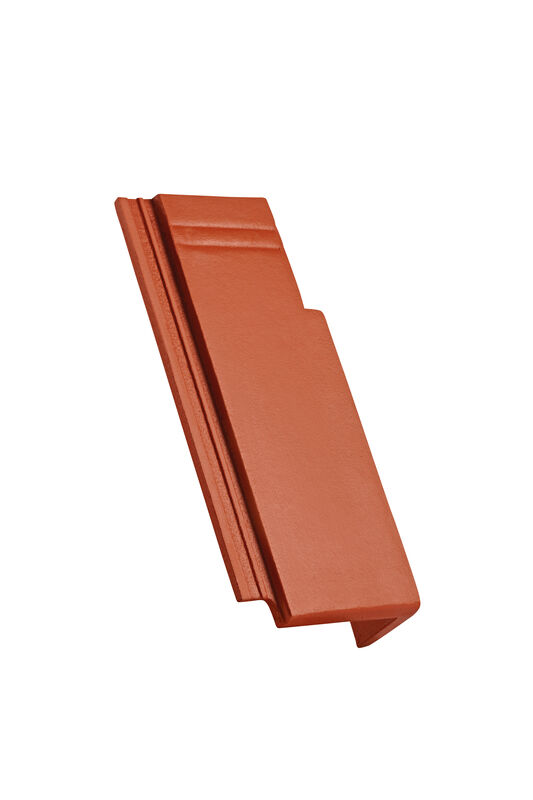

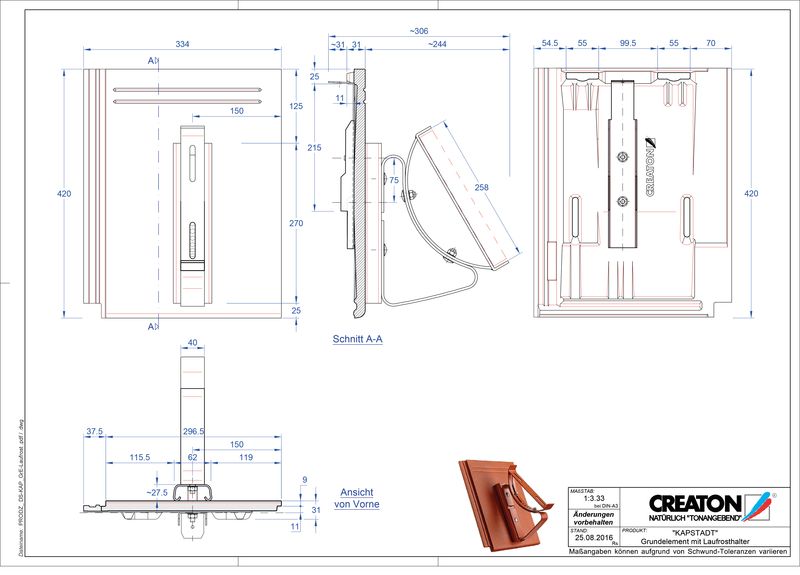

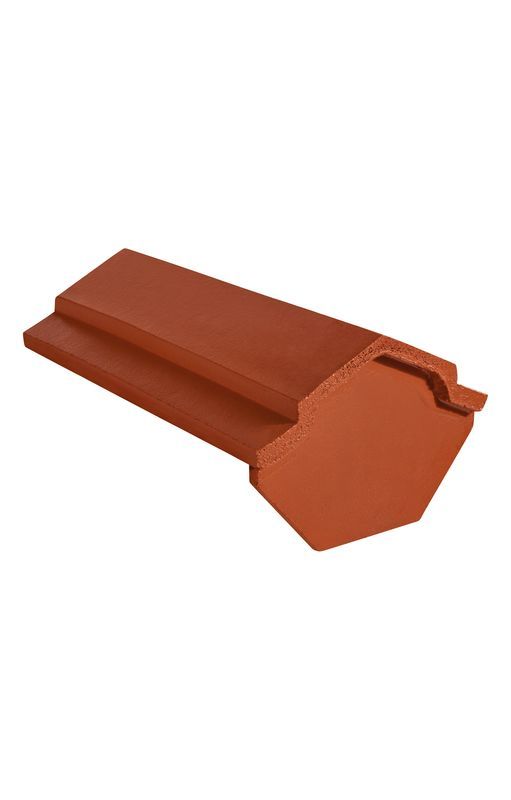

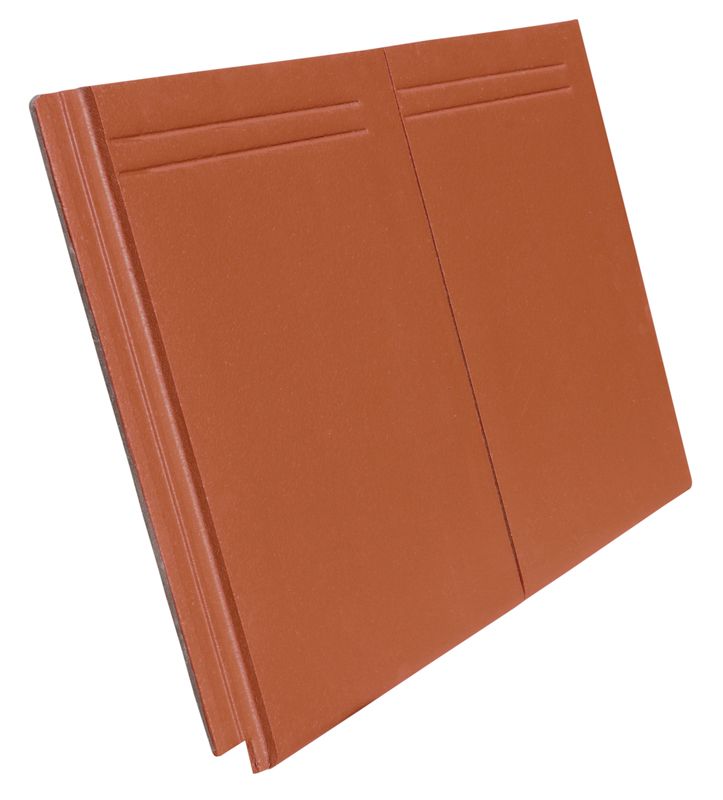

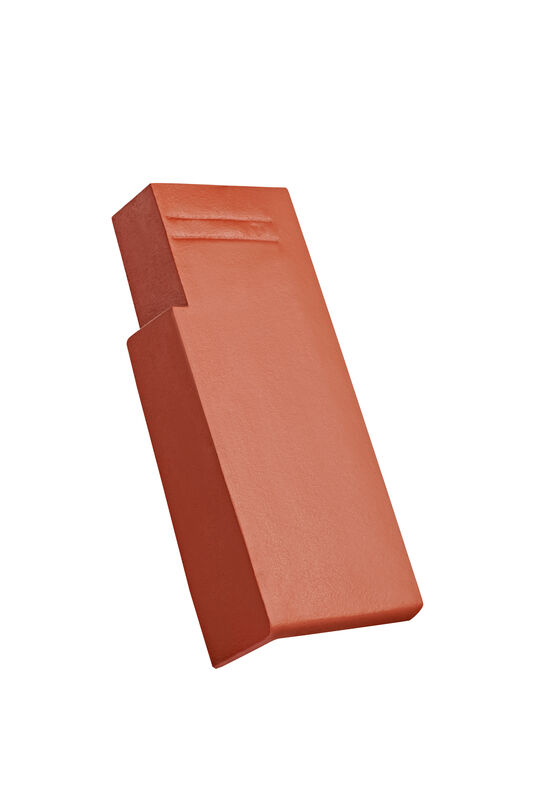

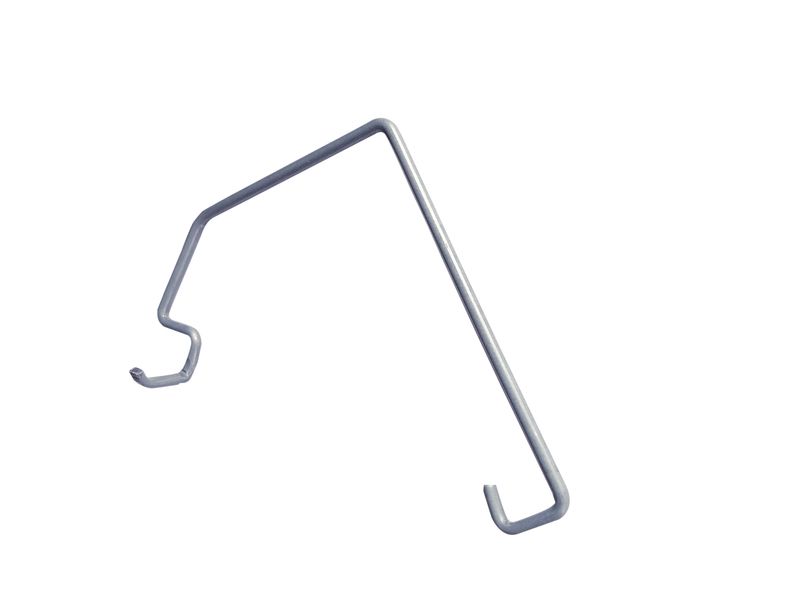

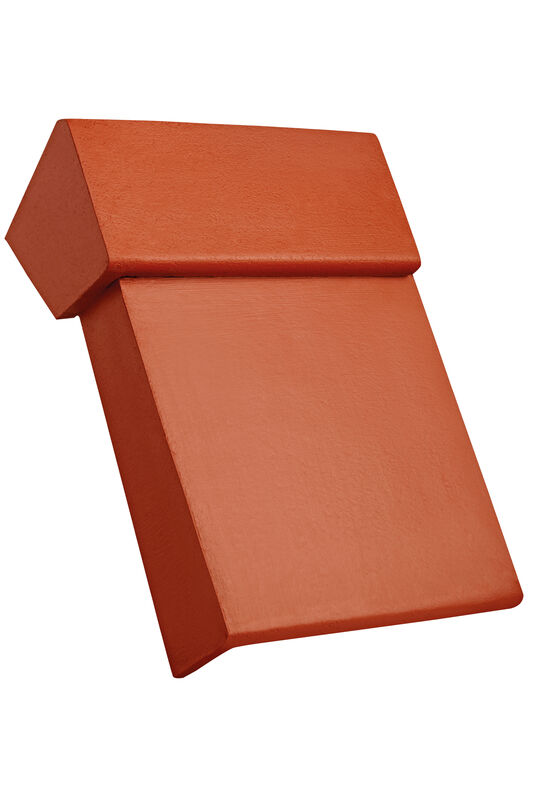

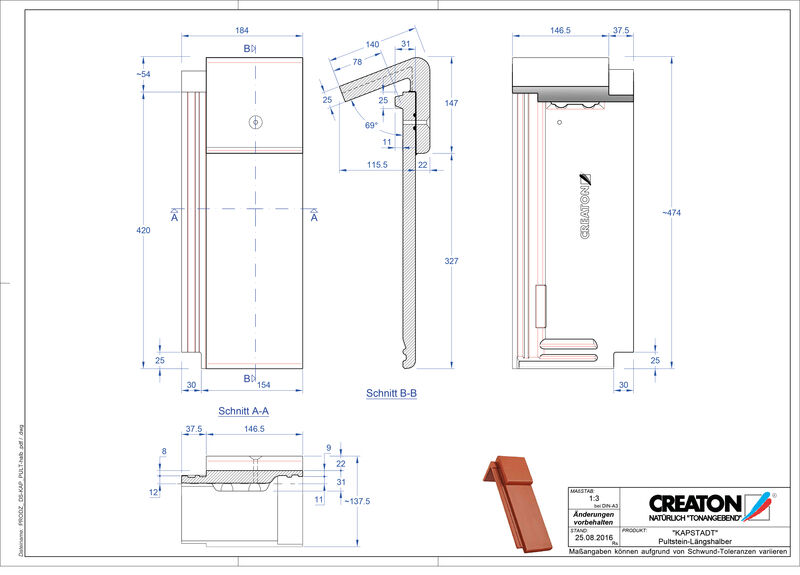

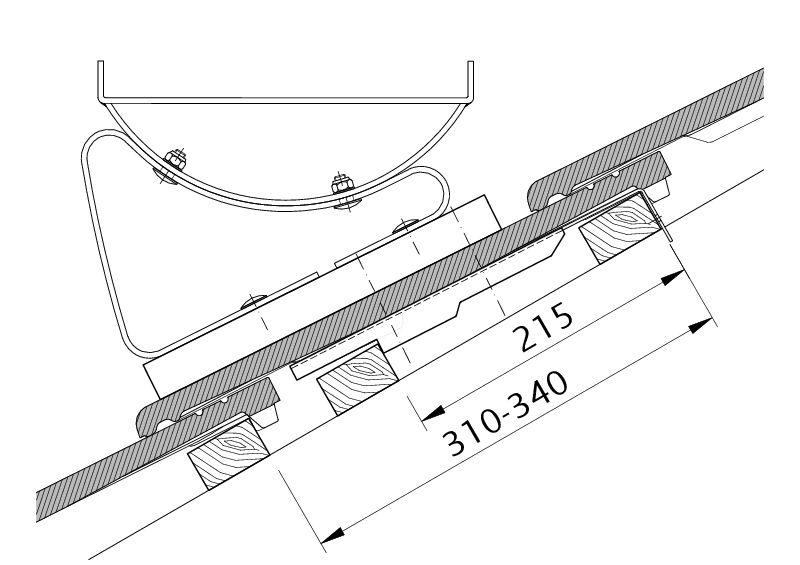

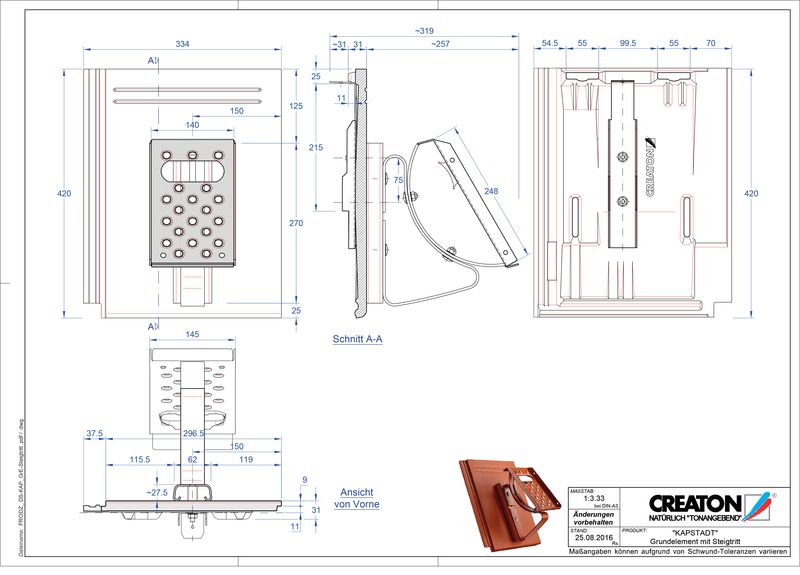

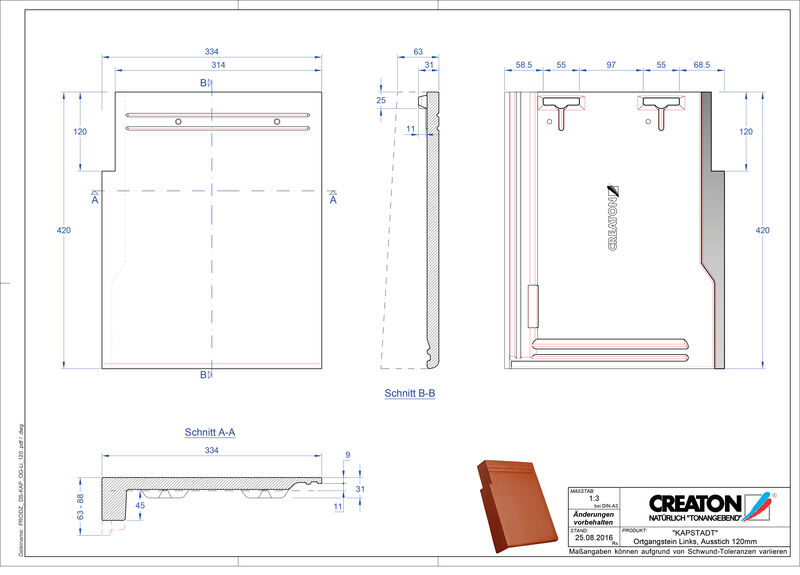

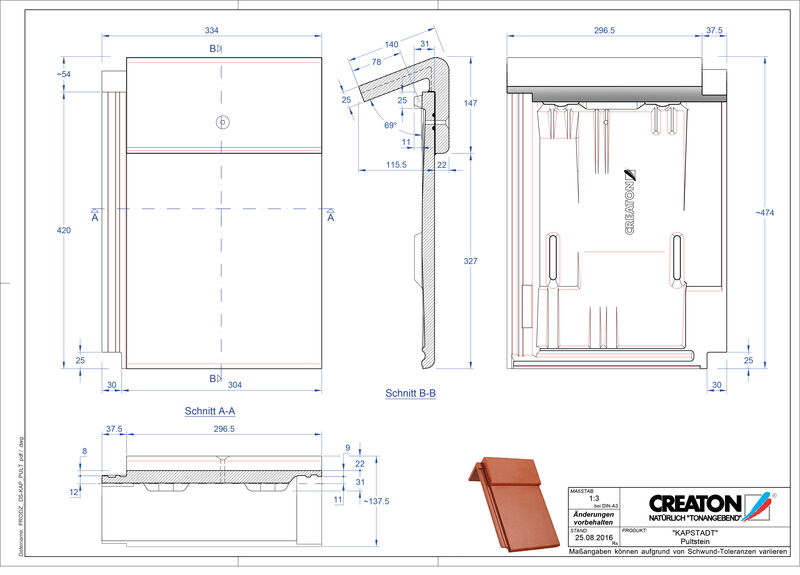

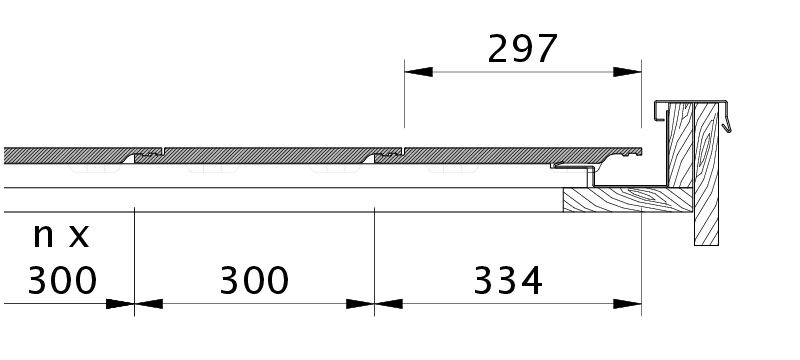

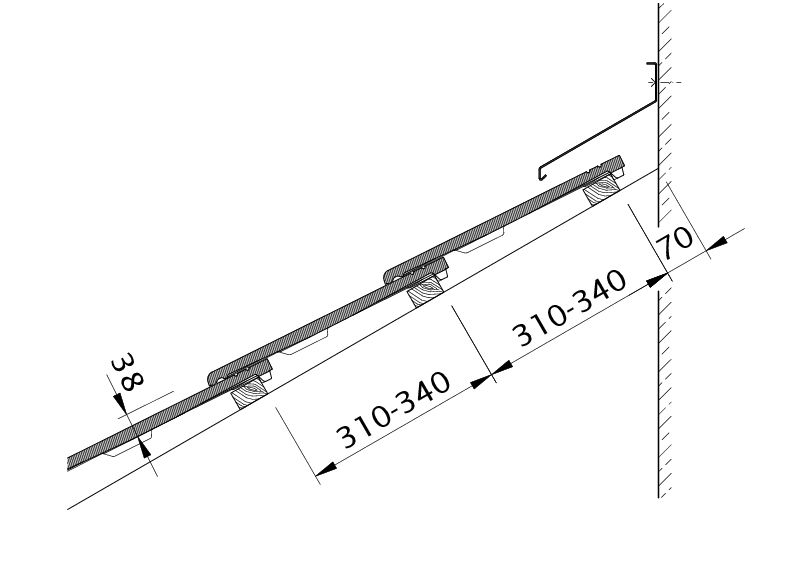

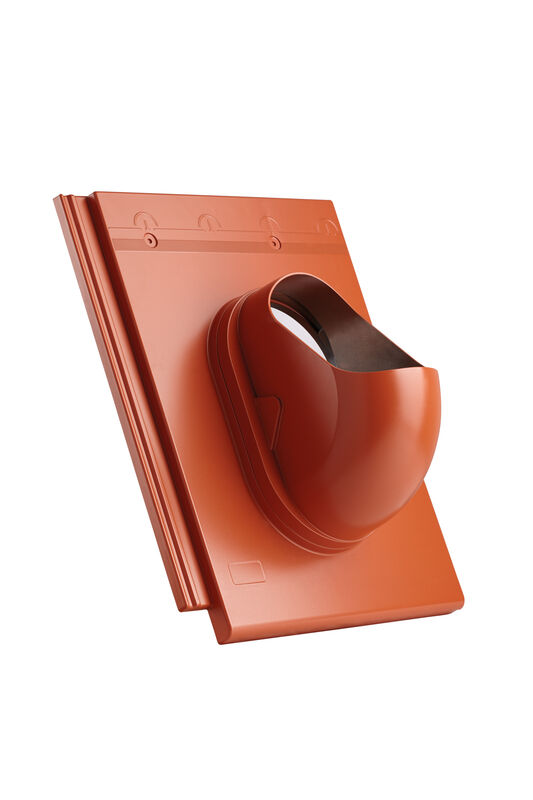

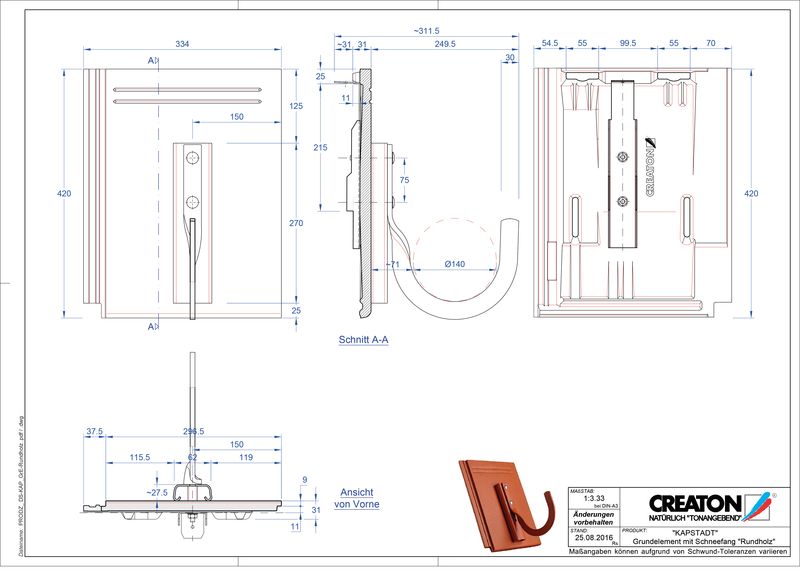

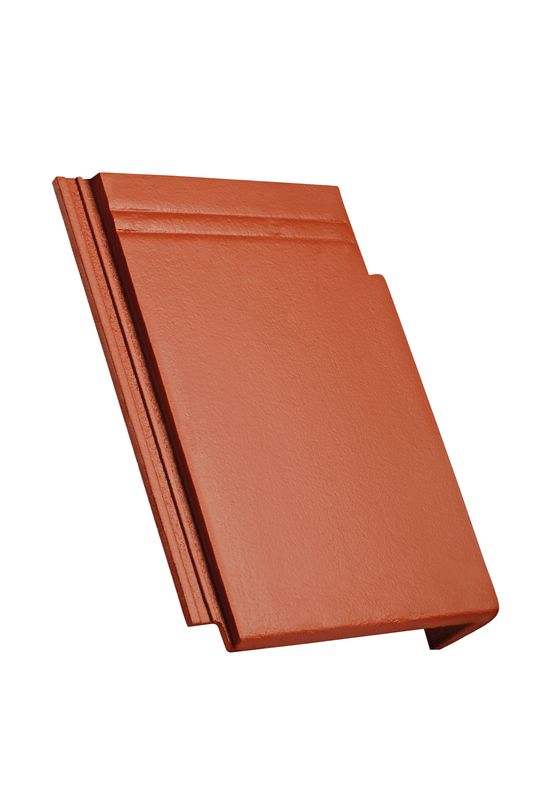

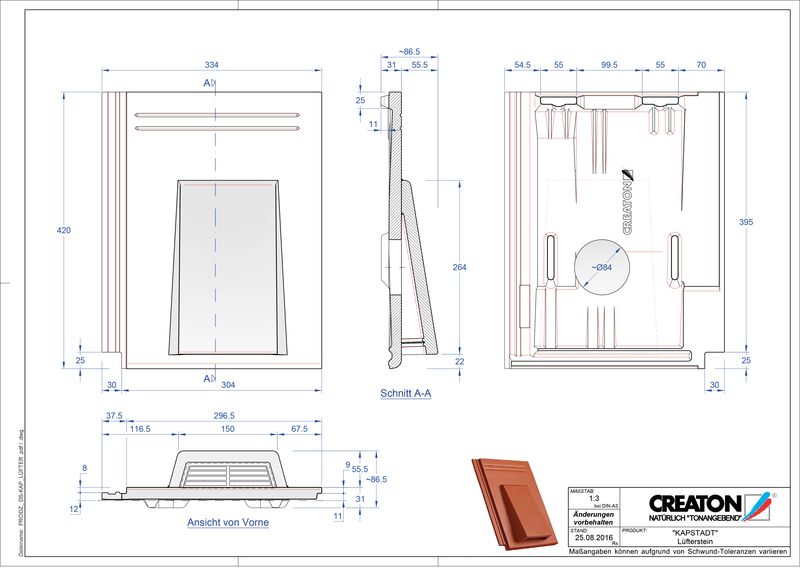

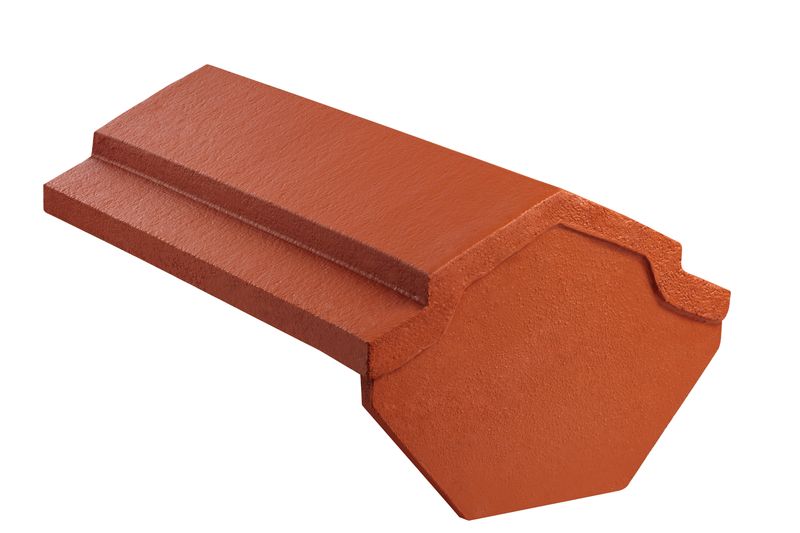

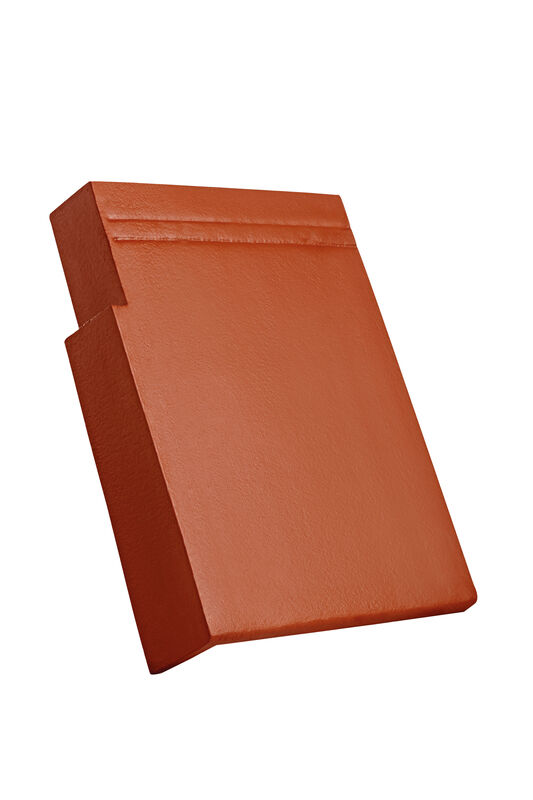

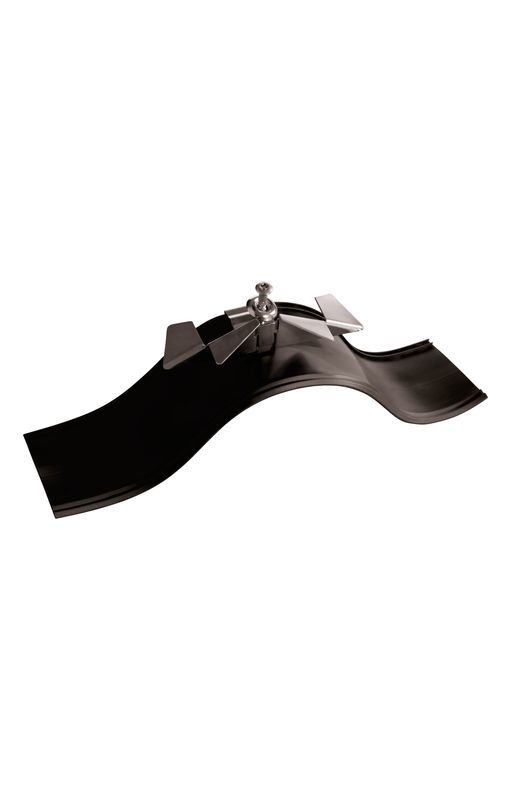

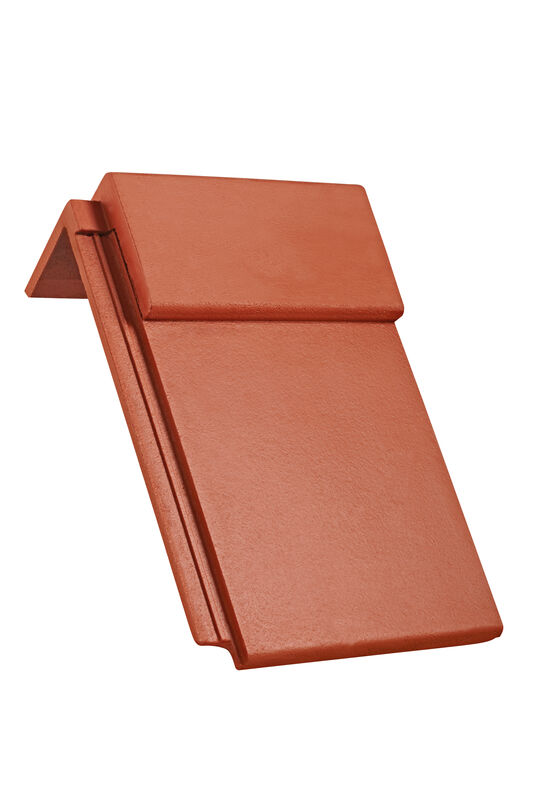

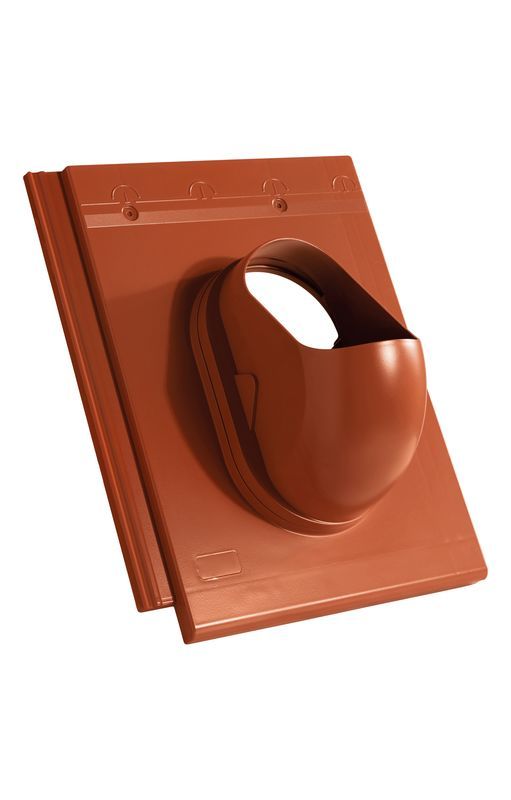

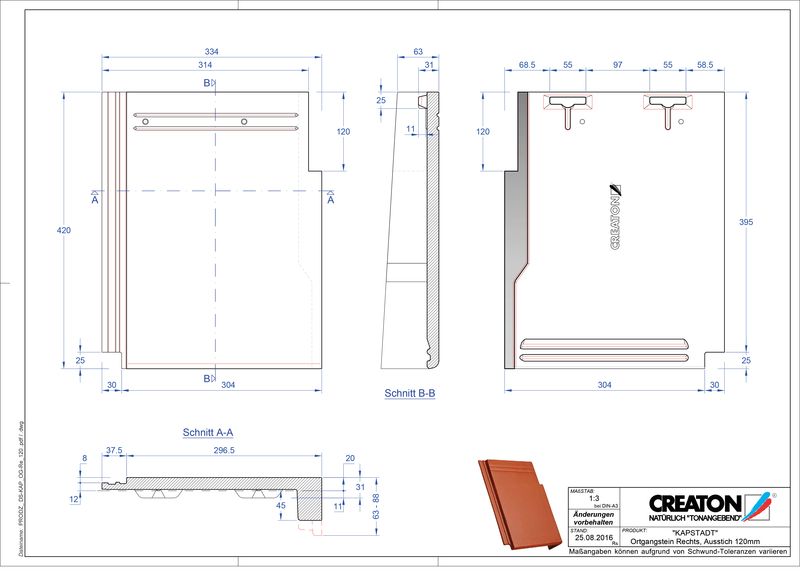

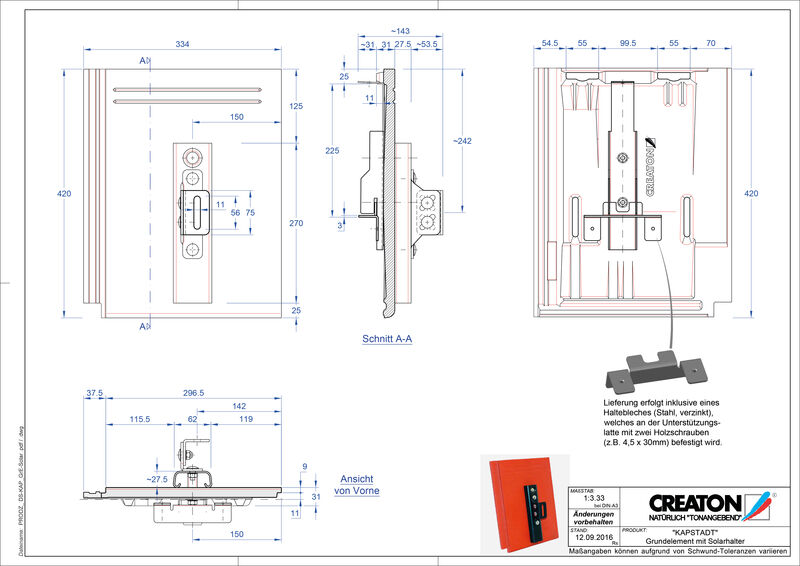

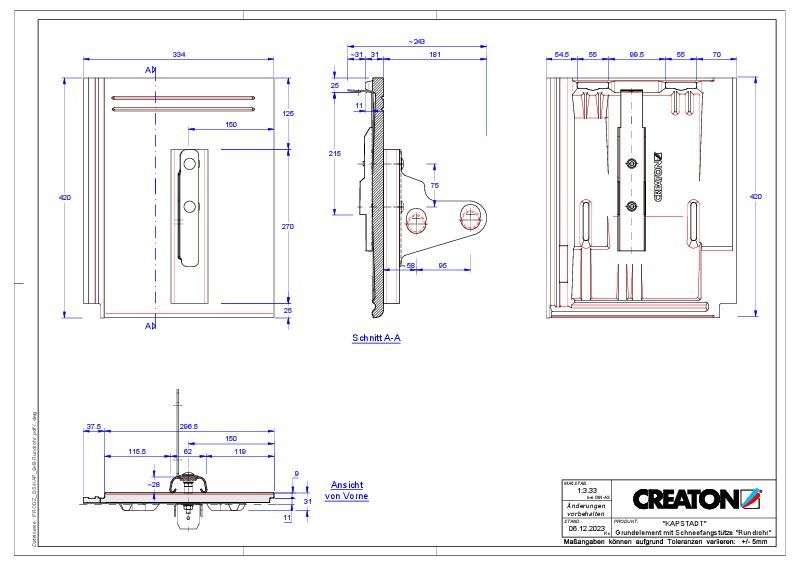

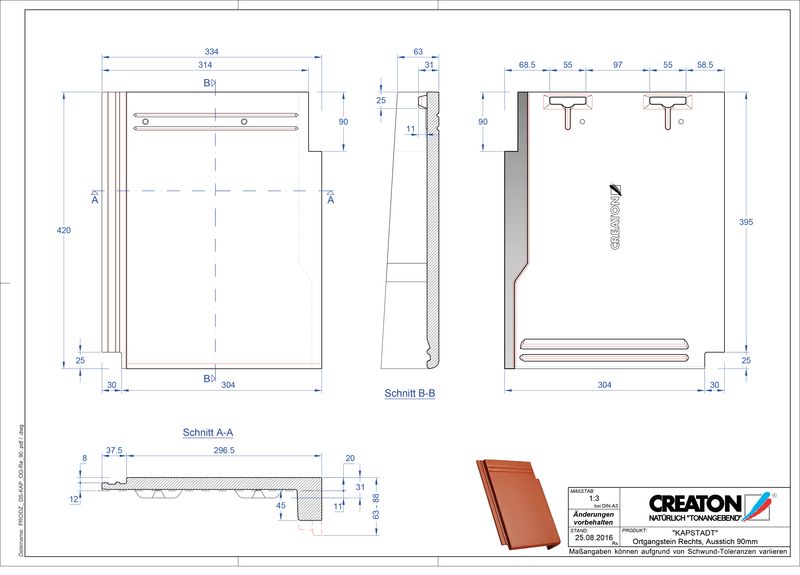

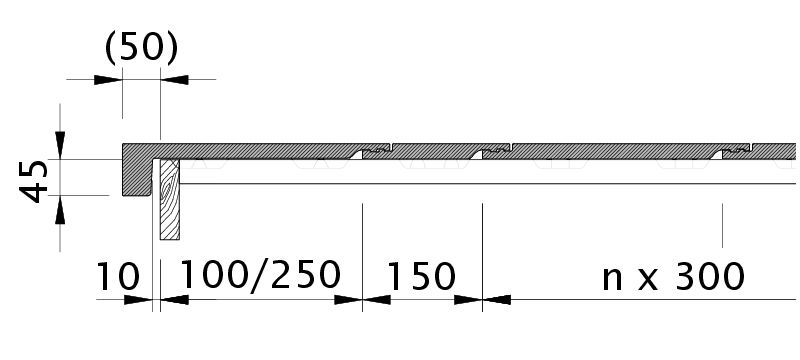

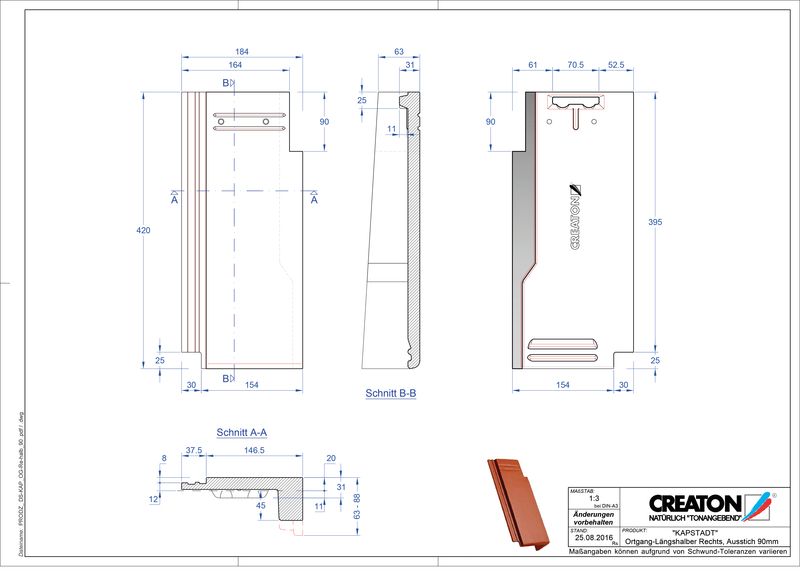

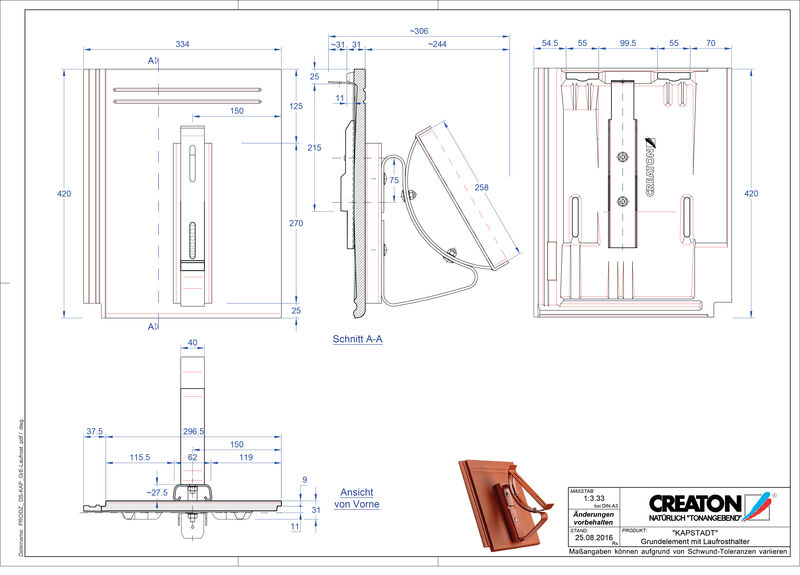

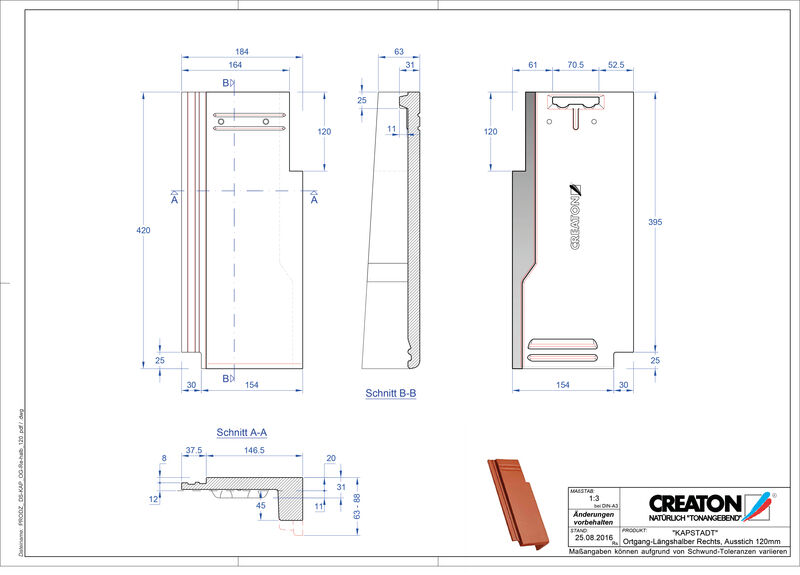

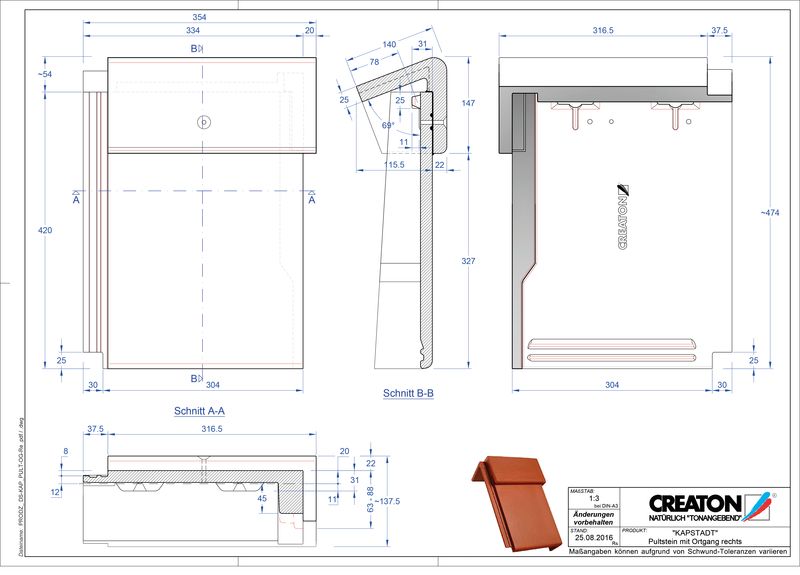

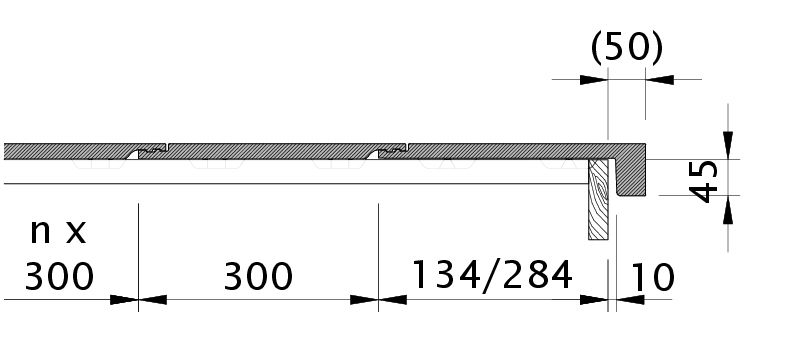

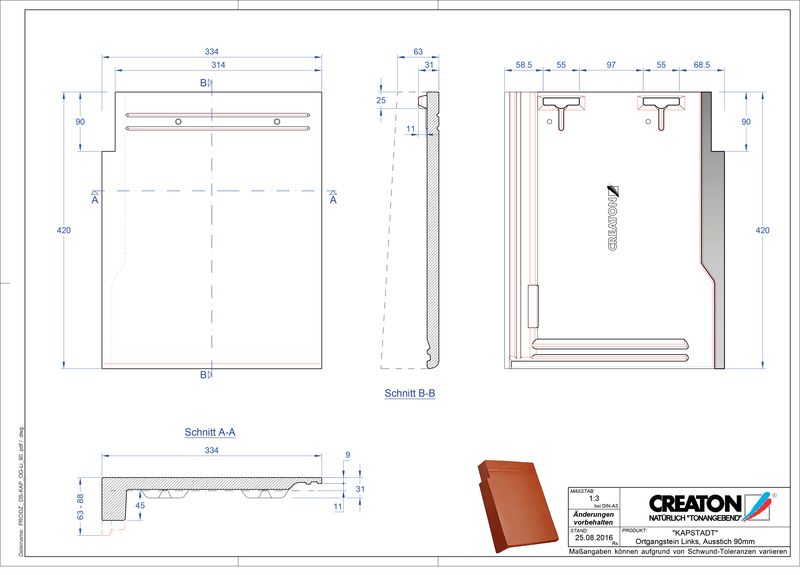

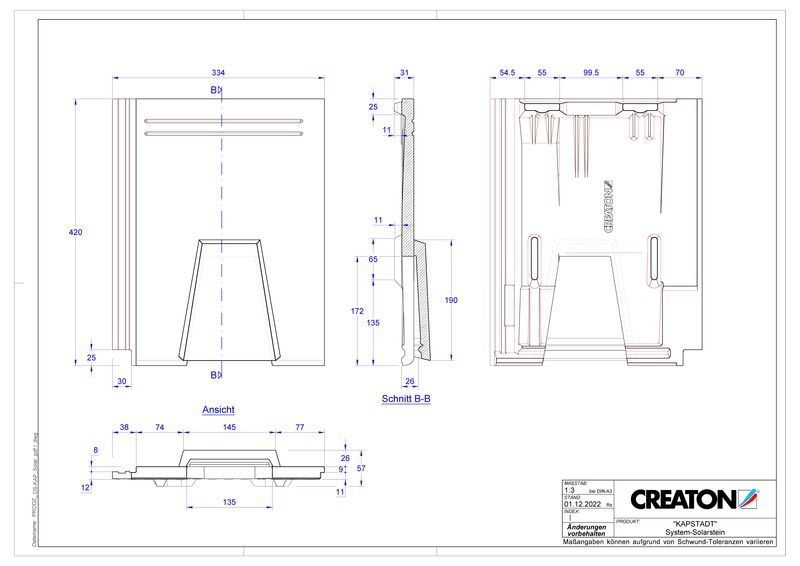

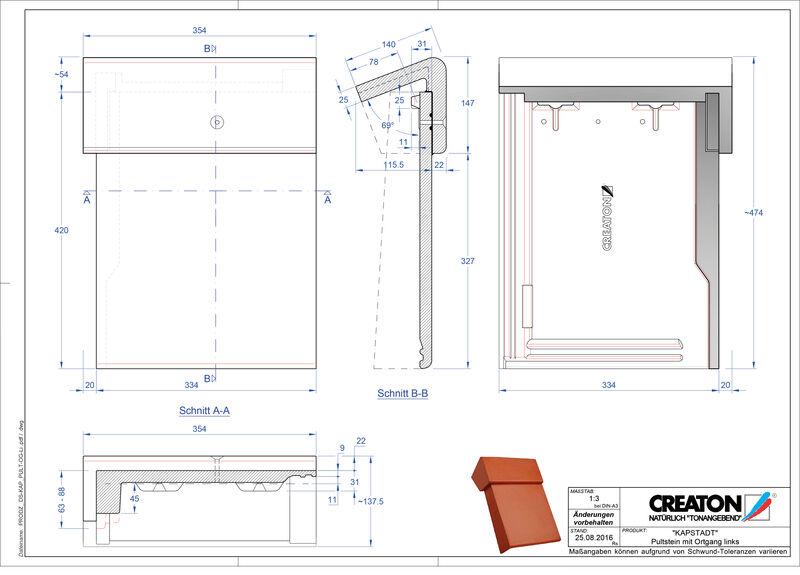

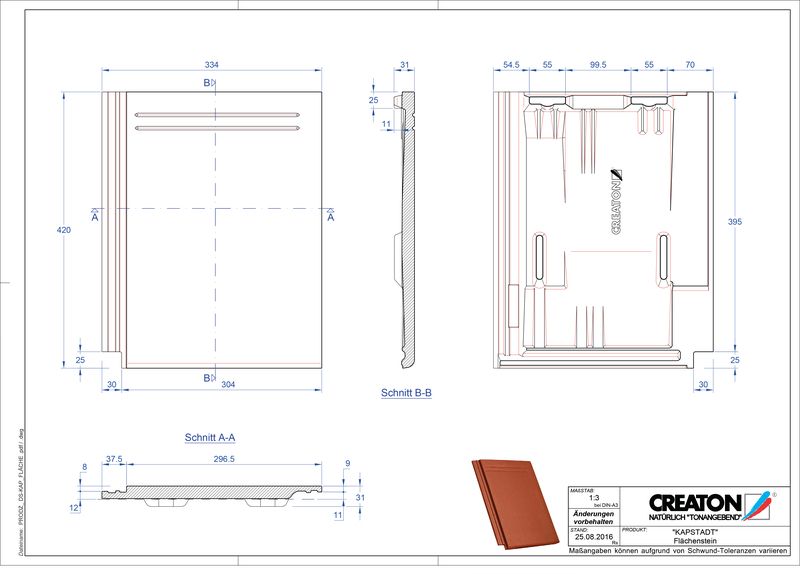

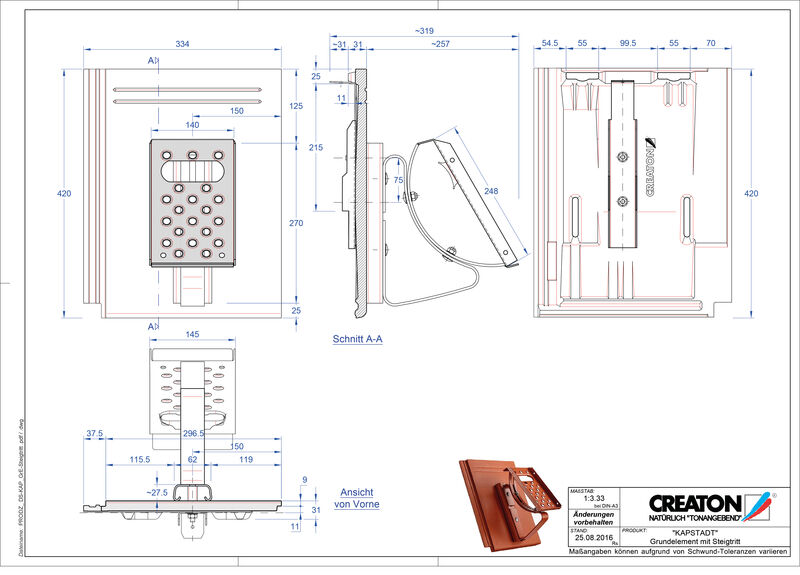

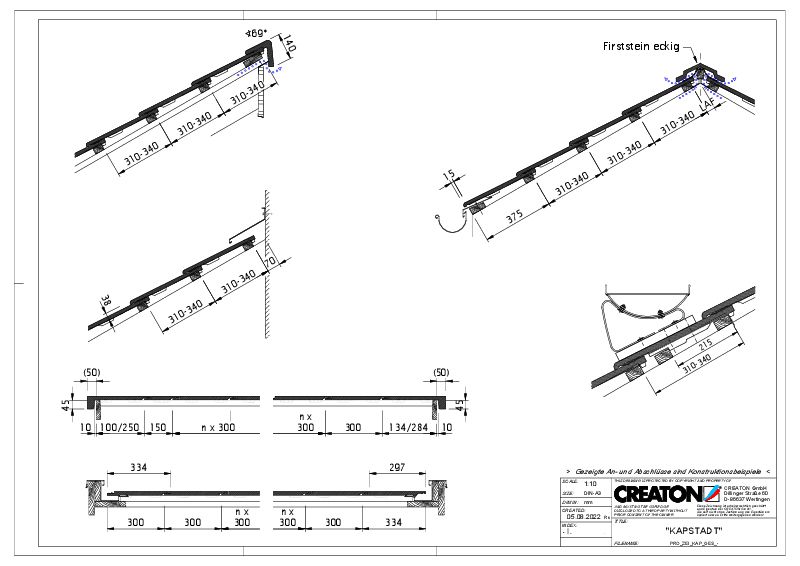

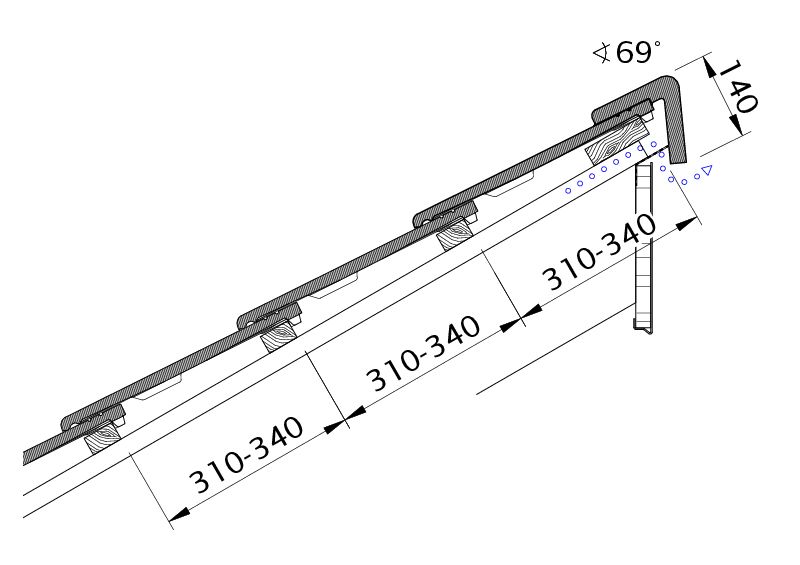

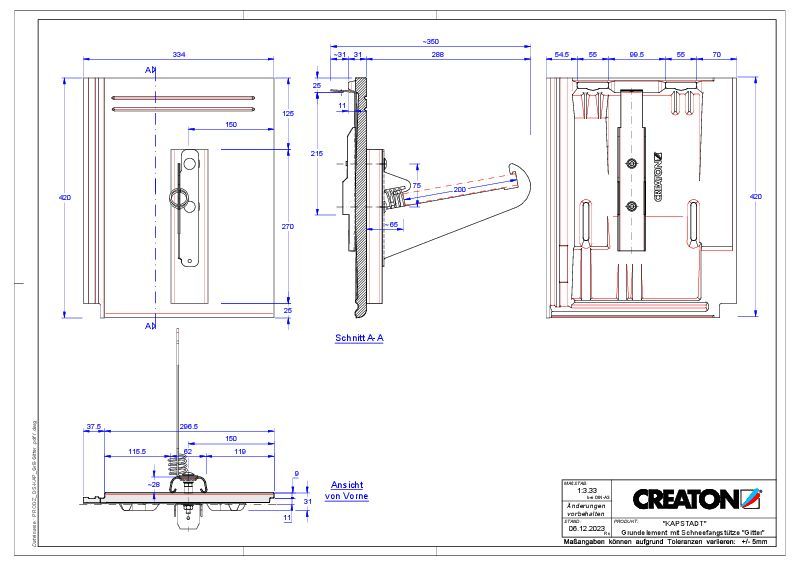

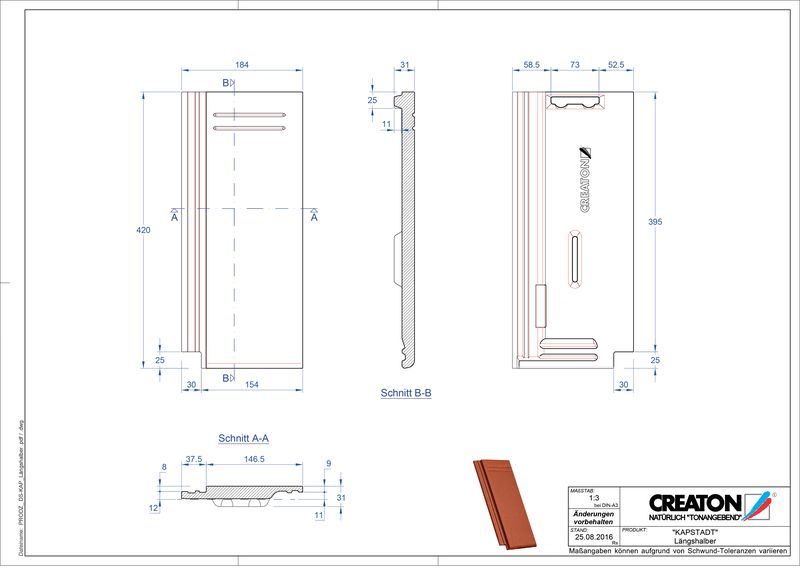

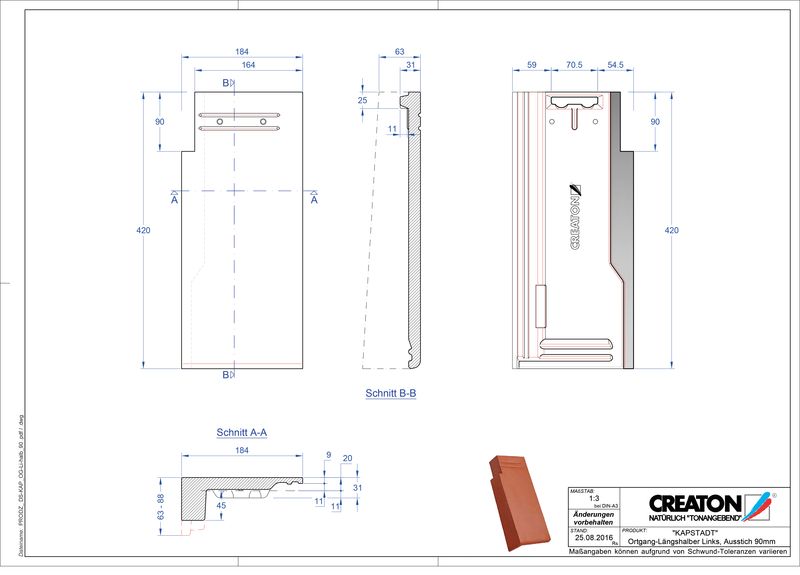

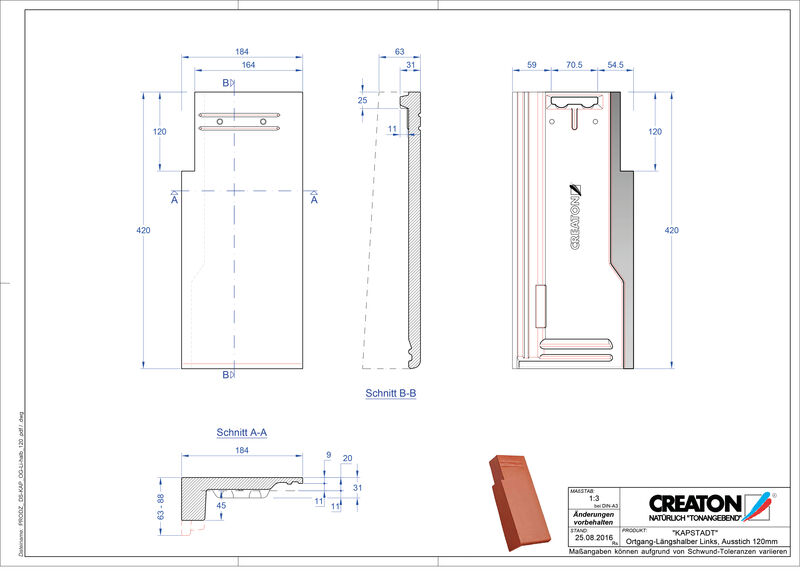

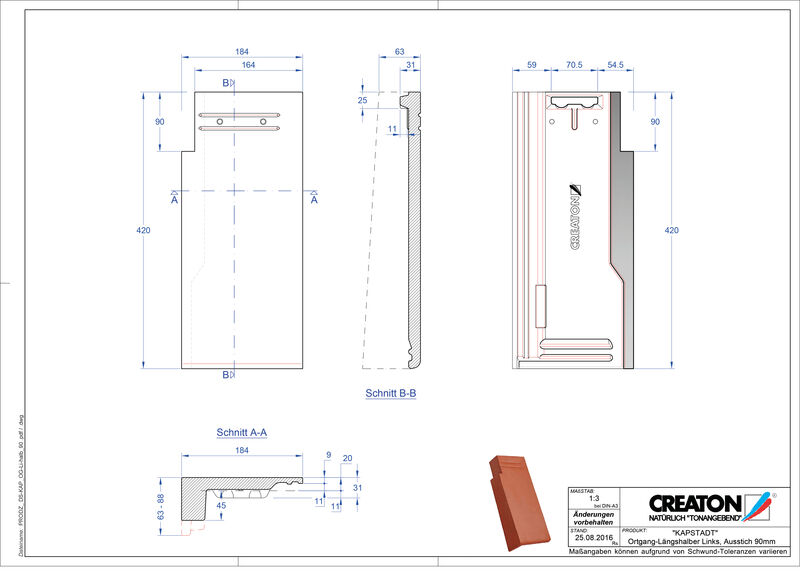

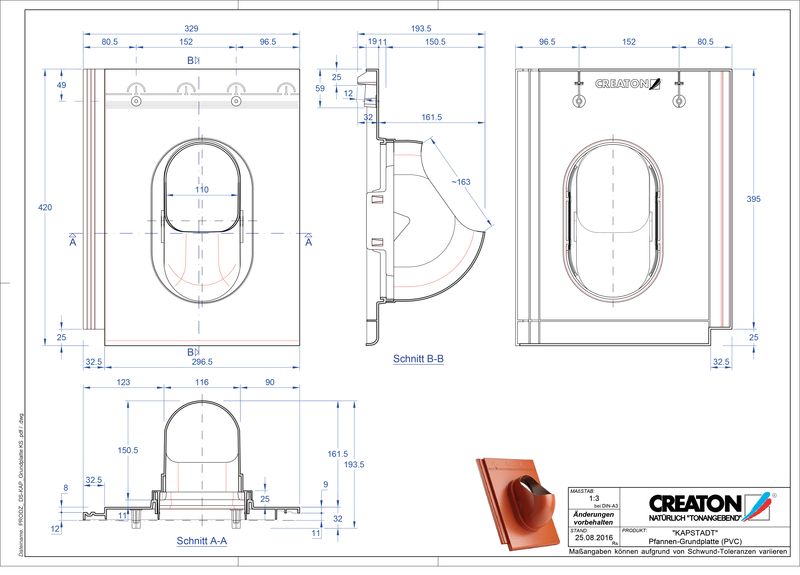

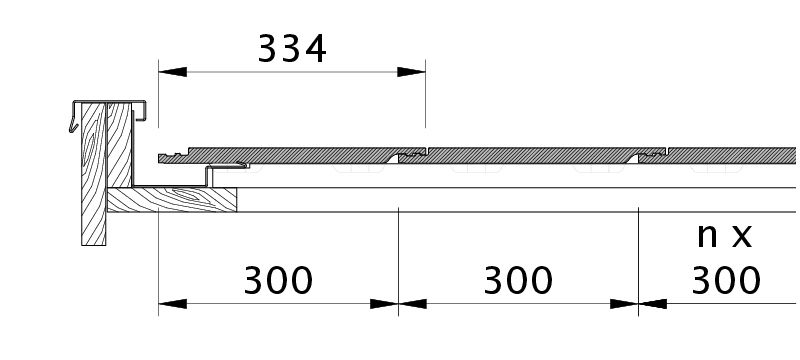

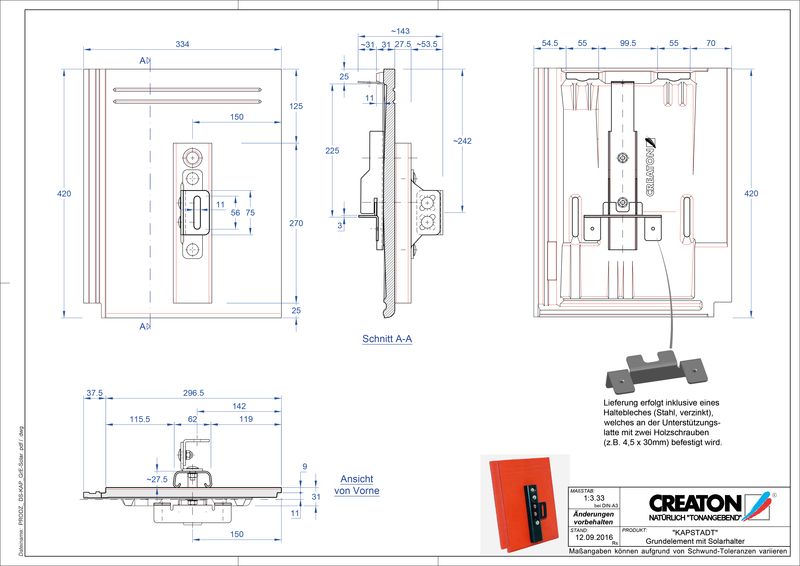

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Batten spacing / tile gauge is dependent on the roof pitch.
  • Only bonded covering is permissible.
  • Please consider the sample letter for the standard CREATON roof pitches.
  • If dust is created by cutting the stones, make sure that any residue created by this must be removed and disposed of immediately.

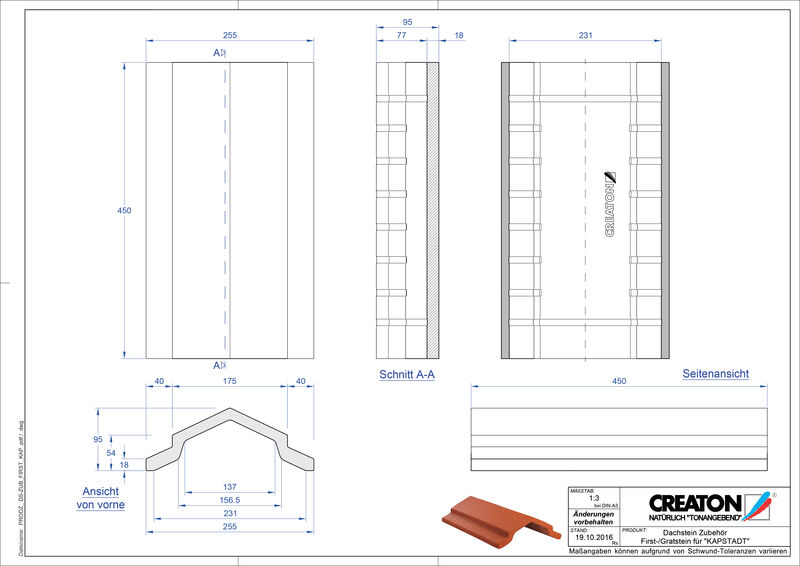

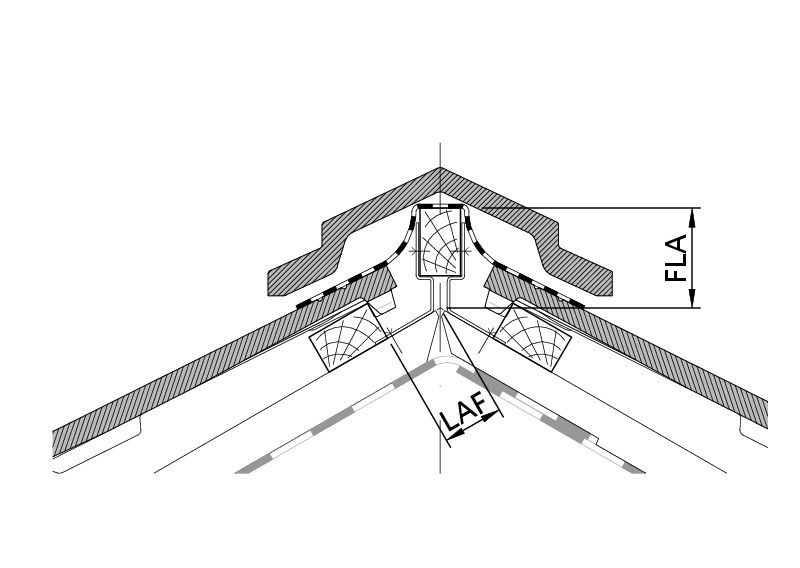

LAF-/FLA-VALUES

LAF-/FLA values in mm for 30x50-battens

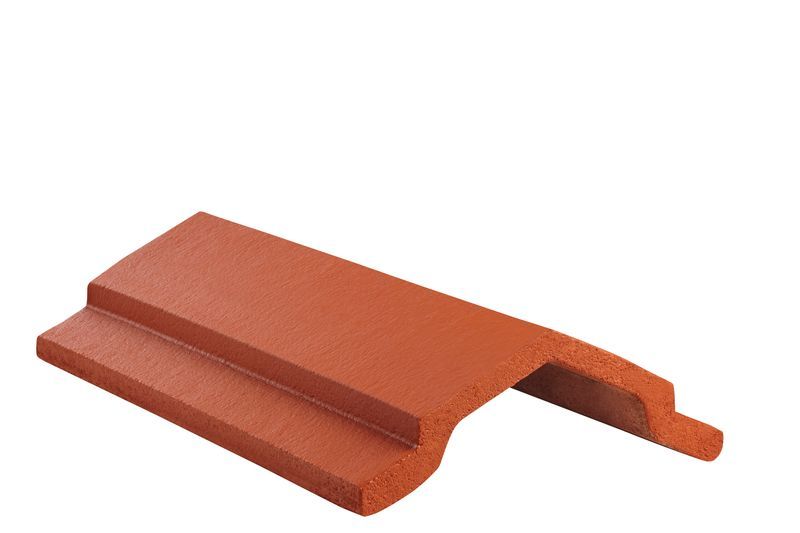

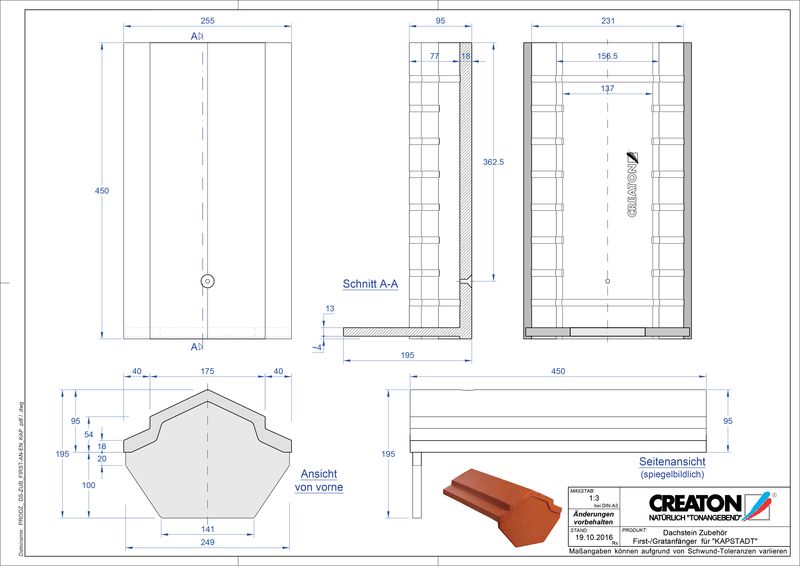

Concrete ridge tile requirement (approx.)DN15°20°25°30°35°40°45°50°
FIR 2.3 pcs/mLAF4545454545454545
FIR 2.3 pcs/mFLA10292837468615548
LAF-/FLA values in mm for 40x60-battens
Concrete ridge tile requirement (approx.)DN15°20°25°30°35°40°45°50°
FIR 2.3 pcs/mLAF4040404035353535
FIR 2.3 pcs/mFLA112103948680757064
