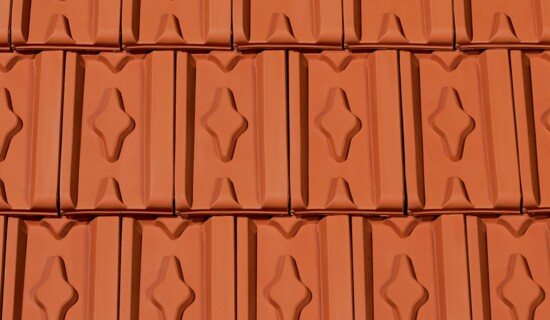

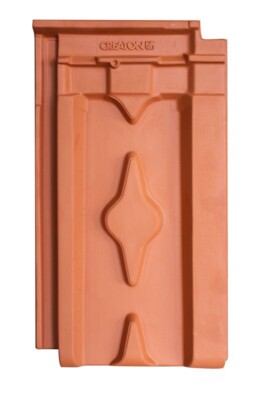

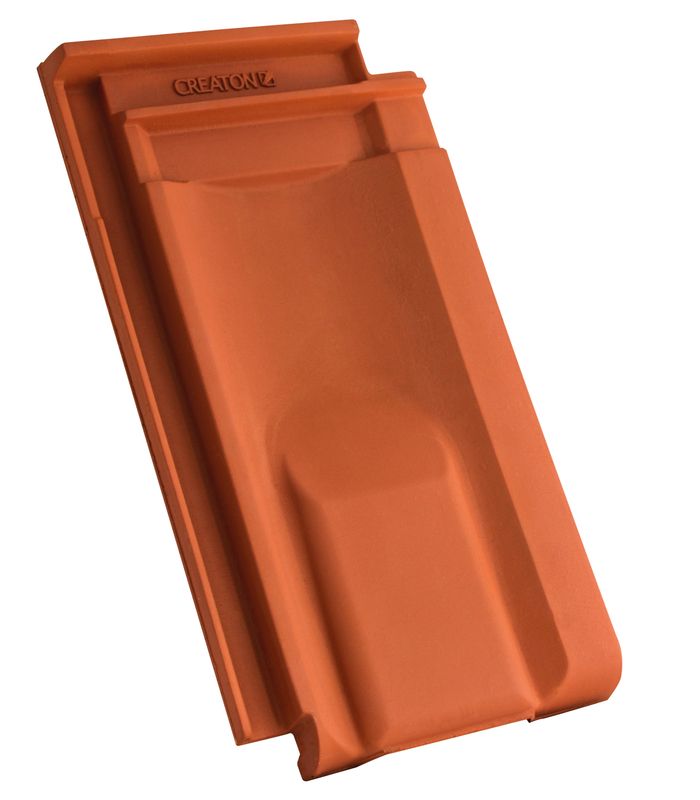

HERZZIEGEL natural red

HERZZIEGEL

The unmistakable interlocking tile.

  • Traditional model with snow stop effect
natural red
natural red

Technical data

Size (appr.)230 x 420 mm
Covering width min. approx.205 mm
Covering width on av. approx.207 mm
Max. coverage width (approx.)209 mm
Min. gauge (approx.)337 mm
Covering length on av. approx.344 mm
Max. gauge (approx.)350 mm
Tile requirement min. (approx.)13.7 pcs/m²
Average tile requirement (approx.)14.1 pcs/m²
Brickware max. approx.14.5 pcs/m²
Unit weight (approx.)3.1 kg/piece
Weight per m² (approx.)43.7 kg/m²
Weight per pallet (approx.)769 kg
Pcs per mini-pack5 piece
Pcs per pallet240 piece

Technical drawings

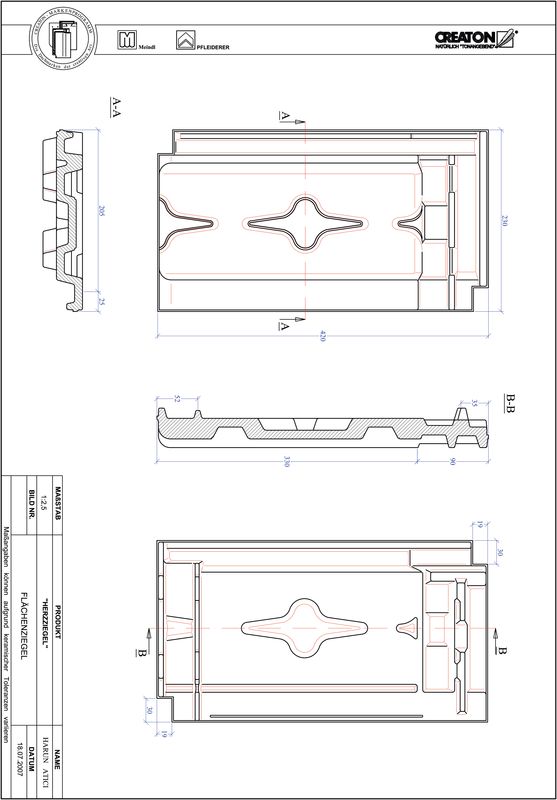

Drawing all models LAF-FLA
Drawing all models LAF-FLA

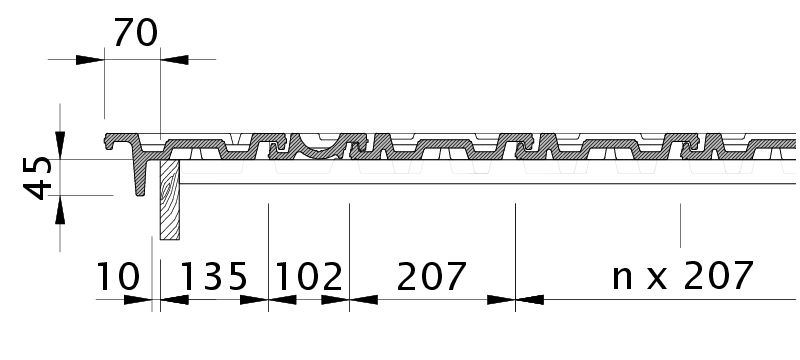

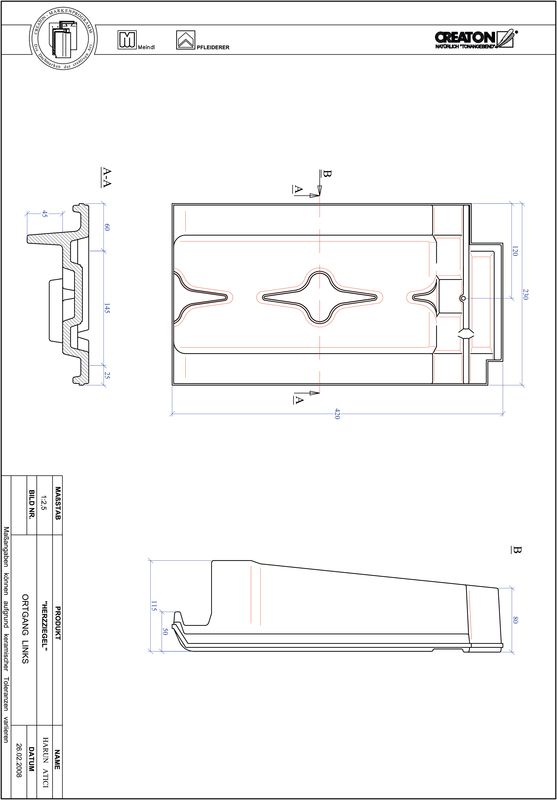

Drawing HERZ verge tile left with barge board OBL
Drawing HERZ verge tile left with barge board OBL

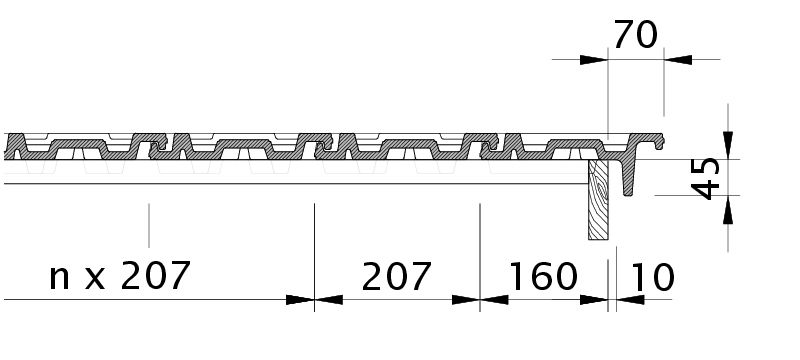

Drawing HERZ verge tile right with barge board OBR
Drawing HERZ verge tile right with barge board OBR

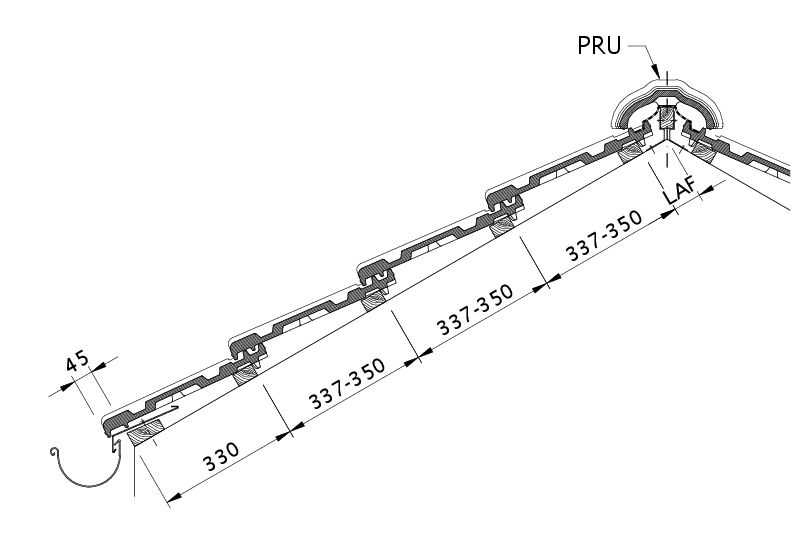

Drawing HERZ roof cross-section DQF
Drawing HERZ roof cross-section DQF

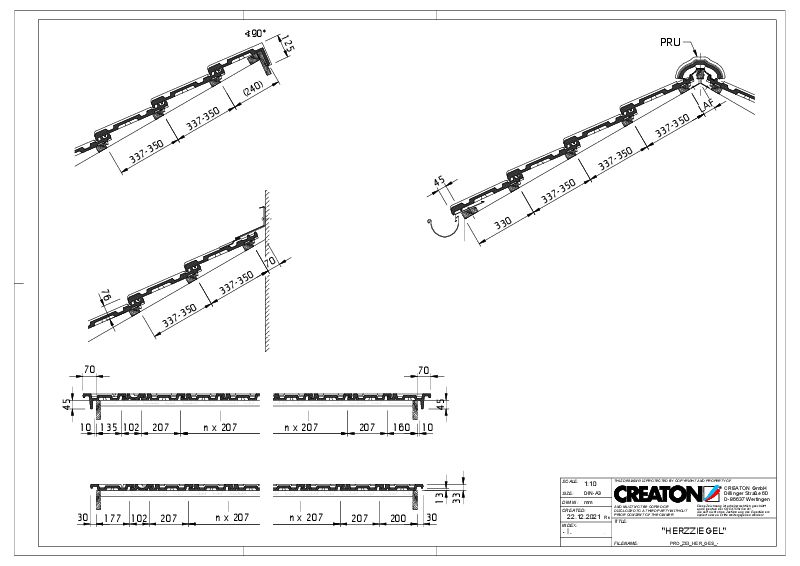

Drawing HERZZIEGEL general view GES
Drawing HERZZIEGEL general view GES

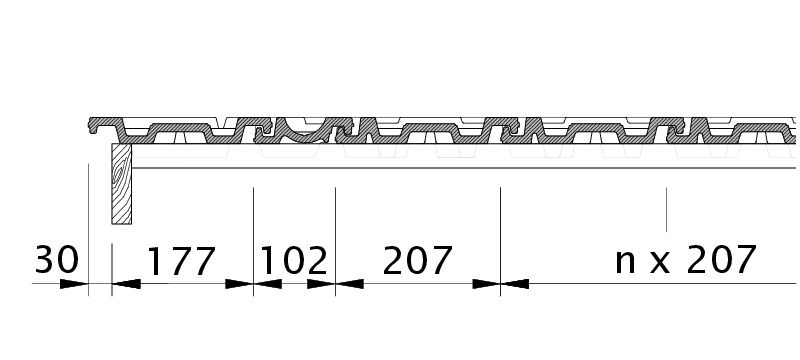

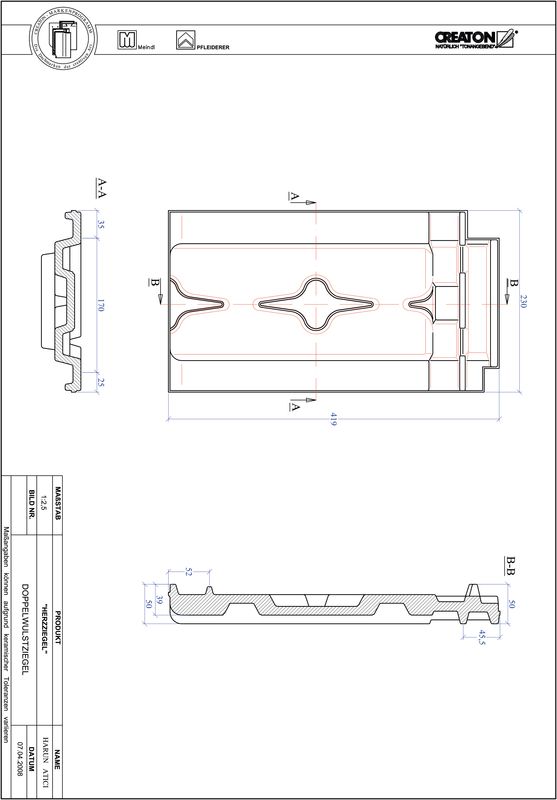

Drawing HERZZIEGEL verge left with verge sheet metal and double roll ODL
Drawing HERZZIEGEL verge left with verge sheet metal and double roll ODL

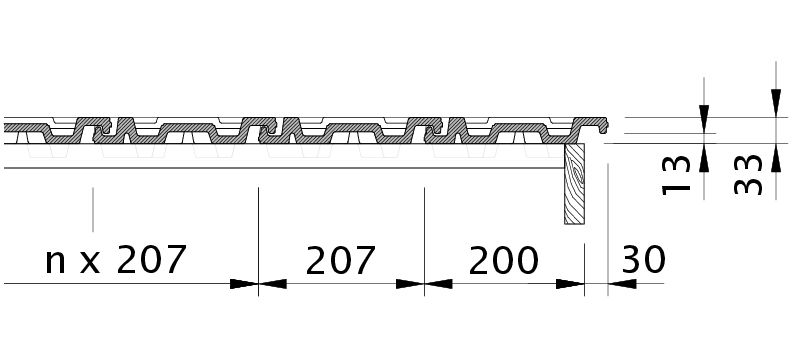

Drawing HERZZIEGEL verge right with verge sheet metal and field tile OFR
Drawing HERZZIEGEL verge right with verge sheet metal and field tile OFR

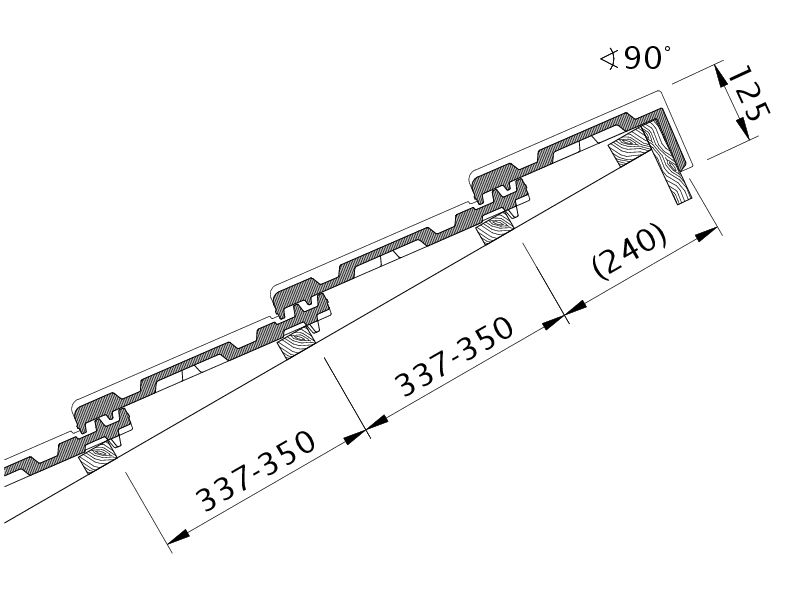

Drawing HERZ shed roof version PDA
Drawing HERZ shed roof version PDA

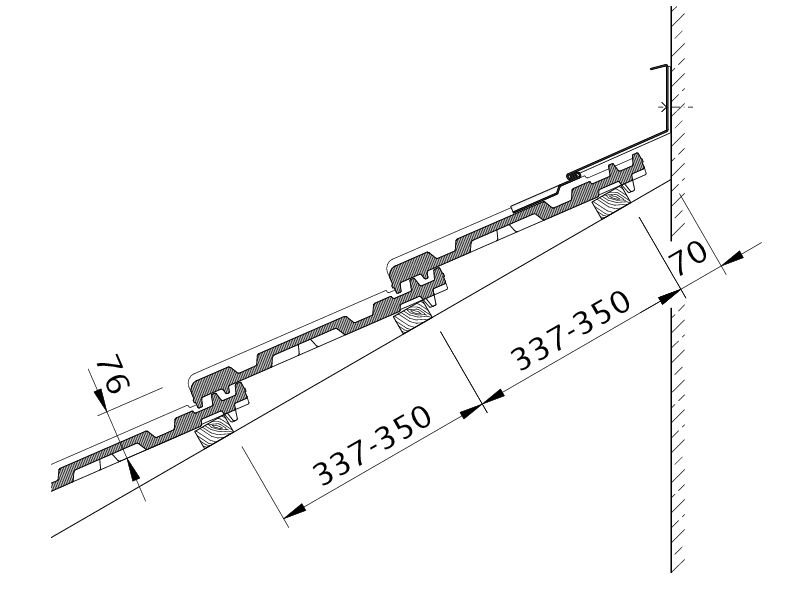

Drawing HERZ wall connection (above) with FALZ WMF
Drawing HERZ wall connection (above) with FALZ WMF
Drawing ridge and hip tile product range PZ-Firstziegel
Drawing ridge and hip tile product range PZ-Firstziegel
Drawing ridge and hip tile product range PZ-Firstziegel-Perspektive
Drawing ridge and hip tile product range PZ-Firstziegel-Perspektive

Applications

Additional measures according to CREATON manufacturer's specifications
24 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 24 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 22 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 22 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 18 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN20°25°30°35°40°45°50°
PRU 2.5 pcs/mLAF70656060555050
PRU 2.5 pcs/mFLA100908580656050
PZ 2.5 pcs/mLAF70656060555050
PZ 2.5 pcs/mFLA80706555504535
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN20°25°30°35°40°45°50°
PRU 2.5 pcs/mLAF70605555504035
PRU 2.5 pcs/mFLA1101009590757060
PZ 2.5 pcs/mLAF70605555504035
PZ 2.5 pcs/mFLA90807565605545
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN20°25°30°35°40°45°50°
PRU 2.5 pcs/mLAF65555045403025
PRU 2.5 pcs/mFLA120110105105908580
PZ 2.5 pcs/mLAF65555045403025
PZ 2.5 pcs/mFLA100908580757065

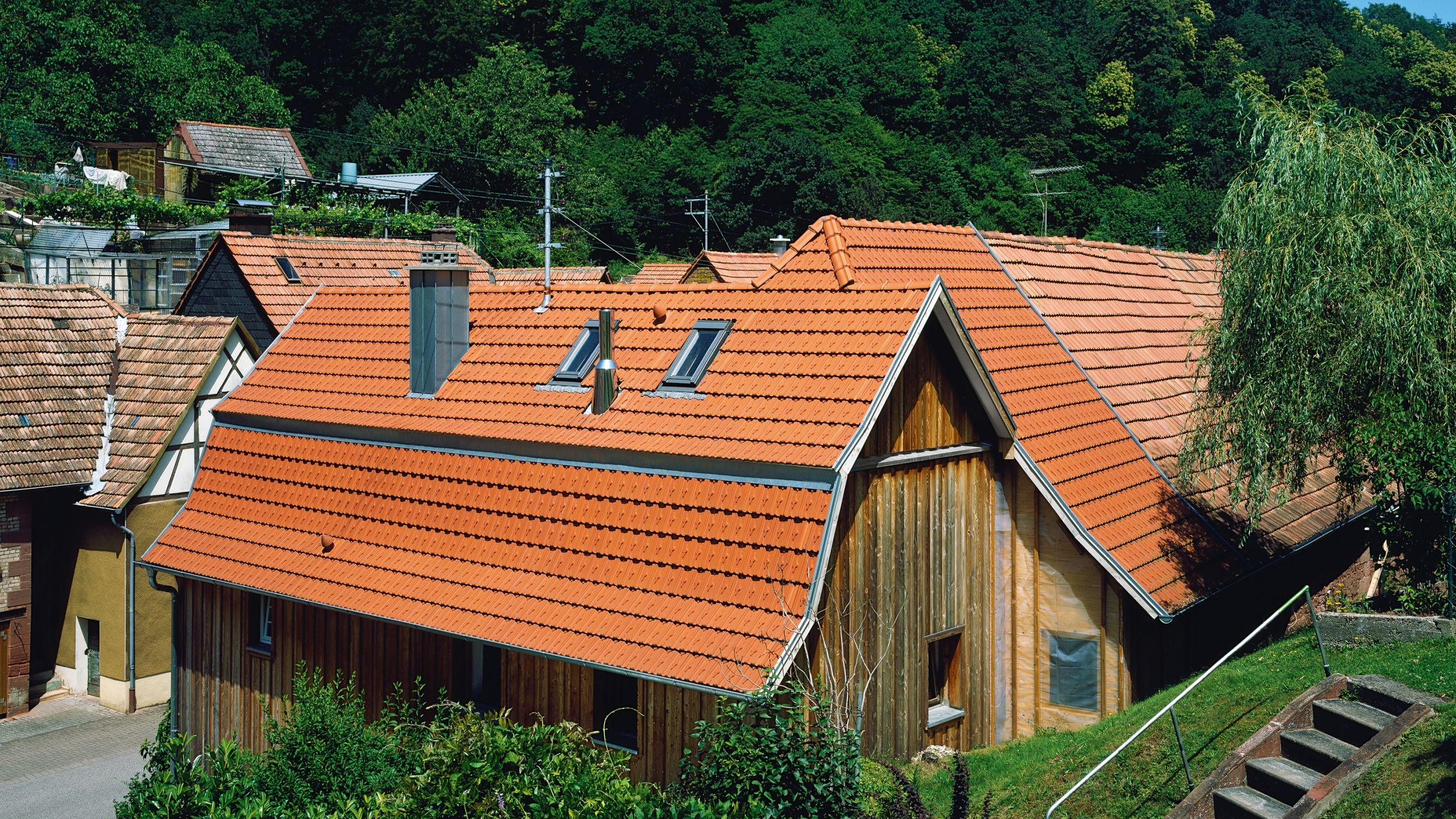

References

more

more

more

Accessory range

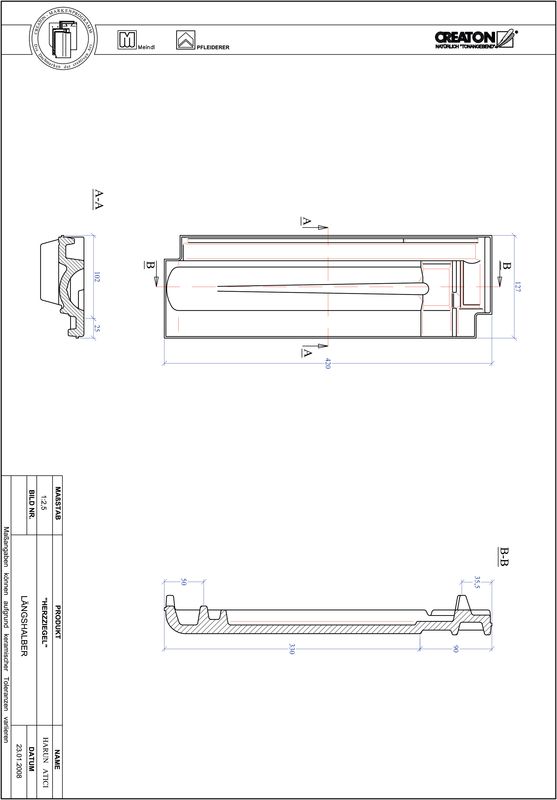

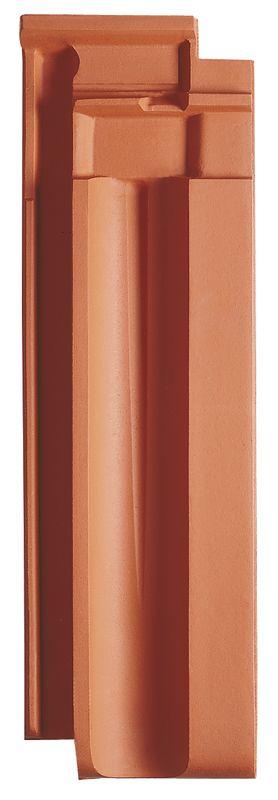

HER half-width tile

HER half-width tile

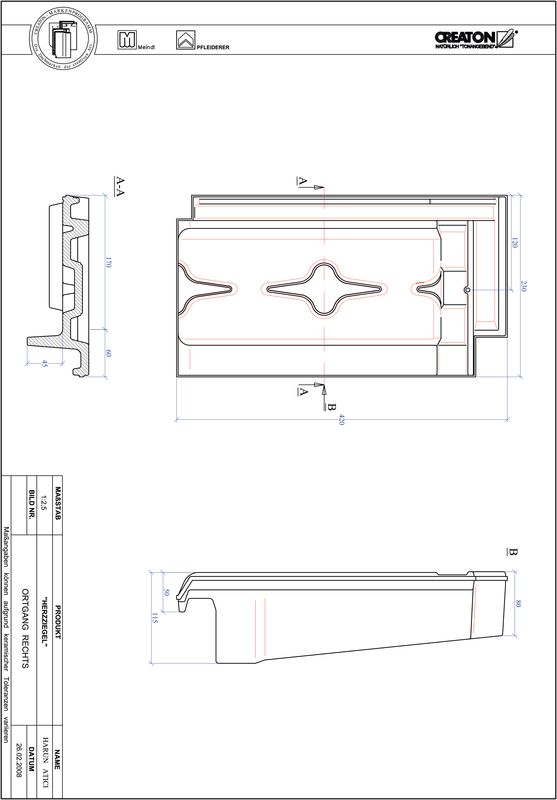

HER verge tile right

HER verge tile right

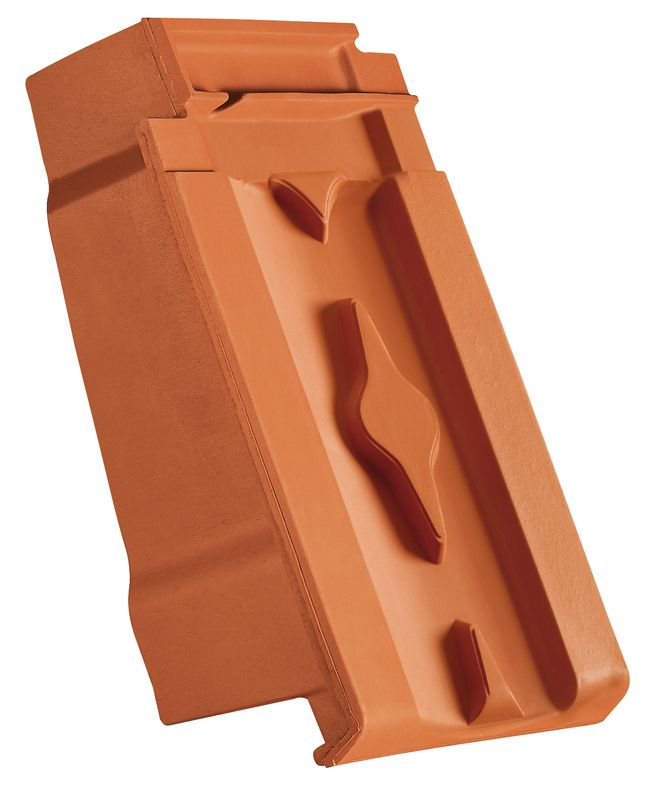

HER verge tile left

HER verge tile left

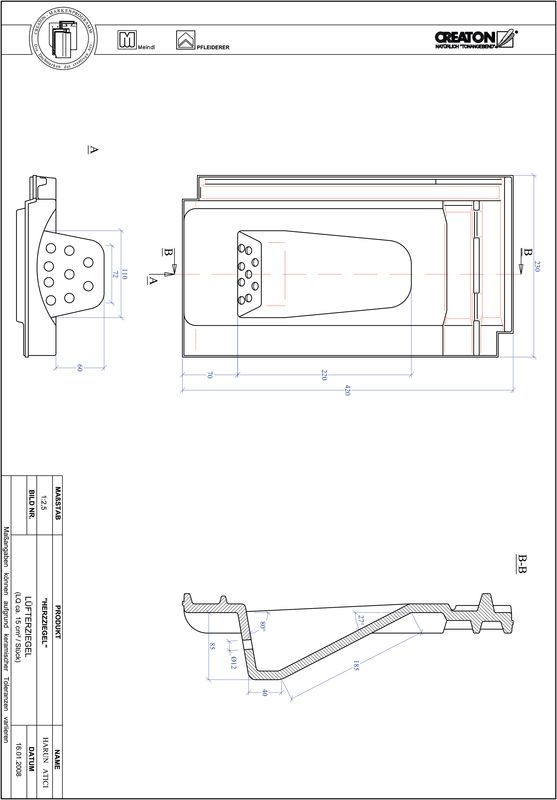

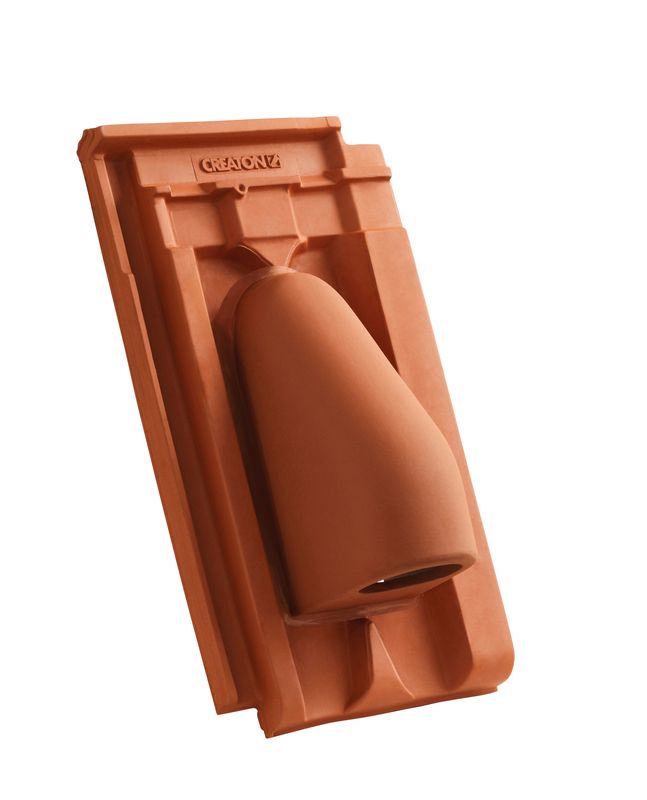

HER ventilating tile

HER ventilating tile

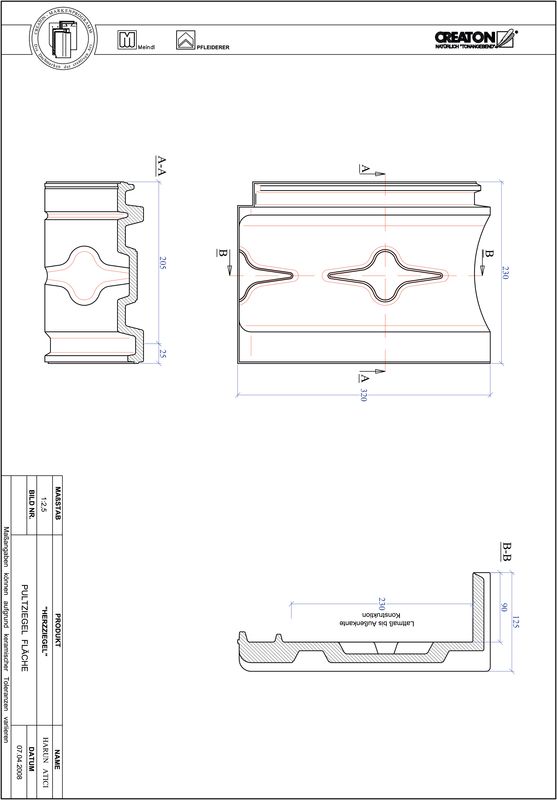

HER shed roof tile decorated standard

HER shed roof tile decorated standard

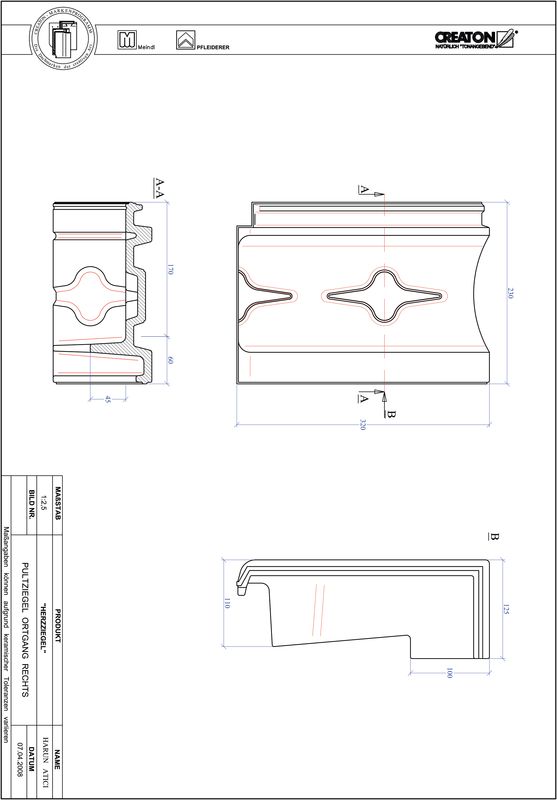

HER shed roof verge tile decorated standard right

HER shed roof verge tile decorated standard right

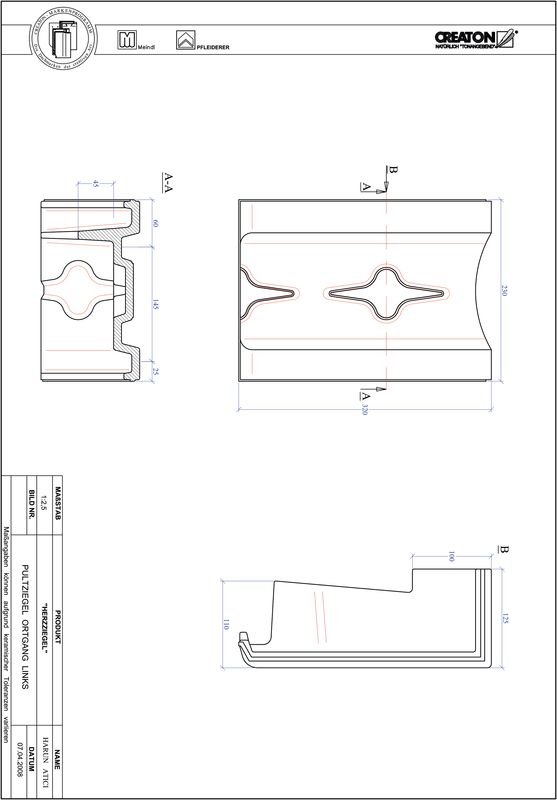

HER shed roof verge tile decorated standard left

HER shed roof verge tile decorated standard left

HER shed roof tile decorated special size

HER shed roof tile decorated special size

HER shed roof verge tile decorated special size right

HER shed roof verge tile decorated special size right

HER shed roof verge tile decorated special size left

HER shed roof verge tile decorated special size left

HER mansard/pitch transition tile decorated special size

HER mansard/pitch transition tile decorated special size

HER mansard/pitch transition verge tile decorated special size right

HER mansard/pitch transition verge tile decorated special size right

HER mansard/pitch transition verge tile decorated special size left

HER mansard/pitch transition verge tile decorated special size left

WER universal shed roof tile PDZ

WER universal shed roof tile PDZ

WER universal shed roof starter and termination plate PDZ

WER universal shed roof starter and termination plate PDZ

Ridge clip aluminium universal shed roof tile

Ridge clip aluminium universal shed roof tile

Product range for roof ventilation and penetrations

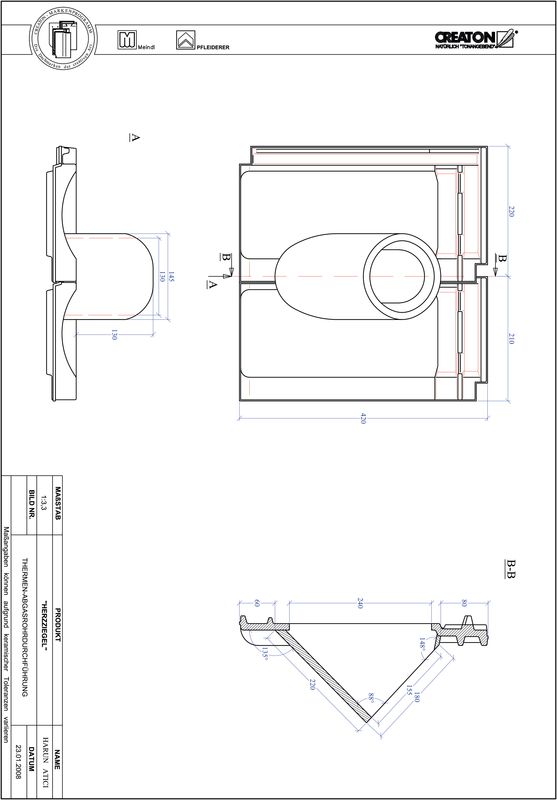

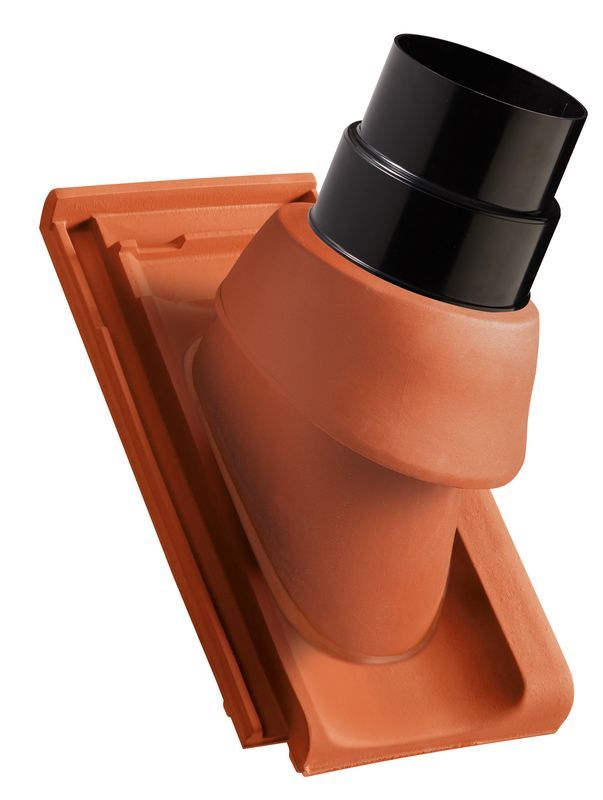

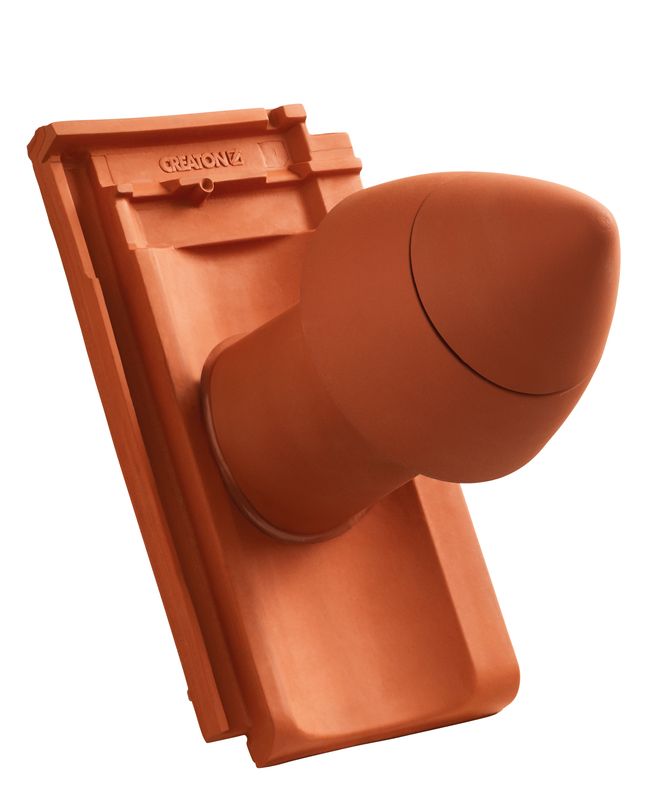

HER SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

HER SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

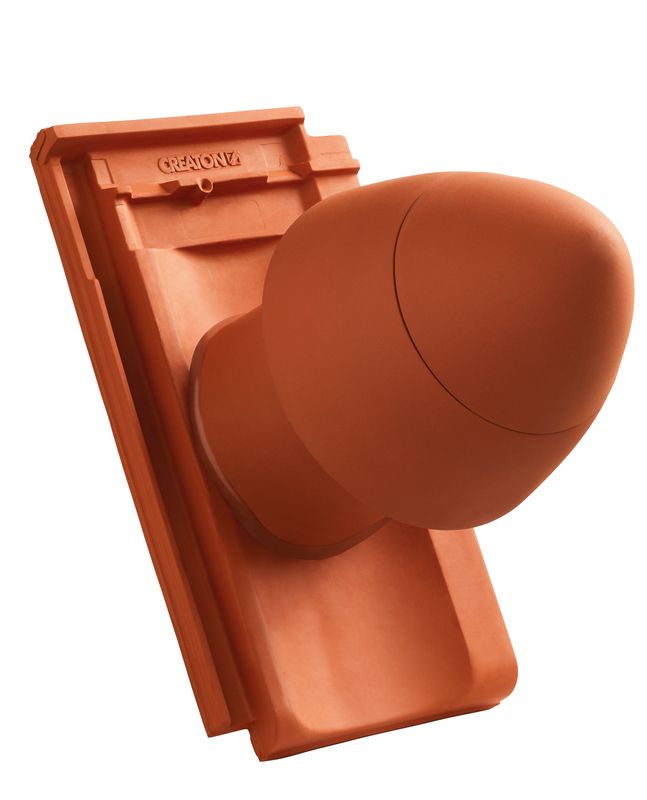

HER SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

HER SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

HER SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

HER SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

HER SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

HER SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

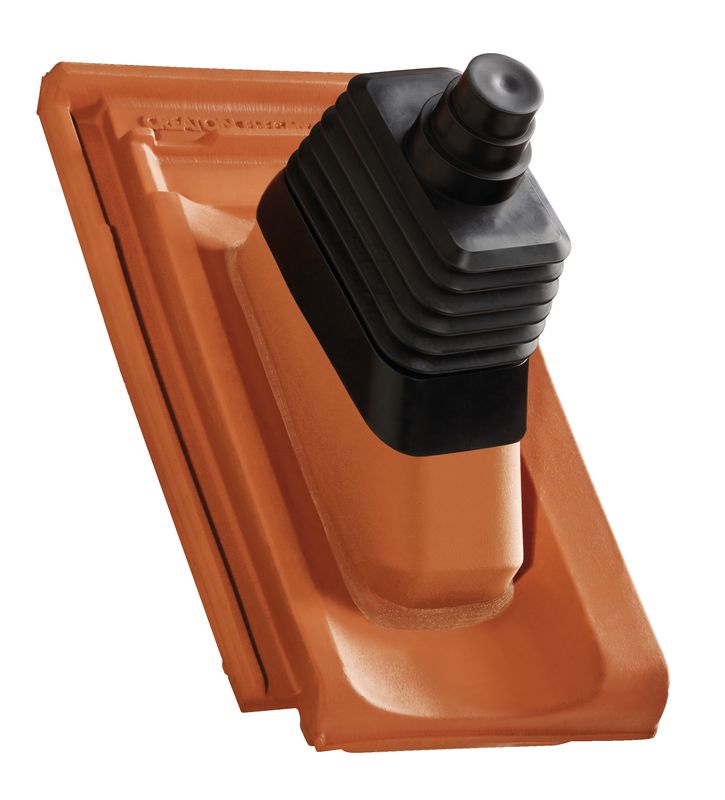

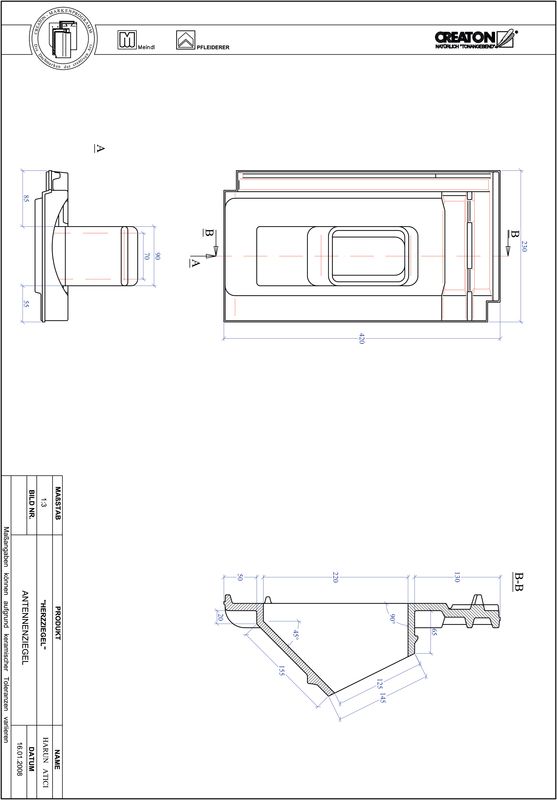

HER aerial entry

HER aerial entry

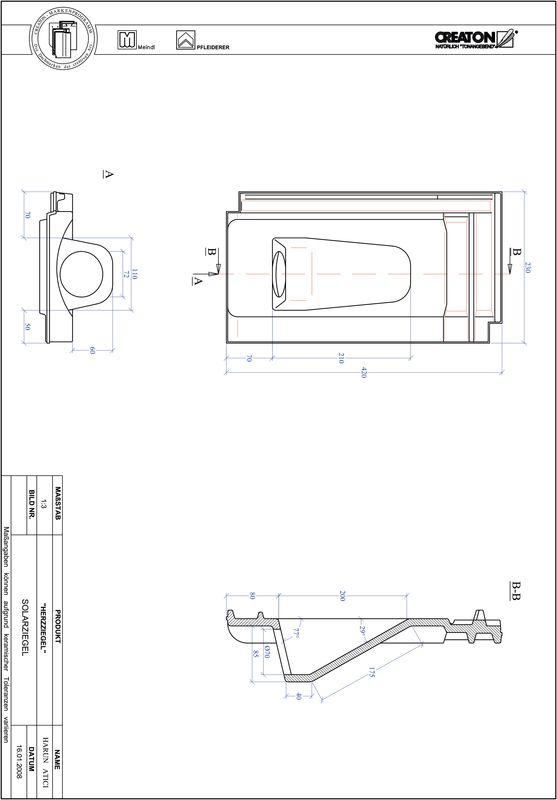

HER solar entry tile

HER solar entry tile

HER flue pipe penetration NW 110/125

HER flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Product range for snow protection, roof access and solar installation in metal

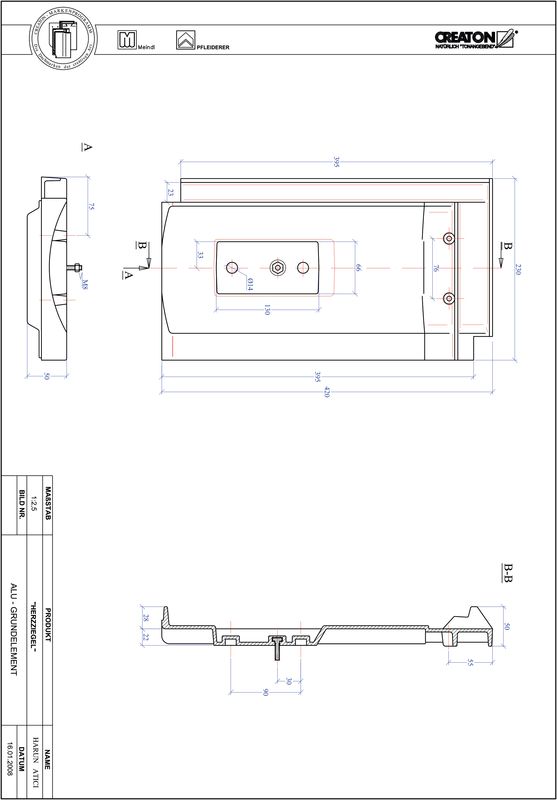

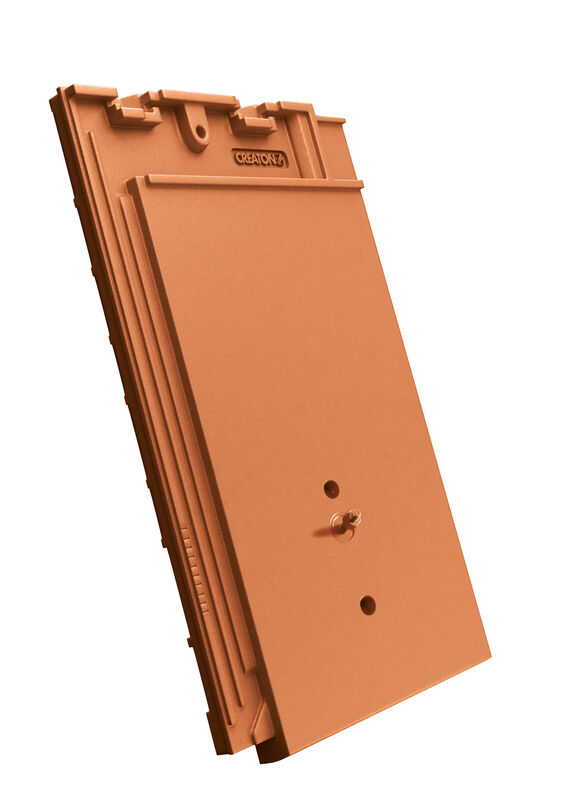

HER aluminium base element

HER aluminium base element

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

HER solar system bracket kit for plank installation

HER solar system bracket kit for plank installation

HER solar system bracket kit for rafter installation

HER solar system bracket kit for rafter installation

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

Snow clip aluminium type 20

Snow clip aluminium type 20

Product range for roof details and uplift protection

HER transparent tile (acrylic)

HER transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, drive-in clip, type N4 (DOM, CAN, ELE, HER, RAT, RUS, VIS)

Storm clip in zinc-aluminium, drive-in clip, type N4 (DOM, CAN, ELE, HER, RAT, RUS, VIS)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

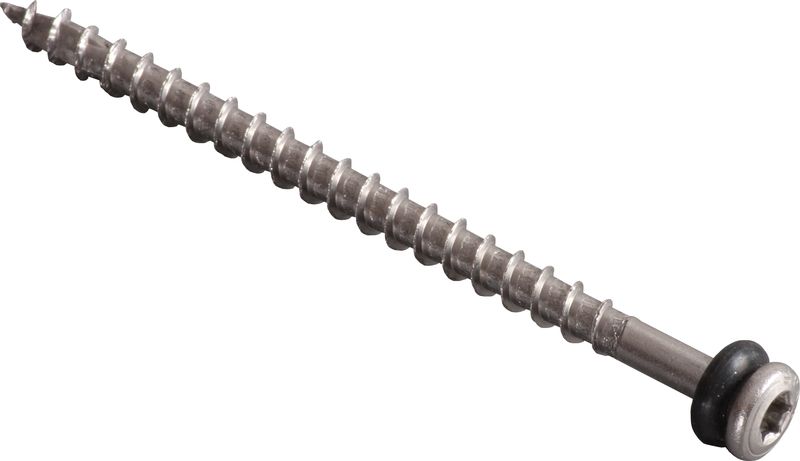

Stainless steel screw with seal, length 70 mm

Stainless steel screw with seal, length 70 mm

Hip and valley clip 13-17 mm

Hip and valley clip 13-17 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Ridge and hip tile product range

WER ridge tile PRU

WER ridge tile PRU

WER ridge starter and termination plate ceramic PRU

WER ridge starter and termination plate ceramic PRU

WER function starter and termination plate ceramic PRU

WER function starter and termination plate ceramic PRU

WER hip starter ceramic PRU

WER hip starter ceramic PRU

WER hip cap 3-axis PRU

WER hip cap 3-axis PRU

WER hip cap 4-axis PRU

WER hip cap 4-axis PRU

Ridge clip aluminium PRU

Ridge clip aluminium PRU

WER ridge tile PZ

WER ridge tile PZ

WER ridge starter and termination plate ceramic PZ

WER ridge starter and termination plate ceramic PZ

WER function starter and termination plate ceramic PMoN

WER function starter and termination plate ceramic PMoN

WER hip starter ceramic PZ

WER hip starter ceramic PZ

ROG hip starter ceramic round connection PZ

ROG hip starter ceramic round connection PZ

WER hip starter ceramic with scallop PZ

WER hip starter ceramic with scallop PZ

Ridge clip aluminium PZ

Ridge clip aluminium PZ
