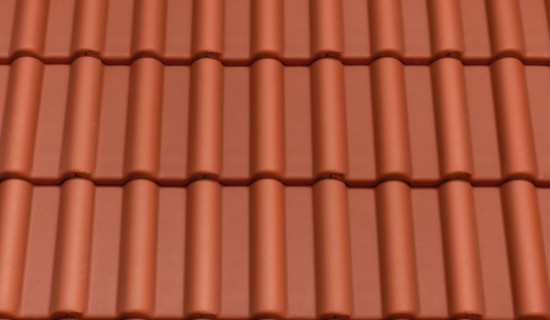

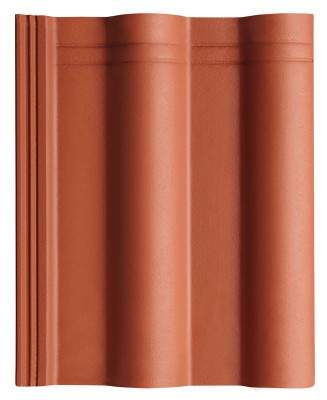

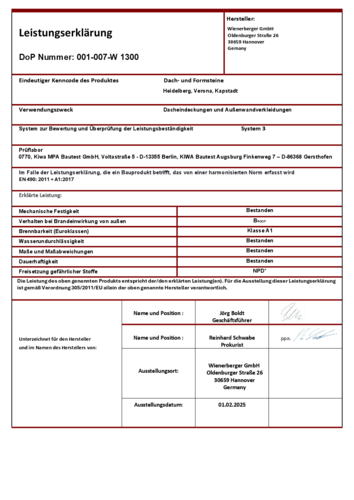

HEIDELBERG classic red

HEIDELBERG

The Classic

  • Traditional timeless shape for new construction and renovation
  • Double water traps provide extra protection against rain intrusion
  • Rounded lower edge for better water discharge and prevention of edge staining
  • Solid support strip at the suspension lug to prevent saturation at the roof batten
  • Distinctive bottom ribbing reduces the penetration of drifting snow or driving rain
  • High side interlock with joint open to the side provides helps water drain more effectively, reduces strain on the interlock relief and prevents the growth of moss
planar classic red
planar classic red
planar brick red
planar brick red
planar dark brown
planar dark brown
planar dark grey
planar dark grey
planar zinc grey
planar zinc grey
planar titanium grey
planar titanium grey
planar perla classic red perla
planar perla classic red perla
planar perla dark red perla
planar perla dark red perla
planar perla dark grey perla
planar perla dark grey perla

Technical data

Size (appr.)334 x 420 mm
Covering width min. approx.300 mm
Covering width on av. approx.300 mm
Max. coverage width (approx.)300 mm
Min. gauge (approx.)310 mm
Covering length on av. approx.328 mm
Max. gauge (approx.)345 mm
Tile requirement min. (approx.)9.7 pcs/m²
Average tile requirement (approx.)10.2 pcs/m²
Brickware max. approx.10.7 pcs/m²
Unit weight (approx.)4.5 kg/piece
Weight per m² (approx.)45.9 kg/m²
pcs per package40 piece

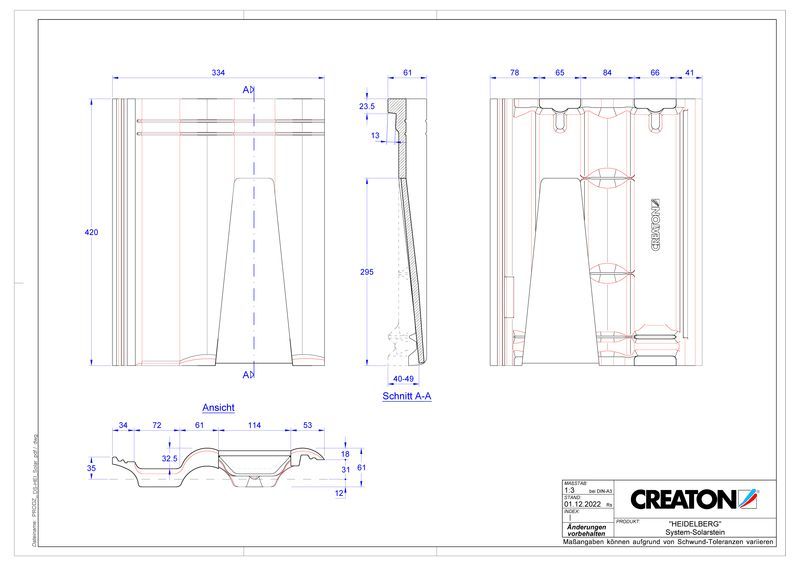

Technical drawings

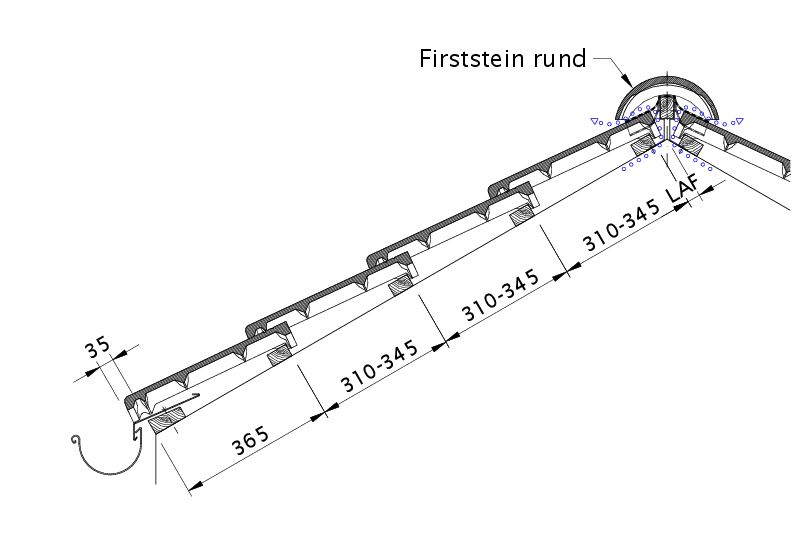

Drawing HEIDELBERG roof cross-section DQF
Drawing HEIDELBERG roof cross-section DQF

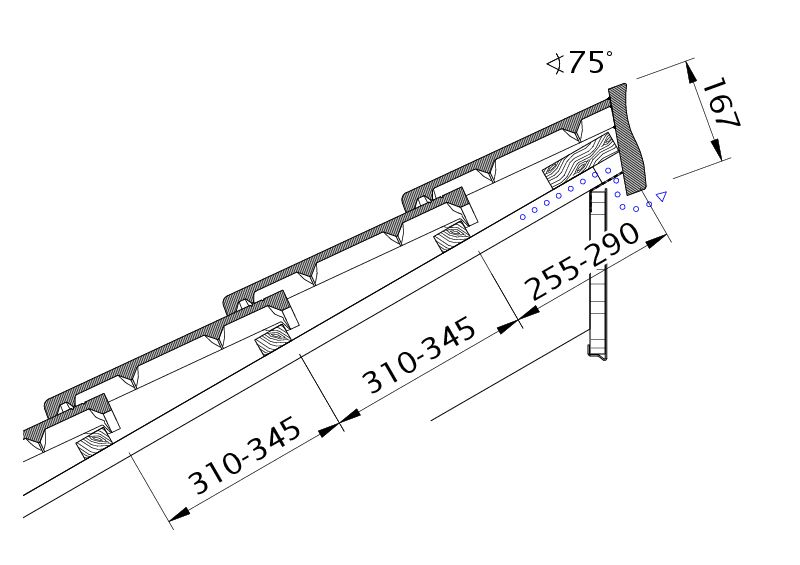

Drawing HEIDELBERG shed roof version PDA
Drawing HEIDELBERG shed roof version PDA

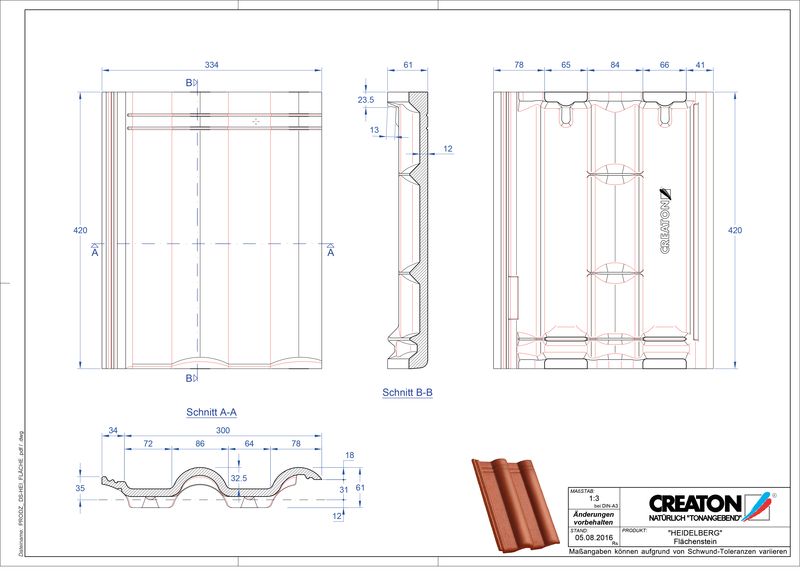

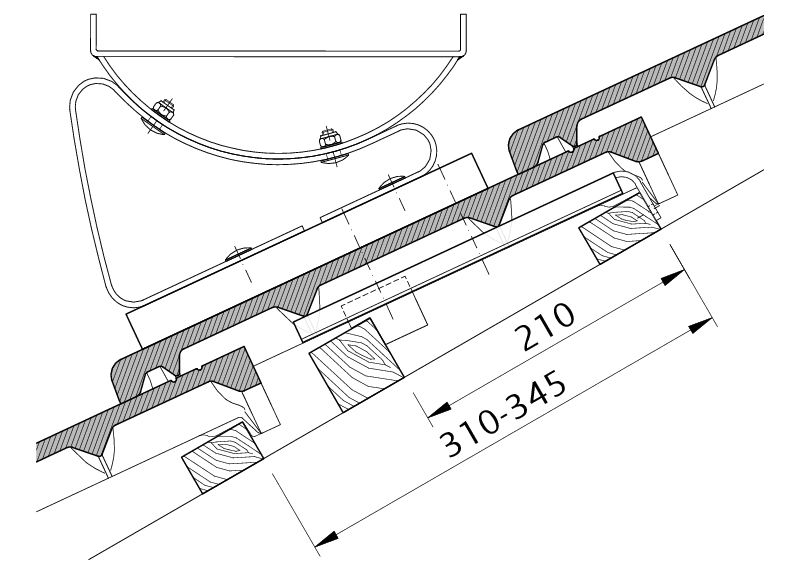

Drawing HEIDELBERG functional concrete tile FUK
Drawing HEIDELBERG functional concrete tile FUK

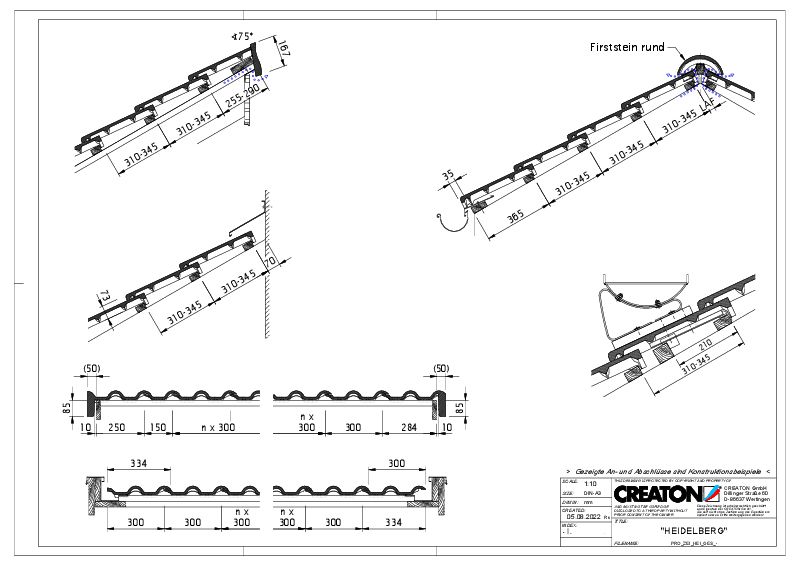

Drawing HEIDELBERG general view GES
Drawing HEIDELBERG general view GES

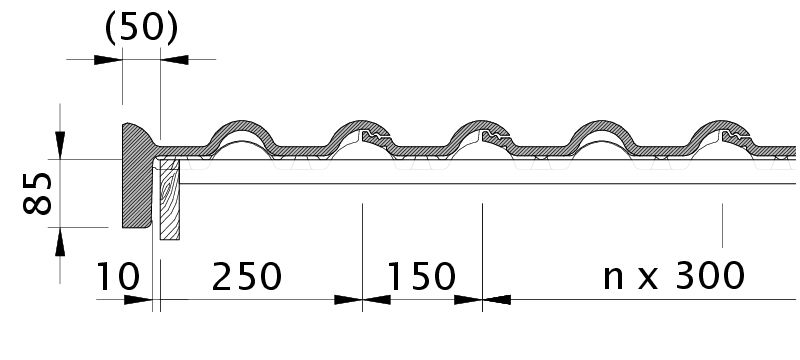

Zeichnung HEIDELBERG Ortgangstein links mit Ortgangbrett OBL
Zeichnung HEIDELBERG Ortgangstein links mit Ortgangbrett OBL

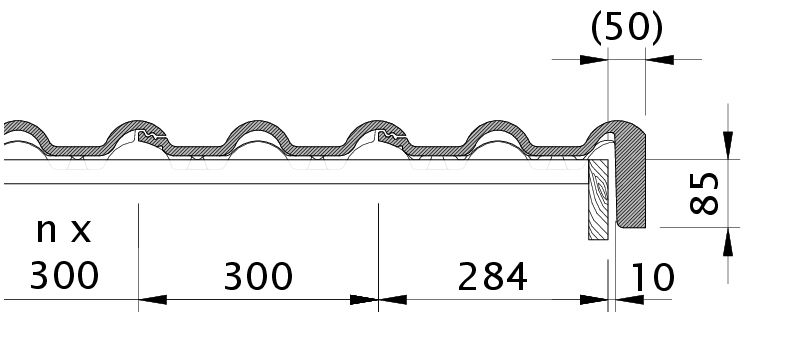

Zeichnung HEIDELBERG Ortgangstein rechts mit Ortgangbrett OBR
Zeichnung HEIDELBERG Ortgangstein rechts mit Ortgangbrett OBR

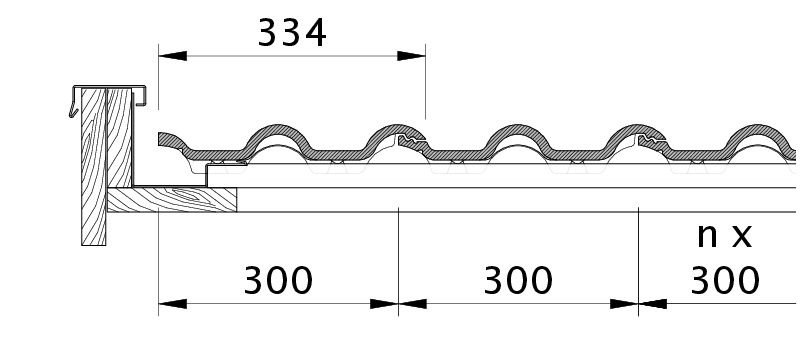

Zeichnung HEIDELBERG OG li. m. Flächenstein und Blechausführung OGLBL
Zeichnung HEIDELBERG OG li. m. Flächenstein und Blechausführung OGLBL

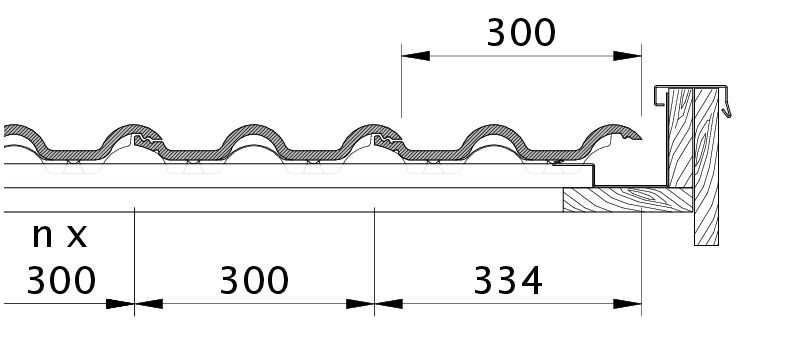

Zeichnung HEIDELBERG OG li. m. Ortgangstein u. Ortgangbrett OGLBR
Zeichnung HEIDELBERG OG li. m. Ortgangstein u. Ortgangbrett OGLBR

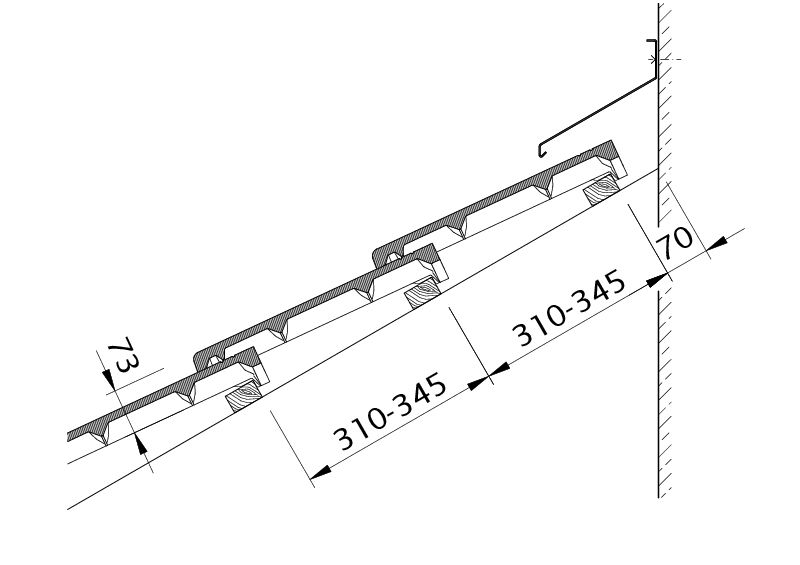

Zeichnung HEIDELBERG Wandanschluss oben mit FALZ WMF
Zeichnung HEIDELBERG Wandanschluss oben mit FALZ WMF

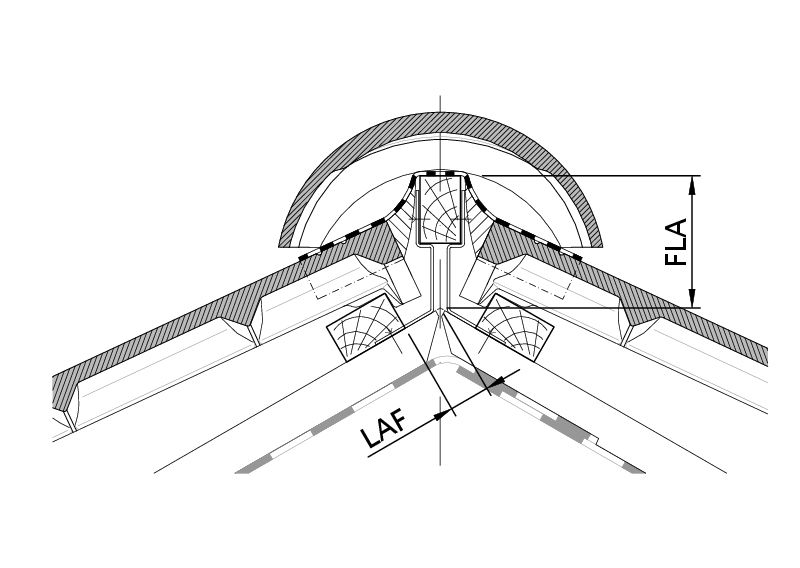

Drawing HEIDELBERG distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing HEIDELBERG distance from batten to ridge intersection point, ridge batten spacing LAF

Applications

Additional measures according to CREATON manufacturer's specifications
18 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥18 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥16 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥14 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Batten spacing / tile gauge is dependent on the roof pitch.
  • Please consider the sample letter for the standard CREATON roof pitches.
  • If dust is created by cutting the stones, make sure that any residue created by this must be removed and disposed of immediately.

LAF-/FLA-VALUES

LAF-/FLA values in mm for 30x50-battens
Concrete ridge tile requirement (approx.)DN15°20°25°30°35°40°45°50°55°60°
FIR 2.5 pcs/mLAF35333230292826252525
FIR 2.5 pcs/mFLA11310710298938985827976
LAF-/FLA values in mm for 40x60-battens
Concrete ridge tile requirement (approx.)DN15°20°25°30°35°40°45°50°55°60°
FIR 2.5 pcs/mLAF35333230292826252525
FIR 2.5 pcs/mFLA12211711210810410198928986

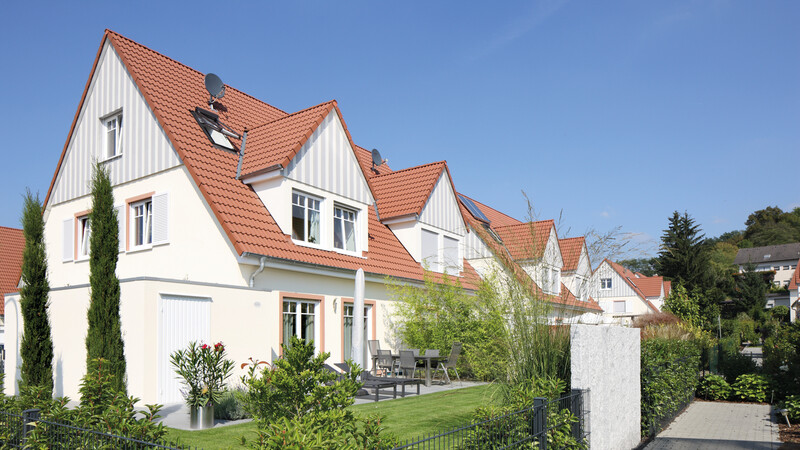

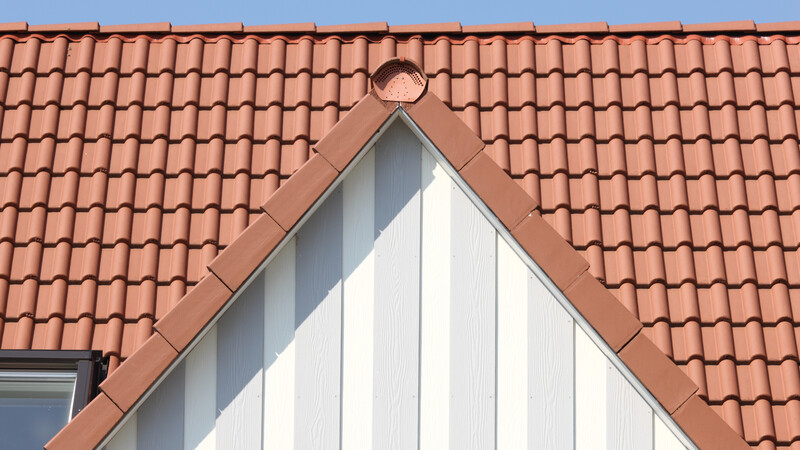

References

more

more

more

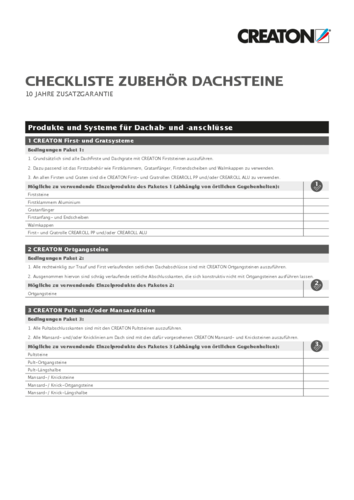

Accessory range

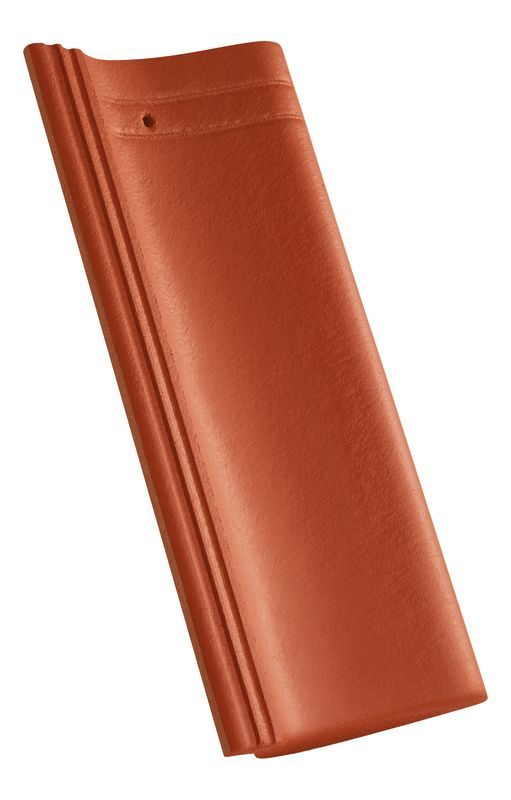

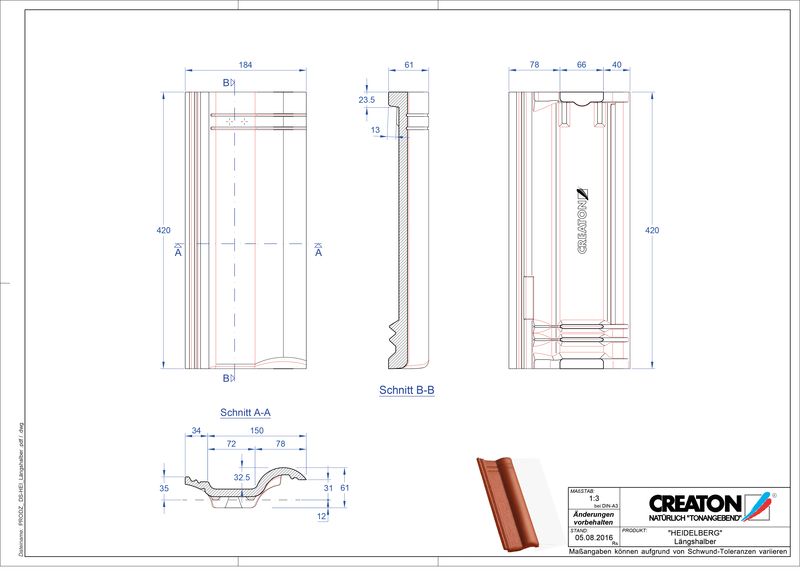

HEI concrete half-width tile

HEI concrete half-width tile

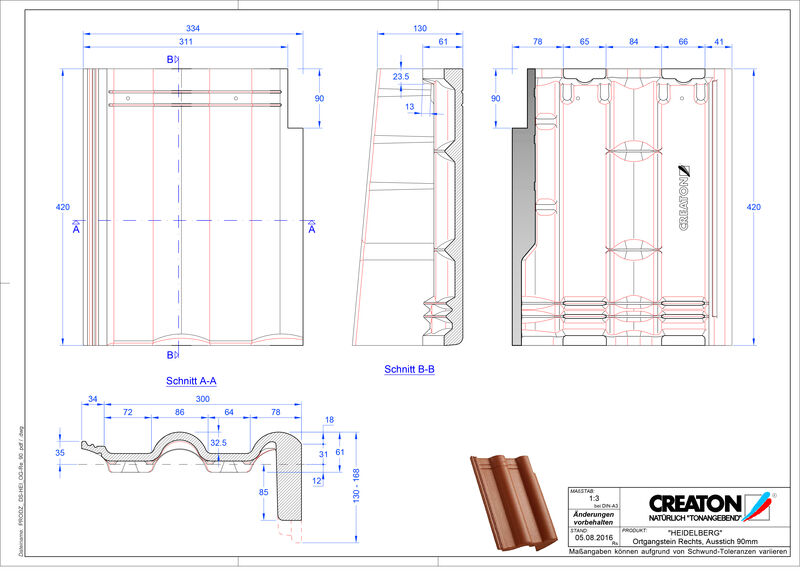

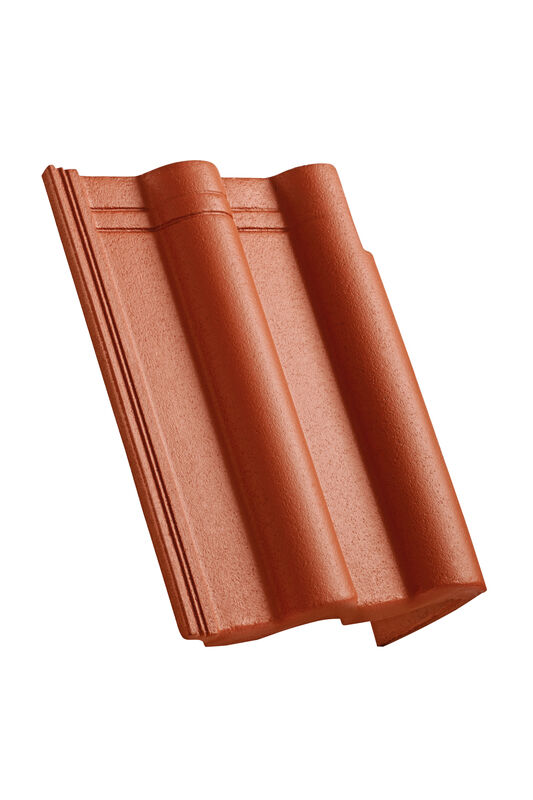

HEI concrete verge tile right 90 mm notch

HEI concrete verge tile right 90 mm notch

HEI concrete verge tile left 90 mm notch

HEI concrete verge tile left 90 mm notch

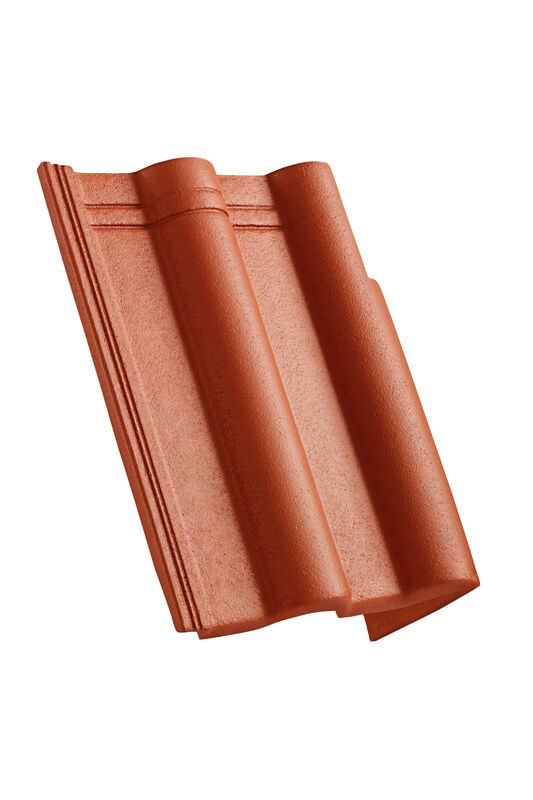

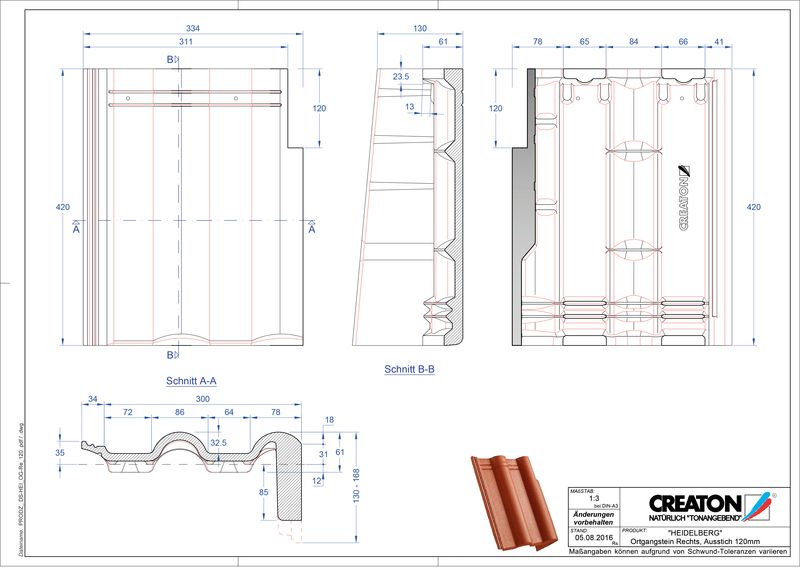

HEI concrete verge tile right 120 mm notch

HEI concrete verge tile right 120 mm notch

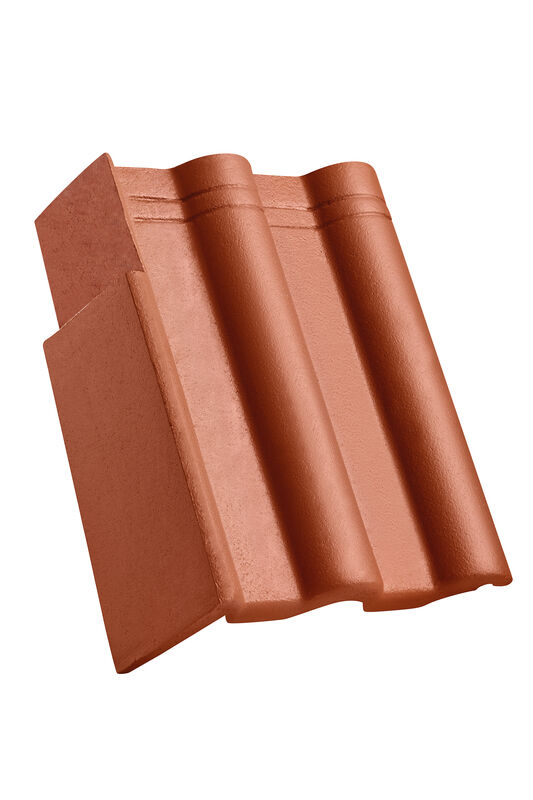

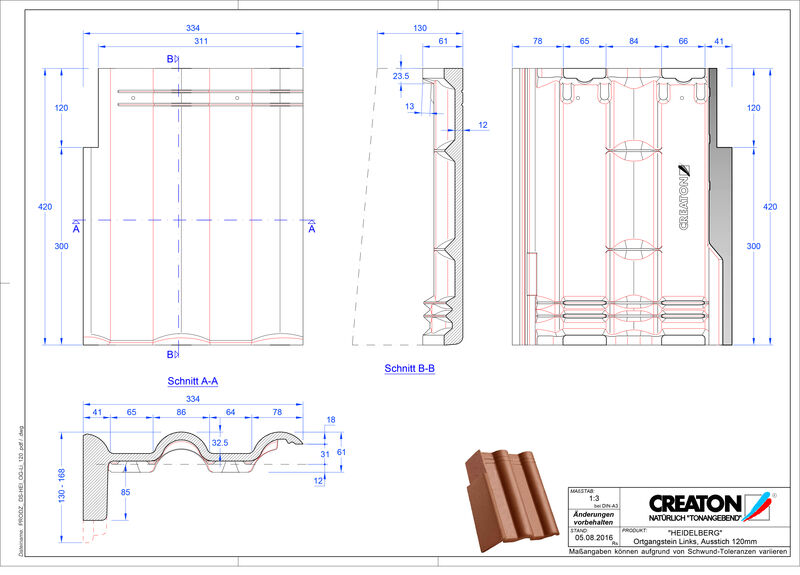

HEI concrete verge tile left 120 mm notch

HEI concrete verge tile left 120 mm notch

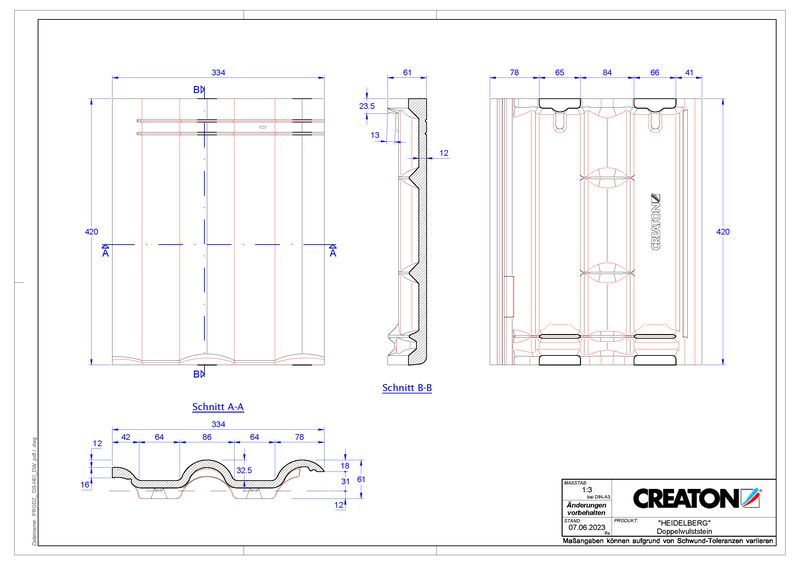

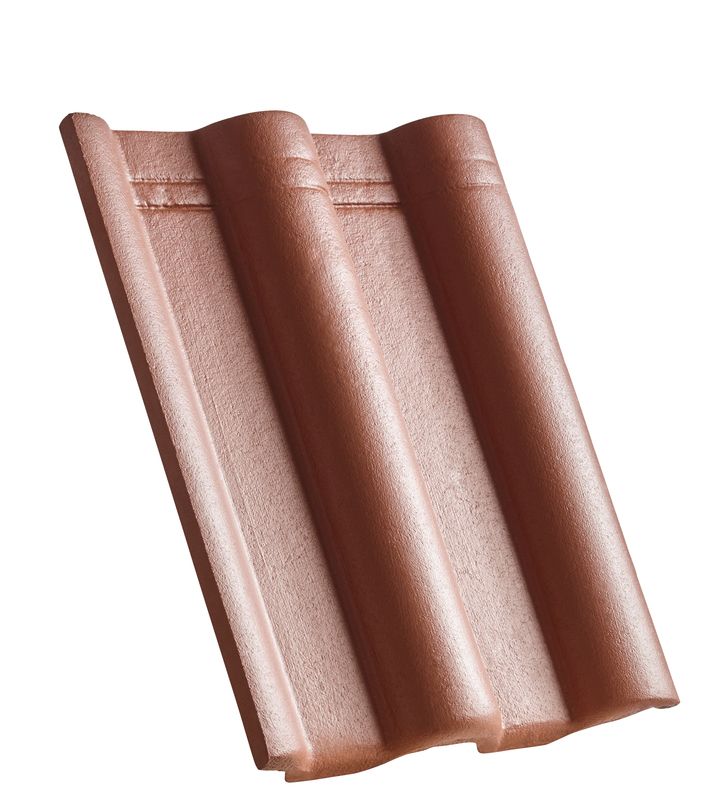

HEI concrete double roll tile

HEI concrete double roll tile

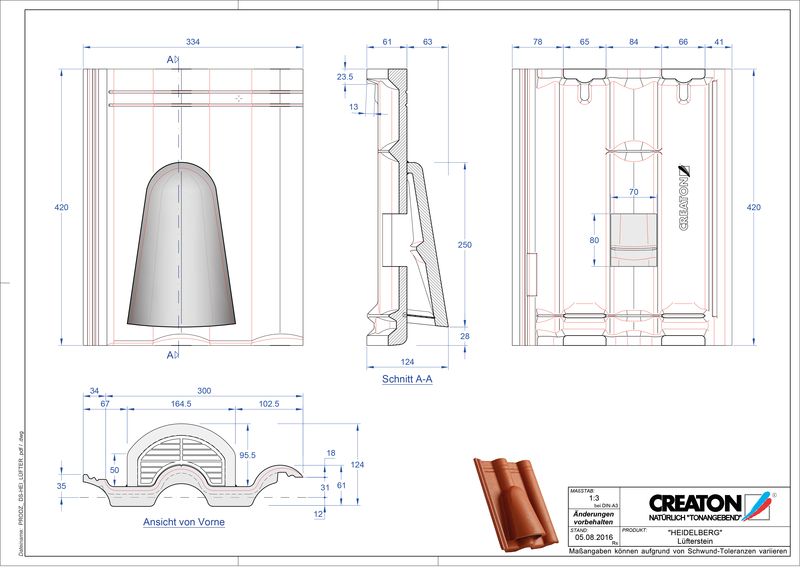

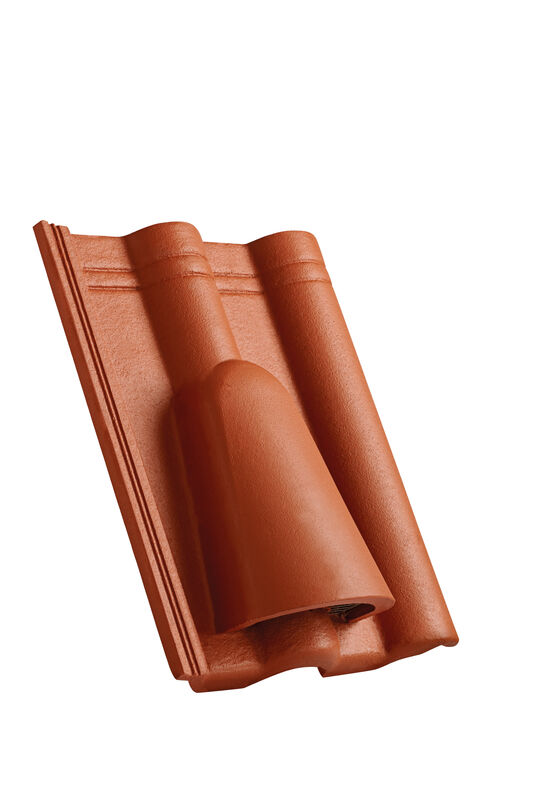

HEI concrete ventilating tile

HEI concrete ventilating tile

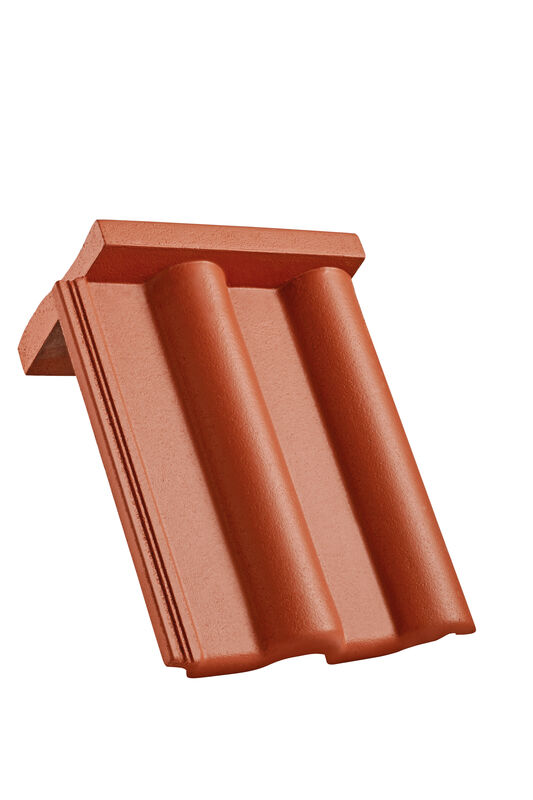

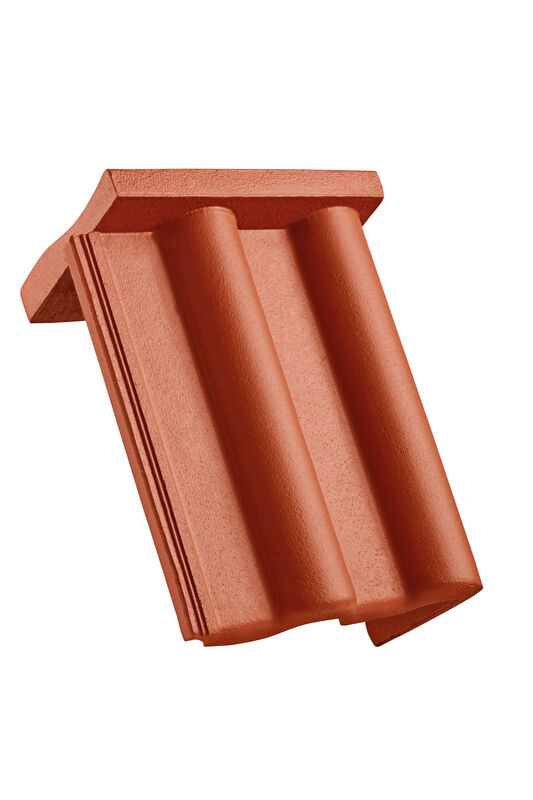

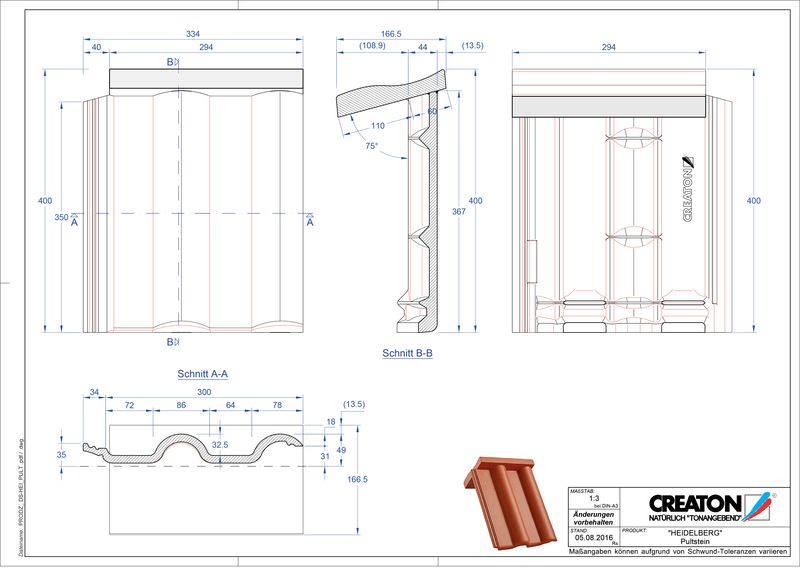

HEI concrete shed roof tile

HEI concrete shed roof tile

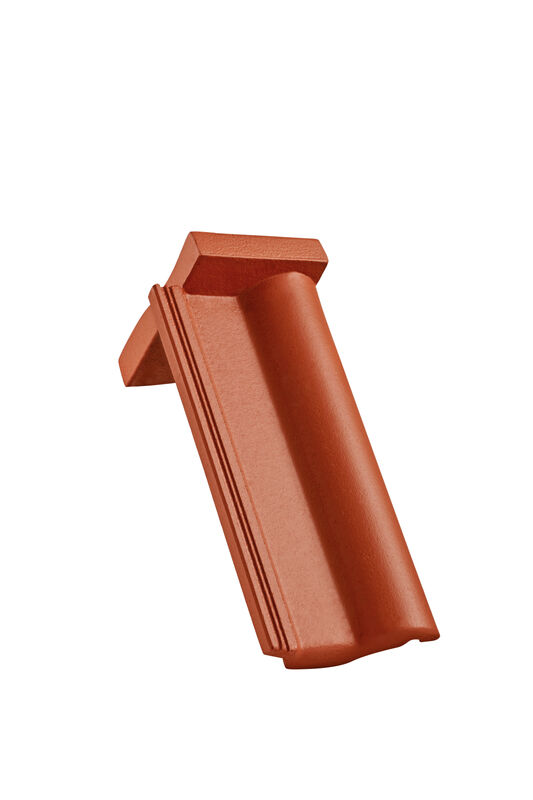

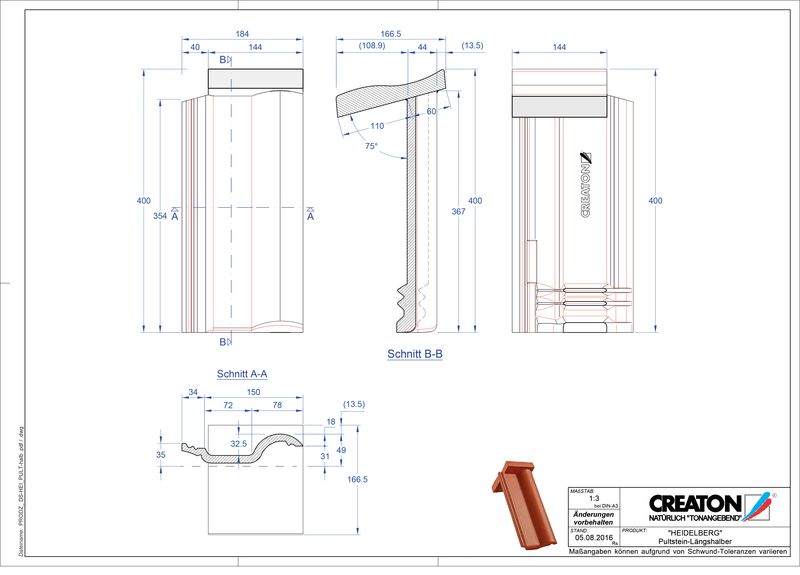

HEI concrete shed half-width tile

HEI concrete shed half-width tile

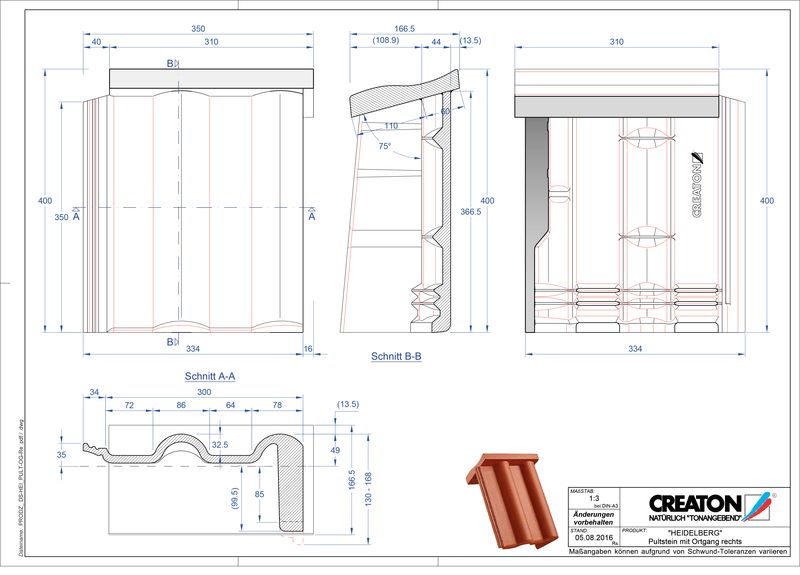

HEI concrete shed roof verge tile right

HEI concrete shed roof verge tile right

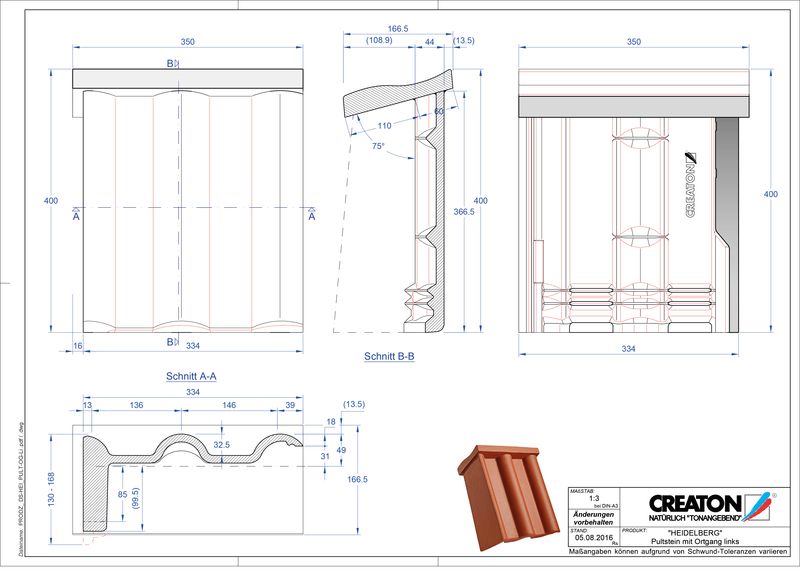

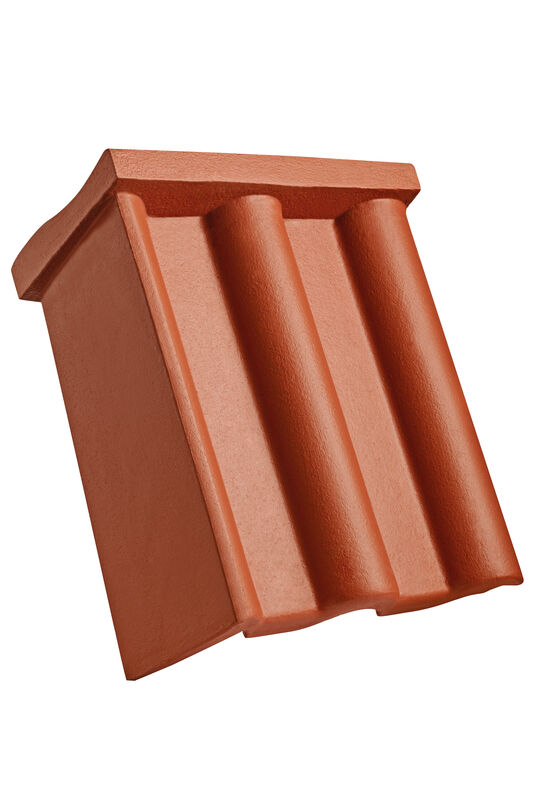

HEI concrete shed roof verge tile left

HEI concrete shed roof verge tile left

HEI concrete shed roof tile special size

HEI concrete shed roof tile special size

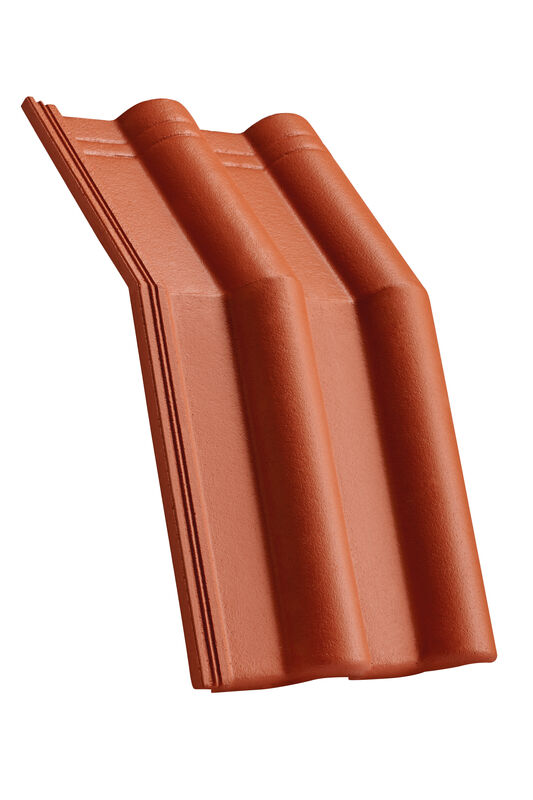

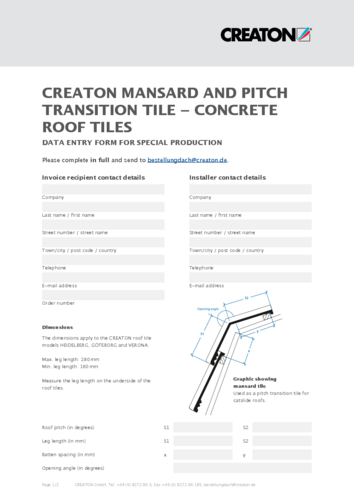

HEI concrete mansard/pitch transition tile

HEI concrete mansard/pitch transition tile

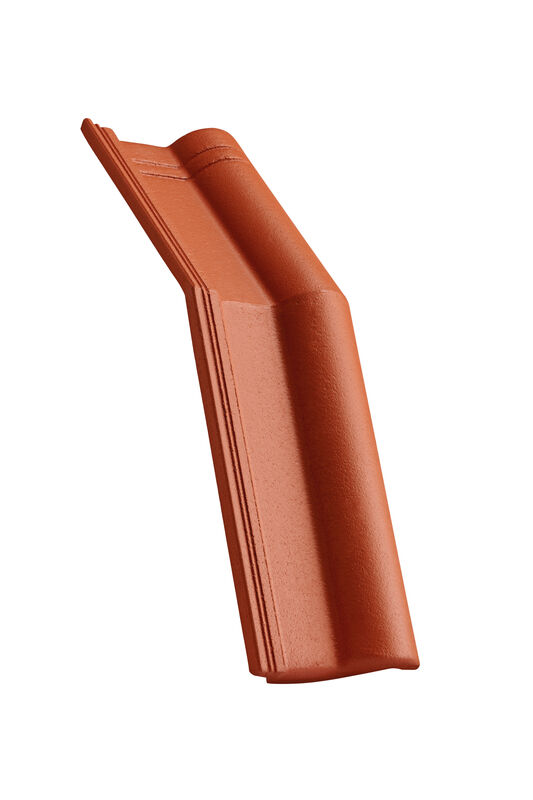

HEI concrete mansard/pitch transition half-width tile

HEI concrete mansard/pitch transition half-width tile

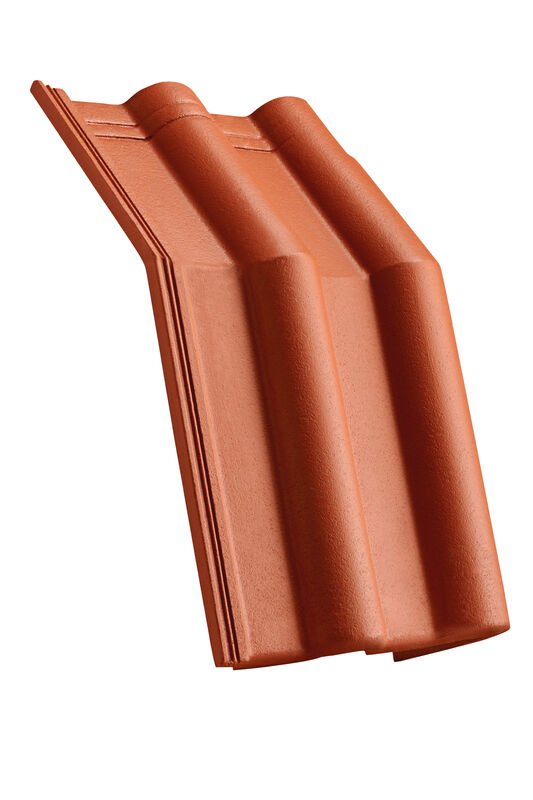

HEI concrete mansard/pitch transition tile right 90 mm notch

HEI concrete mansard/pitch transition tile right 90 mm notch

HEI concrete mansard/pitch transition tile left 90 mm notch

HEI concrete mansard/pitch transition tile left 90 mm notch

HEI concrete mansard/pitch transition tile right 120 mm notch

HEI concrete mansard/pitch transition tile right 120 mm notch

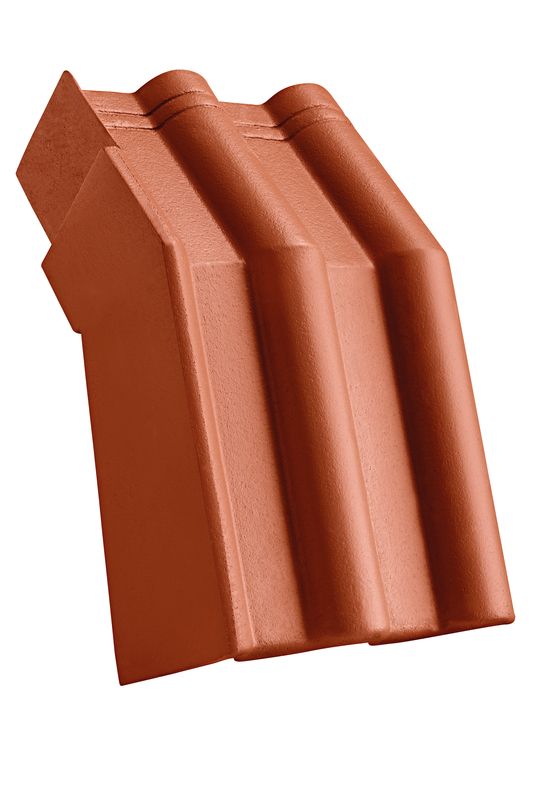

HEI concrete mansard/pitch transition tile left 120 mm notch

HEI concrete mansard/pitch transition tile left 120 mm notch

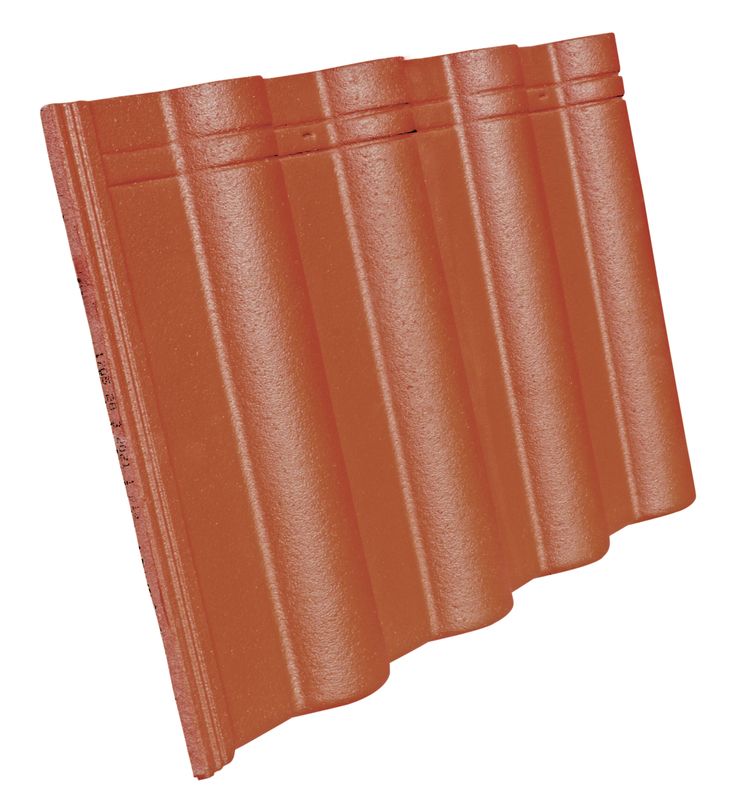

HEI double jumbo tile

HEI double jumbo tile

Product range for roof ventilation and penetrations

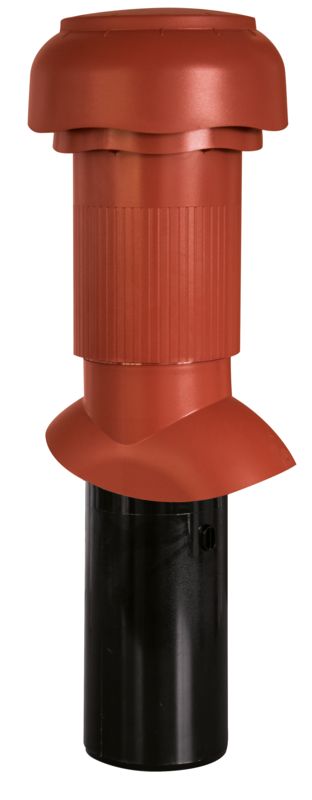

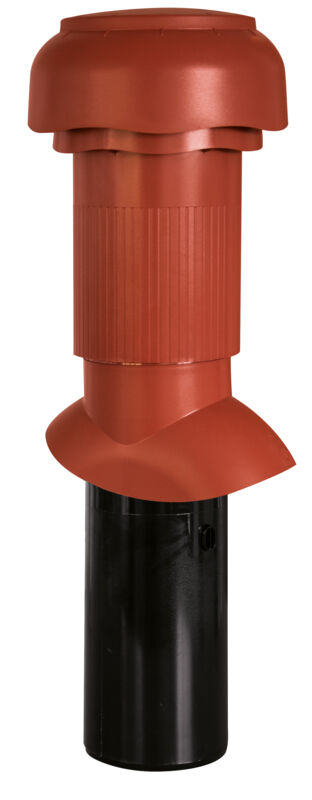

HEI set long outlet vent DN 100

HEI set long outlet vent DN 100

HEI set flat outlet vent DN 100

HEI set flat outlet vent DN 100

HEI set long outlet vent DN 125

HEI set long outlet vent DN 125

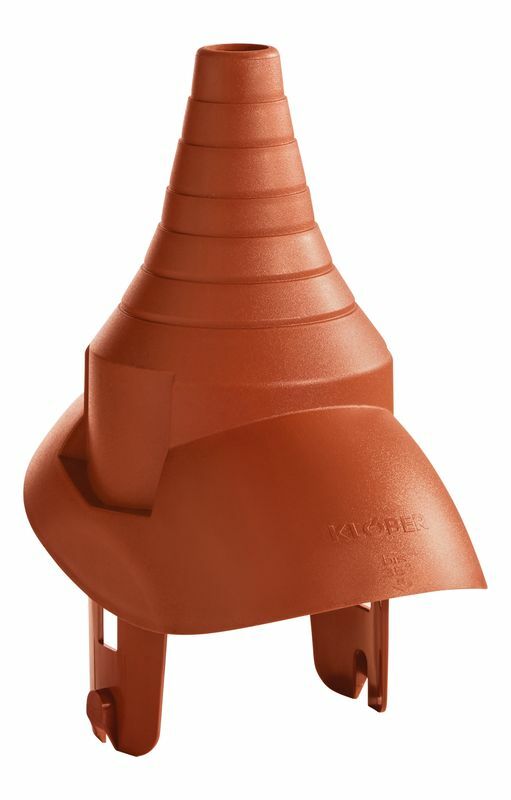

HEI set aerial entry plastic

HEI set aerial entry plastic

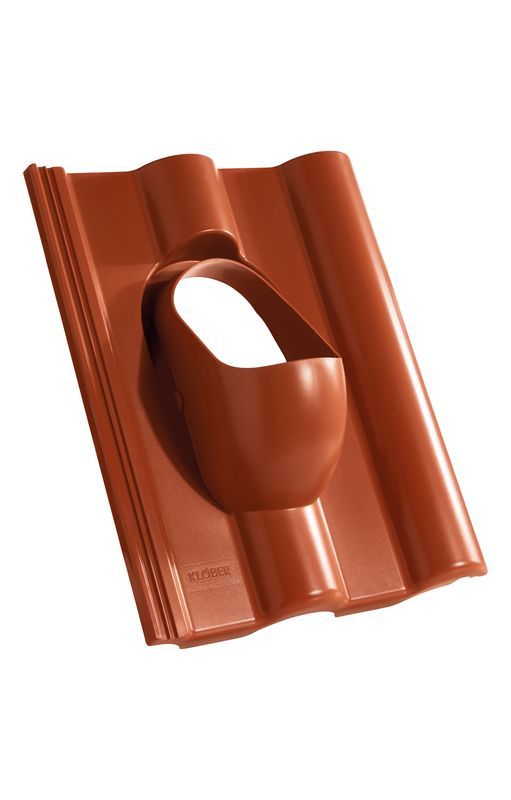

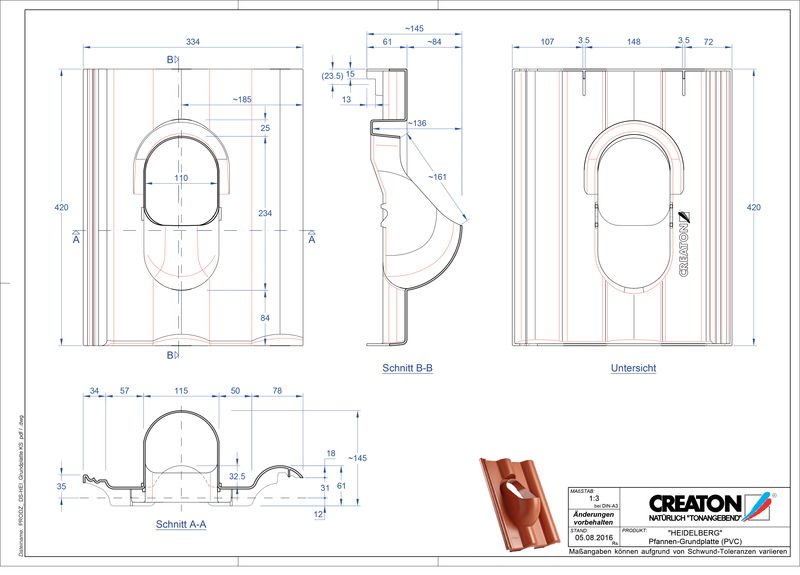

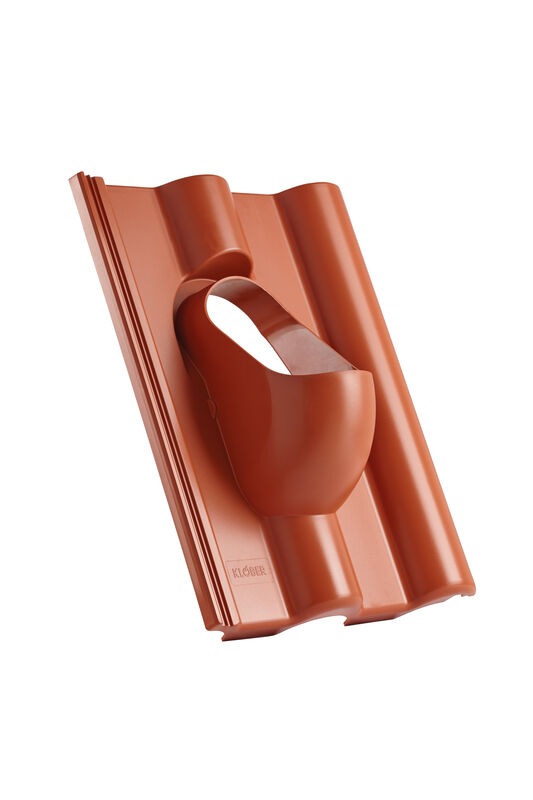

HEI plastic base plate

HEI plastic base plate

Long outlet vent DN 100

Long outlet vent DN 100

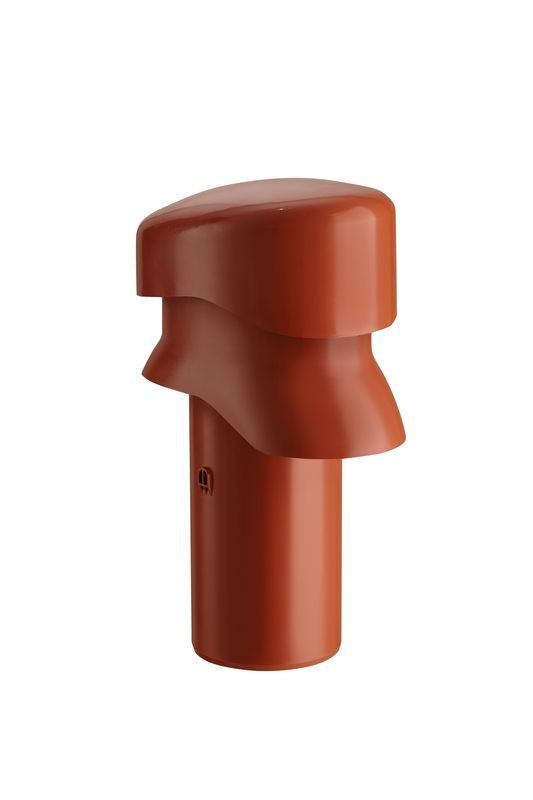

Flat outlet vent DN 100

Flat outlet vent DN 100

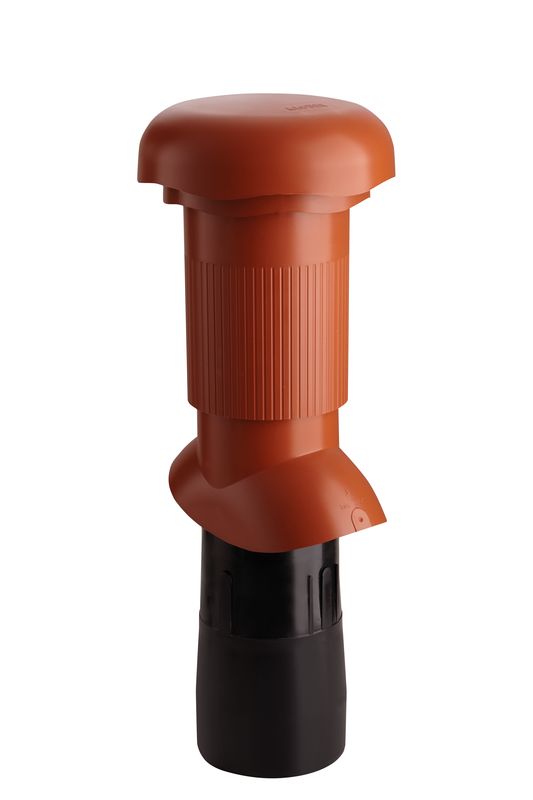

Long outlet vent DN 125

Long outlet vent DN 125

Aerial entry plastic

Aerial entry plastic

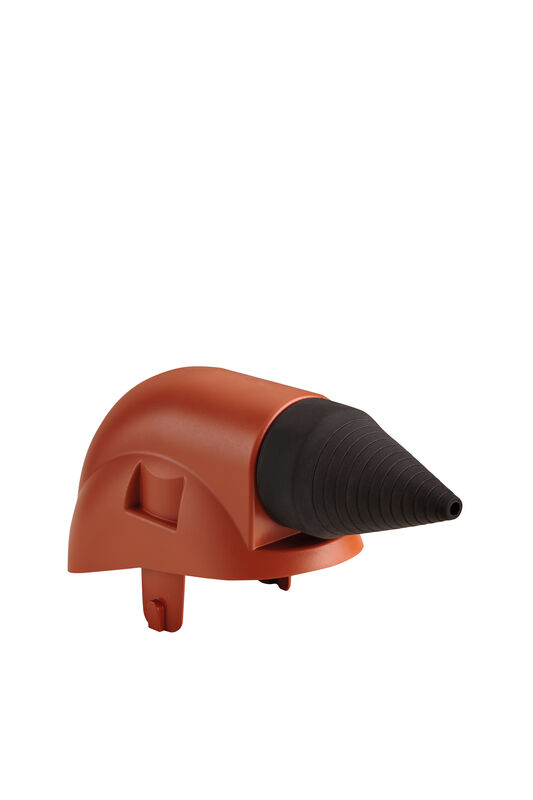

Solar entry plastic

Solar entry plastic

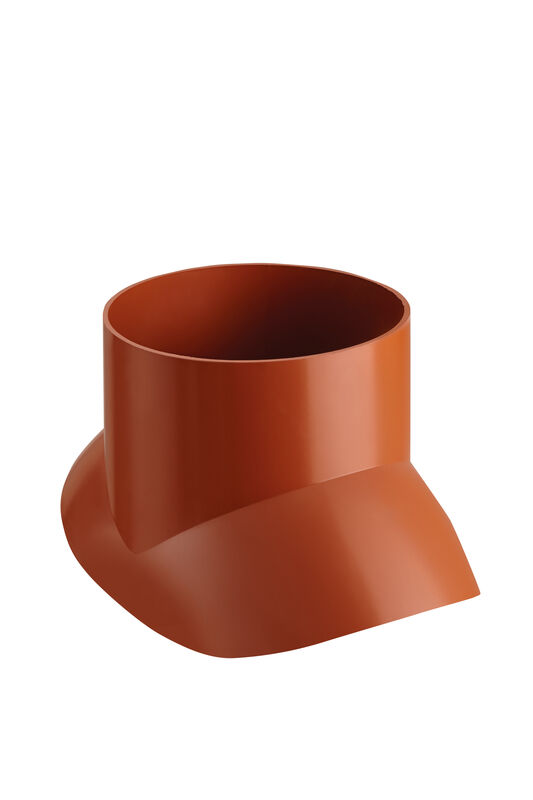

Flue pipe adapter system 70/110

Flue pipe adapter system 70/110

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Product range for snow protection, roof access and solar installation in metal

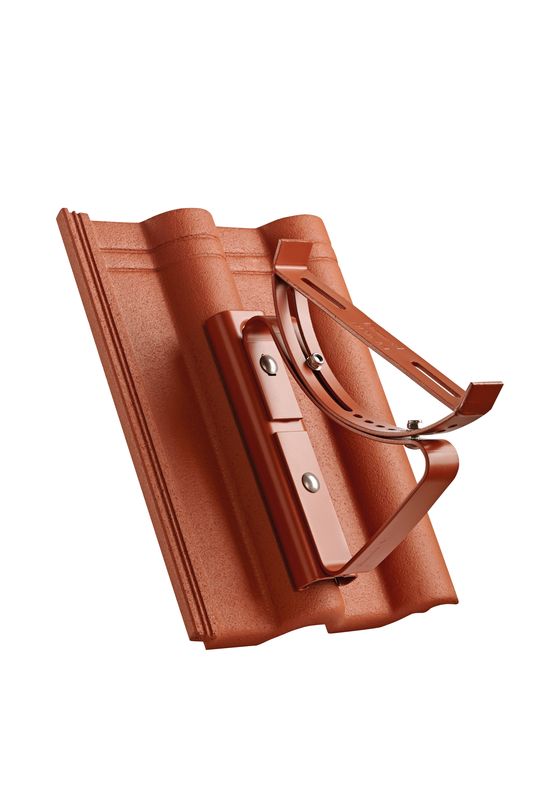

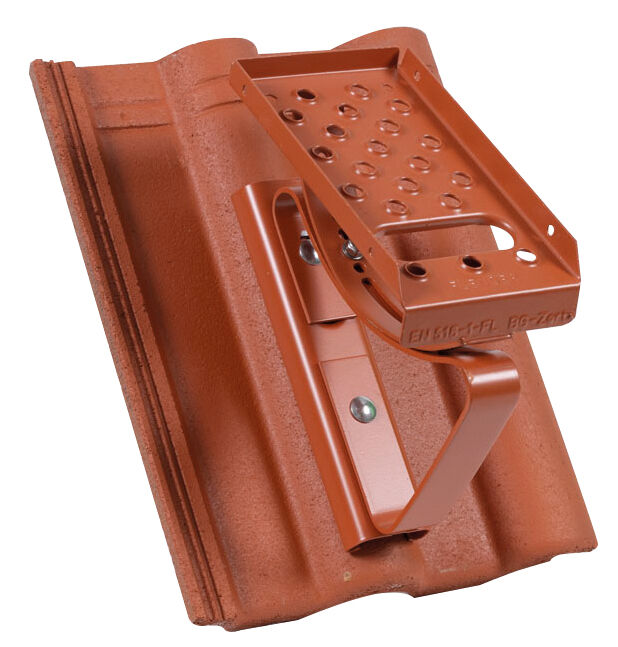

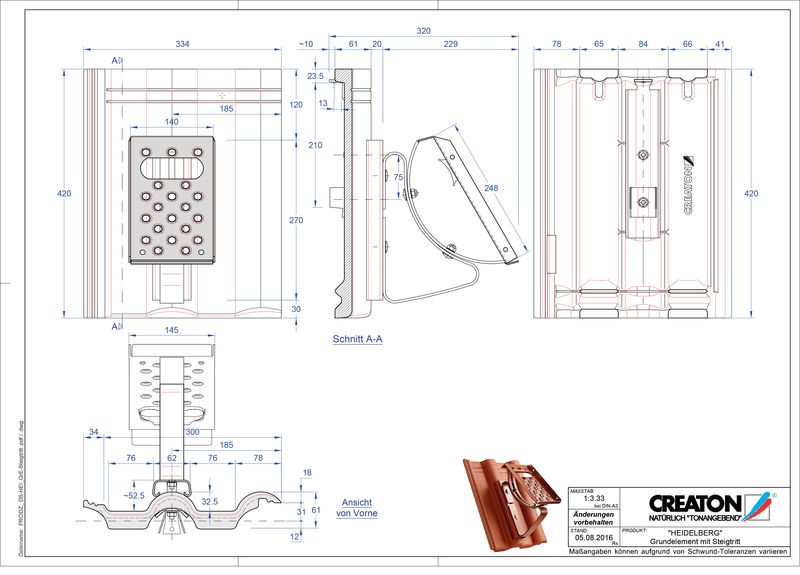

HEI base element with single tread

HEI base element with single tread

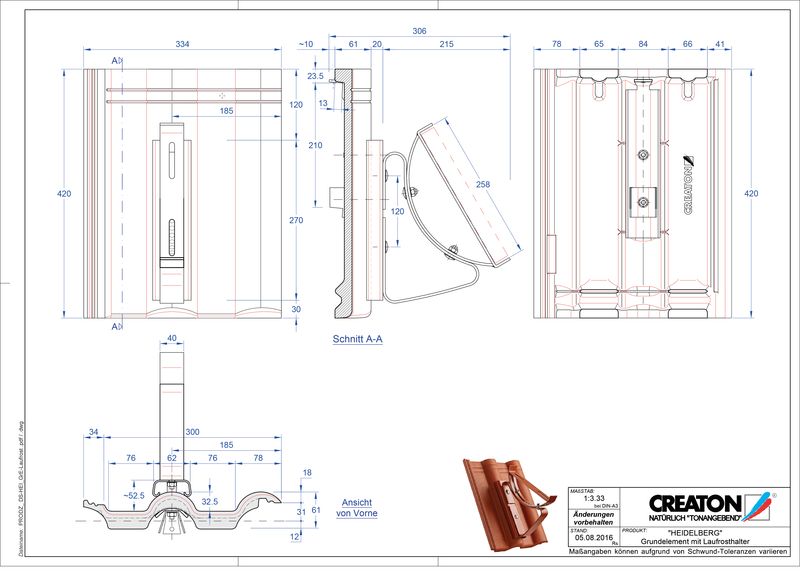

HEI base element for short and long grid

HEI base element for short and long grid

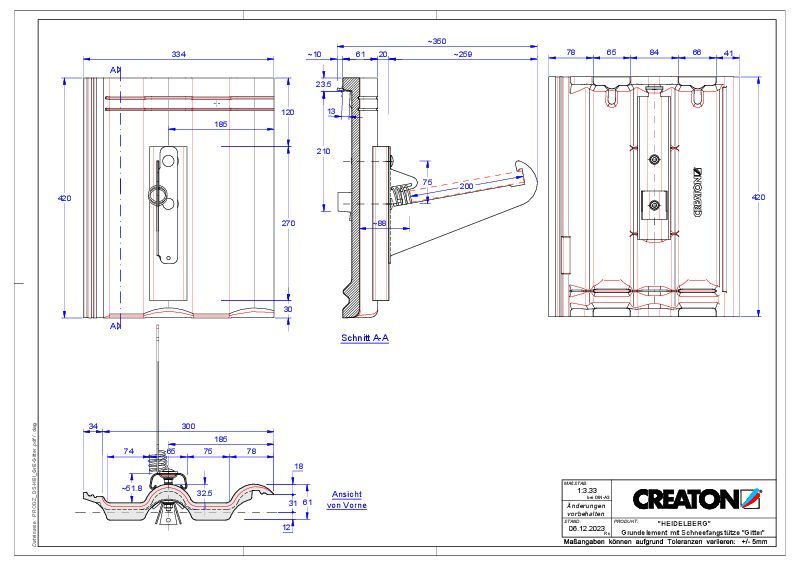

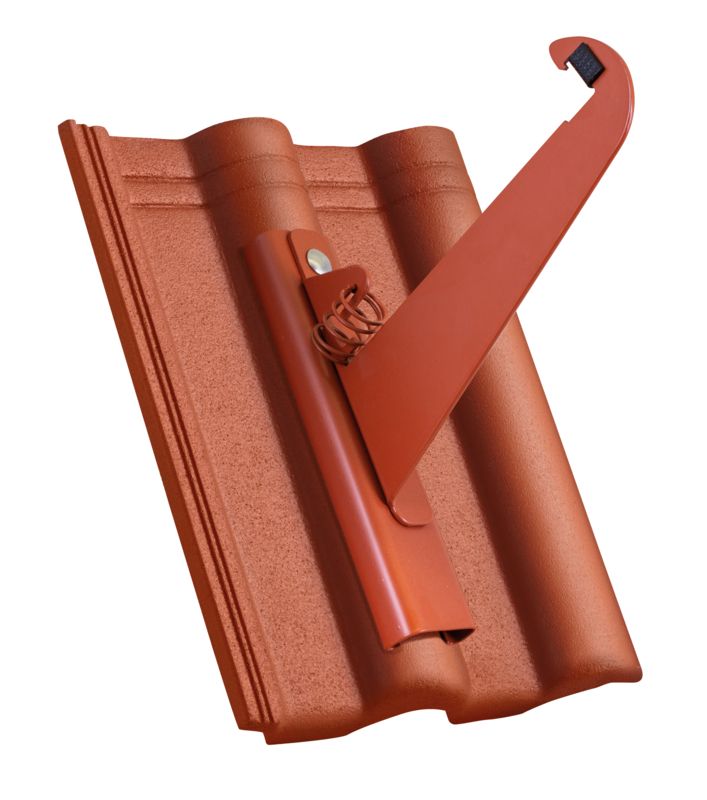

HEI base element for snow guard grid

HEI base element for snow guard grid

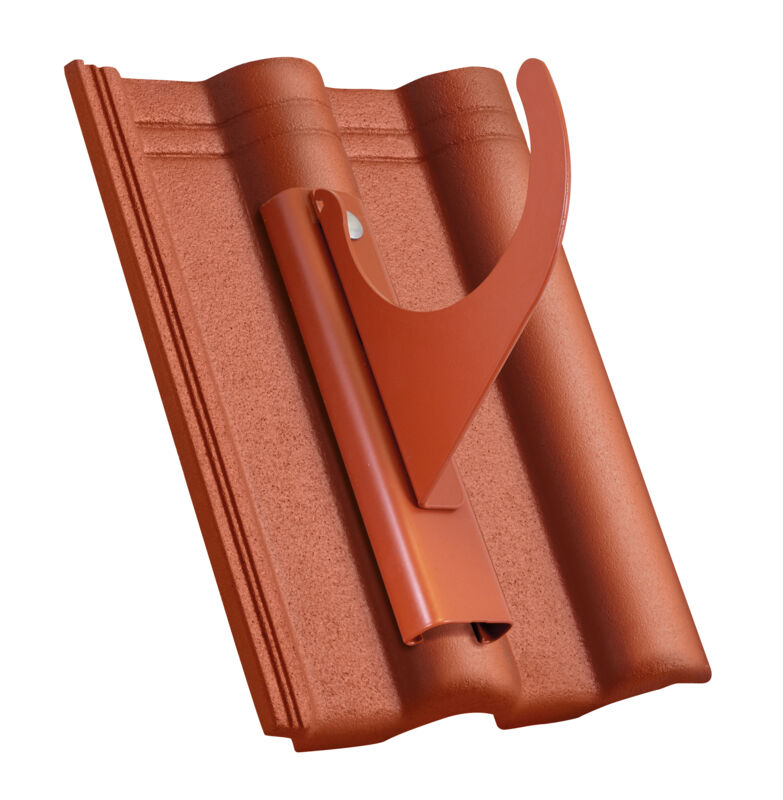

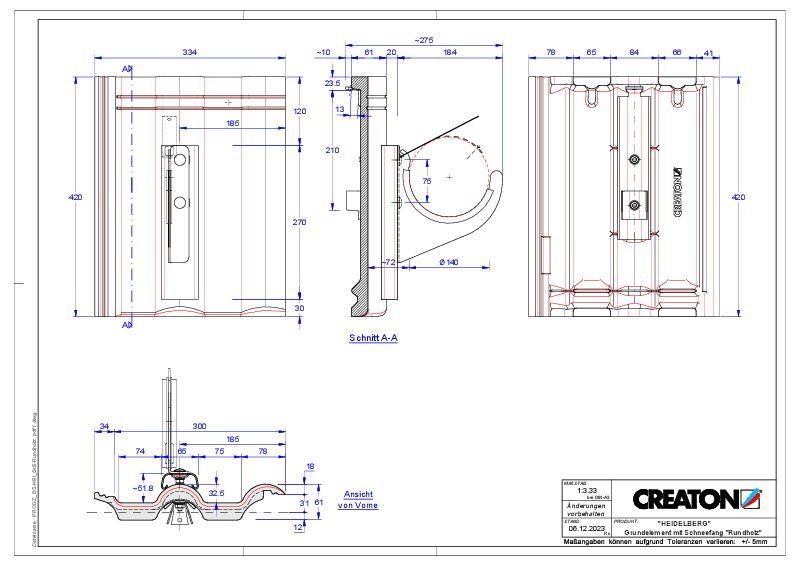

HEI base element for logs

HEI base element for logs

MAG snow clip

MAG snow clip

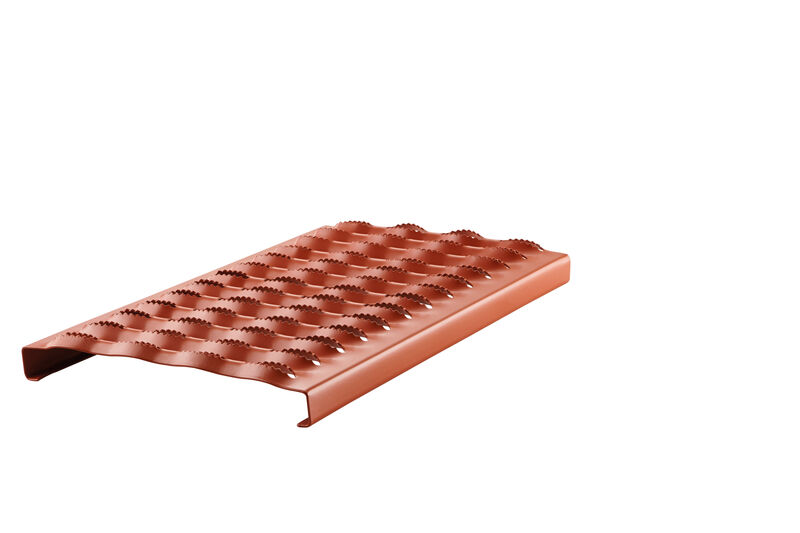

Short grid

Short grid

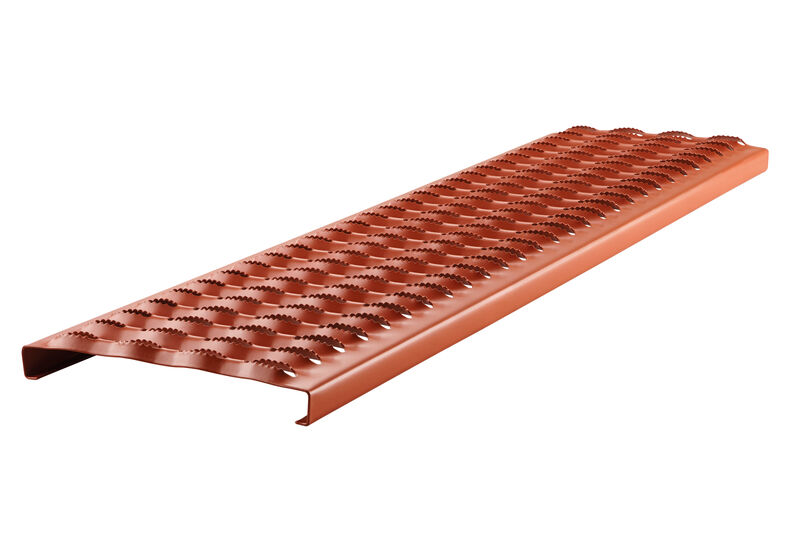

Long grating aluminium 88 x 25 cm colour-coated

Long grating aluminium 88 x 25 cm colour-coated

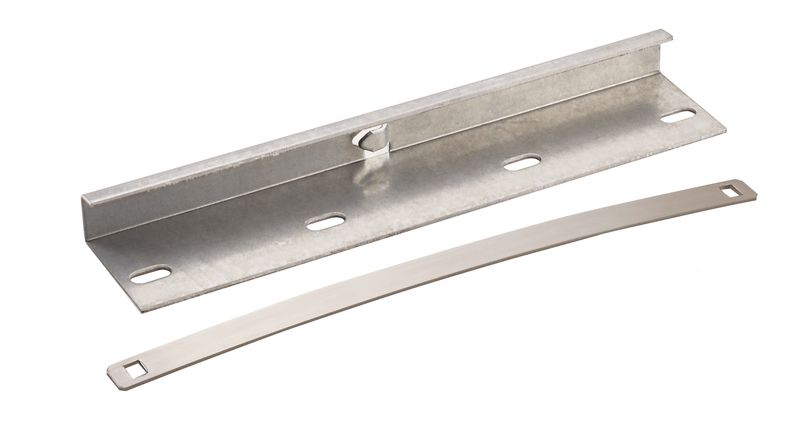

Connection set for short and long grid

Connection set for short and long grid

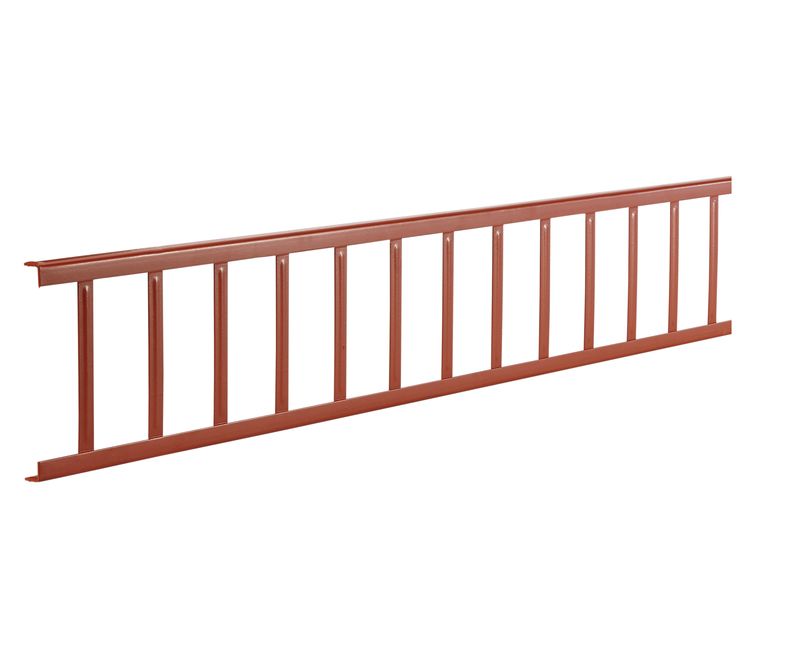

Snow guard grid solid, length 1.5 m with connecting clamps, height 20 cm

Snow guard grid solid, length 1.5 m with connecting clamps, height 20 cm

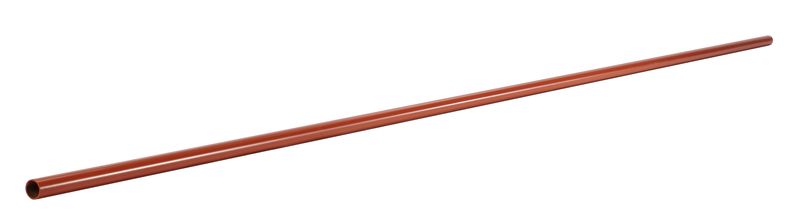

Cylindrical tube Ø 40 mm length 2 m

Cylindrical tube Ø 40 mm length 2 m

Coupling for tube Ø 32 mm

Coupling for tube Ø 32 mm

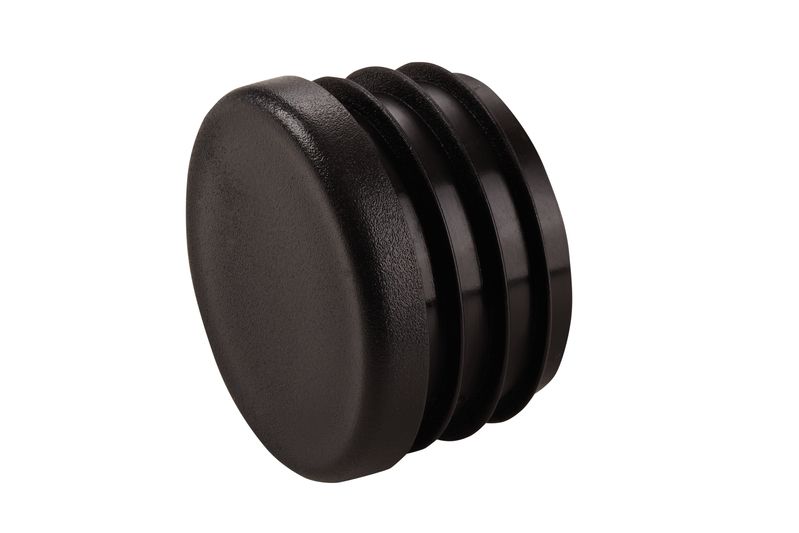

End cap for tube Ø 32 mm

End cap for tube Ø 32 mm

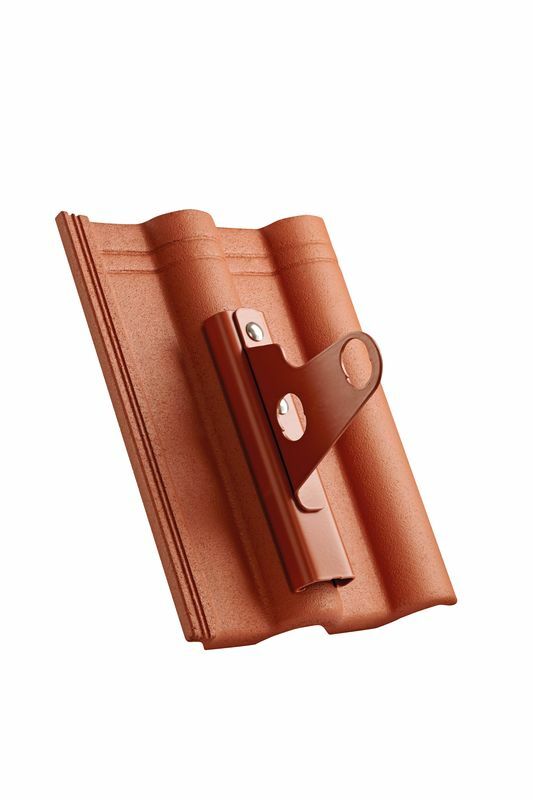

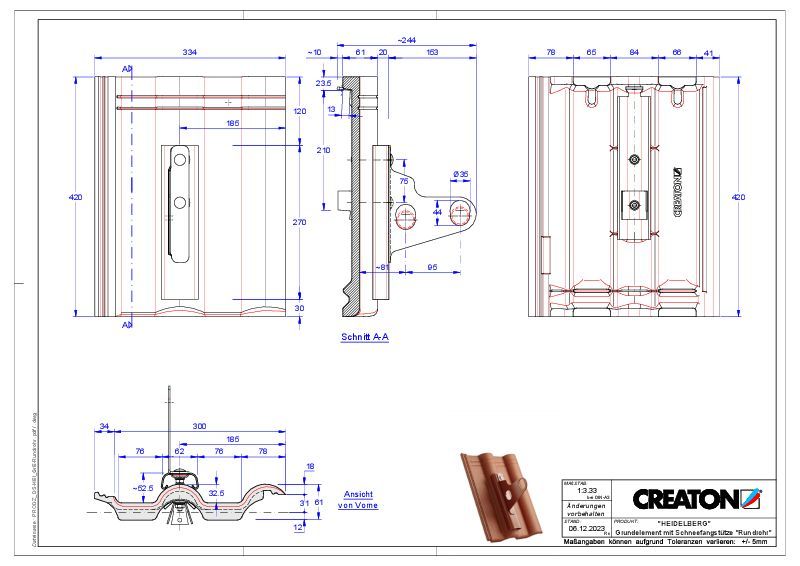

HEI base element with mountain snow guard for 2 round pipes

HEI base element with mountain snow guard for 2 round pipes

HEI base element for short and long grid

HEI base element for short and long grid

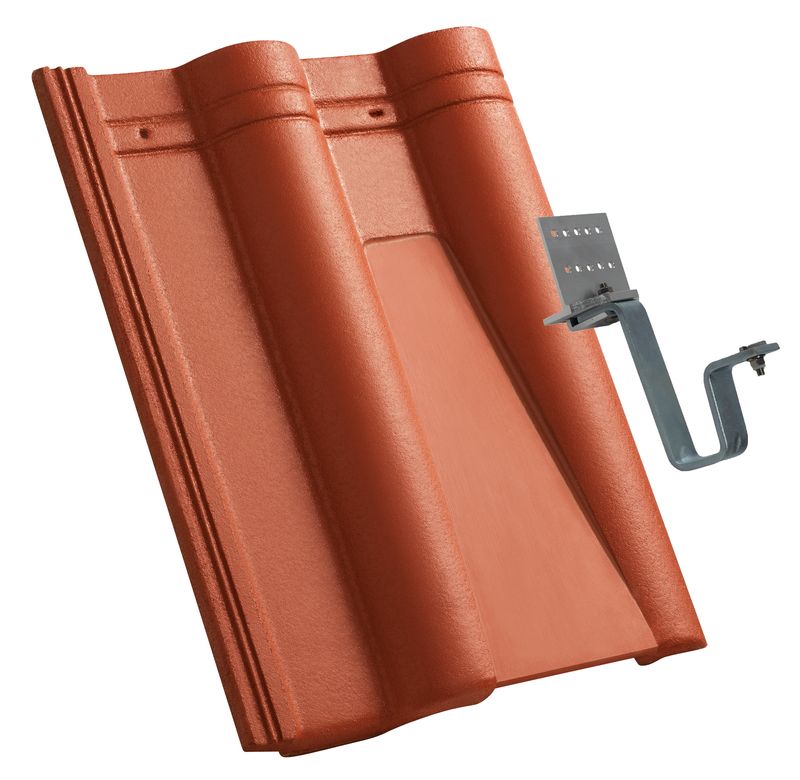

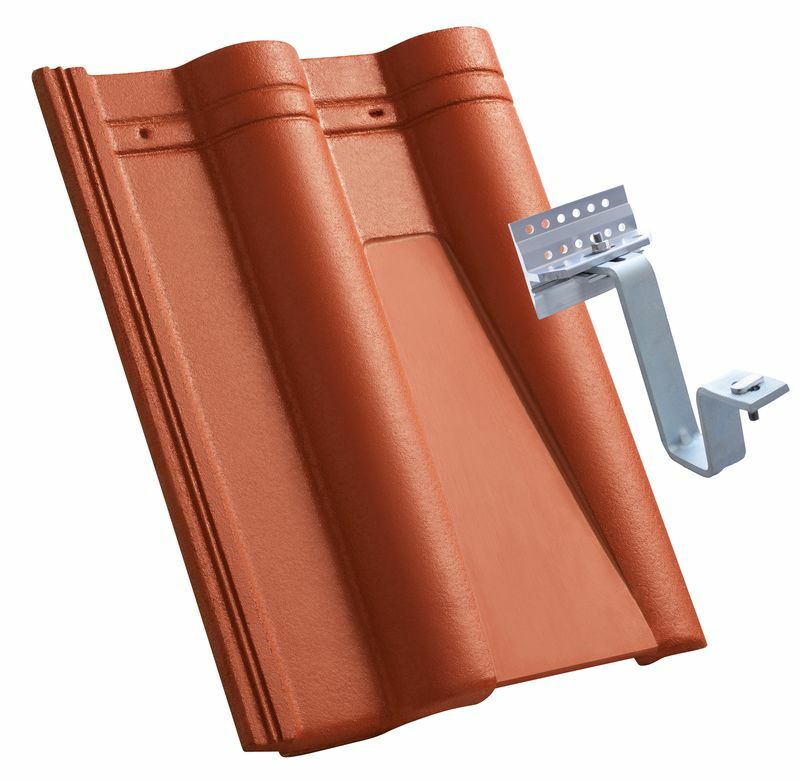

HEI solar system bracket kit for rafter installation

HEI solar system bracket kit for rafter installation

Product range for roof details and uplift protection

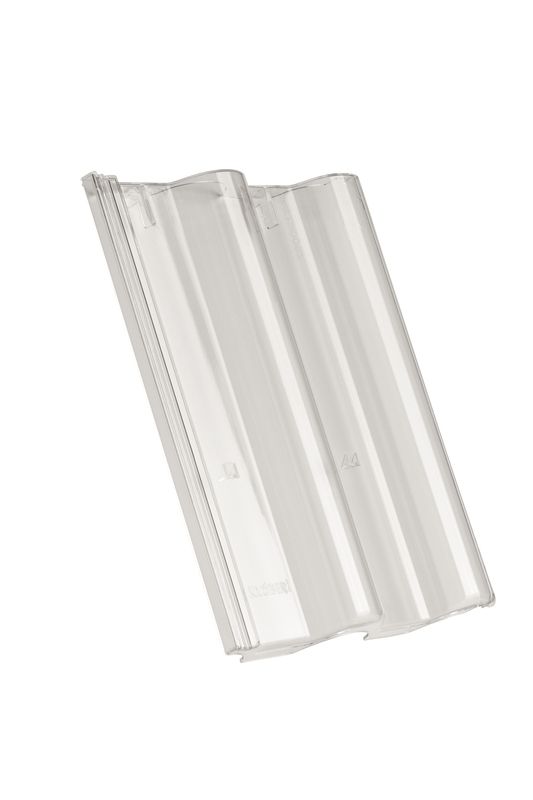

HEI light block

HEI light block

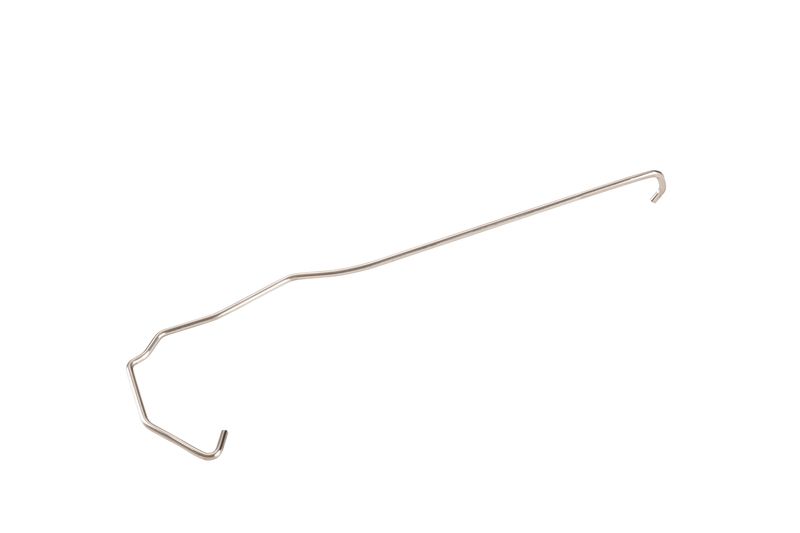

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (VER, HEI, GOE)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (VER, HEI, GOE)

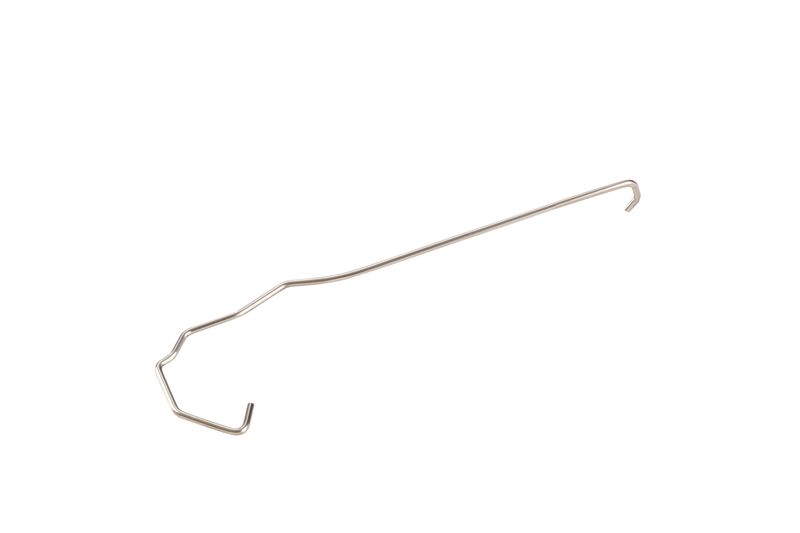

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (VER, HEI, GOE)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (VER, HEI, GOE)

Storm clip in zinc-aluminium, drive-in clip, all battens (VER, HEI, GOE)

Storm clip in zinc-aluminium, drive-in clip, all battens (VER, HEI, GOE)

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Stainless steel screw with seal, length 50 mm

Stainless steel screw with seal, length 50 mm

Acrylic paint 250 ml

Acrylic paint 250 ml

Hip and valley clip 10-13 mm

Hip and valley clip 10-13 mm

Concrete ridge and hip tile range

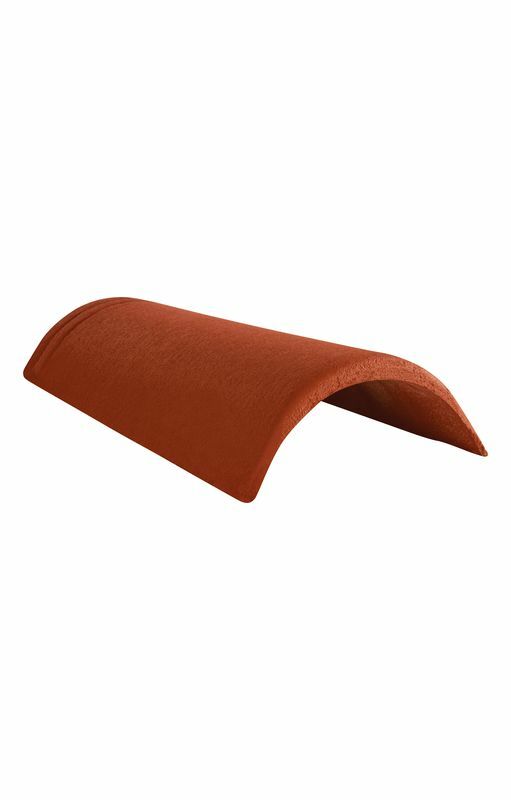

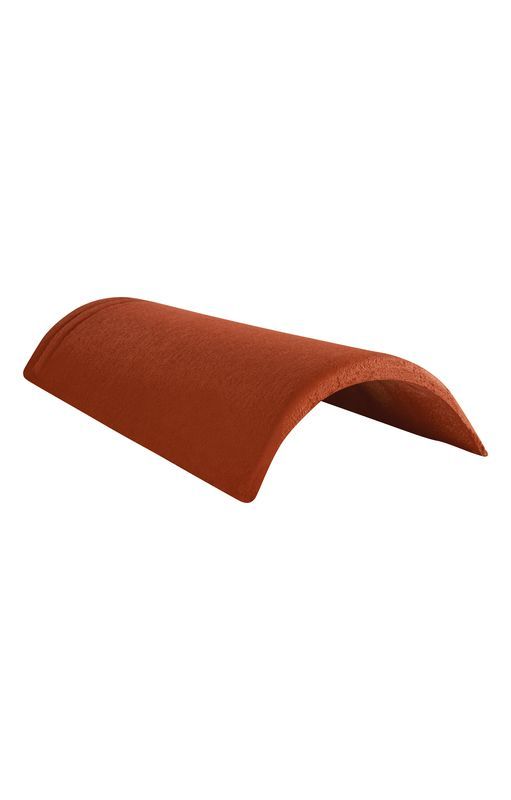

Concrete ridge tile (VER, HEI, GOE)

Concrete ridge tile (VER, HEI, GOE)

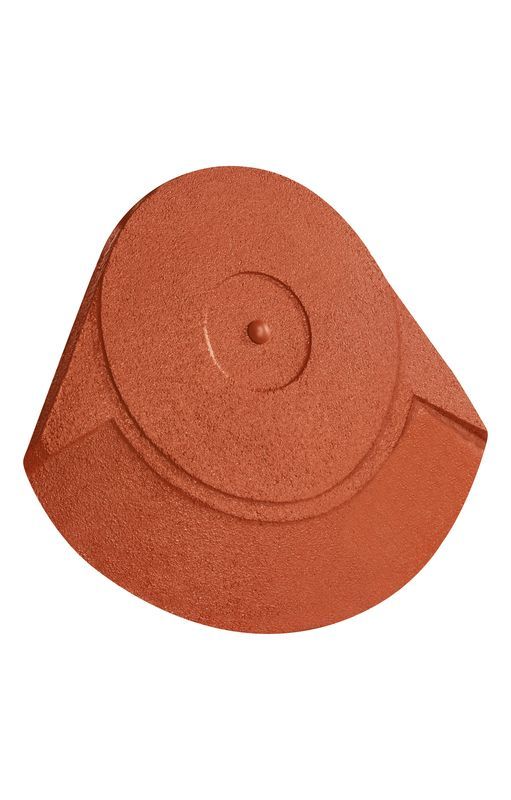

Function starter and termination plate (VER, HEI, GOE)

Function starter and termination plate (VER, HEI, GOE)

Ridge starter and termination plate aluminium (VER, HEI, GOE)

Ridge starter and termination plate aluminium (VER, HEI, GOE)

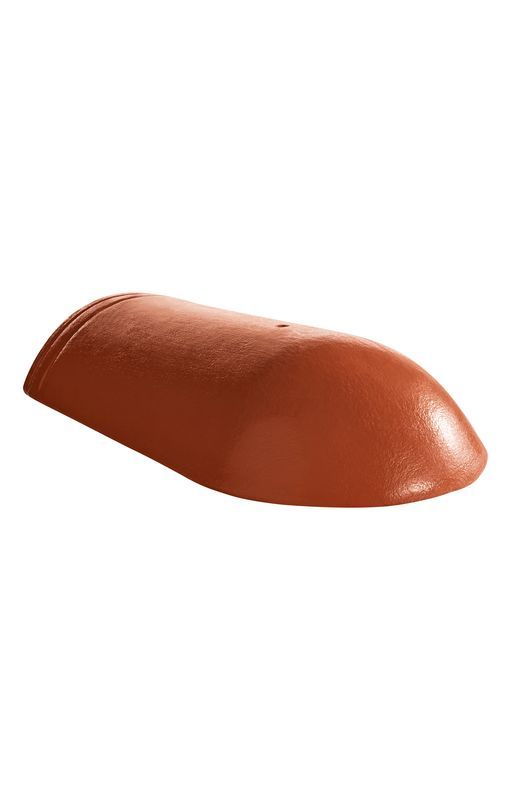

Round hip starter (VER, HEI, GOE)

Round hip starter (VER, HEI, GOE)

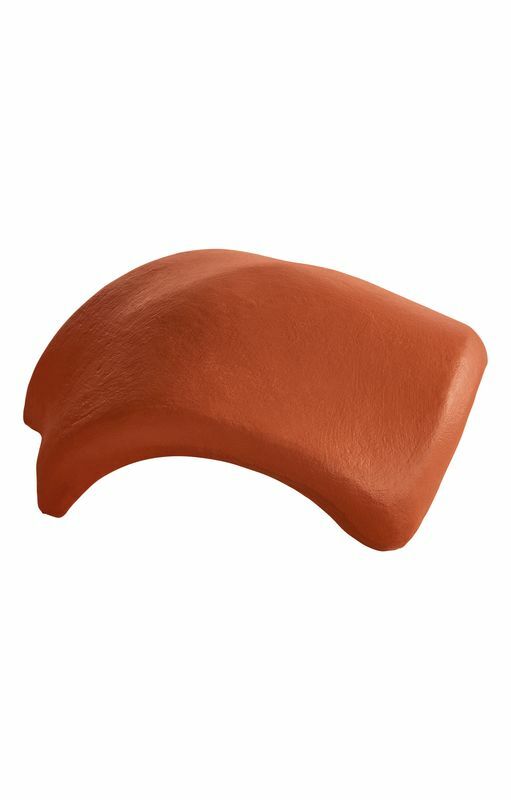

Hip cap 3-axis (VER, HEI, GOE)

Hip cap 3-axis (VER, HEI, GOE)

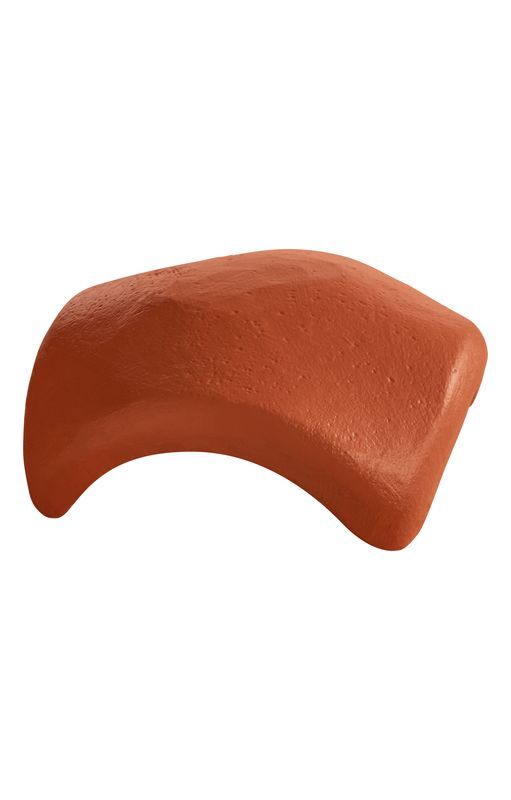

Hip cap 4-axis (VER, HEI, GOE)

Hip cap 4-axis (VER, HEI, GOE)

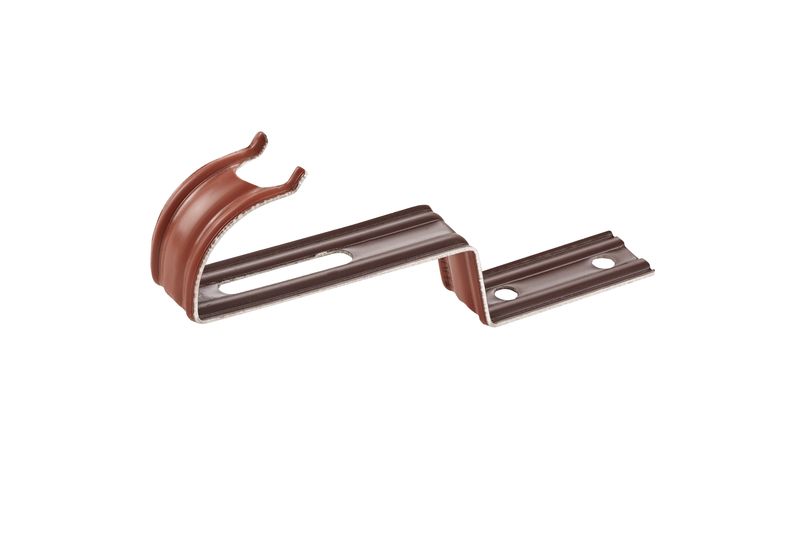

Ridge clip aluminium (concrete HEI, VER, GOE)

Ridge clip aluminium (concrete HEI, VER, GOE)
