ELEGANZ NUANCE dark brown engobed

ELEGANZ

The reform tile with style.

  • Traditional model for renovation and timeless roof design

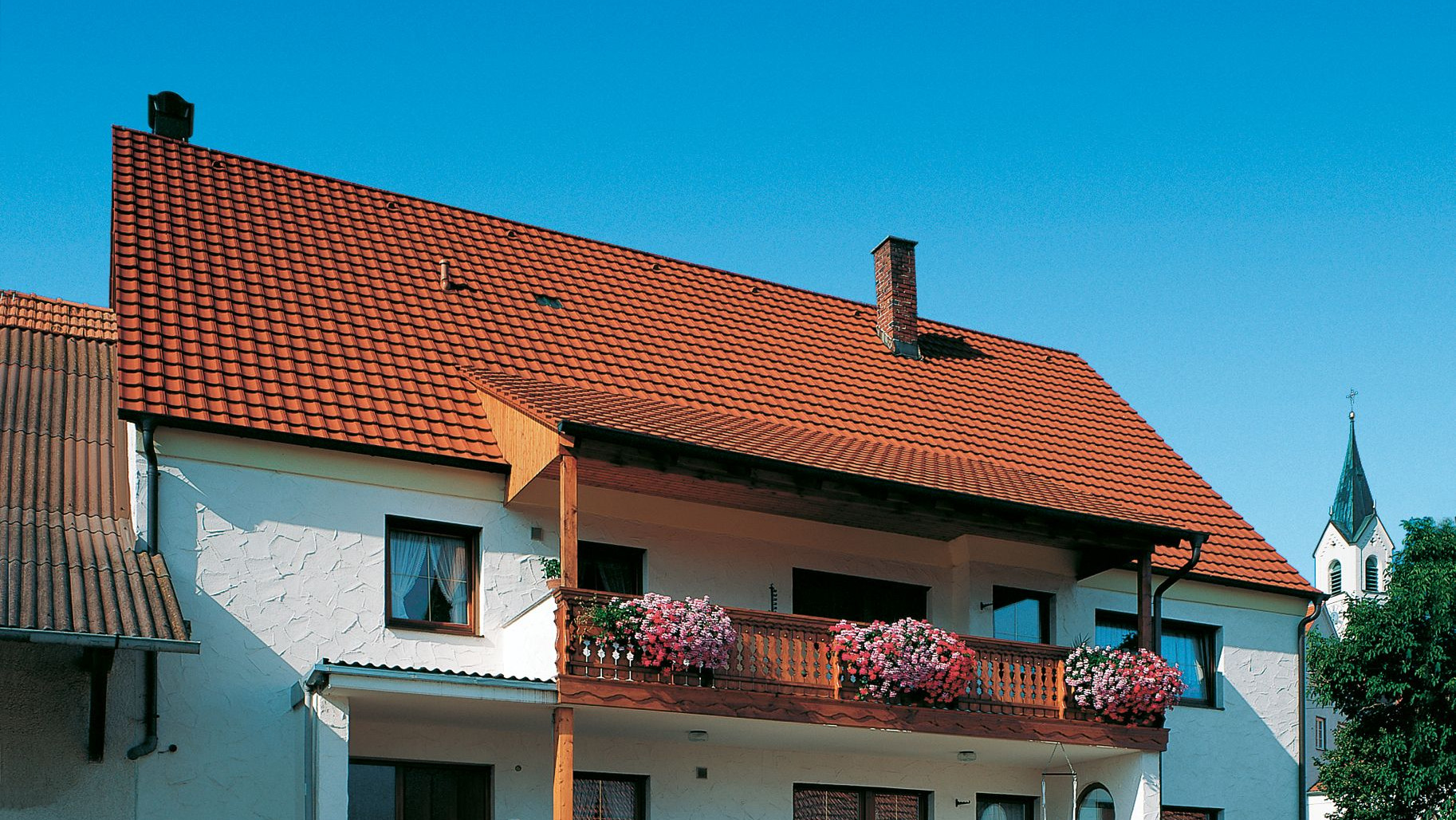

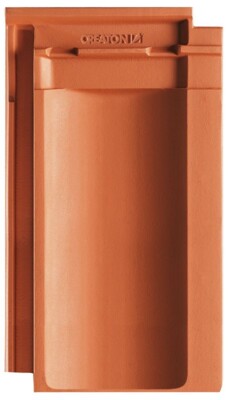

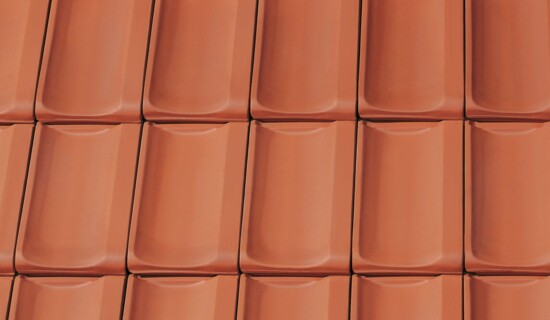

natural red
natural red
NUANCE copper red engobed
NUANCE copper red engobed

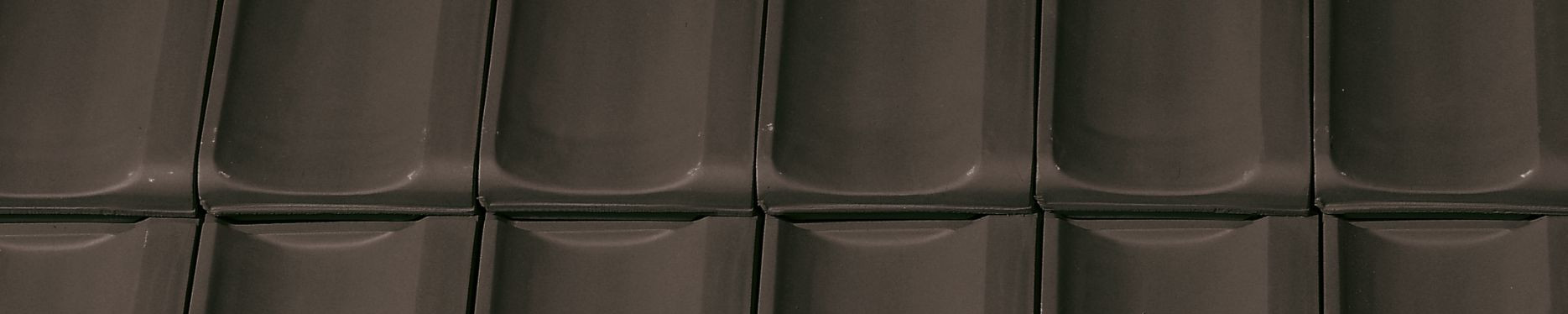

NUANCE dark brown engobed
NUANCE dark brown engobed

Technical data

Size (appr.)230 x 420 mm
Covering width min. approx.204 mm
Covering width on av. approx.205 mm
Max. coverage width (approx.)207 mm
Min. gauge (approx.)337 mm
Covering length on av. approx.344 mm
Max. gauge (approx.)350 mm
Tile requirement min. (approx.)13.7 pcs/m²
Average tile requirement (approx.)14.1 pcs/m²
Brickware max. approx.14.5 pcs/m²
Unit weight (approx.)3.1 kg/piece
Weight per m² (approx.)43.7 kg/m²
Weight per pallet (approx.)769 kg
Pcs per mini-pack5 piece
Pcs per pallet240 piece

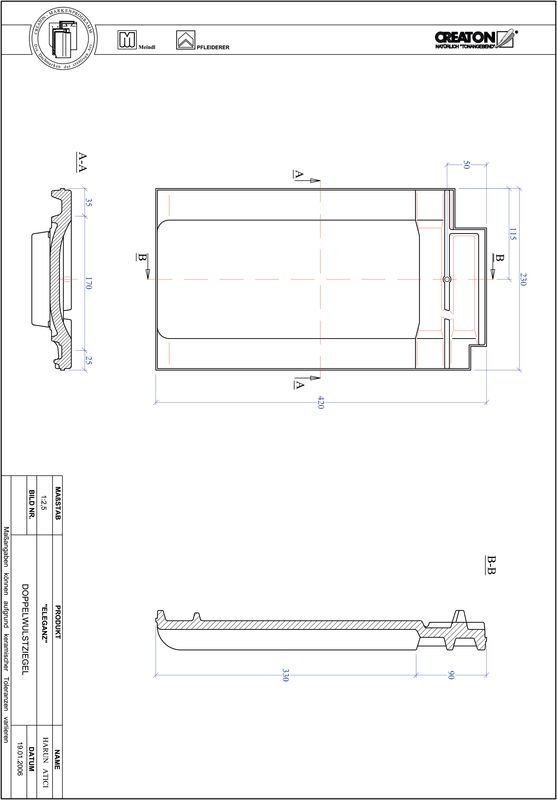

Technical drawings

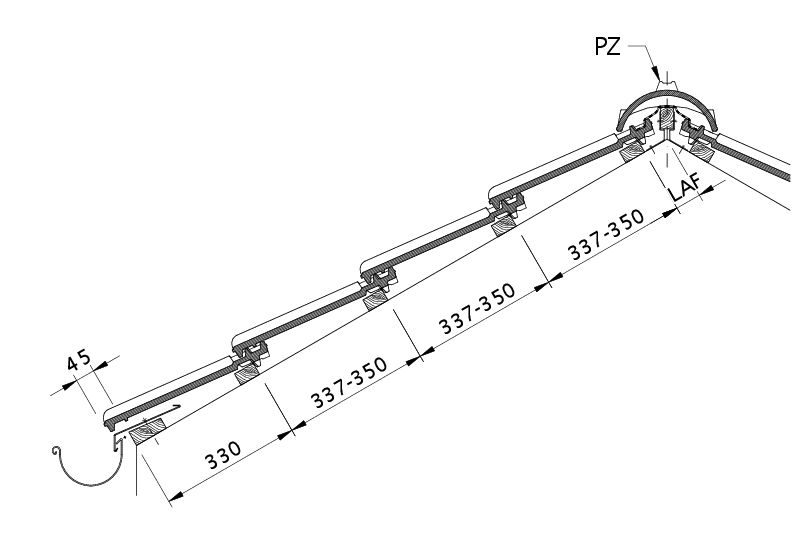

Drawing ELEGANZ roof cross-section DQF
Drawing ELEGANZ roof cross-section DQF

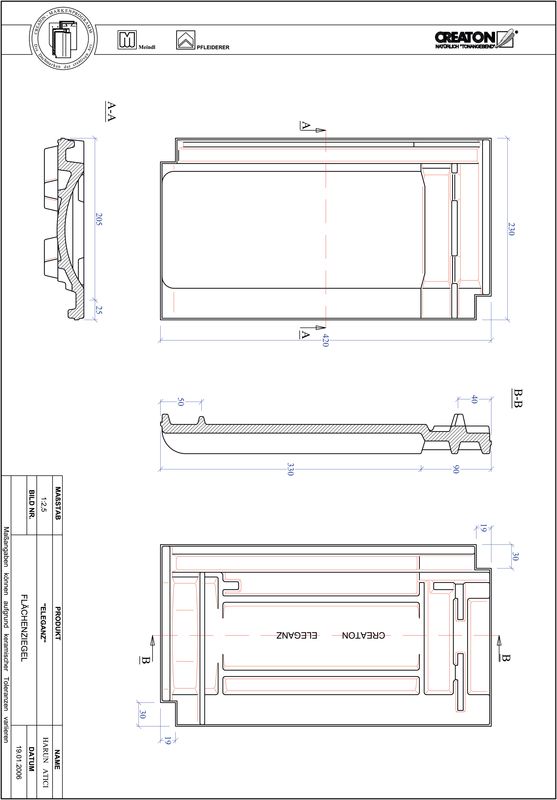

Drawing all models LAF-FLA
Drawing all models LAF-FLA

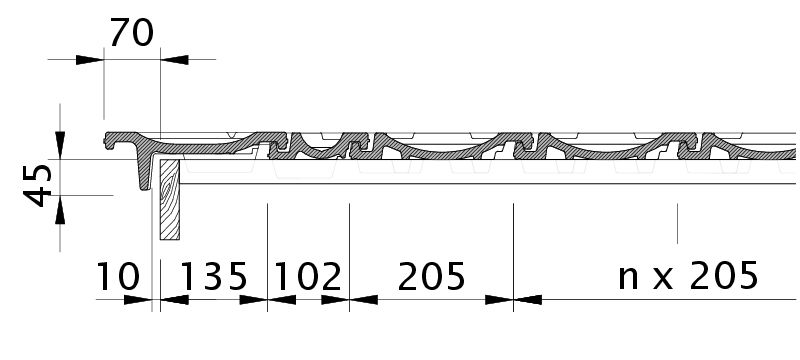

Drawing ELEGANZ verge tile left with barge board OBL
Drawing ELEGANZ verge tile left with barge board OBL

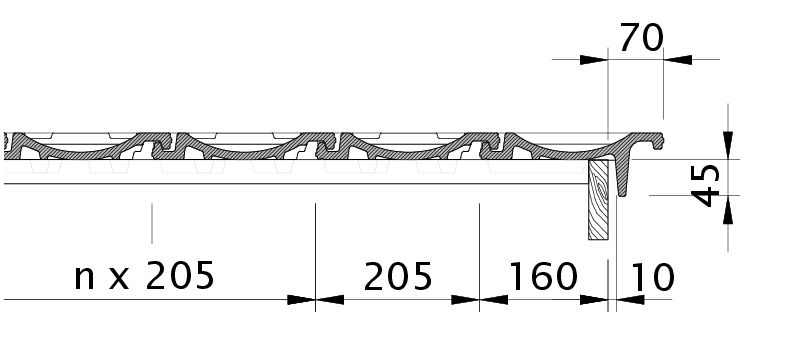

Drawing ELEGANZ verge tile right with barge board OBR
Drawing ELEGANZ verge tile right with barge board OBR

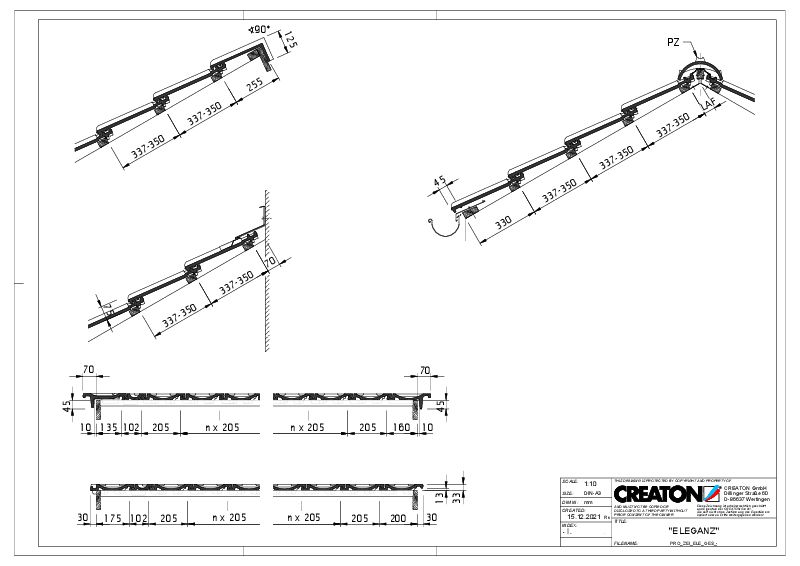

Drawing ELEGANZ general view GES
Drawing ELEGANZ general view GES

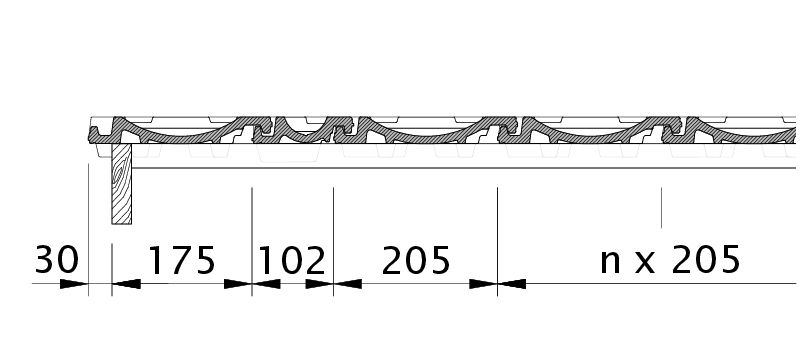

Drawing ELEGANZ verge left with verge sheet metal and double roll ODL
Drawing ELEGANZ verge left with verge sheet metal and double roll ODL

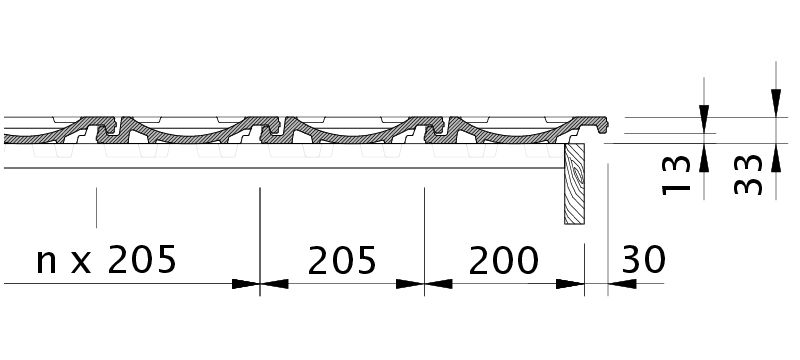

Drawing ELEGANZ verge right with verge sheet metal and field tile OFR
Drawing ELEGANZ verge right with verge sheet metal and field tile OFR

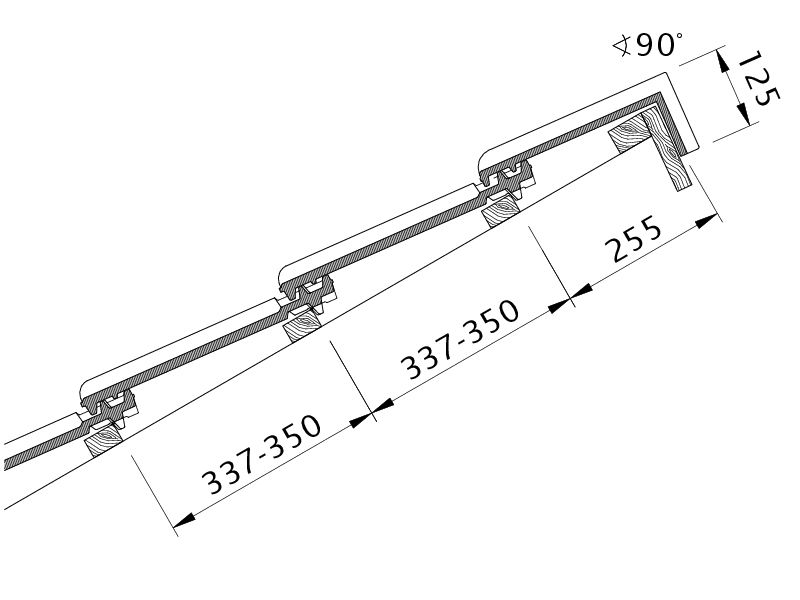

Drawing ELEGANZ shed roof version PDA
Drawing ELEGANZ shed roof version PDA

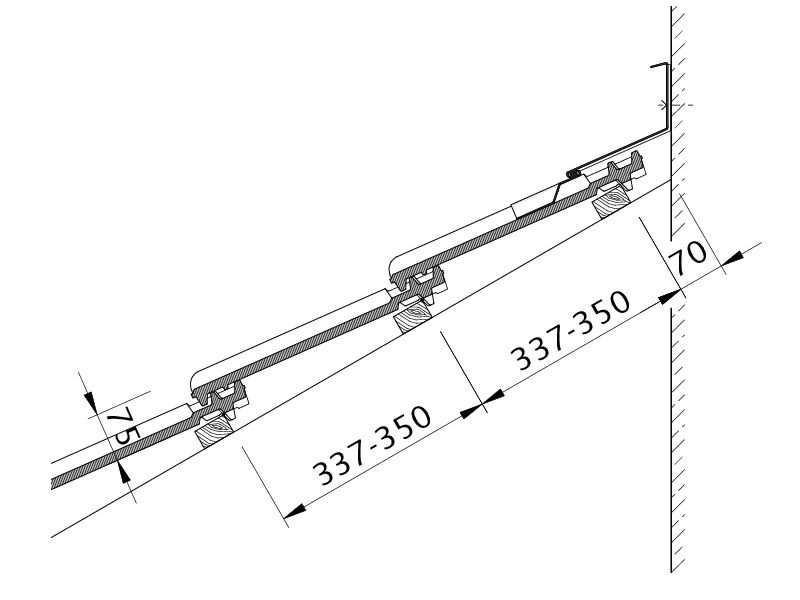

Drawing ELEGANZ wall connection (above) with FALZ WMF
Drawing ELEGANZ wall connection (above) with FALZ WMF
Drawing ridge and hip tile product range PZ-Firstziegel
Drawing ridge and hip tile product range PZ-Firstziegel
Drawing ridge and hip tile product range PZ-Firstziegel-Perspektive
Drawing ridge and hip tile product range PZ-Firstziegel-Perspektive

Applications

Additional measures according to CREATON manufacturer's specifications
24 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 24 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 22 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 22 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 18 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°
PRU 2.5 pcs/mLAF80757570656055505045
PRU 2.5 pcs/mFLA100958580756560554540
PZ 2.5 pcs/mLAF70656060555050
PZ 2.5 pcs/mFLA80706555504535
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°
PRU 2.5 pcs/mLAF80807565605550403530
PRU 2.5 pcs/mFLA1101059590857570655550
PZ 2.5 pcs/mLAF70605555504035
PZ 2.5 pcs/mFLA90807565605545
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°
PRU 2.5 pcs/mLAF75757060554540302520
PRU 2.5 pcs/mFLA115110105100959085807570
PZ 2.5 pcs/mLAF65555045403025
PZ 2.5 pcs/mFLA100908580757065

References

more

Accessory range

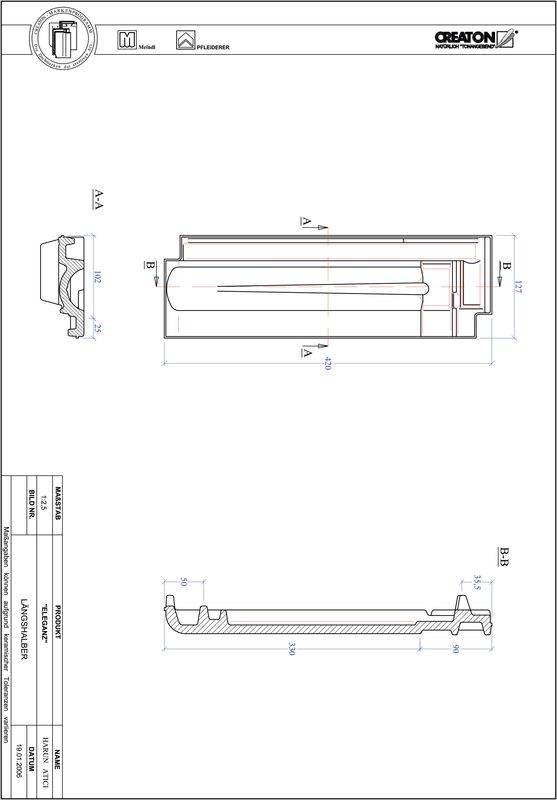

ELE half-width tile

ELE half-width tile

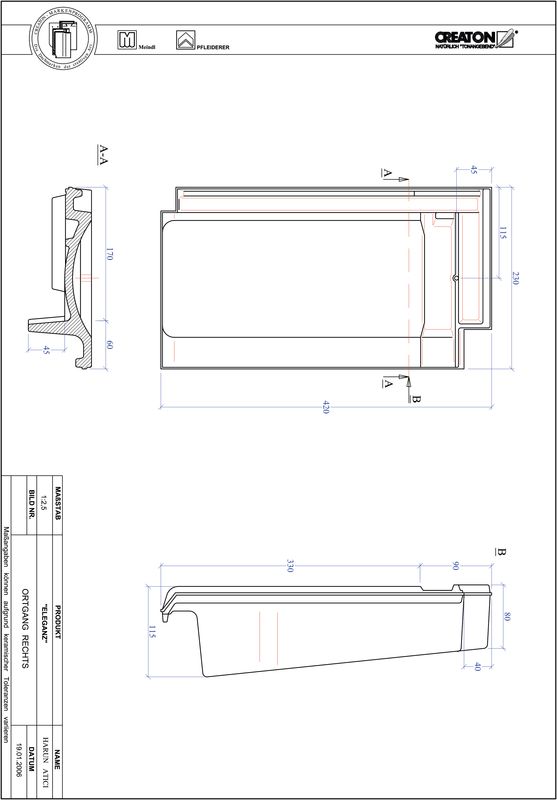

ELE verge tile right

ELE verge tile right

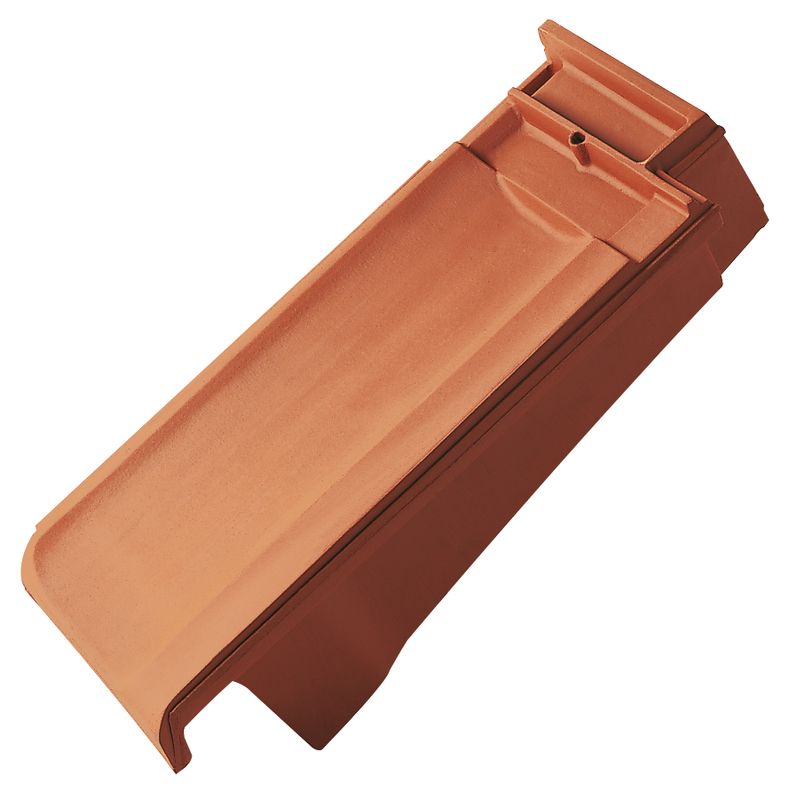

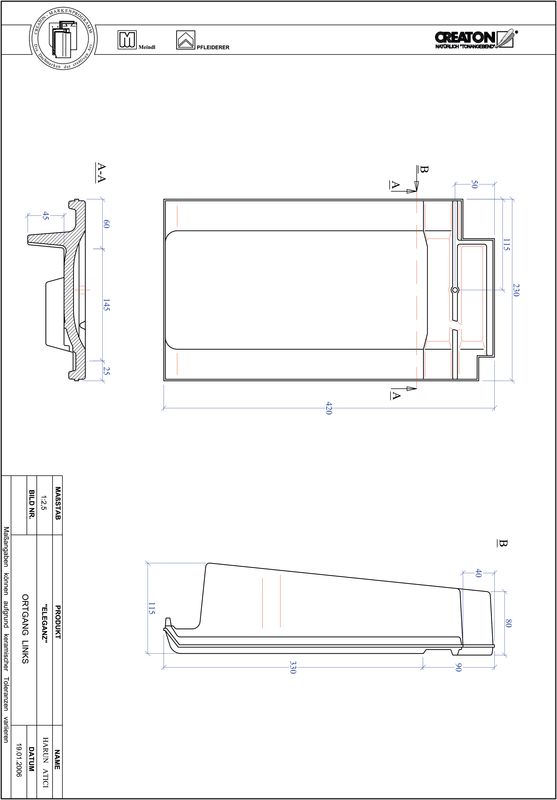

ELE verge tile left

ELE verge tile left

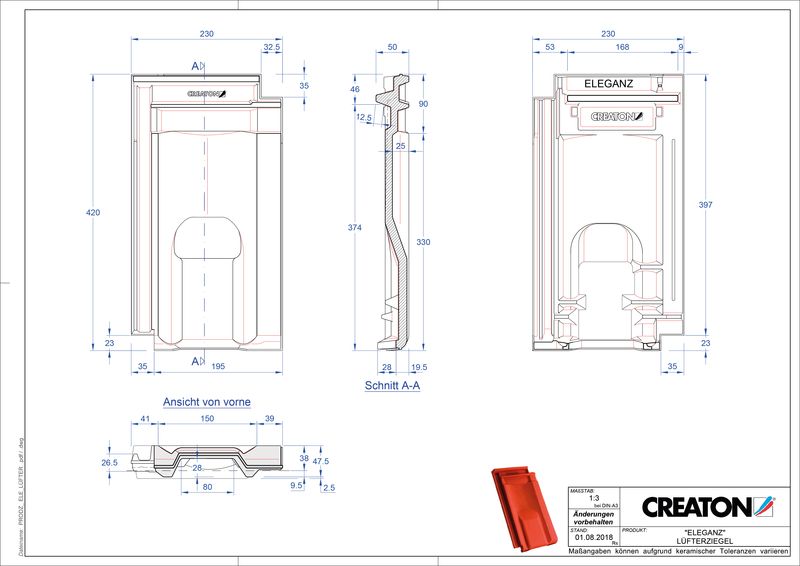

ELE ventilating tile

ELE ventilating tile

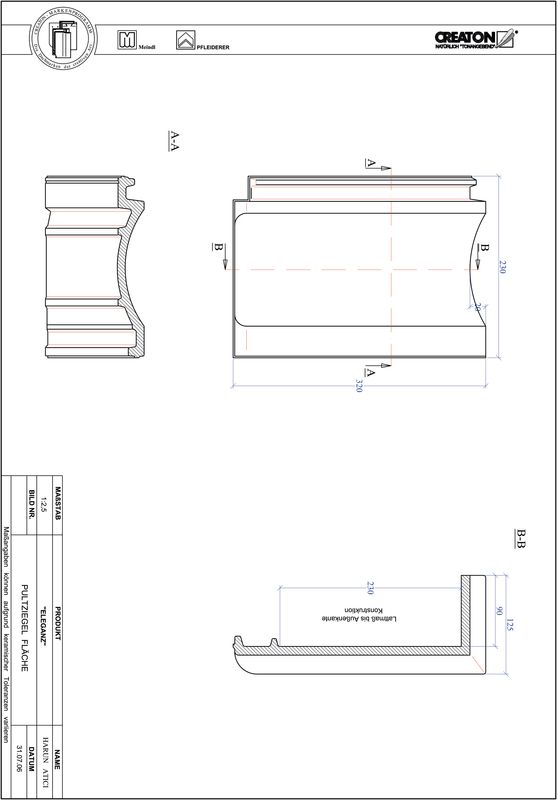

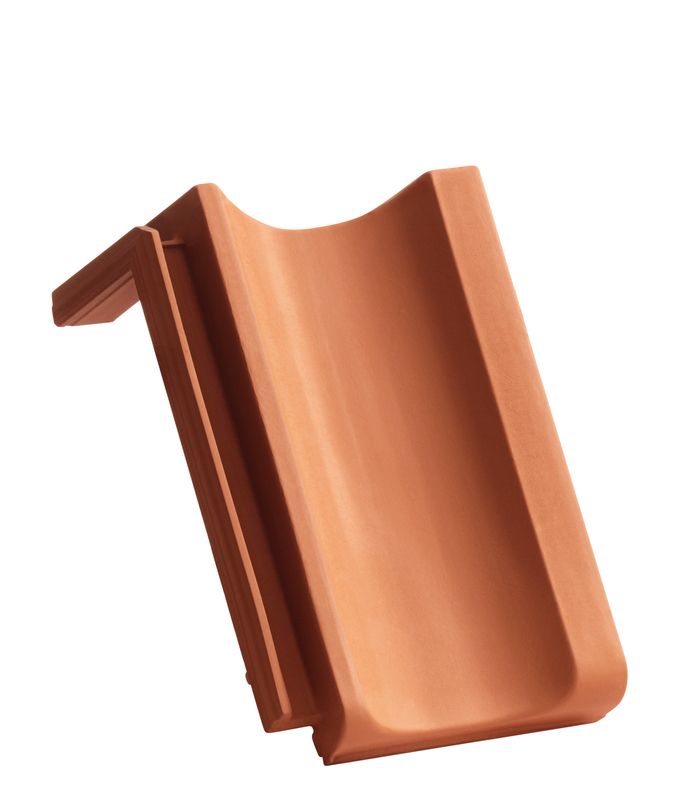

ELE shed roof tile decorated standard

ELE shed roof tile decorated standard

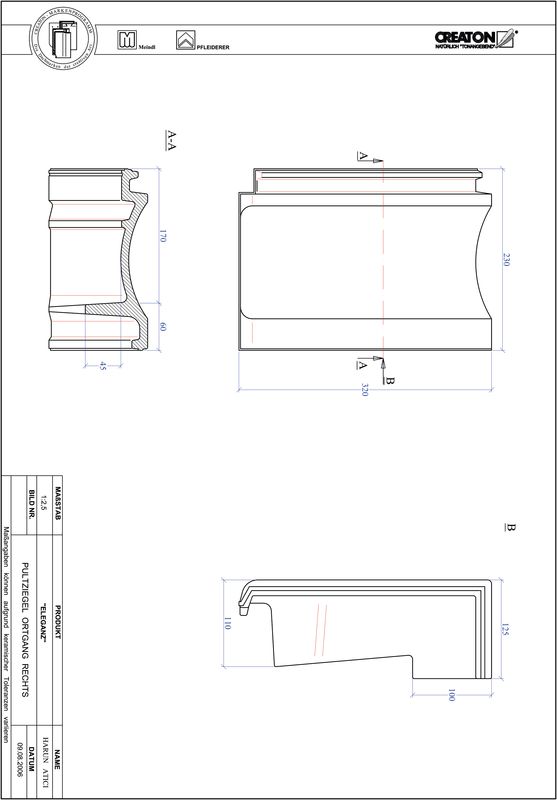

ELE shed roof verge tile decorated standard right

ELE shed roof verge tile decorated standard right

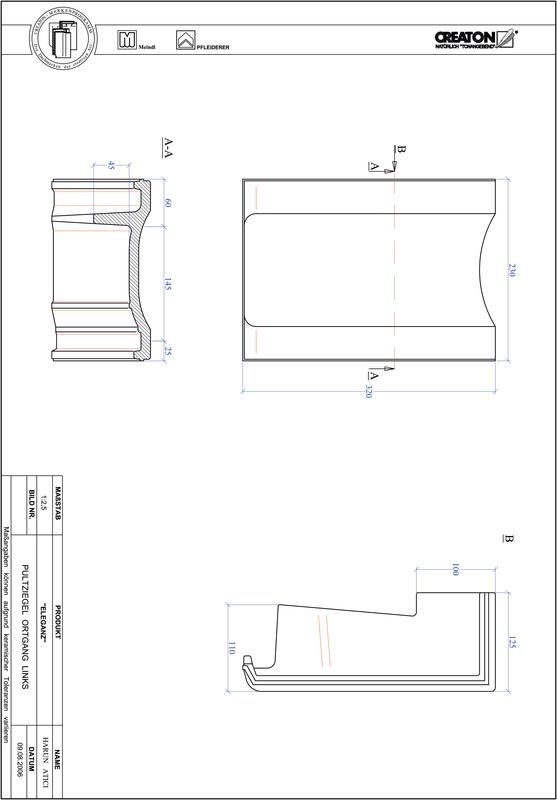

ELE shed roof verge tile decorated standard left

ELE shed roof verge tile decorated standard left

ELE shed roof tile decorated special size

ELE shed roof tile decorated special size

ELE shed roof verge tile decorated special size right

ELE shed roof verge tile decorated special size right

ELE shed roof verge tile decorated special size left

ELE shed roof verge tile decorated special size left

ELE mansard/pitch transition tile decorated special size

ELE mansard/pitch transition tile decorated special size

ELE mansard/pitch transition verge tile decorated special size right

ELE mansard/pitch transition verge tile decorated special size right

ELE mansard/pitch transition verge tile decorated special size left

ELE mansard/pitch transition verge tile decorated special size left

WER universal shed roof tile PDZ

WER universal shed roof tile PDZ

WER universal shed roof starter and termination plate PDZ

WER universal shed roof starter and termination plate PDZ

Ridge clip aluminium universal shed roof tile

Ridge clip aluminium universal shed roof tile

Product range for roof ventilation and penetrations

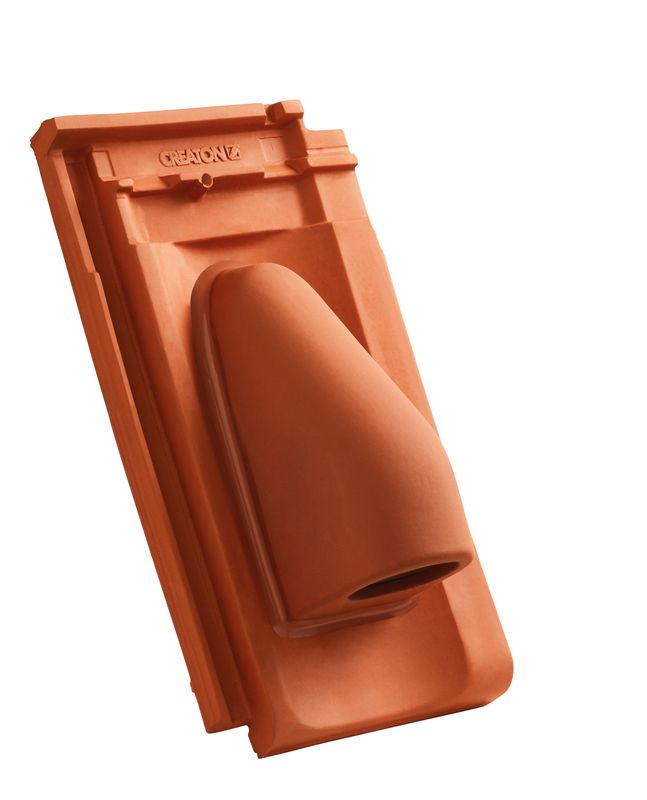

ELE SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

ELE SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

ELE SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

ELE SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

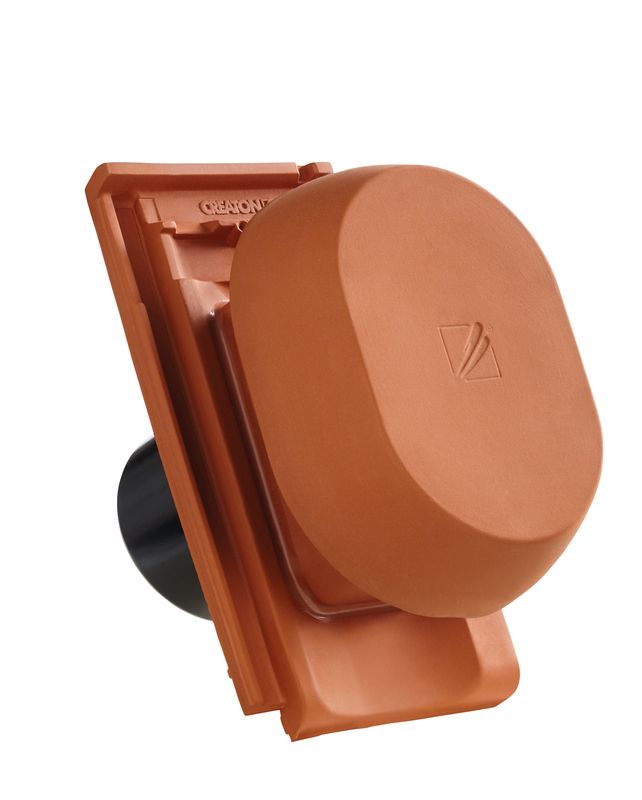

ELE SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

ELE SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

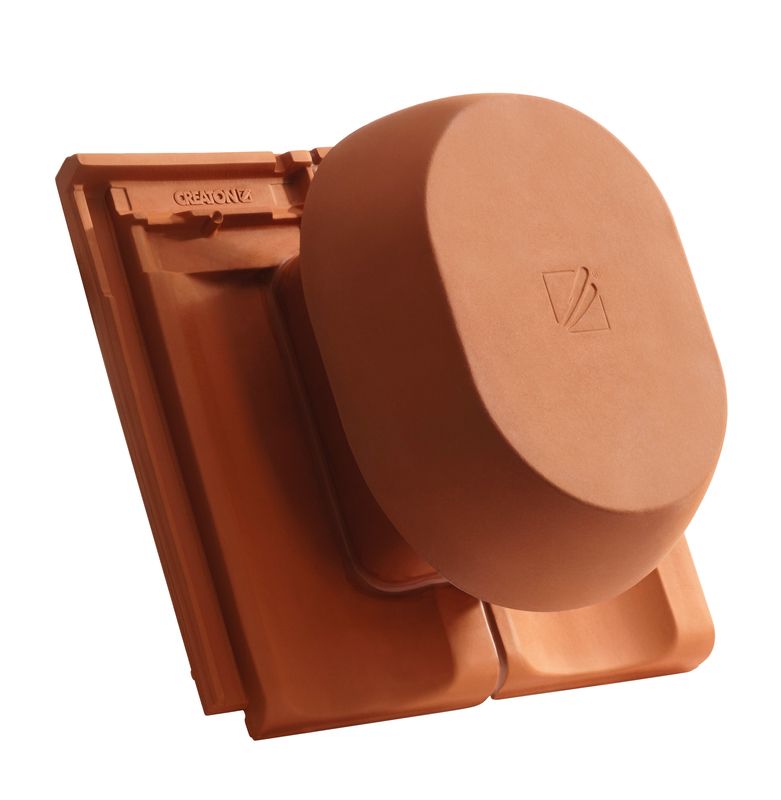

ELE SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

ELE SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

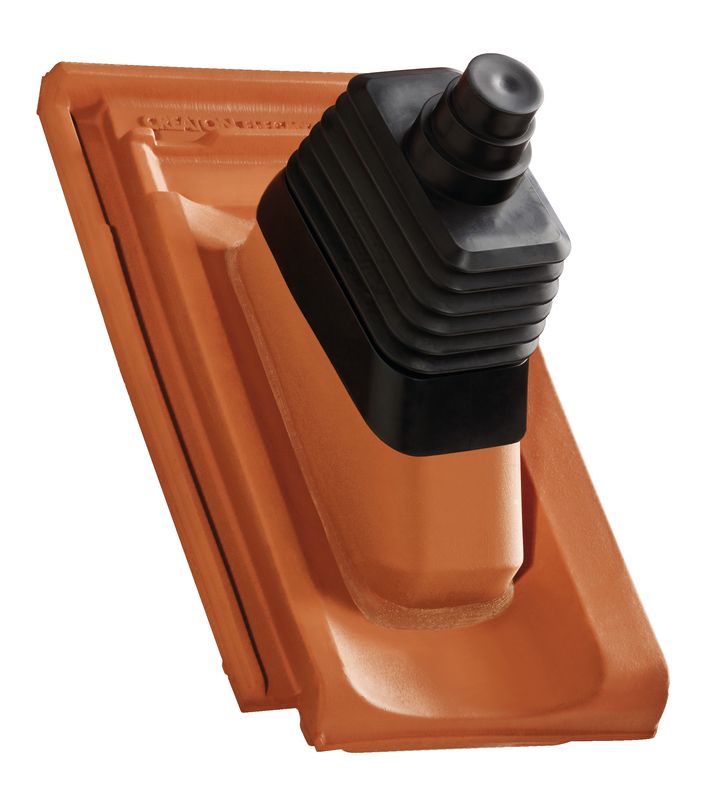

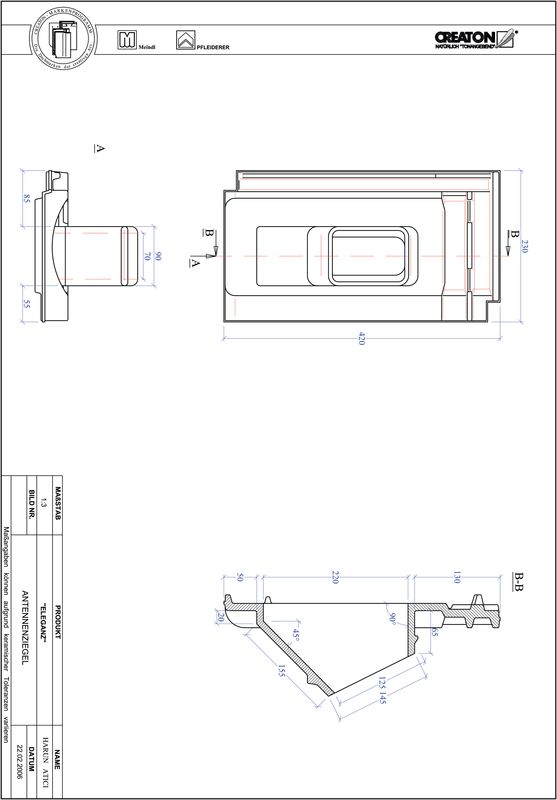

ELE aerial entry

ELE aerial entry

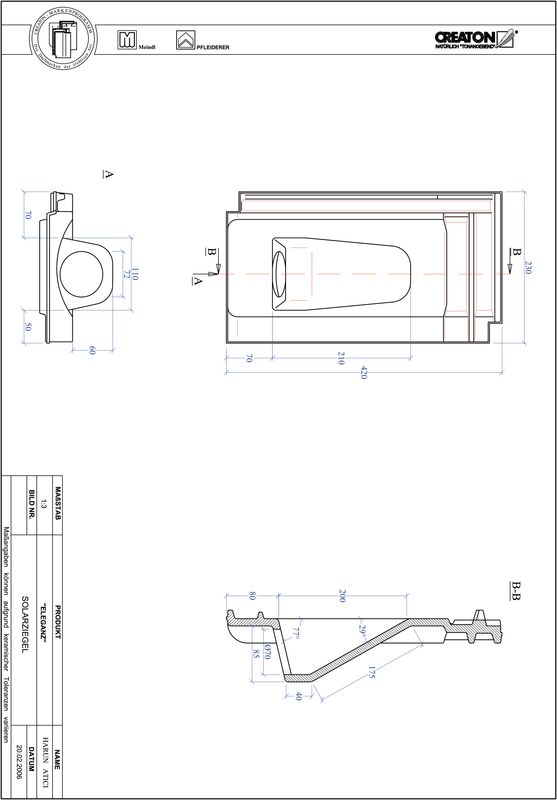

ELE solar entry tile

ELE solar entry tile

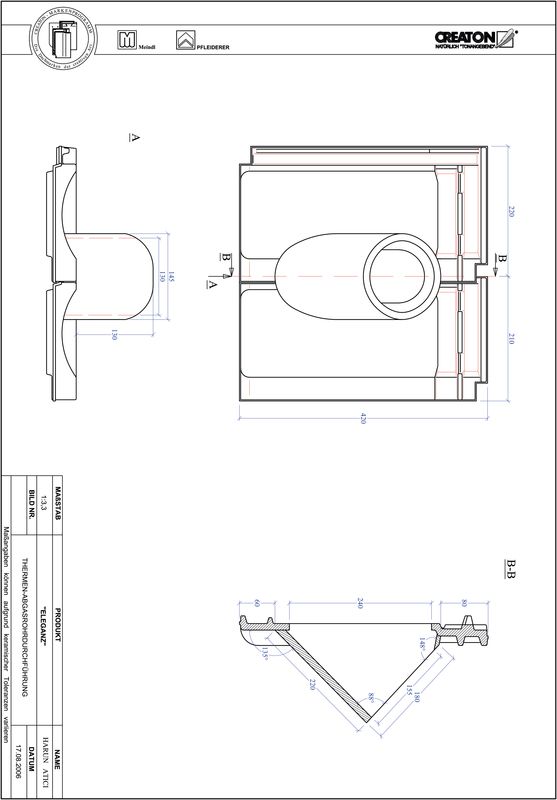

ELE flue pipe penetration NW 110/125

ELE flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Product range for snow protection, roof access and solar installation in metal

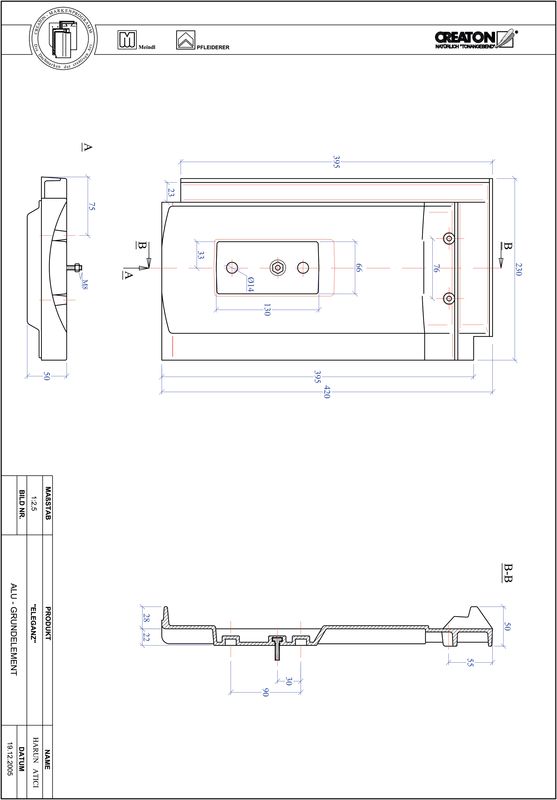

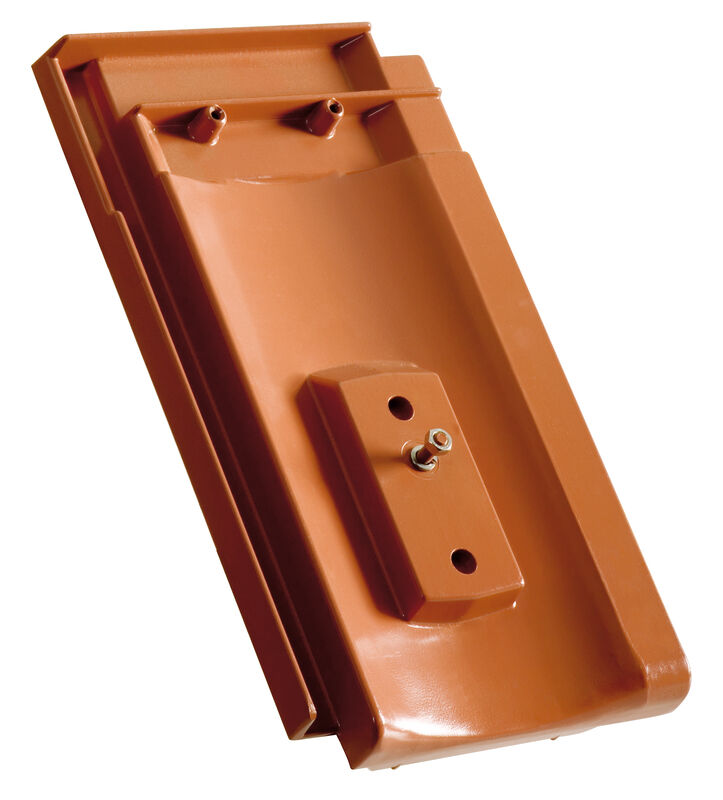

ELE aluminium base element

ELE aluminium base element

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

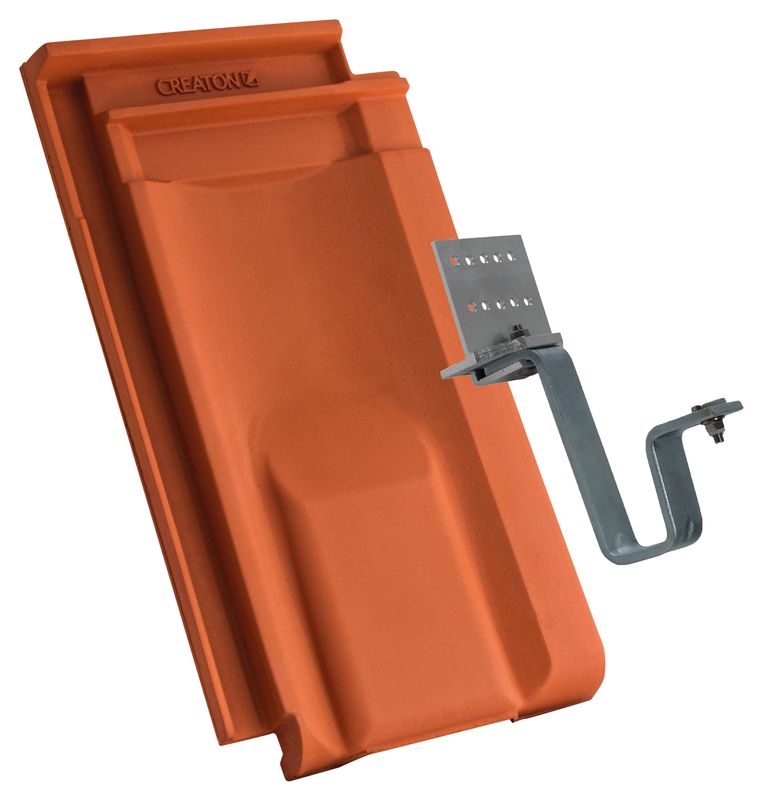

ELE solar system bracket kit for plank installation

ELE solar system bracket kit for plank installation

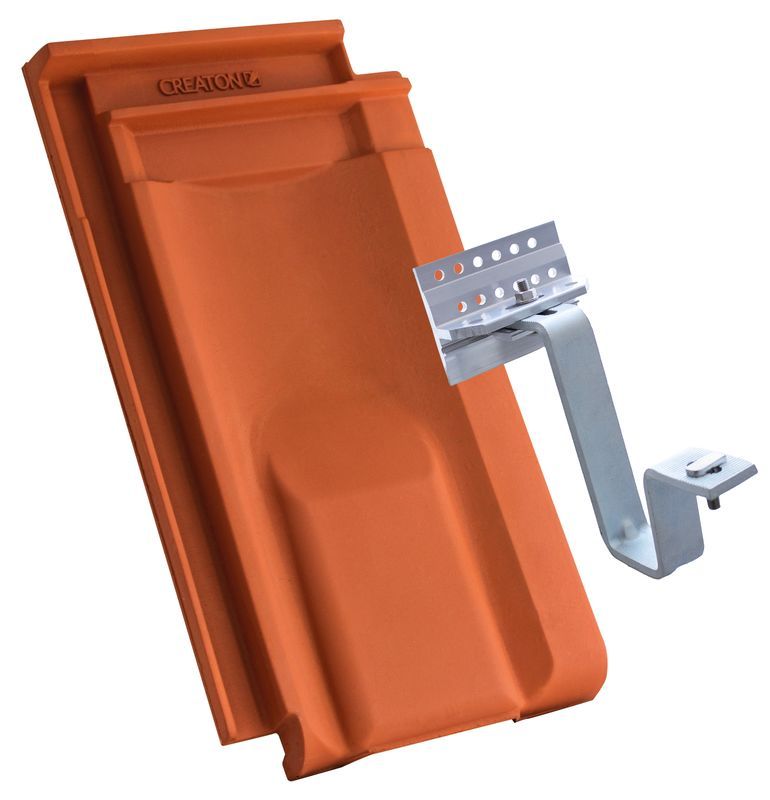

ELE solar system bracket kit for rafter installation

ELE solar system bracket kit for rafter installation

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

MAG snow clip

MAG snow clip

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

Product range for roof details and uplift protection

ELE transparent tile (acrylic)

ELE transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, drive-in clip, type N4 (DOM, CAN, ELE, HER, RAT, RUS, VIS)

Storm clip in zinc-aluminium, drive-in clip, type N4 (DOM, CAN, ELE, HER, RAT, RUS, VIS)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Stainless steel screw with seal, length 70 mm

Stainless steel screw with seal, length 70 mm

Hip and valley clip 13-17 mm

Hip and valley clip 13-17 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Ridge and hip tile product range

WER ridge tile PZ

WER ridge tile PZ

WER ridge tile PRU

WER ridge tile PRU

WER ridge starter and termination plate ceramic PZ

WER ridge starter and termination plate ceramic PZ

WER ridge starter and termination plate ceramic PRU

WER ridge starter and termination plate ceramic PRU

WER function starter and termination plate ceramic PRU

WER function starter and termination plate ceramic PRU

WER hip starter ceramic PZ

WER hip starter ceramic PZ

ROG hip starter ceramic round connection PZ

ROG hip starter ceramic round connection PZ

WER hip starter ceramic with scallop PZ

WER hip starter ceramic with scallop PZ

WER hip cap 3-axis PRU

WER hip cap 3-axis PRU

WER hip cap 4-axis PRU

WER hip cap 4-axis PRU

Ridge clip aluminium PZ

Ridge clip aluminium PZ

Ridge clip aluminium PRU

Ridge clip aluminium PRU

WER function starter and termination plate ceramic PMoN

WER function starter and termination plate ceramic PMoN

WER hip starter ceramic PRU

WER hip starter ceramic PRU
