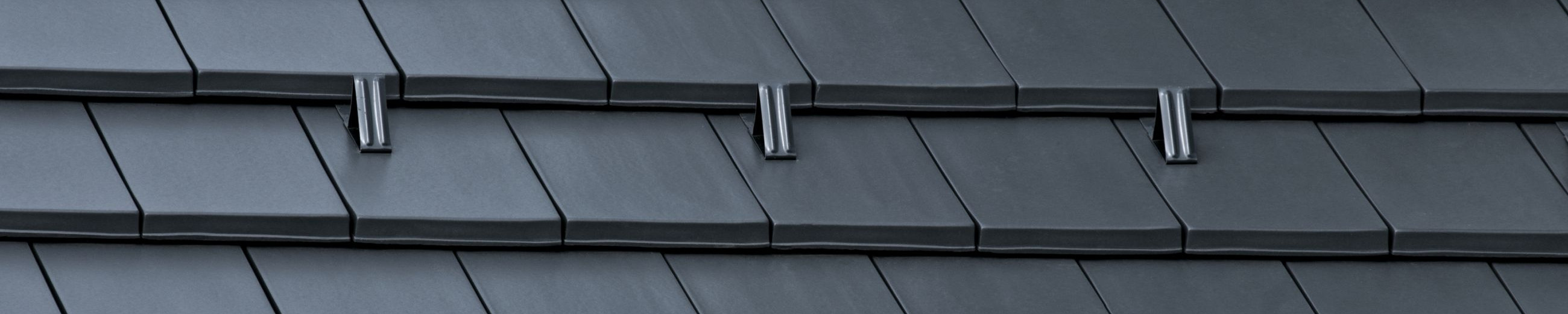

DOMINO NUANCE slate shade engobed

DOMINO

The linear smooth tile.

  • Generous adjustment range of 12 mm per tile
  • First-class raw materials ensure exceptional homogeneity with low shrinkage, and the high level of iron oxide creates brilliantly intense authentic colours
  • Very pronounced recess shape at the vertical interlock
  • Can be used in ancillary buildings with bonded coverage for roof pitches of 25° and above, without additional measures, in accordance with Central Association of the German Roofing Trade (ZVDH) guidelines
  • DOMINO has a single vertical interlock. But how! The very pronounced recess shape provides optimum water control, even in the fiercest storms. The stepped overlaps reliably protect against penetration by water and dirt

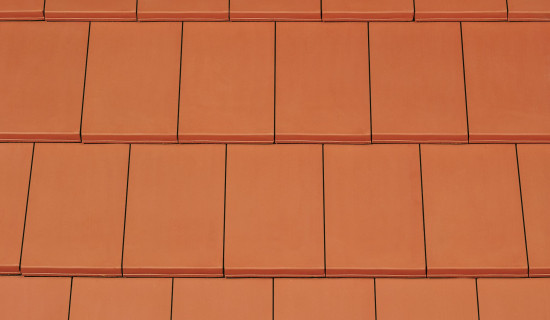

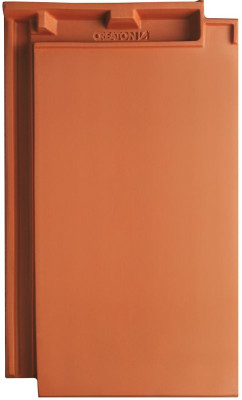

natural red
natural red
NUANCE copper red engobed
NUANCE copper red engobed
NUANCE wine red engobed
NUANCE wine red engobed
NUANCE grey engobed
NUANCE grey engobed

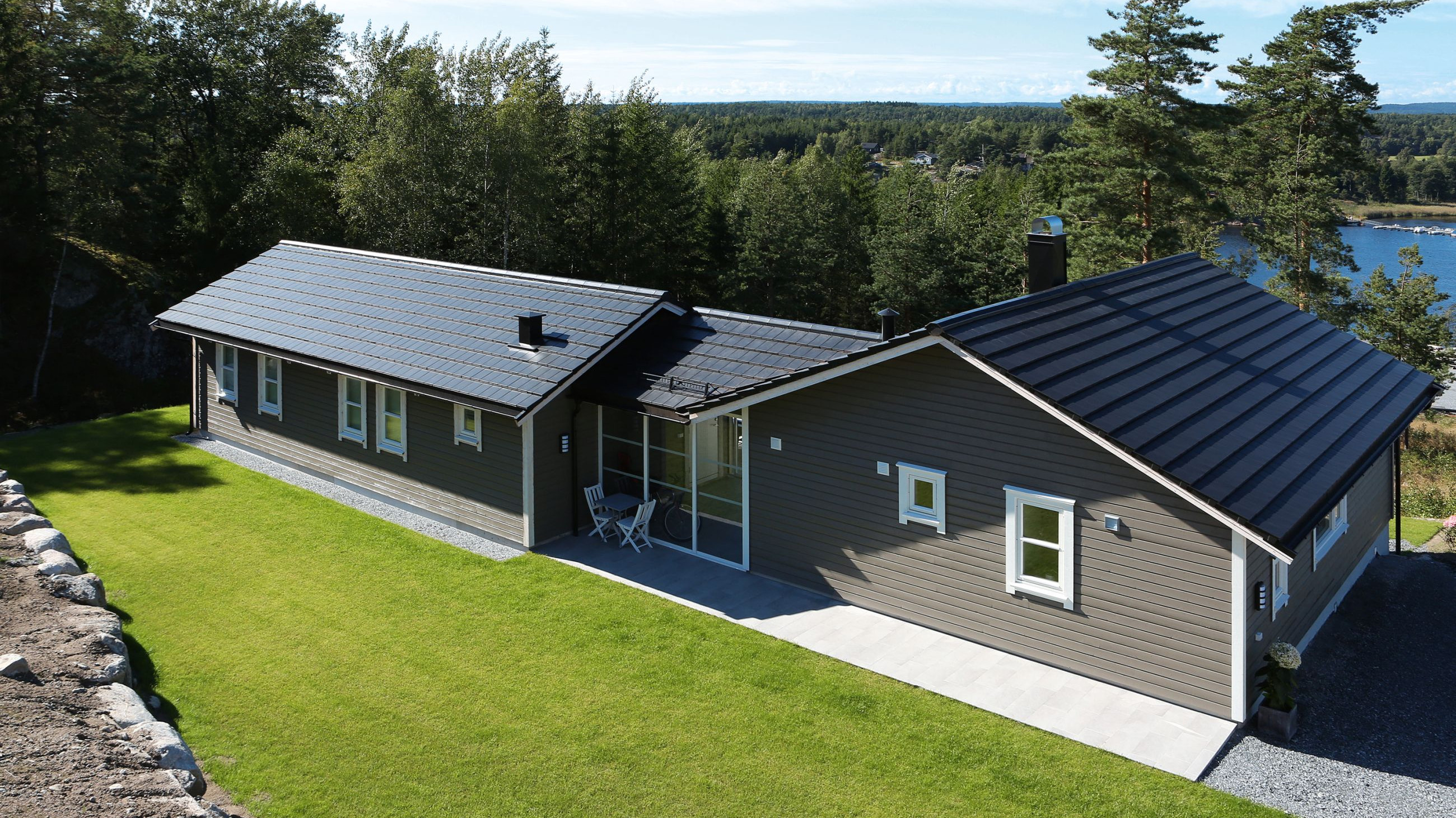

NUANCE slate grey engobed
NUANCE slate grey engobed
NUANCE black matt engobed
NUANCE black matt engobed
FINESSE slate glazed
FINESSE slate glazed
FINESSE black glazed
FINESSE black glazed

Technical data

Size (appr.)257 x 436 mm
Covering width min. approx.224 mm
Covering width on av. approx.225 mm
Max. coverage width (approx.)226 mm
Min. gauge (approx.)343 mm
Covering length on av. approx.348 mm
Max. gauge (approx.)354 mm
Tile requirement min. (approx.)12.4 pcs/m²
Average tile requirement (approx.)12.7 pcs/m²
Brickware max. approx.13.1 pcs/m²
Unit weight (approx.)4.2 kg/piece
Weight per m² (approx.)53.3 kg/m²
Weight per pallet (approx.)1033 kg
Pcs per mini-pack4 piece
Pcs per pallet240 piece

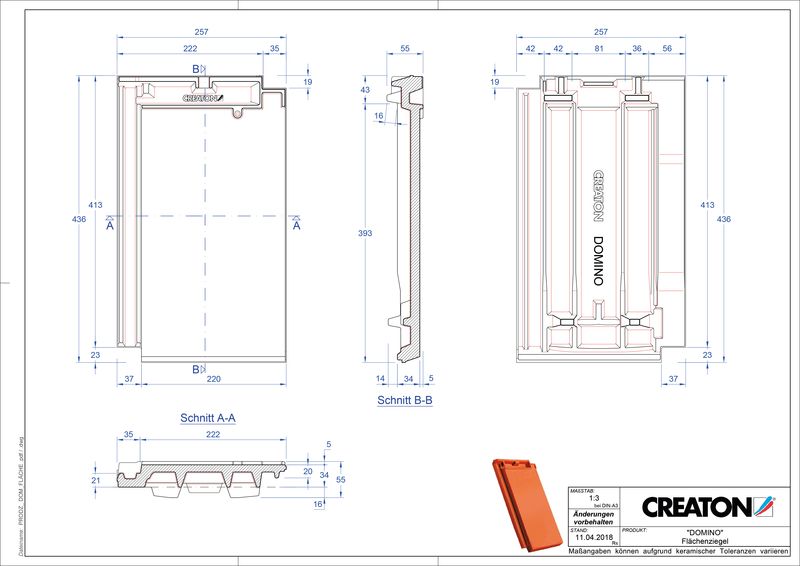

Technical drawings

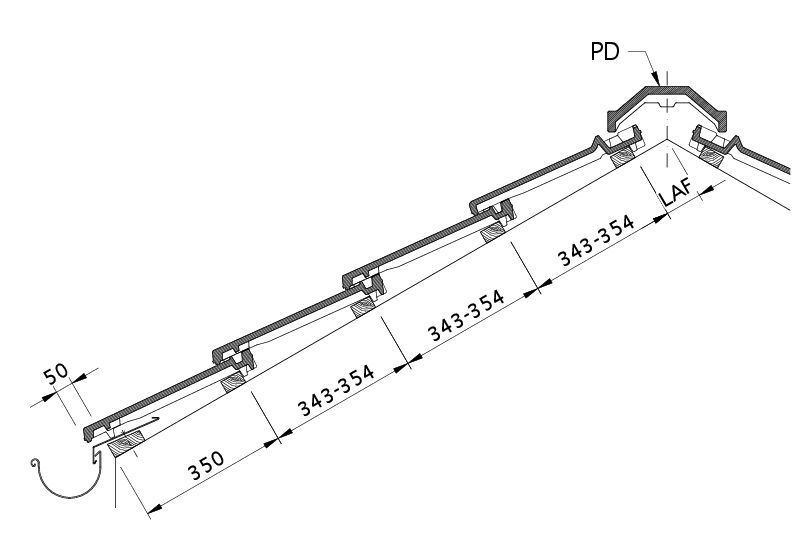

Drawing DOMINO roof cross-section DQF
Drawing DOMINO roof cross-section DQF

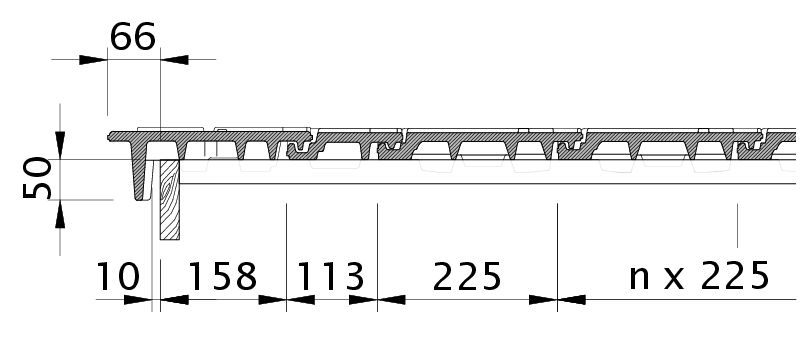

Drawing DOMINO verge tile left with barge board OBL
Drawing DOMINO verge tile left with barge board OBL

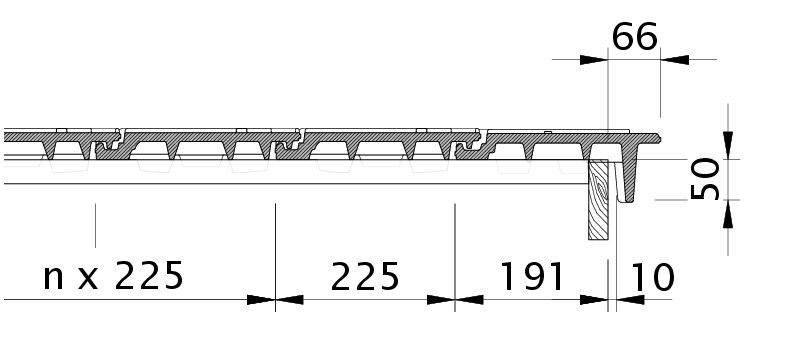

Drawing DOMINO verge tile right with barge board OBR
Drawing DOMINO verge tile right with barge board OBR

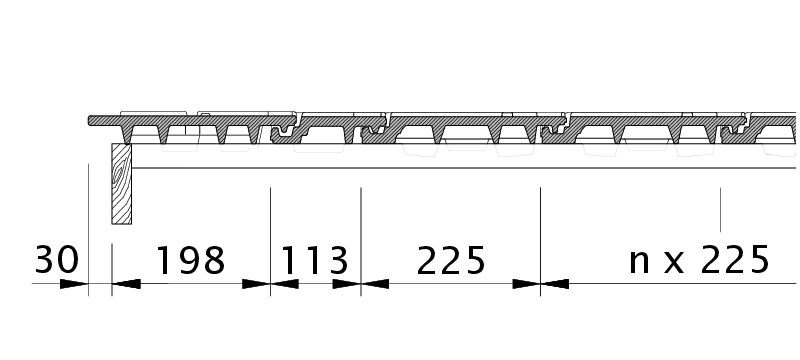

Drawing DOMINO ODL ODL
Drawing DOMINO ODL ODL

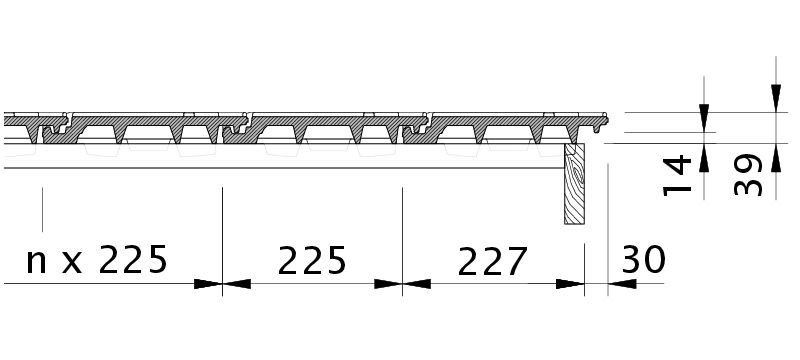

Drawing DOMINO verge right with verge sheet metal and field tile OFR
Drawing DOMINO verge right with verge sheet metal and field tile OFR

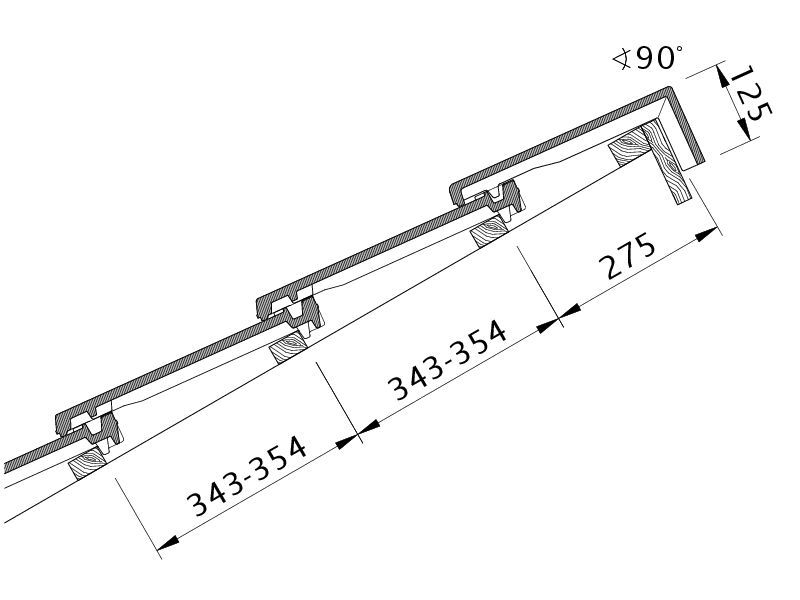

Drawing DOMINO shed roof version PDA
Drawing DOMINO shed roof version PDA

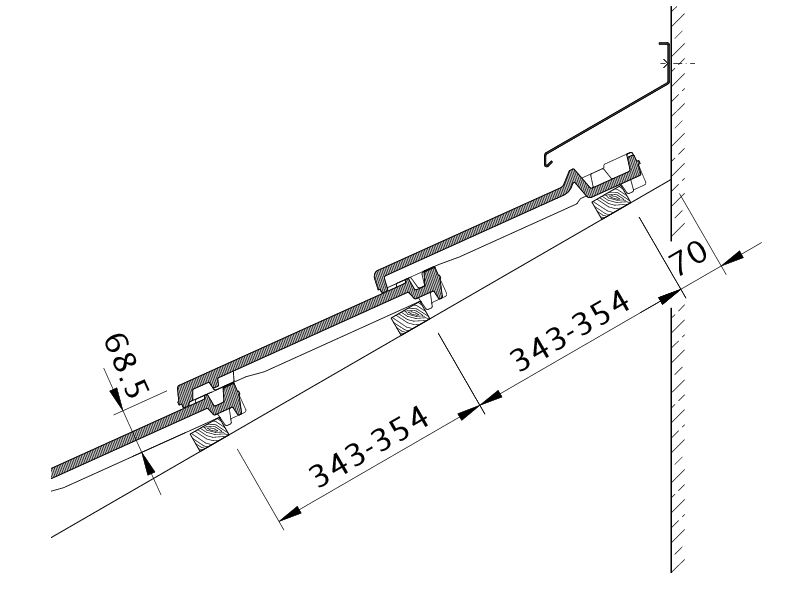

Drawing DOMINO wall connection (above) with FALZ WMF
Drawing DOMINO wall connection (above) with FALZ WMF

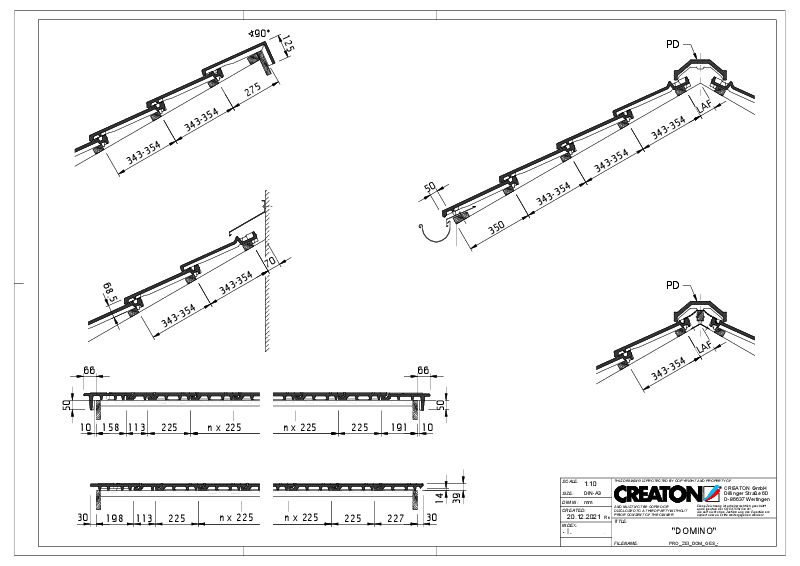

Drawing DOMINO general view GES
Drawing DOMINO general view GES
Drawing DOMINO distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing DOMINO distance from batten to ridge intersection point, ridge batten spacing LAF

Applications

Additional measures according to CREATON manufacturer's specifications
18 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 18 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 16 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

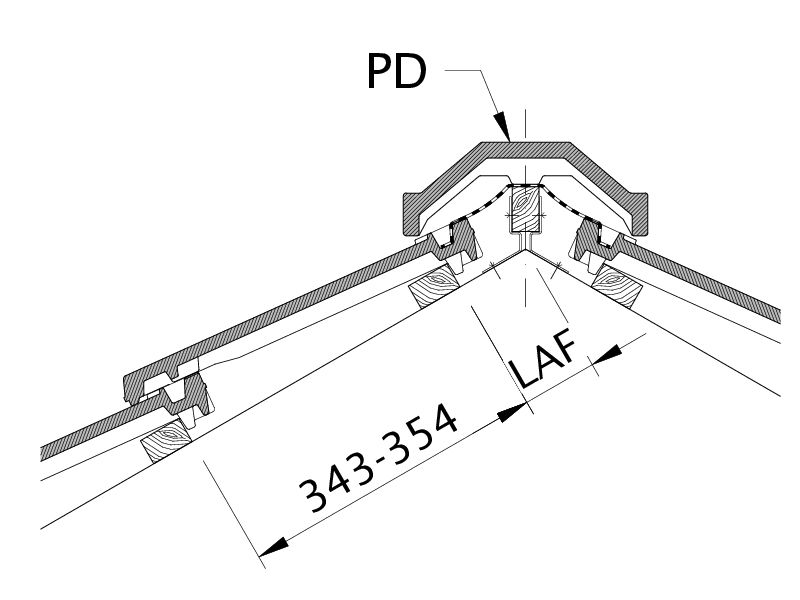

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN15°20°25°30°35°40°45°50°55°
PD 2.5 pcs/mLAF959085858585858585
PD 2.5 pcs/mFLA858070605040302515
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN15°20°25°30°35°40°45°50°55°
PD 2.5 pcs/mLAF959080808080757070
PD 2.5 pcs/mFLA959080706050403525
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN15°20°25°30°35°40°45°50°55°
PD 2.5 pcs/mLAF908575757070656060
PD 2.5 pcs/mFLA10510090807565555545

References

more

more

more

Accessory range

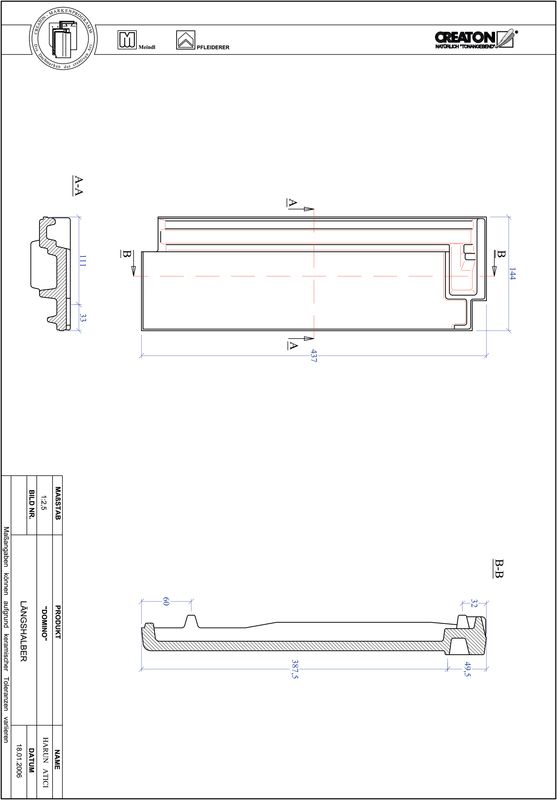

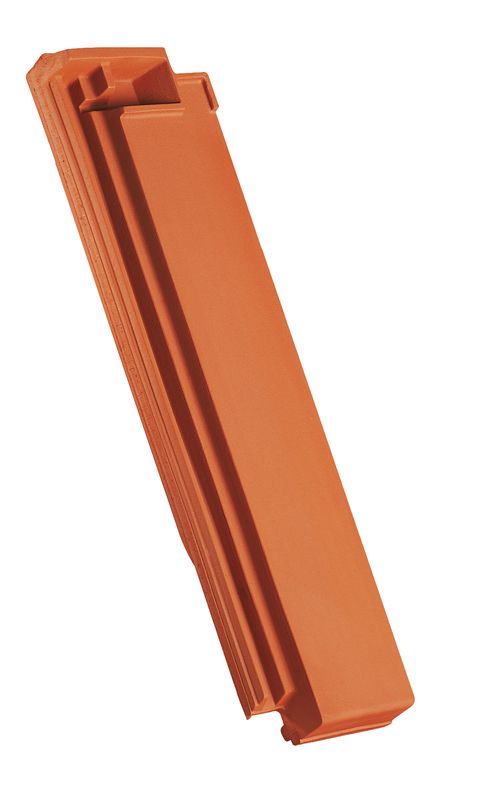

DOM half-width tile

DOM half-width tile

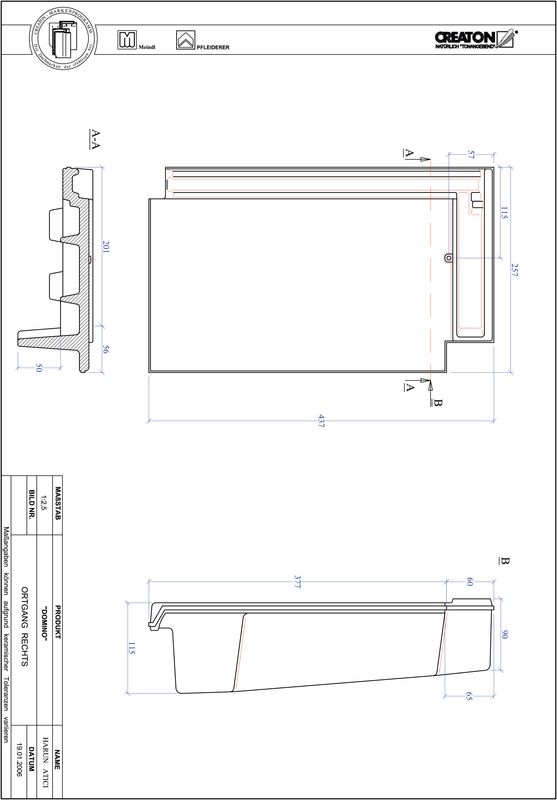

DOM verge tile right

DOM verge tile right

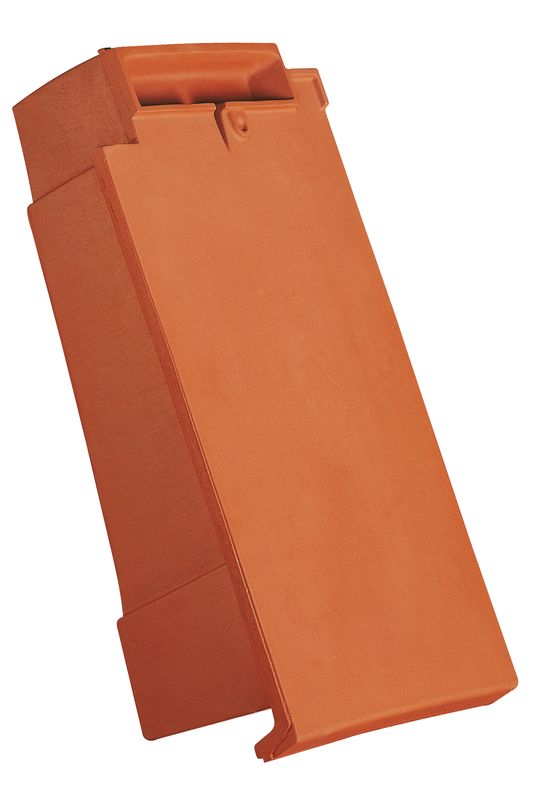

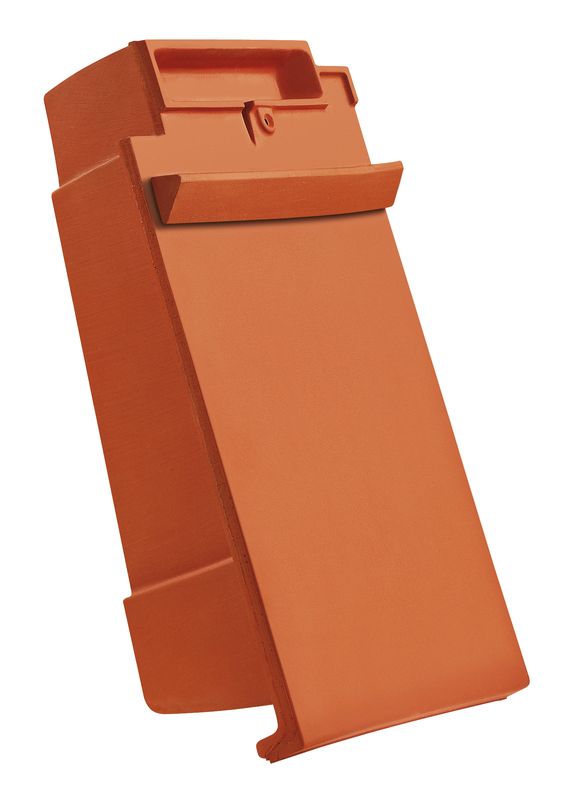

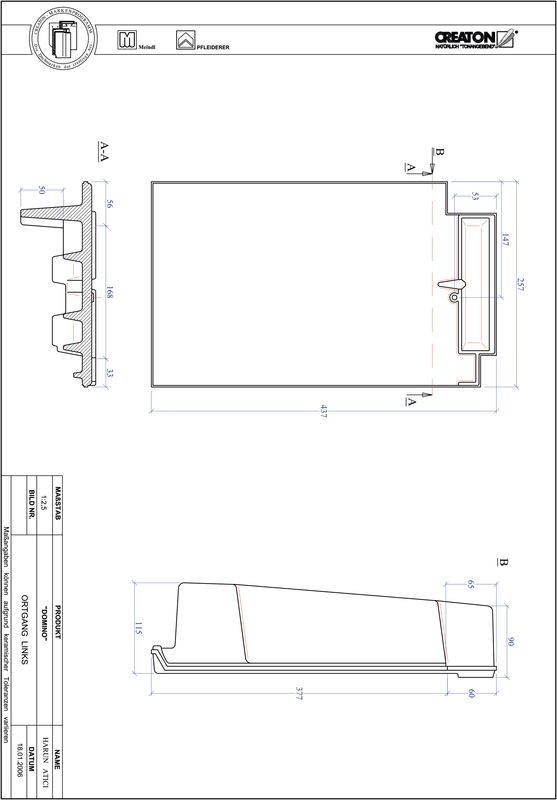

DOM verge tile left

DOM verge tile left

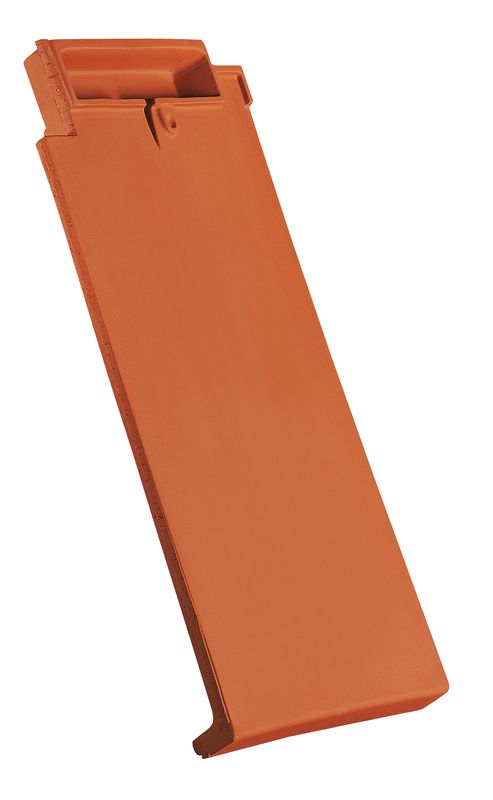

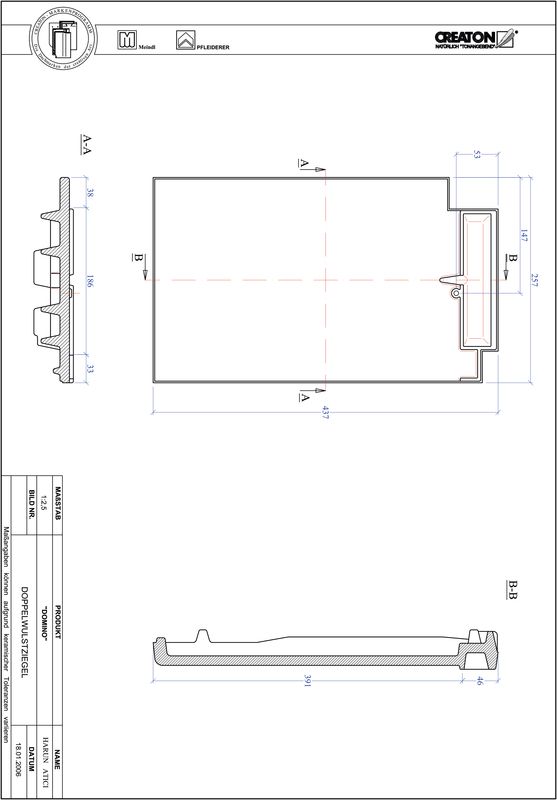

DOM double roll tile

DOM double roll tile

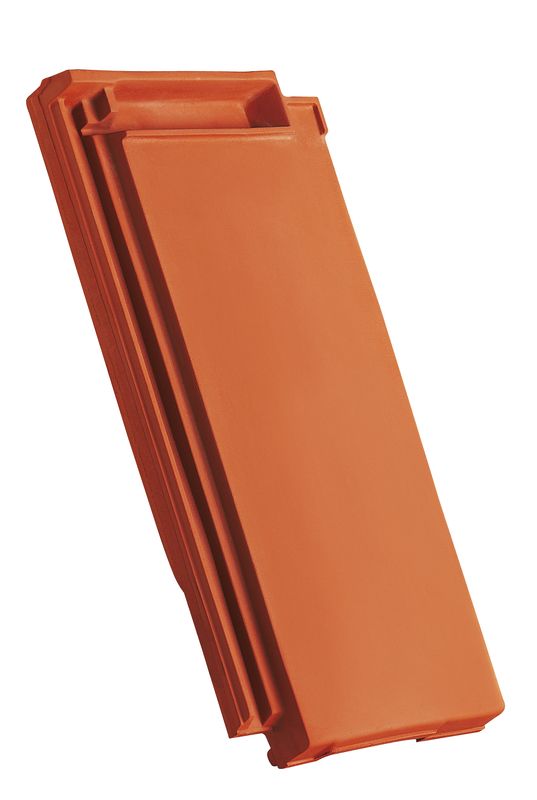

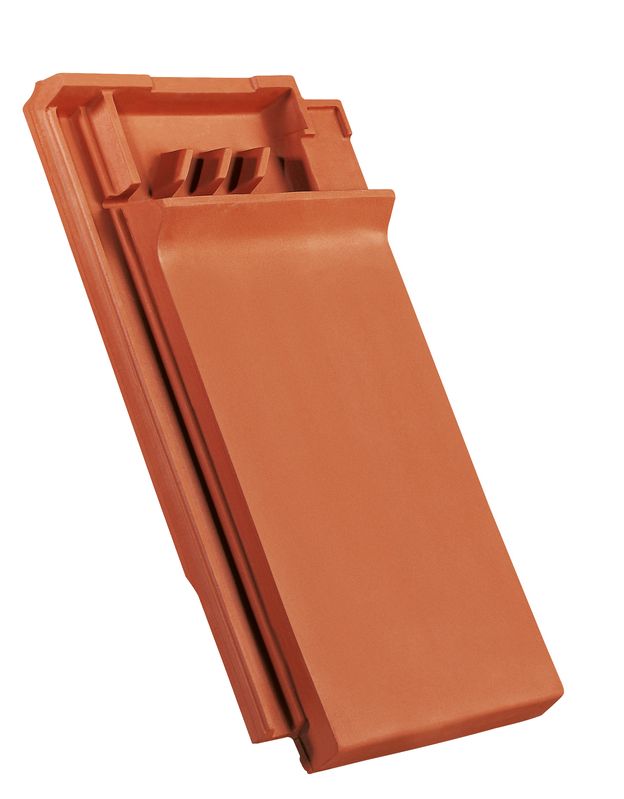

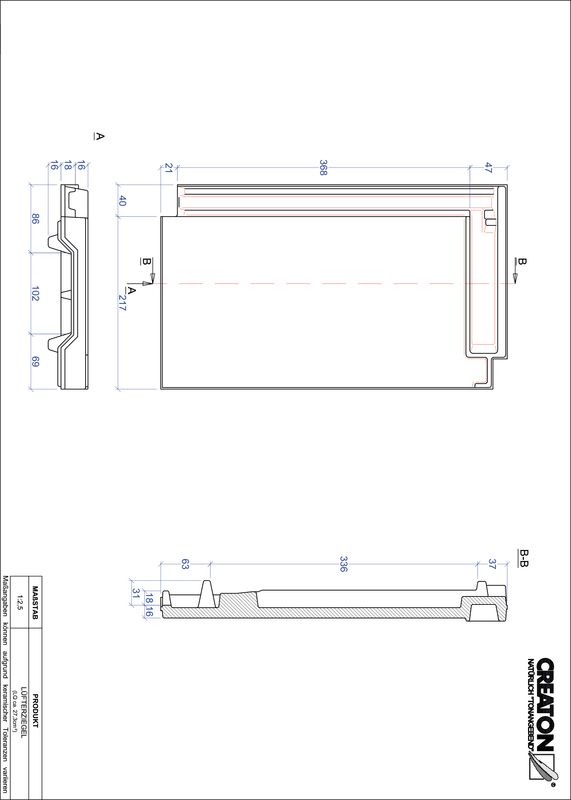

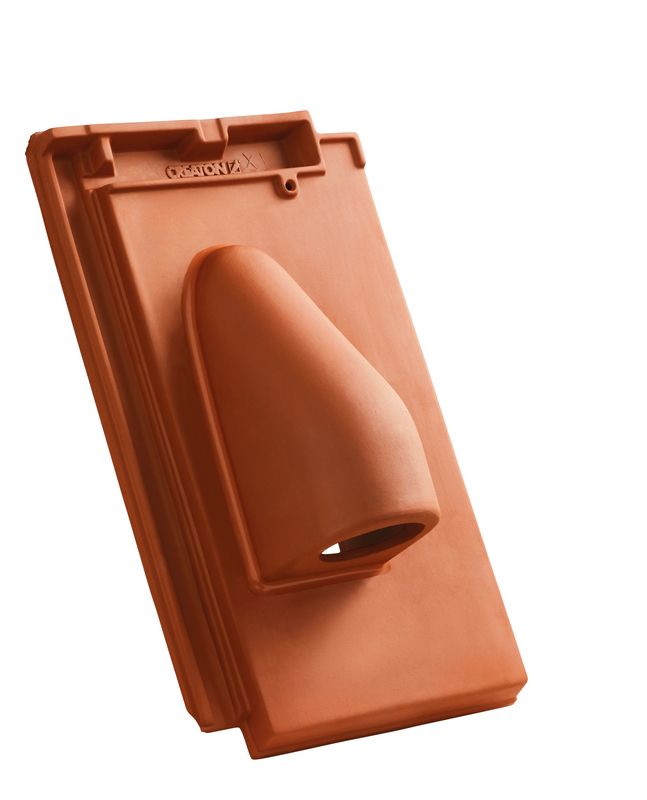

DOM ventilating tile

DOM ventilating tile

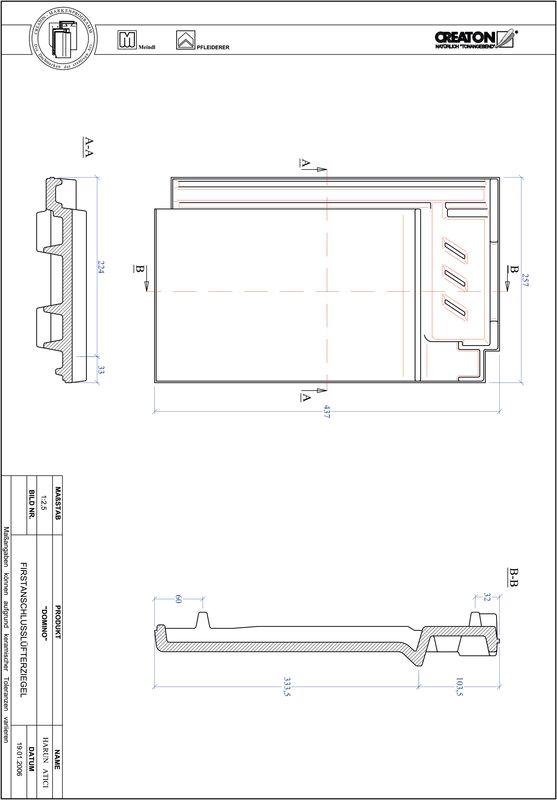

DOM ridge connection ventilating tile

DOM ridge connection ventilating tile

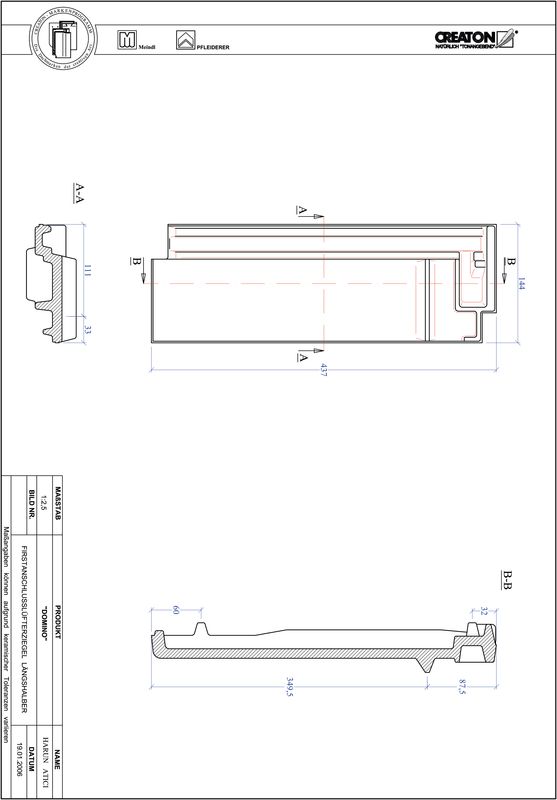

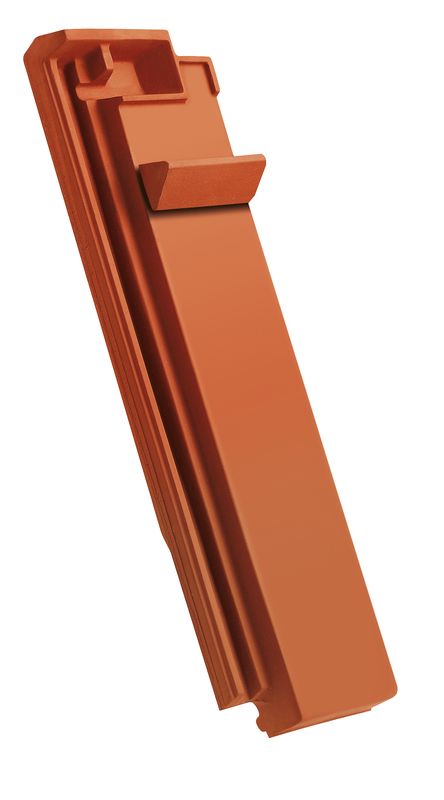

DOM ridge connection ventilating half-width tile

DOM ridge connection ventilating half-width tile

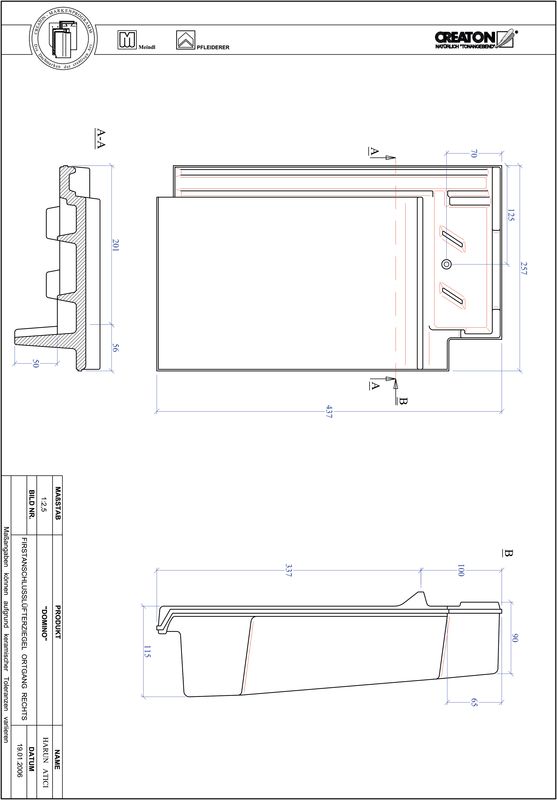

DOM ridge connection ventilating verge tile right

DOM ridge connection ventilating verge tile right

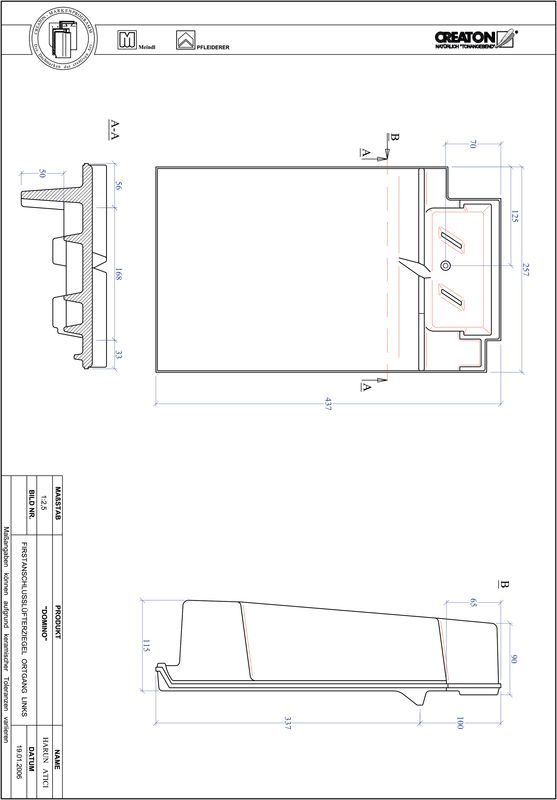

DOM ridge connection ventilating verge tile left

DOM ridge connection ventilating verge tile left

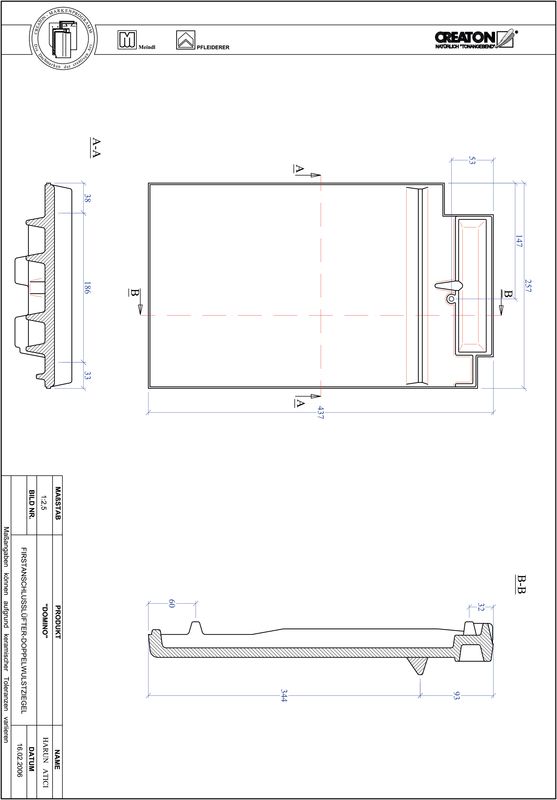

DOM ridge connection ventilating double roll tile

DOM ridge connection ventilating double roll tile

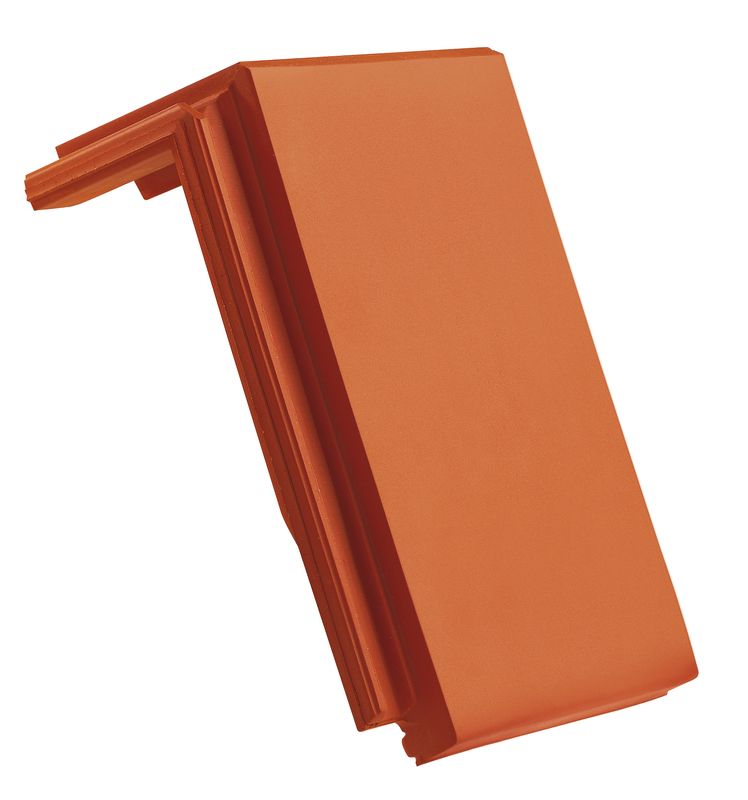

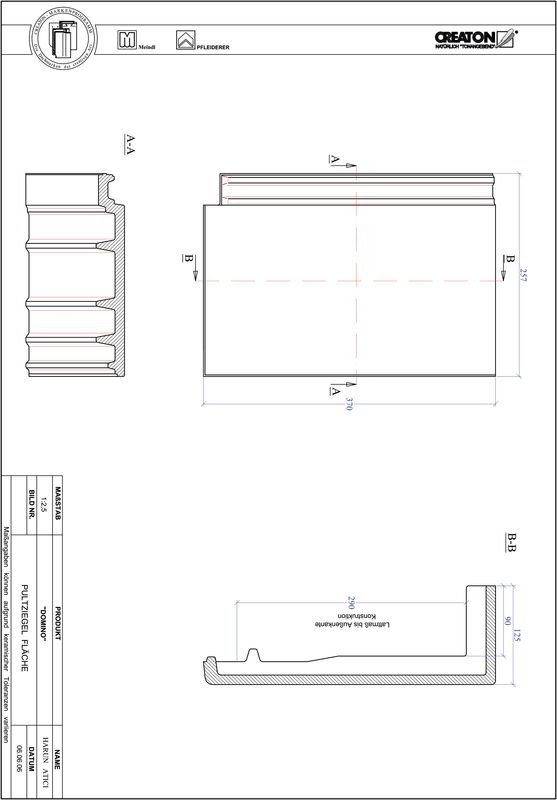

DOM shed roof tile decorated standard

DOM shed roof tile decorated standard

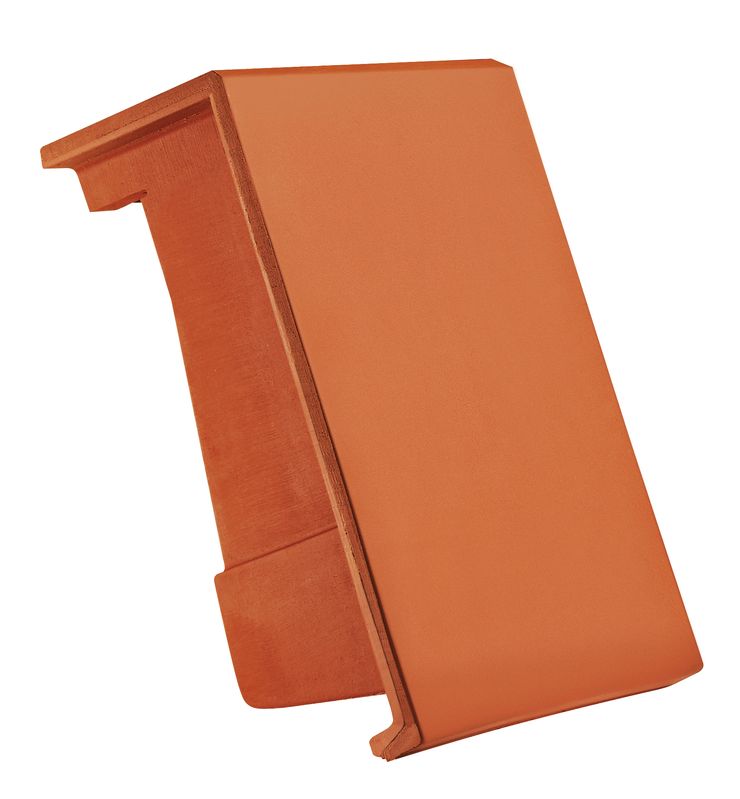

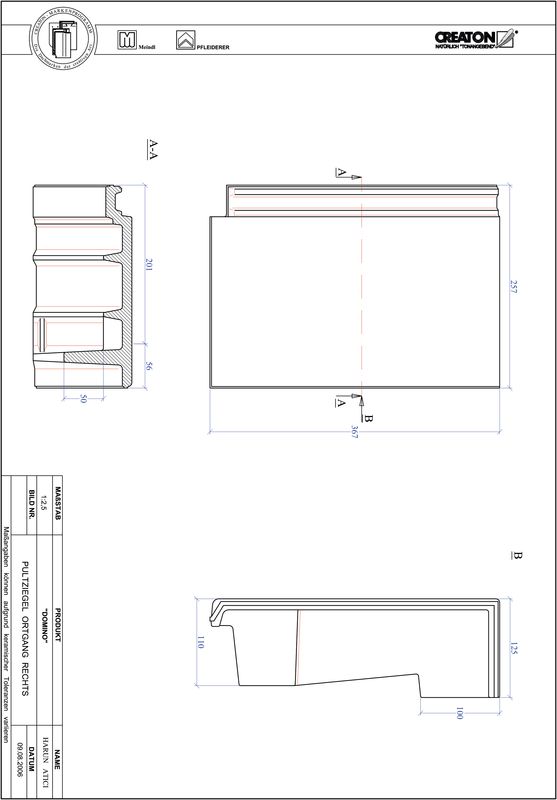

DOM shed roof verge tile decorated standard right

DOM shed roof verge tile decorated standard right

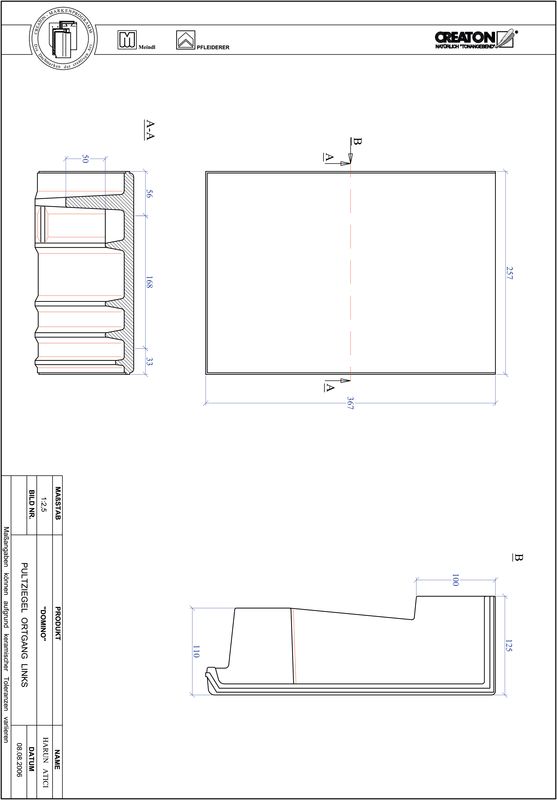

DOM shed roof verge tile decorated standard left

DOM shed roof verge tile decorated standard left

DOM shed half-width tile decorated standard

DOM shed half-width tile decorated standard

DOM shed roof tile decorated special size

DOM shed roof tile decorated special size

DOM shed roof verge tile decorated special size right

DOM shed roof verge tile decorated special size right

DOM shed roof verge tile decorated special size left

DOM shed roof verge tile decorated special size left

DOM mansard/pitch transition tile decorated special size

DOM mansard/pitch transition tile decorated special size

DOM mansard/pitch transition verge tile decorated special size right

DOM mansard/pitch transition verge tile decorated special size right

DOM mansard/pitch transition verge tile decorated special size left

DOM mansard/pitch transition verge tile decorated special size left

Product range for roof ventilation and penetrations

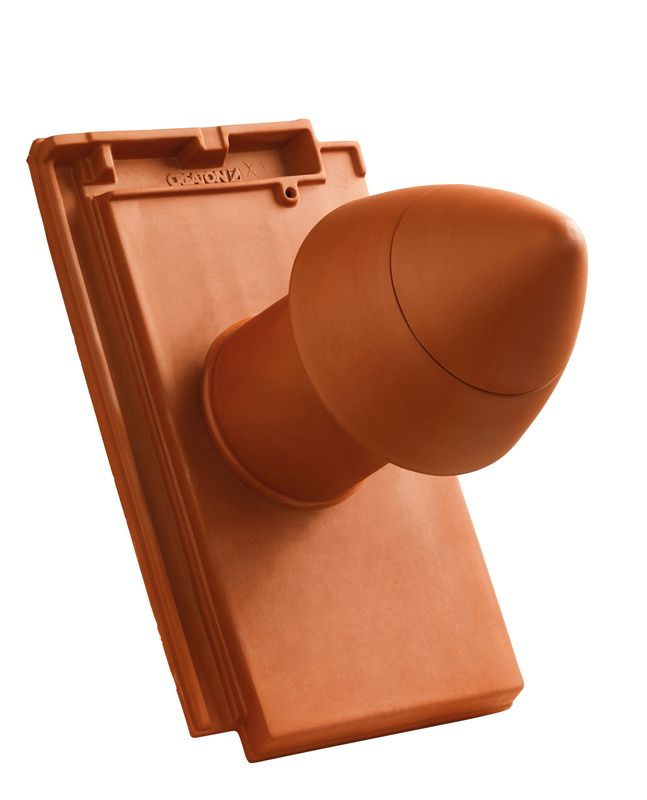

DOM SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

DOM SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

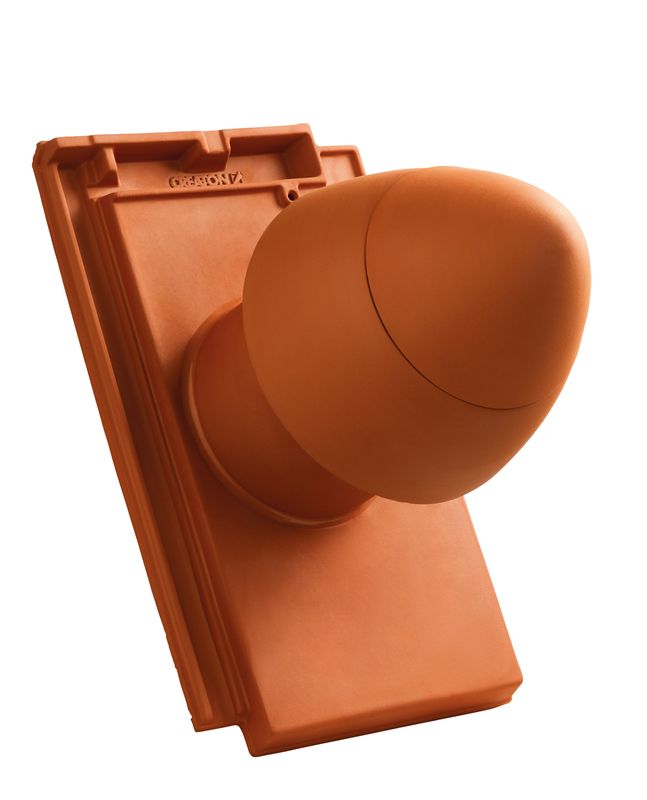

DOM SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

DOM SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

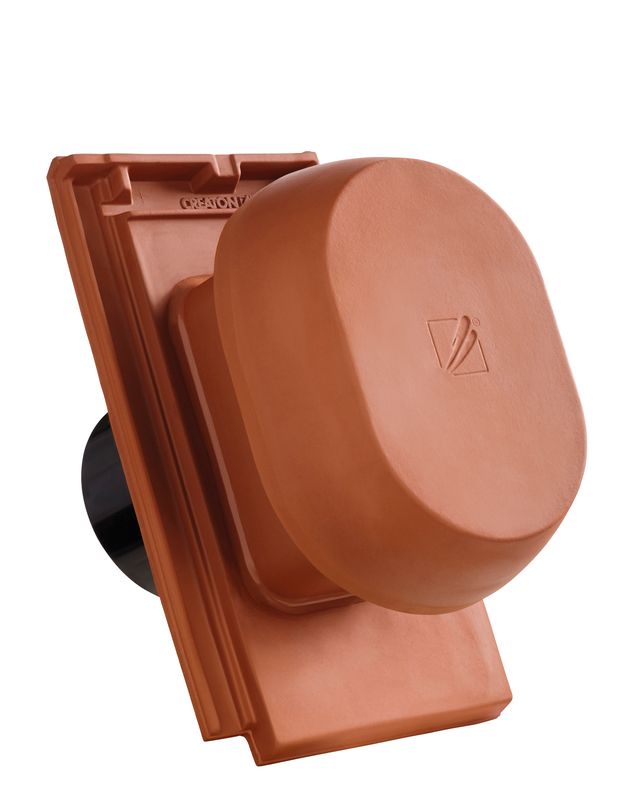

DOM SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

DOM SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

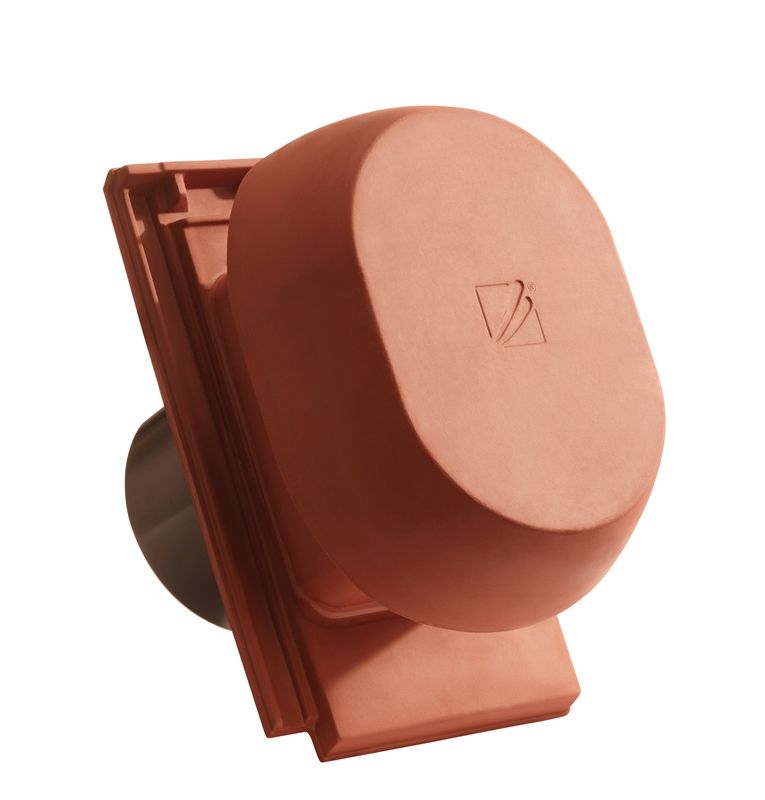

DOM SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

DOM SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

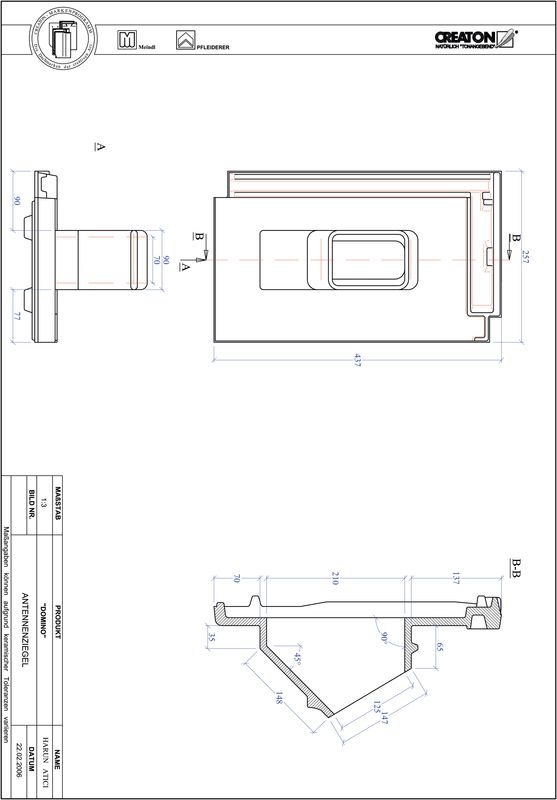

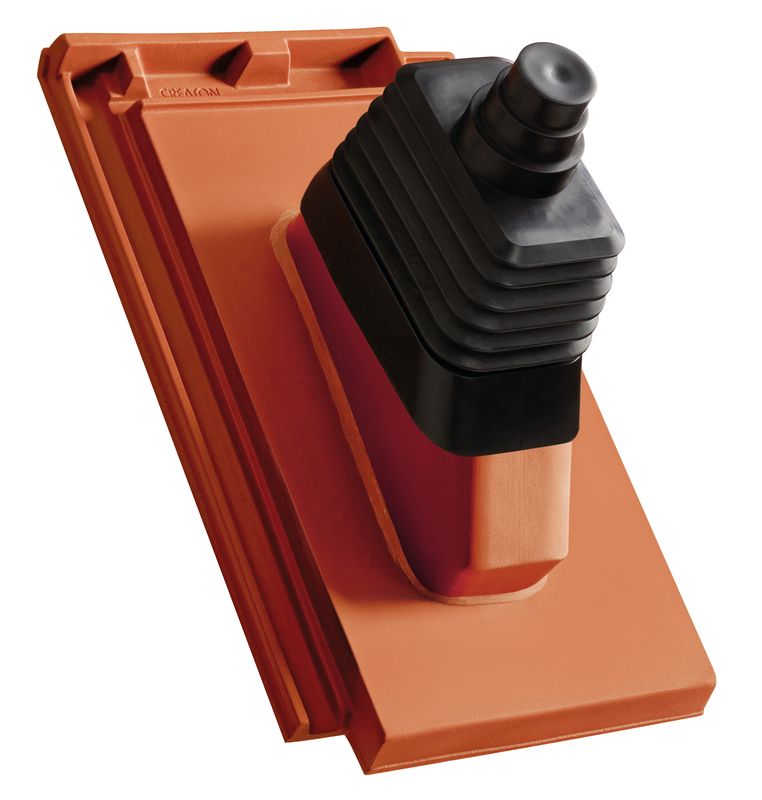

DOM aerial entry

DOM aerial entry

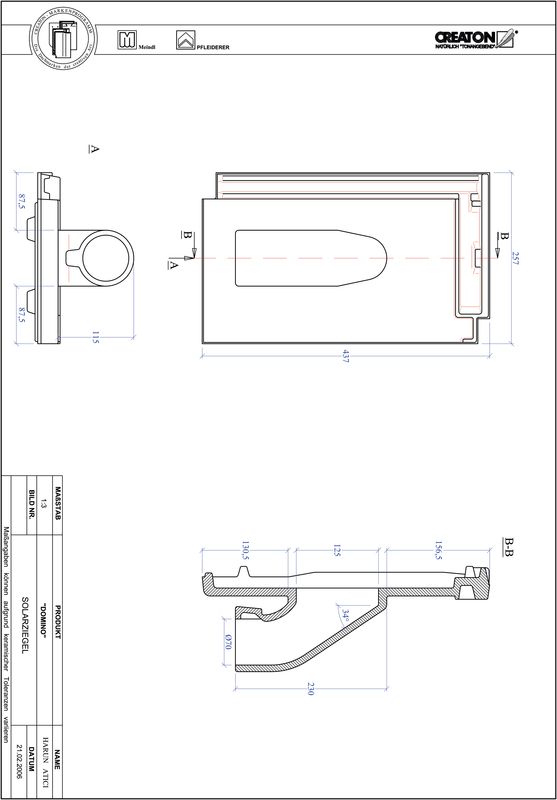

DOM solar entry tile

DOM solar entry tile

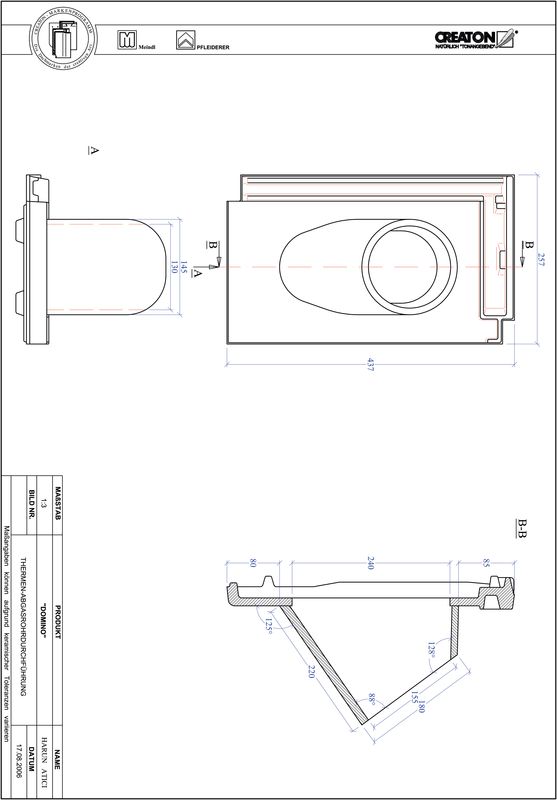

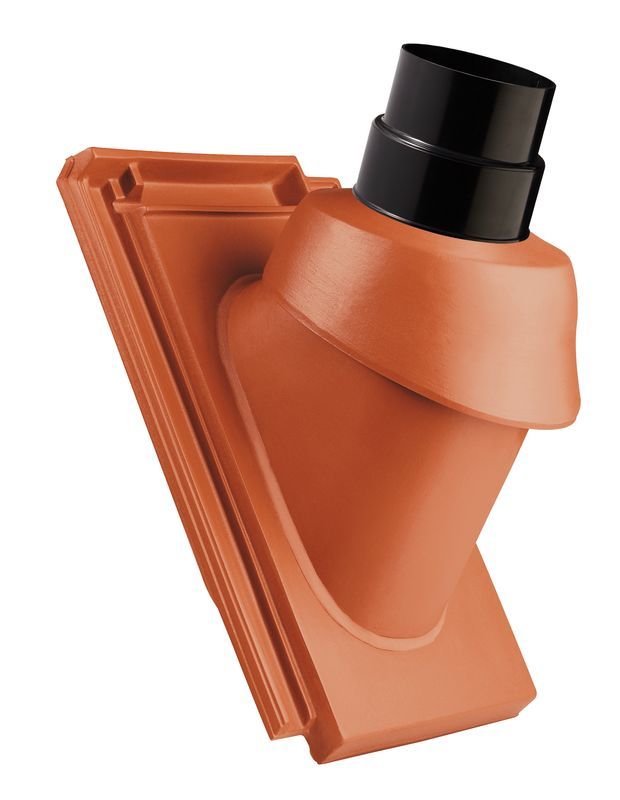

DOM flue pipe penetration NW 110/125

DOM flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Product range for snow protection, roof access and solar installation in metal

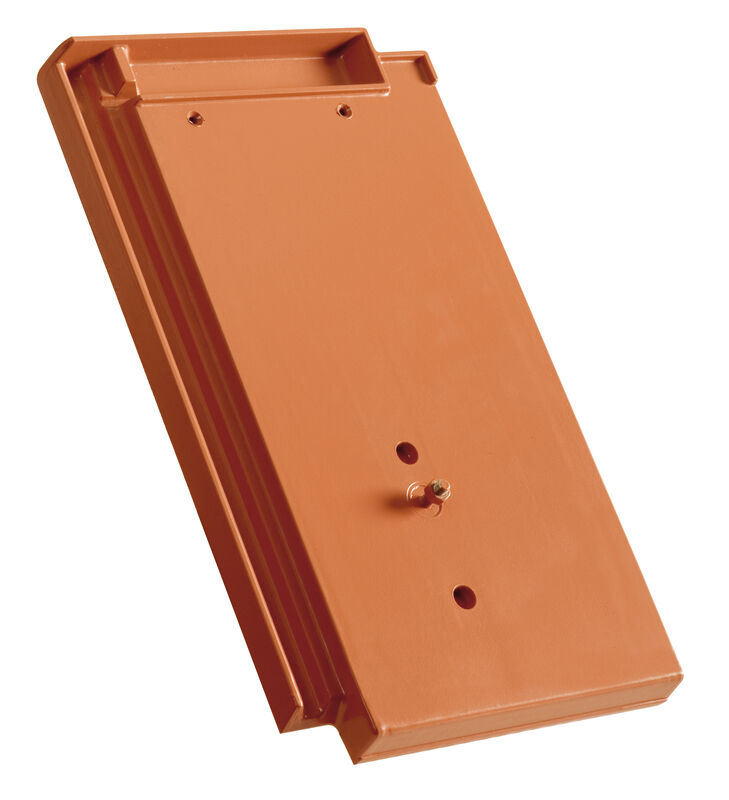

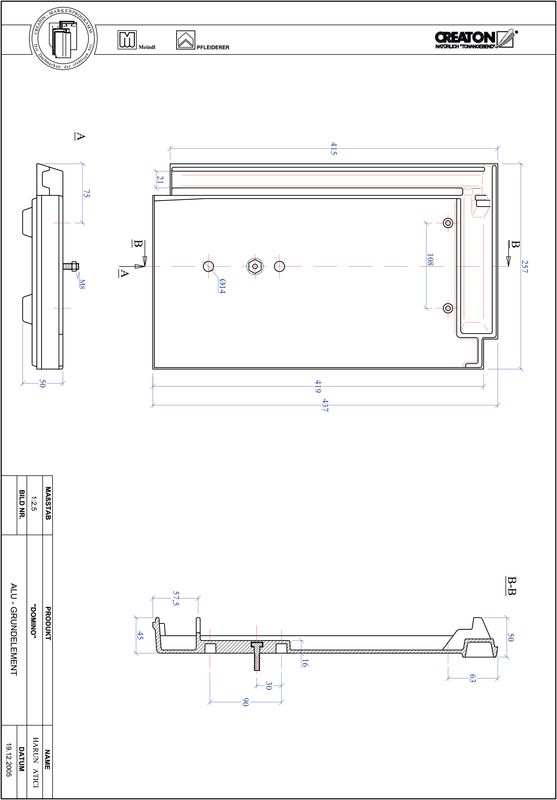

DOM aluminium base element

DOM aluminium base element

Solar element bracket GRUEL smooth tile

Solar element bracket GRUEL smooth tile

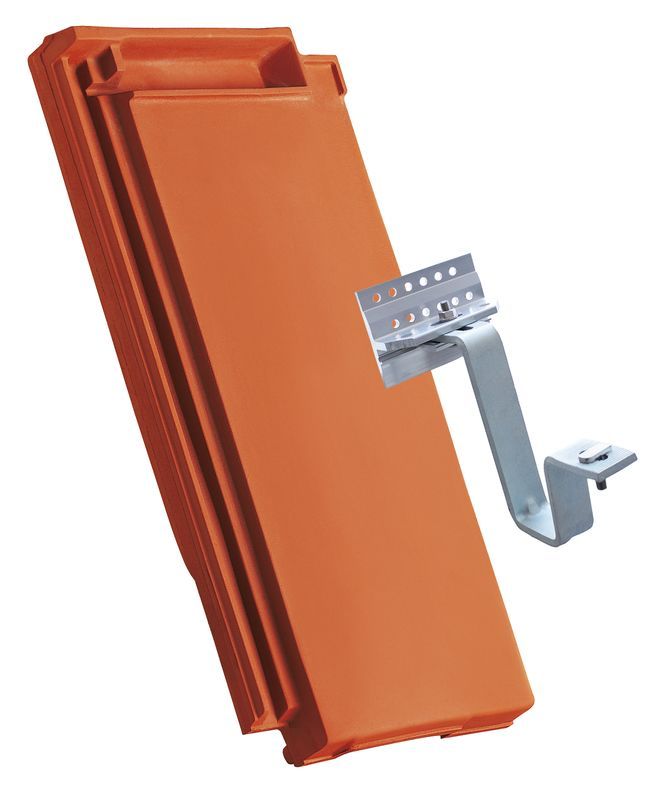

DOM solar system bracket kit for rafter installation

DOM solar system bracket kit for rafter installation

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

MAG snow clip

MAG snow clip

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

Product range for roof details and uplift protection

DOM transparent tile (acrylic)

DOM transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (OPT, DOM, HAR, RUS, GAL, CAN, VIS)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (OPT, DOM, HAR, RUS, GAL, CAN, VIS)

Storm clip in zinc-aluminium, drive-in clip, type N4 (DOM, CAN, ELE, HER, RAT, RUS, VIS)

Storm clip in zinc-aluminium, drive-in clip, type N4 (DOM, CAN, ELE, HER, RAT, RUS, VIS)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Stainless steel screw with seal, length 70 mm

Stainless steel screw with seal, length 70 mm

Hip and valley clip 13-17 mm

Hip and valley clip 13-17 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Ridge and hip tile product range

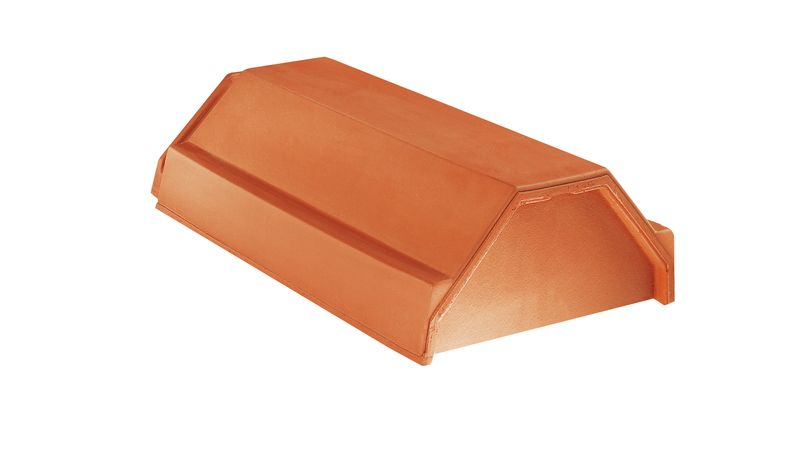

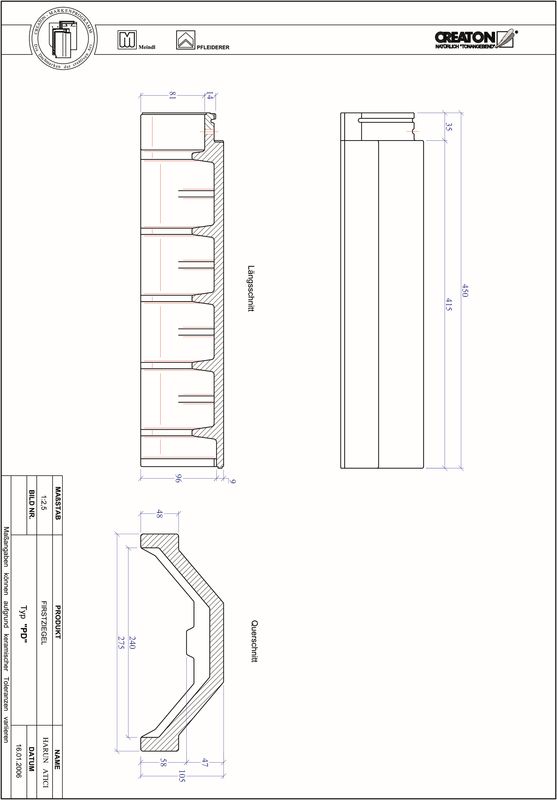

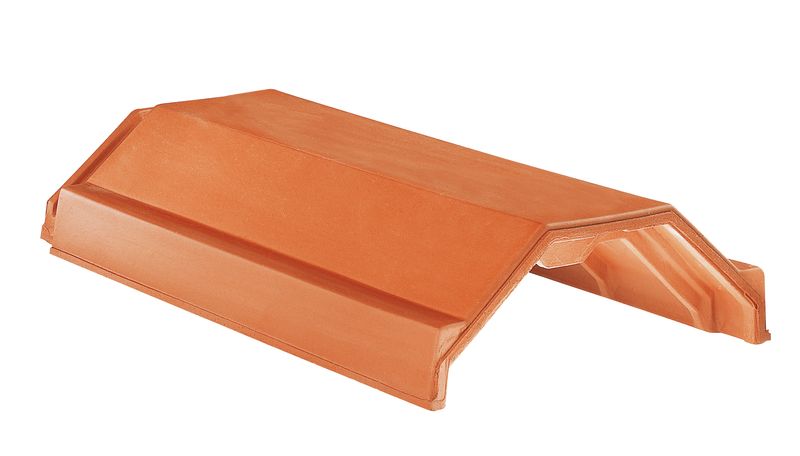

Ridge tile PD GOG (clay)

Ridge tile PD GOG (clay)

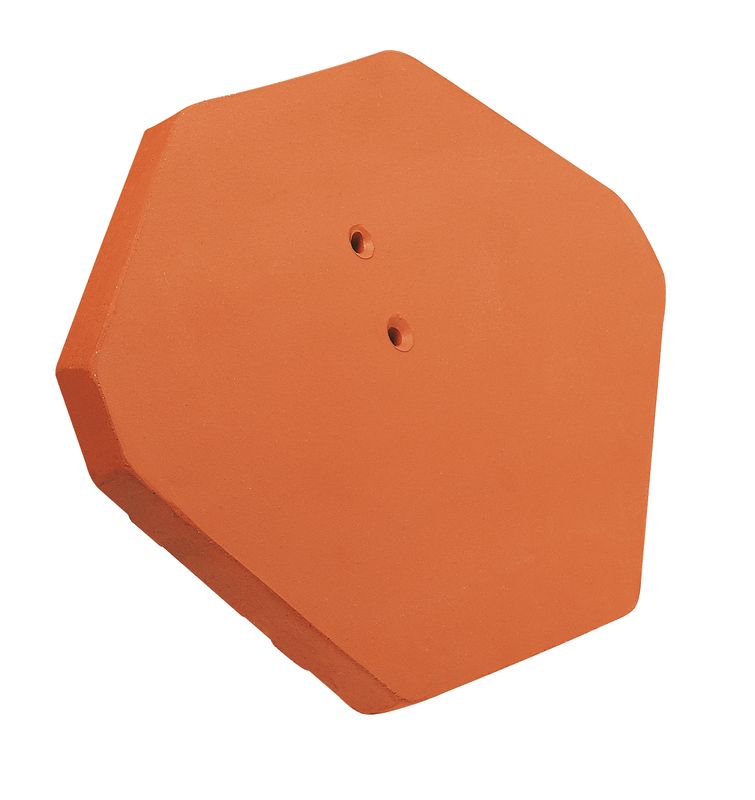

Ridge starter and termination plate ceramic PD GOG (clay)

Ridge starter and termination plate ceramic PD GOG (clay)

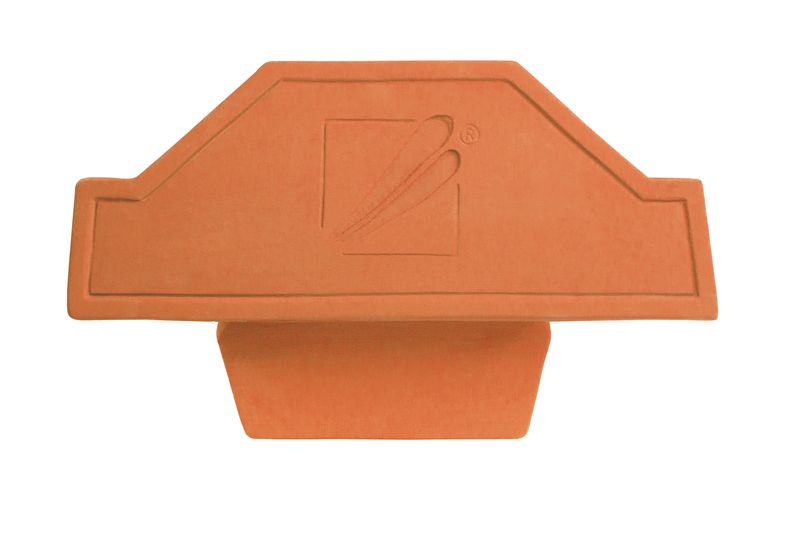

GOG function starter and termination plate ceramic PD

GOG function starter and termination plate ceramic PD

Hip starter ceramic PD GOG (clay)

Hip starter ceramic PD GOG (clay)

GOG hip cap 3-axis PD

GOG hip cap 3-axis PD

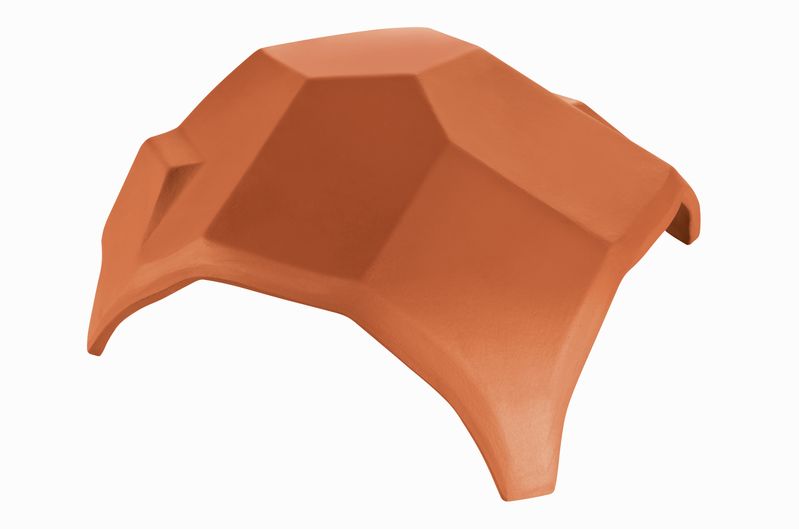

GOG hip cap 4-axis PD

GOG hip cap 4-axis PD

Ridge clip aluminium PD GOG

Ridge clip aluminium PD GOG

FIRSTFIX ridge clip stainless steel PD GOG

FIRSTFIX ridge clip stainless steel PD GOG

FIRSTFIX ridge clip wire universal

FIRSTFIX ridge clip wire universal

FIRSTFIX clip kit universal

FIRSTFIX clip kit universal

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)
